IEEE802.11a/b/g Wireless LAN MiniPCI Module
FX-DS540-MPCI6
User’s Manual (Installation Manual)
CONTEC CO., LTD.
Chapter 1: General Description
This document contains the specifications pertinent to the wireless LAN module (FX-DS540-MPCI6),
which comply with IEEE802.11a, IEEE802.11b and IEEE802.11g.
FX-DS540-MPCI6 is used attaching in the wireless LAN access point.
Features
2.4GHz Wireless LAN module
・ IEEE802.11b and IEEE802.11g compatible
・ BPSK, QPSK, CCK, and DSSS modulation schemes supported Data rates 1, 2, 5.5 and 11Mbps
・ BPSK, QPSK, 16QAM, 64QAM and OFDM modulation shemes supported Data rate 6, 9, 12, 18,
24, 36, 48 and 54Mbps
・ Coax. RF connectors : HIROSE U.FL equivalent
5GHz Wireless LAN module
・ IEEE802.11a compatible
・ BPSK, QPSK, 16QAM, 64QAM and OFDM modulation shemes supported Data rate 6, 9, 12, 18,
24, 36, 48 and 54Mbps
・ Coax. RF Connectors : HIROSE U.FL equivalent
System Functions
・ Low power sleep mode control
・ MiniPCI Interface
・ Radio circuit ON/OFF (RF Disable)
Chapter 2: Characteristics
Table1 : Mechanical Characteristics
Dimensions 31.3 x 59.6 x 2.4 (mm)
Weight 10g

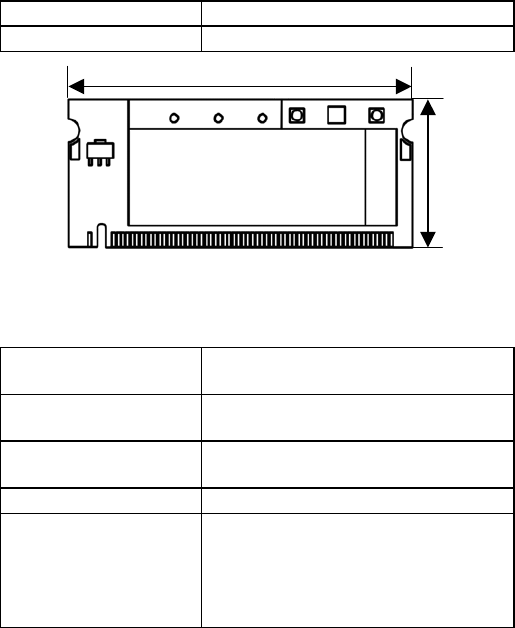

Figure1 : FX-DS540-MPCI6
Table2 : Electrical Characteristics
Supply voltage Vcc Nomial : 3.3V
Extreme : 3.3V +/- 10%
Strage temperature
Humidity
-20 to 80 deg.C
10 to 90%(no-condensing)
Operating Temperature
Humidity
0 to 70 deg.C
10 to 90%(no-condensing)
Regulatory Domain 0x13
Supported Channel *1
IEEE802.11b/g :
1-11ch (2412-2462MHz)
IEEE802.11a :
36-48ch (5180-5240MHz)
149-165ch (5745-5825MHz)
*1 : A user cannot change a supported channel.
59.6
25.5
(mm)
Chapter 3: Setup
FX-DS540-MPCI6 is used attaching in the wireless LAN access point. The wireless LAN access point is
restricted only to CONTEC products.
As an example, the case where it attaches in FX-DS540-STB-NR52-U is introduced.

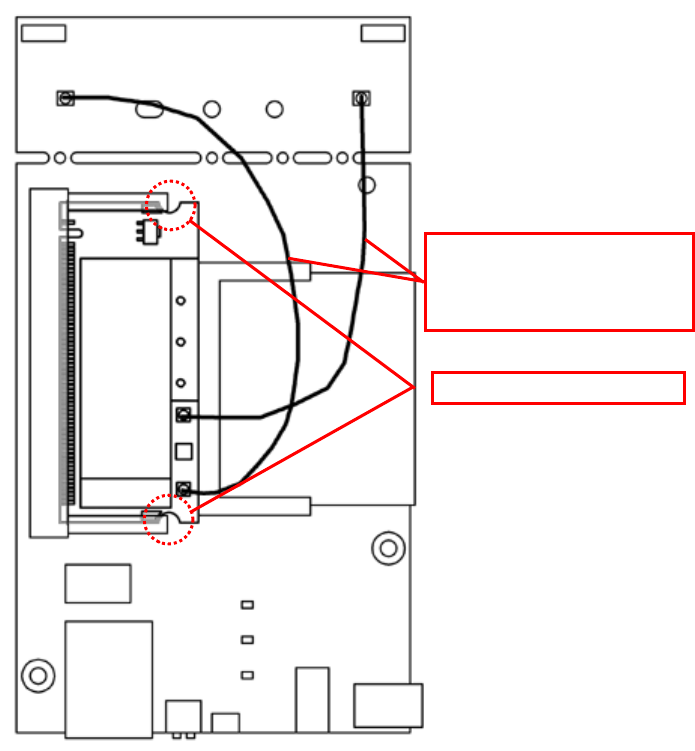

Figure2 : How to attach in FX-DS540-STB-NR52-U
A
ttach a coaxial cable and fix.
(2 places)
Coaxial cable :
U.FL-2LP-04N1-A-(80) (HIROSE)
Fix with a screw lock. (2places)
Chapter 4: Notes
When FX-DS540-MPCI6 is installed in the wireless LAN access point, the following remarks are
to be considered:
1. FX-DS540-MPCI6 is designated its own FCC ID Number: PQRDS540-MPCI6AP; therefore,
the FCC ID Number should be appeared on the label on the exterior of the wireless LAN
access point unless it is visible from outside. Such label on the exterior should include a
statement, either “Contains Wireless LAN Module FCC ID: PQRDS540-MPCI6AP” or
“Contains FCC ID: PQRDS540-MPCI6AP”.
2. FX-DS540-MPCI6 is in compliance with the requirements of sub-sections 15.203, 15.205,
15.207, 15.209, 15.247 and 15.407 of FCC Rules Part 15. FX-DS540-MPCI6 is to be
installed in accordance with their requirements.
3. User Manual of the wireless LAN access point, in which is FX-DS540-MPCI6 installed, will
include the following statements required by FCC.
- FCC WARNING: Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment
- This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
- In according with 47 CFR Part15.407 (e) U-NII devices operating in
5.15-5.25GHz frequency bands are restricted to indoor operations only.
- This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
- This equipment complies with FCC radiation exposure limits set forth for
uncontrolled equipment and meets the FCC radio frequency (RF) Exposure
Guidelines in Supplement C to OET65. This equipment should be installed and
operated with at least 20cm and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and legs).
4. The installers must ensure that the public is not exposed to radio frequency energy levels in
excess of FCC guidelines in accordance with FCC Rules: Part 15 and FCC OET Bulletin 65,
Supplement C.
