Continental Automotive Systems BTHF01 Automotive Bluetooth Hands-Free Interface User Manual 080327 Engish
Continental Automotive Systems, Inc. Automotive Bluetooth Hands-Free Interface 080327 Engish
Exhibit D Users Manual per 2 1033 b3
Automotive Systems Division
User Manual
Chery Bluetooth System
Revision # Date Author(s) Summary Of Changes
1.00 2007-8-1 Ping Zhou Document Create
1.01 2007-10-8 Sam Ma Added end user warning
1.02 2007-10-16 Sam Ma Add the content of BT module mounting place
1.03 2008-03-27 Eric Fritz Added FCC Requirements for North America
2
Features Index
Main Interface......................................................................................................4
1. VR Menu .......................................................................................................4
2. Setup Menu ..................................................................................................4
Paring New Phone ............................................................................................5
Phone Management (Paired but not connected)...............................................6
Phone Management (Paired and connected)....................................................6
Call Announce...................................................................................................7
Prompts.............................................................................................................7
Bluetooth Link Lost............................................................................................7
3. Phone Menu .................................................................................................7
Dial Number ......................................................................................................7
Call History........................................................................................................8
Speed Dial.........................................................................................................9
Phone Voice Name ...........................................................................................9
Managing the Contact List...............................................................................10
Using the Contact List .....................................................................................10
4. Call Menu....................................................................................................12
Handsfree/Privacy Mode .................................................................................12
Mute/Unmute...................................................................................................12
Sending DTMF Tones .....................................................................................14
Hold Call..........................................................................................................14
Call Waiting.....................................................................................................14
5. Other Features ...........................................................................................15
Help Prompts...................................................................................................15
Voicemail/SMS................................................................................................15
Low Battery Warning.......................................................................................15
6. End User Warning......................................................................................15
Warning...........................................................................................................15
Bluetooth Module Mounting place ...................................................................15
3
Introduction
The Chery Bluetooth Handsfree System (Chery BTHF) is a Bluetooth based
product that connects a mobile phone to the audio system of a Chery automobile.
It provides the means to interact with the mobile phone through Voice
Commands and a vehicular button assembly. The Chery BTHF System visits the
wireless network through mobile phones which support Bluetooth Handsfree
Profile. The Chery BTHF System is connected to the vehicle’s audio system.
Prompts from the BTHF system and audio routed from a mobile phone are thus
heard within the vehicle through its internal speakers.
The Chery BTHF System offers the following features:
• Seamless, wireless handsfree audio through Bluetooth connection
-Transfer between Handsfree/Privacy Mode
-Mute/Unmute Microphone Function
-‘Dial Last Missed Call’, ‘Dial Last Received Call’ and ‘Redial’ functions
support
• Pure Speech Environment
-Voice Recognition in Chinese and English
-Audio Prompts in Chinese and English
• Other Features
- Voicemail/SMS
- Low Battery Warning
- Software Reflash over Bluetooth
4
User Guide
Main Interface
Before you can use the Chery BTHF System, you must complete a Bluetooth connection
between the system and the phone, which is also called “Pair the phone”. After
establishment of the connection, the call can be made through the in-vehicle
audio system and in-vehicle microphone.
Once the paired link is set up, the BTHF System remembers the phone’s ID and
the system will automatically connect to the phone every time you start your
vehicle or power up the system.
For Chery M11, the BTHF System shares buttons with the Audio Head Unit.
Long press the “Mode” button to enter BT status. The phone interface will
be displayed on the radio screen.
1. VR Menu
Press SETUP/VR button on the steering wheel to enter VR Menu. Use valid
voice commands to operate the system.
2. Setup Menu
Press SETUP/VR button on the steering wheel or use voice commands to setup
the system such as pairing phone, connection, disconnection remove and etc.
Paring New Phone
1. Long press the SETUP/VR button will initiate a paring sequence to a
mobile phone. The user can also short press the SETUP/VR button to
enter Setup Menu. Use voice command “Pair Device”, then follow the
prompt to launch the paring process. (Figure 2.1 Setup Menu)
2. The system prompts: Set your device in scan mode and enter 0000
when prompted for the pass code.
3. When the mobile phone finishes its search, it will prompt the user to
select the device with which to pair. Select “Chery BTHF” and the phone
will display the pass code entry screen.
4. Enter the pass code: 0000
5. The system prompts: Pairing complete. Please say a friendly name for
the device.
Note: Some phones may ask to accept the BT link. Enter Yes.
6. Please say a friendly name for the device, such as “Zhang San”/ “Moto
V3”
7. Upon successful completion, the system responds: <Device Name>
added.
6

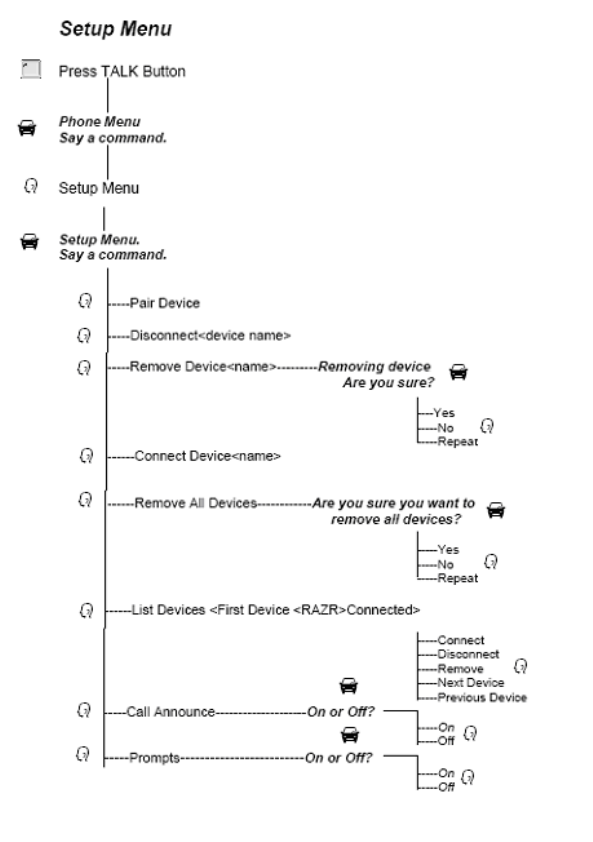

Figure 2.1 Setup Menu
Phone Management (Paired but not connected)
Enter Setup Menu and use voice command “List Devices”. Then follow the
prompts to manage the paired devices.
Phone Management (Paired and connected)
Enter Setup Menu and use voice command “List Devices”. Then follow the
prompts to manage the connected devices.
7
Call Announce
1. Short press SETUP/VR Button to enter the VR Menu. The system prompts:
Setup Menu. Please say a command.
If the system prompts: Phone Menu, use voice command “Setup Menu”
to enter the Setup Menu.
2. Say “Call Announce” (Figure 2.1 Setup Menu)
3. The system responds: On or off
4. Say “On” to turn on the caller ID and contact (only applicable to the voice
tags of the system contact list) announcement function; or say “Off” to turn
off.
Prompts
1. Short press SETUP/VR button to enter the VR Menu. The system prompts:
Setup Menu. Please say a command.
If the system prompts: Phone Menu, then use voice command “Setup
Menu” to enter the Setup Menu.
2. Say “Prompts” (Figure 2.1 Setup Menu)
3. The System responds: On or off
4. Say “On” to open whole voice prompts; or say “Off” to open brief voice
prompts
Bluetooth Link Lost
When Bluetooth link is lost, the BTHF System will automatically switch to privacy
mode to keep the active call on going. Once the Bluetooth link is re-established,
the system will connect to the phone automatically and the current call will be
transferred back to handsfree mode.
3. Phone Menu
When the BTHF System is paired and connected to a mobile phone successfully,
the system will go to idle state and wait for the user’s operation.
Press “Answer” and “End” button on the steering wheel or use voice commands
to access the call related features.
Dial Number
1. Short press SETUP/VR button to enter the VR Menu. The system prompts:
Phone menu. Please say a command.
8
2. Say “Dial Number” (Figure 3.1 Phone Menu)
3. The System responds: Number please.
4. Dictate the phone number as one or more segments. For example: 10086
5. The System recites the digits it heard: 10086
6. Say “Dial” to dial the number; say “Clear” to delete the last string; say “Clear
All” to delete all segments and returns to step 3.

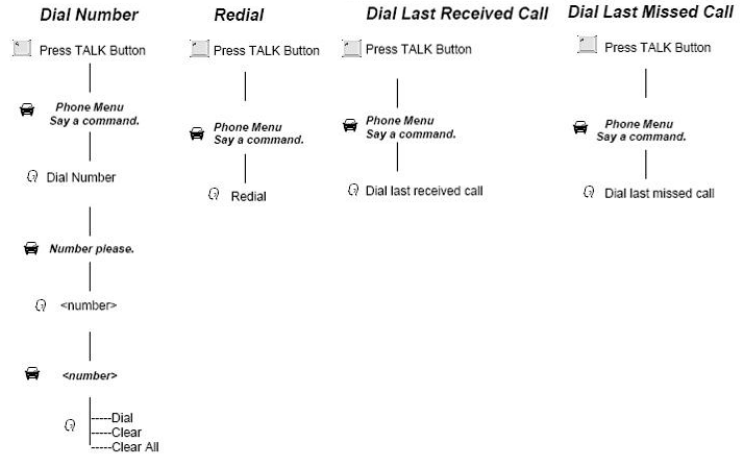

Figure 3.1 Phone Menu
Call History
1. Short press SETUP/VR button to enter the VR Menu. The system prompts:
Phone menu. Please say a command.
2. Say “Redial”, ”Dial Last Missed Call” or ”Dial Last Received Call” to dial
the corresponding number.
Note: “Redial”, “Dial Last Missed Call” and ”Dial Last Received Call”
functions （Speech activated）only act on the last call maintained by the
handset. (Figure 3.1 Phone Menu)
Speed Dial
1. Short press SETUP/VR button to enter the VR Menu. The system prompts:
Phone Menu, please say a command. (Figure 3.2 Speed Dial/Phone
Voice Command)
2. Say “Speed Dial”; the system responds: Speed dial, number please.
3. Say ‘<n>’ where <n> is a number of an existing speed dial entry. For
example: 1
4. The System responds: 1, is this correct?
5. If the number recited is correct, say “Yes” to dial; or say “No” to return to
Step 3.
Phone Voice Name
1. Short press SETUP/VR button to enter the VR Menu. The system prompts:
Phone Menu, please say a command. (Figure 3.2 Speed Dial/Phone
Voice Command)
2. Say “Phone Voice Name”
3. Say “<voice tag>” (where <voice tag> is a voice tag stored in the phone) to
dial the number associated with the phone voice tag.

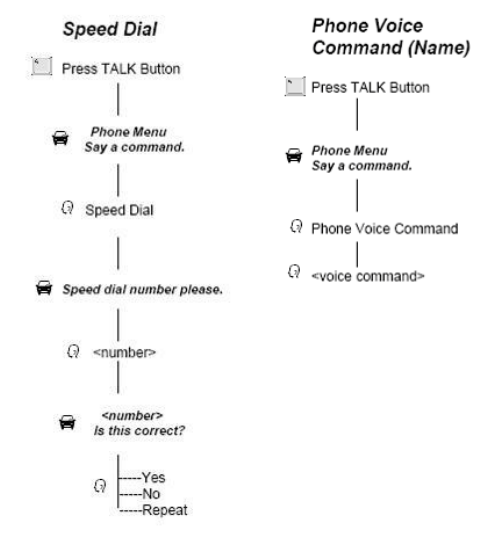

Figure 3.2 Speed Dial / Phone Voice Command
Managing the Contact List
1. Short press SETUP/VR button to enter the VR Menu. The system
prompts: Phone Menu, please say a command. (Figure 3.3 Contact
List)
2. Say “Contact list” to enter the Contact List Menu. The system responds:
Contact List. Please say a command.
Say “Delete <contact>” (where <contact> is a name of the contact
entry), “List Contacts” or “Add Contact” to delete, list or add contacts.
If the contact list is empty, the system will directly enter “Add Contact”
menu.
3. Follow Figure 3.3 Contact List to setup the contact list.
Using the Contact List
1. Short press SETUP/VR button to enter the VR Menu. The system
prompts: Phone Menu, please say a command. (Figure 3.3 Contact
List)
2. Say “Call <contact> (where <contact> is a name of the contact entry).
The system responds: Do you want to call <contact>?
3. Say “Yes” to call the contact; or say “No” to return to Step 2.
11

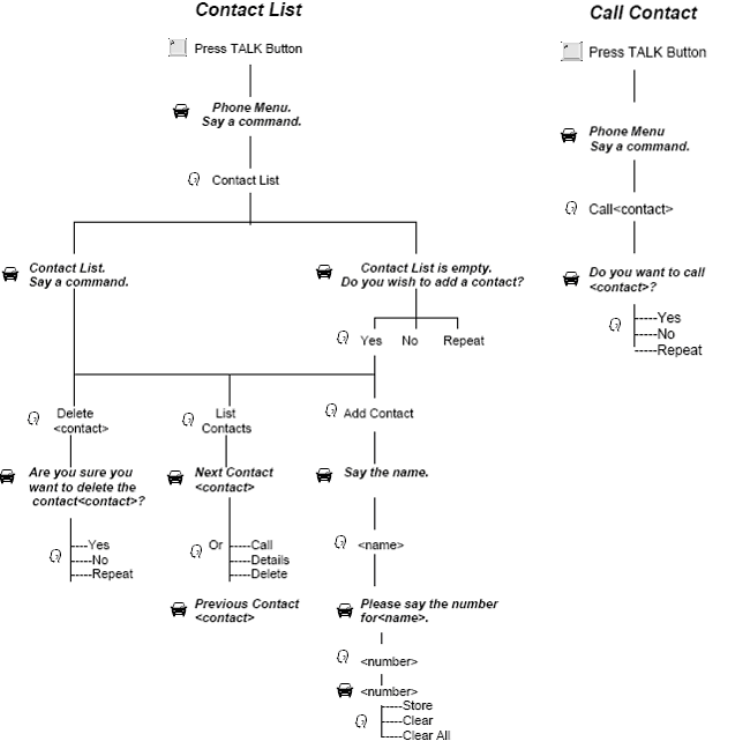

Figure 3.3 Contact List
4. Call Menu
Definition 1： Handsfree/Privacy Mode
The BTHF system can switch the audio and microphone path back and forth
between the mobile phone and the vehicle. Handsfree mode is the method of
communicating through the vehicle interface. Privacy mode is the method of
communicating through the mobile phone interface. The system automatically begins
the call in handsfree mode.
Definition 2： Mute/Unmute
The system can mute and unmute the vehicle microphone. The call cannot be muted
or unmuted while operating in Privacy Mode.
Handsfree/Privacy Mode
1. When a call is in progress, short press SETUP/VR button to enter the
VR Menu. The system prompts: Call Menu, please say a command.
(Figure 3.4 Call Menu)
2. Say “Privacy Mode” to transfer the call to privacy mode.
3. When a call is in progress, short press SETUP/VR button to enter the
VR Menu. The system prompts: Call Menu, please say a command.
(Figure 3.4 Call Menu)
4. Say “Handsfree Mode” to transfer the call to handsfree mode.
Mute/Unmute
1. When a call is in progress, short press SETUP/VR button to enter the
VR Menu. The system prompts: Call Menu, please say a command.
(Figure 3.4 Call Menu)
2. Say “Mute” to mute the microphone
3. When a call is in progress, short press SETUP/VR button to enter the
VR Menu. The system prompts: Call Menu, please say a command.
(Figure 3.4 Call Menu)
4. Say “Unmute” to unmute the microphone.
13

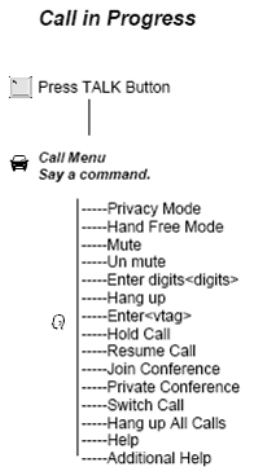

Figure 3.4 Call Menu
Sending DTMF Tones
1. When a call is in progress, short press SETUP/VR button to enter the
VR Menu. The system prompts: Call Menu, please say a command.
(Figure 3.4 Call Menu)
2. Say “Enter digits <digits>” to send numbers as DTMF tones.
Hold Call
1. When a call is in progress, short press SETUP/VR button to enter the
VR Menu. The system prompts: Call Menu, please say a command.
(Figure 3.4 Call Menu)
2. Say “Hold Call” to place the current call on hold
3. Say “Resume Call” to resume the current call
Call Waiting
1. Short press SETUP/VR button to enter the VR Menu. The system
prompts: Call Menu, please say a command. (Figure 3.4 Call Menu)
2. Say “Switch Call” to swap calls (switch between current and held call);
short press the End button to hang up the active call; Long press the End
button to hand up all calls.
5. Other Features
Help Prompts
In any segment of the VR Menu, say “Help” or “Additional Help” to get all
prompts of the current menu.
Voicemail/SMS
When the connected mobile phone receives an SMS message or Voicemail
indication, the Bluetooth System will prompt: You have a new message.
Note: Phone Dependence
Low Battery Warning
If the phone battery is low, the system plays an audio prompt “Phone Battery
Low”.
Note: Phone Dependence
6. End user warning
Warning
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Bluetooth Module Mounting place
The Bluetooth module was mounted behind of the middle part of instrument board in the
vehicle. In the cabin of the vehicle, the Bluetooth module is unseen and untouchable.
Deleted: Changes or modifications
to this unit not expressly approved by
the party responsible for compliance
could void the user’s authority to
operate the equipment. Operation is
subject to the following two conditions:
(1) this device may not cause
interference, and (2) this device must
accept any interference, including
interference that may cause
undesired operation of the devices.¶
