Continental Automotive Systems TVN Module with Multi-Band LTE and WCDMA User Manual TVN OEM Integration Manual v1

Continental Automotive Systems, Inc. Module with Multi-Band LTE and WCDMA TVN OEM Integration Manual v1

User Manual OEM Integration

OEM Integration Manual for TVN (FCC ID: LHJ-TVN, IC: 2807E-TVN)
Integration Guide for TVN Module
1. Product Overview
TVN 4G/3G module is a proprietary modem designed and manufactured by Continental
Automotive Systems, Inc. The modem will be integrated into a telematics control unit (TCU),
designed and developed by Continental Automotive, Inc. The TCU will be installed into
consumer vehicles during the vehicle OEM’s factory assembly process. Primary use-cases are
data-centric with data and voice connections to Telematics Service Providers (TSP).

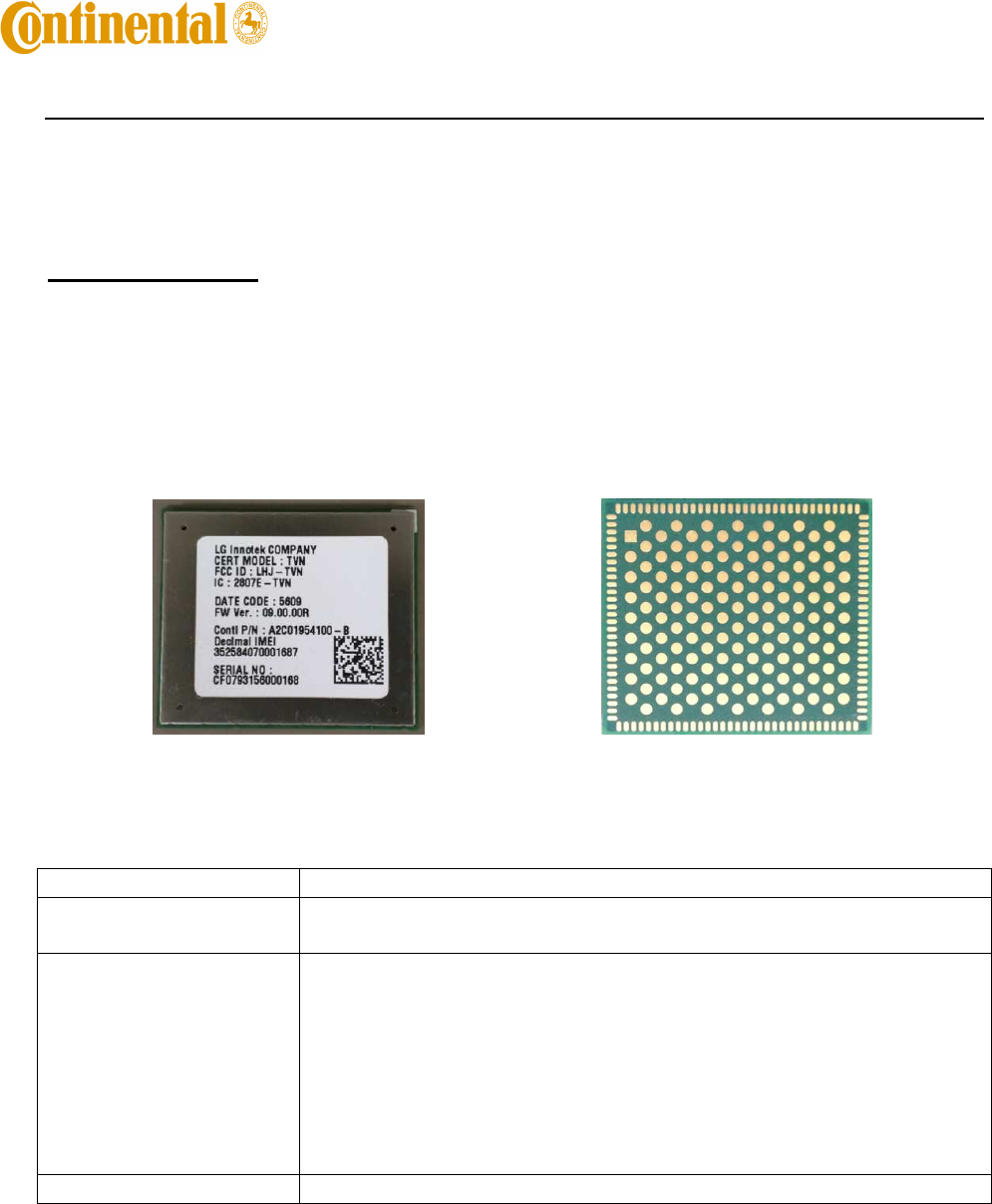

Figure 1. Top view of TVN module. Figure 2. Bottom view of TVN module.
TVN Feature Table:
Feature Description
Operating Bands LTE FDD: 13, 4, 2, and 5
WCDMA: II and V
Application Interface USB
4 wire UART
2 wire UART
Audio: PCM ACC_POWER_ON pin
Hardware Reset Pin
BOOT_OK status pin
MSG indicator pin
JTAG Antenna interface (Primary, MIMO)
Data Services LTE: data rates 100MBps DL / 50Mbps UL
OEM Integration Manual for TVN (FCC ID: LHJ-TVN, IC: 2807E-TVN)
2. Regulatory Compliance Note
FCC:
This device complies with Part 2, Part 22(H), Part 24(E) and Part 27 of the FCC Rules. The FCC
ID for this device is LHJ-TVN. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Industry of Canada:
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.”
« Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement. »
This radio transmitter (2807E-TVN) has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
« Le présent émetteur radio (2807E-TVN) a été approuvé par Industrie Canada pour fonctionner
avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types
d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.»
3. Device Installation and User Manual
The TVN module is a proprietary product designed and manufactured by Continental
Automotive Systems, Inc. for integration into telematics control units manufactured by
Continental Automotive Systems, Inc. for automotive OEMs.
i. The module is limited to installation ONLY in an integrated device manufactured by
Continental Automotive Systems, Inc.
ii. During manufacturing process of the integrated device, the module is soldered onto the pcb of
the integrated device.
iii. The integrated device must provide RF connectors to external antennas. The typical reference
design for the trace layout, including pcb stack-up and trace length is shown below:
OEM Integration Manual for TVN (FCC ID: LHJ-TVN, IC: 2807E-TVN)

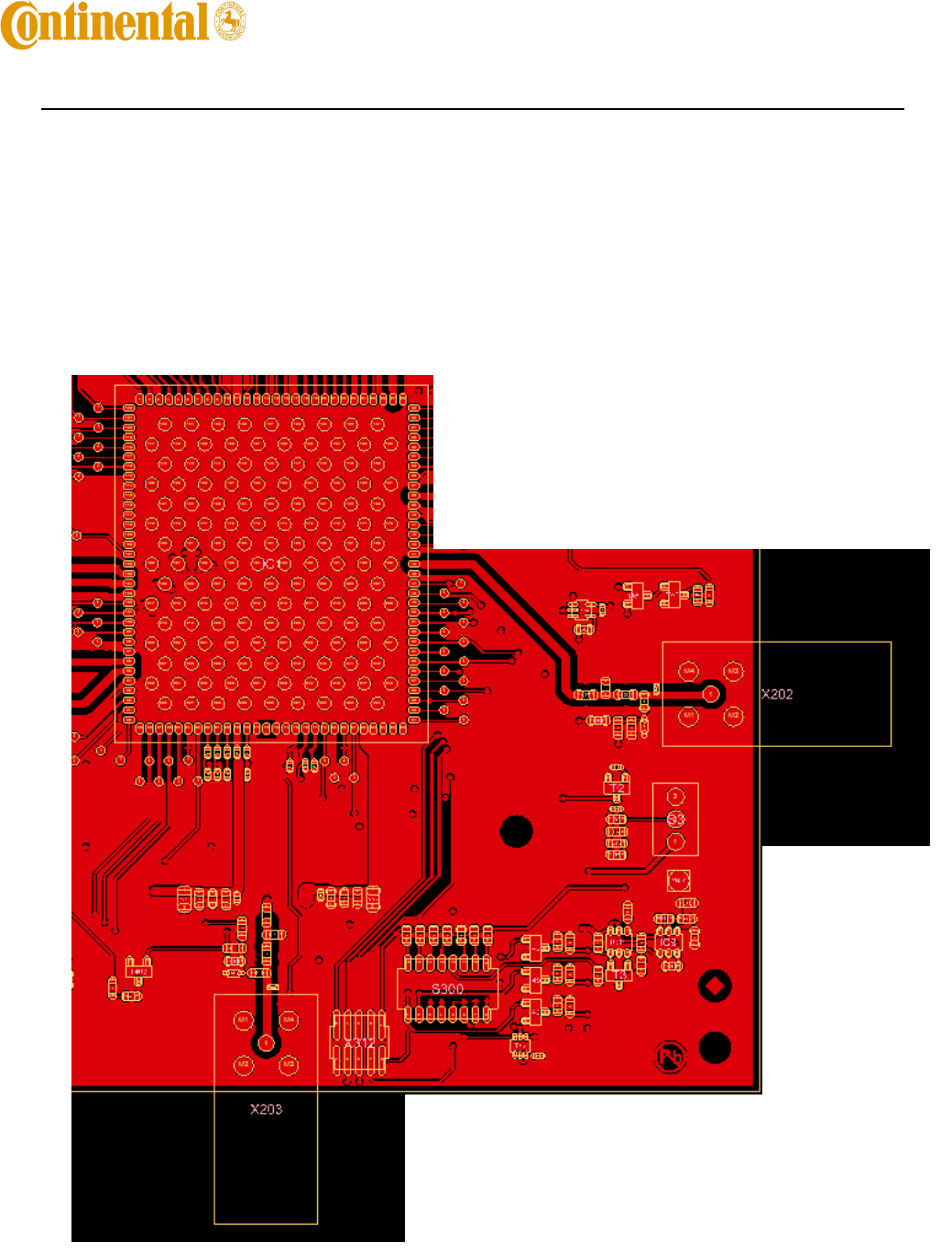

Typical RF trace layout between the TVN module and RF Connector:
Recommended RF Connector Type: Fakra
X203 is the recommended connector location for MIMO1 (primary antenna) connector.
Recommended RF trace length is less than 40 mm.
X202 is the recommended connector location for MIMO2 (diversity antenna) connector.
Recommended RF trace length is less than 45 mm.
OEM Integration Manual for TVN (FCC ID: LHJ-TVN, IC: 2807E-TVN)

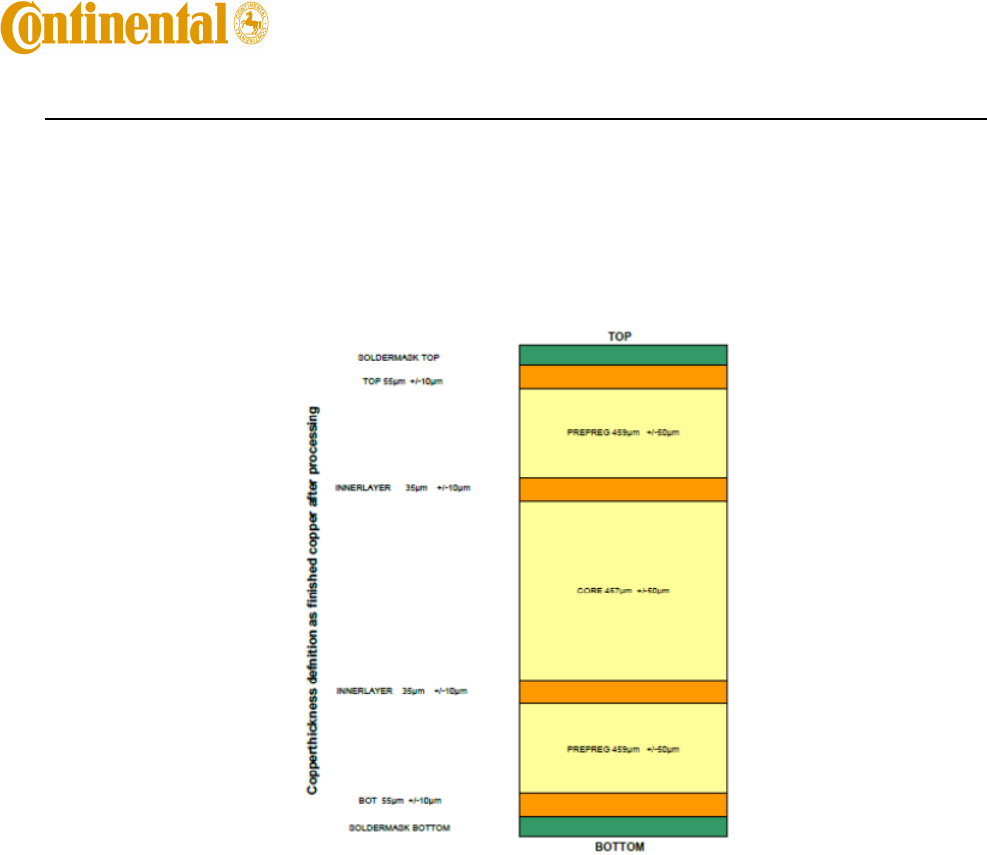

PCB Material: FR 4
PCB design information:
Microstrip on layer 1 with ground on layer 2 / 50 ohm Single Ended Line/ 840 µm W 840 µm S
Stripline on layer 2 with ground on layers 1&3 / 50 Ohm Single Ended Line/ 405 µm W
iv. Automotive OEM is responsible for ensuring that the end-user has no manual instructions to
remove or install module.
v. The module is limited to installation in mobile applications, according to Part 2.1091(b).
vi. No other operation configurations are allowed.
vii. Changes or modifications to this system by other than a facility authorized by Continental
could void authorization to use this equipment.
viii. The module must be installed to provide a separation distance of at least 20 cm from all
persons and must not be co-located or operate in conjunction with any other antenna or
transmitter.
ix. The integrator is responsible for fulfilling FCC and IC requirements for the integrated device.
If Continental chooses to re-use modular approval, then the TCU shall be clearly labeled with
an external label containing the integrated modem’s FCC ID. For example, the label can
include text “Contains device with FCC ID: LHJ-TVN and IC: 2807E-TVN”.
OEM Integration Manual for TVN (FCC ID: LHJ-TVN, IC: 2807E-TVN)
Antenna requirements for use with TVN module:
The module must be installed to provide a separation distance of at least 20cm from all
persons and must not be co-located or operating in conjunction with any other antenna or
transmitter.
The TVN module is for use with external antennas ONLY.
For all operating bands the maximum antenna gain is 6 dBi including cable loss.
The maximum gain of the antenna path (cable loss + antenna gain) shall not exceed the
above mentioned values.
This radio transmitter (FCC ID: LHJ-TVN; IC: 2807E-TVN) has been approved by FCC and
Industry Canada to operate with the antenna types listed below with the maximum permissible
gain indicated. Antenna types not included in this list, having a gain greater than the maximum
gain indicated for that type, are strictly prohibited for use with this device.
« Le présent émetteur radio (ID: LHJ-TVN; IC: 2807E-TVN) a été approuvé par Industrie
Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est supérieur
au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.»
4. Instructions to OEMs:
Continental must instruct the automotive OEM and provide them to include the following
information into the car user’s manual (i.e. for the TCU):
1. End-users must be provided with transmitter/antenna installation requirements and
operating conditions for satisfying RF exposure compliance:
2. A separate section should clearly state “FCC RF Exposure requirements:”
3. Required operating conditions for end users.
4. The antenna used with this decice must be installed to provide a separation distance of
at least 20cm from all persons, and must not transmit simultaneously with any other
transmitter, except in accordance with FCC multi-transmitter product procedures.
5. The Maximum ERP/EIRP and maximum antenna gain required for compliance with
Part 22H, 24E, and 27.
6. Clear instructions describing the other party’s responsibility to obtain station licensing.
