1. GENERAL DESCRIPTION OF THE RF TRANSMITTER
The Mazda J61/J64 RKE transmitter is a handheld device to remotely control
a vehicle's locking and alarm system by pressing the pushbuttons.
Delivered by Siemens is only the transmitter part with the pushbutton
electronics. It is intended to be put together with the flip-fork (right side of the
picture) which is delivered to Mazda by the lockset supplier. It provides
mechanical access to the vehicle and start of the car using a separate,
discrete transponder.

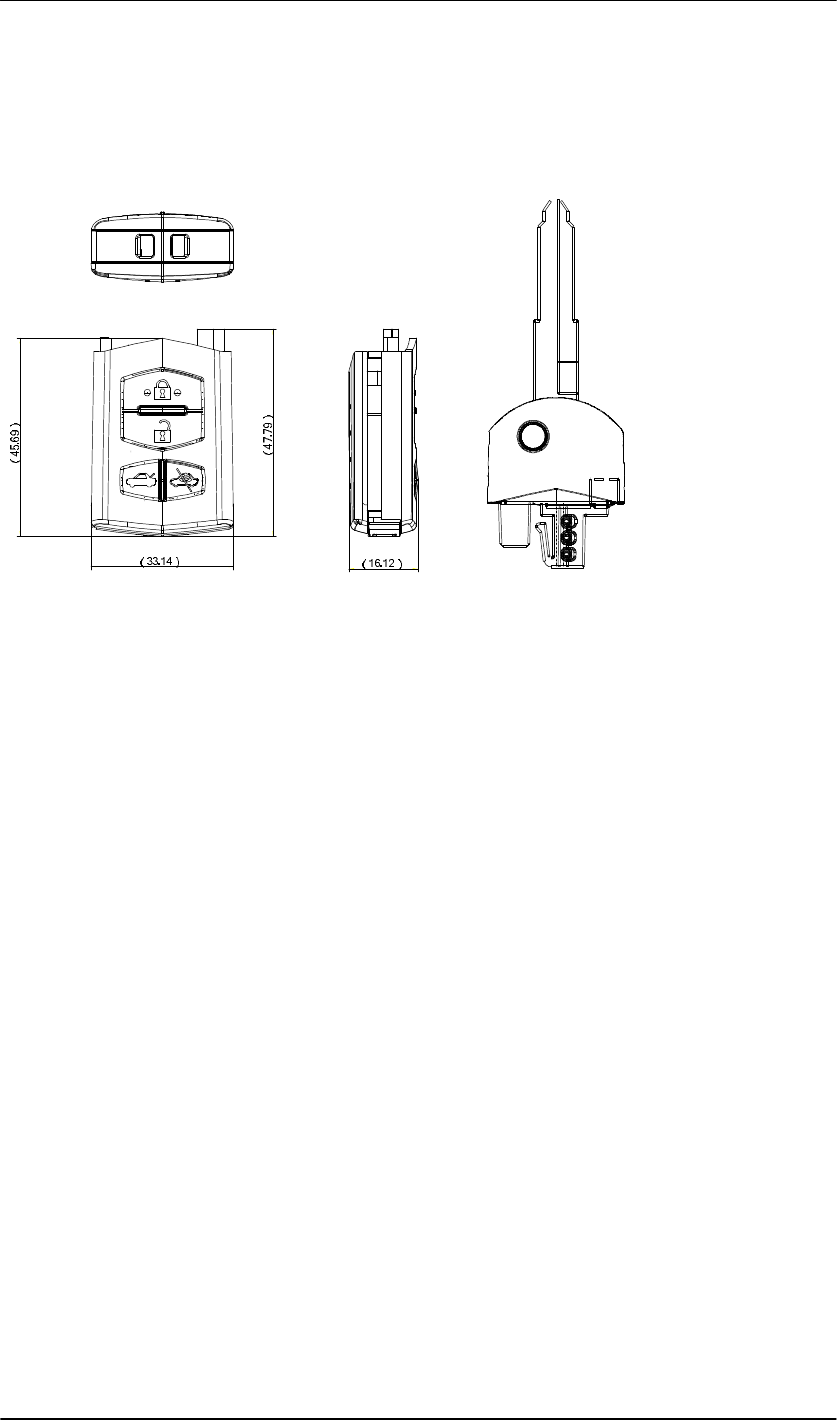

The picture shows the four-button variant of the transmitter.
There are variants of the transmitter with two, three, or four buttons, listed in
the following table.
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK43451 FCC ID:KR55WK43451
I:\POSTZULA\Mazda\Key_RKE\Technische_Doku_doc\Func_Description_Mazda-RKE-Transmitter.doc Page 3 of 4
2. POWER SUPPLY
The transmitter is provided with 1 lithium battery (CR1620) that gives a
power supply of +3V.
3. TYPICAL USAGE PATTERN (FOR EUROPE ONLY)
20 lock/unlock operations in 24 hours with complete transmission duration
of
2.0 seconds (100ms/operation)
4 lock/unlock operations in 24 hours with transmission duration
of 26 seconds ( 6.5 seconds for 1 operation; max. value)
→ total transmission duration of 28 seconds within 24 hours
Transmitter ON 1.2 seconds / hour
Transmitter OFF 3598.8 seconds / hour
Duty Cycle: TON / T (ON+OFF) x 100% = 1.2/ 3600 x 100 % = 0.033 %
Siemens
MLFB 5wk4
3408 5wk4
3409 5wk4
3430 5wk4
3449 5wk4
3450 5wk4
9365 5wk4
3451
SV TNS A2C53213832 A2C53213834 A2C53213835 A2C53213836 A2C53213837 A2C53213838 A2C53213839
Mazda Number D01G 675DY DH55 675DY G33D 675DY GS1F 675DY DH58 675DY GS1G 675DY GS4B 675DY
Frequency
variant
315 MHz
LP
(Japan)
433.92
MHz
(EU)
315 MHz
LP
(Japan)
433.92
MHz
(EU)
433.92
MHz
(EU)
433.92
MHz
(EU)
315 MHz
HP (US)
Number of
buttons 2 buttons
2 buttons
3 buttons
3 buttons
3 buttons
4 buttons
4 buttons
Button 1 lock lock lock lock lock lock lock
Button 2 unlock unlock unlock unlock unlock unlock unlock
Button 3
(middle) --- --- trunk trunk cancel
Button 3
(left) trunk trunk
Button 4
(right) --- --- --- --- --- cancel panic
Schematic v32 v12 v33T v13T v13C v14TC v24TP
40154696 40154697 40139189 40154698 40154699 40139187 40139188
assembled PCB A2C53218454 A2C53218455 A2C53218456 A2C53218457 A2C53218458 A2C53218459 A2C53218460
SW ID (variant) 220702 220702 220702 220702 220702 220702 220702
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK43451 FCC ID:KR55WK43451
I:\POSTZULA\Mazda\Key_RKE\Technische_Doku_doc\Func_Description_Mazda-RKE-Transmitter.doc Page 5 of 4
5. TECHNICAL DATA
RKE Tx Electrical characteristics
RKE Tx Europe (433.92MHz) variants:
Variants Siemens
MLFB Mazda Number
Europe 2-button Lock-Unlock 5wk4 3409 DH55 675DY
Europe 3-button Lock-Unlock-Trunk 5wk4 3449 GS1F 675DY
Europe 3-button Lock-Unlock-Cancel 5wk4 3450 DH58 675DY
Europe 4-button Lock-Unlock-Trunk-Cancel 5wk4 9365 GS1G 675DY
Parameter (@+22.5°C) Unit
Min. Typ. Max.
Center frequency MH
z 433.820 433.920 434.020
Frequency shift kHz ± 20 ± 35 ± 50
RF-Power (EIRP typ.) mW < 10
RKE Tx US (315 MHz High Power) variants:
Variants Siemens
MLFB Mazda Number
US 4-button Lock-Unlock-Trunk- Panic 5wk4 3451 GS4B 675DY
Parameter (@+22.5°C) Unit
Min. Typ. Max.
Carrier frequency MH
z 314.900 315.000 315.100
Frequency shift kHz ± 20 ± 35 ± 50
RF-Power (EIRP typ.) dBµ
V/m < 75.6
Parameter Unit Min. Typ. Max.
Supply voltage V 2.1 3 3.6
Quiescence current µA 0.9 1.6
Battery lifetime (10 actuations per day)
[/years] a 2
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK43451 FCC ID:KR55WK43451
I:\POSTZULA\Mazda\Key_RKE\Technische_Doku_doc\Func_Description_Mazda-RKE-Transmitter.doc Page 6 of 4
RKE Tx Japan (315 MHz Low Power) variants:
Variants Siemens
MLFB Mazda Number
Japan 2-button Lock-Unlock 5wk4 3408 D01G 675DY
Japan 3-button Lock-Unlock-Trunk 5wk4 3430 G33D 675DY
Parameter (@+22.5°C) Unit
Min. Typ. Max.
Carrier frequency MH
z 314.900 315.000 315.100
Frequency shift kHz ± 20 ± 35 ± 50
RF-Power (EIRP typ.) dBµ
V/m < 54.0
NOTE:
Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
6.1 LABEL DESIGN Europe (434 MHz)
Siemens VDO
5WK4 9365
6.2 LABEL DESIGN CANADA, MEXICO, USA (315 MHz)
Siemens VDO
5WK4 3451
IC: 267T-5WK4 3451
FCC ID:KR55WK4 3451
Entry Owners Manual, Canada, USA:
NOTE
This device complies with part 15 of the FCC Rules and RSS-210.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept interference
received, including interference that may cause undesired operation.
COUTION
Changes or modifications not expressly approved by the manufacturer
could avoid the user's authority to operate the equipment.
