Continental Automotive Technologies 5WK45694 (Key) Transmitter User Manual
Continental Automotive GmbH (Key) Transmitter Users Manual
Users Manual
Annex No.5
User Manual
Key: 5WK4 5694
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK45694 FCC ID:KR55WK45694
I:\POSTZULA\EuCD\CID\Technische_Doku_doc\Copy of Func_Jaguar_CID_X150_315.doc Page 1 of 4
User Manual
of the
Siemens VDO
Radio Frequency Transmitter
type 5WK45694
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK45694 FCC ID:KR55WK45694
I:\POSTZULA\EuCD\CID\Technische_Doku_doc\Copy of Func_Jaguar_CID_X150_315.doc Page 2 of 4
1. GENERAL DESCRIPTION OF THE RF TRANSMITTER
The RF remote control system consists of a RF transmitter and a RF
receiver mounted on a control unit. The RF transmitter is mechanically
integrated in the head of the key. This transmitter is used to transmit
information for locking or unlocking the vehicle by a unidirectional RF
transmission line for normal remote operation by pressing a button.
Also is implemented the function of the Immobilizer in the transmitter with a
bidirectional LF – transmission (passive).
In general the following functions are provided:
- Lock the car
- Unlock the car
- Unlock the boot lid of the car
- Approach light
- Panic alarm
- Immobilizer
2. POWER SUPPLY
The transmitter is provided with 1 lithium battery (CR 2032) that gives a
power supply of +3V.
3. BUTTONS
There are five buttons with following functions:
Action: Usage:
Central locking
Activation of Alarm system
Pressing the lock button
Deactivation of Panic Alarm
Pressing the lock button for 1,5 sec. Comfort closing
Central unlocking
Deactivation of Alarm system
Pressing the unlock button
Deactivation of Panic Alarm
Pressing the unlock button for 1,5 sec. Comfort opening
Pressing the unlock button twice within 10 sec. Two-step unlocking
De-/activation of Approach Light
Deactivation of Panic Alarm
Pressing the approach light button
Pressing the approach light button for 1,5 sec.
Unlocking of Boot lid Pressing the boot lid button Deactivation of Panic Alarm
Activation of Panic Alarm Pressing the panic button for 3 sec or pressing
it twice within 3 sec. Deactivation of Panic Alarm
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK45694 FCC ID:KR55WK45694
I:\POSTZULA\EuCD\CID\Technische_Doku_doc\Copy of Func_Jaguar_CID_X150_315.doc Page 3 of 4
During activation, the button is forced to the ground via a “pull-up” within
the microcontroller.
4. TYPICAL USAGE PATTERN (for Europe only)
10 lock/unlock operations in 24 hours with complete transmission duration of
1.0 seconds (100ms/operation)
4 lock/unlock operations in 24 hours with transmission duration of 40 seconds (10
seconds for 1 operation; max. value)
→ total transmission duration of 41 seconds within 24 hours
Transmitter ON 1.7 seconds / hour
Transmitter OFF 3598.3 seconds / hour
Duty Cycle: TON / T (ON+OFF) x 100% = 1.7/ 3600 x 100 % = 0.05 %

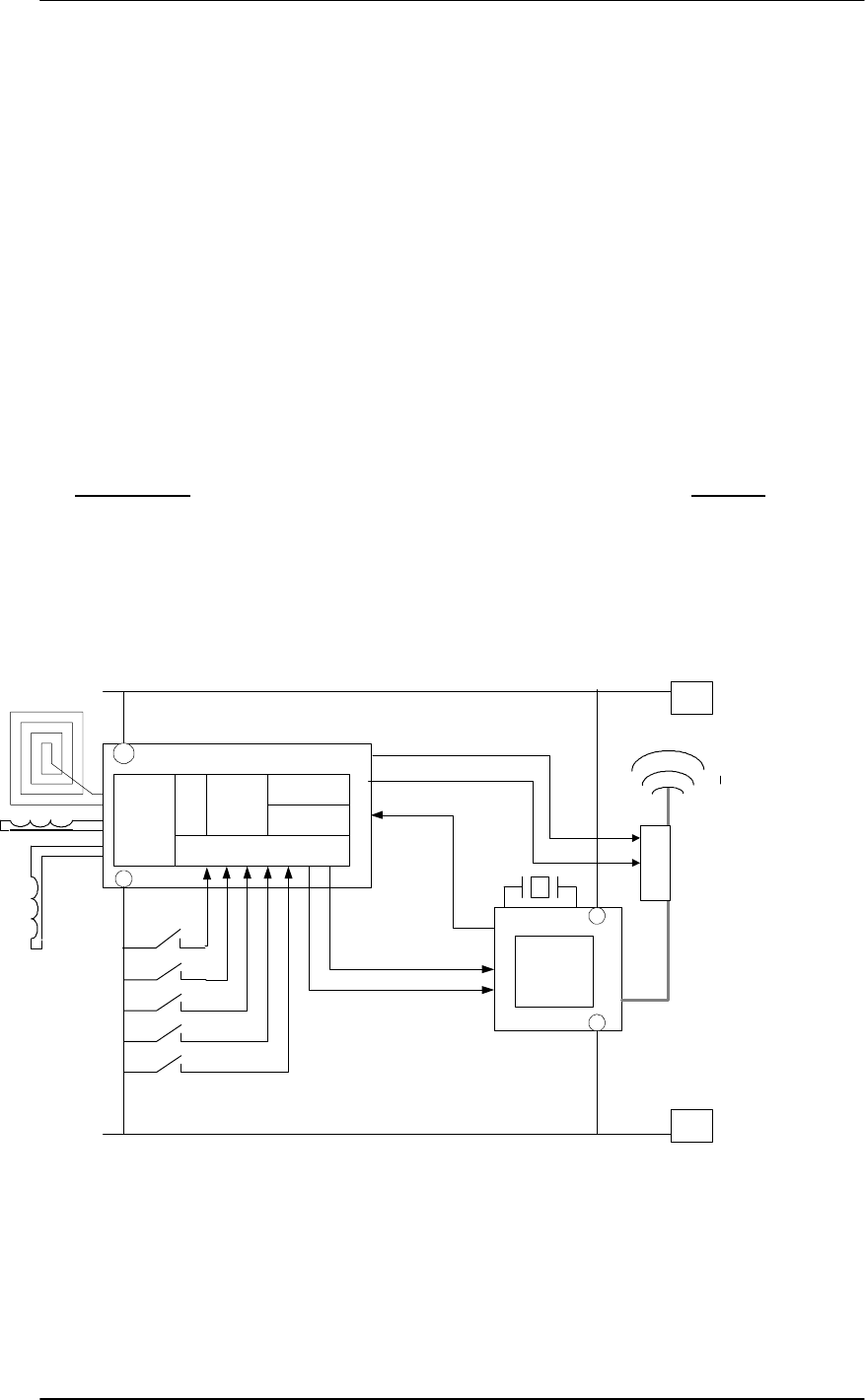

5. BLOCK DIAGRAM OF THE TRANSMITTER
ATIC37full
IO Ports
Vdd
Vss
-
+
-
+
TDA5100
Processor
Core
LF
Frontend
RF-data
2,0 kit/s ASK
8,0 kBit/s FSK
PLL
transmitter
(ASK / FSK)
315 Loop
Antenna
Buttons
Battery
minus
Battery
plus
Quartz
13 ,5687 MHZ
memory
state machine
timer/counter
RF Stage
µC-reference frequency
848,0 kHz
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK45694 FCC ID:KR55WK45694
I:\POSTZULA\EuCD\CID\Technische_Doku_doc\Copy of Func_Jaguar_CID_X150_315.doc Page 4 of 4
6. TECHNICAL DATA
Carrier frequency: 315 MHz ± 0.05%
Output power: < 10 mW
Type of modulation: ASK / FSK
Method of frequency generation: PLL
Number of channels: 1
Power supply: battery (CR 2032)
Type of battery: lithium
Transmission range: < 50 m
NOTE:
Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
7. LABEL DESIGN CANADA, MEXICO, USA
Siemens VDO
5WK45694
IC: 267T-5WK45694
FCC ID:KR55WK45694
Entry Owners Manual, Canada, USA:
NOTE
This device complies with part 15 of the FCC Rules and RSS-210.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept interference
received, including interference that may cause undesired operation.
COUTION
Changes or modifications not expressly approved by the manufacturer
could avoid the user's authority to operate the equipment.
