Continental Automotive Technologies 5WK49143 KEY 5WK4 9143 User Manual Func PL2 ID
Continental Automotive GmbH KEY 5WK4 9143 Func PL2 ID
User Manual
Siemens VDO Automotive AG SV C BC P2 RF TG
IC: 267T-5WK49143 FCC ID:KR55WK49143
C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 1 of 6
User Manual
of the
Siemens VDO
Remote Control System
Type:
PL2 ID
Siemens VDO Automotive AG SV C BC P2 RF TG
IC: 267T-5WK49143 FCC ID:KR55WK49143
C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 2 of 6
General description of the RF transmitter PL2 ID
The RF remote control system consists of a RF transmitter and a RF receiver
mounted within the control unit. The RF transmitter is mechanically integrated
in the head of the key. This transmitter is used to transmit an information for
locking or unlocking the vehicle by an unidirectional RF transmission line for
normal remote operation by pressing a button.
In general the following functions are provided:
- Lock the car
- Unlock the car
- Unlock the trunk of the car
Power supply
The transmitter is provided with 1 Lithium battery (CR 2032) that gives a
power supply of +3V.
Buttons
There are three buttons which enable to lock and unlock the doors and to
unlock the trunk.
During activation, the button is forced to the ground via a “pull-up” within the
microcontroller.
Typical usage pattern (for Europe only)
10 lock/unlock operations in 24 hours with typical transmission duration of 2 seconds
→ 0,42 lock/unlock operations with one hour
Transmitter ON 0.84 seconds / hour
Transmitter OFF 3599.16 seconds / hour
Duty Cycle: TON / T (ON+OFF) x 100% = 0.84 / 3,600 x 100 % = 0.02%
Siemens VDO Automotive AG SV C BC P2 RF TG
IC: 267T-5WK49143 FCC ID:KR55WK49143
C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 3 of 6

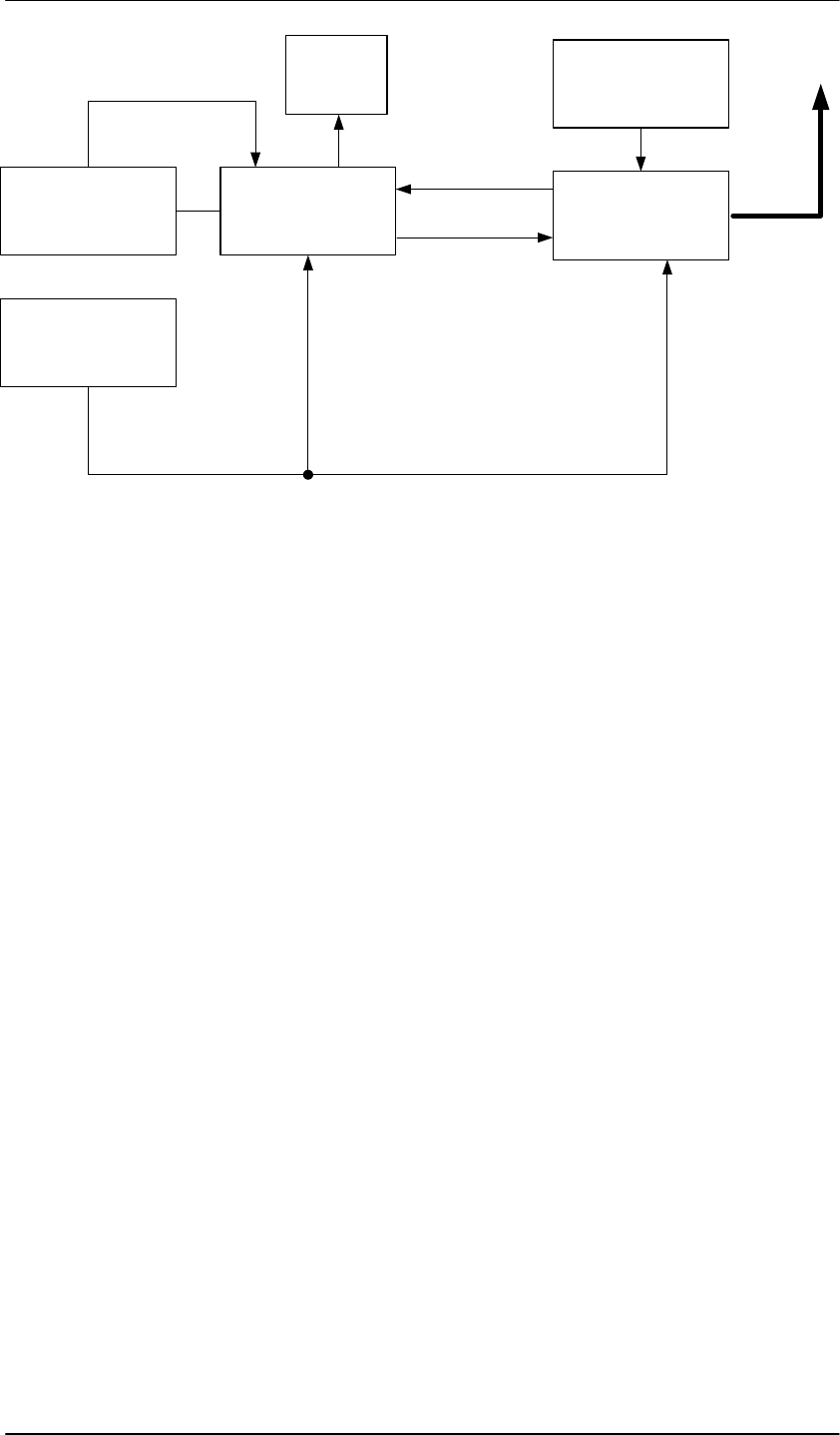

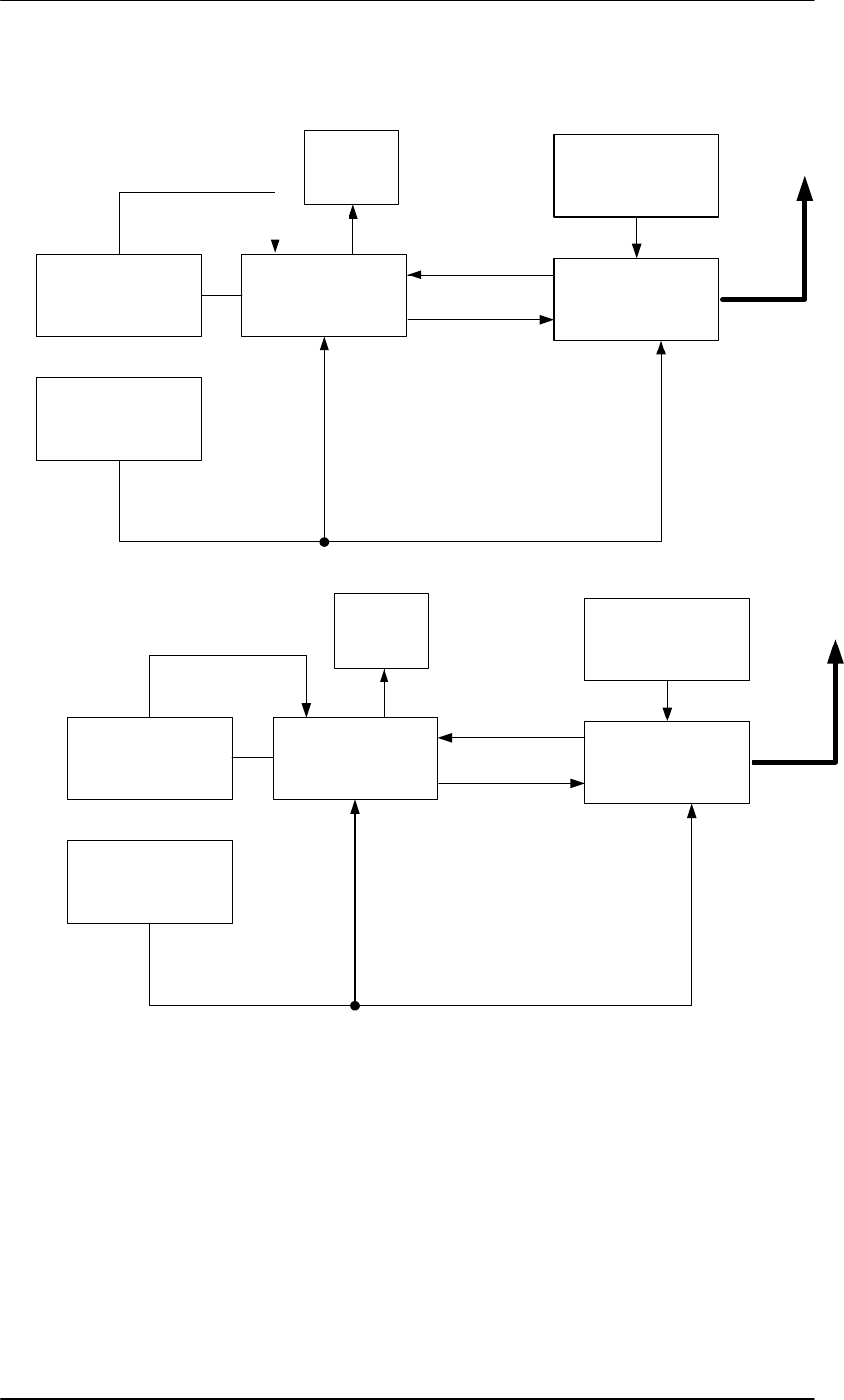

Block diagrams of the transmitter
Button's PLL Transmitter
IC
9,84375 MHz
Crystal
125 kHz
LF Circuit
(L/C)
315 MHz
Loop Antenna
µC for LF communication /
RF - transmittion
Power Supply
2,2 to 3,3 V
µC reference frequency
616,54kHz
Tx, RF data
4,807 kBit/sec
315 MHz
Button's PLL Transmitter
IC
13,5687 MHz
Crystal
125 kHz
LF Circuit
(L/C)
µC for LF communication /
RF - transmittion
Power Supply
2,2 to 3,3 V
µC reference frequency
847,5kHz
Tx, RF data
5,3 kBit/sec
434,2
MHz
434 MHz
Loop Antenna
Siemens VDO Automotive AG SV C BC P2 RF TG
IC: 267T-5WK49143 FCC ID:KR55WK49143
C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 4 of 6
Button's PLL Transmitter
IC
13,5687 MHz
Crystal
125 kHz
LF Circuit
(L/C)
µC for LF communication /
RF - transmittion
Power Supply
2,2 to 3,3 V
µC reference frequency
847,5kHz
Tx, RF data
5,3 kBit/sec
868,4
MHz
868,4 MHz
Loop Antenna
Siemens VDO Automotive AG SV C BC P2 RF TG
IC: 267T-5WK49143 FCC ID:KR55WK49143
C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 5 of 6
Variants
Model Description
5WK4 9141 868.4MHz variant for Europe
5WK4 9142 434.2MHz variant for Europe
5WK4 9143 315MHz variant for USA
5WK4 9144 315MHz variant reduced power for Japan
Technical Data
Carrier frequency model 5WK4 9141: 868.4 MHz ± 0.05%
Carrier frequency model 5WK4 9142: 434.2 MHz ± 0.05%
Carrier frequency model 5WK4 9143: 315.0 MHz ± 0.05%
Carrier frequency model 5WK4 9144: 315 MHz ± 0.05%
Output power model 5KW4 9141/2/3: < 10 mW
Field strength model 5WK49144: < 500µV/m @ 3m
Type of modulation model 5KW4 9141/2/3: FSK
Type of modulation model 5KW4 9144: ASK
Method of frequency generation: PLL
Number of channels: 1
Power supply: battery (CR 2032)
Type of battery: lithium
Transmission range: <10 m
NOTE:
Changes or modifications not expressly approved by the manufacturer could
void the user´s authority to operate the equipment.
Siemens VDO Automotive AG SV C BC P2 RF TG
IC: 267T-5WK49143 FCC ID:KR55WK49143
C:\Dateien\Ralf\Testberichte\U S A\Siemens VDO\5WK4 9143\Func_PL2_ID.doc Page 6 of 6
Label design
Europe: (434 MHz) Europe: (868 MHz)
Siemens VDO Siemens VDO
5WK4 9142 5WK4 9141
Japan: (315 MHz)
Siemens VDO
5WK4 9144
USA/CAN: (315 MHz)
Siemens VDO
5WK4 914b3
IC: 267T-5WK49143
FCC ID:KR55WK49143
This device complies with part 15 of
the FCC Rules and RSS-210.
Operation is subject to the following
two conditions: (1) This device may
not cause harmful interference, and
(2) this device must accept
interference received, including
interference that may cause
undesired operation.
