User Manual / Functional Description
of the
Siemens VDO
Keyless Vehicle Module
Type
5WK4 9167
SIEMENS VDO Automotive SV C BC P2 RF
IC:267T-5WK49167 FCC ID:KR55WK49167
Page 2 of 5
1. SYSTEM OVERVIEW
This short system description gives an overview about the functionality of the
Keyless Vehicle (KV) system and from the Keyless Vehicle Module (KVM).
The vehicle and the Passive Key (PK) will communicate via challenge / response.
By any request the KVM sends a challenge via the respective LF-antennas with
125 KHz to the Passive Key. The PK’s within the detection range answer via
Radio Frequency (RF) transmission. The external RF-Receiver sends the data
from the received signal via serial link to the KVM. The system will provide a
specific PK detection function for inside and outside detection range.
Different failure modes and diagnostic data will be displayed to the driver from
KVM via the Mid Speed CAN-Bus to display at the cluster.
For back up reasons, the Passive Key will provide a metal key blade for locking /
unlocking the vehicle and for starting the engine after key is inserted in ignition
switch (ignition key cylinder) and turned to crank position.
SIEMENS VDO Automotive SV C BC P2 RF
IC:267T-5WK49167 FCC ID:KR55WK49167
Page 3 of 5

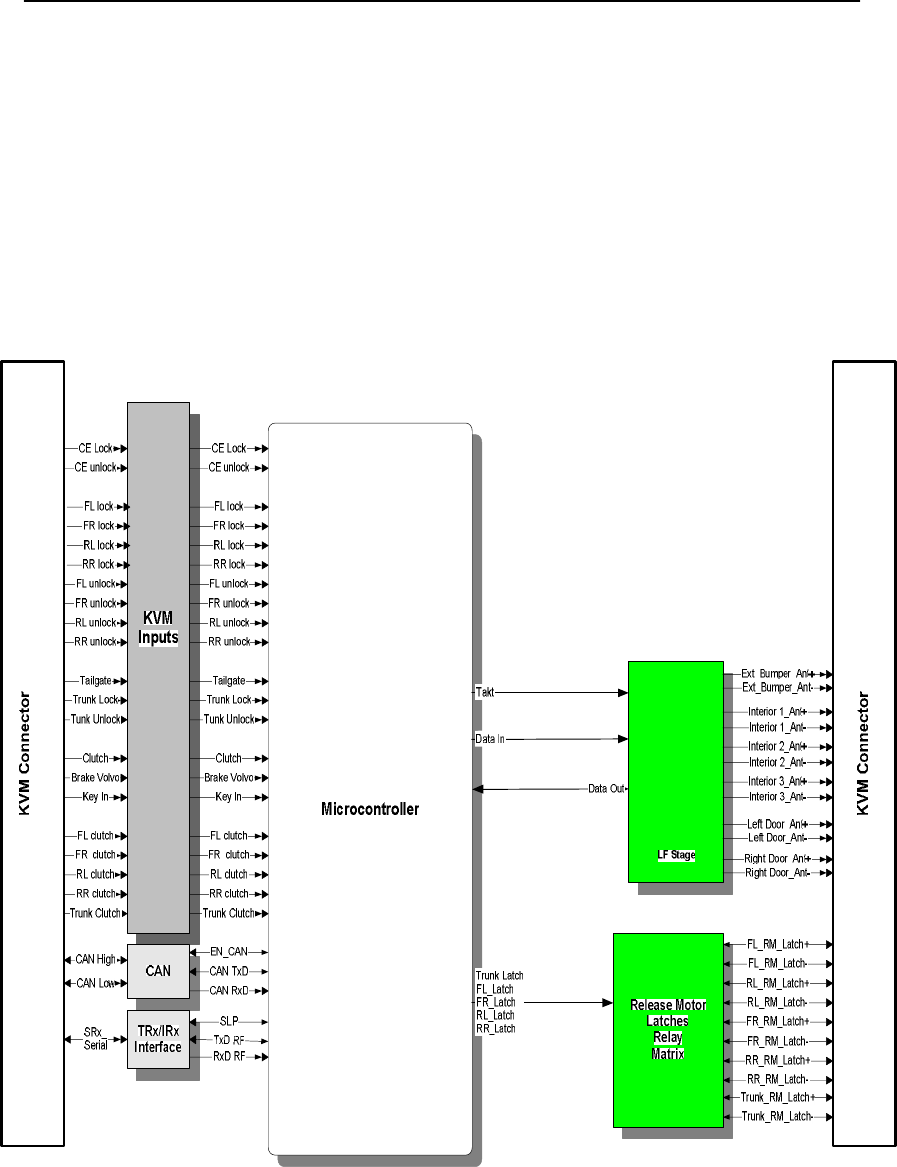

2. BLOCK DIAGRAM
The block diagram below shows the main electronic units of Keyless Vehicle
Module:
SIEMENS VDO Automotive SV C BC P2 RF
IC:267T-5WK49167 FCC ID:KR55WK49167
Page 4 of 5
3. Duty Cycle
20 actuations of access control system within 24 hours with a typical transmission
time of 0.08 seconds. 0.07 seconds / hour.
Transmission time TON 0.07 seconds / hours
Off time T OFF 3599.93 seconds / hours
Duty Cycle: TON / T (ON+OFF) x 100% = 0,07 / 3.600 x 100 % = 0.02 %
4. LIST OF VARIANTS
5WK 49167 Keyless Vehicle Module
5WK4 7897 LF antenna standard
5WK4 7898 LF antenna slim line (housing variant)
5. TECHNICAL DESCRIPTION
Carrier frequency: 125 kHz +/- 1,875 kHz
Field strength: < 42 dBµA/m @ 10 m
Modulation: ASK
Supply voltage: UB = 12.8 V ± 0.2 V
Battery type Car battery
Range: < 2 m
6. LABEL DESIGN EUROPE
Siemens VDO
5WK 49167
SIEMENS VDO Automotive SV C BC P2 RF
IC:267T-5WK49167 FCC ID:KR55WK49167
Page 5 of 5
7. LABEL DESIGN USA, CANADA
Siemens VDO
5WK 49167
FCC ID:KR55WK49167
IC:267T-5WK49167
owner manual: warning statement
This device complies with part 15 of the FCC Rules and RSS-210. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept interference received, including
interference that may cause undesired operation.
Note:
Changes or modifications not expressly approved by the manufacturer could void
the user's authority to operate the equipment.
