User Manual / Functional Description
of the
Siemens VDO
Radio Frequency Transmitter/Receiver
Type
5WK49266
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK49266 FCCID:KR55WK49266
Page 2 of 4
File:I:\POSTZULA\EuCD\Y28X_Key-VPC\Technische_Doku_doc\Functional descriptionEuCD_VPC_902.doc
1. SYSTEM OVERVIEW
The RF remote control system consists of a remote key which is a RF
transmitter / receiver and a RF transmitter / receiver unit at the vehicle.
The Remote Key is used to transmit information for locking or unlocking
the vehicle (as also Trunk Lid/Approach Light/Panic /comfort open/Comfort
Close/Check vehicle status/Passive lock/passive unlock/passive start
operations) by a bidirectional RF transmission line for normal remote
operation by pressing a button.
If the telegram which was received form the vehicle unit is not corrupted the
vehicle unit will send an acknowledgement message to the Remote key. If
the acknowledgement message is not received by the Remote key, the
remote key will repeat the transmission at the second channel.
The RF transmitter/ receiver is mechanically integrated in the head of the
key.
2. POWER SUPPLY
The transmitter is provided with 1 Lithium battery (CR 2430) that gives a
tension of feeding of +3V.
The battery inversion is protected mechanically.

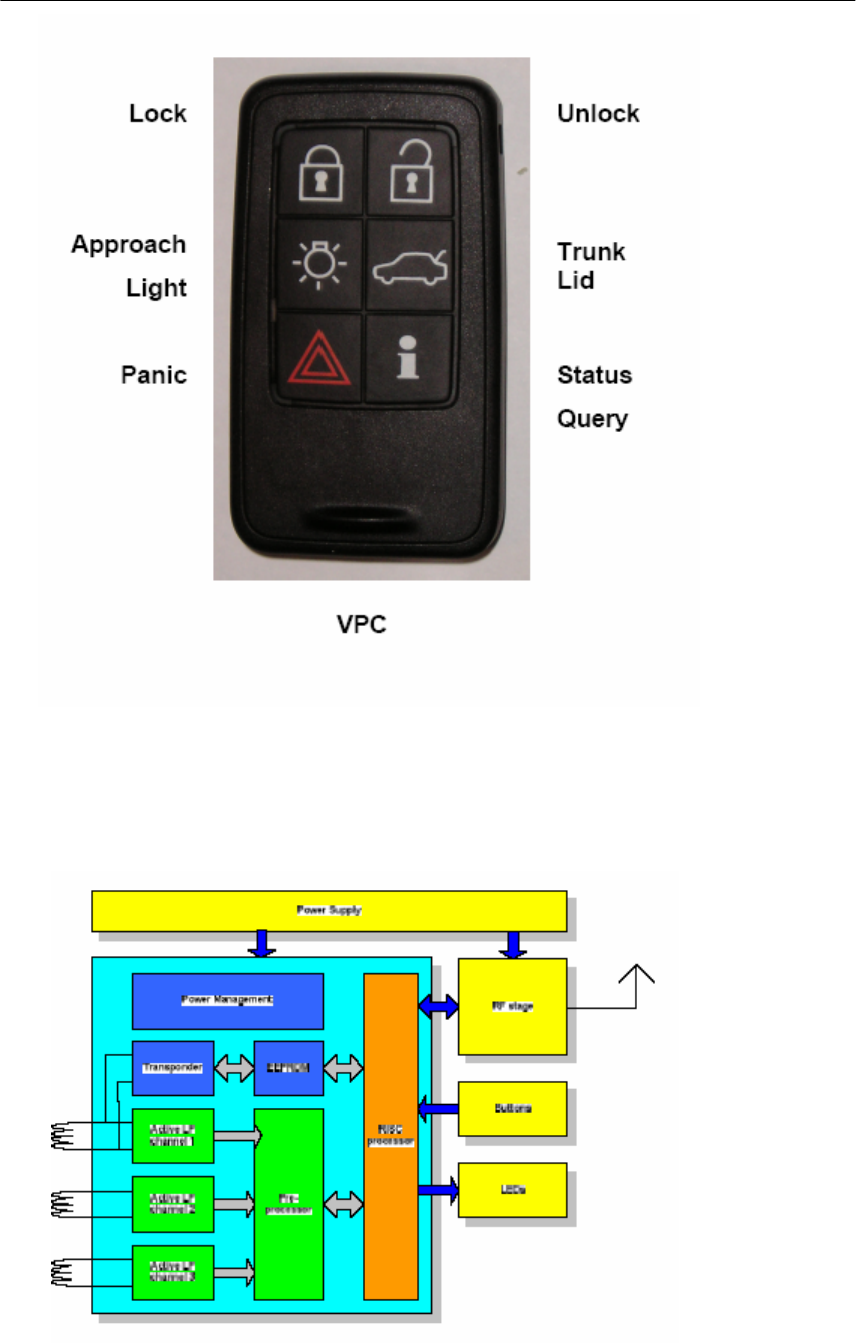

3. BUTTONS
All buttons are on the top side of the key housing. They are arranged in the
following way.
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK49266 FCCID:KR55WK49266
Page 3 of 4
File:I:\POSTZULA\EuCD\Y28X_Key-VPC\Technische_Doku_doc\Functional descriptionEuCD_VPC_902.doc
4. BLOCK DIAGRAMM
The block diagram below shows the main electronic units of the transmitter
/ receiver
:
Siemens VDO Automotive AG SV C BC P2 RF
IC: 267T-5WK49266 FCCID:KR55WK49266
Page 4 of 4
File:I:\POSTZULA\EuCD\Y28X_Key-VPC\Technische_Doku_doc\Functional descriptionEuCD_VPC_902.doc
5. TECHNICAL DESCRIPTION
Carrier frequency (incl. Tolerance): 902, 16 MHz / 903,575 MHz
Output power/field strength: < 50mV/m
Type of modulation: GFSK
Method of frequency generation: fractional N PLL synthesizer
Number of channels: 2ch
Power supply: battery (CR 2430)
nominal voltage 3,0V
Voltage supply range: 2,4V ... 3,2V
Type of battery: lithium
Transmission range: 100 m (system range)
type of antenna: PCB loop antenna
length/size of antenna: ca. 4...5cm
7. LABEL DESIGN USA, Canada, Mexico
Siemens VDO
5WK49266
IC: 267T-5WK49266
FCC ID:KR55WK49266
Entry Owners Manual, Canada, USA:
NOTE
This device complies with part 15 of the FCC Rules and RSS-210.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept interference
received, including interference that may cause undesired operation.
COUTION
Changes or modifications not expressly approved by the manufacturer
could avoid the user's authority to operate the equipment.
