Functional description
SIEMENS VDO Automotive SV C BC P2 RF
IC:267T-5WK49385 FCC ID:KR5 5WK49385
Page 1 of 4
Functional Description
Homologation Board
SKE ECU
5WK49385
SIEMENS VDO Automotive SV C BC P2 RF
IC:267T-5WK49385 FCC ID:KR5 5WK49385
Page 2 of 4
1.1. BLOCKDIAGRAM HOMOLOGATION BOARD
SIEMENS VDO Automotive SV C BC P2 RF
IC:267T-5WK49385 FCC ID:KR5 5WK49385
Page 3 of 4
1.2. FUNCTIONAL DESCRIPTION OF HOMOLOGATION BOARD
The homologation board is performed to activate different functions of the SKE
Module
via Software. You must only connect the plus and the minus plug to a battery (normal
operating voltage is Vbat = 13,5 V ± 0.2 V) or a power supply and the ECU starts
sending the LF telegrams in the following order:
Int. group => int. front > int. rear > Int. trunk > Int. front ...
Ext. group => ext.FL > ext. FR > ext. bumper > ext.FL ...
Every group has a time slot of 150ms. After this time, the Software changes
automatically the sending group.
In case of malfunction, disconnect the power supply, wait 3 seconds and connect it
again.
The test will be done with SKE for J61A (v01)

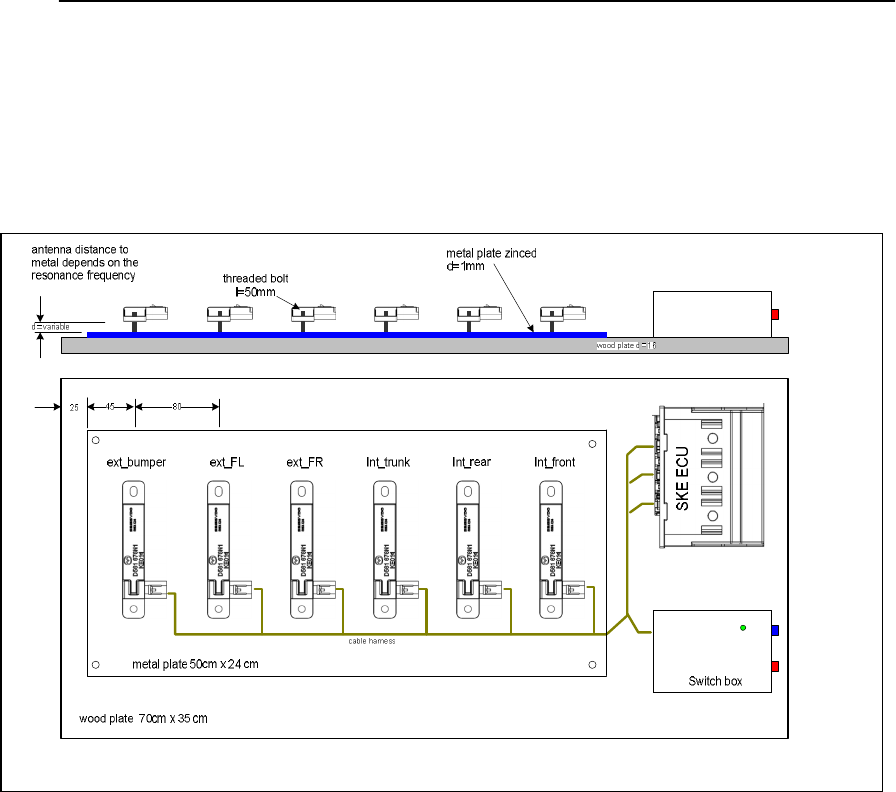

2. FUNCTIONAL DESCRIPTION OF THE MEASUREMENT SYSTEM
The test setup comprises the following components:
- SKE Control unit
- 6 induktive ferrite antennas
- Board for radio homologation measurements (including Wiring harness)
- Key (normal Mode) to verify the function (if attached/required)
- Test box
2.1. FUNCTIONAL DESCRIPTION OF THE MEASUREMENT SYSTEM
The entire setup is supplied with power via the two banana jacks on the test box:
Banana jack, red : +12V DC
Banana jack, black : GND (ground)
The current input (in case of operation) is
min 0,3A/ max 0,8A av. ( min 1,5App/max 8App)
"Main" switch:
"Main" switch on: control unit is powered and the green LED is lighting
"Main" switch off: control module is unpowered
Switches "Ext" and "Int"
"Ext" on, "Int" off: selects functional test and test of emission of external antenna
"Ext" off, "Int" on: selects test of emission of internal antenna
"Ext" off, "Int" off: no mode selected
"Ext" on, "Int" on: no operation is possible when both switches are turned on
2.2. FUNCTIONAL TEST
1. Select "main" switch on
