Continental Automotive Technologies 5WK50138 Radio frequency transmitter User Manual Functional description Users Manual

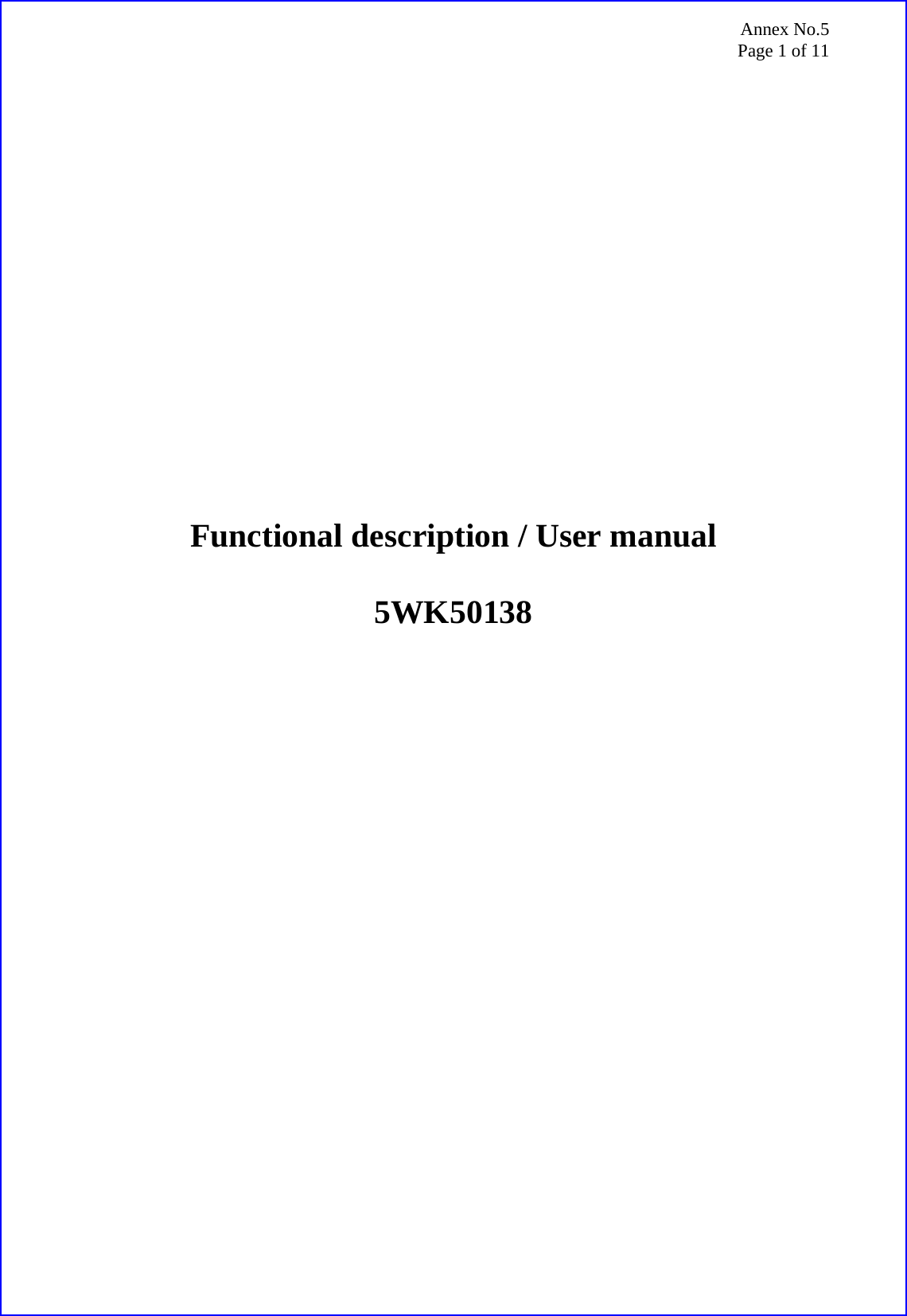

Annex No.5 Page 1 of 11                     Functional description / User manual  5WK50138

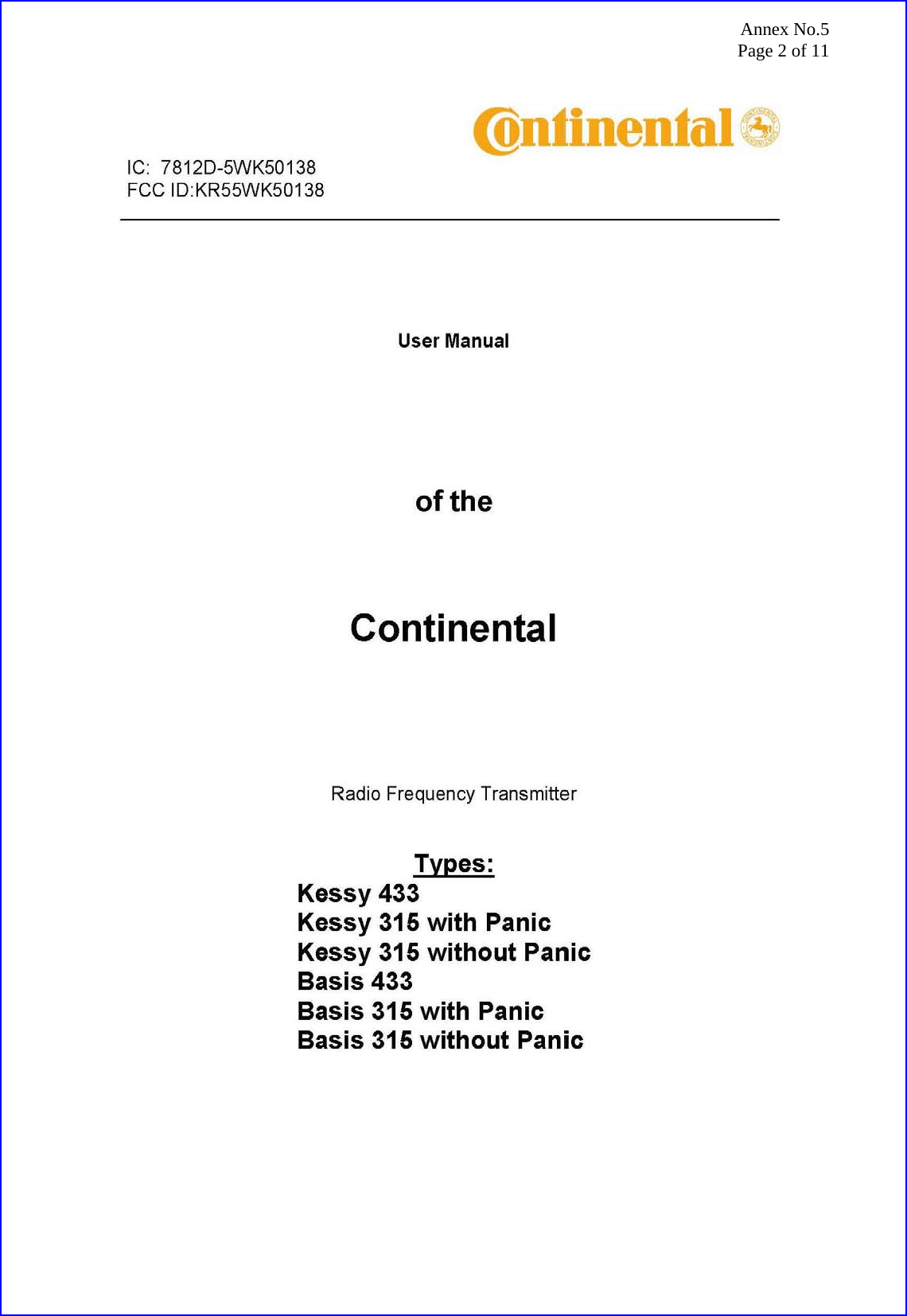

Annex No.5 Page 2 of 11

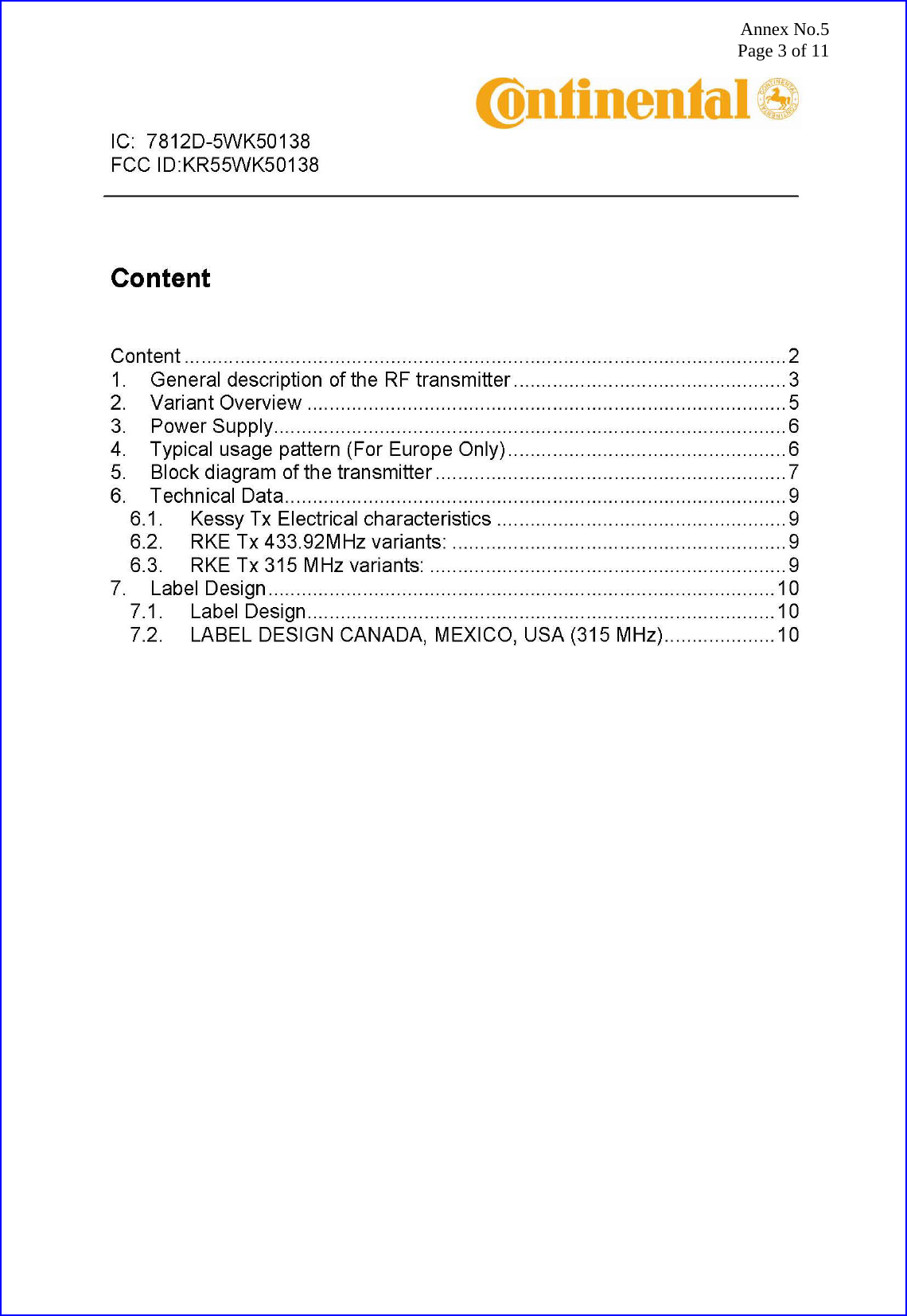

Annex No.5 Page 3 of 11

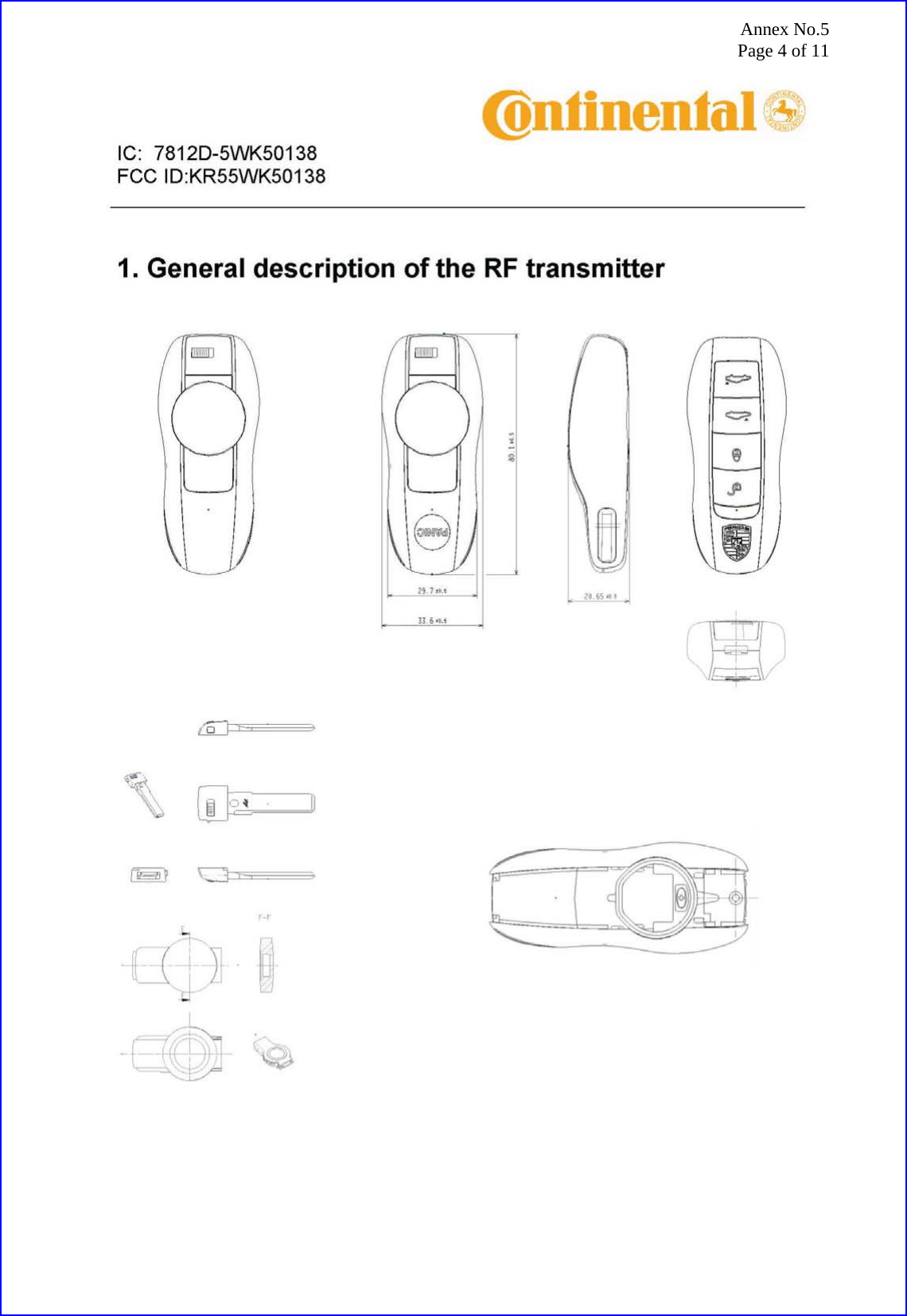

Annex No.5 Page 4 of 11

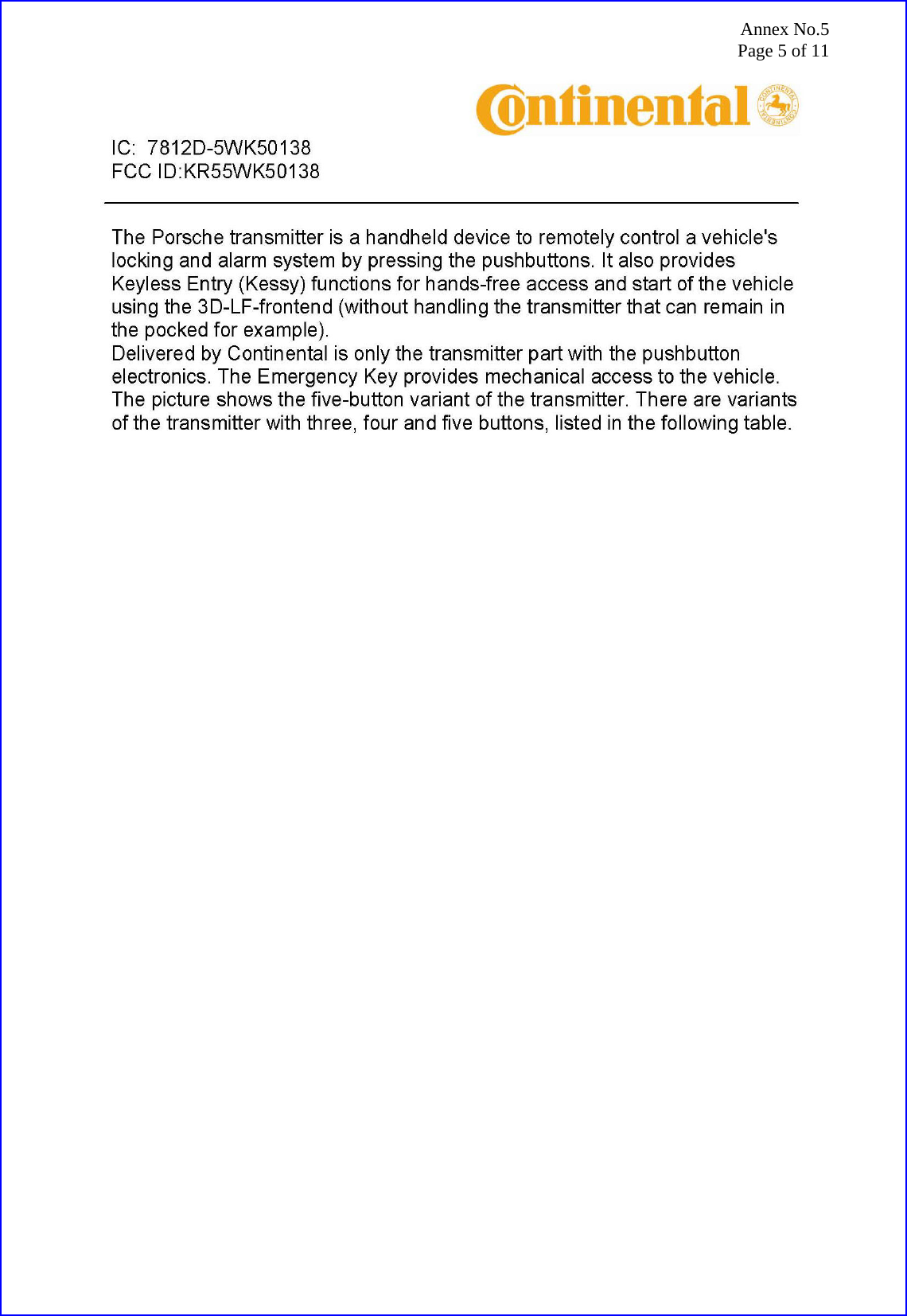

Annex No.5 Page 5 of 11

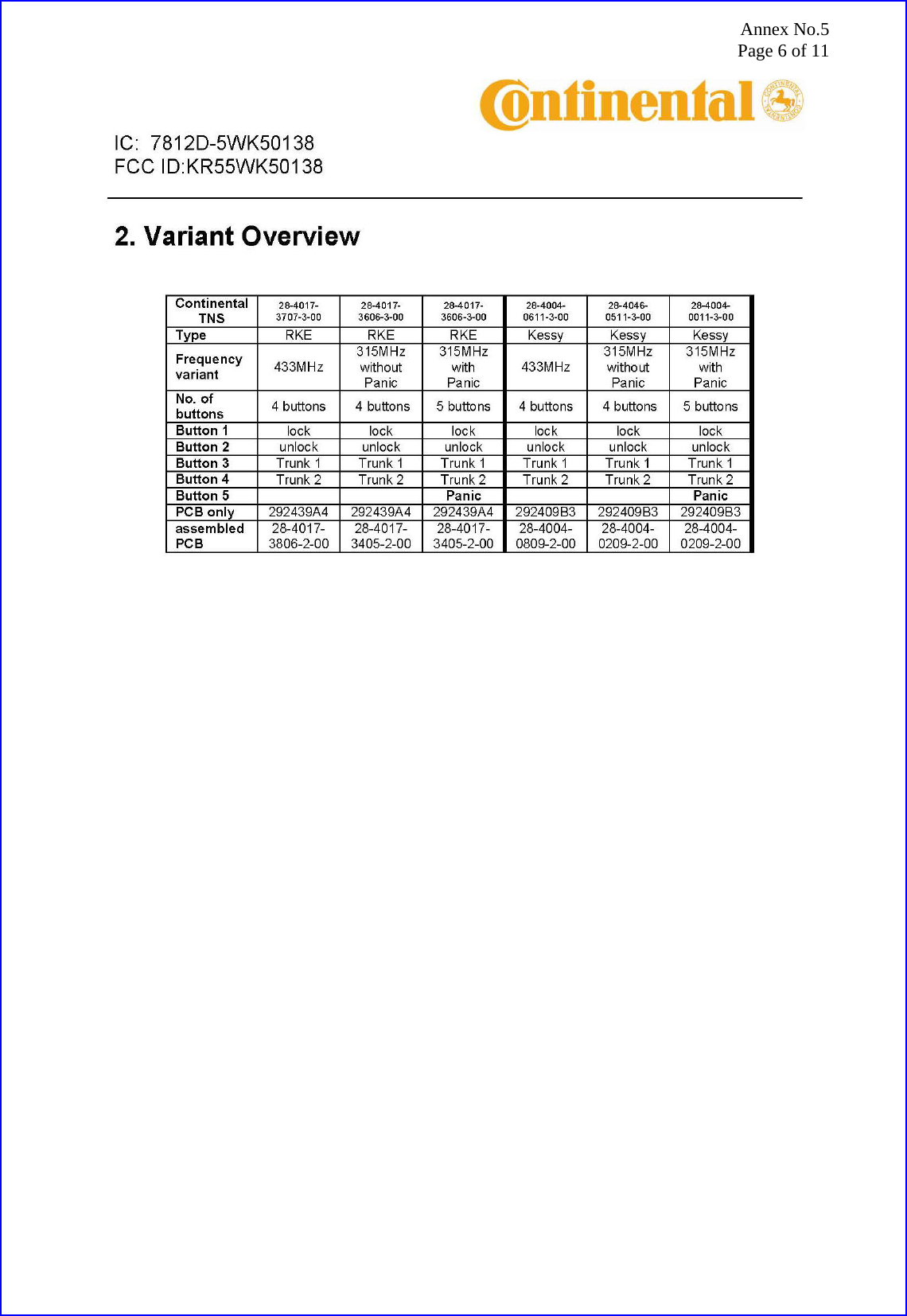

Annex No.5 Page 6 of 11

Annex No.5 Page 7 of 11

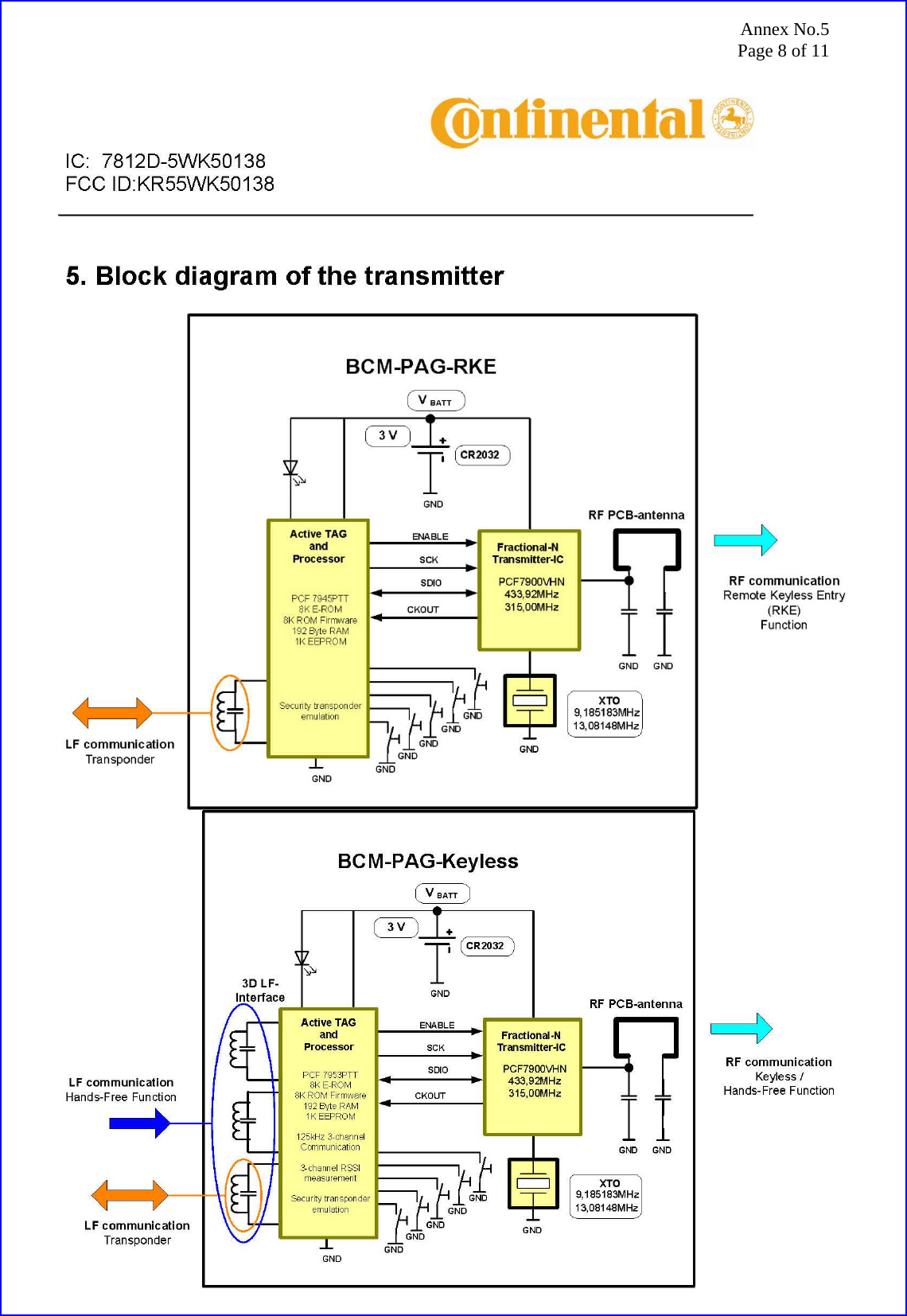

Annex No.5 Page 8 of 11

Annex No.5 Page 9 of 11

Annex No.5 Page 10 of 11

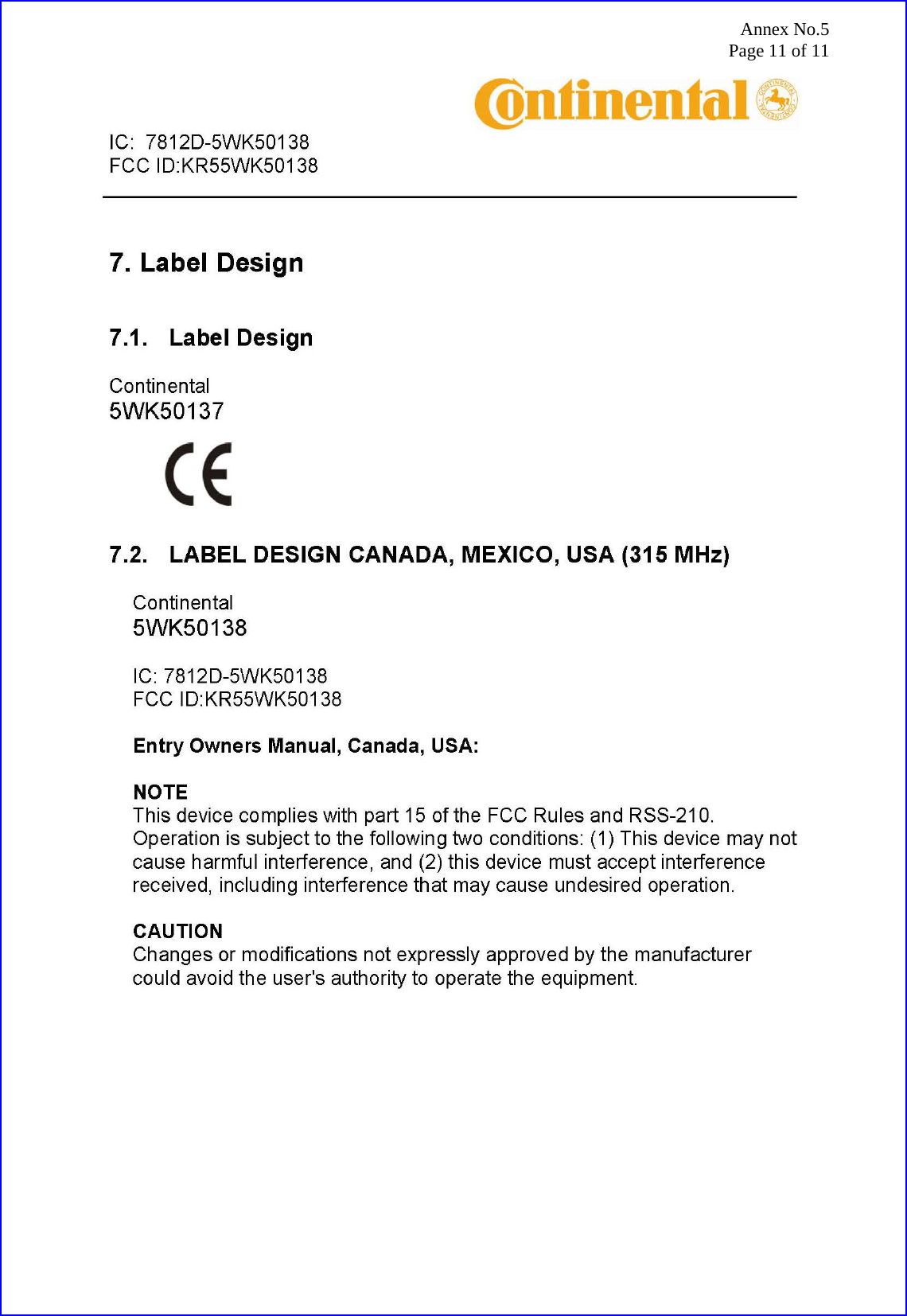

Annex No.5 Page 11 of 11
