Continental Automotive Technologies A2C17105000 Remote Keyless Entry User Manual UM Ford MY19 US Canada
Continental Automotive GmbH Remote Keyless Entry UM Ford MY19 US Canada
user manual
I BS R&D 1 11.06.2018
User Manual
Continental
RF Transmitter
FMC B479 SCU PK CGEA1.3
Type
A2C17105000
Contents
1
General Description........................................................................................................... 2
1.1
Variant Overview ....................................................................................................... 2
1.2
Multichannel characteristic ........................................................................................ 2
2
Main components .............................................................................................................. 3
2.1
UHF-Transmitter Token ............................................................................................. 3
2.2
Microcontroller FXLS8962AF ................................................................................... 3
3
Functionality ..................................................................................................................... 3
3.1
Remote keyless entry .................................................................................................. 3
3.2
Transponder Start authentication ................................................................................ 3
3.3
Passive Entry and Passive Start .................................................................................. 4
3.3.1
Passive Entry ............................................................................................... 4
3.3.2
Passive Start ................................................................................................ 4
I BS R&D 2 11.06.2018
3.4
Mechanical key ........................................................................................................... 4
3.5
Remote Keyless Entry function .................................................................................. 4
3.6
Transponder function ................................................................................................. 4
4
Test Modes ........................................................................................................................ 5
5
Technical description ........................................................................................................ 5
5.1
90° view ...................................................................................................................... 5
5.2
Single component view .............................................................................................. 6
1 General Description
The FMC B479 SCU PK CGEA 1.3 key is remote unit with Transponder, PASE and Remote
Keyless Entry functionality. The transponder function is based on the Immo frontend inside
the microcontroller and one of the external LF coils. The PASE function is part of the PEPS
protocol (Passive Entry and Passive Start) that provides enhanced customer convenience
and security via a customer carried, passively or actively enabled Passive Key (PK)
communicating with the vehicle through an RF Receiver (RFM) to the BCM with an integrated
PEPS microcontroller.
1.1 Variant Overview
Variant Description
Characteristic
FORD
Continental
K1BT-14K601-DA A2C17105000
USA & Canada 3 Button variant
(434MHz Multi channel) with ST
Logo
1.2 Multichannel characteristic
Frequency channel 1: 434,251 MHz ±43 kHz
Frequency channel 2: 433,589 MHz ±43 kHz
I BS R&D 3 11.06.2018
2 Main components
2.1 UHF-Transmitter Token
The Token NCF29A1 is an extremely single chip solution that incorporates a Security
Transponder, UHF Transmitter RISC controller on the same chip. The device provides a fully
integrated fractional-N phase locked loop (PLL) frequency synthesizer and a power amplifier
to drive an external antenna. The Token is especially designed for use in the ISM frequency
bands.
2.2 Microcontroller
FXLS8962AF
The FXLS8962AF is a compact 3-axis MEMS accelerometer designed for use in a wide
range of automotive (convenience and security), industrial, and medical IOT applications that
require ultra-low-power wake-up on motion.
FXLS8962AF is available in a 2 mm x 2 mm x 0.95 mm 10-pin DFN package with 0.4 mm
pitch and wettable flanks. The device is qualified to AEC-Q100 and operates over the
extended –40 °C to +105 °C temperature range.
The combination of sensor performance, system power-saving features and extended
overtemperature-range performance makes FXLS8962AF an ideal accelerometer for motion
sensing in the automotive industry.
3 Functionality
3.1 Remote keyless entry
- Lock, Unlock, Trunk unlock
- Generating and transmitting an RF bit stream for remote entry functions
3.2 Transponder Start authentication
Communicating bi-directionally, LF/LF for authentication / remobilization if keyless vehicle
not work due to flat battery
.
I BS R&D 4 11.06.2018
3.3 Passive Entry and Passive Start
3.3.1 Passive Entry
Passive entry process is the authentication of the PK and BCM to enable unlocking
and locking of the vehicle among other functions requiring a PK search on the
interior of the vehicle.
The vehicle can be unlocked or locked as follows:
- Trunk open function: PK shall be on the outside rear of the vehicle
- Trunk close: No PK inside the trunk OR if there is a PK inside the trunk, the vehicle
shall not be in the armed state.
- Right side entry/locking: PK shall be on the outside right of the vehicle
- Left side entry/locking: PK shall be on the outside left of the vehicle
3.3.2 Passive Start
The Passive Start process is the authentication of the PK and the BCM for enabling
the power pack.
For the Passive Entry Passive Start, key authorization time must be less than or
equal to 285ms from the initial customer start command to sending the authorization
to the BCM
3.4 Mechanical key
Key blade is inside the key.
3.5 Remote Keyless Entry function
When a button is pressed, the microcontroller wakes up and calculates a unique telegram,
which is sent to the vehicle by modulating an RF oscillator. The telegram contains the
information, which button is pressed.
After transmitting (buttons released) the key returns into sleep mode to save battery power.
3.6 Transponder function
The transponder function is part of the immobilizer system and allows authenticating the key
and starting the engine independent from the key battery voltage level.
For that the key will be inserted in the ignition lock with immobilizer base station. The
immobilizer base station will charge the transponder with an LF field and send an
authentication request. After having received sufficient energy the transponder will answer
the request. This is recognized by the immobilizer base station and decoded. If the data
stream transmitted by the transponder fits to the expected data stream the immobilizer base
station will send a start engine message to the engine control.
I BS R&D 5 11.06.2018
4 Test Modes
The samples with test-software are marked with label "CW-mode". The keys with applications
software are marked with label “Application mode” or “App mode”.
The test-software allows setting the key in CW-mode for around 2 minutes. The testsoftware
operations are described in “Functional description of test setup” document.
5 Technical description
Carrier frequency
CH1: 434,251 MHz
CH2: 433,589 MHz
Frequency FSK deviation
+/-10 kHz (+/- 500Hz tolerance)
Number of channels
2 for Multichannel
Type of modulation
FSK
Baud rate
2.1 kbps
Rated Output Power
Typ. -16.5dBm ± 2dBm EIRP (Taiwan)
Averaging Factor for Taiwan variant
5.3dB*
Antenna
Internal PCB loop antenna
Voltage supply
CR2032 external battery
Voltage supply range
2,2 up to 3,3V
AF calculation is done in a separate document.

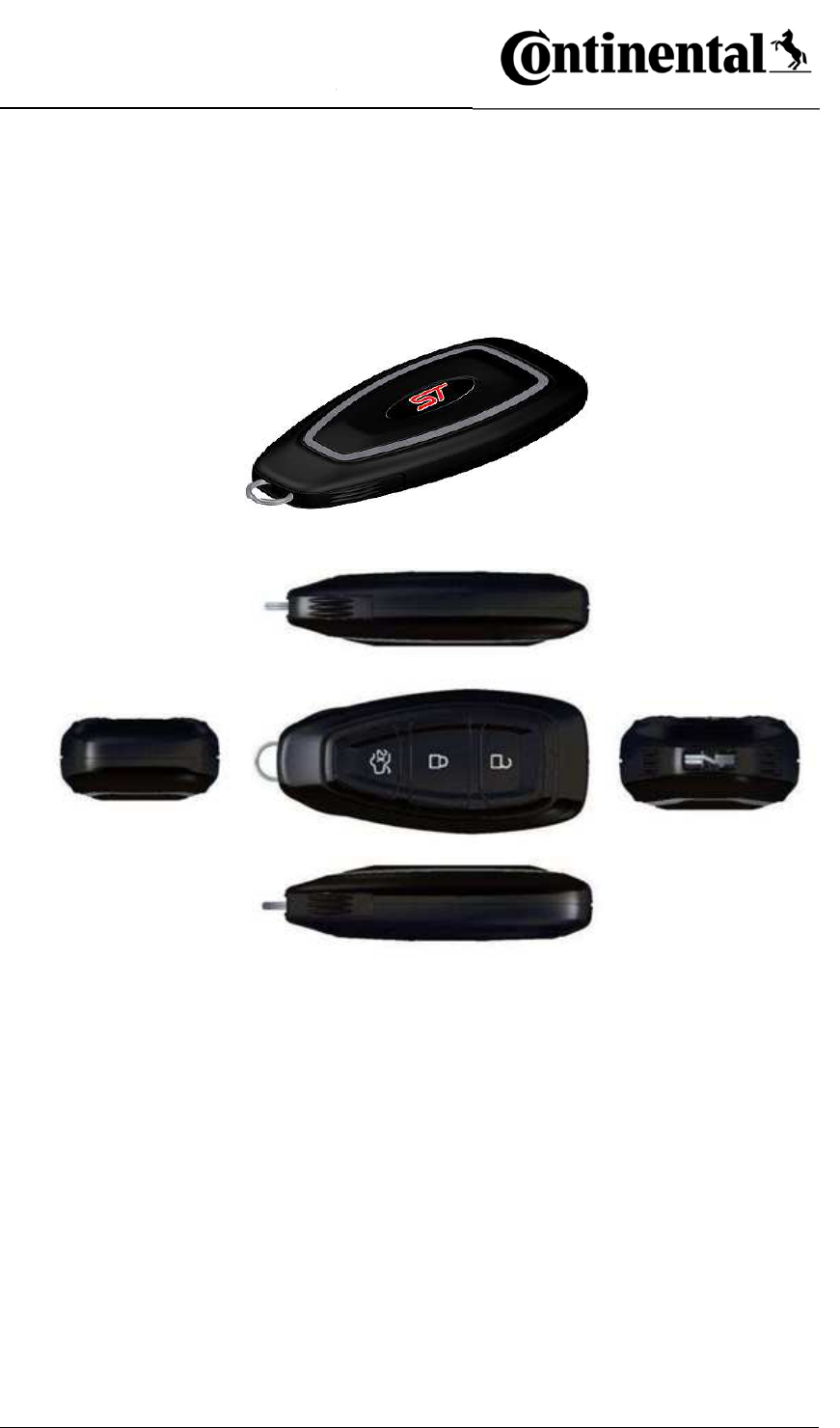

5.1 90° view
Key blade not part of Continental
I BS R&D 6 11.06.2018
ST Logo

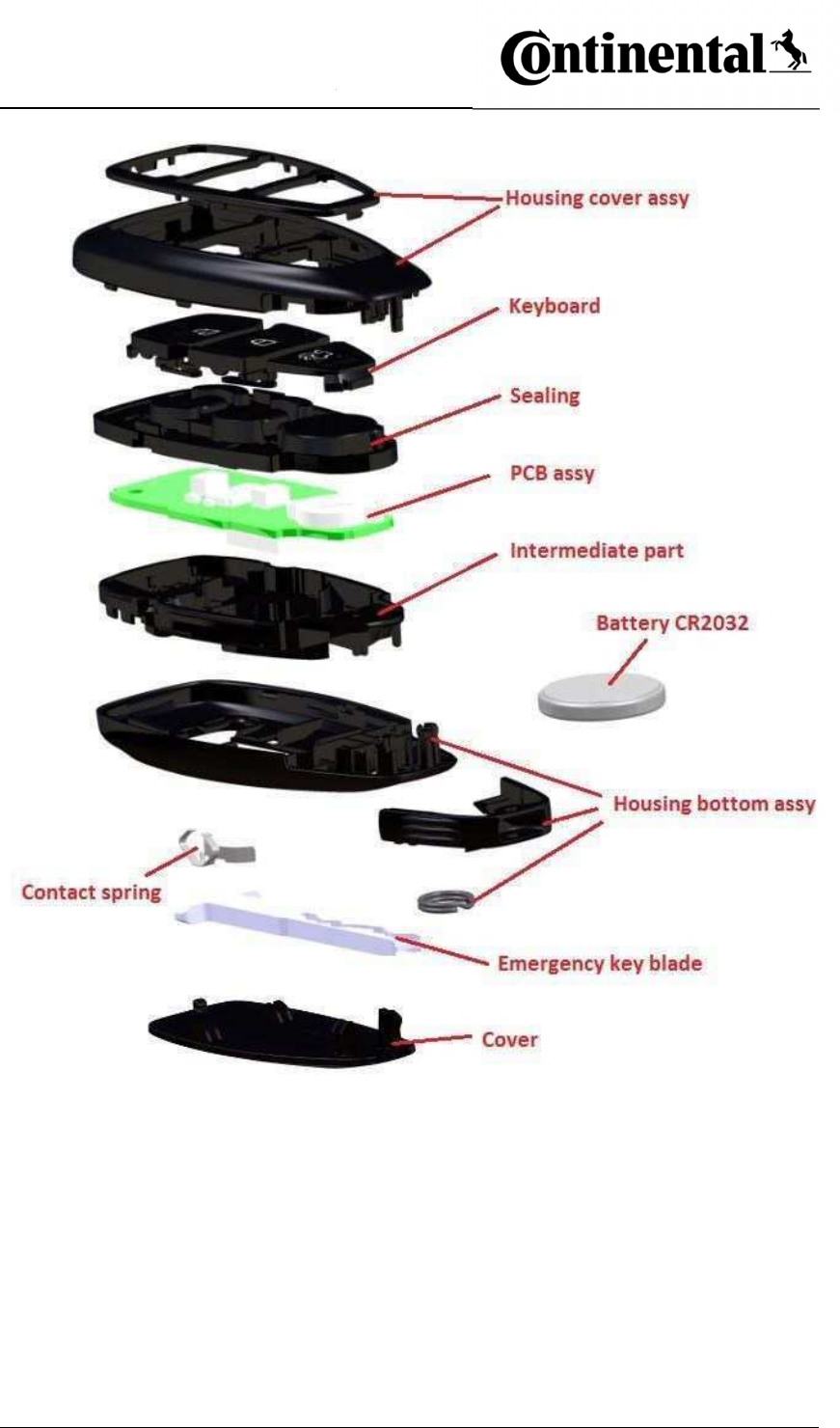

5.2 Single component view
I BS R&D 7 11.06.2018
I BS R&D 8 11.06.2018
FCC
The Federal Communications Commission (FCC) warns the users that
changes or modifications to the unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
IC Canada
This device complies with Industry Canada’s license-exempt RSSs. Operation
is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux
appareils radio exempts de licence. L’exploitation est autorisée aux deux
conditions suivantes:
1) l’appareil ne doit pas produire de brouillage;
2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
