Continental Automotive Technologies A2C93178600 Immobilizer User Manual functional description 20150603

Continental Automotive GmbH Immobilizer functional description 20150603

User manual

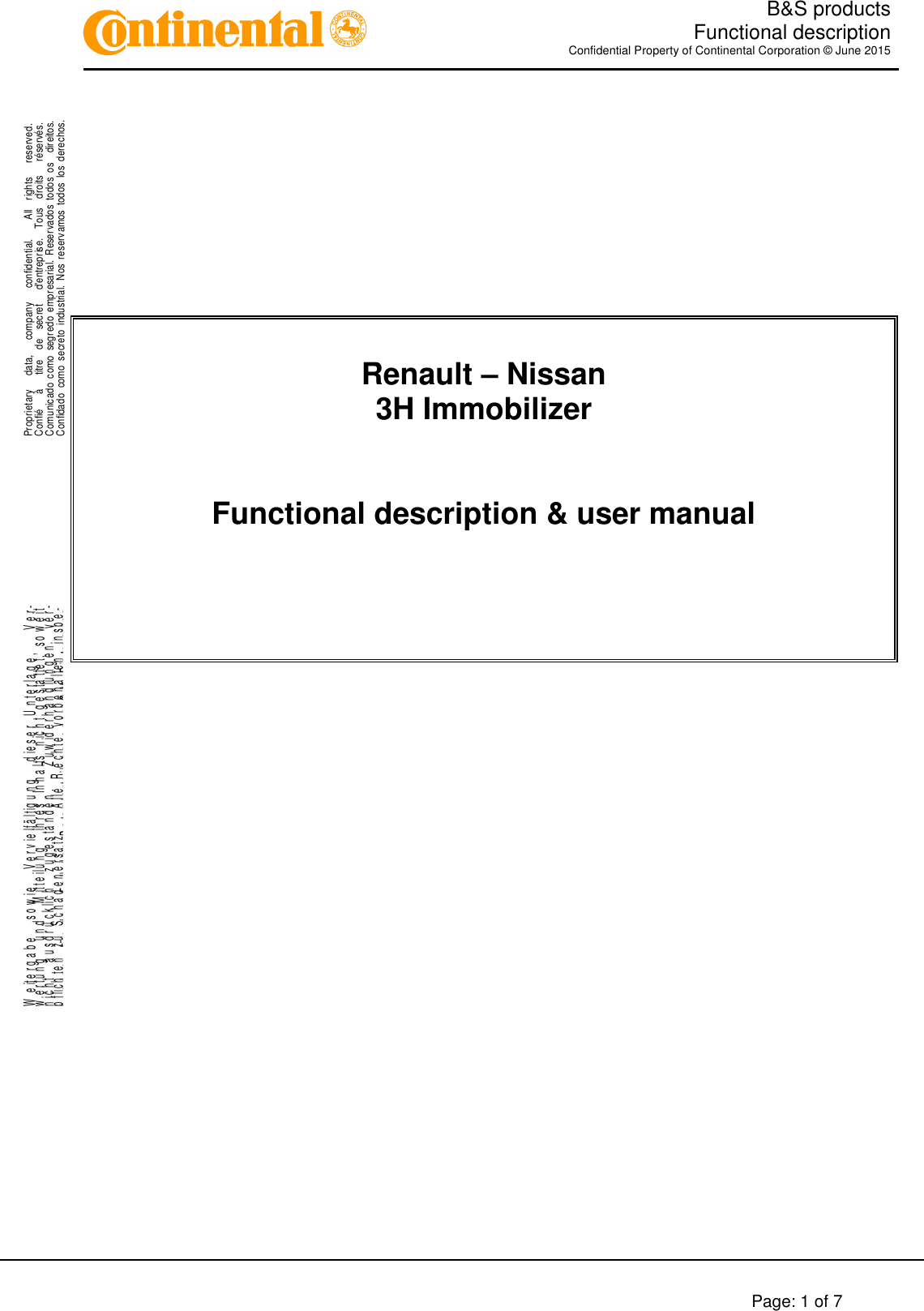

B&S products Functional description Confidential Property of Continental Corporation © June 2015 Page: 1 of 7 .Proprietary data, company confidential. All rights reserved.Confié à titre de secret d'entreprise. Tous droits réservés.Comunicado como segredo empresarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. ..W e it e r g a b e s o w i e V e r v i e lf ä l t ig u n g d ie s e r U n t e r l a g e , V e r-w e r t u n g u n d M it t e il u n g ih r e s In h a l t s n ic h t g e s ta t te t , s o w e i tn i c h t a u s d r ü c k li c h z u g e s t a n d e n . Z u w id e r h a n d l u n g e n v e r-pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung. Renault – Nissan 3H Immobilizer Functional description & user manual

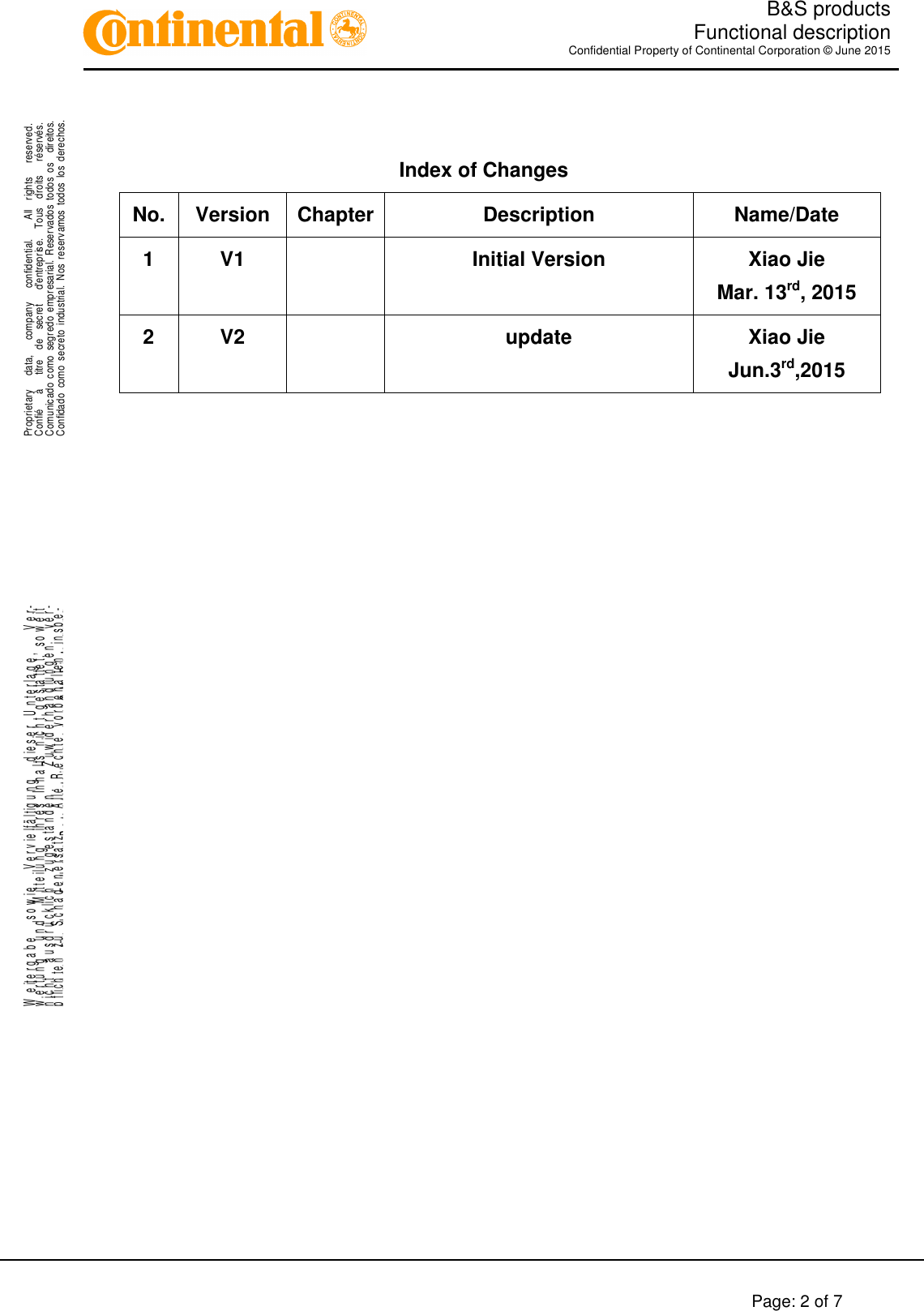

B&S products Functional description Confidential Property of Continental Corporation © June 2015 Page: 2 of 7 .Proprietary data, company confidential. All rights reserved.Confié à titre de secret d'entreprise. Tous droits réservés.Comunicado como segredo empresarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. ..W e it e r g a b e s o w i e V e r v i e lf ä l t ig u n g d ie s e r U n t e r l a g e , V e r-w e r t u n g u n d M it t e il u n g ih r e s In h a l t s n ic h t g e s ta t te t , s o w e i tn i c h t a u s d r ü c k li c h z u g e s t a n d e n . Z u w id e r h a n d l u n g e n v e r-pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung. Index of Changes No. Version Chapter Description Name/Date 1 V1 Initial Version Xiao Jie Mar. 13rd, 2015 2 V2 update Xiao Jie Jun.3rd,2015

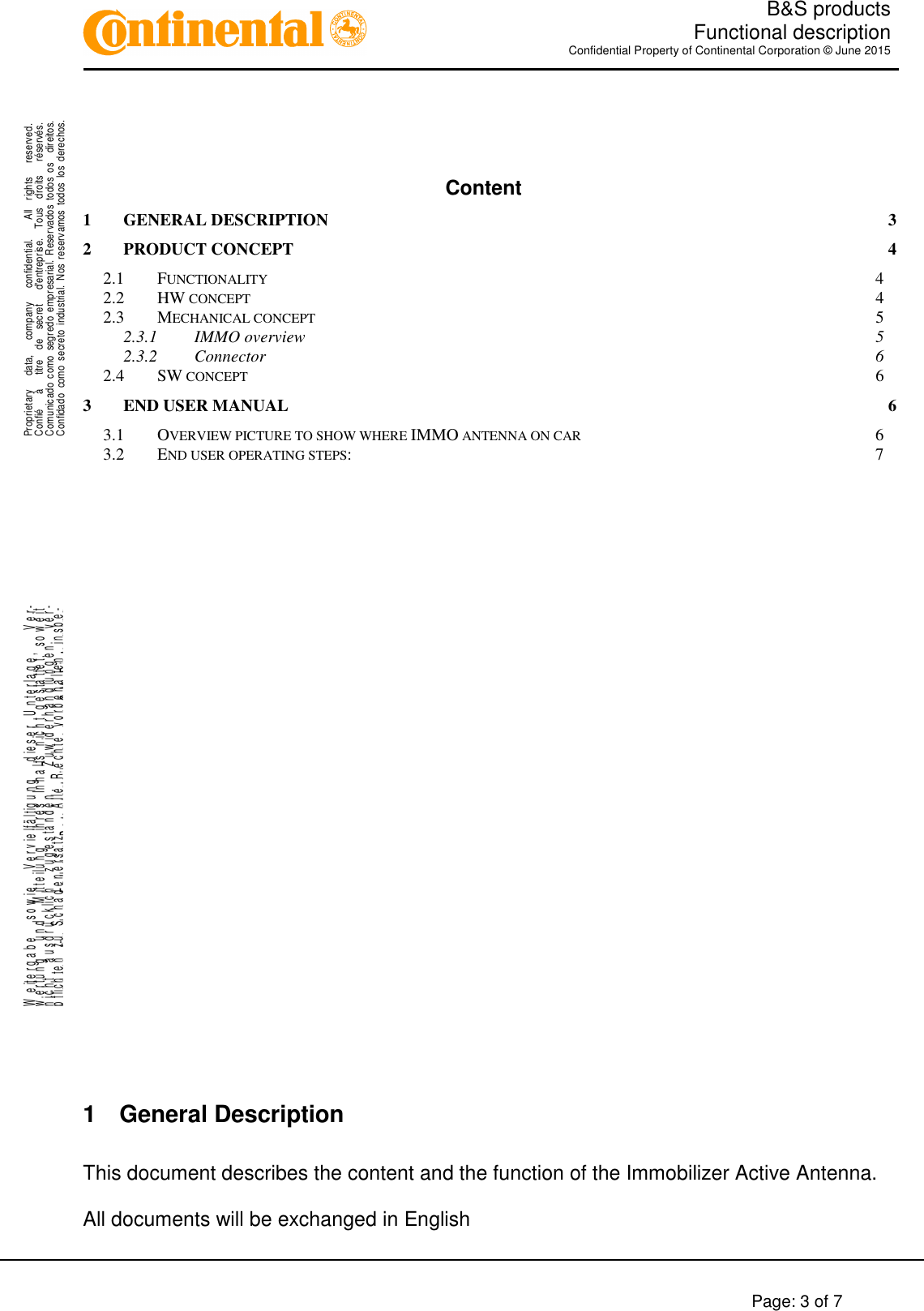

B&S products Functional description Confidential Property of Continental Corporation © June 2015 Page: 3 of 7 .Proprietary data, company confidential. All rights reserved.Confié à titre de secret d'entreprise. Tous droits réservés.Comunicado como segredo empresarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. ..W e it e r g a b e s o w i e V e r v i e lf ä l t ig u n g d ie s e r U n t e r l a g e , V e r-w e r t u n g u n d M it t e il u n g ih r e s In h a l t s n ic h t g e s ta t te t , s o w e i tn i c h t a u s d r ü c k li c h z u g e s t a n d e n . Z u w id e r h a n d l u n g e n v e r-pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung. Content 1 GENERAL DESCRIPTION 3 2 PRODUCT CONCEPT 4 2.1 FUNCTIONALITY 4 2.2 HW CONCEPT 4 2.3 MECHANICAL CONCEPT 5 2.3.1 IMMO overview 5 2.3.2 Connector 6 2.4 SW CONCEPT 6 3 END USER MANUAL 6 3.1 OVERVIEW PICTURE TO SHOW WHERE IMMO ANTENNA ON CAR 6 3.2 END USER OPERATING STEPS: 7 1 General Description This document describes the content and the function of the Immobilizer Active Antenna. All documents will be exchanged in English

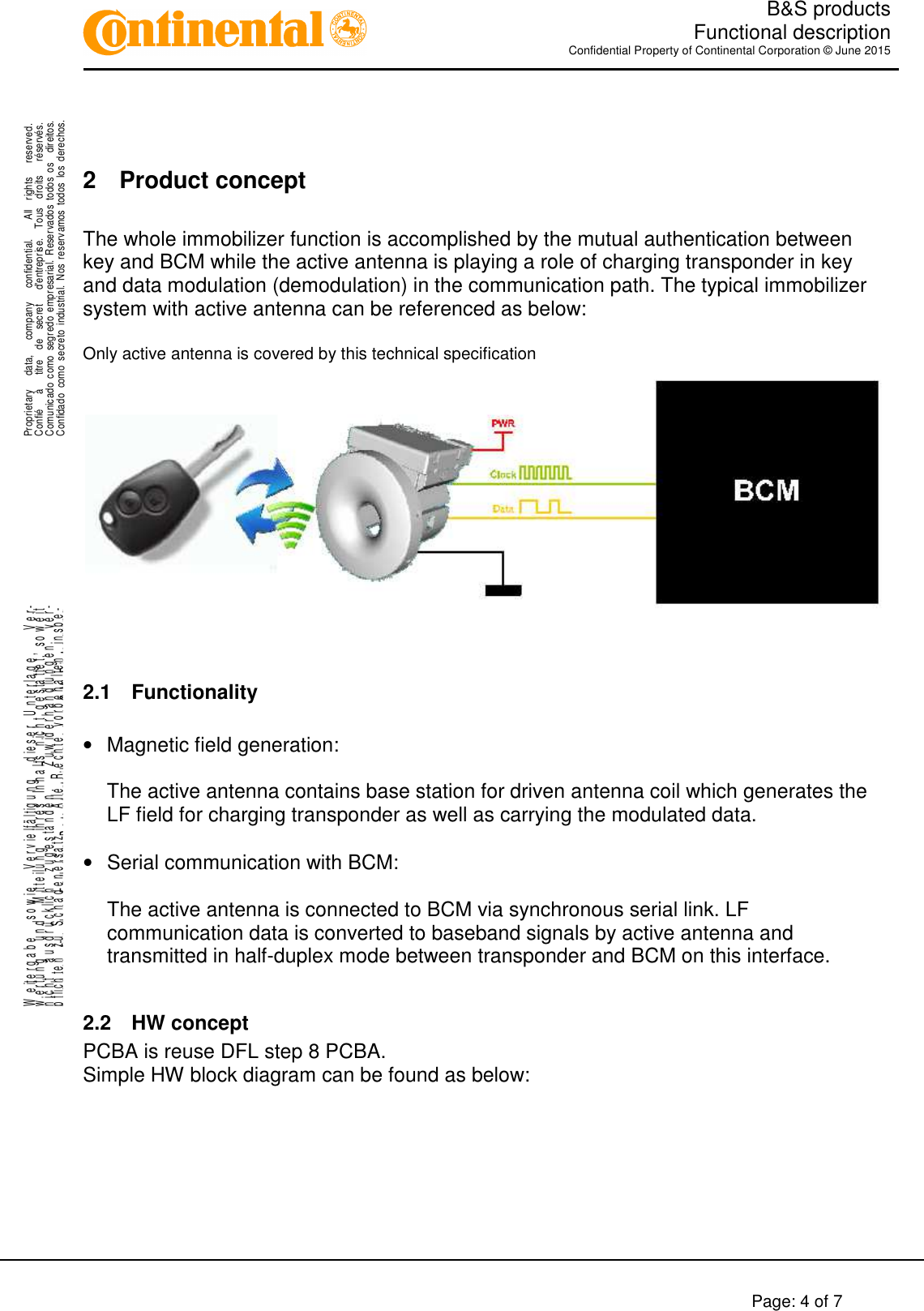

B&S products Functional description Confidential Property of Continental Corporation © June 2015 Page: 4 of 7 .Proprietary data, company confidential. All rights reserved.Confié à titre de secret d'entreprise. Tous droits réservés.Comunicado como segredo empresarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. ..W e it e r g a b e s o w i e V e r v i e lf ä l t ig u n g d ie s e r U n t e r l a g e , V e r-w e r t u n g u n d M it t e il u n g ih r e s In h a l t s n ic h t g e s ta t te t , s o w e i tn i c h t a u s d r ü c k li c h z u g e s t a n d e n . Z u w id e r h a n d l u n g e n v e r-pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung. 2 Product concept The whole immobilizer function is accomplished by the mutual authentication between key and BCM while the active antenna is playing a role of charging transponder in key and data modulation (demodulation) in the communication path. The typical immobilizer system with active antenna can be referenced as below: Only active antenna is covered by this technical specification 2.1 Functionality • Magnetic field generation: The active antenna contains base station for driven antenna coil which generates the LF field for charging transponder as well as carrying the modulated data. • Serial communication with BCM: The active antenna is connected to BCM via synchronous serial link. LF communication data is converted to baseband signals by active antenna and transmitted in half-duplex mode between transponder and BCM on this interface. 2.2 HW concept PCBA is reuse DFL step 8 PCBA. Simple HW block diagram can be found as below:

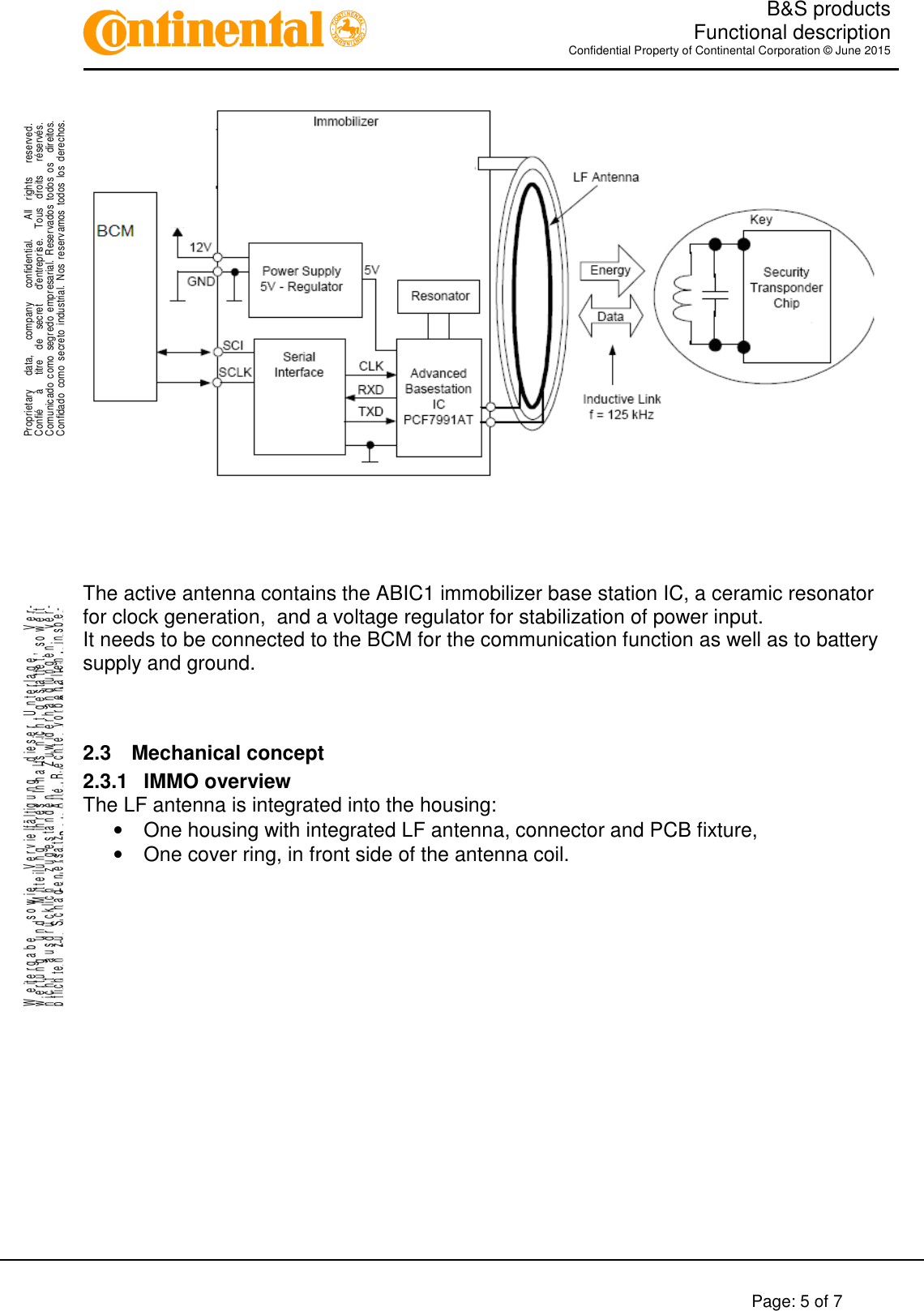

B&S products Functional description Confidential Property of Continental Corporation © June 2015 Page: 5 of 7 .Proprietary data, company confidential. All rights reserved.Confié à titre de secret d'entreprise. Tous droits réservés.Comunicado como segredo empresarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. ..W e it e r g a b e s o w i e V e r v i e lf ä l t ig u n g d ie s e r U n t e r l a g e , V e r-w e r t u n g u n d M it t e il u n g ih r e s In h a l t s n ic h t g e s ta t te t , s o w e i tn i c h t a u s d r ü c k li c h z u g e s t a n d e n . Z u w id e r h a n d l u n g e n v e r-pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung. The active antenna contains the ABIC1 immobilizer base station IC, a ceramic resonator for clock generation, and a voltage regulator for stabilization of power input. It needs to be connected to the BCM for the communication function as well as to battery supply and ground. 2.3 Mechanical concept 2.3.1 IMMO overview The LF antenna is integrated into the housing: • One housing with integrated LF antenna, connector and PCB fixture, • One cover ring, in front side of the antenna coil.

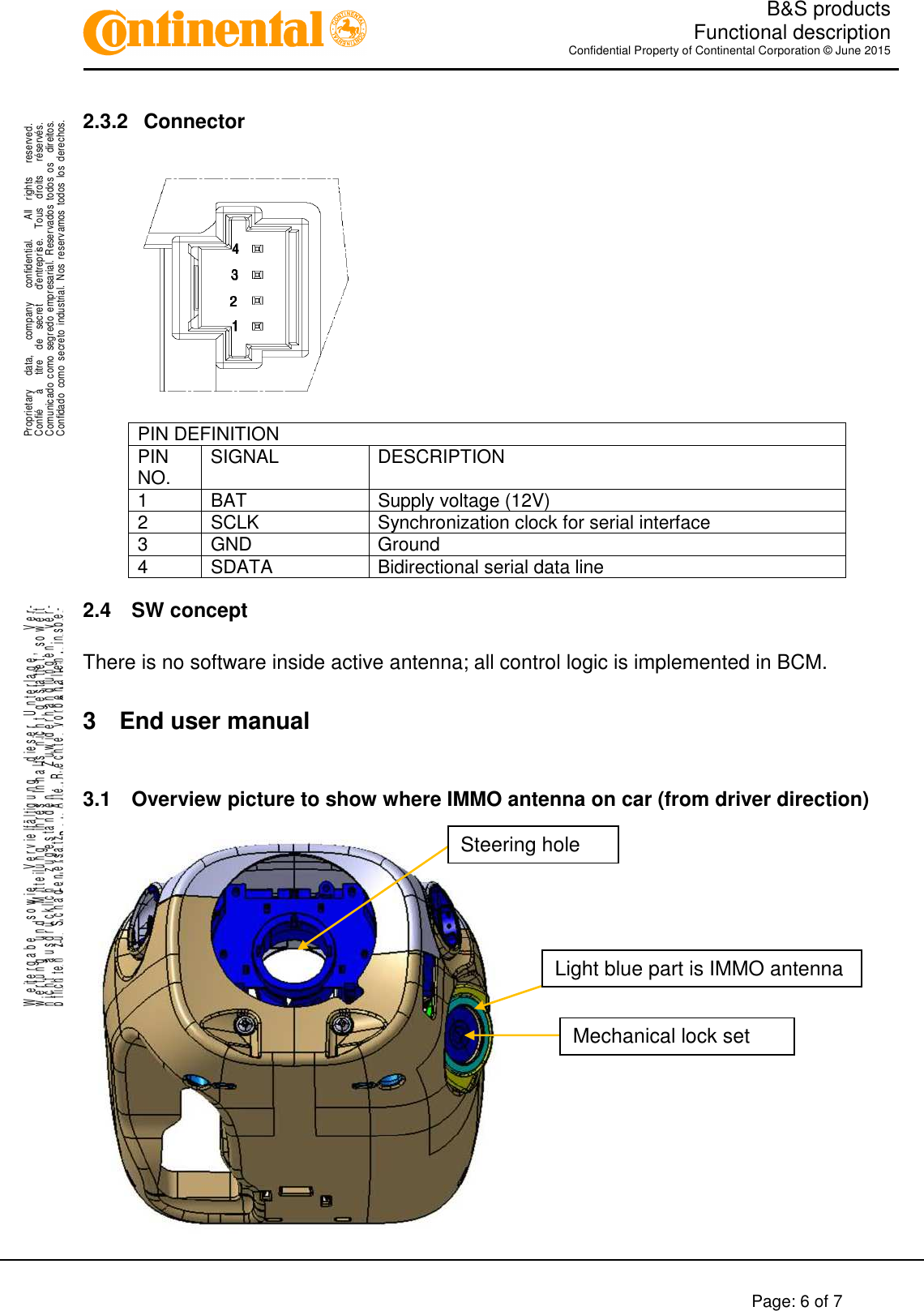

B&S products Functional description Confidential Property of Continental Corporation © June 2015 Page: 6 of 7 .Proprietary data, company confidential. All rights reserved.Confié à titre de secret d'entreprise. Tous droits réservés.Comunicado como segredo empresarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. ..W e it e r g a b e s o w i e V e r v i e lf ä l t ig u n g d ie s e r U n t e r l a g e , V e r-w e r t u n g u n d M it t e il u n g ih r e s In h a l t s n ic h t g e s ta t te t , s o w e i tn i c h t a u s d r ü c k li c h z u g e s t a n d e n . Z u w id e r h a n d l u n g e n v e r-pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung.2.3.2 Connector PIN DEFINITION PIN NO. SIGNAL DESCRIPTION 1 BAT Supply voltage (12V) 2 SCLK Synchronization clock for serial interface 3 GND Ground 4 SDATA Bidirectional serial data line 2.4 SW concept There is no software inside active antenna; all control logic is implemented in BCM. 3 End user manual 3.1 Overview picture to show where IMMO antenna on car (from driver direction) Light blue part is IMMO antenna Steering hole Mechanical lock set
B&S products Functional description Confidential Property of Continental Corporation © June 2015 Page: 7 of 7 .Proprietary data, company confidential. All rights reserved.Confié à titre de secret d'entreprise. Tous droits réservés.Comunicado como segredo empresarial. Reservados todos os direitos.Confidado como secreto industrial. Nos reservamos todos los derechos. ..W e it e r g a b e s o w i e V e r v i e lf ä l t ig u n g d ie s e r U n t e r l a g e , V e r-w e r t u n g u n d M it t e il u n g ih r e s In h a l t s n ic h t g e s ta t te t , s o w e i tn i c h t a u s d r ü c k li c h z u g e s t a n d e n . Z u w id e r h a n d l u n g e n v e r-pflichten zu Schadenersatz. Alle Rechte vorbehalten, insbe-sondere für den Fall der Patenterteilung oder GM-Eintragung. 3.2 End user operating steps: Step 1: Insert key to mechanical lock set Step 2: Rotate key to start position (start letter shown on mechanical lock set). Authentication is started among key, IMMO, and EMS. Step 3: When you feel engine has been started, then release key, key will automatic rotate back to ON position (On letter which shown on mechanical lock set) IMMO antenna Mechanical Lock set key
