1. SYSTEM OVERVIEW
The ALFA434 is a transmitter designed to provide remote keyless entry, passive entry,
passive engine start, and immobilization functionality, it is part of a larger system provided by
Continental which allows the customer to:
• Remotely start the engine.
• Remotely lock the doors.
• Remotely unlock the doors.
• Remotely open the trunk.
• Remotely find the car.
• Remotely activate the alarm (panic mode).
• Remotely unlock and lock doors in passive mode (PASE).
• Start engine in passive mode (PASE).
• Start the car via push button (IMMO immobilization).
• Use mechanical emergency key as back-up to access to the vehicle.
•
The system consists of PASE FOBIK, RFHM, and IMMO. The Remote Keyless Entry
(RKE)
and Start uses a Radio Frequency (RF) link for communication between the end user and
the vehicle; For Passive Entry and Passive Start function, FOBIK receives LF command
from RFHM via a Low Frequency (LF) link and responses back via RF link. The
Immobilization uses a Low Frequency (LF) link for communication/authentication between
FOBIK and IMMO.
Continental Automotive
Camelia Teicu
I BS AS EE/RF 3 of 6
2. ALFA434 VARIANTS
A2C97635100 A2C97634900
A2C97635000

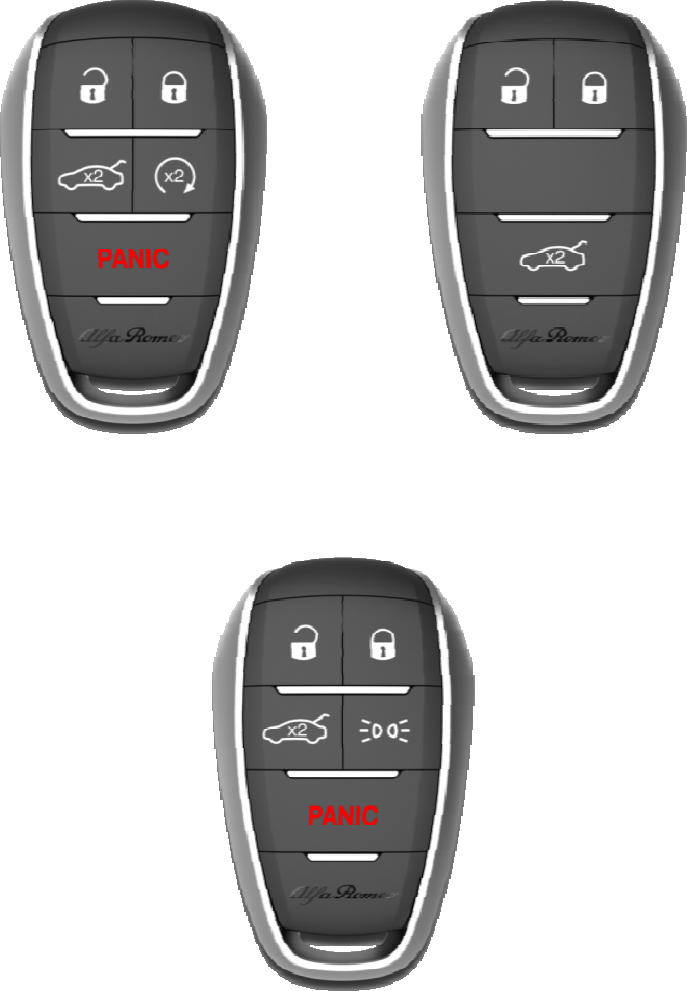

The pictures are showing the housing variants with the Continental product numbers.
The homologation reference number of all versions is the “ALFA434”.
The Fobik variants only differ in quantity of switch buttons and keypad design appearances.
Continental Automotive
Camelia Teicu
I BS AS EE/RF 4 of 6
3. LABEL INFORMATION
3.1 EC
Continental
Model: ALFA434
3.2 USA/CANADA
Continental
Model: ALFA434
FCC ID: KR5ALFA434
IC:7812D-ALFA434
3.3 LABEL LOCATION
The label is located in the battery department.
There are not required any special tools for access to the label.
To get access to the label, do the following:
Remove the lower housing cover which is the cover of the battery department.
Continental Automotive
Camelia Teicu
I BS AS EE/RF 5 of 6
Additionally remove the emergency key blade to see the whole label content.
Label area
Continental Automotive
Camelia Teicu
I BS AS EE/RF 6 of 6
4. OWNER MANUAL STATEMENTS
4.1 OWNER MANUAL CANADA
IC:7812D–ALFA434
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
This equipment complies with the safety requirements for RF exposure in accordance with
RSS-102 Issue 5 2015 for portable use conditions.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre
le fonctionnement.
Cet équipement est conforme avec les exigences de sécurité pour l'exposition aux RF
conformément aux RSS - 102 Issue 5 2015 pour des conditions d'utilisation portables.
4.2 OWNER MANUAL USA
FCC ID:
KR5ALFA434
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
No changes shall be made to the equipment without the manufacturer’s permission as this
may void the user’s authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for portable use
conditions.
