Continental Automotive Technologies HFMC1A01 Radio Frequency Transmitter-Receiver User Manual

Continental Automotive GmbH Radio Frequency Transmitter-Receiver

User manual

Document: User Manual
Product: BCM (Body Control Module)
HFM C1A
Model: HFMC1A01
Date: November 22, 2017
Name:
Department:
Phone:
Date:
Sign:
Author:
Jérôme Lee
I B&S RD RF
+33561196241
22/11/2017
1. Check:
Sven Kubeil
I B&S RD RF
+49941790292
Responsible:
Patrick Mazo
I B&S S2
+33561198592
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 2 / 10
VERSIONS LIST
Version
Date
Author
Comment, Description
V1
05/07/2017
Jérôme Lee
Creation
V2
22/11/2017
Jérôme Lee
General update
RELATED DOCUMENTS
Document
Version
Date
Author
Comment, Description
ABBREVIATION REGISTER
Abbreviation
Description
As
Assistant
ASK
Amplitude Shift Keying
BCM
Body Control Module
HFM
Hand Free Module
CW
Continuous Wave
DR
Driver
FCC
Federal Communication Commission
FSK
Frequency Shift Keying
LF
Low Frequency
RF
Radio Frequency
RKE
Remote Keyless Entry
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 3 / 10
VERSIONS LIST ............................................................................................................................................................ 2
RELATED DOCUMENTS ................................................................................................................................................ 2
ABBREVIATION REGISTER ........................................................................................................................................... 2
1 SYSTEM OVERVIEW .......................................................................................................................................... 4
1.1 SCOPE OF DOCUMENT ................................................................................................................................... 4
1.2 SHORT DESCRIPTION OF THE COMPLETE SYSTEM INCLUDING HFM ............................................................ 4
2 CAR ACCESS ...................................................................................................................................................... 5
3 ENGINE START ................................................................................................................................................... 6
4 RF AND LF SYSTEM OVERVIEW ................................................................................................................... 7
4.1 REMOTE KEYLESS ENTRY SYSTEM DESCRIPTION ............................................................................................ 7
4.2 PASSIVE ACCESS & PASSIVE START SYSTEM DESCRIPTION ............................................................................. 7
5 PICTURES ............................................................................................................................................................. 8
6 LABEL INFORMATION ..................................................................................................................................... 9
6.1 EC ................................................................................................................................................................... 9
6.2 USA/CANADA ................................................................................................................................................. 9
7 OWNER MANUAL STATEMENTS ................................................................................................................. 9
7.1 OWNER MANUAL CANADA .............................................................................................................................. 9
7.2 OWNER MANUAL USA .................................................................................................................................. 10
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 4 / 10
1 SYSTEM OVERVIEW
1.1 Scope of Document
The aim of this document is to provide a short overview on the HFM Hand free system BCM
(Body Control Module) HFM C1A model HFMC1A01.
1.2 Short Description of the complete system including HFM
The HFMC1A01 is a radio frequency transmitter-receiver used in vehicle access systems.
The vehicle access system includes:
Key fob, which is a remote device
It includes a 315 MHz or 433.92 MHz transmitter, a 125 kHz LF receiver and a 125 kHz
transponder
LF Antennae
Kazashi includes a coil antenna for 125 kHz transponder communication
Hand Free Module (HFM):
It includes a 125 kHz LF long range and transponder transmitters and a 433.92 MHz
receiver. The HFM drives 6 external dedicated antennae for the 125 kHz transmission.
Two are located in the doors trims, one in the Bumper, two within the vehicle cockpit and
one in the trunck. It includes also an integrated RF receiver for 433.92 MHz. The receiver
is designed in direct placement.
The system interacts with other modules such as:
Push Engine Start
Body Control Module
ESCL (Electronic Steering Lock Control)
USM
The main functions performed by the system are:
RKE functions (key less features)
Hand Free functions for vehicle access and engine start
Immobilizer
LF antennae management
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 5 / 10
2 Car Access
There are two ways to Lock or Unlock the doors of the vehicle:
1. The first way is to use the remote key functionality (RKE) by pressing one of the “Lock”
or “Unlock” buttons on the ID Key. Data frames are then transmitted at 315 MHz or
433.92 MHz from the key fob ID of the car. The HFM processes the frames received and
when the security code is correct, the doors are locked or unlocked automatically.
Car access functions by remote control are allowed using any key fob type
2. The second way is to use the free hand mode
Unlocking the vehicle:
If the car is locked, when the door request switch located in the door is pressed by car
user which has a car key fob, the HFM transmits data frames at 125 kHz. When the key
fob receives the data and recognizes the content of the inquiry, it transmits the code to
the car at 433.92 MHz or 315 MHz (depending of key fob frequency type). The HFM
processes the frames received and when the code is correct, the doors are automatically
unlocked.
Locking the vehicle:
If the car is unlocked, when the door request switch located in the door is pressed by car
user which has a car key fob, the HFM transmits data frames at 125 kHz. When the key
fob receives the data and recognizes the content of the inquiry, it transmits the code to
the car at 433.92 MHz or 315 MHz (depending of key fob frequency type). The HFM
processes the frames received and when the code is correct, the doors are automatically
locked.
Car access functions by hand free are allowed using any key fob type.
Remarks:
The operating free hand mode range of the product model named HFMC1A01 is less than 15
meters.
The maximum operational distance using the hand free mode of this product is: 3 meters
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 6 / 10
3 Engine Start
There are two ways to start the Engine:
1. When the Hand free functions are disabled
First User has to hold the key fob in front of Immobilizer antenna for at least than 30s after one
of the following action: press of the “START” button on the dashboard, open or close a door or
press vehicle brake pedal. Each key fob has a transponder. When the key fob is hold in front
of Immobilizer antenna, the HFM sends a ‘transponder” recognition order to the key fob throw
the Immobilizer antenna. The HFM performs a ‘transponder” authentication using 125 kHz
transceiver. The key fob sends the authentication result to the HFM. Then the HFM sends on
the CAN bus a message to the central unit and engine control unit to allow or not the START
of the engine.
The engine starts function is allowed using any key fob type.
2. When the Hand free functions are enabled
The user does not need to hold the key fob in front of the Immobilizer antenna. The key fob
should only be inside the vehicle. When the “START” button is pushed, the HFM sends a
recognize message at 125 kHz link via internal LF antennas. Receiving this message, the key
fob sends an authentication message at 433.92 MHz or 315 MHz (depending of the key fob
frequency type) to the HFM. Then the HFM sends on the CAN bus a message to the central
unit and engine control unit to allow or not the START of the engine.
The engine start function is allowed using any key fob type.
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 7 / 10

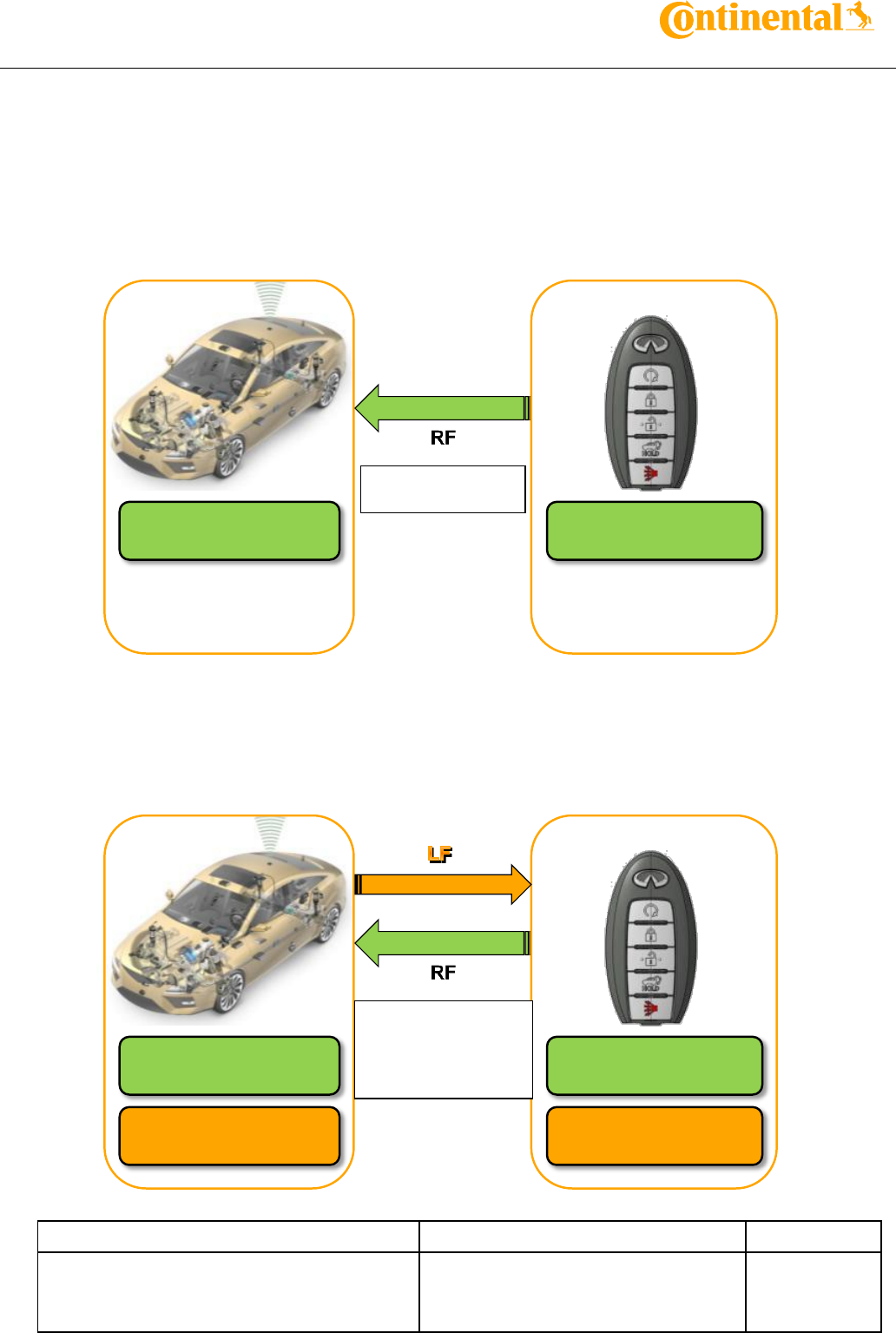

4 RF and LF System overview
4.1 Remote Keyless Entry System description
4.2 Passive Access & Passive Start System description
RF
RF-Technology
(315 MHz or 433.92 MHz)
RF Receiver RF Transmitter
RF
RF Receiver RF Transmitter
LF ReceiverLF Transmitter
RF-Technology
(315 MHz or 433,92 MHz)
LF-Technology
(125 kHz)
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 8 / 10
5 Pictures
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 9 / 10
6 Label Information
6.1 EC
Continental
HFMC1A01
6.2 USA/Canada
Continental
Model: HFMC1A01
FCC ID: KR5HFMC1A01
IC:7812D-HFMC1A01
CAN RSS-Gen/CNR-Gen
IC:7812D-RXIDP434
7 Owner Manual Statements
7.1 Owner manual Canada
IC:7812D–HFMC1A01
CAN RSS-Gen/CNR-Gen
IC:7812D-RXIDP434
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Author:
JEROME LEE
USER MANUAL
Version:
2.0
HFMC1A01
Chap. 0
File:
User_Manual_Model_HFMC1A01_v2.0.
docx
Fehler! Verweisquelle konnte
nicht gefunden werden.
Page 10 / 10
7.2 Owner manual USA
FCC ID: KR5HFMC1A01
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
No changes shall be made to the equipment without the manufacturer’s permission as this may
void the user’s authority to operate the equipment.
END OF DOCUMENT
