Continental Automotive Technologies TIS-04-ASK Tire Pressure Monitoring System User Manual TIS04 ASK TPMS Functional description v2
Continental Automotive GmbH Tire Pressure Monitoring System TIS04 ASK TPMS Functional description v2
User Manual
Continental Automotive
1 of 5
User Manual / Functional Description
of the
Continental
Tire Pressure Wheel Unit
Type
TIS-04-ASK 315MHz
Continental Automotive
2 of 5
1. SYSTEM OVERVIEW
Tire pressure monitoring system (called also TG for Tire Guard) is composed by:
- a tire guard wheel unit including an integrated pressure, temperature and acceleration sensor
and a RF transmitter.
- a RF receiver unit (not described in this document)
TG monitors the pressure of vehicle tire when driving or when it is stopped. An electronic unit
(wheel unit) mounted inside the tire periodically measures the current pressure. Thanks to a RF
link, this pressure information is transmitted to the RF receiver/decoder.
2. TECHNICAL DESCRIPTION
Carrier frequency: 315MHz (± 32 kHz)
Frequency FSK deviation: ± 40 kHz
Number of channels: 1
Type of modulation: Amplitude Shift Keying (ASK)
Baud rate: 9600 bds
Rated Output Power: < 10mW
Antenna: Internal
Voltage supply: 1 Lithium battery 3V (CR2050)
Voltage supply range: 2.1 up to 3.2V
3. TYPICAL USAGE PATTERN
3.1 AVERAGE FACTOR CALCULATION (Standard 47 CFR Part 15C (periodic
intentional transmitter))
RF frames maximum duration = 10.3ms
Averaging factor = 20 x log (10.3/100) = -19.7dB
Continental Automotive
3 of 5
4. BLOCK DIAGRAM
The block diagram below shows the main electronic units of the wheel unit:
3V
LITH IUM
BA TT E R Y
Learning coil
RF CIRC U IT
AN TEN N A
Pressure,
tem perature,
acceleration
sensor and
µcontroller
Continental Automotive
4 of 5

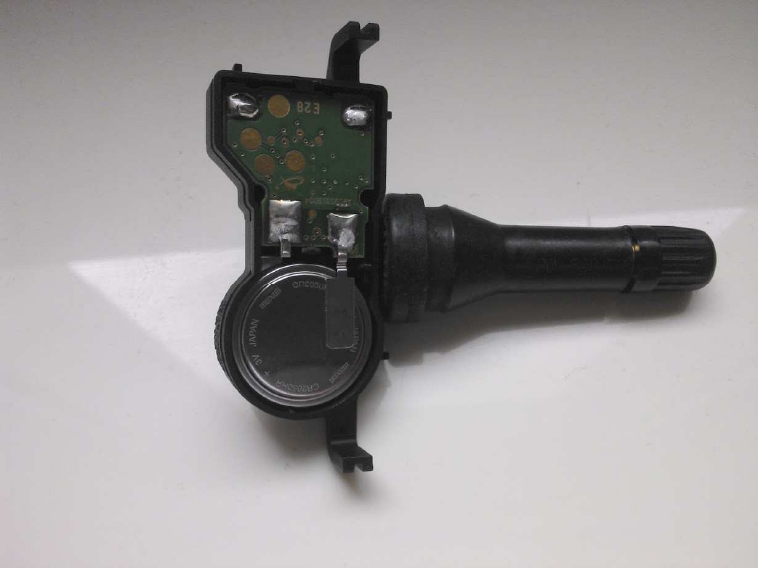

5. PICTURES
Continental Automotive
5 of 5

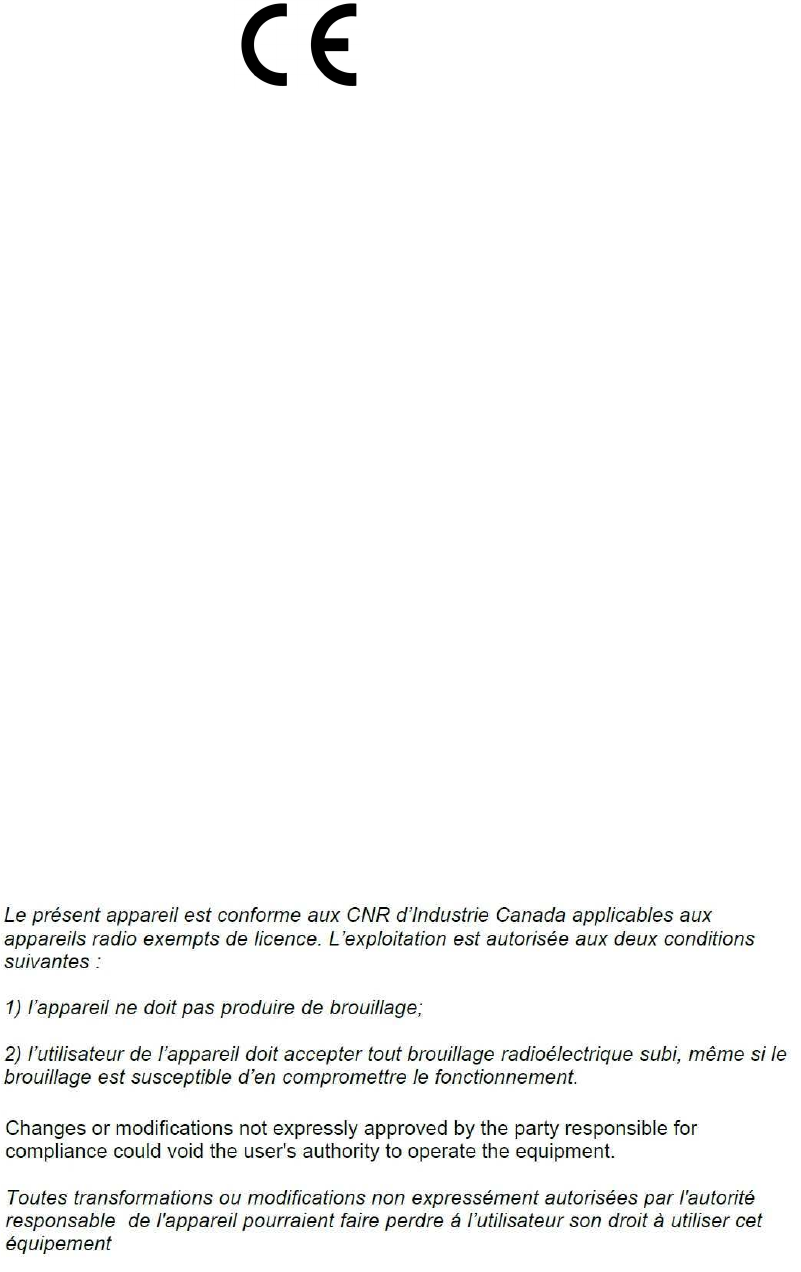

Label
6.1 EU
Continental
TIS-04-ASK
6.2USA
Continental
TIS-04-ASK
FCC ID: KR5TIS-04-ASK
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
6.3 CANADA
Continental
Model: TIS-04-ASK
IC: 7812D-TIS04ASK
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
