Continental Automotive Technologies TIS-07 Pressure, Temperature and Acceleration Sensor User Manual Func Tire Guard 1C FSK 433 92MHz TIS 07
Continental Automotive GmbH Pressure, Temperature and Acceleration Sensor Func Tire Guard 1C FSK 433 92MHz TIS 07
User Manual
Continental Automotive GmbH
of the
Continental
Tire Pressure Generation 1C wheel unit
Type
TIS-07
(FSK 433.92MHz)
User Manual
Josef Lohr
I BS PG3 CFRF WM 1 of 4
Continental Automotive GmbH

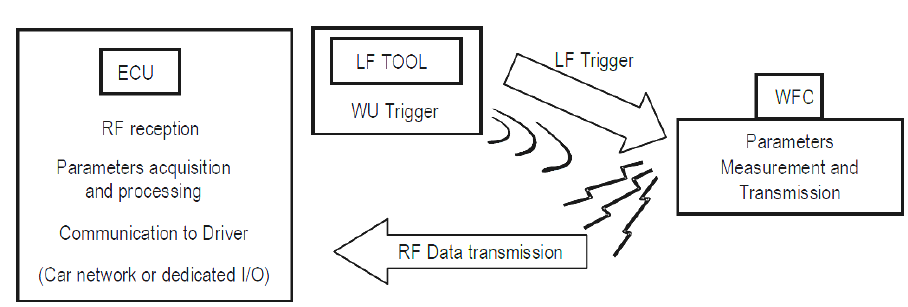

1. SYSTEM OVERVIEW
The tire pressure monitoring system (referred as TG for Tire Guard) consists of the following
units:
- Tire guard wheel unit type TIS-07 which includes an integrated pressure, temperature and
acceleration sensor and a RF transmitter.
- RF receiver unit which includes a RF receiver (not described in this document)
The TG monitors a vehicle's tire pressure whilst driving or stationary. An electronic unit (wheel
unit) inside each tire, mounted to the valve stem, periodically measures the actual tire pressure.
By means of RF communication, this pressure information is transmitted to the RF transmitter.
2. TECHNICAL DESCRIPTION
Carrier frequency: 433,92 MHz
Number of channels: 1
Type of modulation: Frequency Shift Keying (FSK)
FSK deviation ±20kHz (min) to ±40kHz (max)
Baud rate: 19200 bps
Rated Output Power: < 10mW
Antenna: Internal (PCB)
Voltage supply: 1 Lithium battery 3V (CR2050)
Voltage supply range: 2.1 up to 3.2V
Size: L (76,21mm) x W (51,8mm) x H (15,7mm)
Weight: 31,6g
Temperature range: -40°C - 120°C
Josef Lohr
I BS PG3 CFRF WM 2 of 4
Continental Automotive GmbH
Continental
A2C97432500
FCC ID:KR5TIS-07

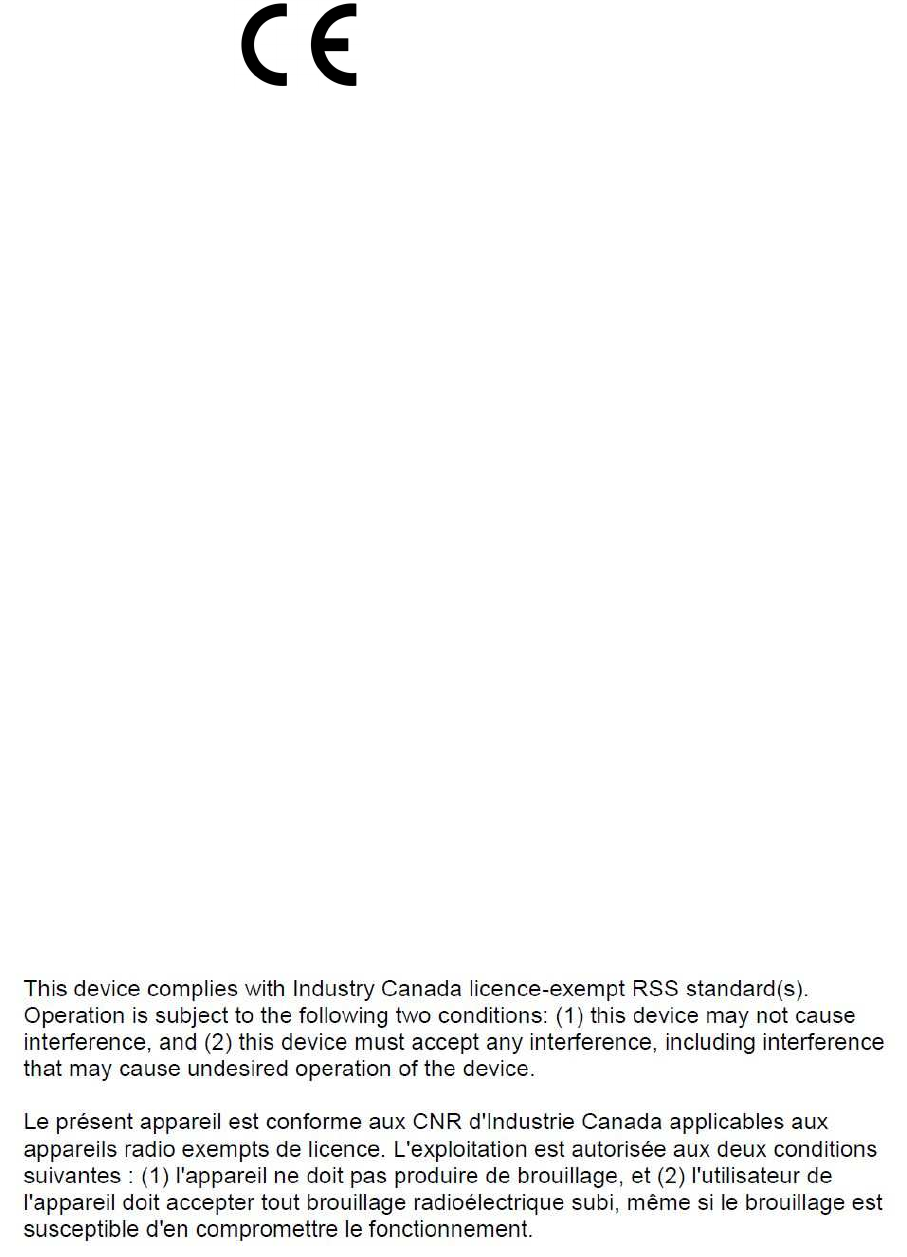

3. LABEL
Continental
3.1. EU
3.2. USA
3.3. CANADA
Josef Lohr
I BS PG3 CFRF WM 3 of 4
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with the FCC safety requirements for RF exposure in accordance with
FCC rule part §2.1093
This device has complies with the safety requirement for RF exposure in accordance with
RSS-102, issue 5 for portable conditions
Model: TIS-07
IC:7812D-TIS07
Cet appareil est conforme aux normes de sécurité pour l'exposition RF conformément à
RSS-102, numéro 5, dans les conditions portables.
Continental Automotive GmbH
3
.4. KOREA
Josef Lohr
I BS PG3 CFRF WM 4 of 4
