Title: VP2Refresh system specification
Project: VP2Refresh
Maturity: draft/ ready/ reviewed Version: A01
Author
Role Name Date and signature
I IC RD G EE D2 Frank Born 21-Aug-2015
Purpose:
This document describes the VP2 system specification
History of Content Changes
Version Status Date
dd-Mmm-YYYY
Document Owner,
Department Changes (e.g. CR-number)
A01 released 07-Sep-2015 F. Born I IC RD G EE D2 First version
VP2Refresh Bluetooth
certification
I IC RD
Copyright © Continental automotive GmbH 2012
A
ll rights reserved, <confidential>
Document: VP2_Refresh_Specification_A01.doc 2/ 7
For internal use only
Printout from project folder
Print date: 9-Sep-15
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication there of to others without express authorization are prohibited.
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
Table of contents
1Introduction ........................................................................................................................................ 3
1.1 System description ............................................................................................................................. 3
1.2 HW/SW information ............................................................................................................................ 4
1.3 Block diagram .................................................................................................................................... 5
1.4 Electrical characteristics .................................................................................................................... 6
1.5 VP2Refresh radio function block description . .................................................................................... 7
VP2Refresh Bluetooth
certification
I IC RD
Copyright © Continental automotive GmbH 2012
A
ll rights reserved, <confidential>
Document: VP2_Refresh_Specification_A01.doc 3/ 7
For internal use only
Printout from project folder
Print date: 9-Sep-15
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication there of to others without express authorization are prohibited.
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
1 Introduction
This document shows an overview of the VP2Refresh radio system.
The VP2Refresh is a multi media radio with an on board Bluetooth chip from CSR which support the
Bluetooth version V2.1+EDR with a max. data rate up to 3Mbit/s in EDR mode.
1.1 System description
The Bluetooth chip in the VP2Refresh system is implemented for hands free audio and data connections
with mobile devices like mobile phones.
The basic function of the VP2Refresh Bluetooth system is the hands free functionality in combination
with the car internal loudspeaker and microphone.
The Bluetooth IC work with an 26MHz crystal.

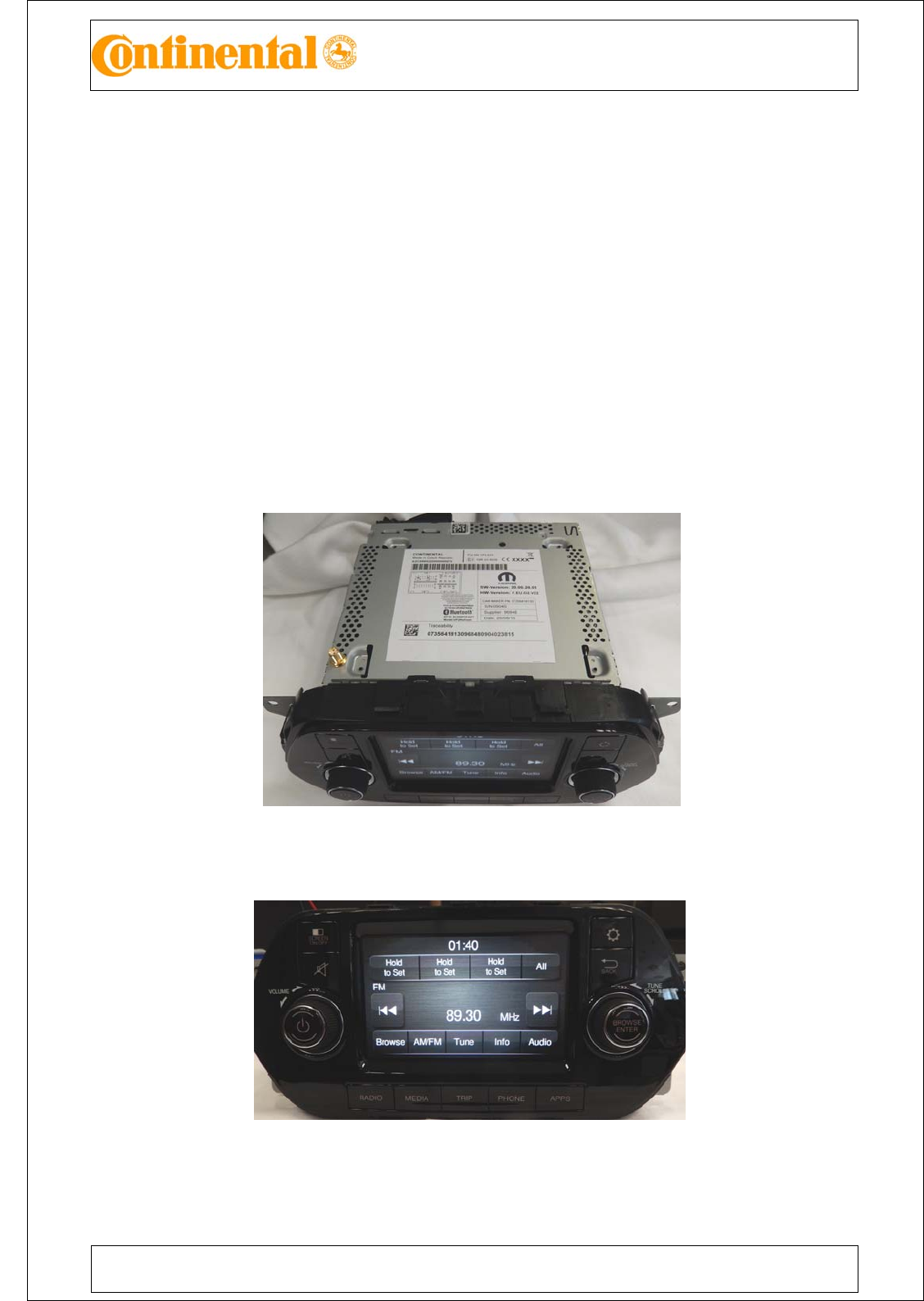

The following pictures show the VP2Refresh radio hardware with the housing:
Figure1: VP2Refresh radio, front top view
Figure2: VP2Refresh radio, front view
VP2Refresh Bluetooth
certification
I IC RD
Copyright © Continental automotive GmbH 2012
A
ll rights reserved, <confidential>
Document: VP2_Refresh_Specification_A01.doc 4/ 7
For internal use only
Printout from project folder
Print date: 9-Sep-15
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication there of to others without express authorization are prohibited.
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
1.2 HW/SW information
The VP2Refresh radio system is designed for use in several countries with varying HW variants
dependent to the car model and car internal accessory variants, for this reason the VP2Refresh could be
delivered with different HW and SW version (e.g. BT radio connect with main board PCB antenna or with
antenna on the front PCB).
For the Bluetooth certification a variant with antenna on the front PCB will be used.
The HW / SW version is marked on the top label see figure3 (e.g. SW:20.00.26.01, HW:F.EU.D2.V22).
For the Bluetooth RF radio part at VP2Refresh only one HW version exists, this version is defined as:
“Model: VP2Refresh”, see figure3 label.

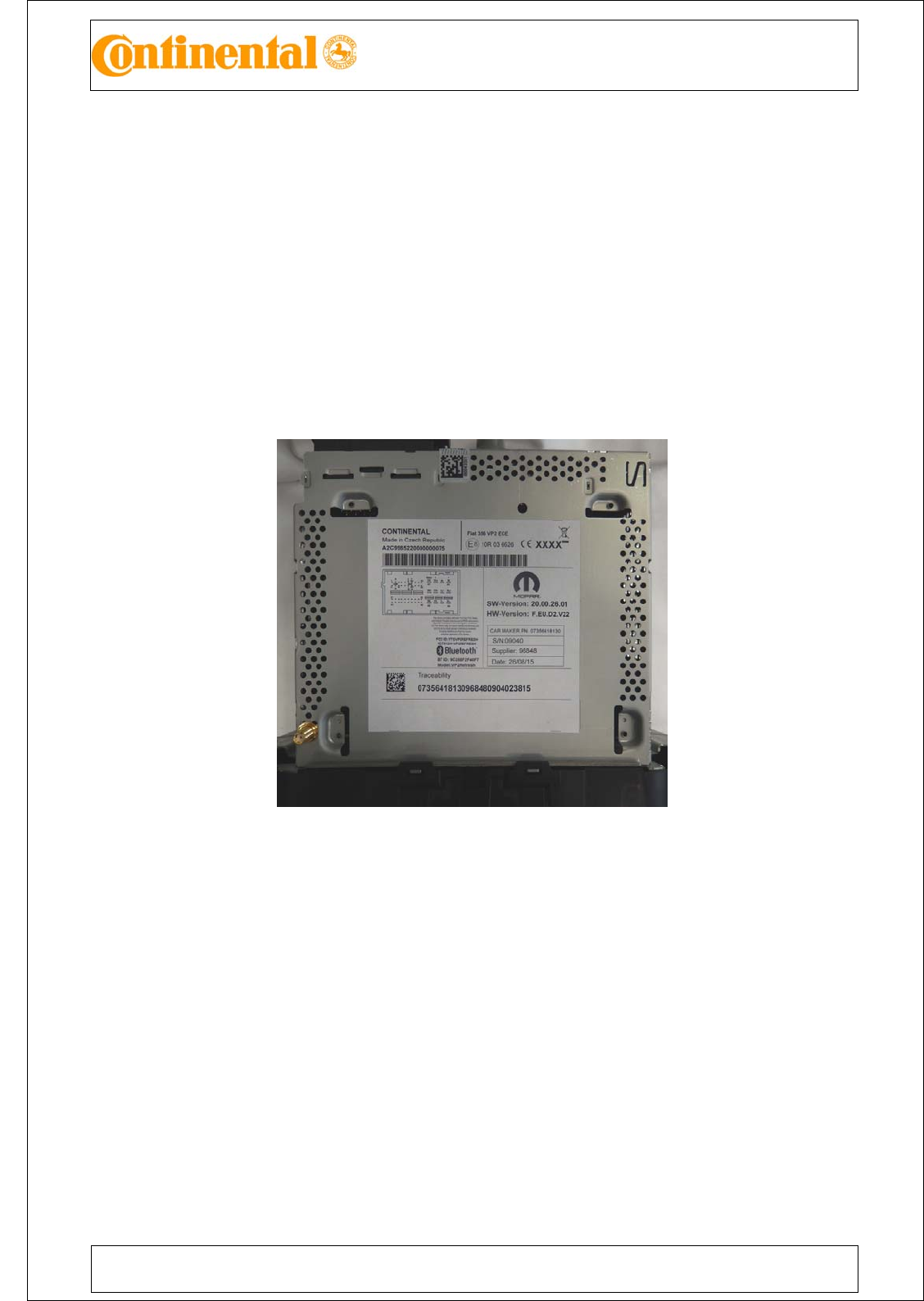

Figure3: VP2Refresh label example
VP2Refresh Bluetooth
certification
I IC RD
Copyright © Continental automotive GmbH 2012
A
ll rights reserved, <confidential>
Document: VP2_Refresh_Specification_A01.doc 5/ 7
For internal use only
Printout from project folder
Print date: 9-Sep-15
e
mination and/or editing of this document as well as utilization of its contents and communication there of to others without express authorization are prohibited.
p
ayment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
1.3 Block diagram

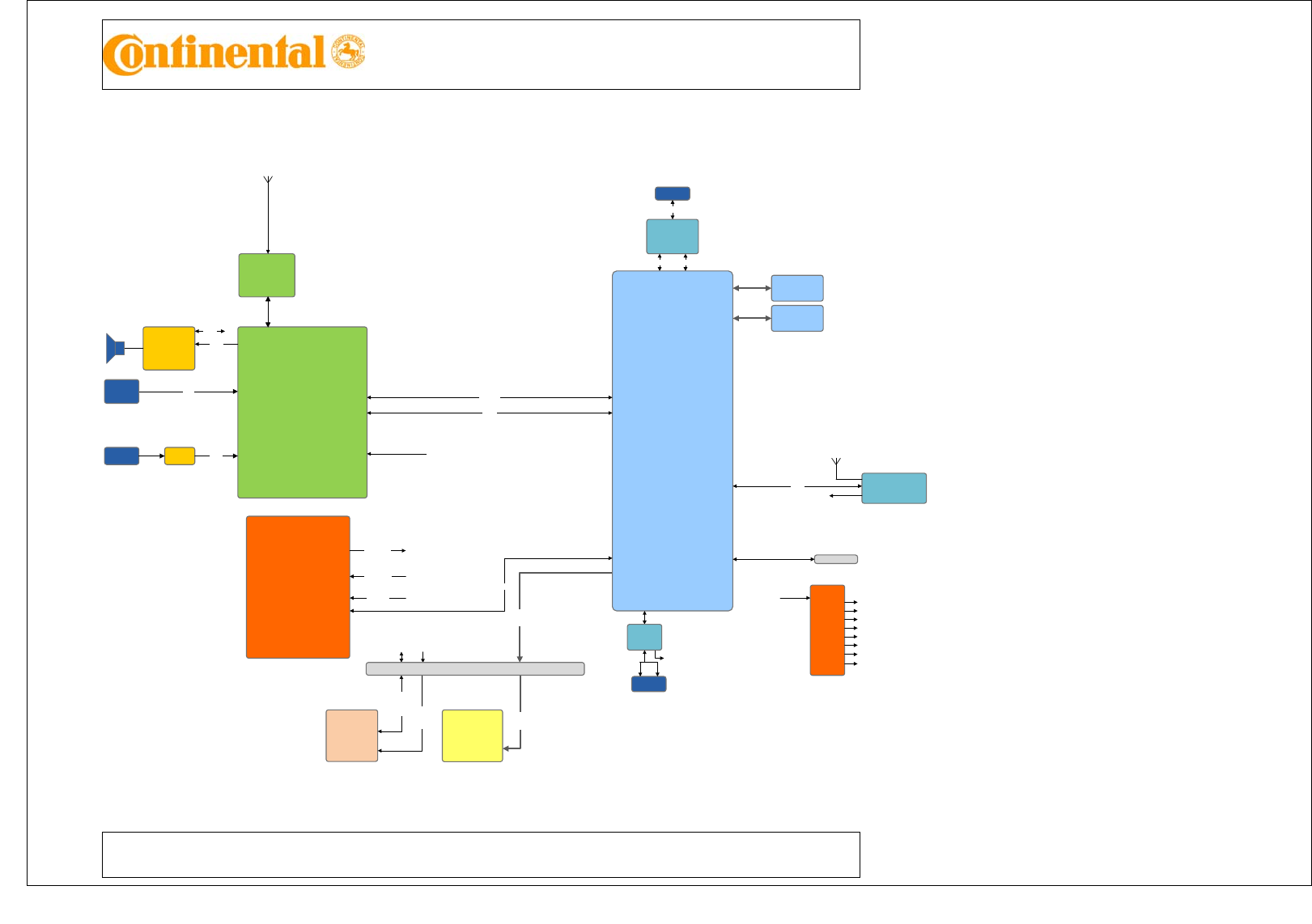

The following picture shows the block diagram of the VP2Refresh:
Display
CarDSP
55.47MHz crystal
RAM
FM/AM
Tuner frontend
Button,
rotary,
illumination
Amplifier
USB POWER
Protection
B-CAN
HS-CAN
USB
USB
USB
CTRL
CTRL
Audio
CTRL
4
AUX
I/O
DEBUG
WAKEUP
Main CPU
24MHz crystal
Display
with
Touch
Power
Supply
8V0
5V0
3V3
1V8
1V2
3V3_PERM
UBATT
KEY/Rotary
BLUETOOTH
26MHz crystal
CTRL
int.
BT Antenna
KEY/Rotary
Illumination
Illumination
Illumination
FRONT
AUX
KEY/Rotary
WAKEUP
Power and
Interface
controller
24MHz int.
resonator
Preamp MIC1
MIC1
FM/AM Antenna
Display
Connector MAIN/FRONT
Flash
BT_audio
BT_audio
1V4
1V35
digAudio
Figure4: VP2Refresh block diagram
VP2Refresh Bluetooth
certification
I IC RD
Copyright © Continental automotive GmbH 2012
A
ll rights reserved, <confidential>
Document: VP2_Refresh_Specification_A01.doc 6/ 7
For internal use only
Printout from project folder
Print date: 9-Sep-15
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication there of to others without express authorization are prohibited.
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
1.4 Electrical characteristics
The following table shows the electrical characteristics of the VP2 system and the on board Bluetooth IC.
characteristics min. typ. max. value
DC power supply 10 13.5 16 V
load current at sleep mode - 400 2000 µA
Typical load current during constant
operation with low volume - 1.3 - A
Typical load current during constant
operation with high volume - 7 - A
max. current limited by lead car fuse - - 15 A
Operating temperature -40 - +85 °C
Weight of radio 1.3 kg
Chassis width incl. Front 275 mm
Chassis high incl. Front 120 mm
Chassis depth incl. Front 245 mm
Bluetooth characteristics
Transmit frequency 2402 - 2480 MHz
Transmit power, class2 module -6 0 +4 dBm
Receive sensitivity of Bluetooth IC -81 -87 - dBm
Crystal for Bluetooth IC 26 MHz
Table1: VP2Refresh electrical characteristics
VP2Refresh Bluetooth
certification
I IC RD
Copyright © Continental automotive GmbH 2012
A
ll rights reserved, <confidential>
Document: VP2_Refresh_Specification_A01.doc 7/ 7
For internal use only
Printout from project folder
Print date: 9-Sep-15
Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication there of to others without express authorization are prohibited.
Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved.
1.5 VP2Refresh radio function block description
-AM/FM Radio
-USB audio
-AUX input
-Bluetooth HFP
-Microphone input
-High speed CAN
FM Tuner Section
Tuning Range: see following country dependent informations
FM Mono: 22.5kHz deviation 1kHz
FM Stereo: 22.5kHz deviation 1kHz, pilot(19kHz) 7.5kHz deviation
Useable Sensitivity: 6dBµV
SNR: Mono 60dBµV / Stereo 55dBµV
Europe setup:
FM range: 87.5MHz – 108MHz with 100kHz steps
America setup:
FM range: 87.9MHz – 107.9MHz with 200kHz (country dependent 100kHz) steps
AM Tuner Section
Tuning Range: see following country dependent informations
26dB S/N Sensitivity: 32dBµV
SNR: 55dB
Europe setup:
AM range: 531kHz – 1602kHz with 9kHz steps
America setup:
AM range: 530kHz – 1710kHz with 10kHz steps
USB Section
USB 2.0 type
1.1A max. output current supply
USB “Mass Storage Class”
Audio file format: MP3 / AAC / WMA
AUX Section
Channel Balance: 0dB+/-2
Distortion: 0.3%
Bluetooth Section
Bluetooth Profiles: HFP, PBAP, PCE, OPP, SPP, A2DP, AVRCP, DUN, MAP, SAP, HID, PAN, GOEP,
SyncML, Device ID profile
