Continental Conair WIH800 Commercial Induction Range User Manual

Continental Conair Limited Commercial Induction Range Users Manual

Contents

Users Manual

COMMERCIAL INDUCTION RANGE
PLACA DE INDUCCIÓN COMERCIAL
PLAQUE À INDUCTION COMMERCIALE
WIH800
For your safety and continued enjoyment of this product,
always read the instruction book carefully before using.
Para su seguridad y para disfrutar plenamente de este producto,
siempre lea las instrucciones cuidadosamente antes de usarlo.
An que cet appareil vous procure en toute sécurité beaucoup de satisfaction,
lire attentivement le mode d’emploi avant de l’utiliser.
REAR
POWER/TEMP
SELECT
POWER/TEMP
SELECT
FRONT
2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should
always be followed, including the following:
1. READ ALL INSTRUCTIONS.
2. Unplug from outlet when not in use, before putting on
or taking off parts and before cleaning.
3. To protect against risk of electric shock, do not put
appliance in water or other liquids.
4. Do not touch surfaces that may be hot.
5. Avoid contact with moving parts.
6. Do not operate the Waring™ Commercial Induction
Range or any other electrical equipment with a
damaged cord or plug, or after the unit malfunctions
or is dropped or damaged in any manner. Return it
to the nearest Waring Authorized Service Center for
examination, repair, and/or adjustment.
7. The use of attachments not recommended or sold by
Waring may cause re, electric shock, or injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch
hot surfaces.
10. The Waring™ Commercial Induction Range should always be
on a stable countertop or table.
11. Do not use appliance for other than intended use.
12. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
13. Children should be supervised to ensure that they do not
play with the appliance.
14. Do not cook on broken cooktop – If the glass cooktop
should break, cleaning solutions and spillovers may
penetrate the broken surface and create a risk of electrical
shock.
3
15. Clean cooktop with caution – If a wet sponge or cloth is
used to wipe spills on a hot cooking area, be careful to avoid
steam burn; some cleaners can produce noxious fumes if
applied to a hot surface.
16. There are potential interference when it is working. So please
keep the device at a distance with people and some items, such
as radios, televisions, automatic-banking cards and cassette tapes.
17. Do not place metal objects such as knives, forks, spoons and lids
on the glass surface, since they can get hot.
This device complies with Part 18 of the FCC Rules.
APPROVED FOR
COMMERCIAL USE
GROUNDING INSTRUCTIONS:
For your protection, this Waring™
Commercial Induction Range is supplied
with a molded 3-prong grounding-type plug
and should be used in combination with a
properly connected grounding-type outlet.
Use of any other voltage or altering of the
plug or cord may damage the unit, will void
warranty, and may cause injury.
SPECIAL CORD SET INSTRUCTIONS
A short power-supply cord is provided to reduce the risks
resulting from becoming entangled in or tripping over a
longer cord.
Extension cords may be used if care is exercised in their use.
If an extension cord is used, the marked electrical rating of the
extension cord must be at least as great as the electrical rating
of the appliance. If the appliance is of the grounded type, the
extension cord should be a grounding-type 3-wire cord, and
the longer cord should be arranged so that it will not drape over
the countertop or tabletop where it can be pulled by children or
tripped over.
4
* Schott is a registered trademark of the Schott Corporation.
PARTS
1. Temperature/Heat/Timer Mode Setting
2. LCD Display
3. Adjustment Control for
Temperature/Heat/Timer
4. On/Off Power Button
5. Stainless Steel Housing
6. Schott®* Ceramic Glass
Cooking Surface
SPECIFICATIONS
MODEL ELECTRICAL PLUG TYPE DIMENSIONS (inches)LISTING
WIH800
240V, 16 AMP
3600 W NEMA 6-20P 29" (D) x 5" (H) x
16" (W)
ETLus
NSF
NOTE: Your Waring™ Commercial Induction Range defaults to
Fahrenheit setting. Every time the unit is plugged in it will default
to Fahrenheit. To change to Celsius follow directions on page 5.
REAR
POWER/TEMP
SELECT
POWER/TEMP
SELECT
FRONT
4.
1. 3. 3.
1.
2. 2.
5.
5.
6.
5
OPERATION
NOTE: This Induction Range
requires induction-ready
cookware. If the pan is not
induction ready, it will not
register on the induction
range. The LCD display will
show “-----” and “STANDBY”

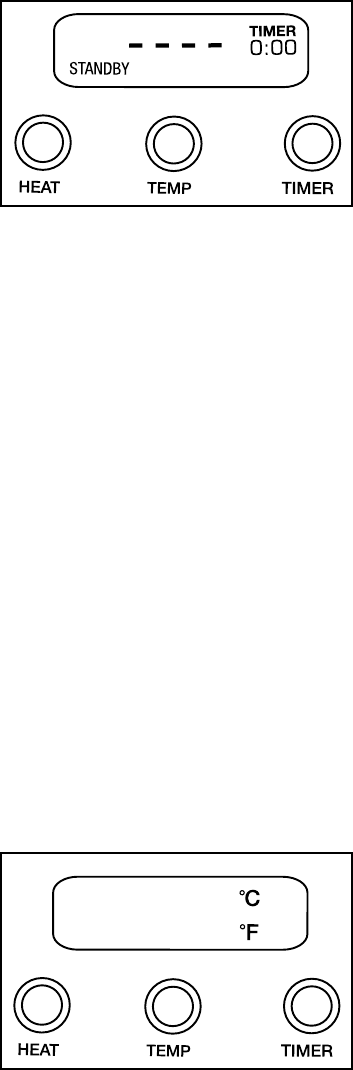

will ash (as seen in Figure 1)
when attempting to select a
heat mode without an induction-ready
pan on the glass cooking surface. The unit will automatically shut
off after 60 seconds of not having an induction-ready pot/pan.
1. Before turning on the power, make sure the cookware is
on the glass cooking surface. Your Waring™ Commercial
Induction Range is equipped with small-object detection
which will prevent it from operating unless you have an
appropriate sized induction-ready pan in place.
2. To turn the power on, press the ON/OFF button and choose
a cooking mode by pressing HEAT or TEMP button.
NOTE: The unit will automatically shut off after 30 seconds
if you do not choose a cooking mode.
a) The HEAT button allows you to choose how many watts
of power to cook with.
b) The TEMP button allows you to choose the temperature
at which you cook.
3. Once you’ve chosen a cooking mode, use the + and –
buttons to set the desired wattage or temperature.
CHOOSING FAHRENHEIT OR CELSIUS
In TEMP mode, you can choose Fahrenheit or Celsius. When the
unit is plugged in and in the OFF position the LCD screen will
be blank. Press and hold
the TEMP button for three
seconds. The screen will
illuminate and display °C
and °F, as seen in Figure 2.
The current setting will blink.
Use the + and – buttons to
switch to your desired
setting. Once your desired
Figure 1
Figure 2
6
setting is blinking, press the TEMP button to conrm, and then
press the ON/OFF button.
NOTE: The induction burner automatically defaults to Fahrenheit
once unplugged.
SETTING THE TIMER
1. Turn the unit on and choose your cooking mode by pressing
TEMP or HEAT.
2. Press the TIMER button and use the + and – buttons to
adjust time anywhere from 1 minute to 10 hours. Once
the timer display stops blinking, the timer will begin to
count down. NOTE: It will count down seconds when it
reaches :59 seconds.
3. When the timer has counted down to “0” the unit will beep
four times and the screen will blink. WARNING: The unit
will not automatically shut off.
INDUCTION-READY POTS AND PANS
To use the Waring™ Commercial Induction Range, your pot or pan
must have a at bottom surface of 4.75 inches to 10 inches in
diameter, and be marked suitable for induction cooking.
SAFETY
CAUTION: UNPLUG FROM OUTLET WHEN NOT IN USE!
Please note that the unit will still be too hot to handle immediately
after use.
The Waring™ Commercial Induction Range has a thermal cutoff
safety device to avoid overheating. If the Induction Range shuts
off automatically, unplug it and allow it to cool for 20 minutes.
Plug back in and continue use.
CLEANING AND MAINTENANCE
Always unplug unit after each use and before cleaning. Unplug
the unit when not in operation. The Waring™ Commercial
Induction Range should be cleaned after each use with warm
soapy water. The exterior of unit may be cleaned by carefully
wiping with a damp cloth.
Clean cooking surface while the unit is warm, using warm soapy
water. DO NOT USE COLD WATER ON WARM SURFACE.
Do not immerse completely in water to clean. The appliance is
not to be cleaned with a water jet.
7
NOTE: The cooking surface will be hot after use. Use caution
when handling cooking utensils and cookware.
Any other servicing should be performed by an authorized service
representative.
TROUBLESHOOTING
Error Code List on LCD Display
Error Code Description of Error Solutions
“----” and the
unit beeps
There is no cookware or no
suitable cookware on the range.
The power will completely shut
off within 60 seconds if there is
no cookware or the wrong type
of cookware on the unit.
• Make sure your pot/pan is
induction ready.
• Check diameter of pot/pan;
it must have a flat bottom
between 4.75" and 10"
in diameter.
E1 Voltage is under 78V. Check electrical specifications
of power source.
E2 Voltage is over 145V.
E3, E5 The heater is damaged. Contact the nearest
authorized service facility for
troubleshooting, repair and
adjustment.
E6 The thermal protection has shut
the unit off due to overheating in
the TEMP mode.
Unplug the unit and let cool for
20 minutes. Plug the unit back
in and continue use. If the range
still does not function, contact
the nearest authorized service
facility for troubleshooting, repair
and adjustment.
E7 The temperature inside the unit
is too hot.
Unplug the unit and let cool for
20 minutes. Once the range has
completely cooled, be sure it is
positioned away from the wall
and there are no obstructions to
the airflow. Plug the unit back in
and continue use.
E9 Malfunction has been activated
or triggered
Unplug the unit. Plug the unit
back in and continue use.
If the range still does not
function, contact the nearest
authorized service facility for
troubleshooting, repair and
adjustment.
