Contrinex RFM18HF RFID Transponder Reader User Manual Users manual 1

Contrinex AG RFID Transponder Reader Users manual 1

Users manual 1

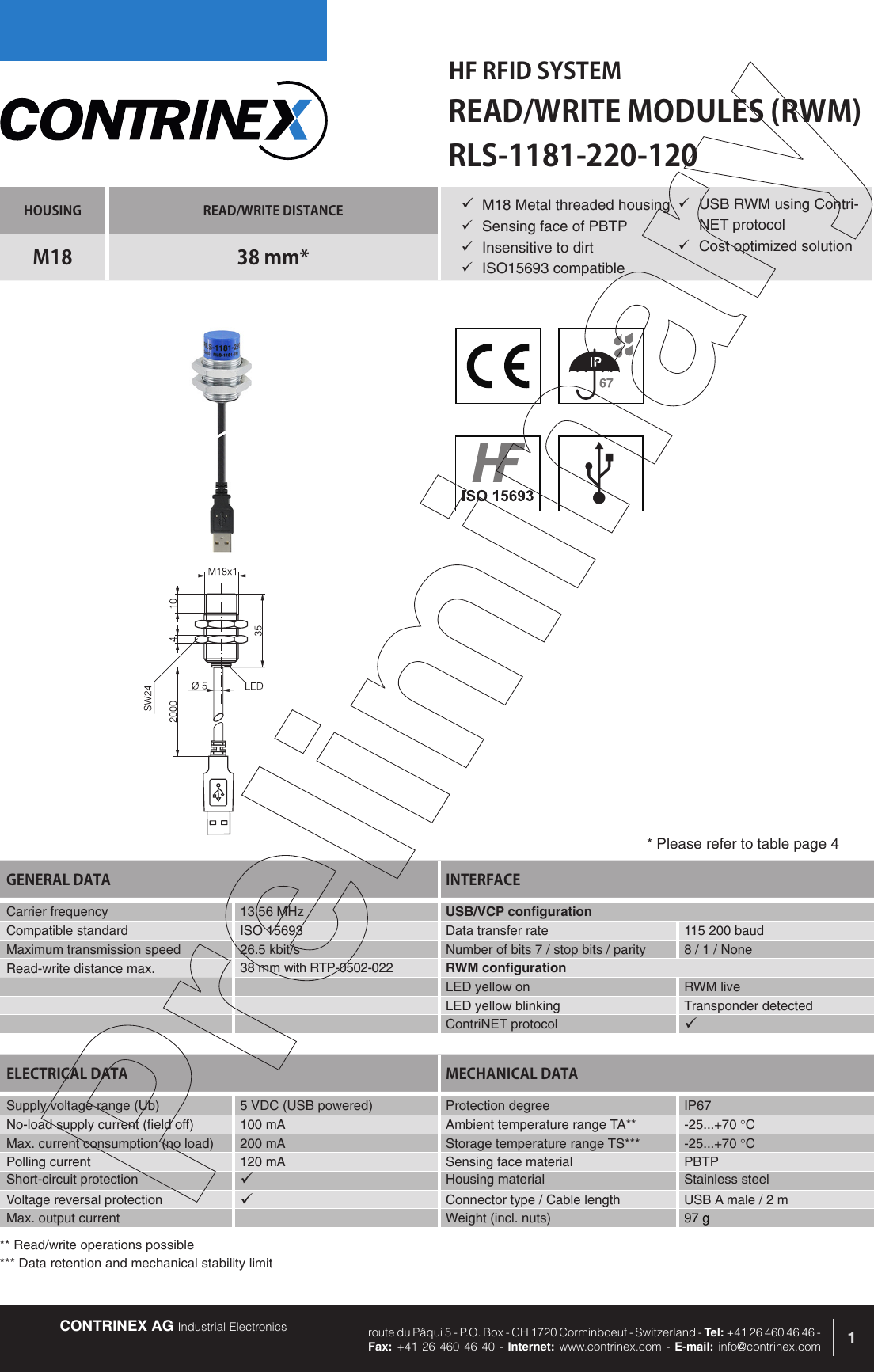

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.comHF RFID SYSTEMREAD/WRITE MODULES (RWM)1HOUSING READ/WRITE DISTANCEM18 38 mm*GENERAL DATA INTERFACECarrier frequency 13.56 MHz USB/VCP configurationCompatible standard ISO 15693 Data transfer rate 115 200 baudMaximum transmission speed 26.5 kbit/s Number of bits 7 / stop bits / parity 8 / 1 / NoneRead-write distance max. 38 mm with RTP-0502-022 RWM configurationLED yellow on RWM liveLED yellow blinking Transponder detectedContriNET protocol üRLS-1181-220-120ü M18 Metal threaded housingü Sensing face of PBTPü Insensitive to dirtü ISO15693 compatibleELECTRICAL DATA MECHANICAL DATASupply voltage range (Ub) 5 VDC (USB powered) Protection degree IP67No-load supply current (field off) 100 mA Ambient temperature range TA** -25...+70 °CMax. current consumption (no load) 200 mA Storage temperature range TS*** -25...+70 °CPolling current 120 mA Sensing face material PBTPShort-circuit protection üHousing material Stainless steelVoltage reversal protection üConnector type / Cable length USB A male / 2 mMax. output current Weight (incl. nuts) 97 g* Please refer to table page 4ü USB RWM using Contri-NET protocolü Cost optimized solution** Read/write operations possible*** Data retention and mechanical stability limit

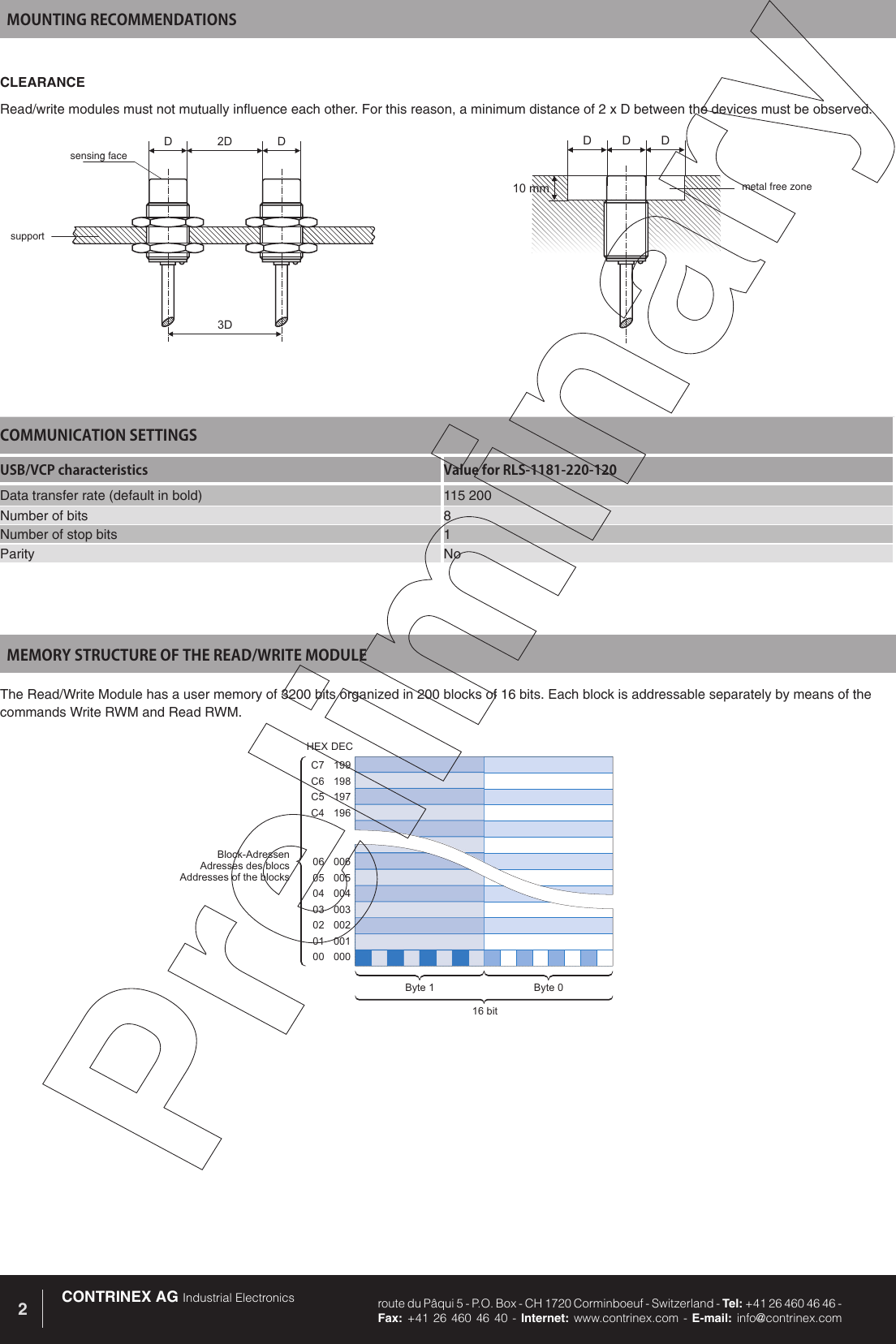

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com2199198197196C7C6C5C400600500400300200100006050403020100Block-AdressenAdresses des blocsAddresses of the blocksByte 0Byte 116 bitHEXDECMEMORY STRUCTURE OF THE READ/WRITE MODULEThe Read/Write Module has a user memory of 3200 bits organized in 200 blocks of 16 bits. Each block is addressable separately by means of the commands Write RWM and Read RWM. COMMUNICATION SETTINGSUSB/VCP characteristics Value for RLS-1181-220-120Data transfer rate (default in bold) 115 200Number of bits 8Number of stop bits 1Parity NoMOUNTING RECOMMENDATIONSCLEARANCERead/write modules must not mutually influence each other. For this reason, a minimum distance of 2 x D between the devices must be observed.2D3DDDDDD10mmsensing facesupportmetal free zone

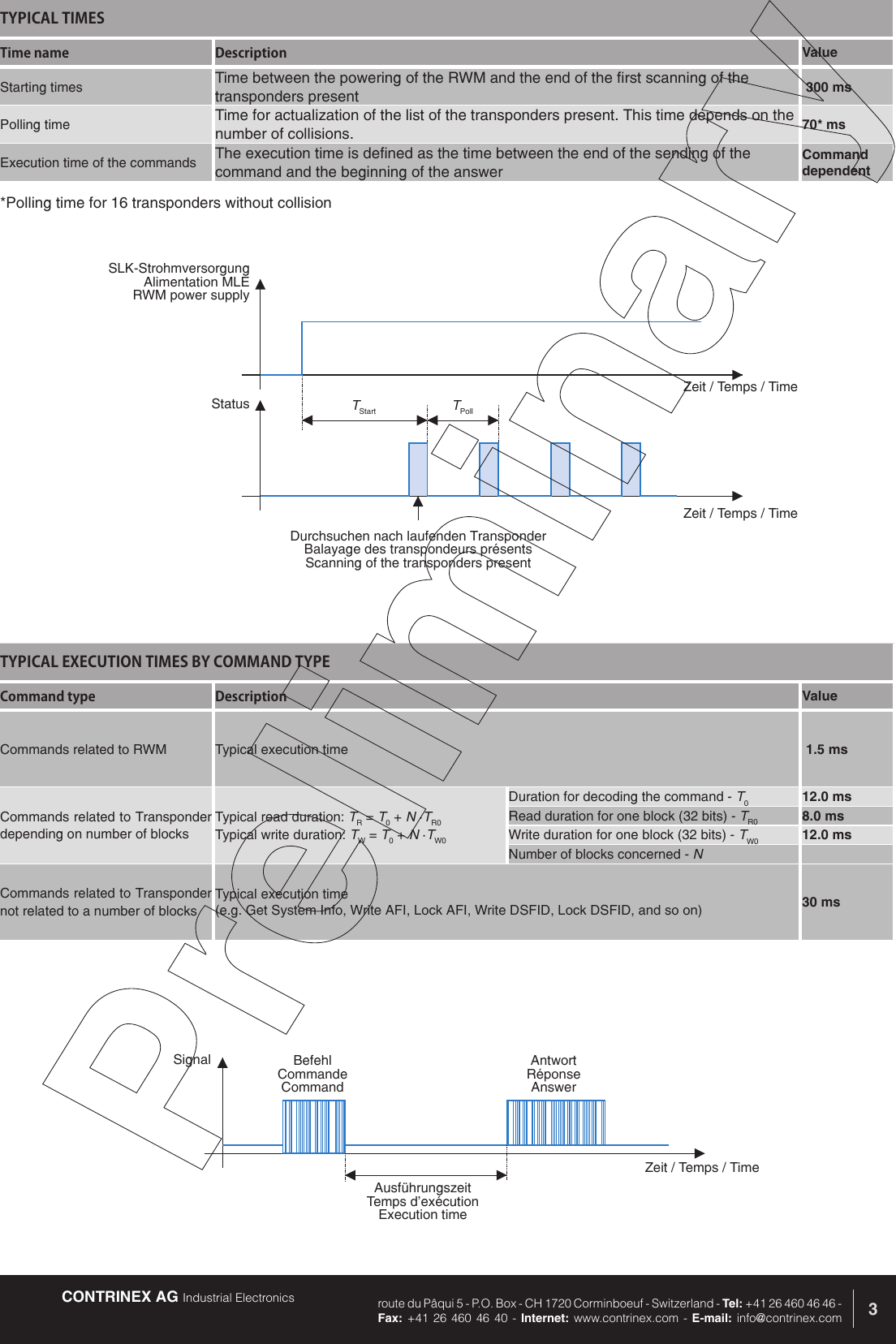

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com 3*Polling time for 16 transponders without collisionTYPICAL TIMESTime name Description ValueStarting times Time between the powering of the RWM and the end of the first scanning of the transponders present 300 msPolling time Time for actualization of the list of the transponders present. This time depends on the number of collisions. 70* msExecution time of the commands The execution time is defined as the time between the end of the sending of the command and the beginning of the answerCommand dependentTYPICAL EXECUTION TIMES BY COMMAND TYPECommand type Description ValueCommands related to RWM Typical execution time 1.5 msCommands related to Transponder depending on number of blocksTypical read duration: TR = T0 + N ·TR0Typical write duration: TW = T0 + N ·TW0Duration for decoding the command - T012.0 msRead duration for one block (32 bits) - TR0 8.0 msWrite duration for one block (32 bits) - TW0 12.0 msNumber of blocks concerned - NCommands related to Transponder not related to a number of blocksTypical execution time (e.g. Get System Info, Write AFI, Lock AFI, Write DSFID, Lock DSFID, and so on) 30 msZeit / Temps / TimeZeit / Temps / TimeSLK-StrohmversorgungAlimentation MLERWM power supplyStatusDurchsuchen nach laufenden TransponderBalayage des transpondeurs présentsScanning of the transponders presentTStart TPollBefehlCommandeCommandAntwortRéponseAnswerSignalZeit / Temps / TimeAusführungszeitTemps d'exécutionExecution time

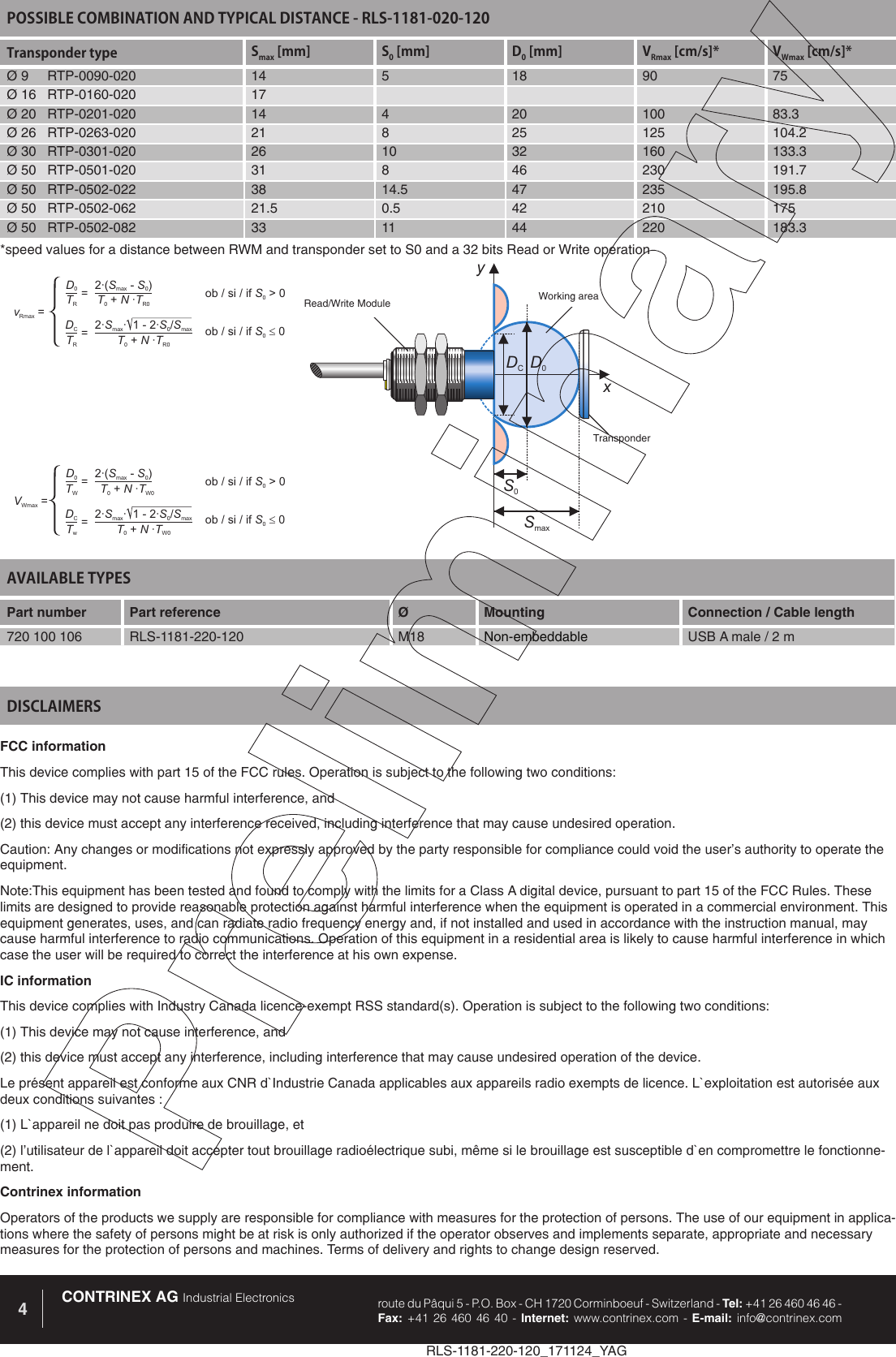

RLS-1181-220-120_171124_YAGCONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 - Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com4AVAILABLE TYPES Part number Part reference Ø Mounting Connection / Cable length720 100 106 RLS-1181-220-120 M18 Non-embeddable USB A male / 2 mFCC informationThis device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Note:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.IC informationThis device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d`Industrie Canada applicables aux appareils radio exempts de licence. L`exploitation est autorisée aux deux conditions suivantes : (1) L`appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l`appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d`en compromettre le fonctionne-ment.Contrinex informationOperators of the products we supply are responsible for compliance with measures for the protection of persons. The use of our equipment in applica-tions where the safety of persons might be at risk is only authorized if the operator observes and implements separate, appropriate and necessary measures for the protection of persons and machines. Terms of delivery and rights to change design reserved.DISCLAIMERSPOSSIBLE COMBINATION AND TYPICAL DISTANCE - RLS-1181-020-120Transponder type Smax [mm] S0 [mm] D0 [mm] VRmax [cm/s]* VWmax [cm/s]*Ø 9 RTP-0090-020 14 5 18 90 75Ø 16 RTP-0160-020 17Ø 20 RTP-0201-020 14 4 20 100 83.3Ø 26 RTP-0263-020 21 8 25 125 104.2Ø 30 RTP-0301-020 26 10 32 160 133.3Ø 50 RTP-0501-020 31 8 46 230 191.7Ø 50 RTP-0502-022 38 14.5 47 235 195.8Ø 50 RTP-0502-062 21.5 0.5 42 210 175Ø 50 RTP-0502-082 33 11 44 220 183.3yxDCD0S0SmaxTransponderRead/Write Module Working areaD0DC2·( -)SSmax02· · 1-2·/SSSmax0maxTRTRTNT0R0+·TNT0R0+·vRmax ==ob/si/if>0S0ob/si/if0S0=D0DC2·( -)SSmax02· · 1-2·/SSSmax0maxTWTwTNT0W0+·TNT0W0+·VWmax ==ob/si/if>0S0ob/si/if0S0=*speed values for a distance between RWM and transponder set to S0 and a 32 bits Read or Write operation
