Contrinex RFM30HF RFID Transponder Reader User Manual Users manual 1

Contrinex AG RFID Transponder Reader Users manual 1

Users manual 1

CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 -
Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com

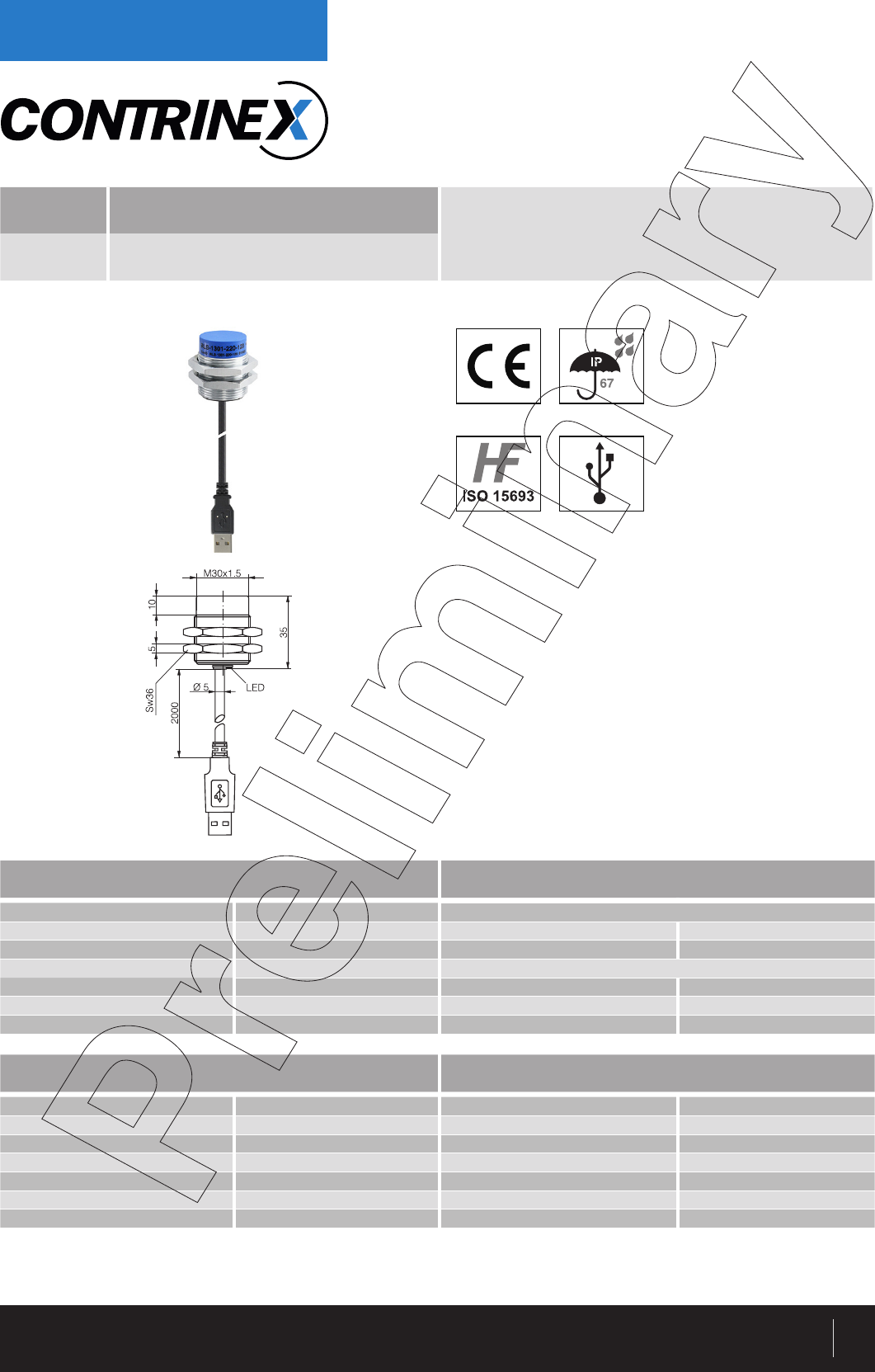

HF RFID SYSTEM
READ/WRITE MODULES (RWM)
1
HOUSING READ/WRITE DISTANCE
M30 60 mm*
GENERAL DATA INTERFACE
Carrier frequency 13.56 MHz USB/VCP configuration
Compatible standard ISO 15693 Data transfer rate 115 200 baud
Maximum transmission speed 26.5 kbit/s Number of bits 7 / stop bits / parity 8 / 1 / None
Read-write distance max. 60 mm with RTP-0501-020 RWM configuration
LED yellow on RWM live
LED yellow blinking Transponder detected
ContriNET protocol ü
RLS-1301-220-120
ü M30 Metal threaded housing
ü Sensing face of PBTP
ü Insensitive to dirt
ü ISO15693 compatible
ELECTRICAL DATA MECHANICAL DATA
Supply voltage range (Ub) 5 VDC (USB powered) Protection degree IP67
No-load supply current (field off) 100 mA Ambient temperature range TA** -25...+70 °C
Max. current consumption (no load) 200 mA Storage temperature range TS*** -25...+70 °C
Polling current 120 mA Sensing face material PBTP
Short-circuit protection üHousing material Stainless steel
Voltage reversal protection üConnector type / Cable length USB A male / 2 m
Max. output current Weight (incl. nuts) 144 g
* Please refer to table page 4
ü USB RWM using Contri-
NET protocol
ü Cost optimized solution
** Read/write operations possible
*** Data retention and mechanical stability limit
CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 -
Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com
2
199
198
197
196
C7
C6
C5
C4
006
005
004
003
002
001
000
06
05
04
03
02
01
00

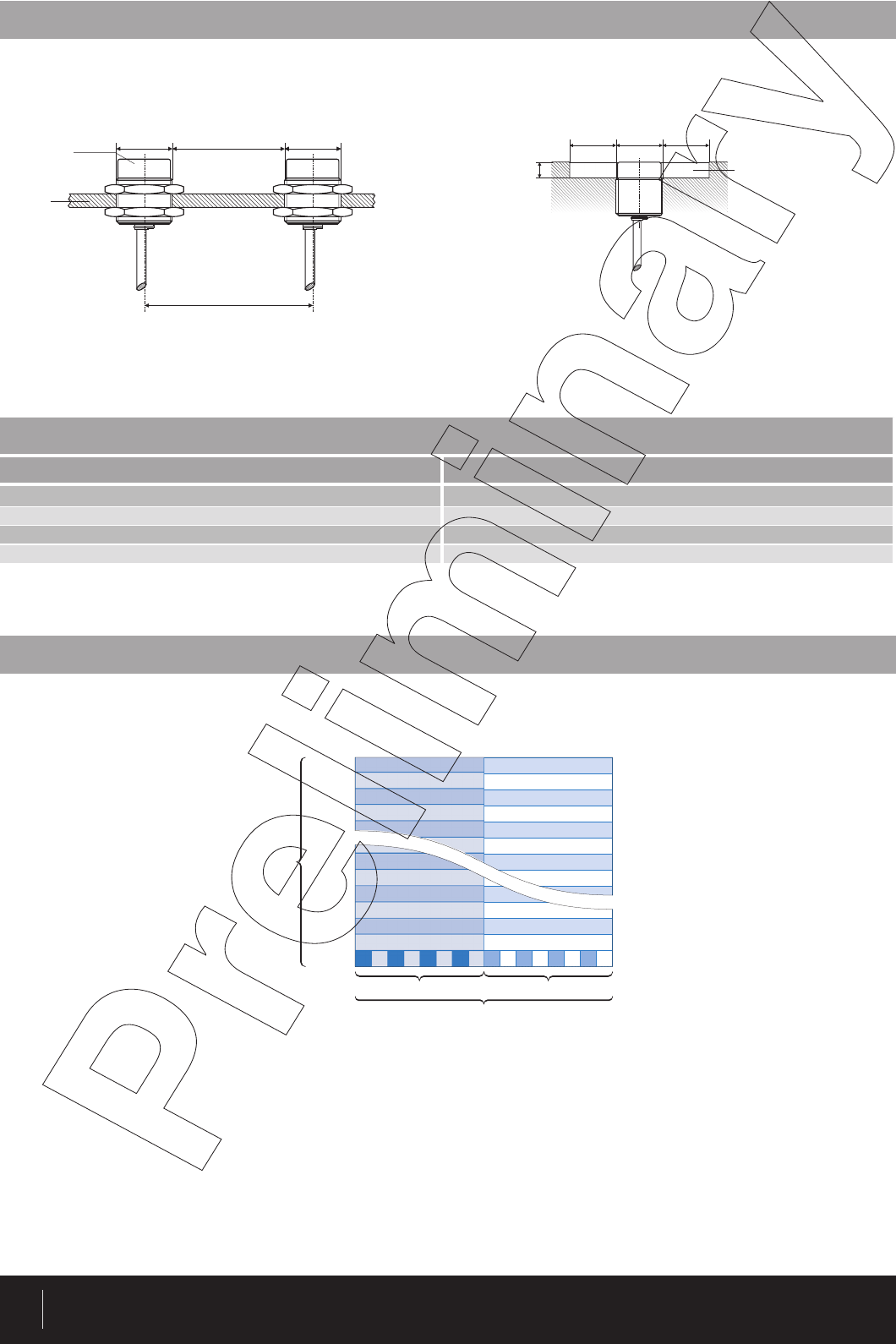

Block-Adressen
Adresses des blocs
Addresses of the blocks
Byte 0Byte 1
16 bit
HEXDEC
MEMORY STRUCTURE OF THE READ/WRITE MODULE
The Read/Write Module has a user memory of 3200 bits organized in 200 blocks of 16 bits. Each block is addressable separately by means of the
commands Write RWM and Read RWM.
COMMUNICATION SETTINGS
USB/VCP characteristics Value for RLS-1301-220-120
Data transfer rate (default in bold) 115 200
Number of bits 8
Number of stop bits 1
Parity No
MOUNTING RECOMMENDATIONS
CLEARANCE
Read/write modules must not mutually influence each other. For this reason, a minimum distance of 2 x D between the devices must be observed.
2D
3D
DD
DD
10
mm
D
sensing face
support
metal free zone
CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 -
Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com 3
*Polling time for 16 transponders without collision

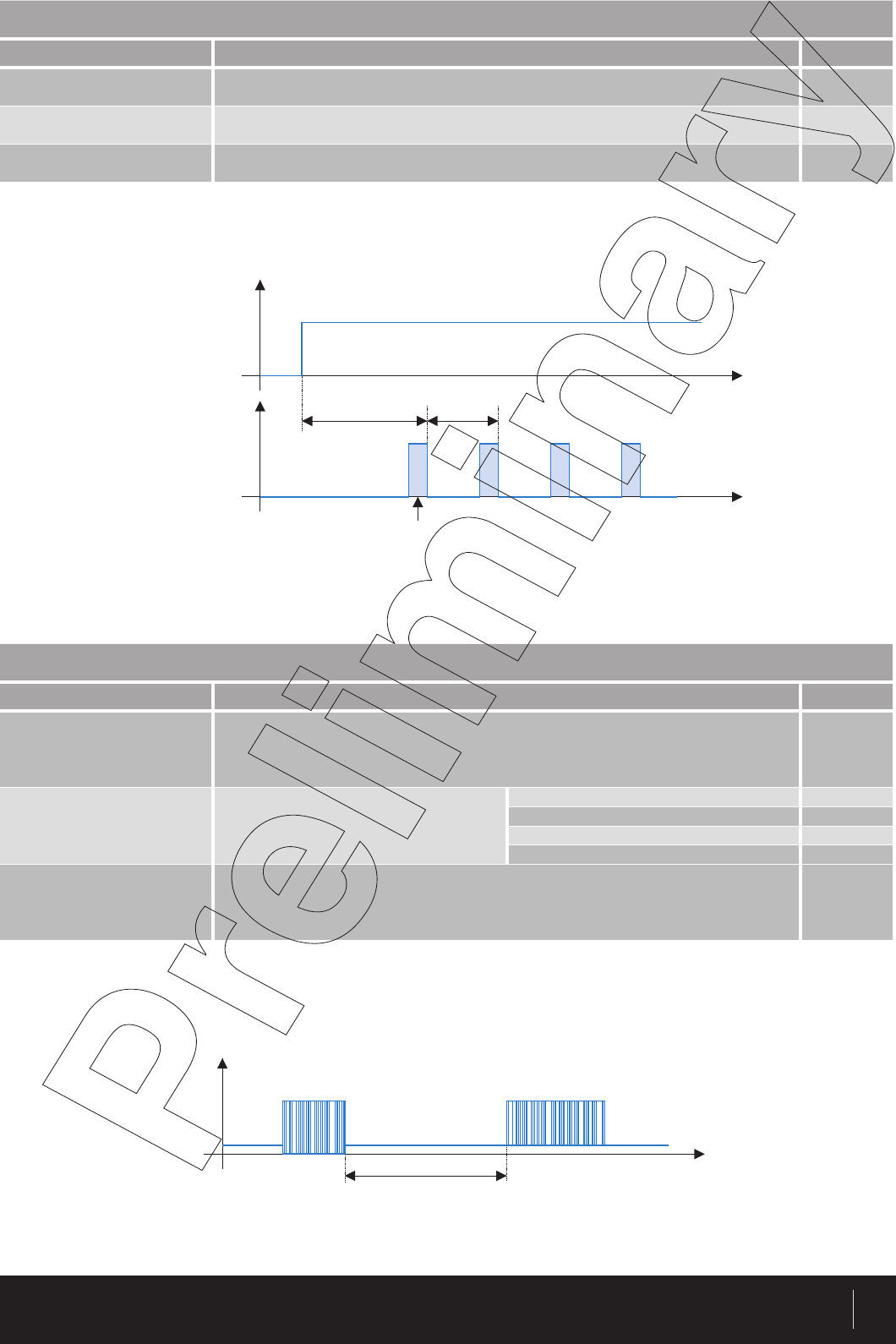

TYPICAL TIMES
Time name Description Value
Starting times Time between the powering of the RWM and the end of the first scanning of the
transponders present 300 ms
Polling time Time for actualization of the list of the transponders present. This time depends on the
number of collisions. 70* ms
Execution time of the commands The execution time is defined as the time between the end of the sending of the
command and the beginning of the answer
Command
dependent
TYPICAL EXECUTION TIMES BY COMMAND TYPE
Command type Description Value
Commands related to RWM Typical execution time 1.5 ms
Commands related to Transponder
depending on number of blocks
Typical read duration: TR = T0 + N ·TR0
Typical write duration: TW = T0 + N ·TW0
Duration for decoding the command - T012.0 ms
Read duration for one block (32 bits) - TR0 8.0 ms
Write duration for one block (32 bits) - TW0 12.0 ms
Number of blocks concerned - N
Commands related to Transponder
not related to a number of blocks
Typical execution time
(e.g. Get System Info, Write AFI, Lock AFI, Write DSFID, Lock DSFID, and so on) 30 ms
Zeit / Temps / Time
Zeit / Temps / Time
SLK-Strohmversorgung
Alimentation MLE
RWM power supply
Status
Durchsuchen nach laufenden Transponder
Balayage des transpondeurs présents
Scanning of the transponders present
TStart TPoll
Befehl
Commande
Command
Antwort
Réponse
Answer
Signal
Zeit / Temps / Time
Ausführungszeit
Temps d'exécution
Execution time
RLS-1301-220-120_171124_YAG
CONTRINEX AG Industrial Electronics route du Pâqui 5 - P.O. Box - CH 1720 Corminboeuf - Switzerland - Tel: +41 26 460 46 46 -
Fax: +41 26 460 46 40 - Internet: www.contrinex.com - E-mail: info@contrinex.com
4
AVAILABLE TYPES
Part number Part reference Ø Mounting Connection / Cable length
720 100 107 RLS-1301-220-120 M30 Non-embeddable USB A male / 2 m
FCC information
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Note:This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
IC information
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d`Industrie Canada applicables aux appareils radio exempts de licence. L`exploitation est autorisée aux
deux conditions suivantes :
(1) L`appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l`appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d`en compromettre le fonctionne-
ment.
Contrinex information
Operators of the products we supply are responsible for compliance with measures for the protection of persons. The use of our equipment in applica-
tions where the safety of persons might be at risk is only authorized if the operator observes and implements separate, appropriate and necessary
measures for the protection of persons and machines. Terms of delivery and rights to change design reserved.
DISCLAIMERS

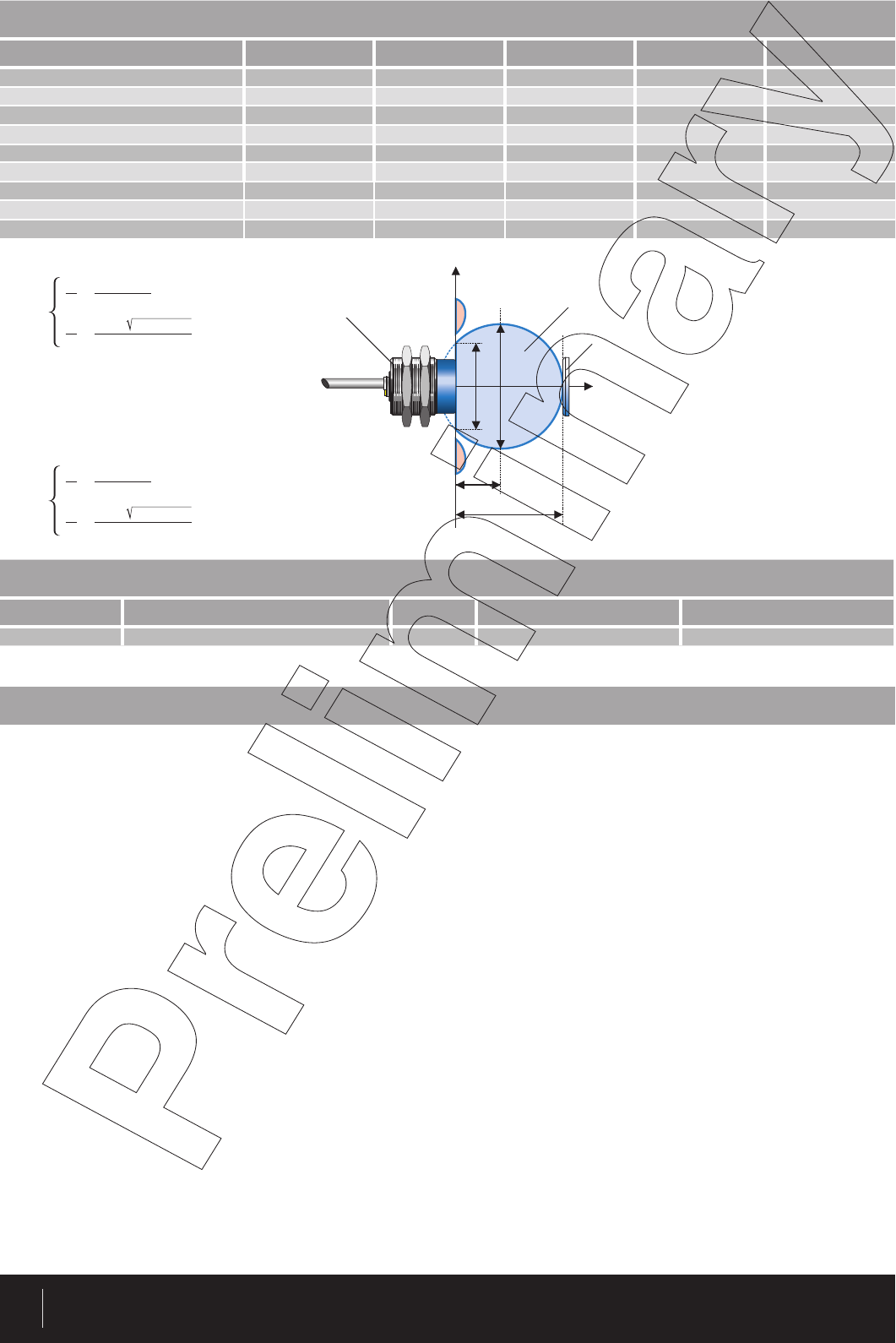

POSSIBLE COMBINATION AND TYPICAL DISTANCE - RLS-1301-220-120
Transponder type Smax [mm] S0 [mm] D0 [mm] VRmax [cm/s]* VWmax [cm/s]*
Ø 9 RTP-0090-020 14 3 22 110 91.7
Ø 16 RTP-0160-020 30
Ø 20 RTP-0201-020 25 10 30 150 125
Ø 26 RTP-0263-020 31 13 36 180 150
Ø 30 RTP-0301-020 45 21 48 240 200
Ø 50 RTP-0501-020 60 27 66 330 275
Ø 50 RTP-0502-022 50 22 56 280 233
Ø 50 RTP-0502-062 44.5 17.5 54 270 225
Ø 50 RTP-0502-082 42.5 17 51 255 212.5
D0
S0
x
y
Smax
DC
Read/Write Module Working area
Transponder
D0
DC
2·( -)SS
max0
2· · 1-2·/SSS
max0max
TR
T
R
TNT
0R0
+·
TNT
0R0
+·
v
Rmax =
=o
b/si/i
f>0
S0
ob/si/i
f0
S0
=
D0
DC
2·( -)SS
max0
2· · 1-2·/SSS
max0max
TW
T
w
TNT
0W0
+·
TNT
0W0
+·
V
Wmax =
=o
b/si/i
f>0
S0
ob/si/i
f0
S0
=
*speed values for a distance between RWM and transponder set to S0 and a 32 bits Read or Write operation
