Audio Matrix Switch

The Control4® Audio Matrix Switch provides the ability to intelligently control

music throughout even the most demanding home. Featuring the power to switch

up to 16 audio input sources to 16 output zones, the Audio Matrix Switch is a great

solution for extensive multi-room audio distribution needs. And because of its

seamless integration with other A/V components and the Control4 home automa-

tion system, it’s never been easier to bring a complex audio system easily under

control.

It’s all part of the Control4 vision. We bring the benets of a truly automated

home to more people with solutions that are affordable, easy to install and

designed to adapt to any home or lifestyle

Simple Solution for Complex Audio Needs

Features and Benets

From the lush sound of blues in the

kitchen, to the clean sounds of classical

in the living room, to the thumping beat

of the latest hip-hop in the kid’s room

– this high capacity switch delivers

music from the sources you want to

rooms anywhere the house.

Easy To Install, Easy to Use

• Control4 network integration — Immediately controllable and easily updateable from any

Control4 Keypad or Touch Screen.

• Interactive LCD feedback — User gets instant information about audio source and zone

activity throughout the home.

Easy to Control

• Ultimate remote audio expansion — Features the ability to switch up to 16 input sources to

up to 16 output zones.

• 16 signal sensing stereo analog audio inputs — Automatic detection of audio signals for

custom programming and better audio zone management.

• Standards-based control — Devices throughout the home are controlled via communication

over ZigBee™ (802.15.4) mesh networking or Ethernet.

Control4 • 11734 South Election Road • Salt Lake City, Utah 84020 • p: 801.523.3100/1.888.400.4070 • f: 801.523.3199 • www.control4.com

Model Number

• C4-16S2-E-B

Communications

• Ethernet 10/100base-T, RJ45 jack

• ZigBee (802.15.4) wireless mesh networking

Inputs and Outputs

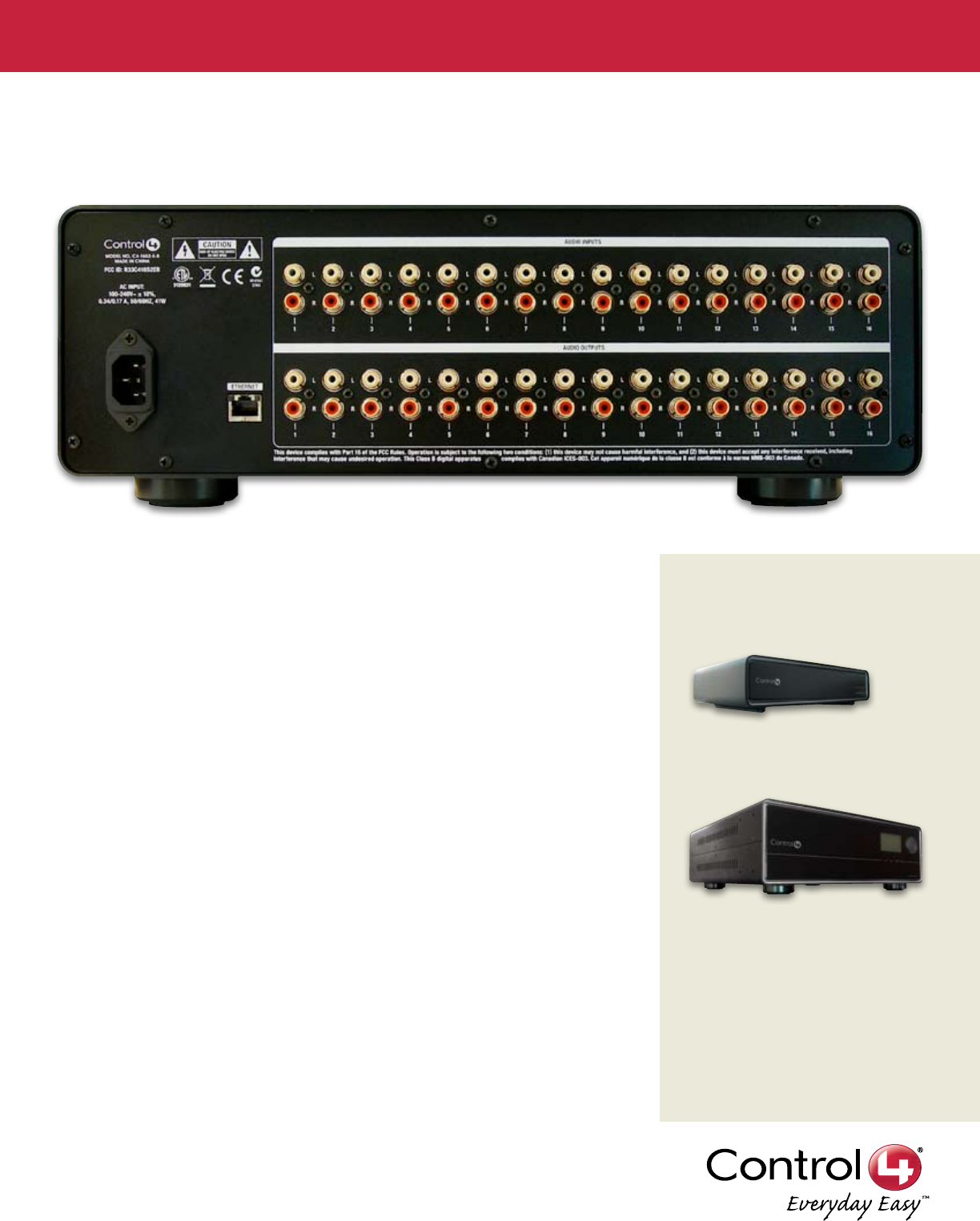

• Audio Inputs: 16 stereo pairs

• Audio Outputs: 16 stereo pairs

Power Requirements

• 100-240 V, 50-60 Hertz

Dimensions

• H x W x D: 5.25” x 17” x 16” (133mm x 432mm x 406mm)

• Weight: 11.8 lbs (5.35 kg)

Technical Specications

In addition to the Audio Matrix Switch,

Control4 offers:

Audio Matrix Switch

Control4 • 11734 South Election Road • Salt Lake City, Utah 84020 • p: 801.523.3100/1.888.400.4070 • f: 801.523.3199 • www.control4.com

Related Control4 Products

Copyright © 2008 Control4 Corporation. All rights reserved. Control4, the Control4 logo and Everyday Easy are registered trademarks or trademarks of Control4 Corporation in the

United States and/or other countries. Other names or brands may be claimed as the property of others.

Home Controller HC-300 — Powerful

whole home automation controller with

high denition on-screen graphics.

Multi Channel Amplier — 8 stereo

zones at 120 watts per channel delivers

rich, room-lling sound.
