Controlled Entry Distributors 295SEPCV 295SEP Series User Manual 295ALT
Controlled Entry Distributors, Inc. 295SEP Series 295ALT
Exhibit 8
1A - General information
Transmitter Solutions - Stingray 295SEPAxV is a visor transmitter
operating at 295 MHz in ASK modulation. It has been designed for use
with programmable telephone entry, security, and access control
systems operating with a 295 MHz frequency receiver.
The protocol is AUTOkey compatible and the code sent by the
transmitter includes a 24 bit security code which allows up to
1B - Technical specifications
Number of keys: 1 / 2
Battery life: 12 - 18 months
Current consumption : 20 mA
Operating frequency : 295 MHz
Code combinations :
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 mW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.
Supply : 1 Alkaline Battery 12V type 23A
16,777,216
16,777,216 code combinations. Each transmitter is individually
numbered, can be used with any receiver capable of receiving a 33 bit
input and can operate any type of access control system equipped with
the same protocol. The 23A alkaline battery has a life of about 12-18
months. The product fully complies Part 15 of FCC Regulations.
1C - Main features
TRANSMITTER STINGRAY 295SEPAxV
Manual
1A - General information
1B - Technical specifications
1C - Main features
1D -Types
1 - TRANSMITTER INTRODUCTION
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
CONTENTS
6 - TROUBLESHOOTING
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions

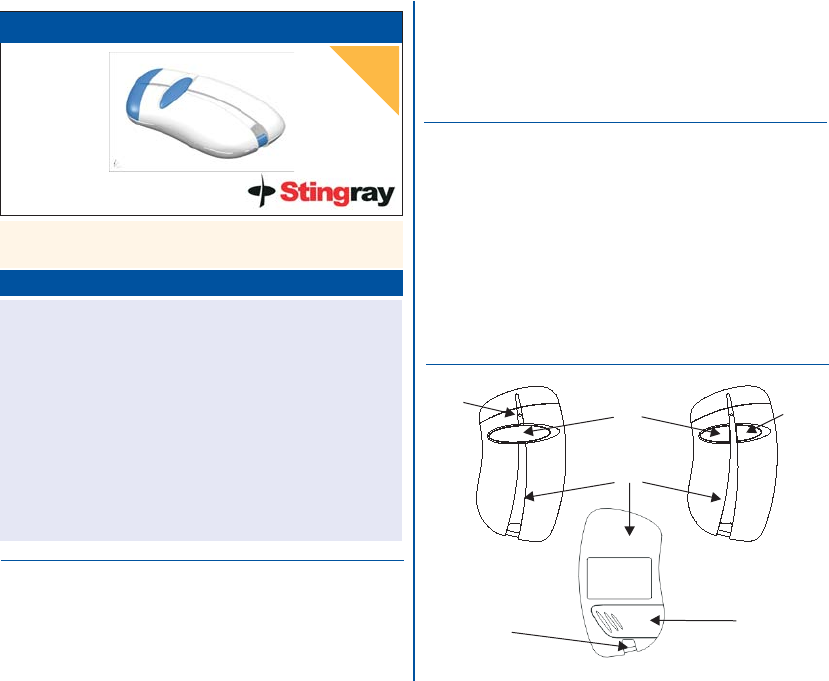

295SEPA1V 295SEPA2V
Push-button
A
light grey
Push-
button
B
light grey
Key holder
ring
Battery
door
Red
LED
enclosure
black
2 - NUMBERING
5 - BATTERY ACCESS
6 - TROUBLESHOOTING

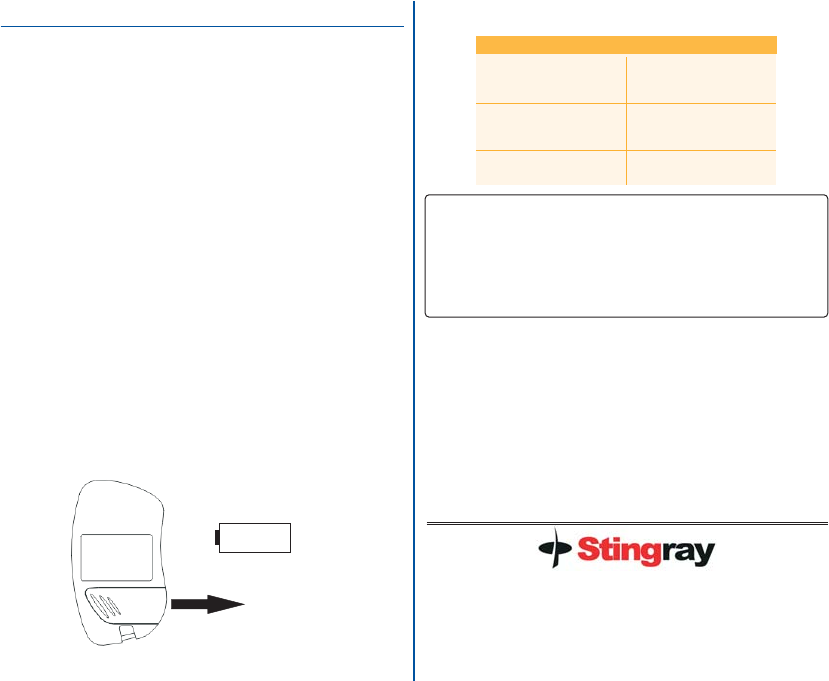

To access the battery slide out the battery door
Place the alkaline battery between the 2 contacts.
Respect the right polarity as indicated on the bottom of the box.
23A
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
either button is pushed.
Each transmitter is manufactured and sold with a different factory set sequence
number and facility code.
FCC ID : SU7295SEPCV
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
+_
23A
Battery
Polarity
OPEN
FAULT SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
Replace the transmitter
batteries
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light
3 - PROGRAMMING
The transmitter facility code and sequence number must be programmed into your
system memory. Your own installer or reseller will provide you the necessary
instructions for your system.
4 - OPERATION
a. Firmly depress either button until the small red LED illuminates.
b. After the LED has illuminated, release the button. If the device you are attempting
to activate does not respond, repeat steps a. and b. or consult section 6
(Troubleshooting) of this manual.
IS-T11295ACCUK Rev. 0 del 27.06.06
The warranty period of 295 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of .
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of or to battery life.
Transmitter Solutions
Transmitter Solutions
Transmitter Solutions
WARRANTY
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty and the
user’s authority to operate this product.
Transmitter Solutions
Transmitter Solutions
TRANSMITTER SOLUTIONS
2505 Chandler Avenue, Suite, 1
Las Vegas, NV 89120 -
(866) 975-0101 - (866) 975-0404 Fax
sales@transmittersolutions.com
1D - Types
STINGRAY 295SEPA1V : 1 button transmitter
STINGRAY 295SEPA2V : 2 button transmitter
1A - General information
Transmitter Solutions - Stingray 295SEPCxV is a visor transmitter
operating at 295 MHz in ASK modulation. It has been designed for use
with programmable telephone entry, security, and access control
systems operating with a 295 MHz frequency receiver. The protocol is
ClikCard® compatible and the code sent by the transmitter includes a
16 bit security code which allows up to 65,536 combinations and 6 bit
1B - Technical specifications
Number of keys: 1 / 2
Battery life : 12 - 18 months
Current consumption : 20 mA
Operating frequency : 295 MHz
Code combinations :
Modulation : AM / ASK
Rated e.r.p. : 50 - 100 mW
Range in free space: 60 - 120 yd
Operating temperature: -20 ÷ +55 °C
Overall dimensions: 3.26 x 1.88 x 0.62 in
Weight: 20 gr.
Supply : 1 Alkaline Battery 12V type 23A
65,536
Facility codes 64
of facility code for 64 different combinations. Each transmitter is
individually numbered, can be used with any receiver capable of
receiving a 26 bit input and can operate any type of access control
system equipped with the same protocol. The 23A alkaline battery has a
life of about 12-18 months. The product fully complies Part 15 of FCC
Regulations.
1C - Main features
TRANSMITTER STINGRAY 295SEPCxV
Manual
1A - General information
1B - Technical specifications
1C - Main features
1D -Types
1 - TRANSMITTER INTRODUCTION
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
CONTENTS
6 - TROUBLESHOOTING
Transmitter
Solutions
Thank you for choosing a Transmitter Solutions product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2006 by Transmitter Solutions

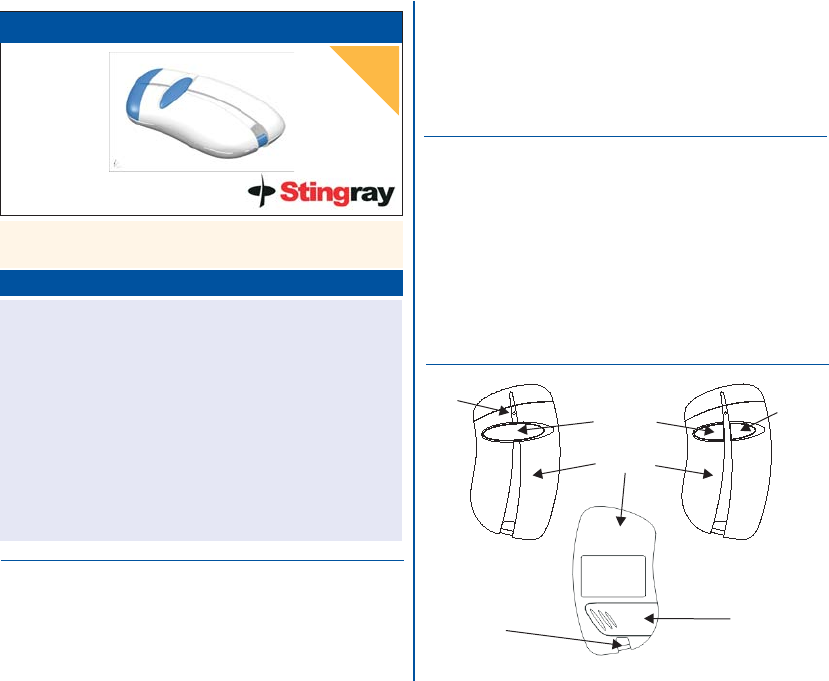

295SEPC1V 295SEPC2V
Push-button
A
dark grey
Push-
button
B
dark grey
Key holder
ring
Battery
door
Red
LED
enclosure
light grey
2 - NUMBERING
5 - BATTERY ACCESS
6 - TROUBLESHOOTING
To access the battery slide out the battery door
Place the alkaline battery between the 2 contacts.
Respect the right polarity as indicated on the bottom of the box.
23A
NOTE: Please dispose of the batteries properly according to local laws and
regulations.
Test proper battery installation by verifying that the red LED illuminates when
either button is pushed.
Each transmitter is manufactured and sold with a different factory set sequence
number and facility code.
+_
23A
Battery
Polarity
OPEN
FAULT SOLUTION
The operating range is reduced
Check to verify the
transmitter is programmed
into your system
Replace the transmitter
batteries
Replace the transmitter
batteries
The system does not receiver the
transmitter signal.
The transmitter LED is ON
The system does not receiver the
transmitter signal.
The transmitter LED will not light
3 - PROGRAMMING
The transmitter facility code and sequence number must be programmed into your
system memory. Your own installer or reseller will provide you the necessary
instructions for your system.
4 - OPERATION
a. Firmly depress either button until the small red LED illuminates.
b. After the LED has illuminated, release the button. If the device you are attempting
to activate does not respond, repeat steps a. and b. or consult section 6
(Troubleshooting) of this manual.
IS-T11295CCCUK Rev. 0 del 27.06.06
The warranty period of 295 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of .
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of or to battery life.
Transmitter Solutions
Transmitter Solutions
Transmitter Solutions
WARRANTY
TRANSMITTER SOLUTIONS
2505 Chandler Avenue, Suite, 1
Las Vegas, NV 89120 -
(866) 975-0101 - (866) 975-0404 Fax
sales@transmittersolutions.com
1D - Types
STINGRAY 295SEPC1V : 1 button transmitter
STINGRAY 295SEPC2V : 2 button transmitter
FCC ID : SU7295SEPCV
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty and the
user’s authority to operate this product.
Transmitter Solutions
Transmitter Solutions
