Controlled Entry Distributors 433TSPW2KC ENTRY REMOTE CONTROL User Manual IS TM243CCUK
Controlled Entry Distributors, Inc. ENTRY REMOTE CONTROL IS TM243CCUK
User Manual
1A - General information
The Community Controls - Monarch 433TSPW2KC is a 2
buttons key chain style mini transmitter operating at 433,92 MHz.
It has been designed for the control of automatic closing systems and
anti-burglar systems, thanks to its very high security coding system
(KeeLoq® Hopping code).
The code sent by the transmitter changes at each activation, avoiding
any scanning and copying risk. A special algorithm allows to keep
transmitter
CONTENTS
1A - General information
1B - Technical specifications
1C - Main components
1 - TRANSMITTER OVERVIEW
2 - NUMBERING
3 - PROGRAMMING
4 - OPERATION
5 - BATTERY ACCESS
1B - Technical specifications
Operating frequency 433,92 MHz
Number of keys: 2
Battery : 2 x 3V lithium batteries CR2016
Battery life: 18 ÷ 24 months
Security code: Keeloq® Hopping code
Number combinations : 2exp64
Operating temperature: -20°F÷+131°F (-20°C÷+55°C)
Overall dimensions: 2.4”x1.4”x0.51” (61x36x13 mm)
Weight: 0.49 oz. (14 gr.)
synchronized transmitter and receiver.
The transmitter can operate with many receivers of the range
Community Controls - 433R. Ask your installer or reseller the product
which best fits your application. The output of the receivers can be either
wiegand 26 bit ( to communicate with access control systems ) or 1-2-4
relay with NO - NO/NC output. The CR 2016 lithium batteries of the
transmitter have a shelf life of about 6 months. The product fully
complies with Part 15 of FCC Regulations and the European Directives

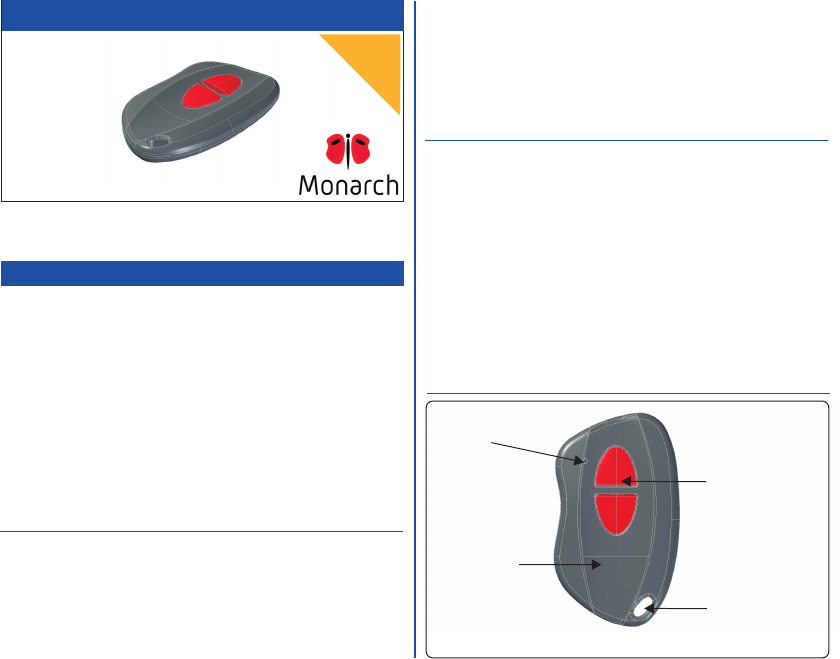

1C - Main components
Red
LED
Key
holder
ring
Dark red
push-button
6 - TROUBLESHOOTING
Manual
MONARCH 433TSPW2KC
Dark grey
case
Fig. 2
Thank you for choosing a Community Controls product .
Please read this manual carefully before using the product.
Made in Italy. Copyright © 2004 by Community Controls
Community
Controls
IS-TM243CCUK Rev. 0 del 05.03.2013
Community Controls - Type : 433TSPW2KC
FCC ID : SU7433TSPW2KC
2 - NUMBERING

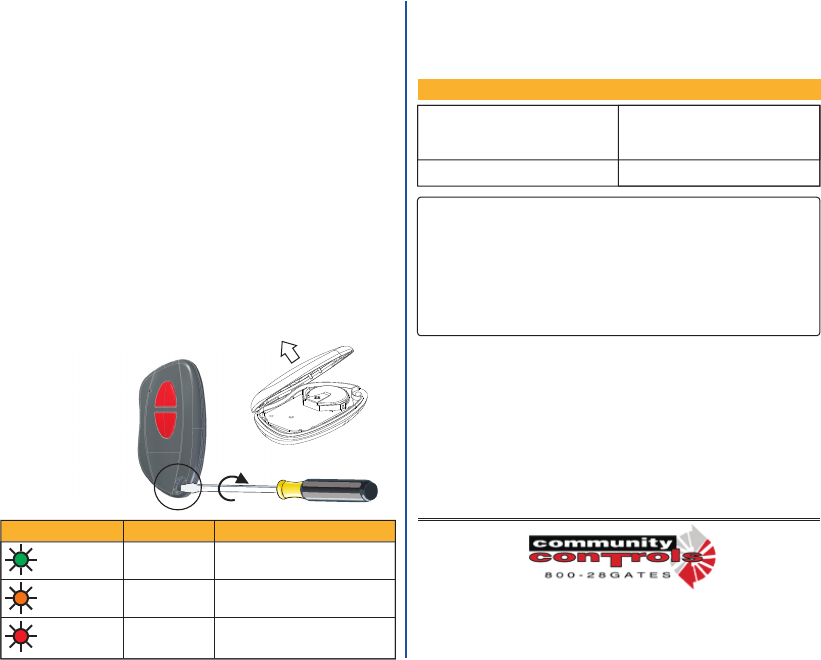

To access the battery open the case with a screwdriver acting on the slot between
the cover and the bottom and remove the bottom, as shown in fig. 3a and 3b.
Slide out the old batteries and replace them with the new ones [CR2016]
respecting the polarity, with the positive (+) side upward.
NOTE: Please dispose of the batteries properly according to local laws and
regulations. Test proper battery installation by verifying that the LED illuminates
when the button is pushed.
5 - BATTERY ACCESS
3 - PROGRAMMING
Each transmitter is manufactured and sold with a different factory-set serial
number .
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for your
system.
4 - OPERATION
A - Firmly depress the button until the small red LED illuminates.
B - After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps A and B
or consult section 7 ( Troubleshooting ) of this manual.
Fig. 3a
Fig. 3b
6 - BATTERY STATUS
Led GREEN Normal level ~6000 pulses [*] - Normal range
Led ORANGE Attention level Max 300 pulses - Low range[*]
Led RED Low level Replace battery - No range
Led color Battery level TX Status
The warranty period of Community Controls 433 transmitters is 24 months,
beginning from the manufacturing date of the transmitter. During this period, if the
product does operate correctly, due to a defective component, the product will be
repaired or replaced at the sole discretion of Community Controls.
The warranty does not extend to the transmitter case which can be damaged by
conditions outside the control of Community Controls or to battery life.
WARRANTY
This device complies with FCC Rules
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including
interference that may cause undesired operation.
Part. 15 of the
Notice
Any changes or modification to equipment not expressly
approved by could void the manufacturer’s warranty.
Community Controls
Community Controls
The system does not receive the
transmitter signal.
The transmitter LED is ON
Check to verify the transmitter is
programmed into your system
PROBLEM SOLUTION
The operating range is reduced Replace the transmitter batteries
7 - TROUBLESHOOTING
[ * ] : Depends on batteries type and operating conditions . Batteries life calculated
with 1-sec pulses.
2500 South 3850 West, Suite A - Salt Lake City, Utah 84120
www.communitycontrols.com - sales@communitycontrols.com
