Controlled Entry Distributors, Inc. Remote Controller Print
Users Manual
DOL1000-433RC4
Programming & Installation Manual
INTRODUCTION

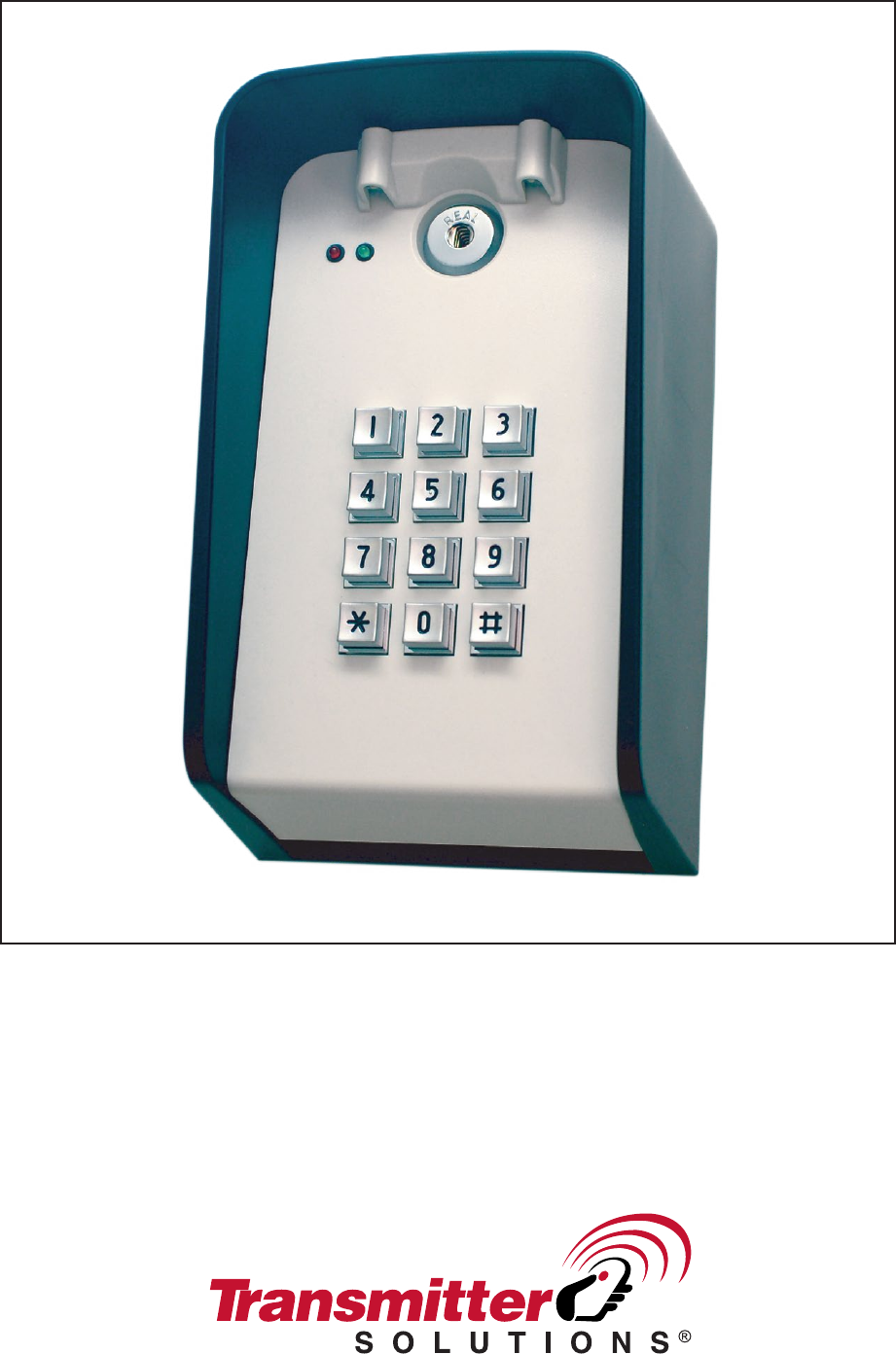

The DOL1000-433RC4 is a versatile keypad that has the option of running wirelessly. The keypad-
can work with 6 volts of battery power or 6-24 volts of AC/DC. It can store up to 1000 access
codes. Guest access codes are also programmable, which are single-use codes for access.
After 5 successive incorrect codes, the keypad will lock for 4 minutes.
The very first time that you apply power to the keypad, you will hear a series of beeps followed by
a regular repeating beep (1 beep at 3 second intervals) that lets you know you are in programming
mode:
Enter a 4 digit Master Code that only you will use for programming purposes.
Write Master Code here
You can now add up to 1000 access codes as well as a flash code (for one use only).

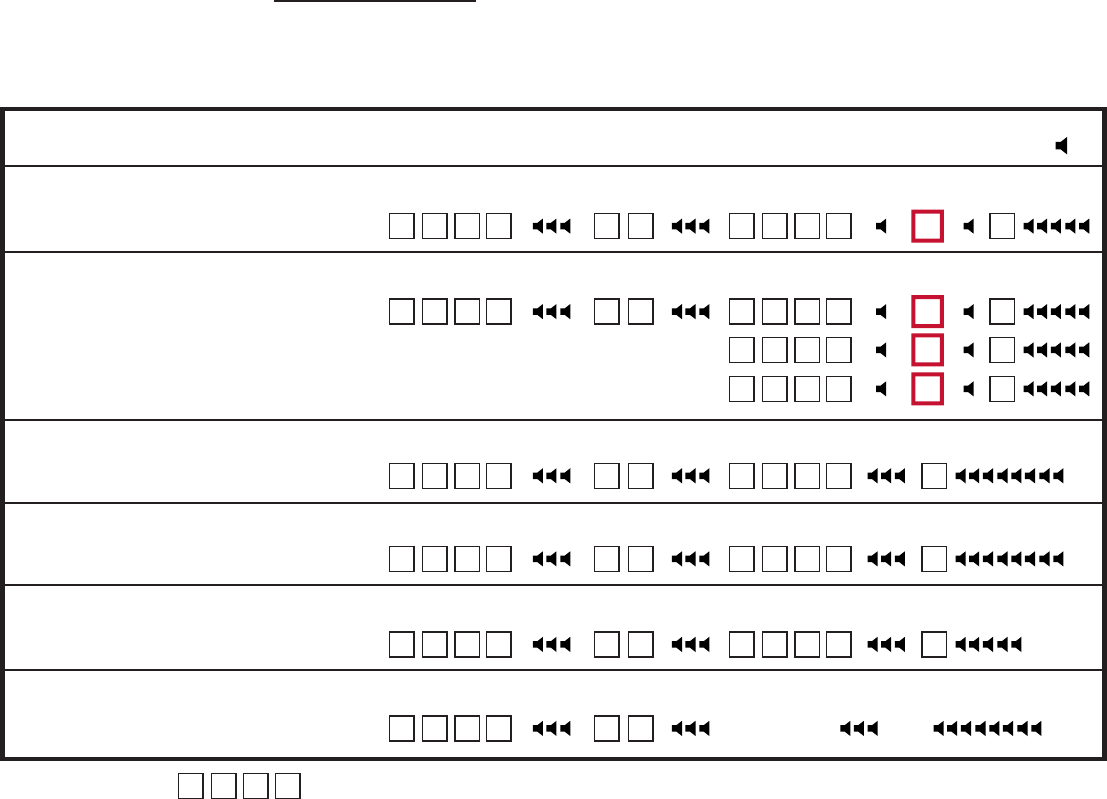

To add Access Code
1934
To add Access Codes for
channel 2, 3, and 4 -
2413, 888 and 9743
(you may add up to 1000
different codes)
Example - Master Code 1234
Access Code:
Master Code
1 2 3 4 1 9 3 4
Sub Mode Access Code Channel Exit
1 # 1 #
To remove Access Code
1934
Master Code
1 2 3 4 1 9 3 4
Sub Mode Access Code Exit
2 # #
To change Master Code
from 2580 to 1234
Master Code
1 2 3 4 4 3 2 1
Sub Mode New Master Code Exit
7 # #
To clear all Access, Flash
and Latch codes
Master Code
1 2 3 4
Sub Mode
8 #
To add Flash Code 4437
(for one use only)
Master Code
1 2 3 4 4 4 3 7
Sub Mode Flash Code Channel
3 # 1
Master Code
1 2 3 4 2 4 1 3
Sub Mode Access Code Channel Exit
1 # 2 #
8 8 8 8 3 #
9 7 4 3 4 #
beep -

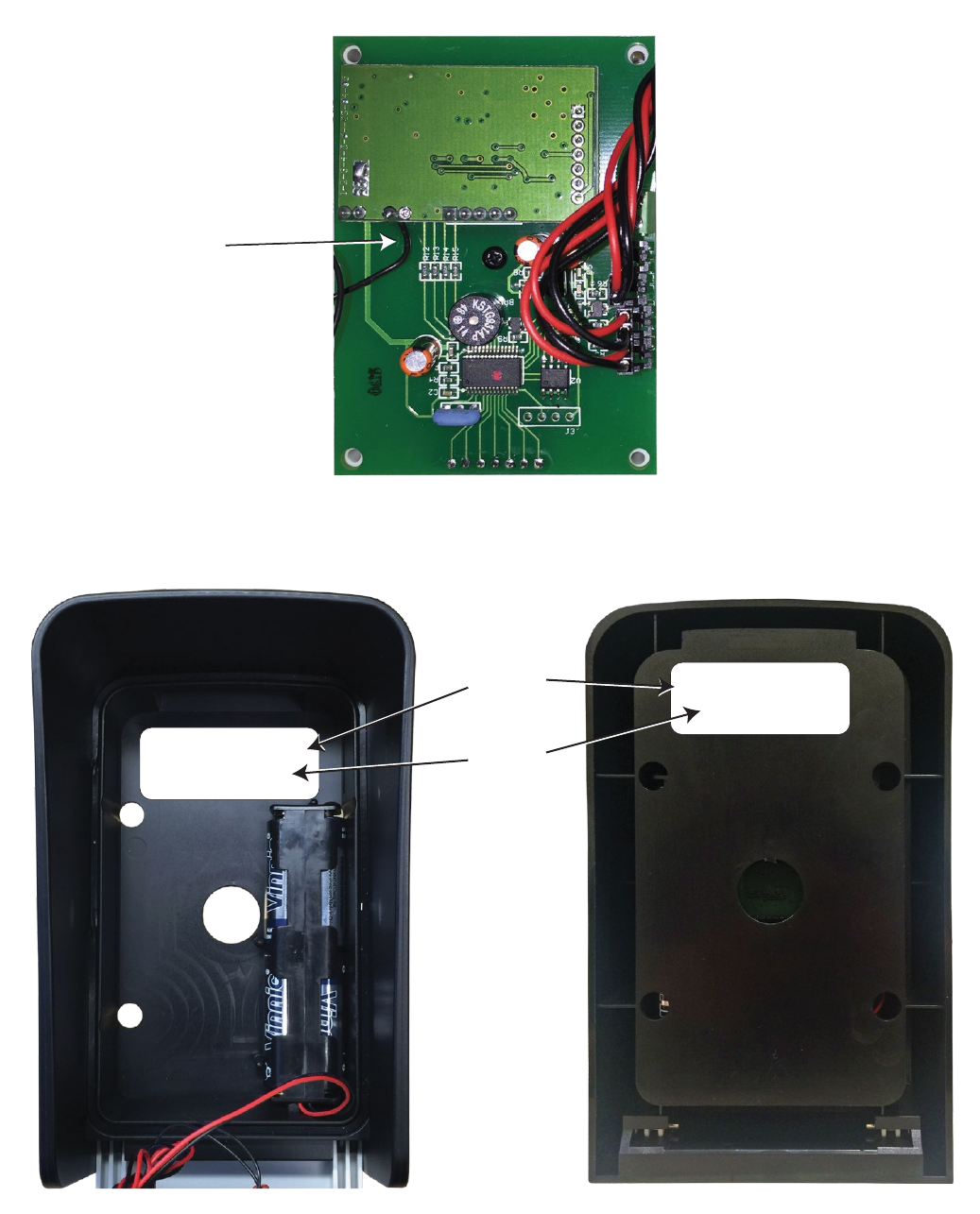

Outside Back
4-Channel
433 MHz Receiver
Antenna
Inside Back
Part No: DOL1000-433RC4
FC 0001 SN 12345
Part No: DOL1000-433RC4
FC 0001 SN 12345
Facility
Code
Part #
Default Master Code: 1 234
Add Access
12 3 4, 1#, Access Code: __ __ __ __ , Channel:1 # (Repeat for channel 2, 3 & 4)
Example: (Using Channel 1)
STEP 1: Press 1 2 3 4
STEP 2: Press 1 #
STEP 3: Enter access code __ __ __ __
STEP 4: Press 1 # (multiple beeps confirm)
STEP 5: Press * *
STEP 6: Test new access code. __ __ __ __ (Green light will flash 6 times
confirming that the new access code has been accepted.)
STEP 8: Proceed to program the keypad to the receiver.
STEP 7: Install 433 MHz wireless module (see next page)
Codes
Use Channel 1 if unsure. The different channels are dependent on the RF
terminal used. Any channel can be assigned for devices that connect to normally
open/normally closed.
1 2 3 4, 2#, Access Code: __ __ __ __ , #
Remove Access
Codes Enter the Access Code you would like to delete.
1 2 3 4, 3#, Guest Code: __ __ __ __ , Channel:1
Add Guest Code The Guest Code is a one-time use access code. Once used, the number will be
cleared from memory.
1 2 3 4, 4#, Toggle Code: __ __ __ __ , Channel:1
Add Access
Toggle Code Entering Access Toggle Code will toggle the keypad to continuously activate.
Entering the code again will toggle the keypad off. Dip switch #6 on the circuit
board needs to be in the off position in order for this mode to work.
TOGGLE MODE ONLY FOR USE WHEN KEYPAD IS HARD WIRED.
1 2 3 4, 5#, Seconds:0-60, #
Set Relay
Output Time Set the number of seconds the device will grant access before locking again.
1 2 3 4, 7#, Master Code: __ __ __ __ , #
Change Master
Code Changes Master Code. If the Master Code is forgotten, this manual contains
instructions on how to reset the Master Code.
1 2 3 4, 8#
Clear All Codes
This will clear all data except the Master Code.
PROGRAMMING THE DOL1000-MF with 433 MHz Module
