Controlled Entry Distributors, Inc. Remote Control Users Manual
Users Manual
CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY
Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269
internet: www.erone.com - e-mail: info@erone.com
TCF-158 07/2015 Pag 1 of 20
TECHNICAL CONSTRUCTION FILE
PRODOTTO
(Product )
Marchio
(Brand) TRANSMITTER SOLUTIONS
Serie
(Serie) KEYPAD DOLPHIN
Modello
(Types) KPD2641C6
DOCUMENTO
( Document ) TCF-158 FILE
D:\Prodotti\Tastiere dolphin\Dolphin std\TCF-158.doc
N° PAGINE
(Page Number) 20 ALLEGATI
(Attachments) 0
DATA DI RILASCIO
(Date of issue) 10/7/2015 REVISIONE
(Revision) 0
Realizzato
(Performed)
G.M.Dalle Carbonare
--------------------------------------------
Verificato
(Verified)
L. Braido
--------------------------------------------
Approvato
(Approved)
G.M.Dalle Carbonare
--------------------------------------------
CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY
Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269
internet: www.erone.com - e-mail: info@erone.com
TCF-158 07/2015 Pag 2 of 20
SUMMARY
1.0 Introduction ................................................................................................................... 3
2.0 Technical characteristics ............................................................................................... 4
3.0 System components ..................................................................................................... 4
4.0 Description .................................................................................................................... 7
5.0 Schematic block diagram .............................................................................................. 9
6.0 Reference regulations ................................................................................................. 10
7.0 Electrical diagrams...................................................................................................... 11
8.0 Component Layout...................................................................................................... 15
9.0 Component list ............................................................................................................ 17
10.0 PCB Boards ................................................................................................................ 18
11.0 PHOTOS .................................................................................................................... 19
CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY
Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269
internet: www.erone.com - e-mail: info@erone.com
TCF-158 07/2015 Pag 3 of 20
1.0 Introduction
The keypad DOLPHIN type KPD2641C6 is an encoded radio keypad operating at 433,92 Mhz in
AM/ASK.
Best use of the product is to control: gates, garage doors, rolling shutters, sun-blinds, anti-burglar
appliances, lightings, etc.
The code has a very high security encoding system (KeeLoq ® Hopping code).
The code sent by the transmitter changes at every activation, avoiding any scanning and copying
risk.
A special algorithm allows keeping synchronized transmitter and receiver.
The radio transmission is enabled only after the dialing of a security user code.
There are 6 different channels 1-2-3-4-5-6, that can activate many receivers or relays.
The internal memory can store up to 22 different security user codes and 1 Master code.
The product fully complies with the FCC cfr 47 part 15.
1.1 Product references
BRAND : Transmitter Solutions
SERIES : KEYPAD DOLPHIN
TYPES : KPD2641C6
MANUFACTURER : CDVI WIRELESS S.p.A.
Via Piave, 23
I-31020 S.PIETRO DI FELETTO ( TV)
ITALY
Tel: +39-0438-450860 Fax: +39-0438-455628
CONTACT : Ing. G. Massimo Dalle Carbonare – Product Manager
CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY
Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269
internet: www.erone.com - e-mail: info@erone.com
TCF-158 07/2015 Pag 4 of 20
2.0 Technical characteristics
Number of keys: .......................................................... 12
Number of channels: ................................................... 6
Supply: ........................................................................ 3,6 Vdc
Battery duration:.......................................................... about 30 months (with 30 activations / day )
Battery type: ............................................................... Lithium LS14505
Current consumption:
Sleep mode .................................. 22 μA
Transmission ................................ 30 mA
Carrier frequency: ....................................................... 433,920 MHz
Modulation: ................................................................. AM/ASK
E.r.p.( rated ): .............................................................. 5 - 10 μW
Modulating signal frequency:....................................... 834 bit/sec
Dynamic code system ................................................. Keeloq® Hopping code
Security Code combinations number: .......................... 2exp64
User security code number: ........................................ 22
Master security code ................................................... 1
Range in open space: ................................................. from 50 to 100 m
Operating temperature: ............................................... from -10 °C to +55 °C
Dimensions: ................................................................ 115 x 90 x 55 mm
Weight: ....................................................................... 210 gr
IP Protection Grade: ................................................... IP54
Buzzer
CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY
Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269
internet: www.erone.com - e-mail: info@erone.com
TCF-158 07/2015 Pag 5 of 20

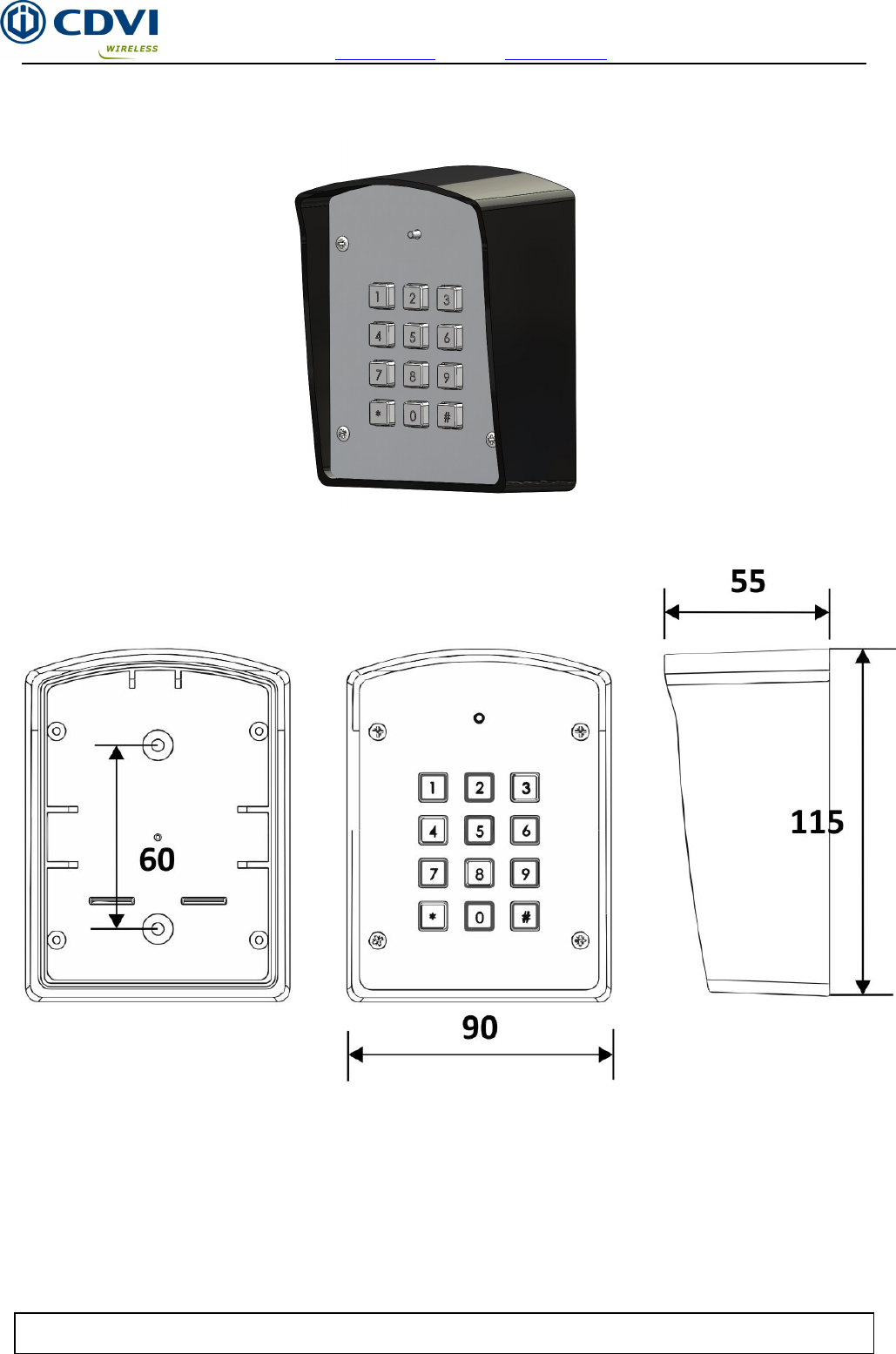

3.0 Mechanical drawings
3.1 External view
3.2 Dimensions
CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY
Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269
internet: www.erone.com - e-mail: info@erone.com
TCF-158 07/2015 Pag 6 of 20

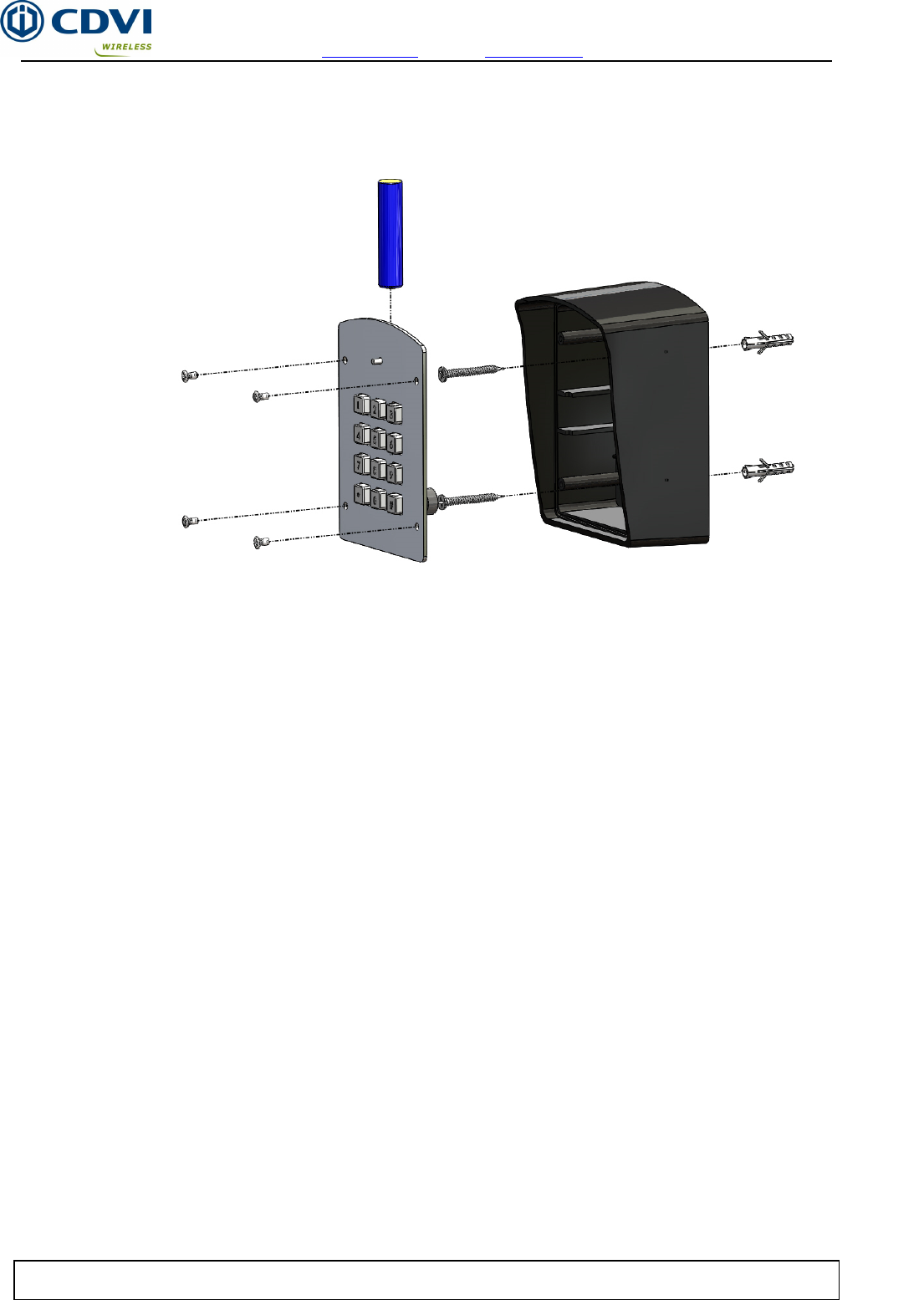

3.3 Internal exploded view
CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY
Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269
internet: www.erone.com - e-mail: info@erone.com
TCF-158 07/2015 Pag 7 of 20
4.0 Description
4.1 Master password
The keypad has a Master Password factory-set to “11111”. No radio signal can be transmitted
until the Master default Password hasn’t been changed. The Master Password and the User code
can have up to 5 digits. If the chosen string is shorter than 5 digits, press the key “#” after the last
digit, to complete the number, as indicated below:
Example 1 : User code 123 - Dial: 1,2,3,#.
Example 2 : User code 1234 - Dial: 1,2,3,4,#.

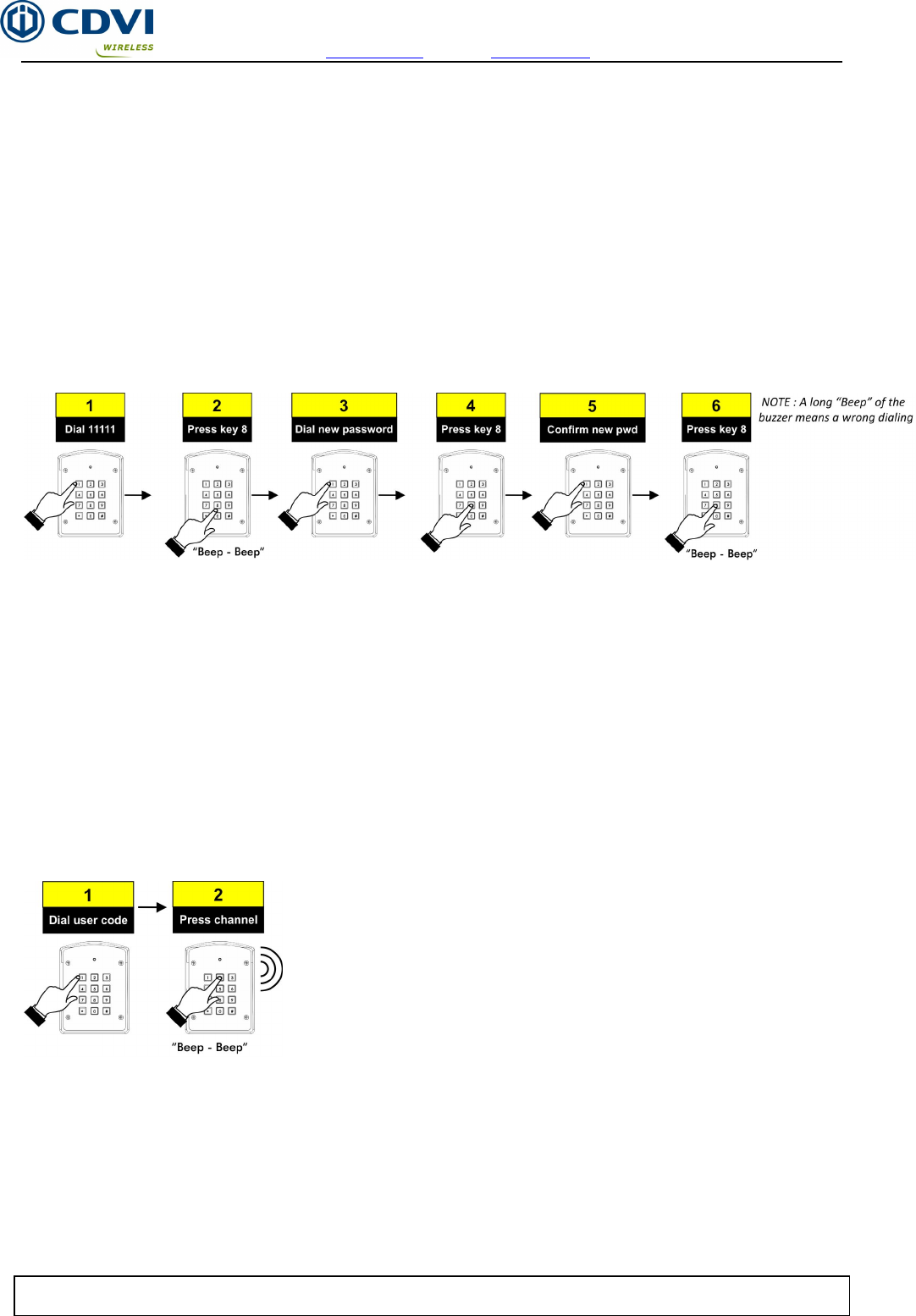

Change master password
NOTE :
After 8 wrong dials of the master Password, the system disables the password and requests the
dialing of the PUK code ( Password Unblocking Key)
The procedure can be followed even if the Master Password is lost, in order to reset the security
factory configuration.
4.2 Transmission
For the transmission, first dial the User Code ( not the Master Password) and then press the key to
activate ( 1 , 2, 3, 4, 5, 6)
During the transmission the LED blinks and the buzzer sounds a “Beep - Beep“
EXAMPLE:
User password = 12345
Channel 1.
Dial : 123451
NOTE : The key “*” cancels the dialing; the key “ # “ repeats the last command ( within 20 sec. )
CDVI Wireless SPA VIA PIAVE, 23- 31020 S.PIETRO DI FELETTO (TV) – ITALY
Tel. +39.0438.450860 R.A. – Fax. +39.0438.455628 I. 03023780269
internet: www.erone.com - e-mail: info@erone.com
TCF-158 07/2015 Pag 8 of 20

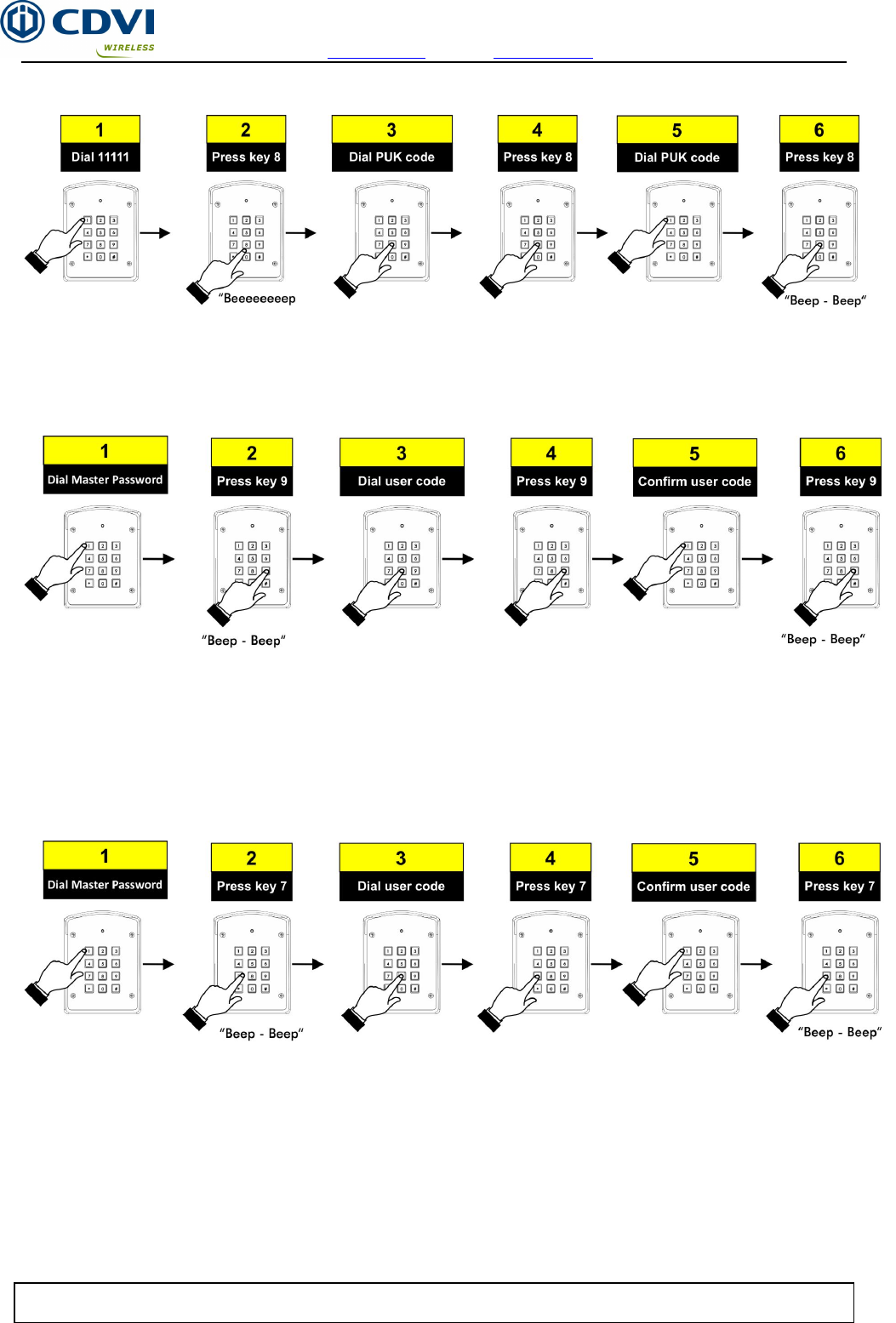

4.3 Unblocking master password
The PUK code is given in the product packaging.
4.4 Add user code
Each user can access to the transmitter by dialing his own code. For this procedure you need to
know the Master Password
4.5 Delete user
Follow the following procedure to cancel a user code .
In this case you need to know the Master Password and the User Code to cancel
The device is approved by the FCC and it complies with Part 15 of the FCC Rules.
Its operation is subject to the following 2 conditions:
1. This device may not cause harmful interference.
2. The device must accept any interference that may cause undesired operation.
