Users Manual
Thank you for your purchase of the Transmitter Solutions Dolphin
wireless keypad. The DOLGDO318LIPW4 will accommodate one 4 digit
PIN to activate a signal transmission.
Package contains:
Keypad
9 volt battery
2 screws + wall anchors
Keypad instructions
Please follow the detailed instructions below in order to set up the Dolphin keypad to
operate with your garage door opener or receiver.
2. OPERATIONAL FEATURES
Keypad Instructions
Dolphin Wireless Garage Door Keypad
433 MHz Dip Switch
Product # DOLGDO318LIPW4
Pressing any key illuminates the keypad for 5 seconds.
A "buzzer" indicates each button depression.
After 20 incorrect key entries, the keypad will “lock up” for 40 seconds.
If the battery is low the single LED flashes rapidly for 5 seconds, indicating it is
time to replace the battery.
After you have entered a valid code, the keypad LED will flash during the 5 second
"time out" period. During the “time out” period you may press any key and the
keypad will send another signal to your receiver each time you press a key.
The key resets your entry. If you make a mistake while entering your PIN,
pressing the key resets your entry so you can start over.
HINT: If you always begin your PIN with the you will reduce the likelihood of
faulty operation.
3
•The transmitter module built into the DOLGDO318LIPW4 is a 4-channel, rolling
code transmitter.
•As each transmitter has a unique serial number, no further action by the user is
required outside of programming the receiver to recognize the rolling code signal.
•Refer to your receiver’s instruction for how to program the keypad signal into
your receiver.
•When the receiver instructions indicate the need to press the transmitter button,
you will need to enter your PIN into the keypad to initiate a transmission.
PROGRAMMING THE DOLGDO318LIPW4
Default PIN: 1 2 3 4
Changing the PIN
LED Guide: Indicator LED:
ON Entered into change access code mode
BLINK Code entered incorrectly
Keypad LED:
BLINK Access Code correct
Accessing a
specific channel
#, #, PIN: 1 2 3 4, New PIN: __ __ __ __ , #
#, PIN: __ __ __ __, Channel:1-4
Use this sequence when accessing a different
channel is desired for multi-channel receivers.
Example:
#, 5 5 5 5, 2 accesses channel 2
#, 5 5 5 5, 3 accesses channel 3
#, 5 5 5 5, 4 accesses channel 4
(Note: To reset the access code remove 9 volt battery form unit, Depress any key on
the keypad and wait 10 seconds before installing battery.)

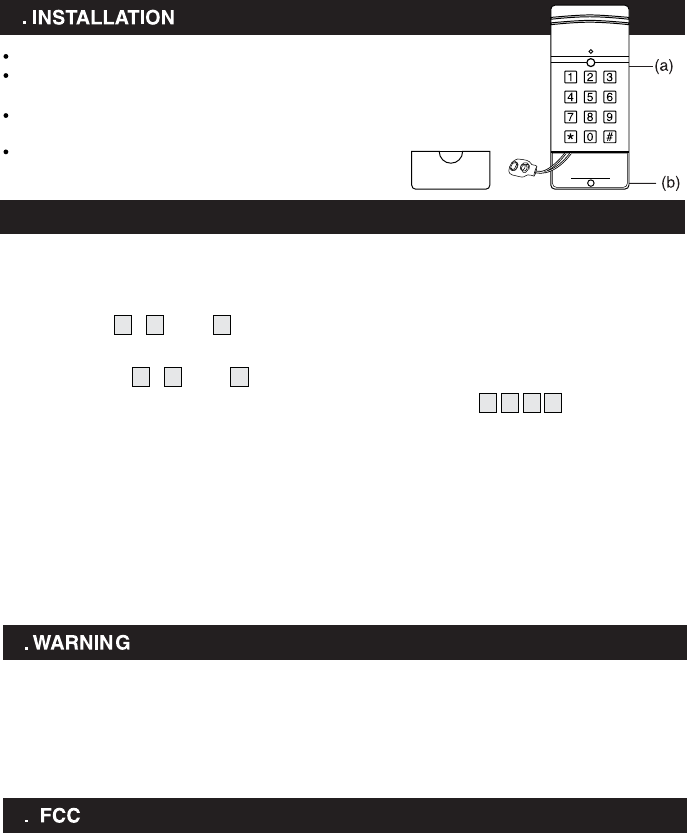

Position the keypad on the garage door frame with the provided screws.
Lift up the cover and insert the long screw above the keypad in the slot
provided (a).
Remove the battery cover and insert the second long screw in the
lower slot (b).
Replace the battery cover.
4
5. RETURN TO DEFAULT SETTINGS
cover
1. Desconnect the power by removing the battery.
2. Press the , , and keys simultaneously.
3. Re-connect the battery to power up the keypad.
4. Release the , , and keys.
Note: The keypad is returned to the defaul “Master Code” . And all User
Entry Codes are deleted.
1 432
1 4 7
1 4 7
Return to Default Settings
7
The keypad is approved by the FCC and it complies with Part 15 of the FCC Rules. Its
operation is subject to the following 2 conditions:
1. This device may not cause harmful interference.
2. The device must accept any interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
FCC ID: SU7DOLGDO318LIPW4
DO NOT let children use the keypad without adult supervision. Children can injure
themselves, or others, if left unsupervised. Make sure all the required safety devices are
installed before operating any door.
If this transmitter triggers other doors in your neighborhood, change all your transmitters
and receivers to a new code setting.
6
ORANGE - Key depress
GREEN - Code was entered correctly and the keypad is transmitting
GREEN - Programming Mode
RED - (Flashing 3 times) Error was made in either programming mode or in
code entry.
Multi-color status LED
8
The warranty period of this product is 24 months, beginning from the manufacturing date.
During this period, if the product does not operate correctly, due to a defective component,
the product will be repaired or replaced at the sole discretion of Transmitter Solutions. This
warranty does not extend to the product casing which can be damaged by conditions
outside of the control of Transmitter Solutions.
EXCEPT AS SET FORTH ABOVE, TRANSMITTER SOLUTIONS MAKES NO WARRANTIES
REGARDING THE GOODS, EXPRESS OR IMPLIED, INCLUDING WARRANTY OF
MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. BUYER
MAKES NO RELIANCE ON ANY REPRESENTATION OF TRANSMITTER SOLUTIONS, EXPRESS
OR IMPLIED, WITH REGARD TO THE GOODS AND ACCEPTS THEM “AS-IS/WHERE-IS”.
TRANSMITTER SOLUTIONS SELLS THE GOODS TO BUYER ON CONDITION THAT
TRANSMITTER SOLUTIONS WILL HAVE NO LIABILITY OF ANY KIND AS A RESULT OF THE
SALE. BUYER AGREES THAT TRANSMITTER SOLUTIONS SHALL HAVE NO LIABILITY FOR
DAMAGES OF ANY KIND, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES,
INCLUDING INJURIES TO PERSONS OR PROPERTY, TO BUYER, ITS EMPLOYEES OR AGENTS,
AS A RESULT OF THE SALE. BUYER ALSO AGREES TO HOLD TRANSMITTER SOLUTIONS
HARMLESS FROM ANY CLAIMS BUYER, OR ANY THIRD PARTY, MAY HAVE AS A RESULT OF
BUYER’S USE OR DISPOSAL OF THE GOODS. BUYER HAS READ THIS DISCLAIMER AND
AGREES WITH ITS TERMS IN CONSIDERATION OF RECEIVING THE GOODS.
