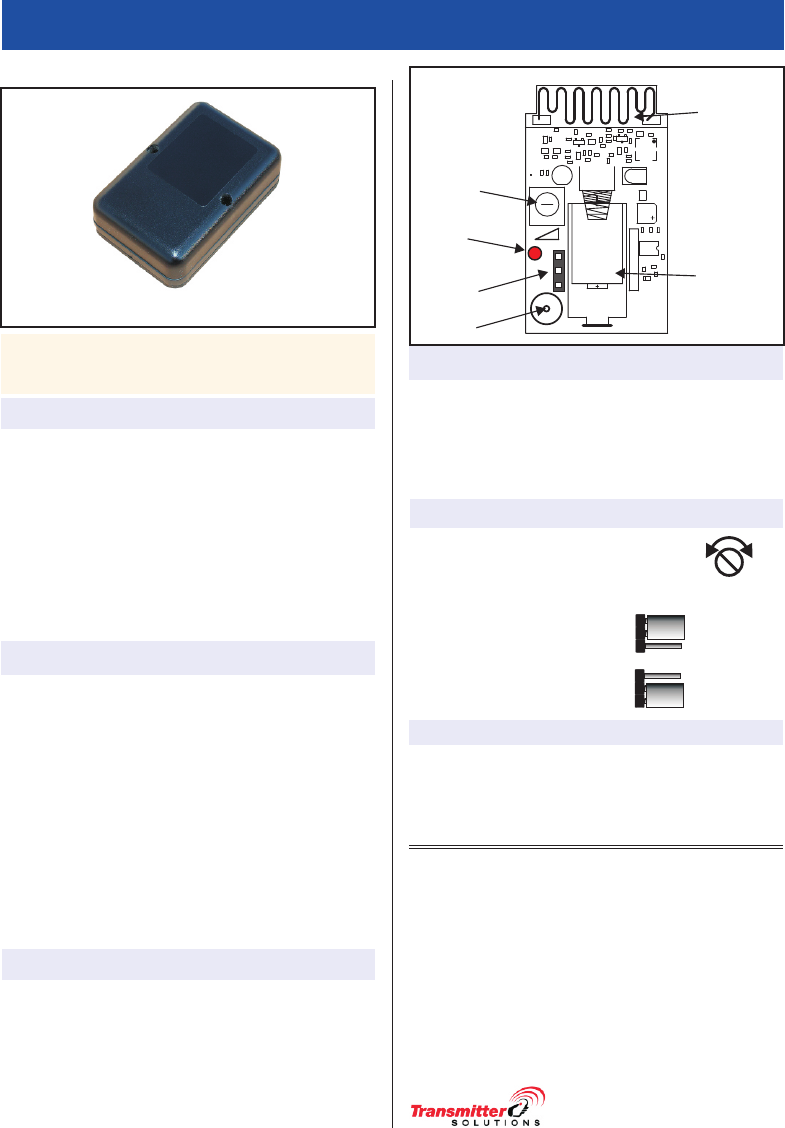

HIGH SENSITIVITY KEYFREE TRANSMITTER
Carrier frequency 433,92 Mhz AM/ASK
N° channels 1
Rated E.r.p. 1 mW
Battery type CR123A
Operating voltage 3 Vdc
Current consumption 100 µA : stand-by
20 mA : transmission
Battery life 12 months
Security protocol
Code combinations 2exp64
Activation sensitivity About 3 - 14 cm
Radio Range in open space 200/400 m
Operating temperature -20°/+80°C
Enclosure IP grade IP55
Dimensions (mm) 60 x 90 x 27
Weight ( gr. ) 93
KeeLoq® Hopping code
2 - TECHNICAL SPECIFICATIONS
1 - INTRODUCTION
The Keyfree transmitter is a special radio transmitter operating at
433,92 MHz in AM/ASK modulation. It’s mainly composed by a
infrared sensitive circuit and by a radio transmitter. It can be used
to operate gates or garage doors or any device with the
corresponding compatible 433 MHz receiver. The security
protocol is a rolling code type.
Each product is already factory programmed with a different
security code. The button is battery supplied with a CR123A lithium
battery for 1 year life. The enclosure protection grade IP55 allows
outdoor installations.The product fully complies to the
requirements of the European Directives 73/23/CEE,
89/336/CEE, 99/05/CE and FCC Rules Part 15.
Use and installation manual
Thank you for choosing this product .
You are recommended to read this manual carefully before installing
this product.
IS-FKTHSTSUK Rev. 0 del 25/6/2010
GUARANTEE
The warranty period of Transmitter Solutions receivers is 24 months,
beginning from the manufacturing date of the transmitter. During this period,
if the product doesn’t operate correctly, due to a defective component, the
product will be repaired or replaced at the sole discretion of
.The warranty does not extend to the receiver case which can be
damaged by conditions outside the control of .
Transmitter
Solutions
Transmitter Solutions
3 - INSTALLATION PHASES
4 - OPERATE
The Button operates when you approach over the external surface
with the hand. The sensitivity of the detector is adjustable with a
trimmer . Approach the cover or touch it until the buzzer sounds.
The RF transmissions is indicated by the sound of the buzzer or the
light of the led and lasts all time the buzzer sounds or the led is on.
Normally it’s necessary to approach over the cover with the hand
and not only with a single finger.
The appliance uses a lithium battery type CR123A. Insert the new battery on the
battery location, respecting the right polarity. The removal and the disposal of the
battery must have effected before the elimination of the appliance and according to
the current Regulations.
ATTENTION: - Danger of explosion if the battery is not replaced in the correct way!
Replace only with an equal or equivalent type.
6 - BATTERY REPLACEMENT
1. Locate the best position for the installation, avoiding metallic
surfaces that could decrease the RF transmission.
2. Using the box bottom as a template mark the position of the
4 mounting holes.
3. Drill the mounting holes and insert the plugs.
4. Assemble base and seal together, install to mounting surface
using 4 screws.
5. Install the module to base and secure with the screws.
FKTHS2641E1
This device complies with FCC Rules . Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept interference received, including interference that may cause
undesired operation.
Part. 15 of the
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
5 - ADJUSTMENT
Rotate the trimmer clockwise to increase the
sensitivity and anticlockwise to reduce the
sensitivity. An higher sensitivity allows to activate
the RF transmission from an longer distance from
the enclosure surface.
Antenna
Adjustment
trimmer
Battery
+
-
It’s possible to select which type of
signal is active ( led light or buzzer
sound ). Use the jumper as shown in
the figure.
LED
LED
Jumper
Buzzer
Buzzer
