Controlled Entry Distributors HANBUT433-AL Transmitter Solutions User Manual

Controlled Entry Distributors, Inc. Transmitter Solutions Users Manual

Users Manual

1/4
6-1621765 rev00 02/03/2016
The Transmitter Solutions transmitter is a transmitter operating at 433,92
MHz. It has been designed for the control of automatic closing systems and
anti-burglar systems, thanks to its very high security coding system (Rolling
code).
The code sent by the transmitter changes at each activation, avoiding any
scanning and copying risk. A special algorithm allows to keep synchronized
transmitter and receiver.
The two AAA alkaline batteries of the transmitter have a shelf life of about 24
months.
The product fully complies with Part 15 of FCC Regulations.

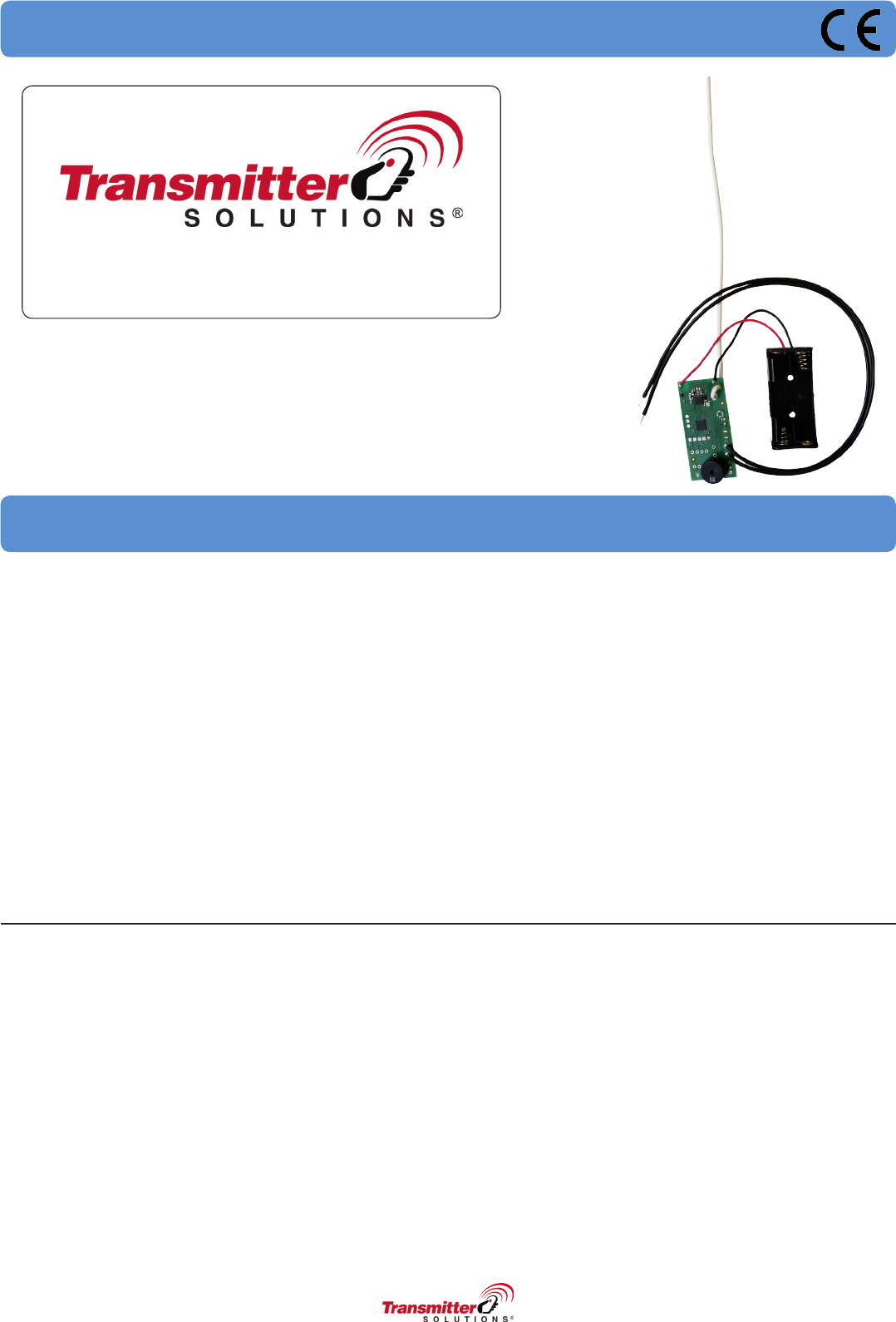

1 CHANNEL TRANSMITTER
TRAHANBUT433-AL
Thank you for choosing this Transmitter Solutions product.
Please read this manual carefully before installing the product.
CONTENTS
1. TRANSMITTER OVERVIEW
1A - General information
1B - Technical specication
1C - Main components
1D - Status of the transmitter
2. NUMBERING
3. PROGRAMMING
4. OPERATION
5. BATTERY ACCESS
6. TROUBLESHOOTING
1A - General information
2/4 6-1621765 rev00 02/03/2016
1B - Technical specications
Operating frequency:
Number of inputs:
Battery:
Battery life:
Security Code:
Number combinations:
Operating temperature:
Overall dimensions (transmitter):
Overall dimensions (battery case):
Weight:
Weight with batteries:
433,92 MHz
1
2 x 1,5V Alkaline battery (AAA)
18 - 24 months
Rolling code
2exp64
23°F - +131°F (-5°C - +55°C)
2,13’’ x 0,98’’ x 0,39’’ (54 x 25 x 10 mm)
2,00’’ x 0,94’’ x 0,47’’ (51 x 24 x 12 mm)
0.53 oz. (15 gr.)
1.31 oz. (37 gr.)

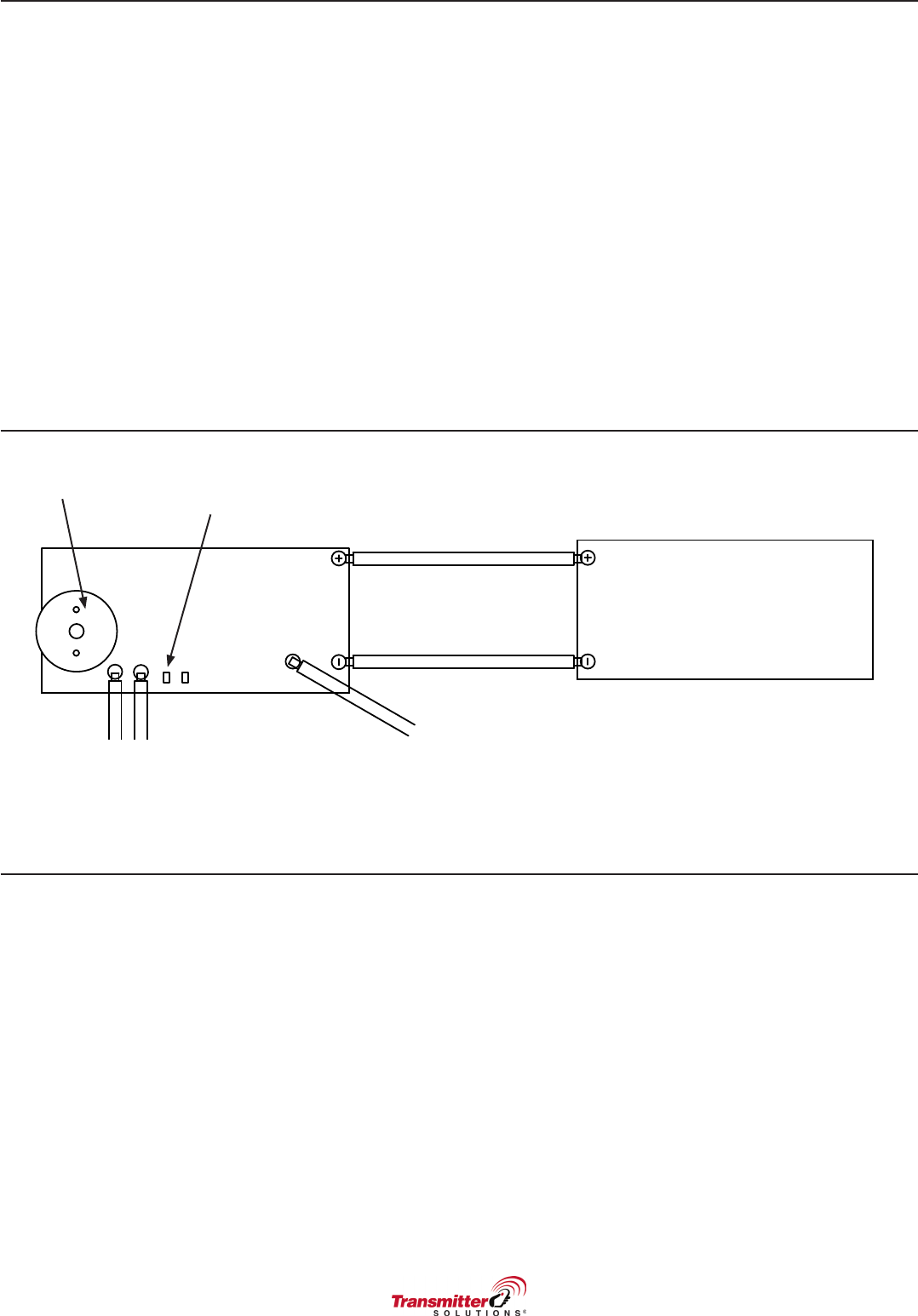

1C - Main components
2 x AAA
BATTERY CASE
RED CABLE (+)
BLACK CABLE (-)
ANTENNA
2 x BLACK
NO CONTACT
BUZZER RED LED
1D -
Status of the transmitter
By pressing the button connect to the TRAHANBUT433-AL transmitter it is
possible to check the status of the battery:
1. Press and hold the button.
2. After 5 seconds, the transmitter emits:
2 fast beeps, the status of the battery is ok.
From 3 to 6 slow beeps, the level of the battery is low. The lower level is
signaled with 6 beeps.
When the level of the battery is low, at each use of the transmitter, it indicates
the low battery with an acoustic signal.
NOTE: in case the button is blocked, after 10 s the transmitter will emit an audio
error signal and it will be repeated every 60 s.
3/4
6-1621765 rev00 02/03/2016
2 - NUMBERING
Each transmitter is manufactured and sold with a different factory-set serial
number.
3 - PROGRAMMING
The transmitter must be programmed into your system memory.
Your own installer or reseller will provide you the necessary instructions for
your system.
4 - OPERATION
A- Connect the NO button to the inputs cables ( 2 black cables).
B- Firmly depress the button until the red LED illuminates.
C- After the LED has illuminated, release the button.
If the device you are attempting to activate does not respond, repeat steps B
and C or consult section 6 ( Troubleshooting ) of this manual.
5 - BATTERY ACCESS
To access the battery, please refer to the push plate manual.
Slide out the old batteries and replace them with the new ones (AAA alkaline
battery) respecting the polarity.
NOTE: Please dispose of the batteries properly according to local laws and regulations.
Test proper battery installation by verifying that the red LED illuminates when the
button is pushed.
6 - TROUBLESHOOTING
PROBLEM SOLUTION
The system does not receiver the
transmitter signal.
The transmitter LED will not light
Replace the transmitter
batteries
The system does not receiver the
transmitter signal.
The transmitter LED is ON
Check to verify the transmitter is
programmed into your sistem
The operating range is reduced Replace the transmitter
batteries
4/4 6-1621765 rev00 02/03/2016
Transmitter Solutions - Type: TRAHANBUT433-AL
FCC ID: SU7HANBUT433-AL
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The warranty period of Transmitter Solutions 433 transmitters is 60 months,
beginning from the manufacturing date of the transmitter. During this period,
if the product does not operate correctly, due to a defective component, the
product will be repaired or replaced at the sole discretion of Transmitter
Solutions.
The warranty does not extend to the transmitter case which can be damaged
by conditions outside the control of Transmitter Solutions or to battery life.
NOTICE
WARRANTY
Any changes or modication to Transmitter Solutions equipment not expressly
approved by Transmitter Solutions could void the manufacturer’s warranty
and the user’s authority to operate this product.
7380 S. Eastern Ave, Ste 124-320 - Las Vegas, NV 89123
(866) 975-0101 - (866) 975-0404 Fax
www.transmittersolutions.com
