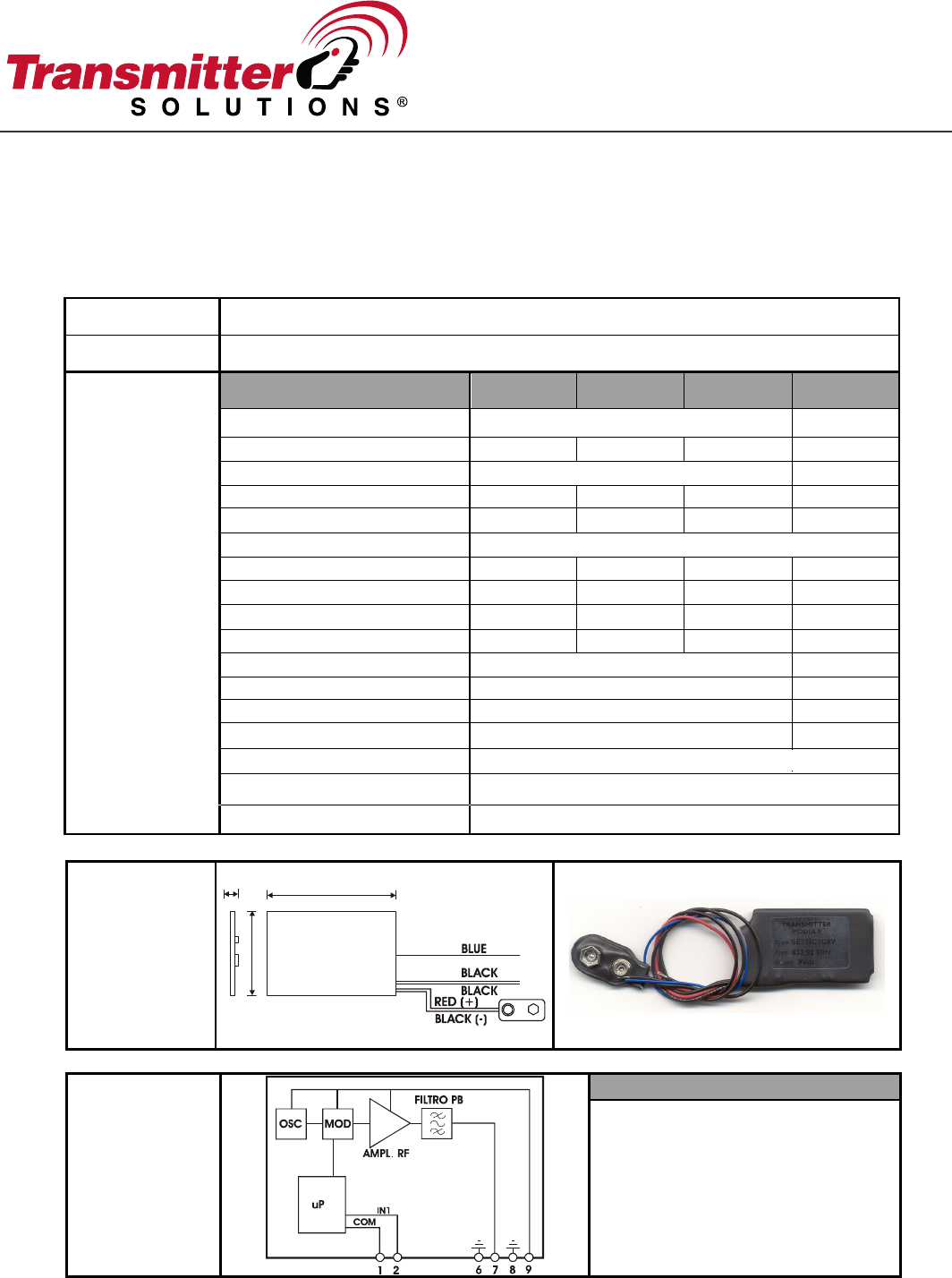

Controlled Entry Distributors SETMC8689V Encoded Transmitter User Manual TS 868 MHz transmitter Module FCC
Controlled Entry Distributors, Inc. Encoded Transmitter TS 868 MHz transmitter Module FCC
Users Manual
Description
SETMC8689V Transmitter Module
Saw transmitter module with external aerial and internal security code ( Keeloq™ code hopping )
Applications RF Transmissions of digital signal from pure contacts
Technical
specifications
Parameter Min Typ Max Unit
Band 868,00 – 868,60 MHz
zHM - 03,868 - ycneuqerf reirraC
Carrier frequency tolerance ± 100 KHz
mBd 01 + - - rewop dettime p.r.E
mBd 37- - - snoissime suoirupS
Modulation AM / ASK
ces/tiB - 438 - etar-duaB
- 05 - daol tuptuO Ω
V - 9+ - ylppus rewoP
Current consumption - - 17 mA
inch1-3/4 x 1 x 1/4 ) p x h x l ( snoisnemiD
Operating temperature - 4 to + 158 °F
upni ON + annetna 1 + noitcennoc yrettaB V9 sgniriW t
200 mm
Input - 1
Input type Pure contact
Security coding Keeloq™ code hopping
Security code combinations 264
Mechanical
specifications
44
28
6
Block Diagram
WIRINGS
1 : BLACK = N.O. INPUT CONTACT
2 : BLACK = N.O. INPUT CONTACT
7 : BLUE = ANTENNA
9 : RED = POWER SUPPLY (+ 9Vdc)
8 : BLACK = POWER SUPPLY 0V)
PUSHING FOR BETTER SOLUTIONS
www.transmittersolutions.com
866-975-0101 · fax 866-975-0404
TRANSMITTER SOLUTIONS WARRANTY:
The warranty period of this Transmitter Solutions product is twenty-four (24) months. This warranty
shall begin on the date the product is manufactured. During the warranty period, the product will be
repaired or replaced (at the sole discretion of Transmitter Solutions) if the product does not operate
correctly due to a defective component. This warranty does not extend to (a) the product case, which
can be damaged by conditions outside the control of Transmitter Solutions, or (b) battery life of the
product. This warranty is further limited by the following disclaimer of warranty and liability:
EXCEPT AS SET FORTH ABOVE, TRANSMITTER SOLUTIONS MAKES NO WARRANTIES REGARDING THE GOODS, EXPRESS OR IMPLIED,
INCLUDING WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. BUYER MAKES NO
RELIANCE ON ANY REPRESENTATION OF TRANSMITTER SOLUTIONS, EXPRESS OR IMPLIED, WITH REGARD TO THE GOODS AND
ACCEPTS THEM “AS-IS/WHERE-IS”. TRANSMITTER SOLUTIONS SELLS THE GOODS TO BUYER ON CONDITION THAT TRANSMITTER
SOLUTIONS WILL HAVE NO LIABILITY OF ANY KIND AS A RESULT OF THE SALE. BUYER AGREES THAT TRANSMITTER SOLUTIONS
SHALL HAVE NO LIABILITY FOR DAMAGES OF ANY KIND, WHETHER DIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING
INJURIES TO PERSONS OR PROPERTY, TO BUYER, ITS EMPLOYEES OR AGENTS, AS A RESULT OF THE SALE. BUYER ALSO AGREES TO
HOLD TRANSMITTER SOLUTIONS HARMLESS FROM ANY CLAIMS BUYER, OR ANY THIRD PARTY, MAY HAVE AS A RESULT OF BUYER’S
USE OR DISPOSAL OF THE GOODS. BUYER HAS READ THIS DISCLAIMER AND AGREES WITH ITS TERMS IN CONSIDERATION OF
RECEIVING THE GOODS.
NOTICE:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
IMPORTANT! Any changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate this equipment.
