Convergence Systems CS108C1GEN2 CS108 Sled Handheld for RFID/2D Barcode User Manual CSL CS101 2 EPC Class 1 Gen 2 RFID Handheld Reader

CS108-2 EPC Class 1 Gen 2 RFID Sled

Handheld Reader User’s Manual

Version 7.0

CSL: The One-Stop-Shop for RFID

Solutions

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

2

1 Content

1 CONTENT................................................................................................................................................... 2

2 FCC AND IC STATEMENT ............................................................................................................................. 4

3 INTRODUCTION ......................................................................................................................................... 6

3.1 CS108-2 RFID SLED HANDHELD RFID READER ................................................................................................ 6

3.2 PRODUCT PACKAGE ...................................................................................................................................... 9

3.2.1 Basic Package Content ........................................................................................................................ 9

3.3 PRODUCT SPECIFICATION ............................................................................................................................. 10

4 INTRODUCTION ....................................................................................................................................... 12

4.1 BASIC HARDWARE ...................................................................................................................................... 12

4.2 POWER UP SEQUENCE ................................................................................................................................ 16

4.3 BLUETOOTH TURN ON FOR DISCOVERY SEQUENCE ............................................................................................ 17

4.4 CHARGING THE CS108................................................................................................................................ 18

4.5 SOFTWARE ON SMART PHONES ..................................................................................................................... 19

4.5.1 SOFTWARE ON ANDROID PHONE ................................................................................................................... 19

4.5.1.1 INSTALLING THE ANDROID SOFTWARE ........................................................................................................ 19

4.5.1.2 STARTING THE ANDROID SOFTWARE .......................................................................................................... 21

4.5.1.3 SEARCHING AND CONNECTING TO (PAIRING WITH) CS108 ............................................................................ 23

4.5.1.4 RFID INVENTORY .................................................................................................................................. 27

4.5.1.5 BARCODE INVENTORY ............................................................................................................................. 30

4.5.1.6 RFID READ AND WRITE MEMORY BANKS ................................................................................................... 32

4.5.1.7 GEIGER SEARCH .................................................................................................................................... 35

4.5.1.8 SETUP ................................................................................................................................................. 39

4.5.1.9 FILTER: PRE FILTER ................................................................................................................................. 45

4.5.1.10 FILTER: POST FILTER ............................................................................................................................... 48

4.5.1.11 SECURITY ............................................................................................................................................. 51

4.5.1.12 REGISTER TAGS ..................................................................................................................................... 55

4.5.1.13 SPECIAL FUNCTIONS ............................................................................................................................... 56

4.5.1.14 EXITING THE SOFTWARE .......................................................................................................................... 57

4.5.1.15 TRULY EXITING THE SOFTWARE ................................................................................................................. 58

4.5.1.16 SOURCE CODES ..................................................................................................................................... 59

4.5.2 SOFTWARE ON IPHONE ................................................................................................................................60

4.5.2.1 INSTALLING THE IPHONE SOFTWARE ..........................................................................................................60

4.5.2.2 STARTING THE IPHONE SOFTWARE ............................................................................................................ 62

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

3

4.5.2.3 SEARCHING AND CONNECTING TO (PAIRING WITH) CS108 ............................................................................ 63

4.5.2.4 RFID INVENTORY .................................................................................................................................. 66

4.5.2.5 BARCODE INVENTORY ............................................................................................................................. 68

4.5.2.6 RFID READ AND WRITE MEMORY BANKS ................................................................................................... 70

4.5.2.7 GEIGER SEARCH ................................................................................................................................... 71

4.5.2.8 SETUP ................................................................................................................................................. 73

4.5.2.9 FILTER: PRE FILTER .................................................................................................................................77

4.5.2.10 FILTER: POST FILTER ............................................................................................................................... 78

4.5.2.11 SECURITY ............................................................................................................................................. 79

4.5.2.12 REGISTER TAGS ..................................................................................................................................... 80

4.5.2.13 SPECIAL FUNCTIONS ............................................................................................................................... 81

4.5.2.14 EXITING THE SOFTWARE .......................................................................................................................... 82

4.5.2.15 TRULY EXITING THE SOFTWARE ................................................................................................................. 83

4.5.2.16 SOURCE CODES ..................................................................................................................................... 84

4.6 SOFTWARE ON PC ...................................................................................................................................... 85

APPENDIX A. FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE ................................................... 86

APPENDIX B. LINK PROFILES OF CS108 RFID READING ................................................................................ 87

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

4

2 FCC and IC Statement

FCC STATEMENT

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause

undesired operation.

2. Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help

IC STATEMENT

IC Notice to Canadian Users

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

This device complies with industry Canada license-exempt RSS standard(s). Operation is subject to the

following two conditions:

(1) This device may not cause harmful interference

(2) This device must accept any interference received, including interference that may cause undesired

operation of the device.

This device complies with RSS-247 of industry Canada. Operation is subject to the condition that this

device does not cause harmful interference.

This Class B digital apparatus complies with Canadian ICES-003(Cet appareil numérique de classe B est

conforme à la norme NMB-003 du Canada).

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This

equipment should be installed and operated with minimum distance of 5mm between the radiator and

your body. This transmitter must not be co-located or operating in conjunction with any other antenna or

transmitter.

The SAR limit of USA (FCC) is 4.0W/kg averaged over ten gram of tissue. Device types CS108 Sled Handheld

for RFID/2D Barcode (FCC ID:UB4CS108C1GEN2 ) has also been tested against this SAR limit. The highest

SAR value reported under this standard during product certification for use at the hand and is 0.707W/kg .

This device was tested for typical handheld operations kept 0mm from the hand. To maintain compliance with

FCC RF exposure requirements, use accessories that maintain a 0mm separation distance between the user's

hand. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure

requirements, and should be avoided.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

6

3 Introduction

3.1 CS108-2 RFID Sled Handheld RFID Reader

The CS108-2 Sled handheld RFID reader is a reader designed to work with an off-the-shelf

smart phone (such as iPhone or Android phone) via Bluetooth connection, where the

application on the smart phone would control the CS108-2 reader to perform RFID tag reading

or barcode reading.

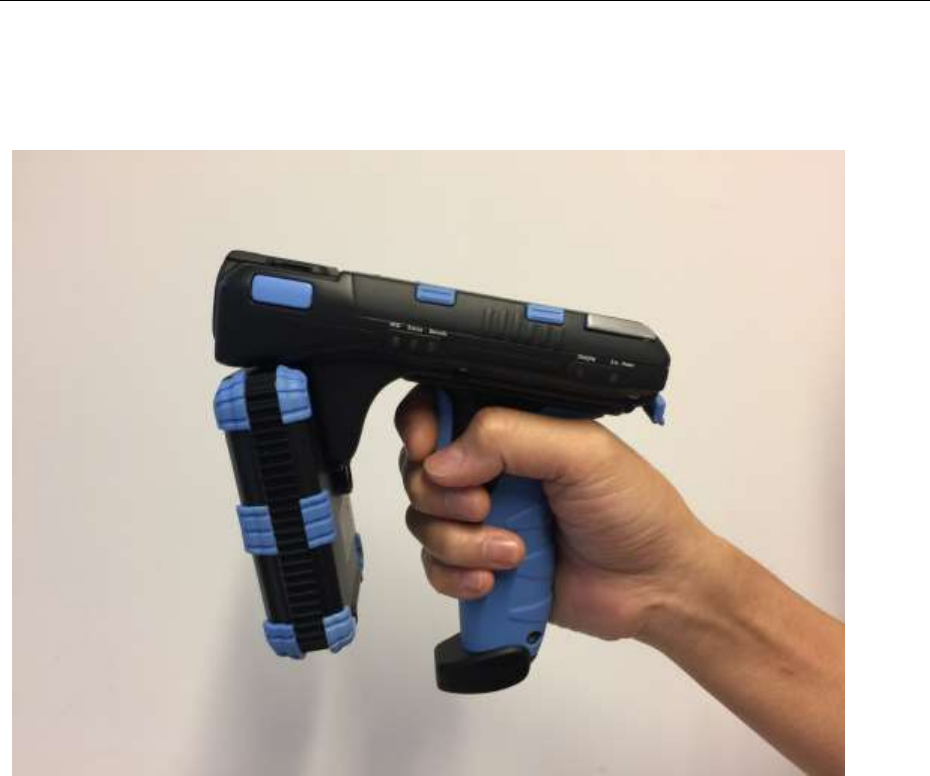

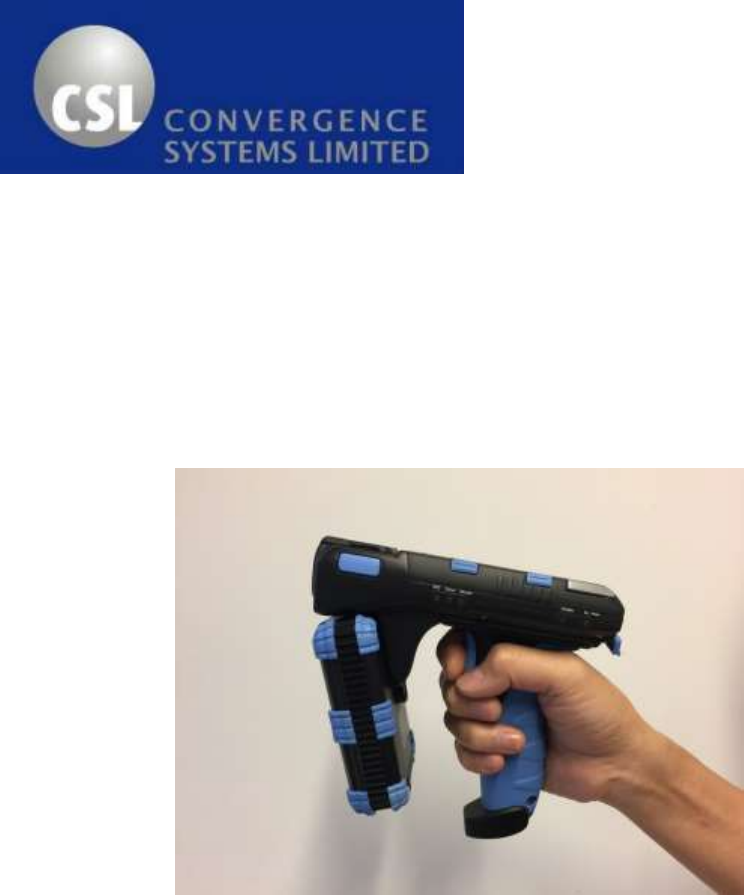

CS108-2 is a handle product. It is NOT a body worn product. User holds it using the

handle as shown in below photo. Holding it by the handle is the only way of usage.

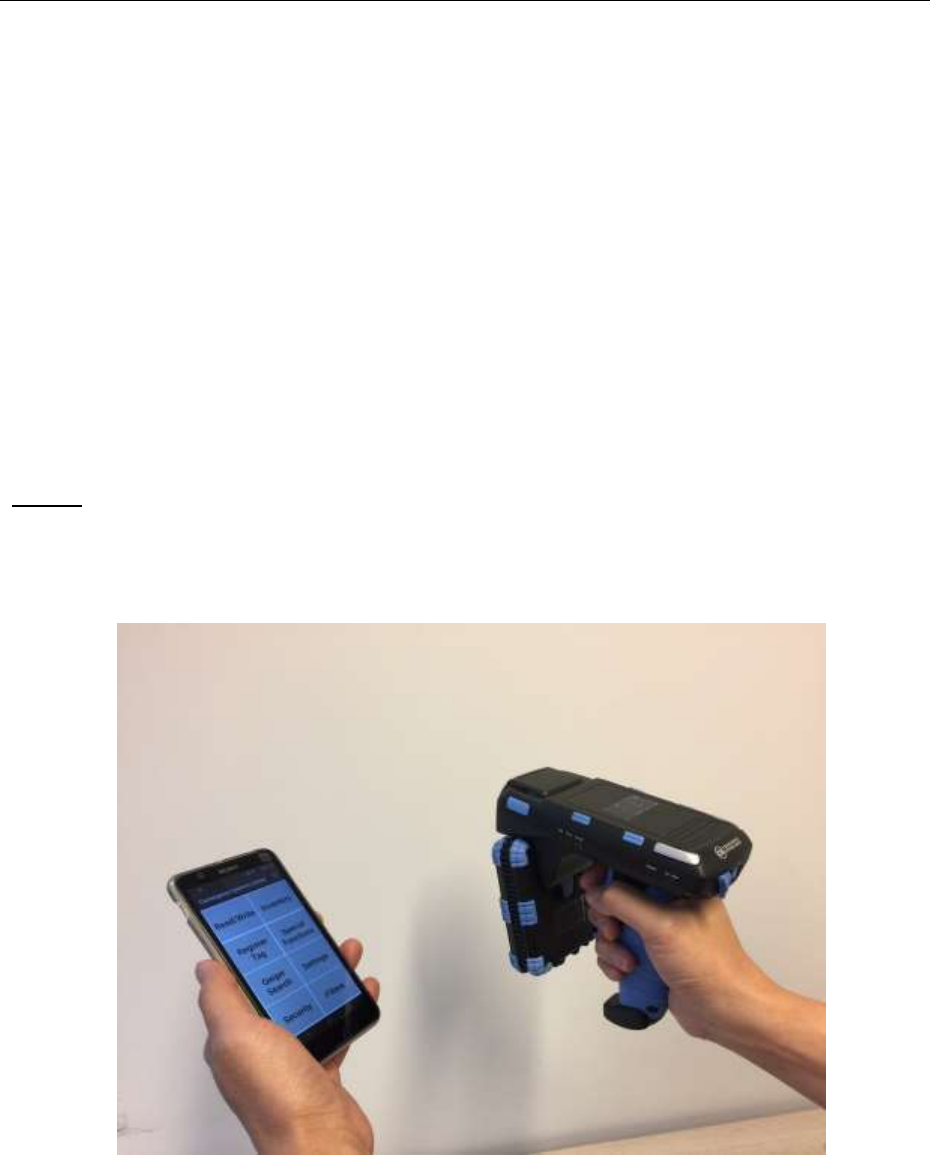

Below photo shows the smart phone separately handled by the user during operation:

Note: Smart phone and CS108 can only be paired via the App provided. They DO NOT pair

via the normal Bluetooth Device connection page of the OS. Therefore, install the App first

and pair the CS108 from inside the App.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

7

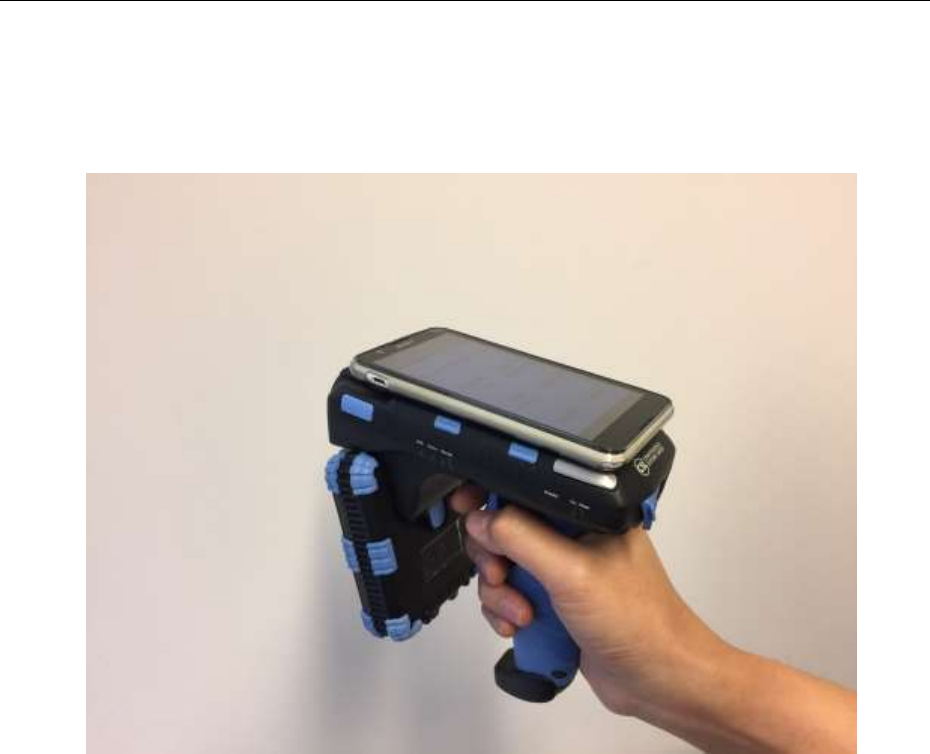

Below photo shows the smart phone mounted (detachable) on top of the CS108-2 reader during

operation:

CS108-2 can also be controlled via the USB connection by a PC. In this case, the Bluetooth

connection is not used. The control commands enter via the USB cable. The application is

on a PC.

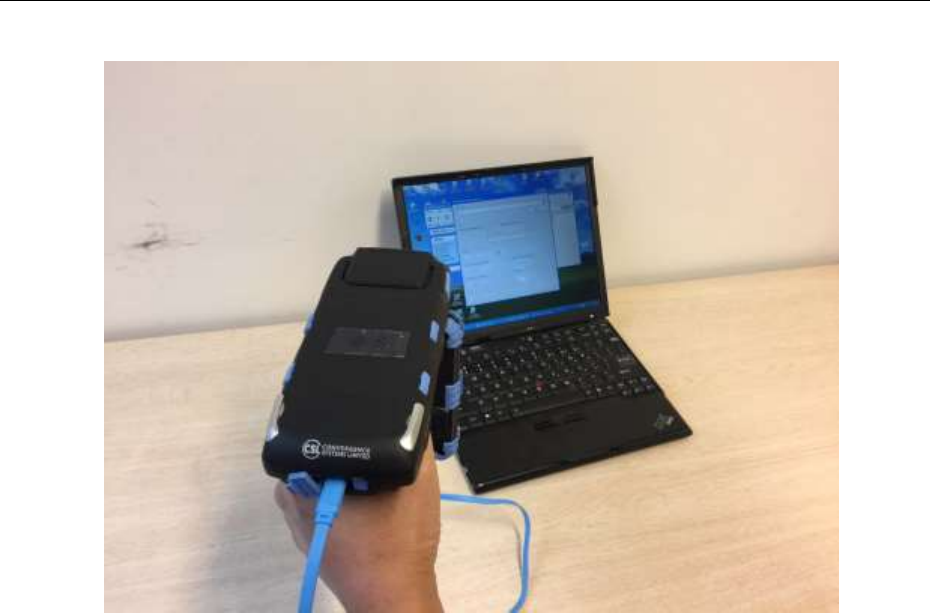

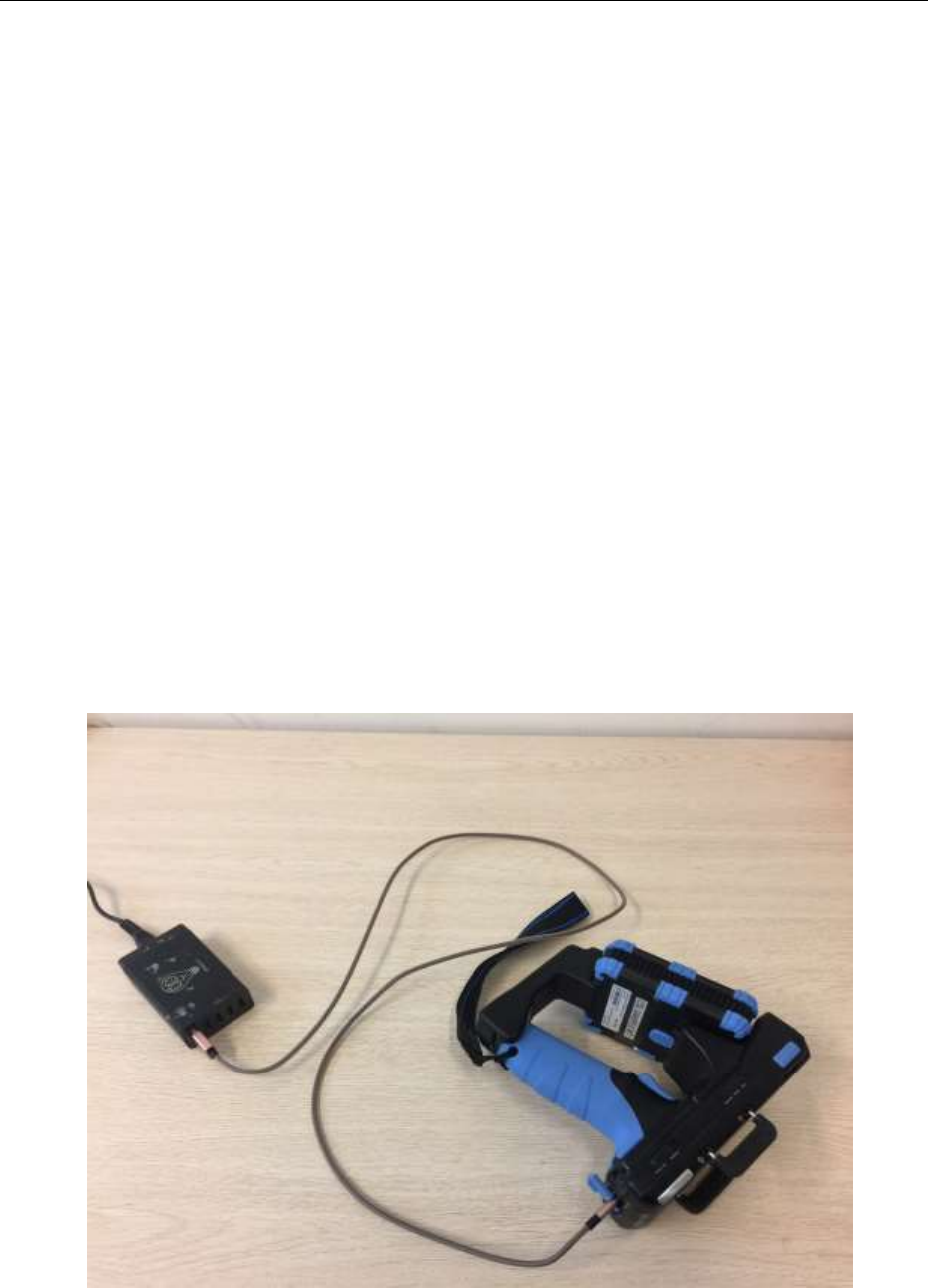

Below photo show the CS108-2 handheld reader connected via USB cable to (and controlled

by) a PC.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

8

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

9

3.2 Product Package

3.2.1 Basic Package Content

The reader package contains:

• Handheld reader

• USB cable

• Battery – 1 piece, inside the reader

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

10

3.3 Product Specification

Figure 3-1 CS108-2 Reader

Features:

 ISO 18000-6C and EPCglobal Class 1 Gen 2 UHF RFID protocol compliant including

dense reader mode

 Ultra long read range – peak at more than 18 meters for Monza R6 Dogbone tag

 Sophisticated data handling for efficient management of large streams of tag data.

 Highly configurable buffering and tag filtering modes to eliminate the redundant tag data

so as to reduce wireless LAN traffic and server loading

 Robust performance in dense-reader environments

 Excellent in transmit and receive mode – generates a different combination of unique

reader-to-tag command rate, tag-to-reader backscatter rate, modulation format, and

backscatter type

 Configurable parameters offer maximum throughput and optimal performance

 Supports all Gen 2 commands, including write, lock and kill

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

11

Specifications:

Physical Characteristics:

Length: 16.1 cm; Width: 9.0 cm; Height: 16.1 cm;

Weight: 595 grams

Environment:

Operating Temp: -200C to 500C

Storage Temp: -400C to 850C

Humidity: 5% to 95% non-condensing

Enclosure: IP-54

Antenna:

2.7 dBi Gain internal patch antenna

RF Power:

Internal conducted power 30 dBm

EIRP Power:

32.7 dBm

RFID Frequency Ranges:

902-928 MHz band

Interfaces

Bluetooth 4.0

USB

Accessories:

USB cable

Order Code:

CS108-2

Restrictions on Use:

Approvals, features and parameters may vary

depending on country legislation and may change

without notice

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

12

4 Introduction

4.1 Basic Hardware

The CSL CS108-2 handheld RFID Reader is an EPCglobal Class 1 Gen 2 handheld reader

product.

Below is the front view of the CS108-2 reader. The barcode lies in a compartment at the top.

The RFID reader is in the front box, with the embedded patch antenna inside the cover facing

forward.

Figure 4-1 CS108-2 Reader Front View

Barcode Scanner

RFID Reader Antenna Inside

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

13

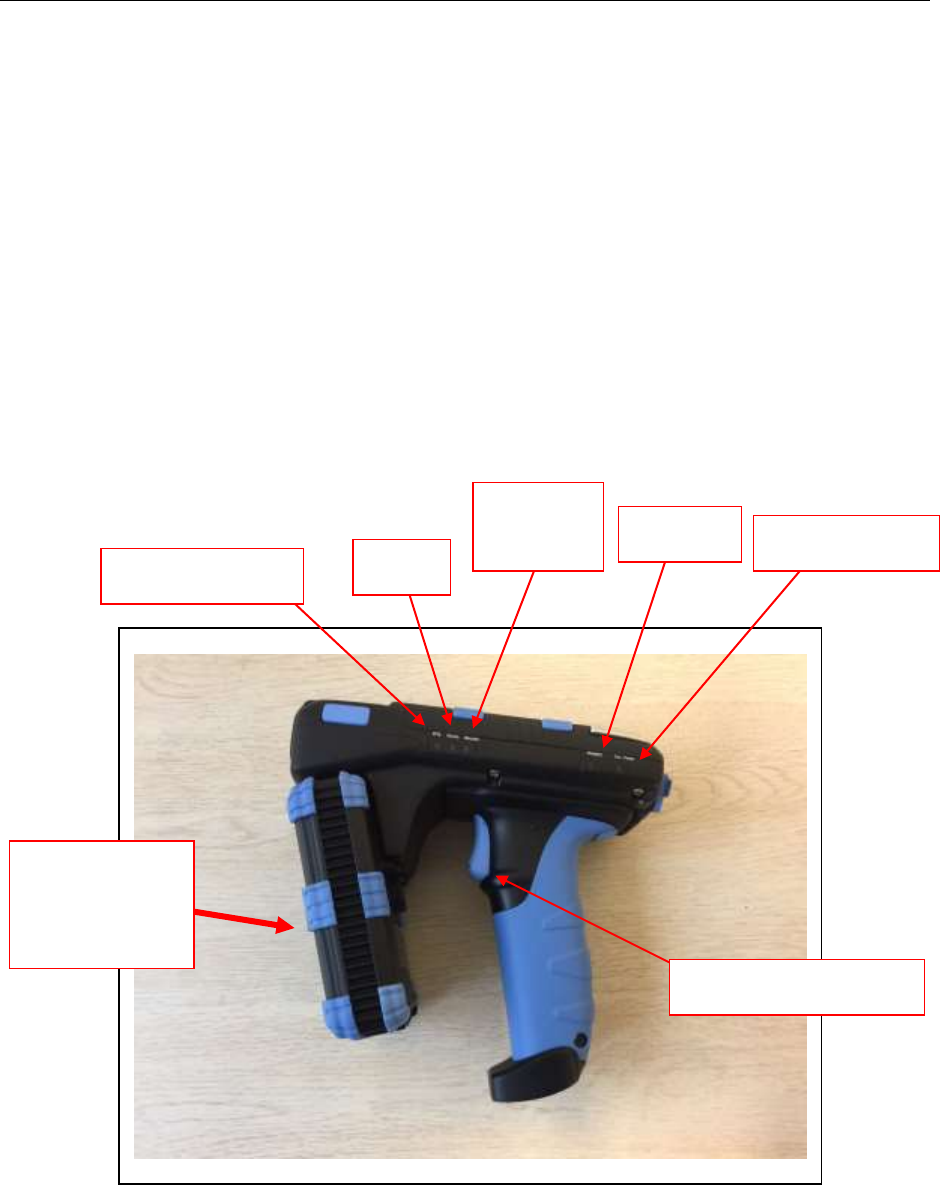

Below is the left side view of the CS108-2 reader. There are 5 LEDs on this side, from left to

right, representing respectively:

1) RFID Power On

2) Status

3) Barcode Power On

4) Charging

5) External Power connected

Figure 4-2 CS108-2 Reader Left Side View

RFID Reader

and Antenna in

this box

RFID Power On

Status

Barcode

Power On

Charging

External Power

Push Button to Read

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

14

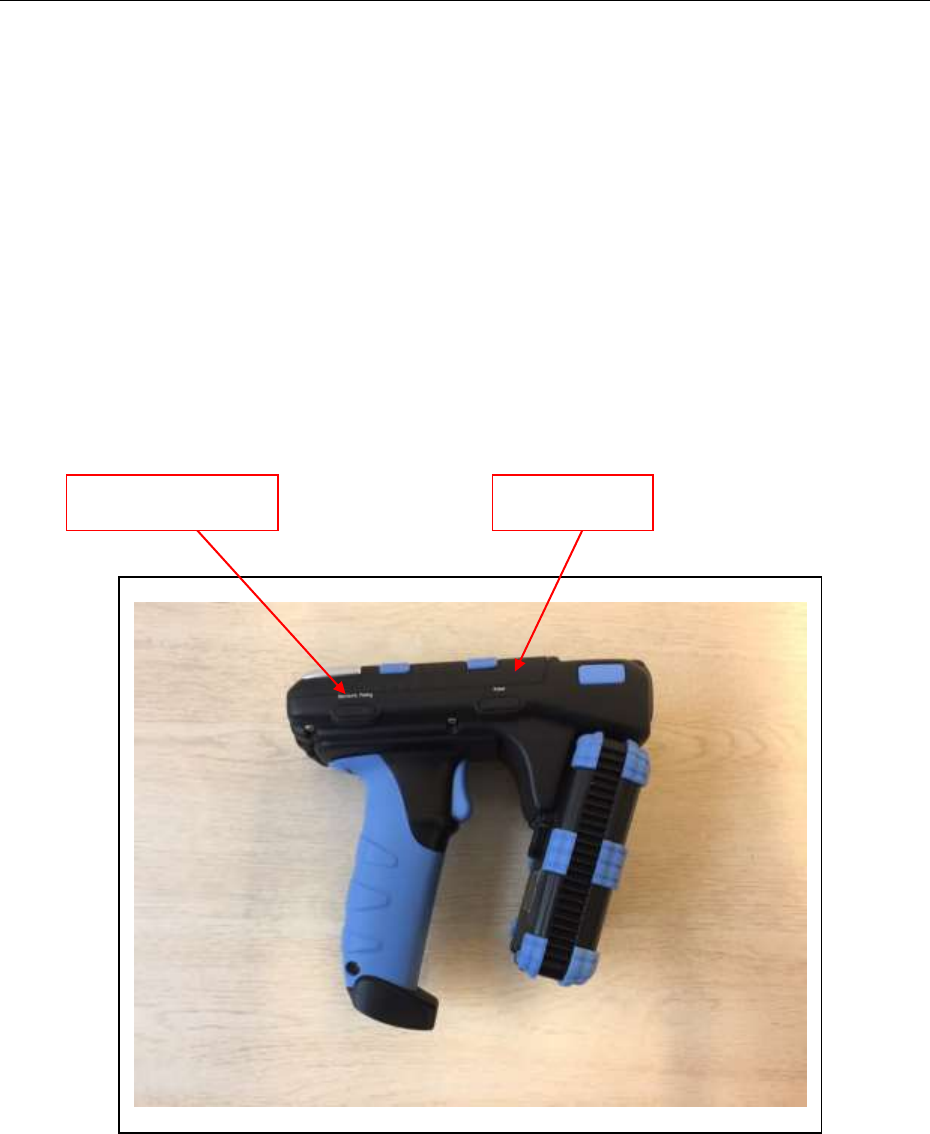

Below is the right side of the CS108-2 reader. There are 2 buttons/LEDs here.

The left button/LED is for Bluetooth pairing, and the LED lighting up meaning Bluetooth is

connected.

The right button/LED is for main power, with LED lighting up meaning power is on. Press the

button continuously for 3 seconds, then release to power on. When the reader is on, press the

button continuously for 3 seconds, then release to power off.

Figure 4-3 CS108-2 Reader Right SideView

Bluetooth Pairing

Main Power

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

15

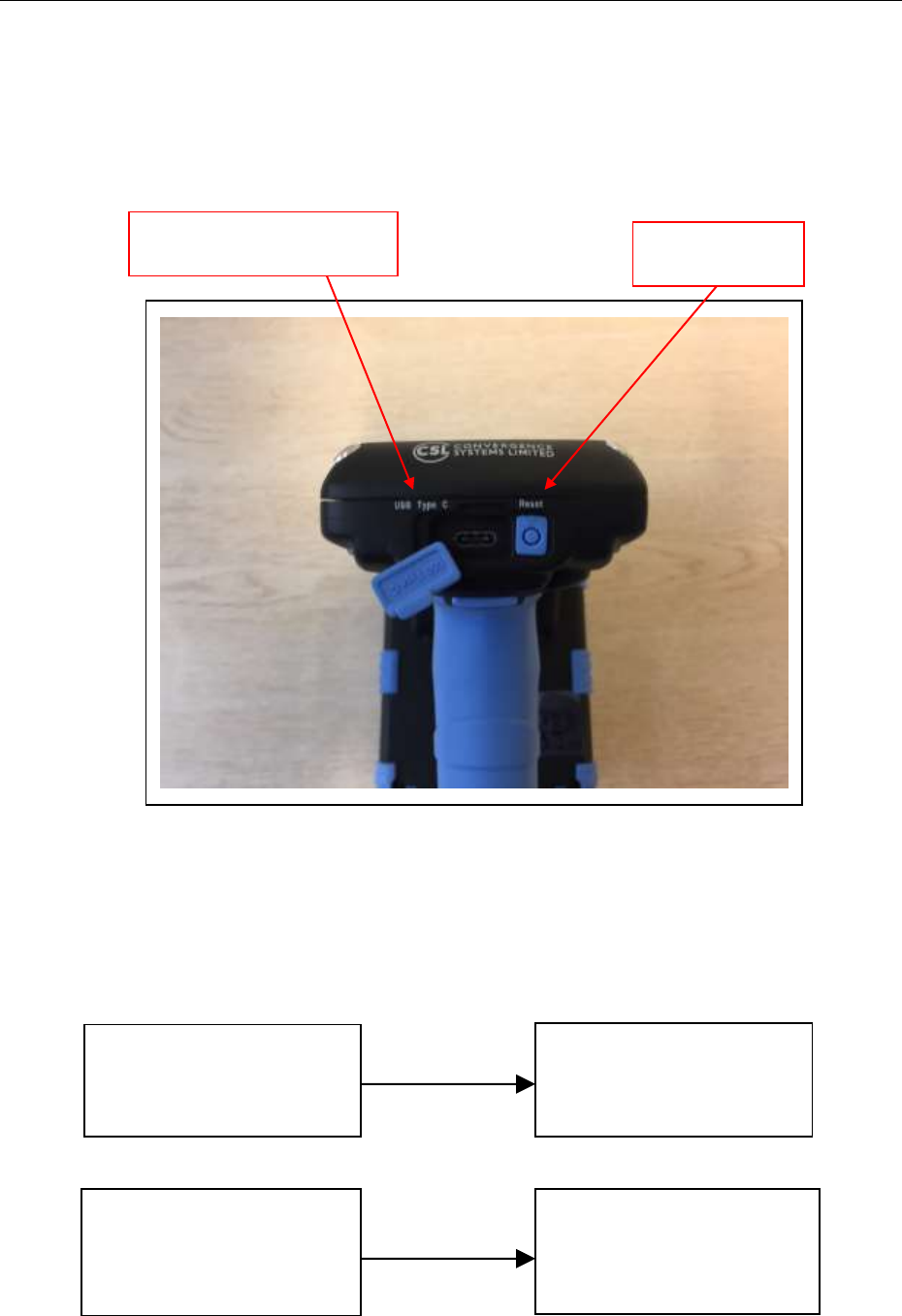

Below is the rear view of the CS108-2 reader. Here the USB Type C socket is on the left,

allowing the user to connect CS108-2 to a PC for control, or to a USB power source to

recharge the battery inside the CS108-2. A reset button is on the right, this is for resetting the

CS108-2.

Figure 4-4 CS108-2 Reader Rear SideView

Based on this, one can see the CS108-2 can be connected to either a smart phone via Bluetooth

for control and data collection, or to a PC via USB cable for control and data collection.

CS108 READER

Bluetooth

Smart Phones: Android

Phone or iPhone

CS108 READER

USB

PC

USB Type C Socket

Reset Button

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

16

4.2 Power Up Sequence

The reader can be turned on to run RFID and Barcode operation in a most simple manner:

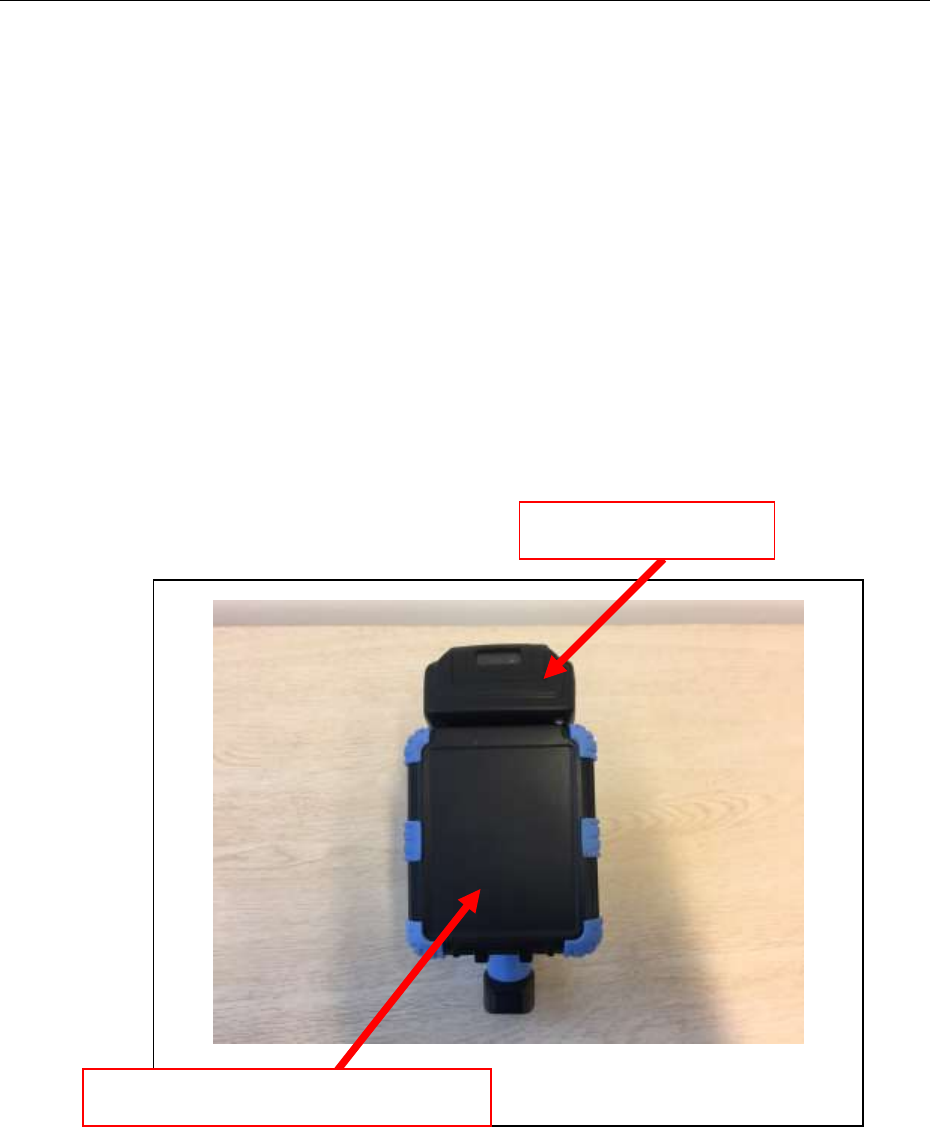

1. Insert battery into the body of the handheld reader with the top plastic cover removed.

Also, make sure it is in the correct direction in terms of front and back. The battery

connectors should be at the back of the reader. Put the cover back once battery is inserted.

2. Press the power button on the right side of the reader continuously for 3 seconds then

release.

3. After you release the finger, then the Blue LED should lit up.

4. The reader is now turned on.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

17

4.3 Bluetooth Turn On for Discovery Sequence

1. Press the Bluetooth button on the right side of the reader continuously until the blue LED

starts flashing. Do not release your finger, you need to press UNTIL the Blue LED lit up.

Because of that, press the button in a way such that the LED is not obstructed by your

pressing finger.

2. The reader is now discoverable by smart phone App. Note that only the CSL App can

connect to the CS108. The generic Bluetooth Device Search of the OS cannot connect to

CS108.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

18

4.4 Charging the CS108

The CS108 can be charged by inserting a USB cable with the following plugs:

1) USB Type C plug on one side

2) USB Type A plug on the other side

3) The above Type A plug connecting to a USB charger with the traditional Type A socket

2 LEDs will light up:

1) “Ext. Power” LED: Blue LED. Whenever the USB is connected with power supply, this

blue LED will light up.

2) “Charging” LED: Red LED. When battery is heavily drained, this red LED will be bright.

When battery is completely recharged, this red LED will be very dim. So if you connect

the USB cable and this LED is very dim, do not be alarmed. It just means the battery is

pretty full already.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

19

4.5 Software on Smart Phones

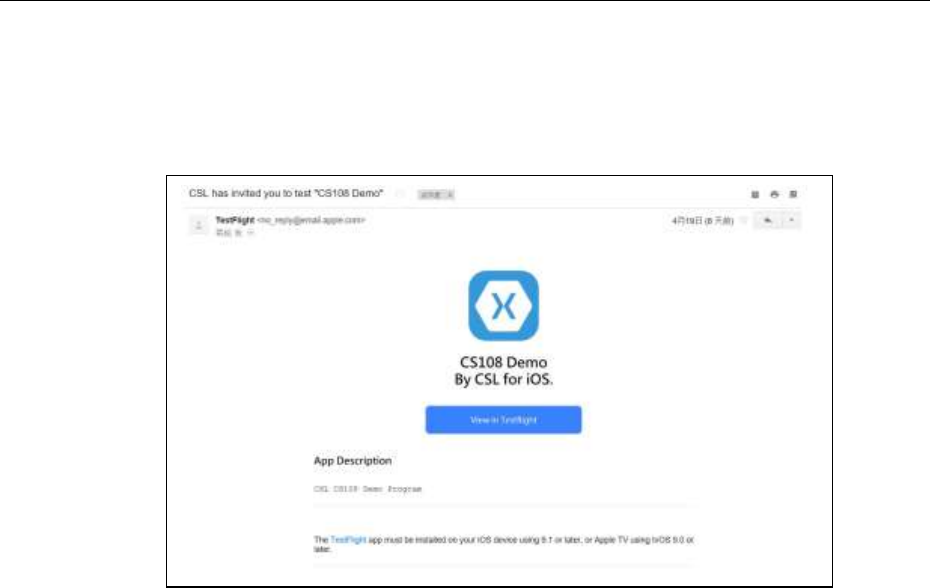

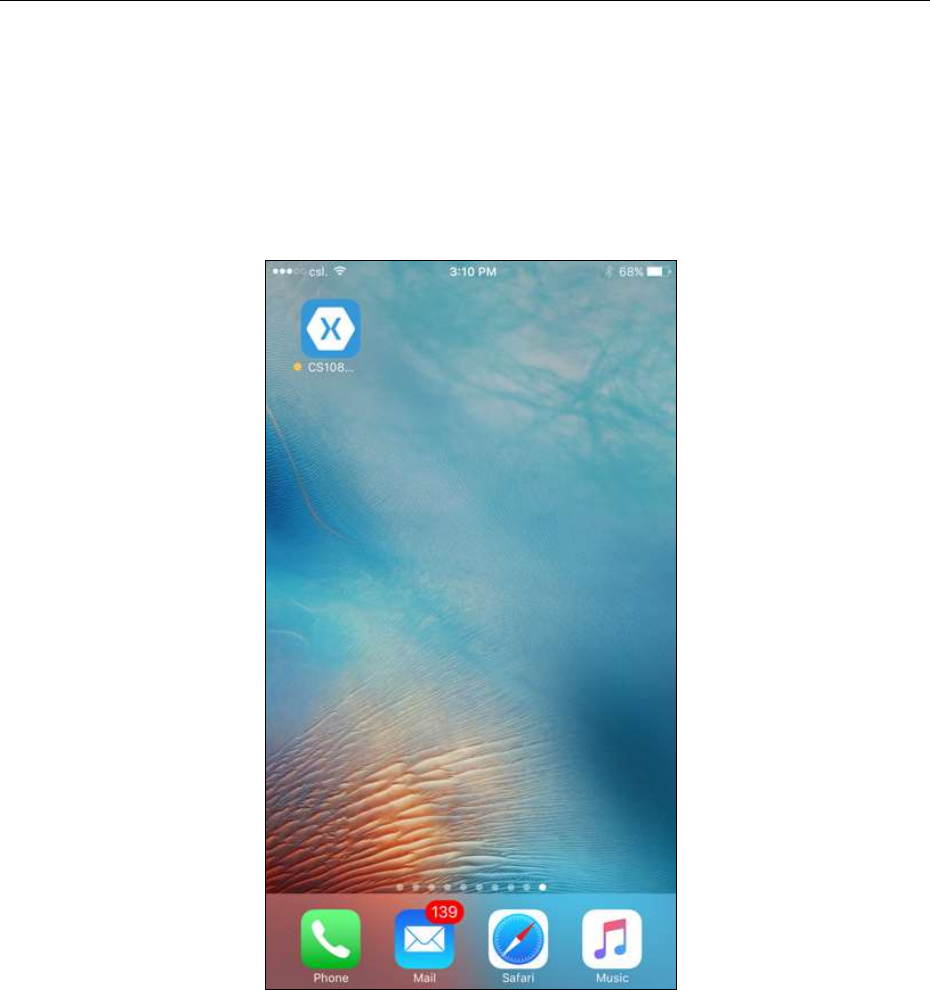

The reader comes with standard demo application for iPhone and Android Phone, install the

application from App Store or Google Play correspondingly, then double click the icon “CS108

Demo App” to start.

4.5.1 Software on Android Phone

4.5.1.1 Installing the Android Software

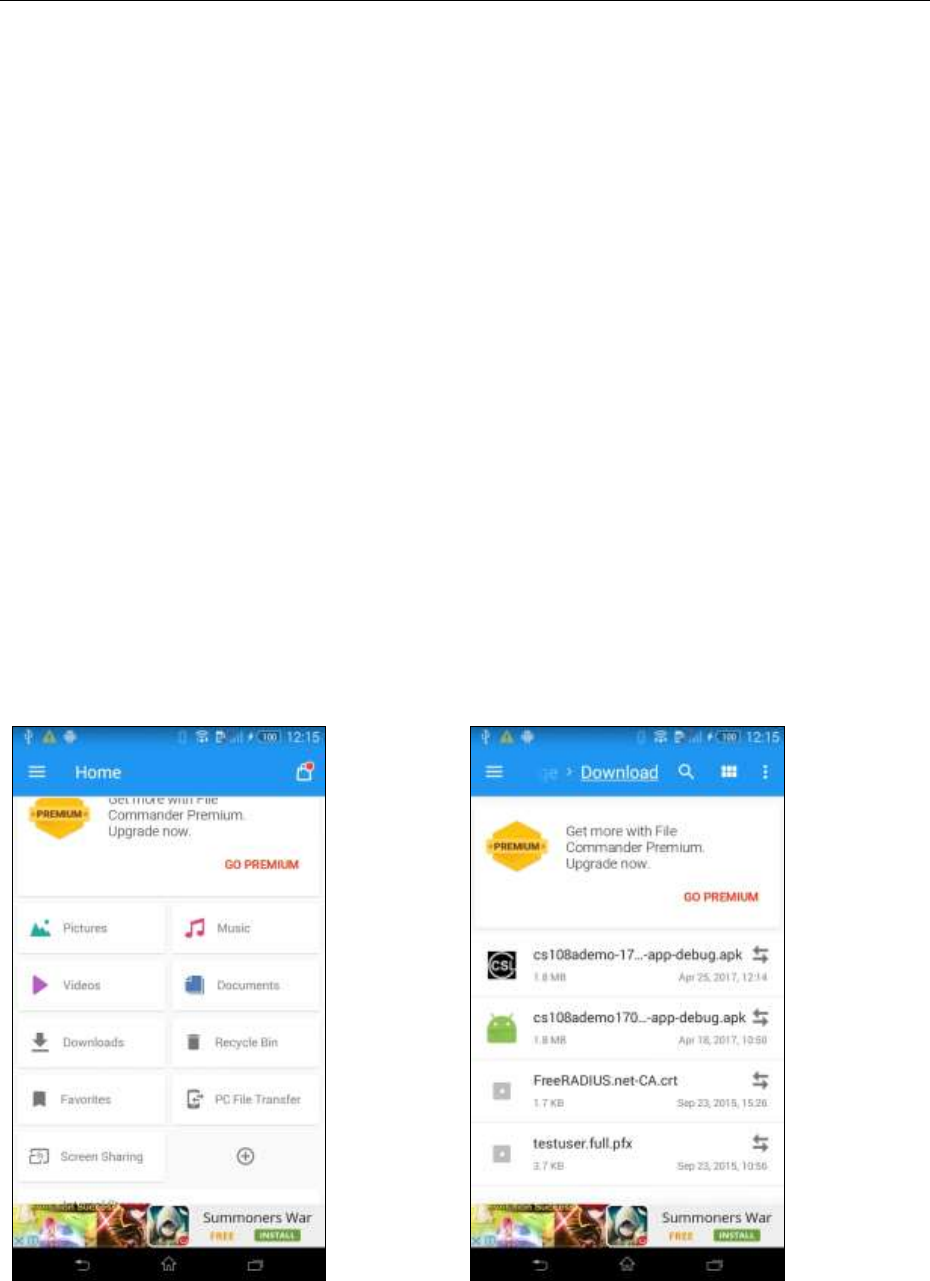

Download the APK from Convergence website. Save that to the Download folder.

You can directly download that to your Android phone as long as your Android phone is

connected to the Internet.

See below:

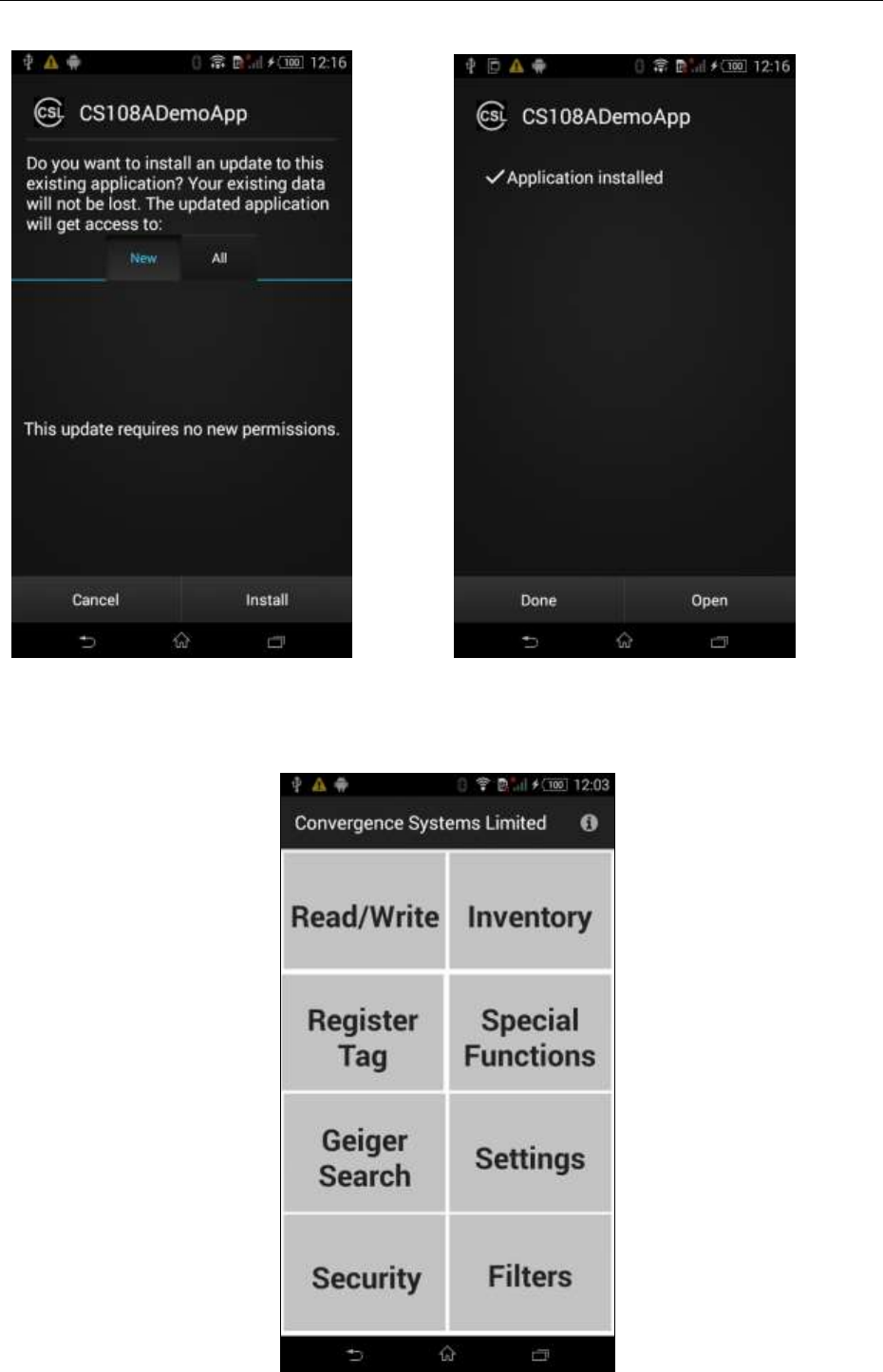

Select and press the APK and start the installation process:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

20

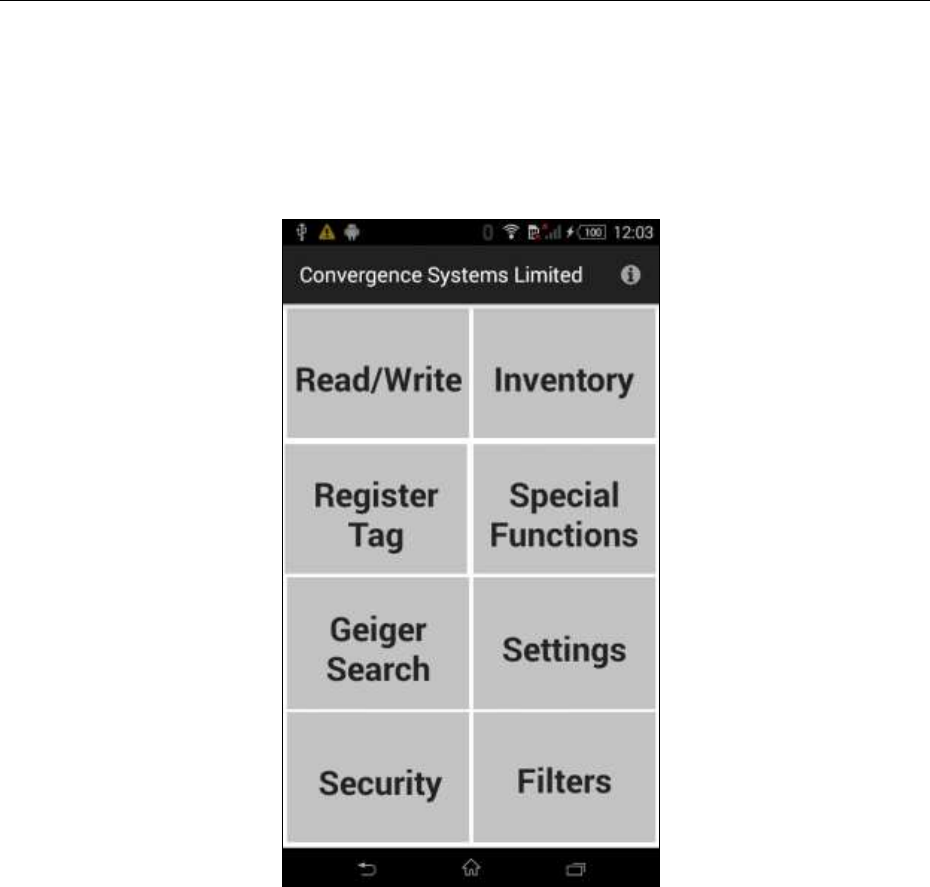

Once installed, start the App and you should see the following:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

21

4.5.1.2 Starting the Android Software

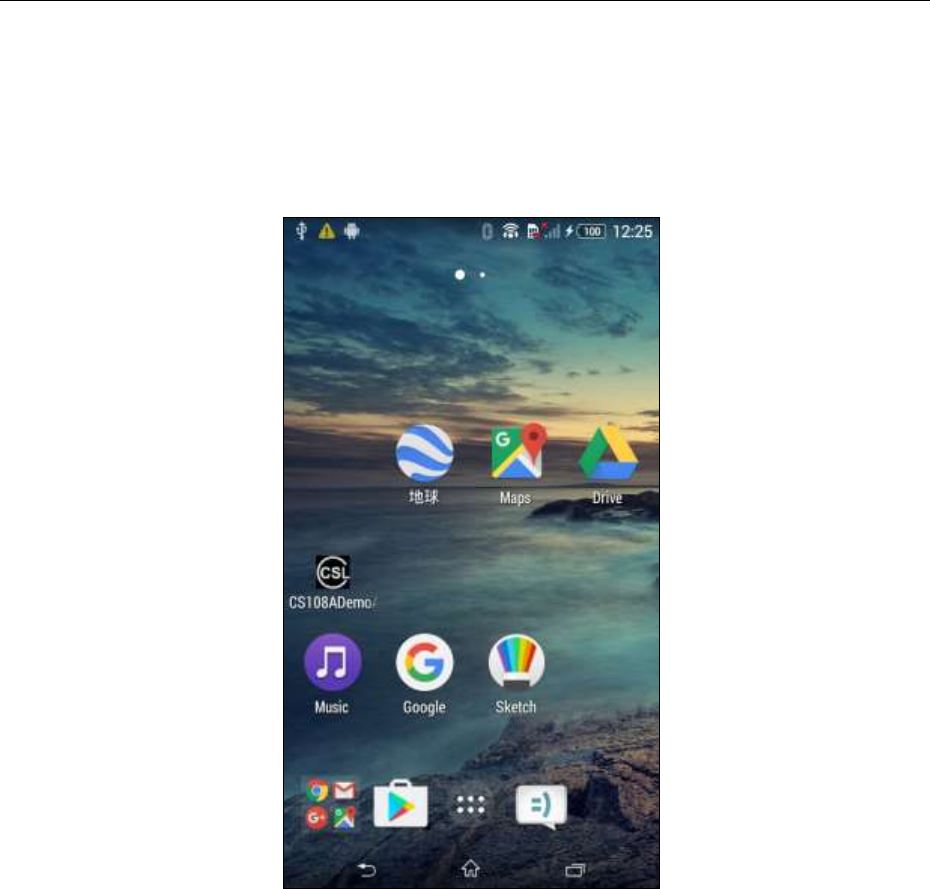

The CS108 Android App icon is as follows.

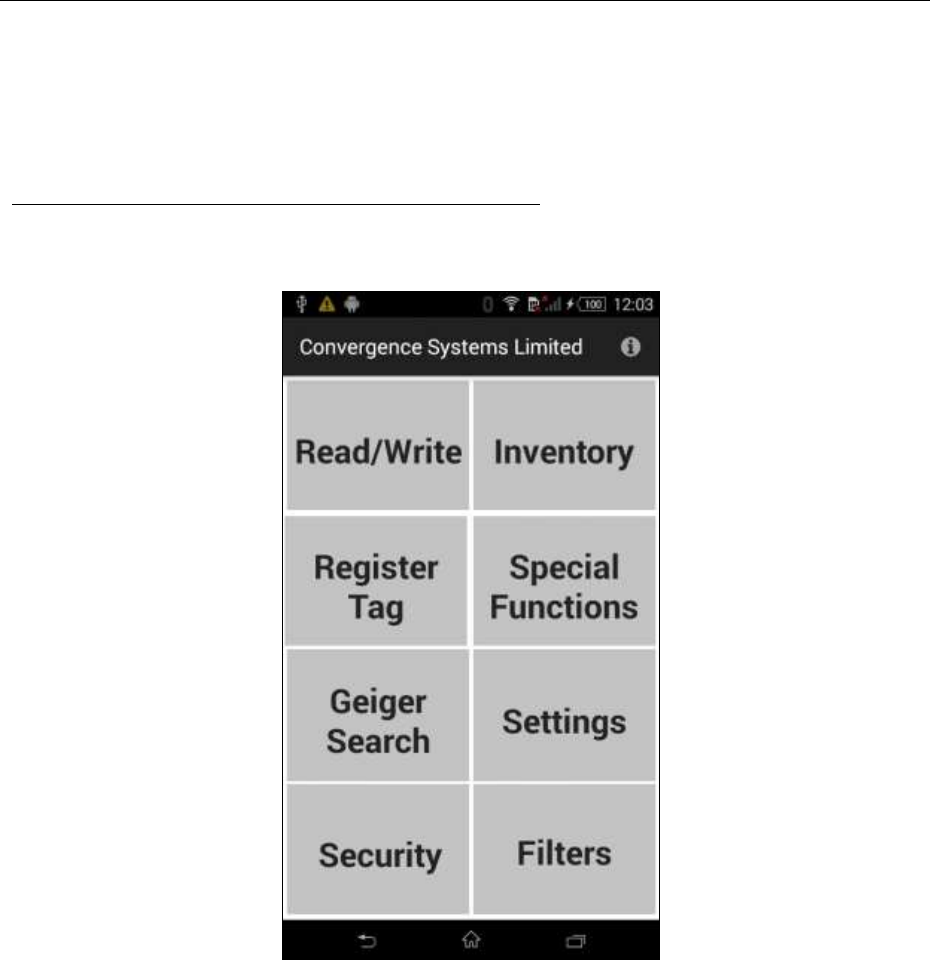

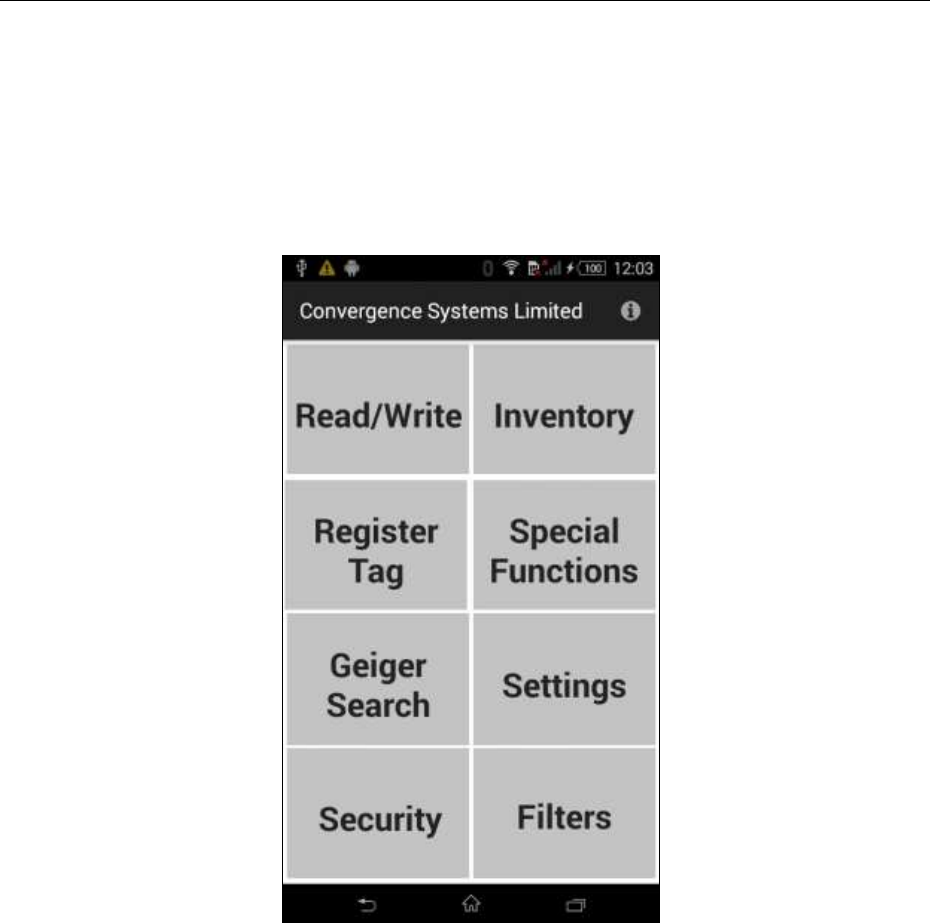

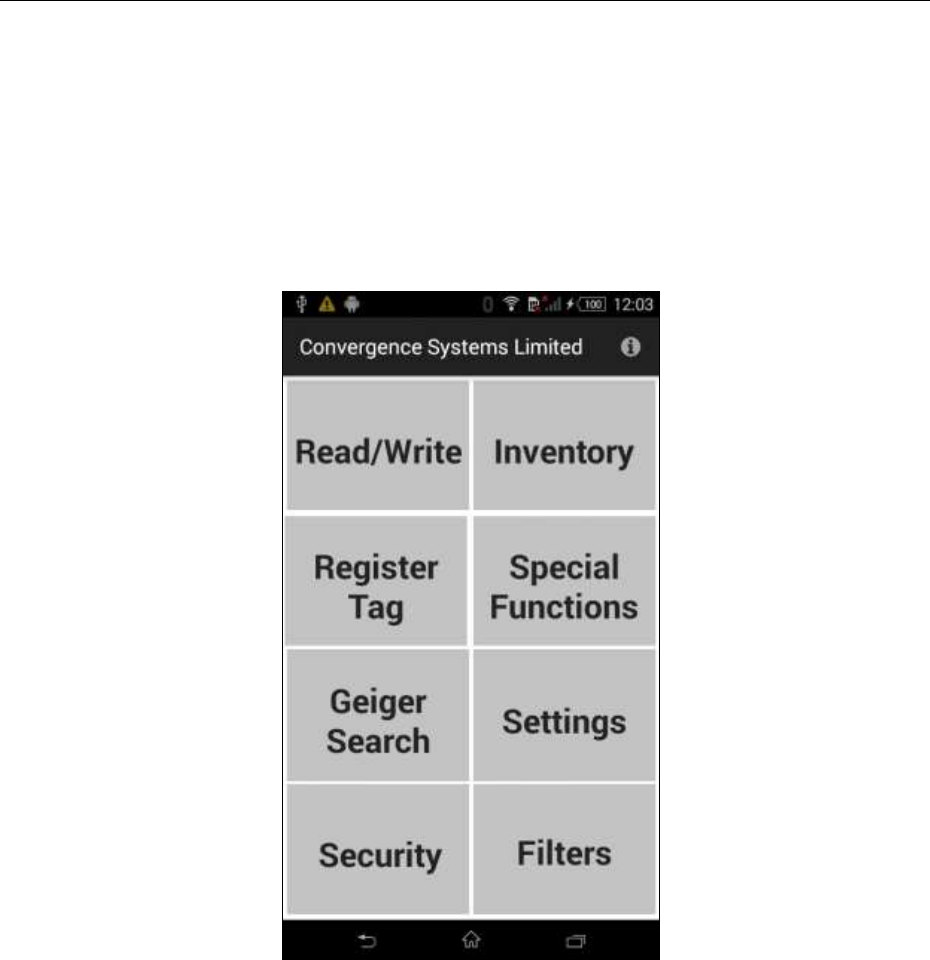

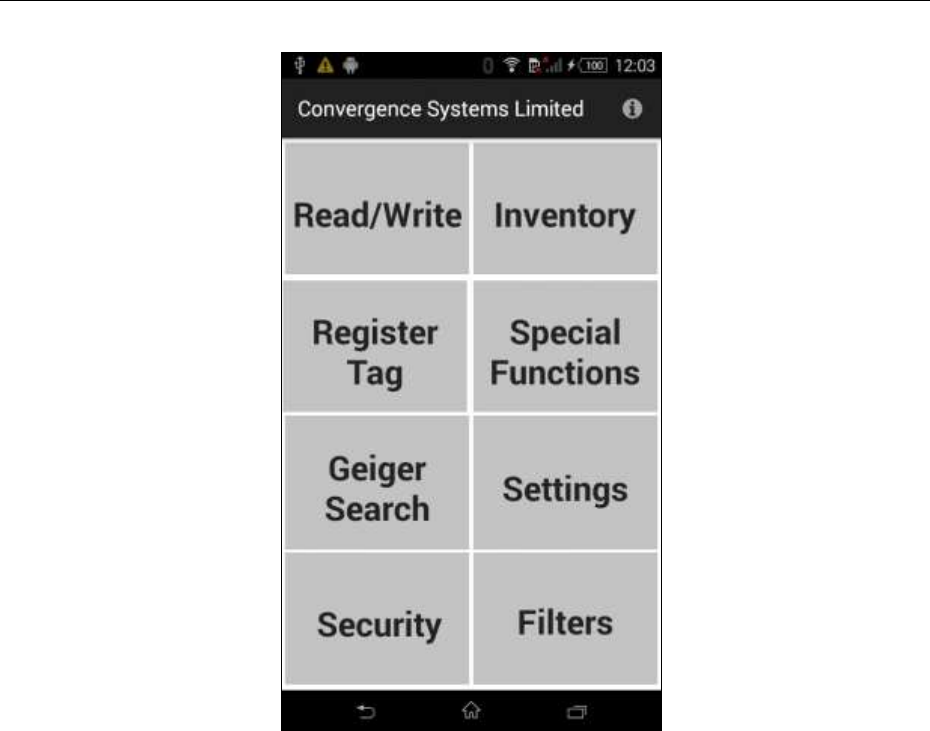

Open the Android App and you should see the following screen:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

22

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

23

4.5.1.3 Searching and Connecting to (Pairing with)

CS108

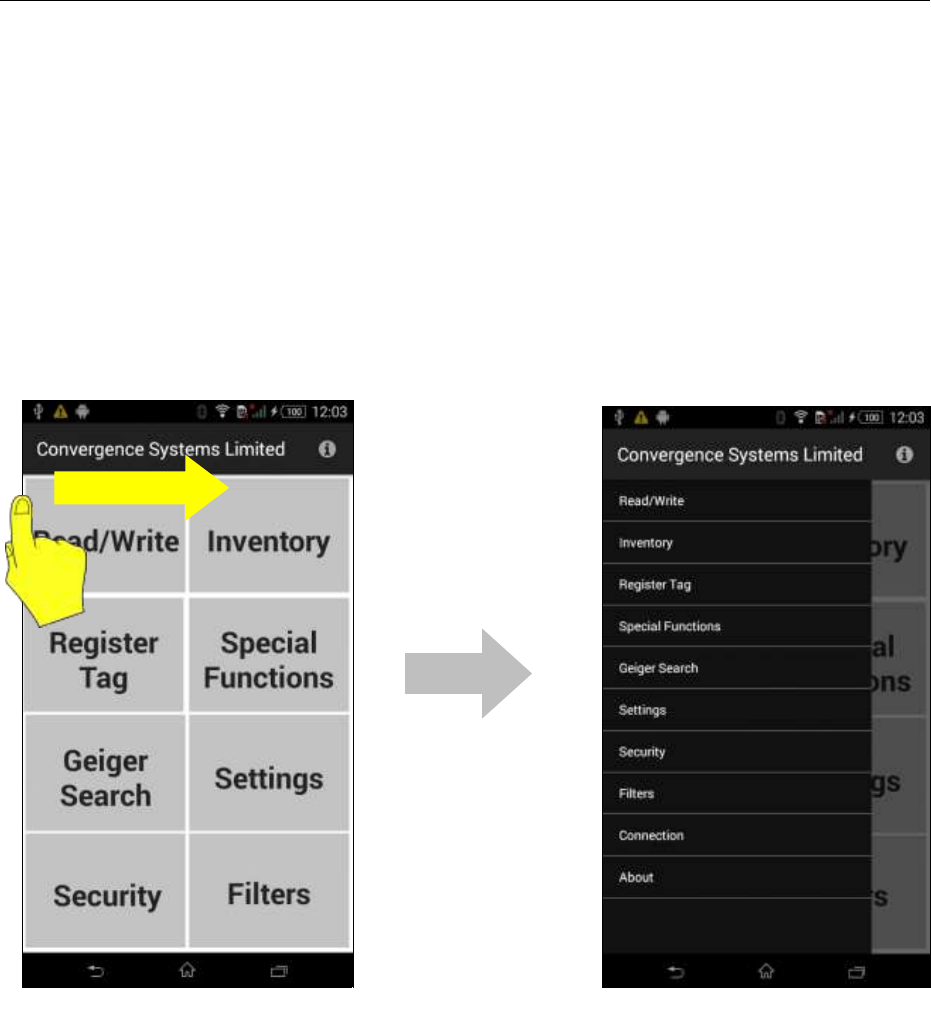

To start searching and connecting to (pairing with) a CS108 nearby, use the finger to SWIPE

the screen from the LEFT edge to invoke the menu:

Please make sure the CS108 Bluetooth button has been pressed until the Blue LED is flashing,

meaning the CS108 is ready for discovery by Smart Phones nearby.

After that, select the line “Connection” to start the search and connect to CS108 process:

Swipe Right

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

24

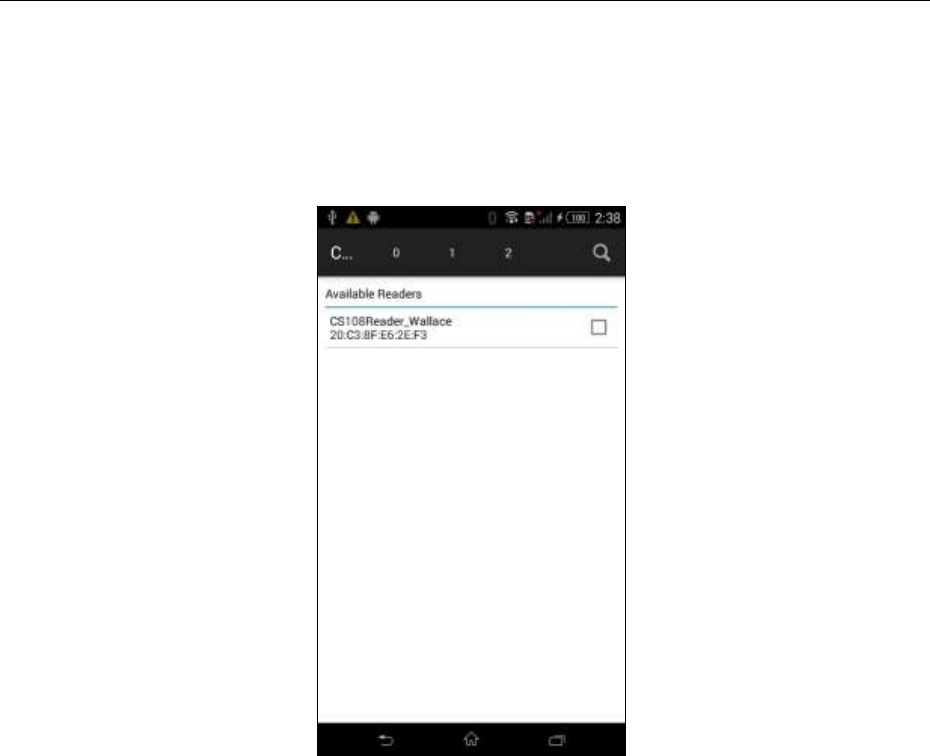

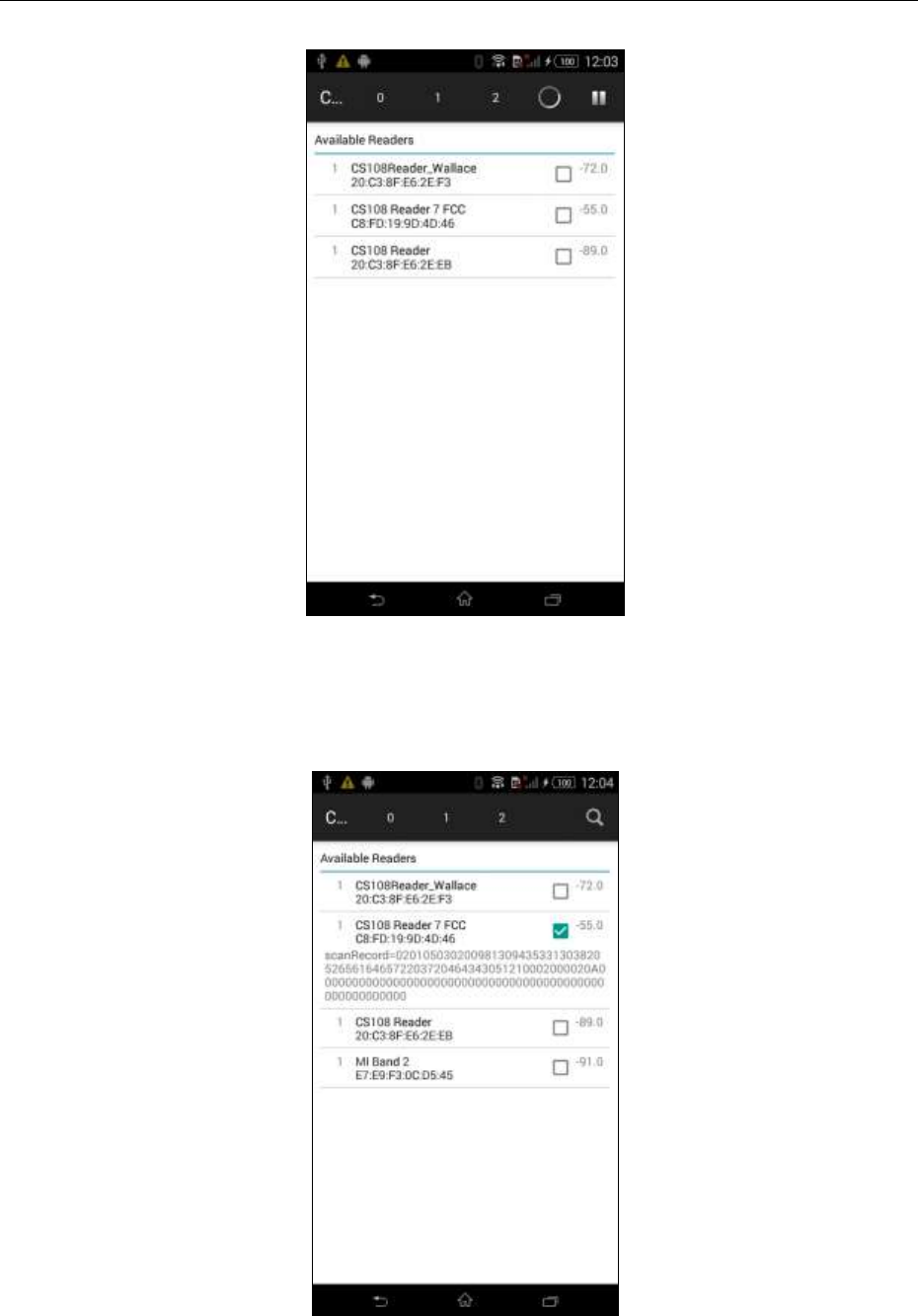

Note the Search icon to the upper right of the page, press that icon:

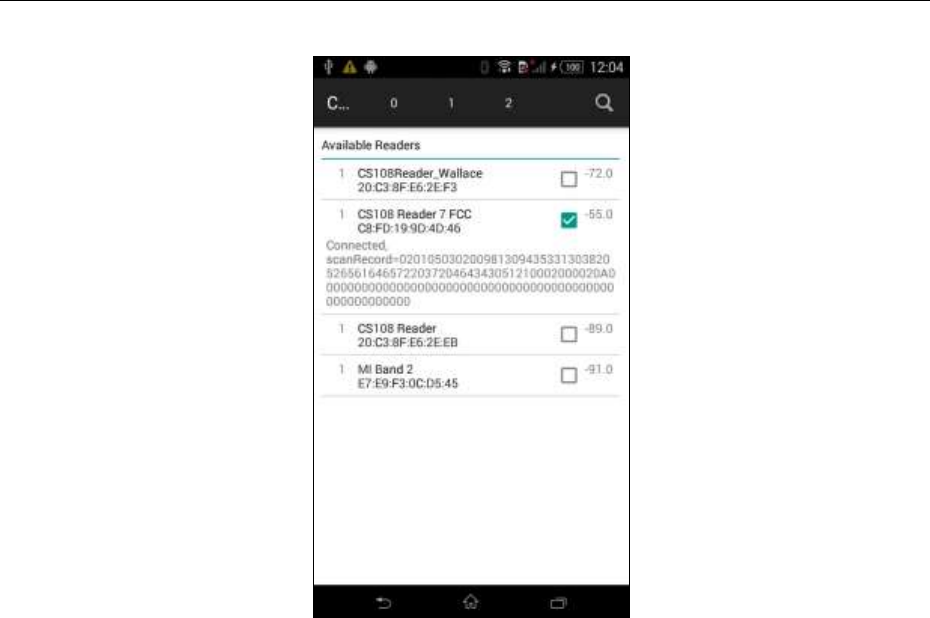

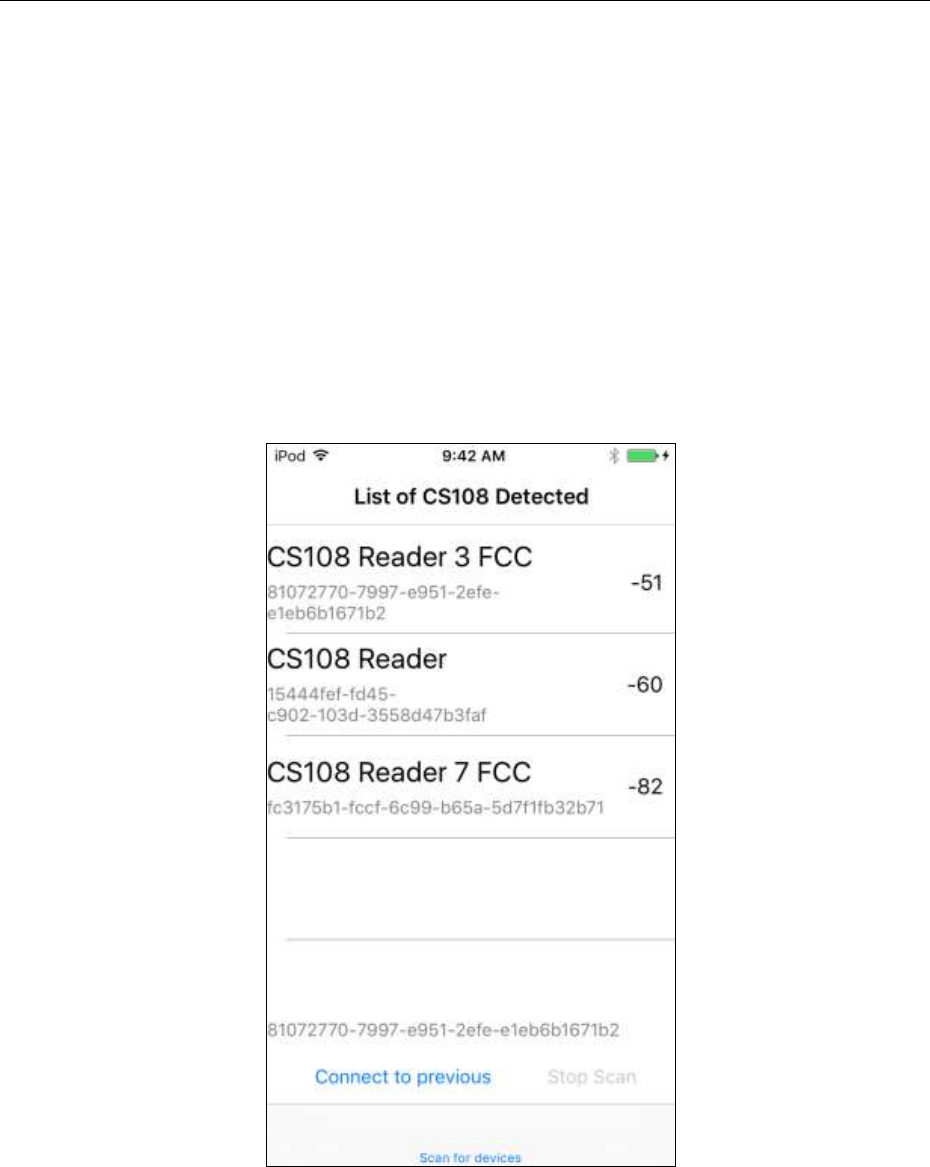

Then you should see all the available CS108 nearby:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

25

Select the one you want to connect to and press it first to select it and then press it again to start

the connection process (IN OTHER WORDS, YOU NEED TO PRESS 2 TIMES):

After that you should see “Connected” below the reader title:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

26

Note: If you have multiple CS108, you should set them to different names to distinguish one

from another.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

27

4.5.1.4 RFID Inventory

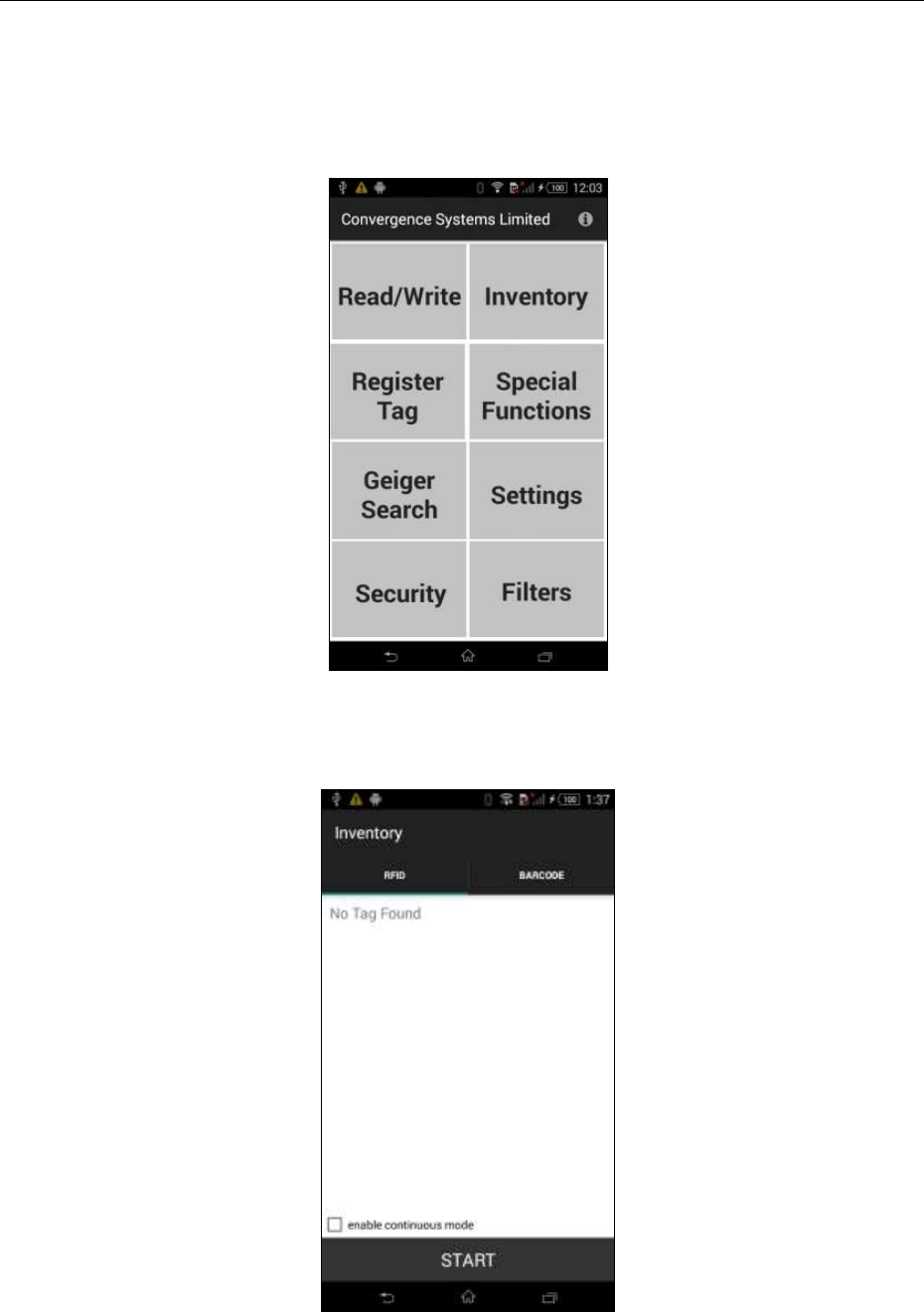

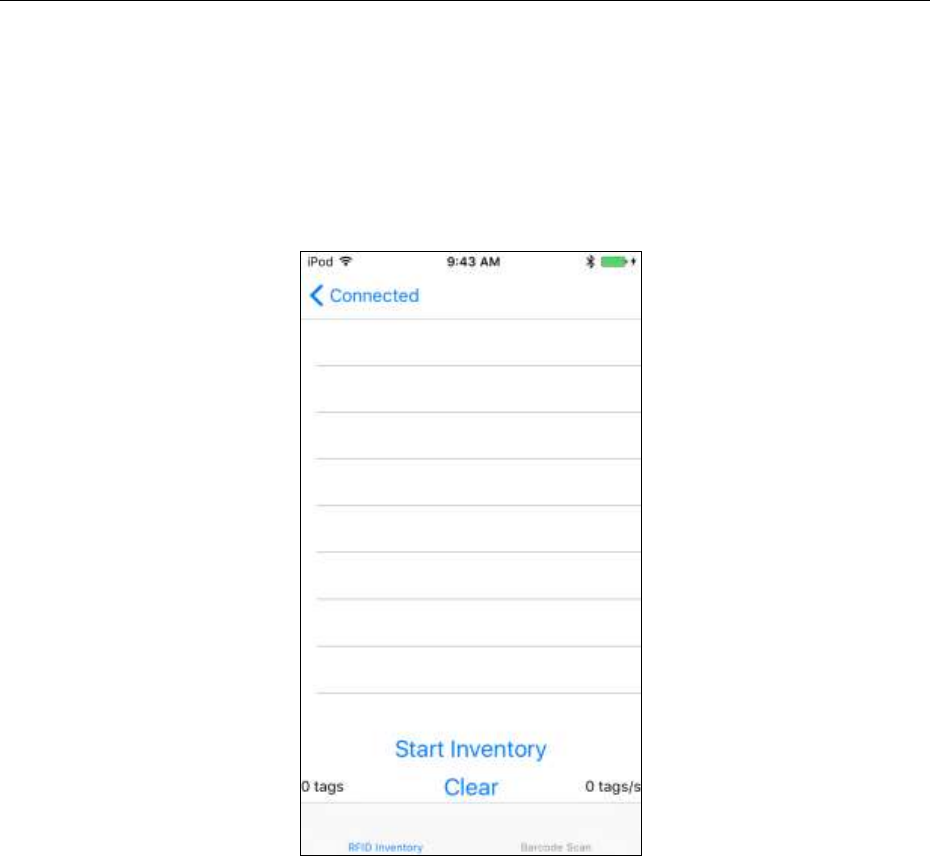

To do an inventory of RFID tags, select the “Inventory” button:

Click the “enable continuous mode” box for continuous inventory:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

28

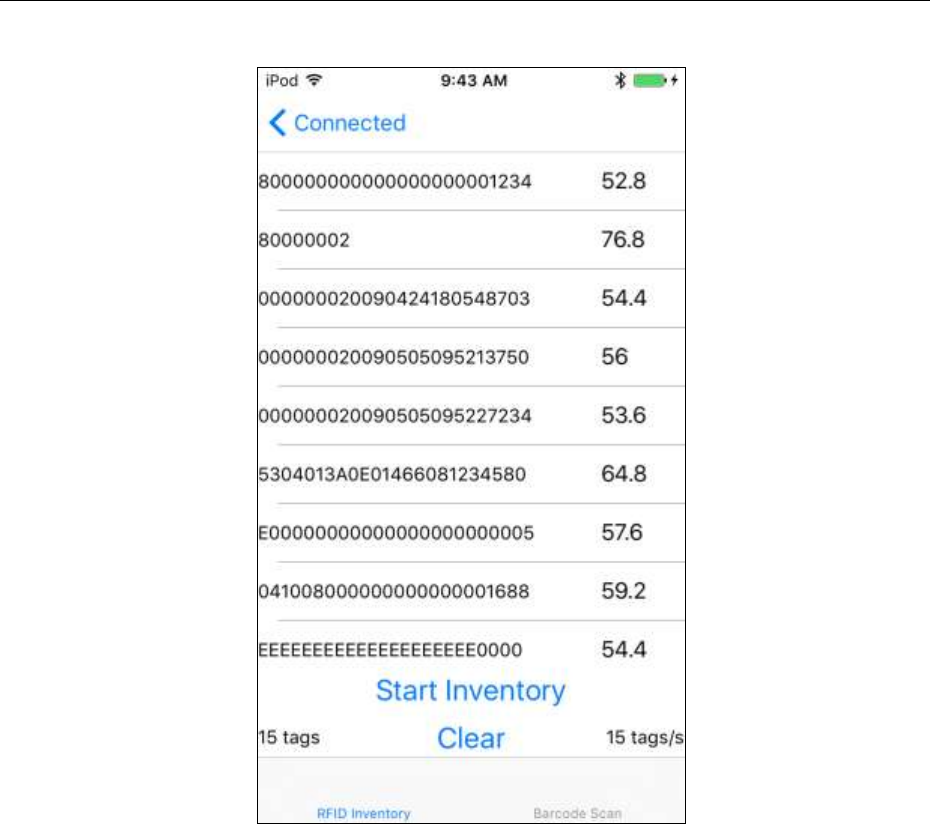

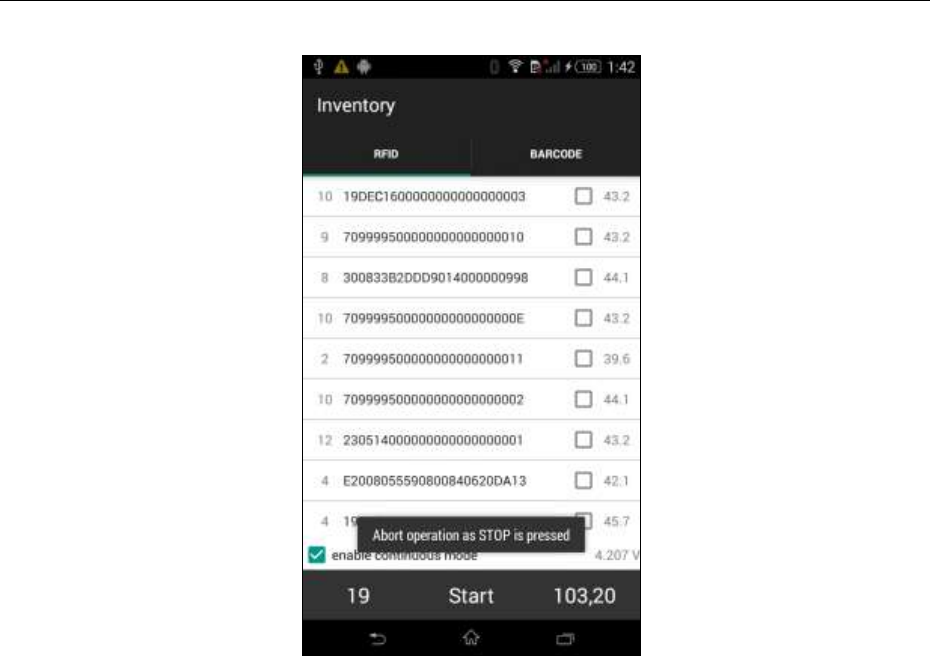

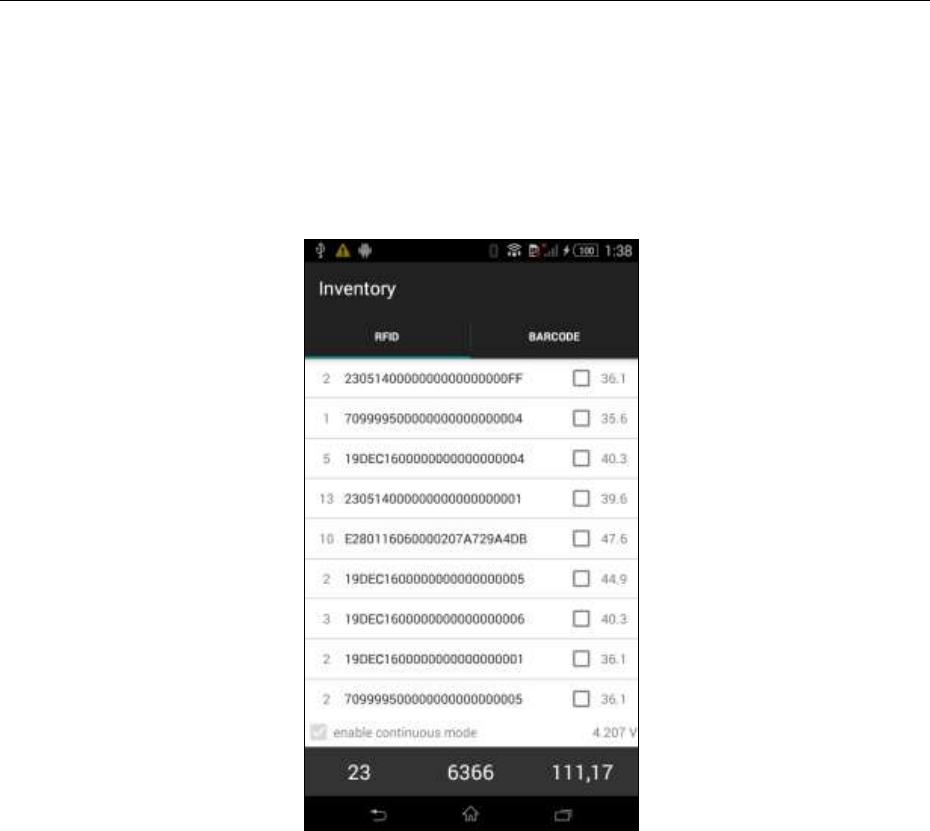

Wait for the CS108 to start inventory and then you should see the RFID tags ID as shown

below. The first column is the number of reads of that tag ID, second column is the RFID tag

EPC ID, last column is the RSSI of the tag return. On the lower right, you can also see the

battery voltage at that point. When fully charged, it is around 4.2 Volts. The unit should run

to about 3.3 Volts before it stops.

At any point, if you want to stop, just press the middle center location (here showing 6366)

which is the location of the original start button, and the reader will stop inventory of RFID

tags and the screen will become like the following, where the Start button appears again:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

29

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

30

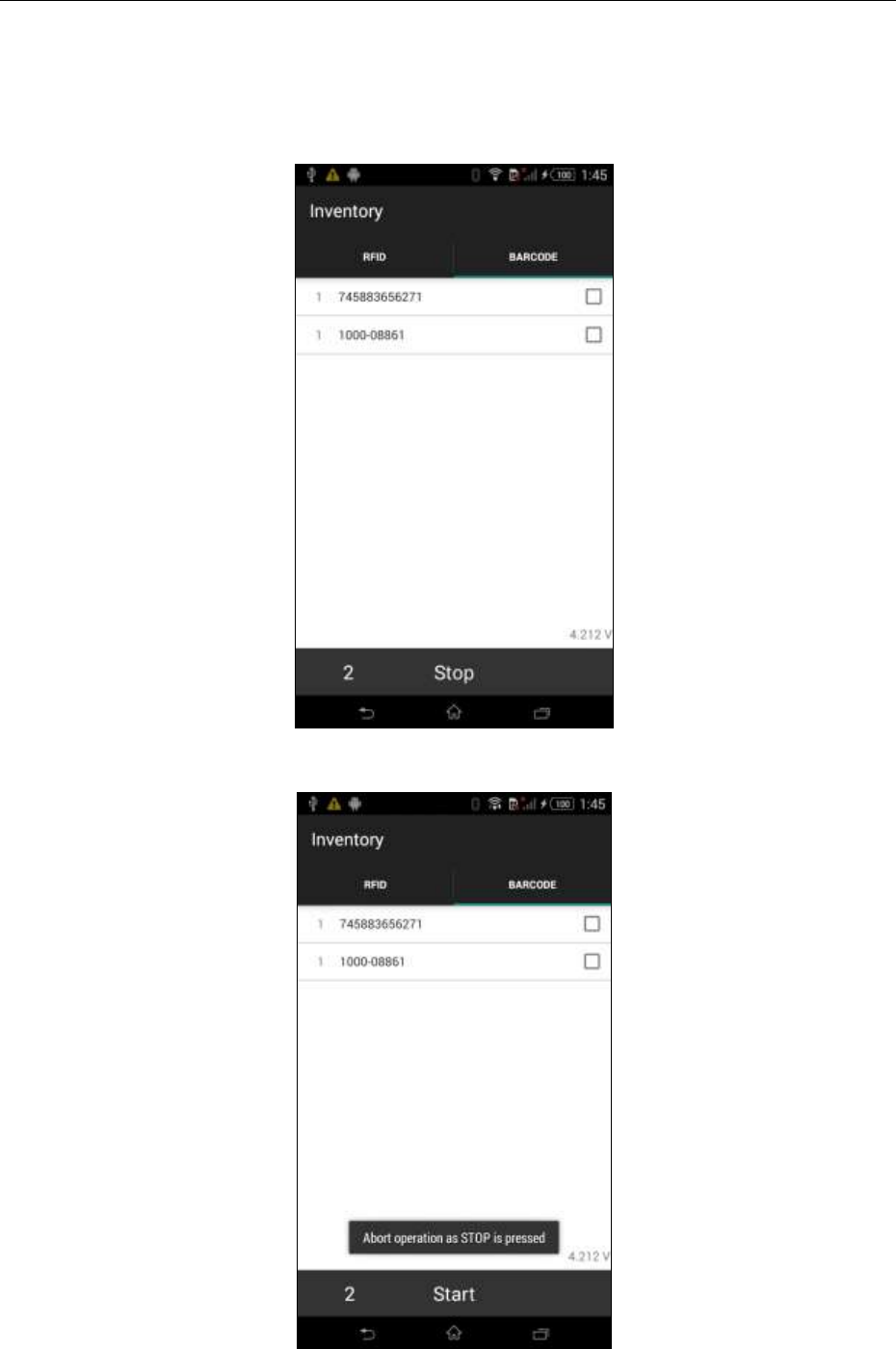

4.5.1.5 Barcode Inventory

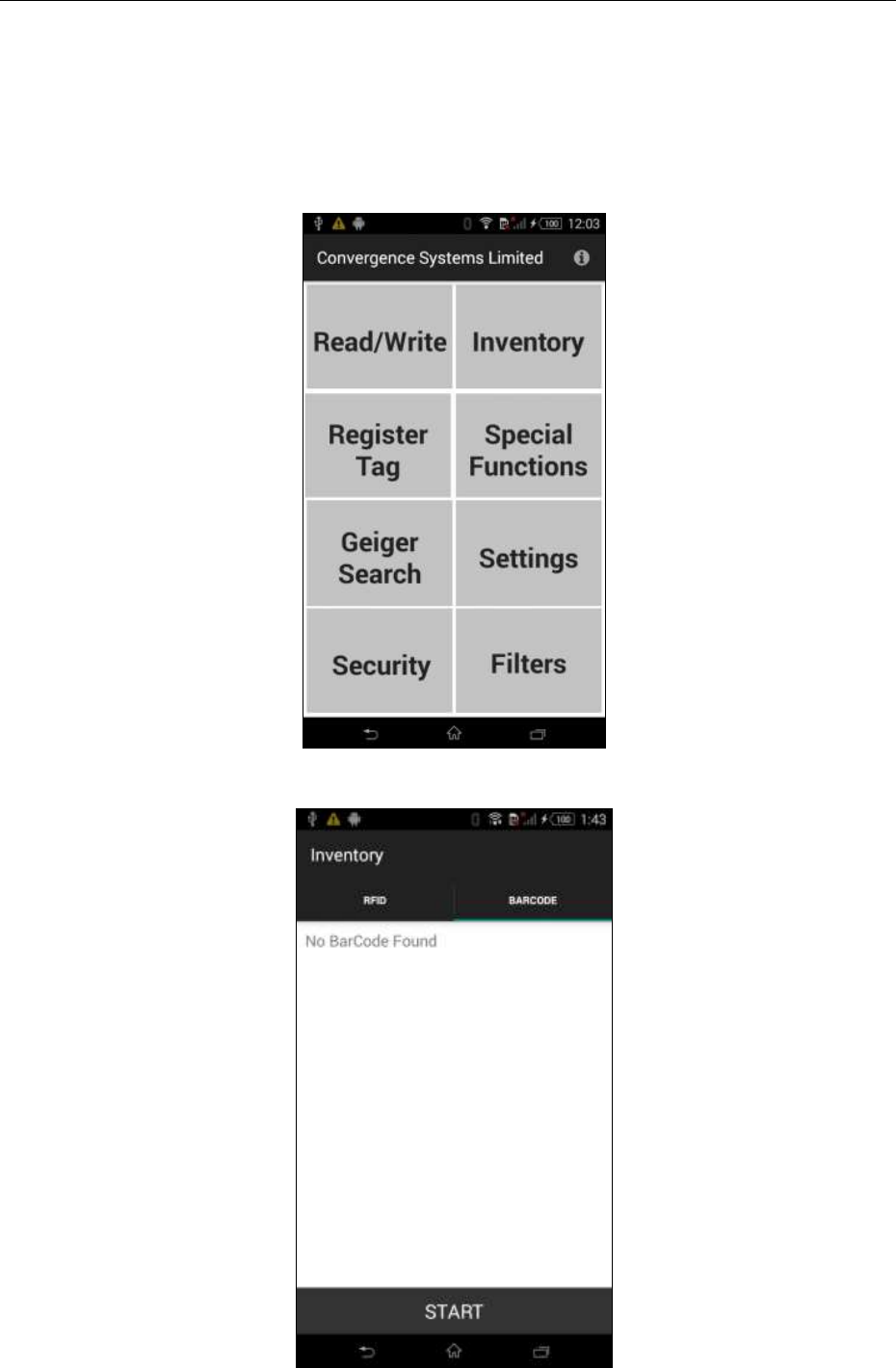

To do a barcode inventory, go to Inventory button:

Then press the BARCODE button:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

31

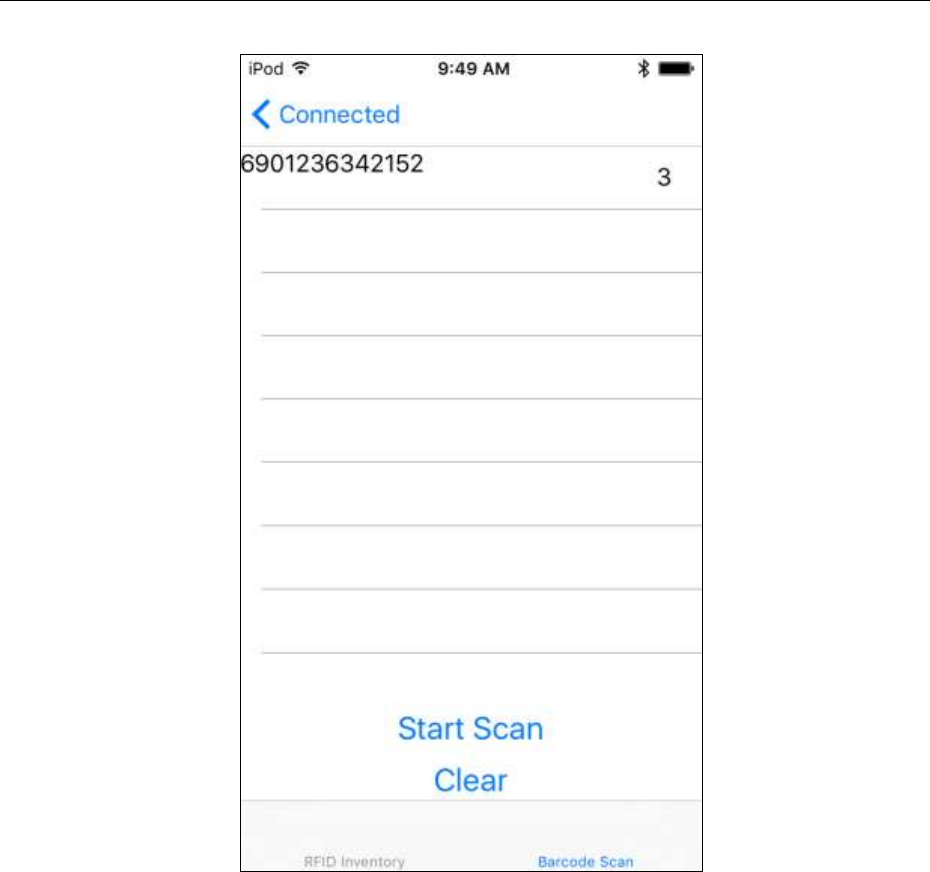

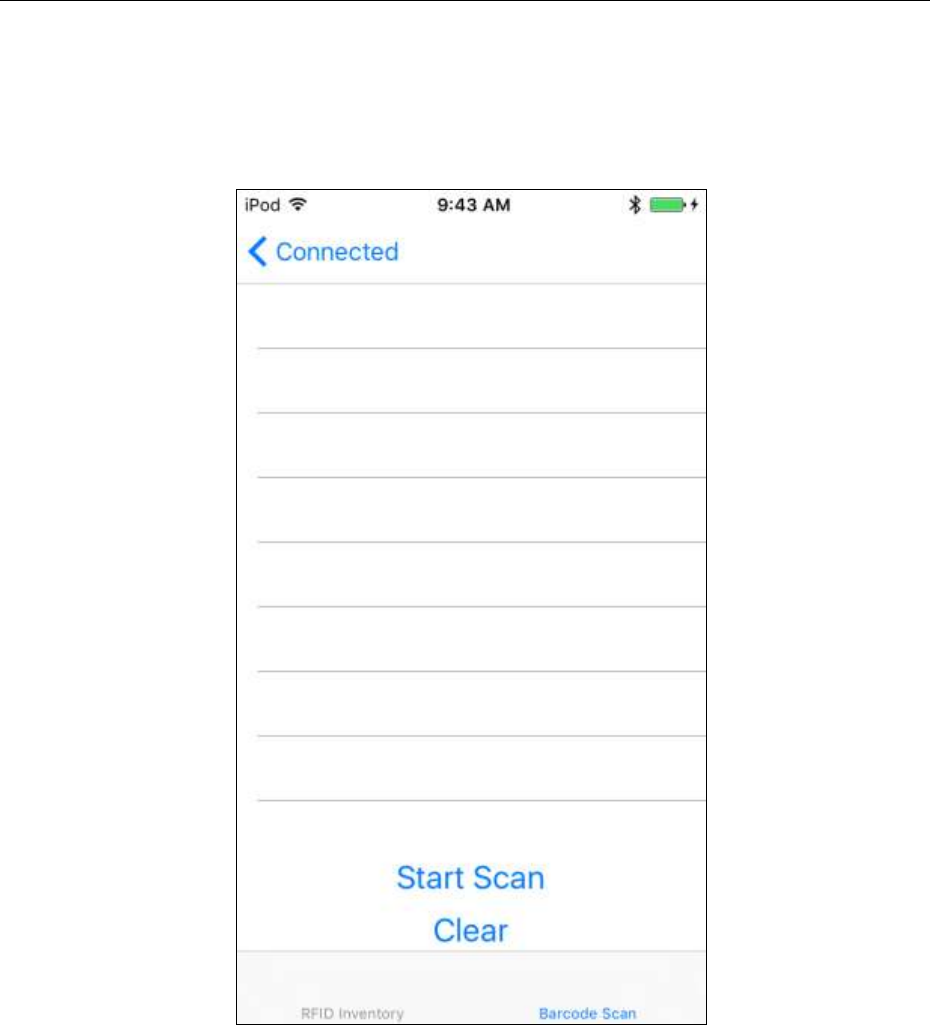

Press the START button. At this point, the red LED of the barcode reader should lit up to

help you aim your CS108 barcode reader onto the barcode. A focused circular dot should

appear. That is where the distance of the barcode should be with respect to the reader.

Once the barcode is read, you can now Stop.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

32

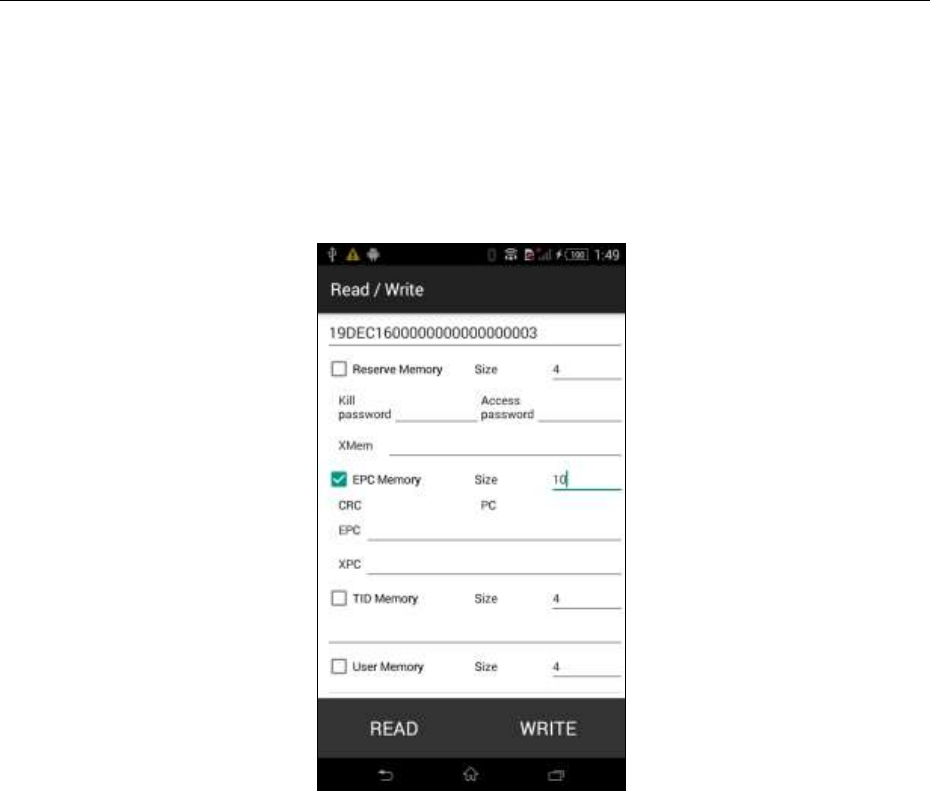

4.5.1.6 RFID Read and Write memory banks

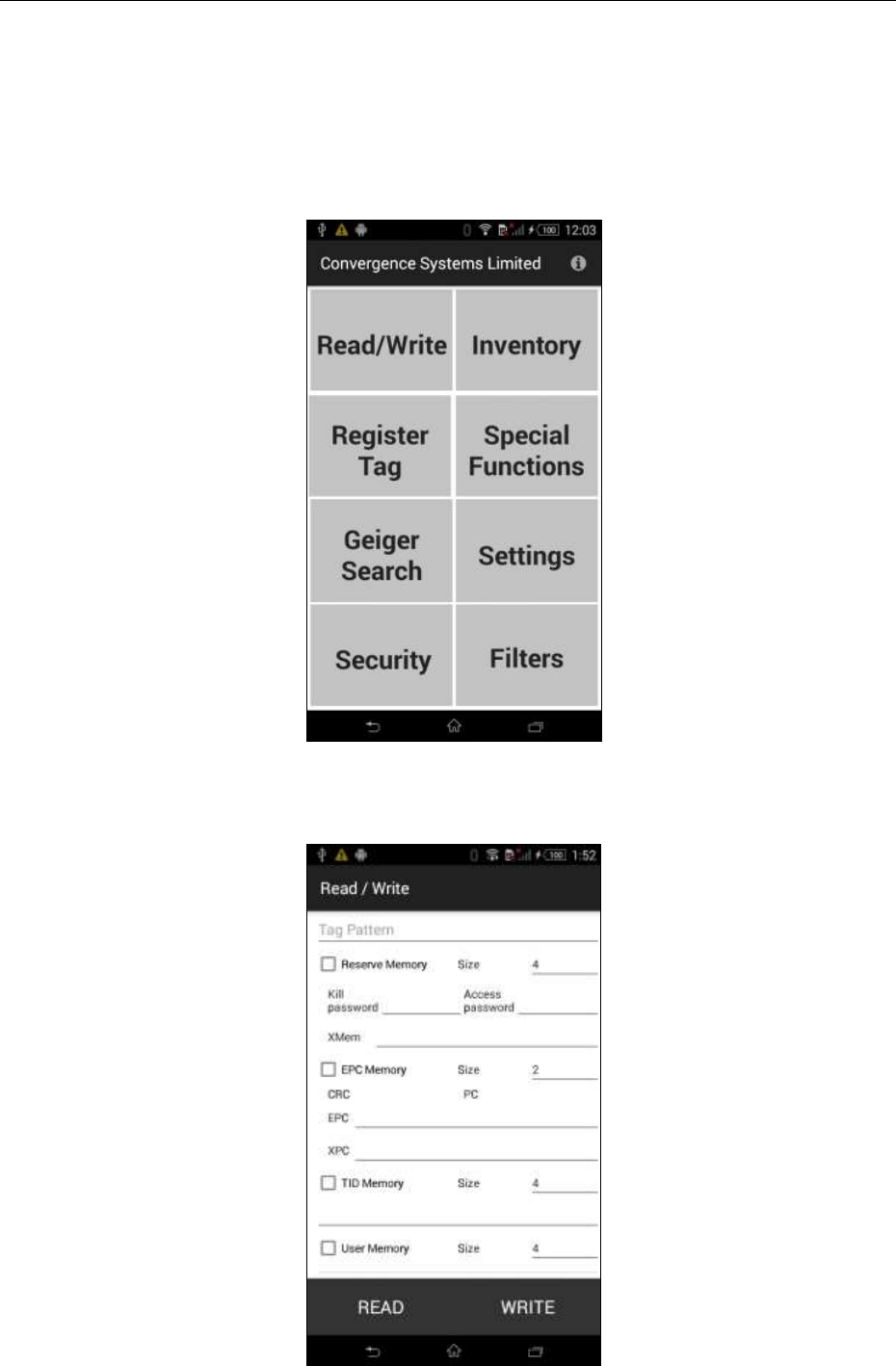

You can also read and write specific memory banks of an RFID tag. Press the Read/Write

button:

You will now see this. You see the Bank 0, 1, 2, 3 of the EPC tag. Select at least one bank to

read or write. Note that Bank 2, TID bank, cannot be written, as defined by EPC.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

33

On the Tag Pattern input box, if you do not input anything, the reader will simply read

whatever tag that it sees. You can input a string of hex number to select the pattern. You

can either input the whole EPC ID, or part of it to denote a pattern, with the remaining being

wild card.

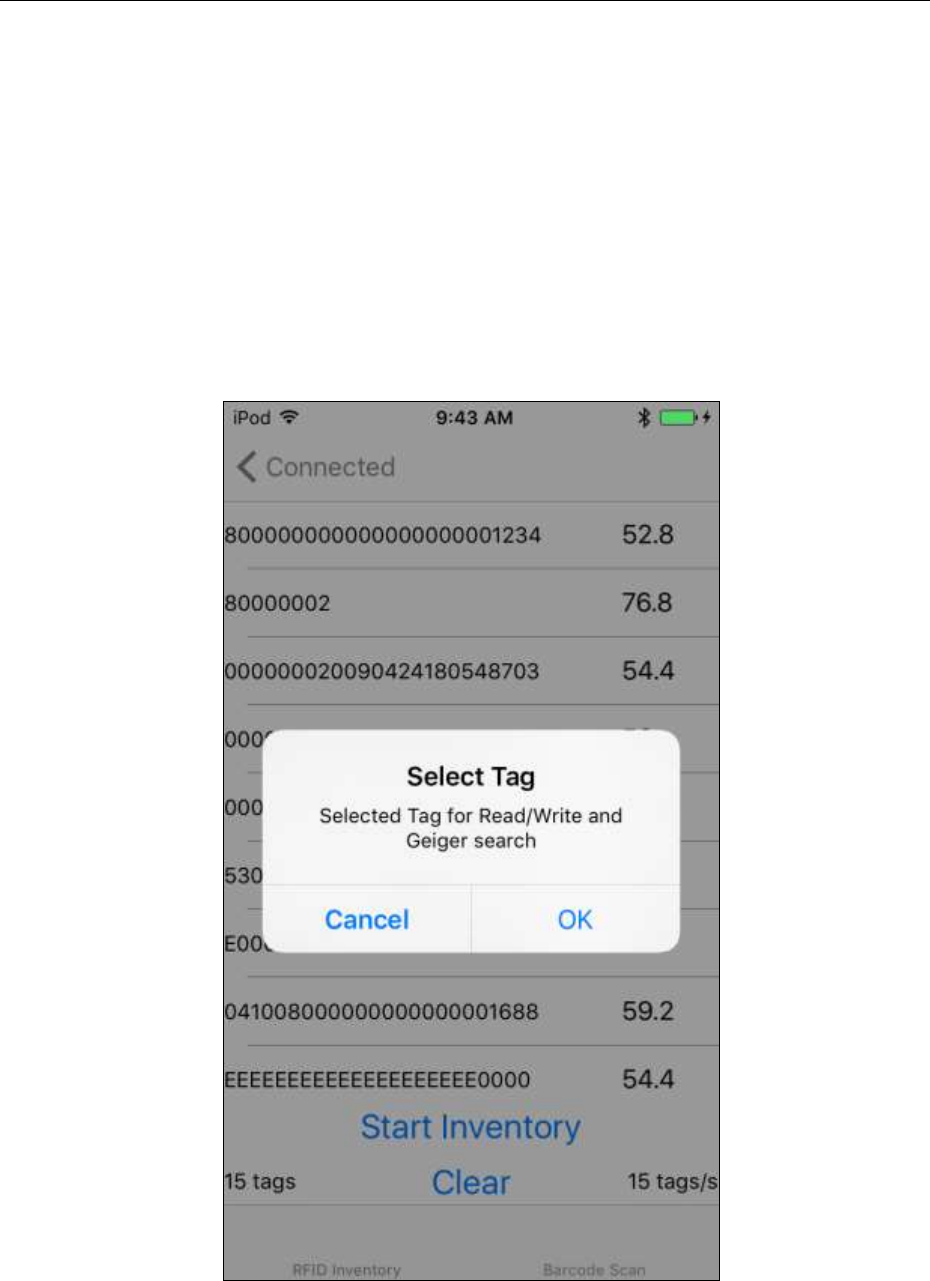

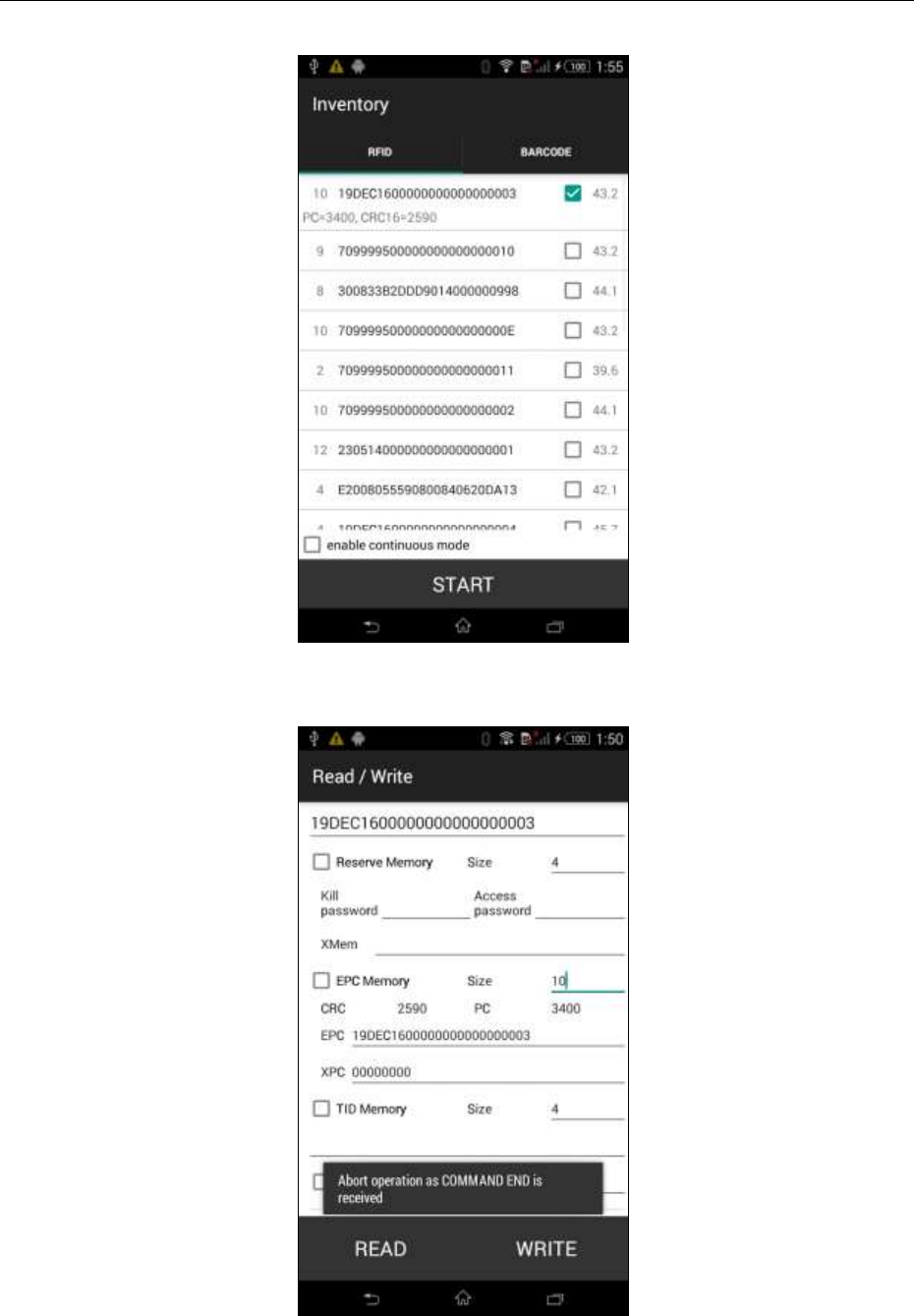

Another way to do a Read/Write is to first go to Inventory page to inventory the tag. Then

select one by ticking the box on the third column.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

34

After that, return to Main Menu and then go to Read/Write page. Then you will see that

particular selected ID already in the Tag Pattern box:

At this point you can read or write any specific banks.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

35

4.5.1.7 Geiger Search

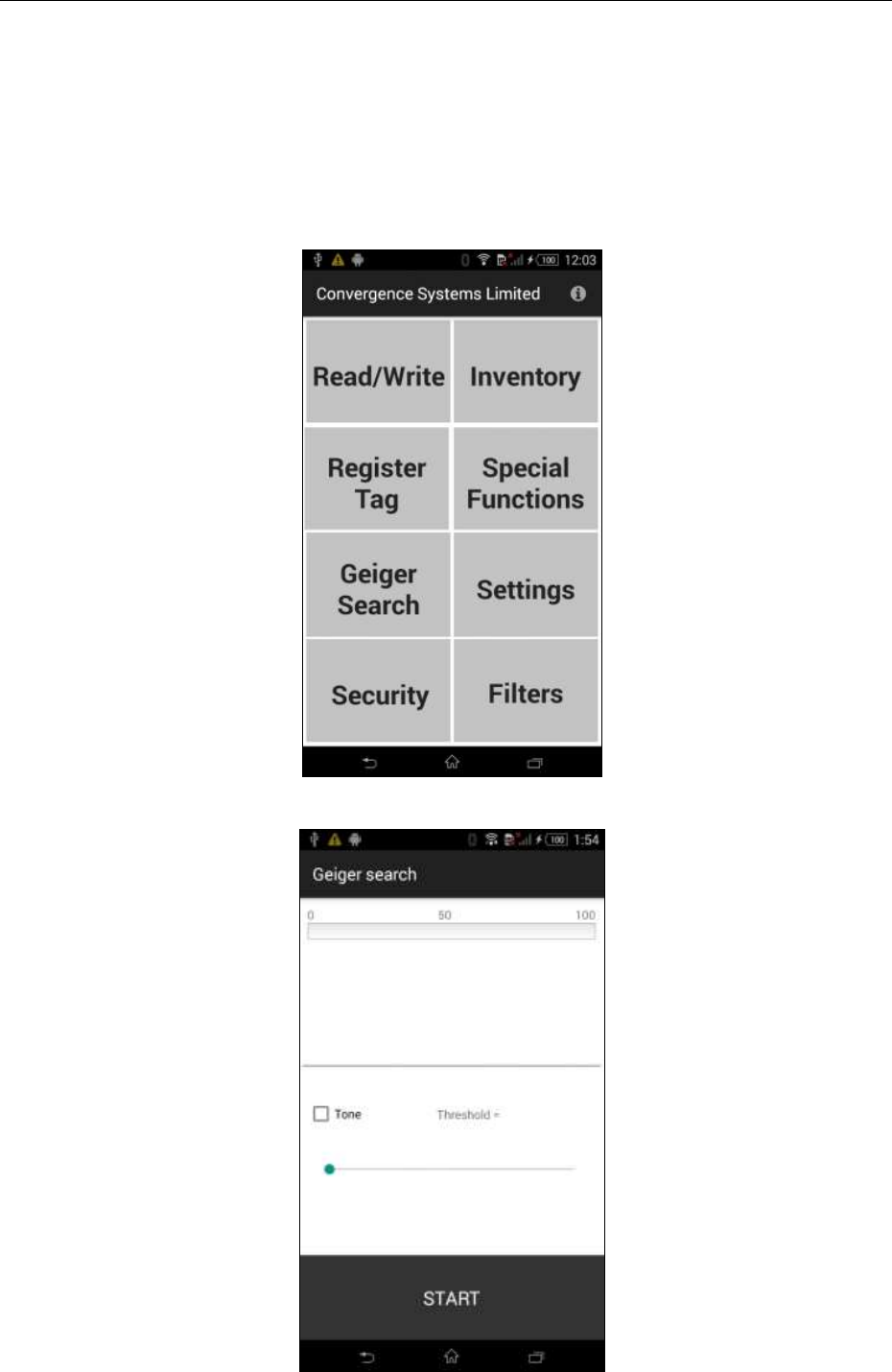

One can do a tag search by going to the Geiger Search page:

Input the tag ID on the line:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

36

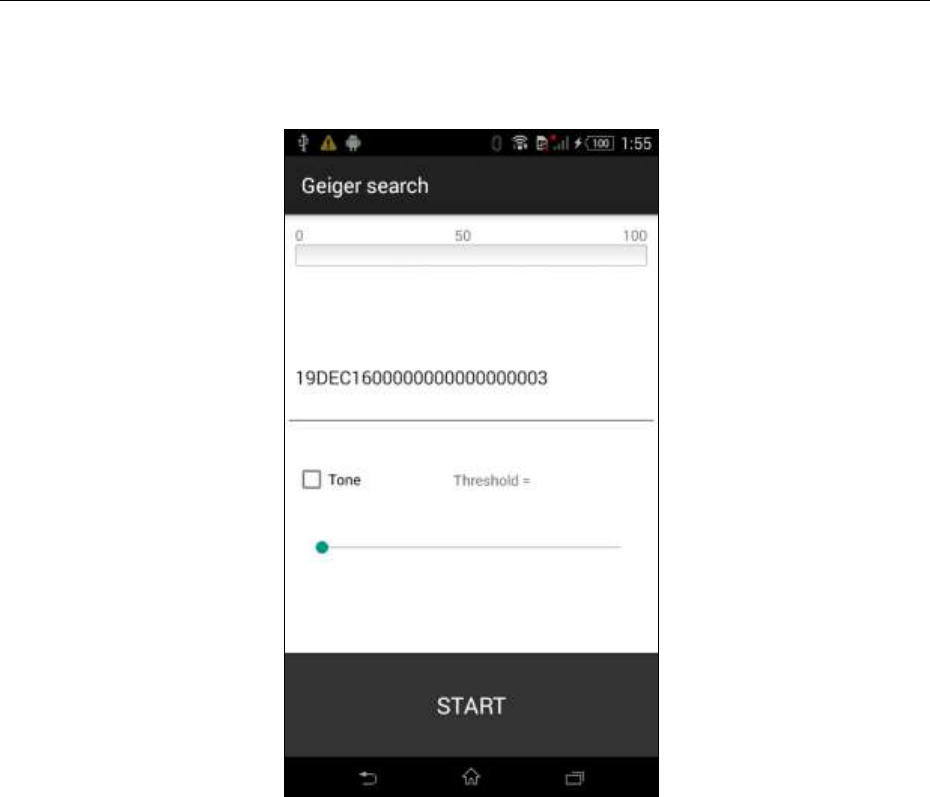

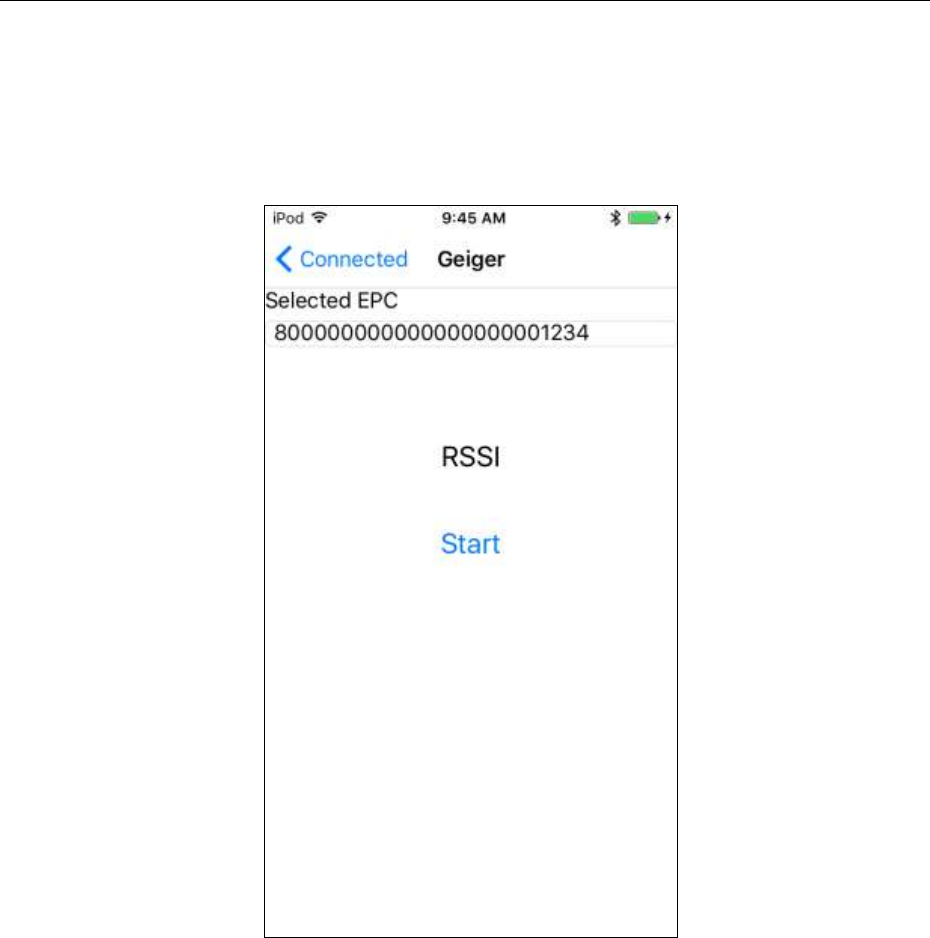

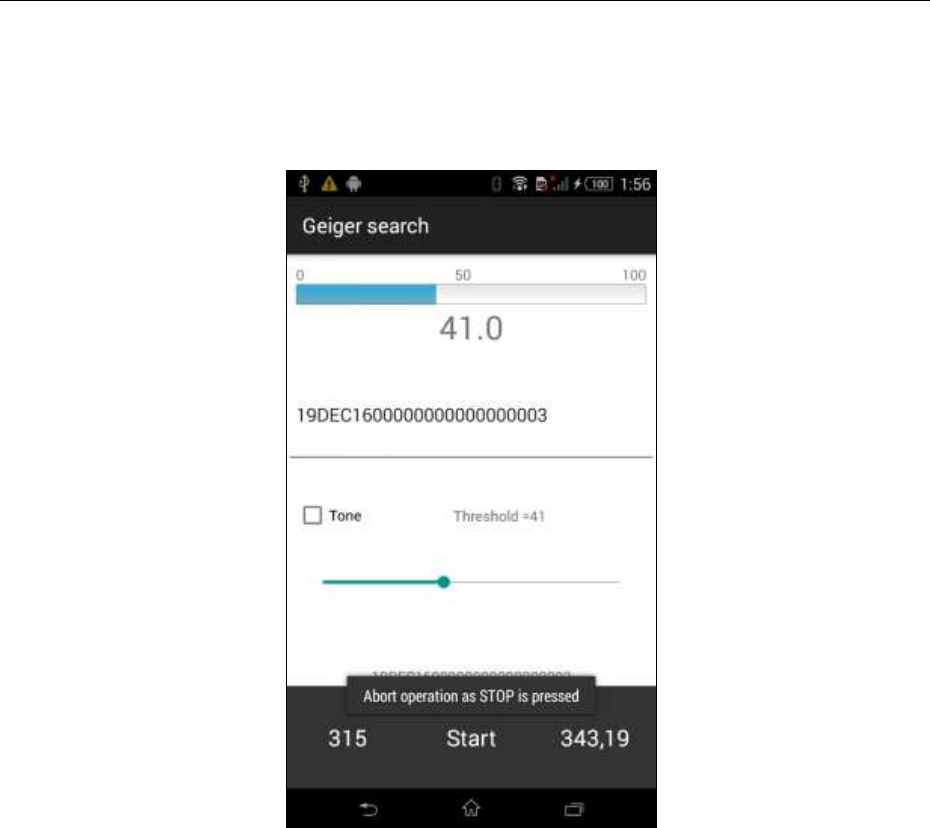

Press Start. It will then keep reading that tag and show the RSSI, as well as beeping a tone by

selecting the Tone box and also setting the Threshold to emit sound.

One can now use this method to home in onto a tag (in other words, to the asset tagged with

that particular tag)

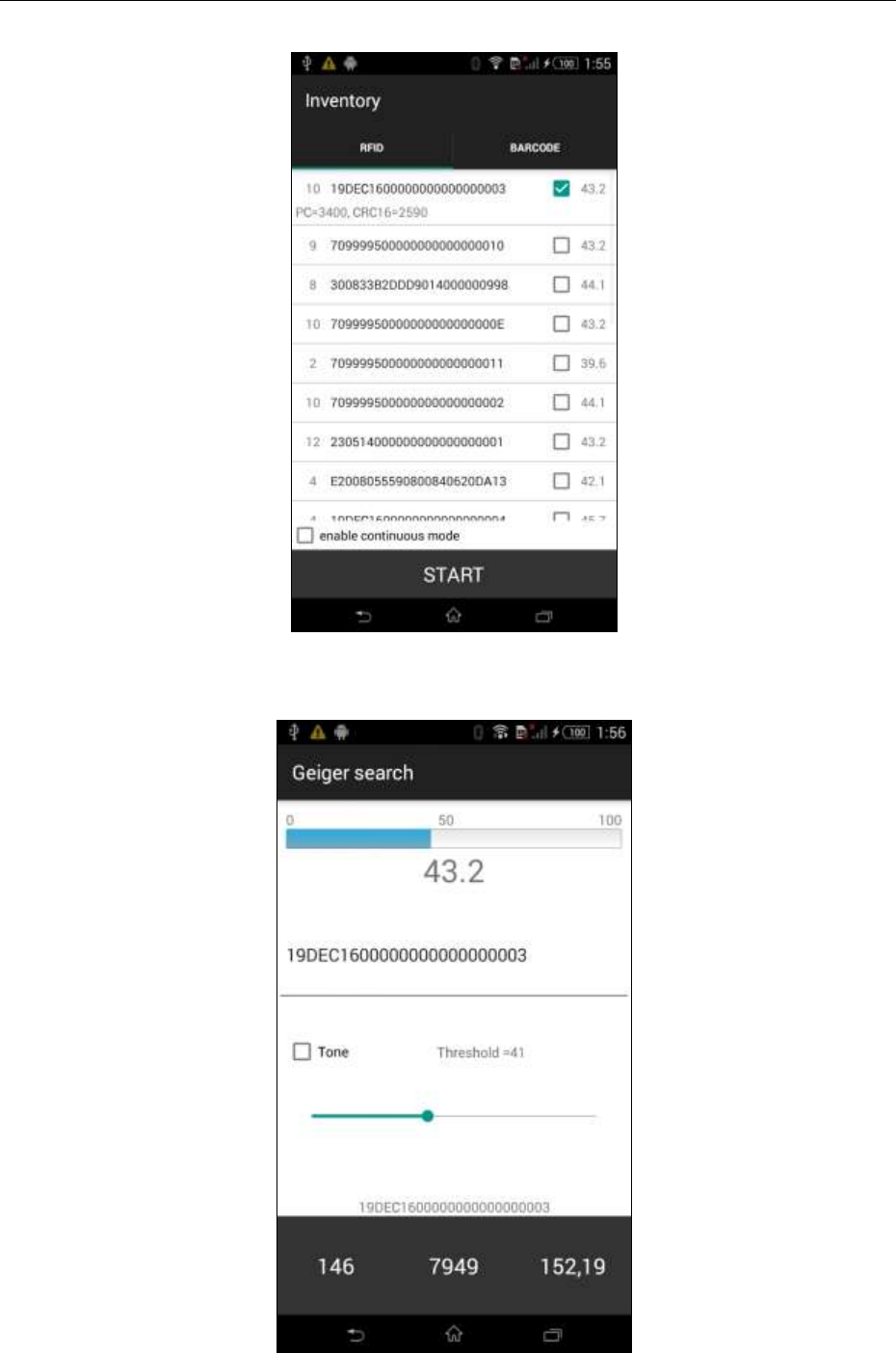

Another way to zero in on a tag that is in an area is to first do an inventory of the whole area,

without knowing the exact location of the tag. Then select the tag with the ID that you want

to home in onto by ticking the box on the third column:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

37

After that, return to Main Menu and then enter the Geiger Search page, now that ID will

already be in the Input space, and you can start the Geiger Search:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

38

To Stop, just press the location of the Start button, here covered by “7949”, and the search will

stop.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

39

4.5.1.8 Setup

One can set up the reader’s parameters in the Settings page:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

40

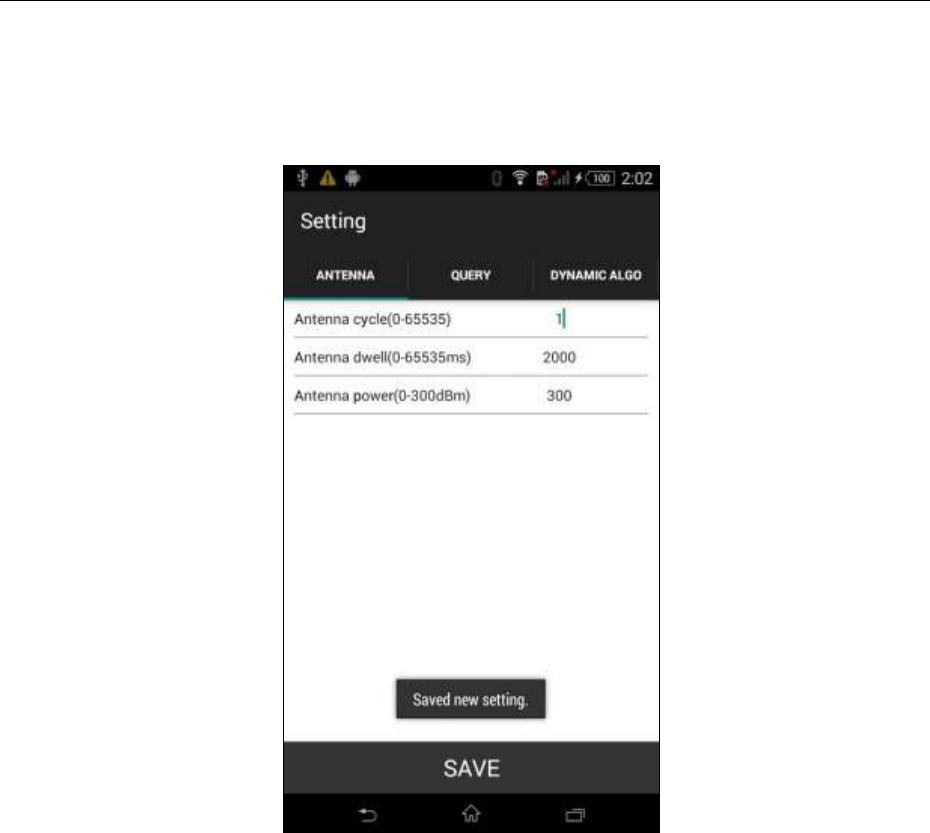

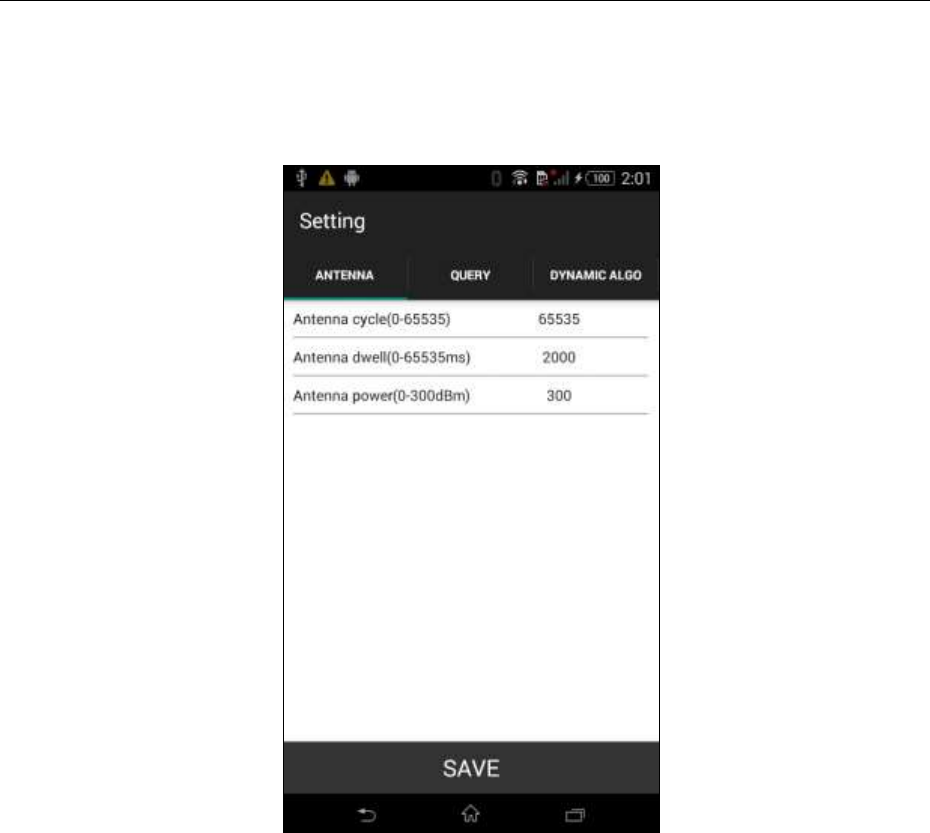

In the Antenna menu, one can define the Antenna Cycle (65535 means continuous read),

Antenna Dwell Time (2000 means 2 seconds). Antenna Power (300 means 30 dBm).

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

41

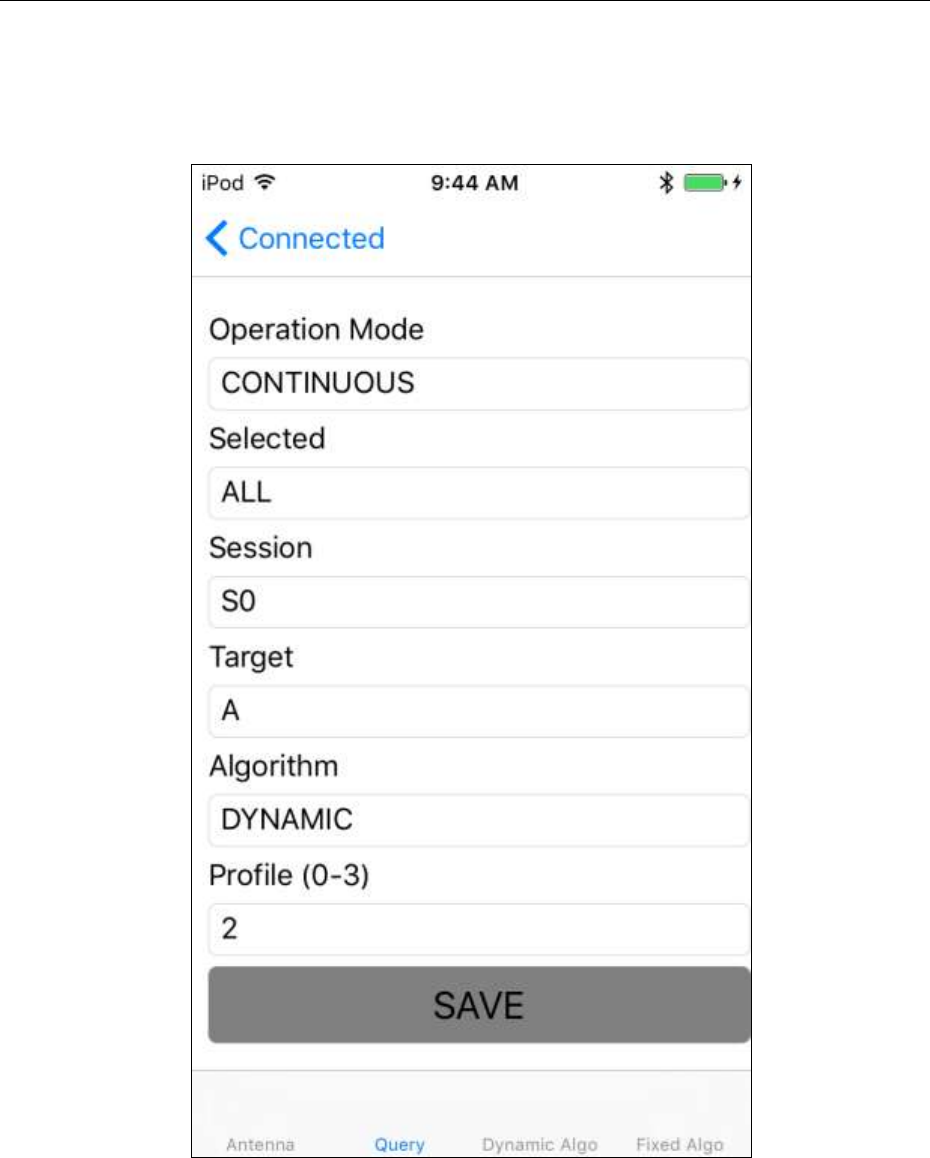

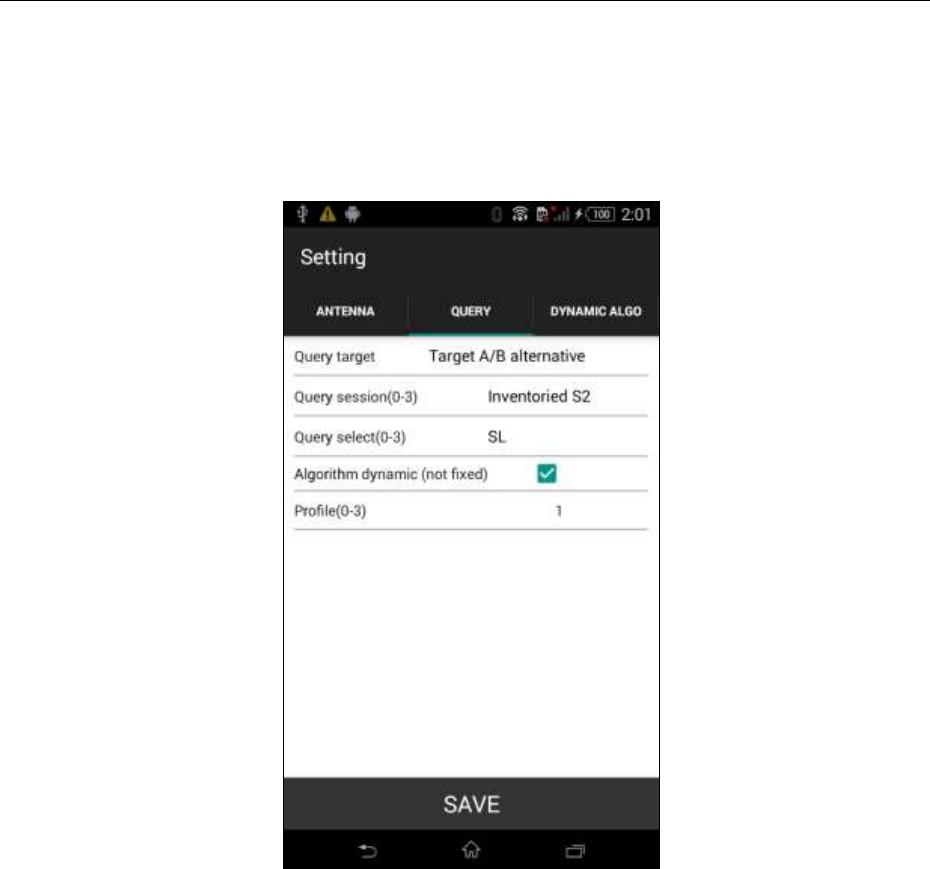

In the Query menu, one can define the Query Target, Query Session, Query Select, Q

Algorithm, and Link Profile (See Appendix B). For definitions of the above, please read the

EPC Air Interface Protocol document.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

42

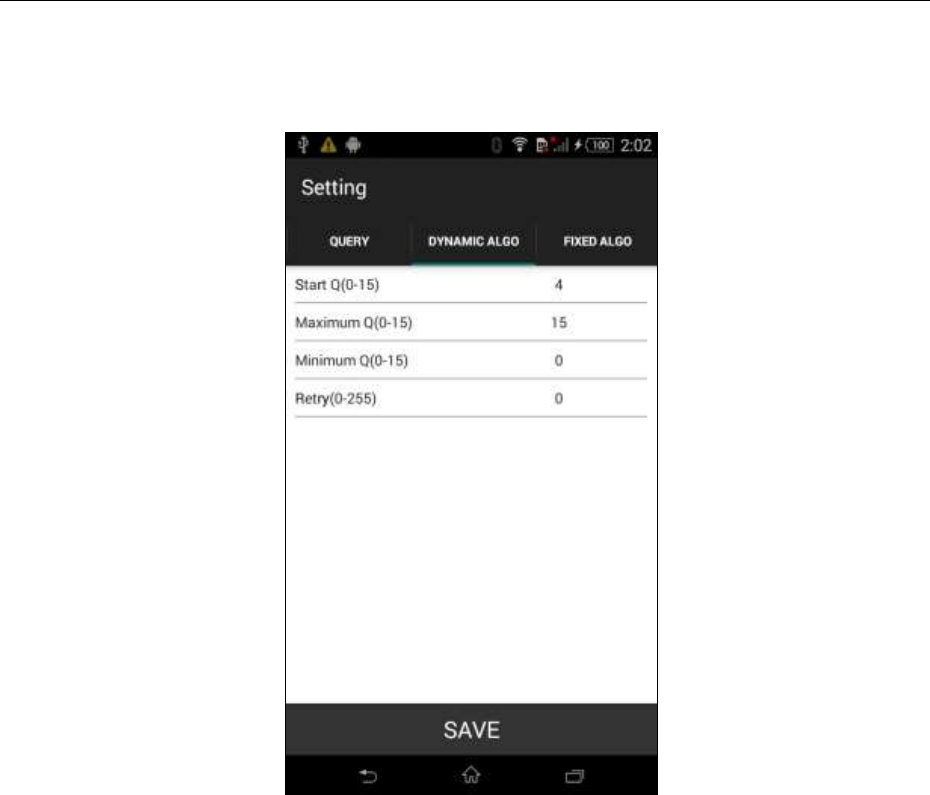

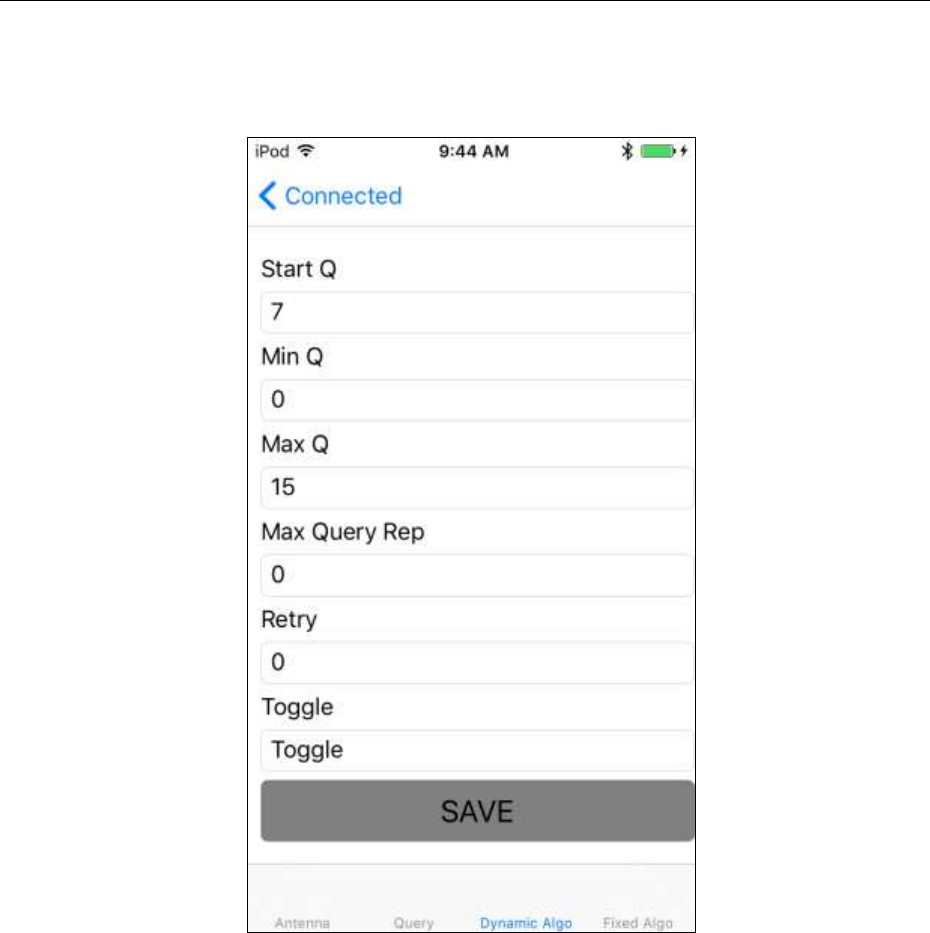

The Dynamic Algo menu contains the setting for Dynamic Q algorithm.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

43

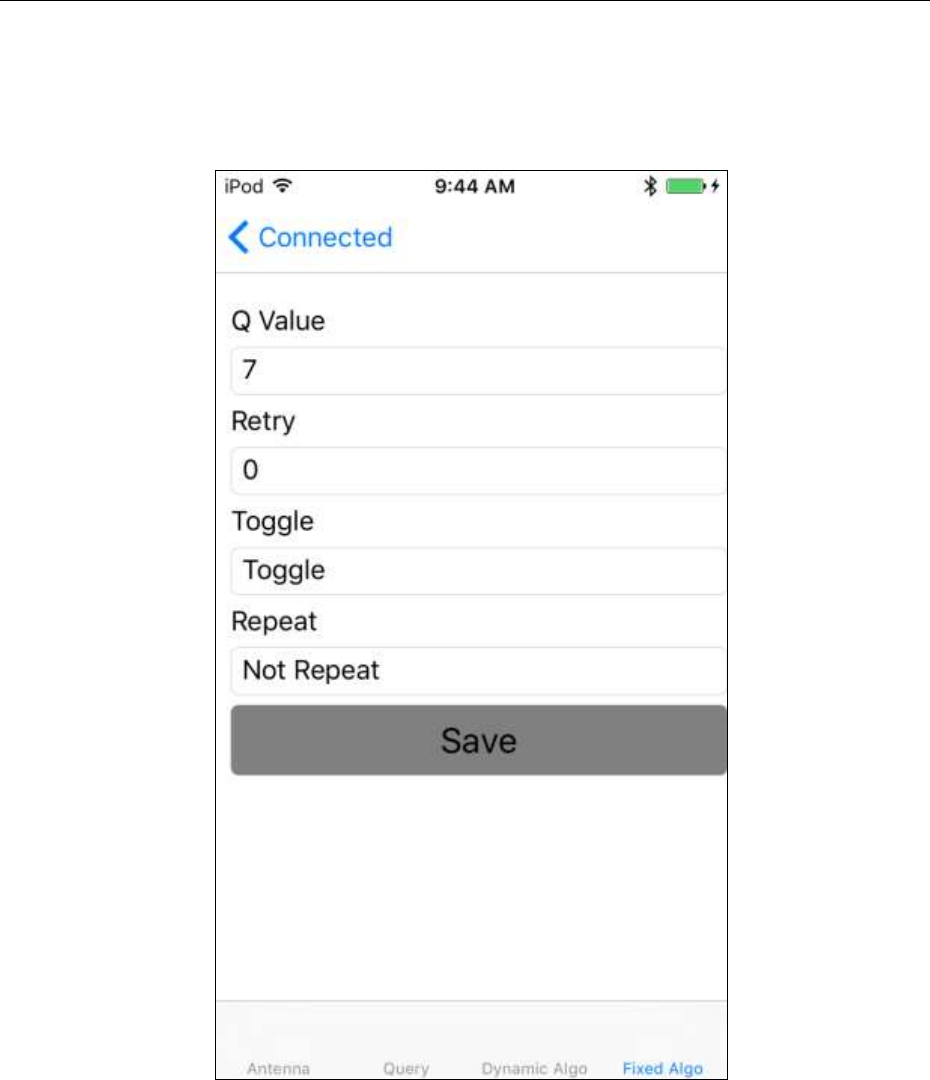

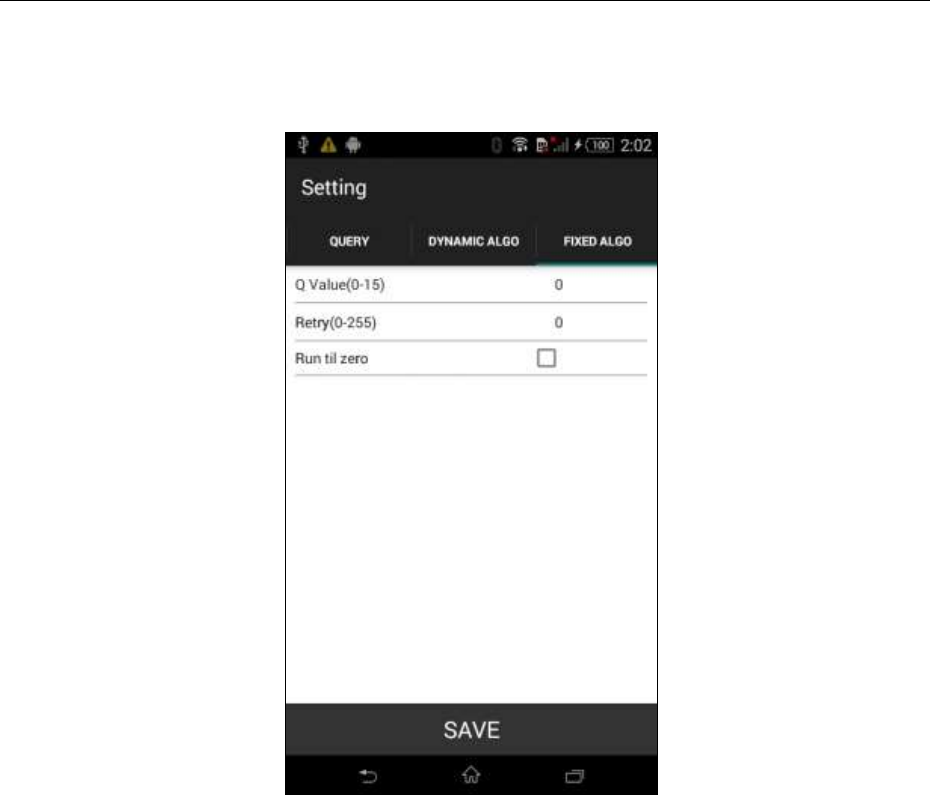

The Fixed Algo menu contains the parameters for Fixed Q algorithm:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

44

Whatever changes one has made, one must press the SAVE button.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

45

4.5.1.9 Filter: Pre Filter

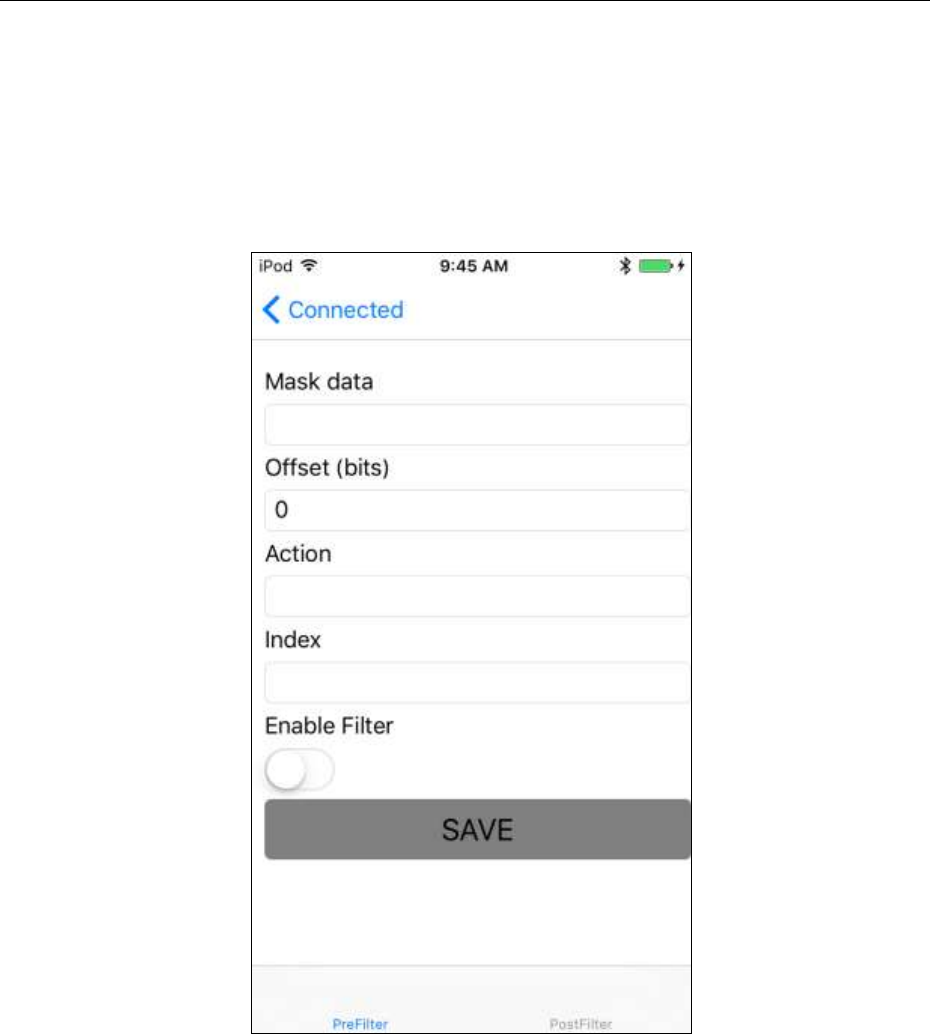

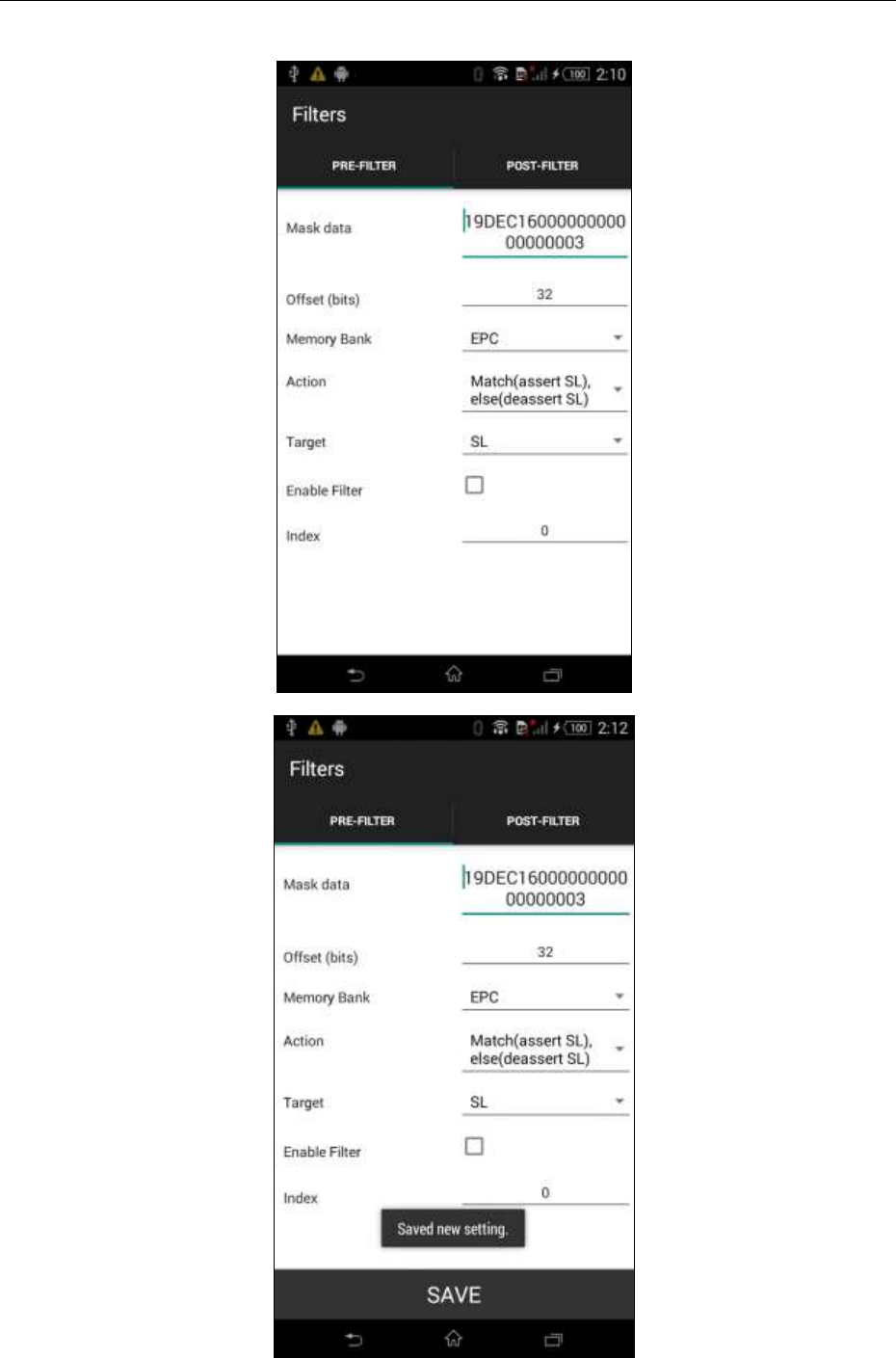

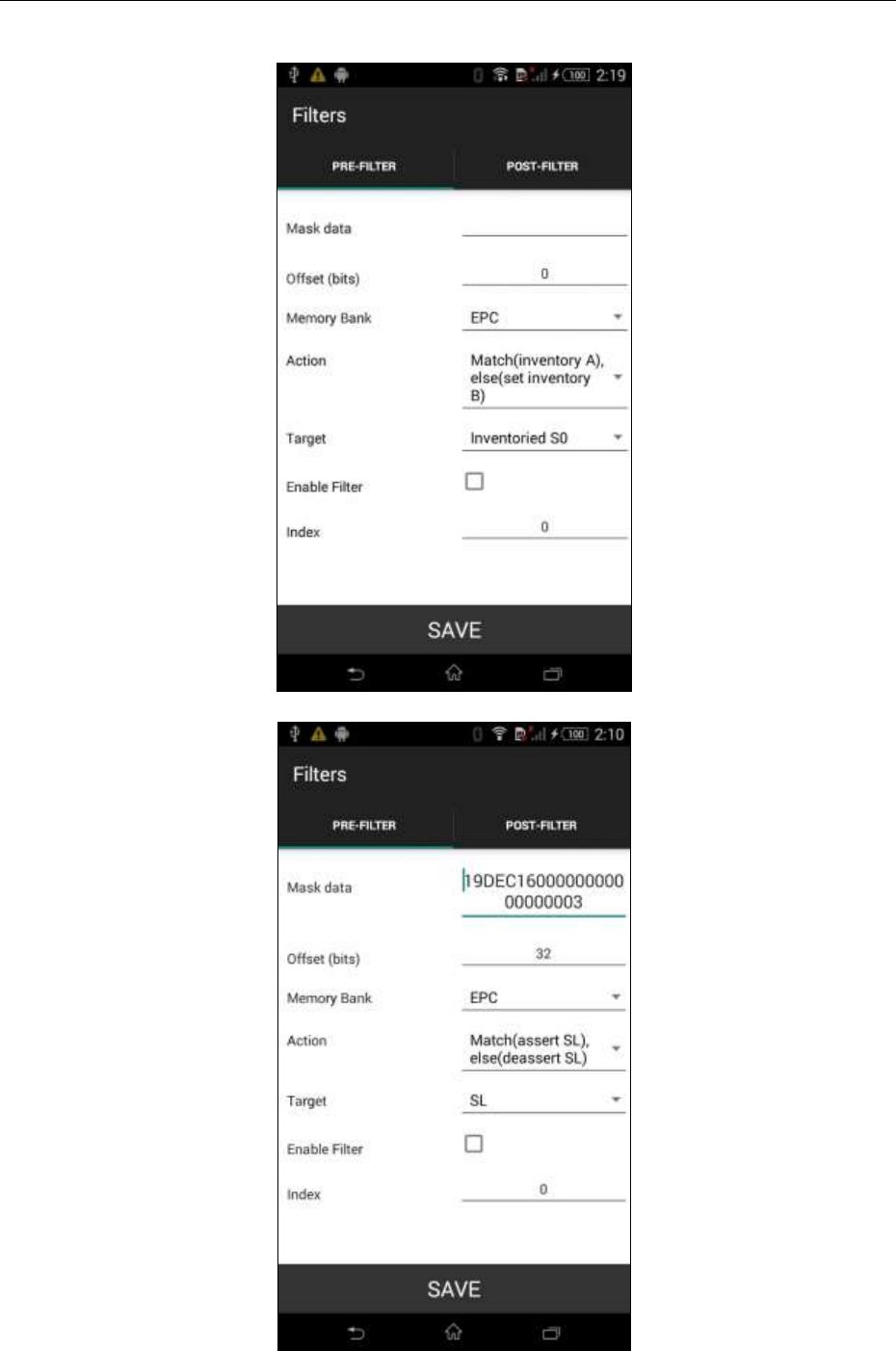

One can add a pre-filter, i.e., a Select Filter, to only have a certain group of tags respond to the

reader’s query. To implement this, go to the Filters page:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

46

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

47

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

48

4.5.1.10 Filter: Post Filter

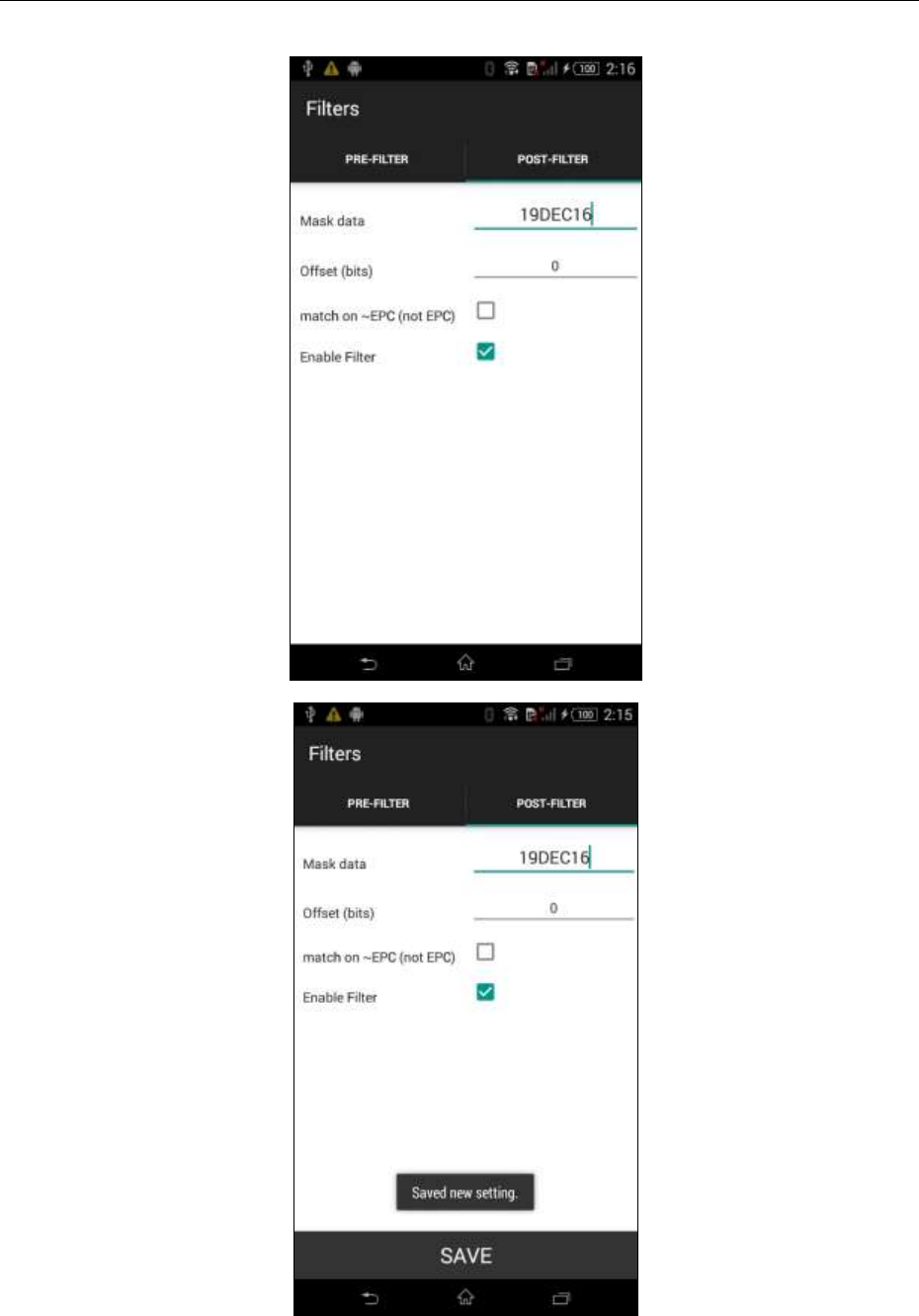

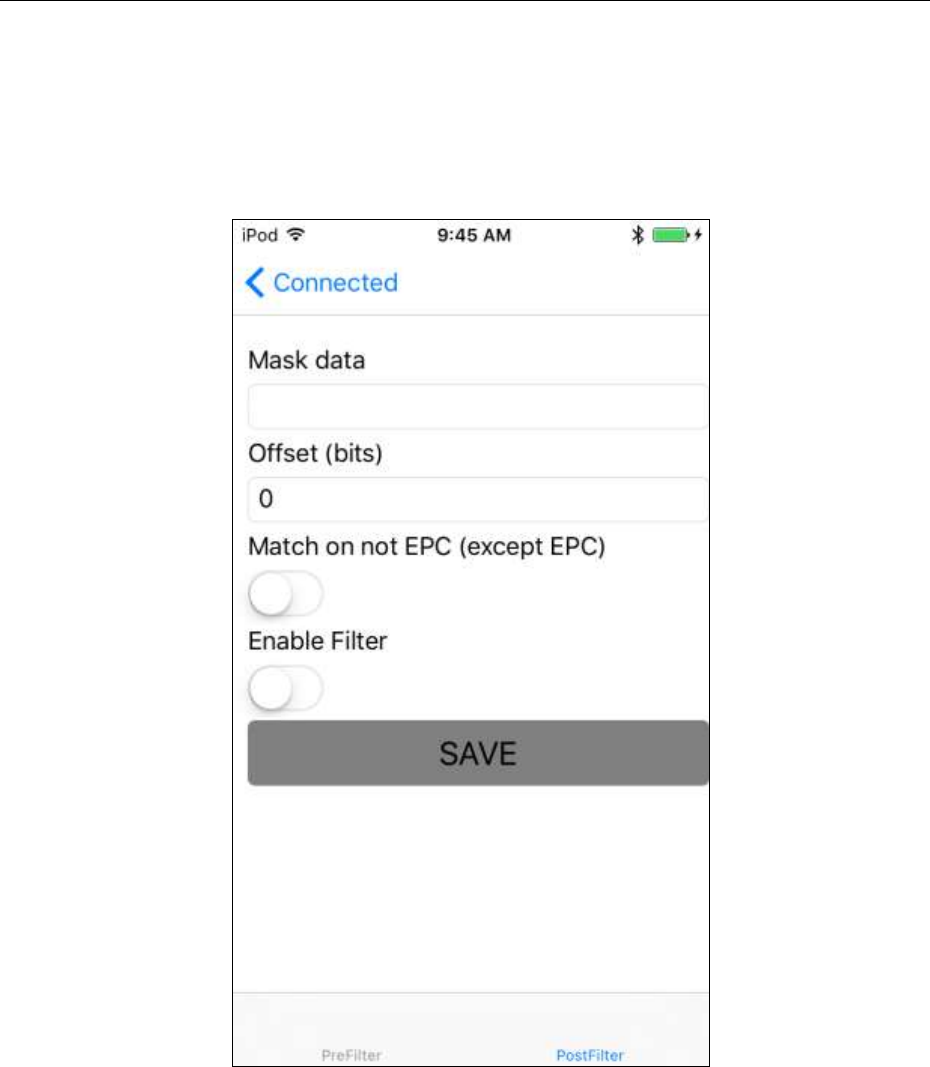

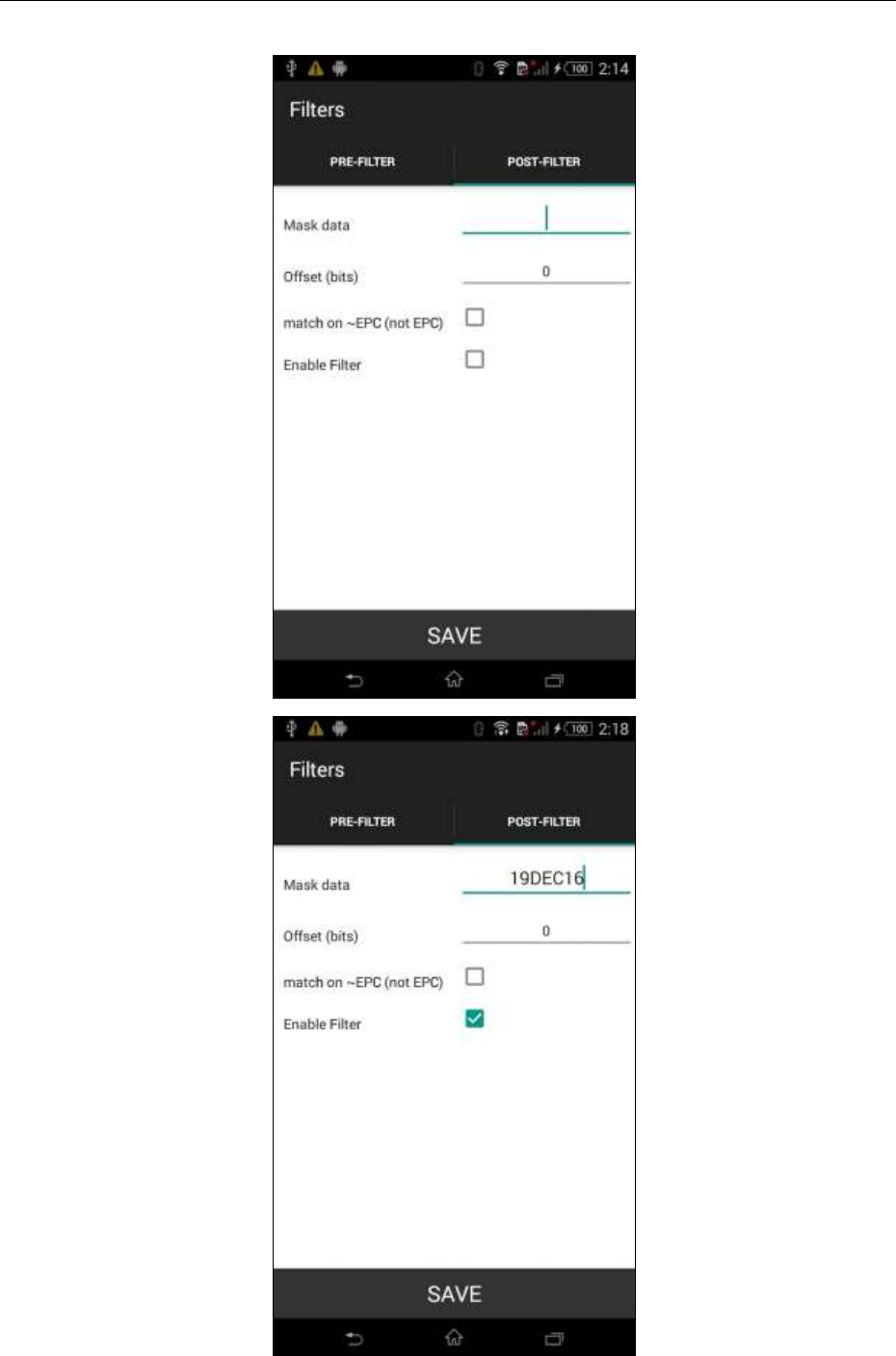

One can filter the inventoried tags further using the Post Filter:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

49

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

50

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

51

4.5.1.11 Security

One can add security action, such as Locking or Killing, to the EPC tags. Go to Security

page:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

52

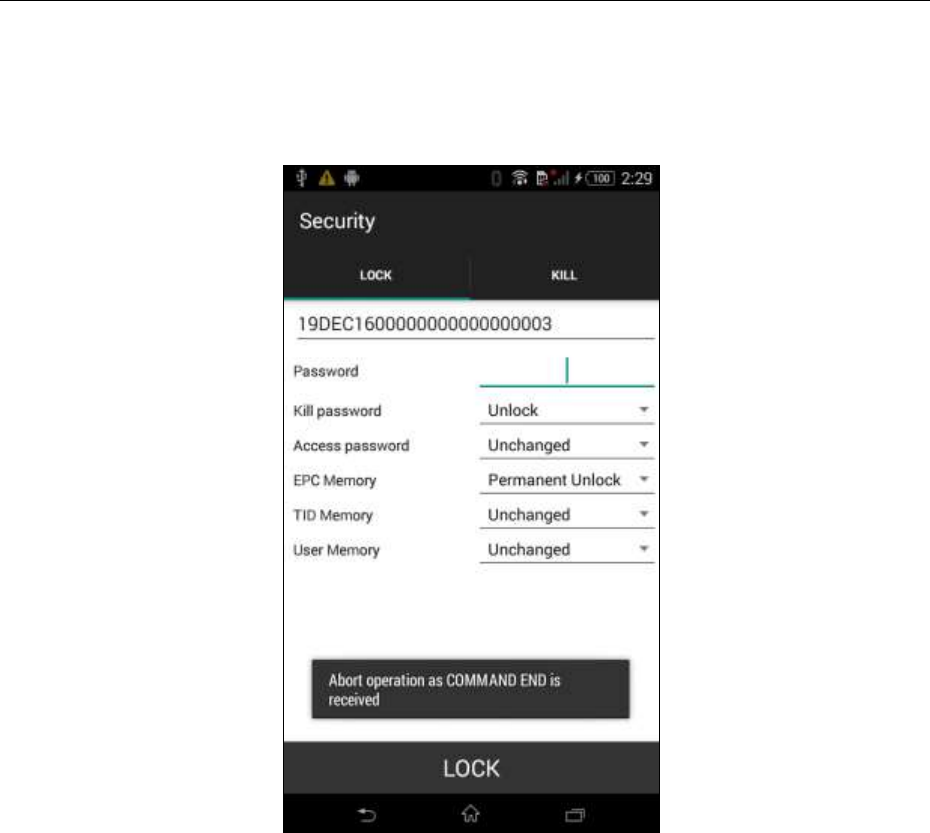

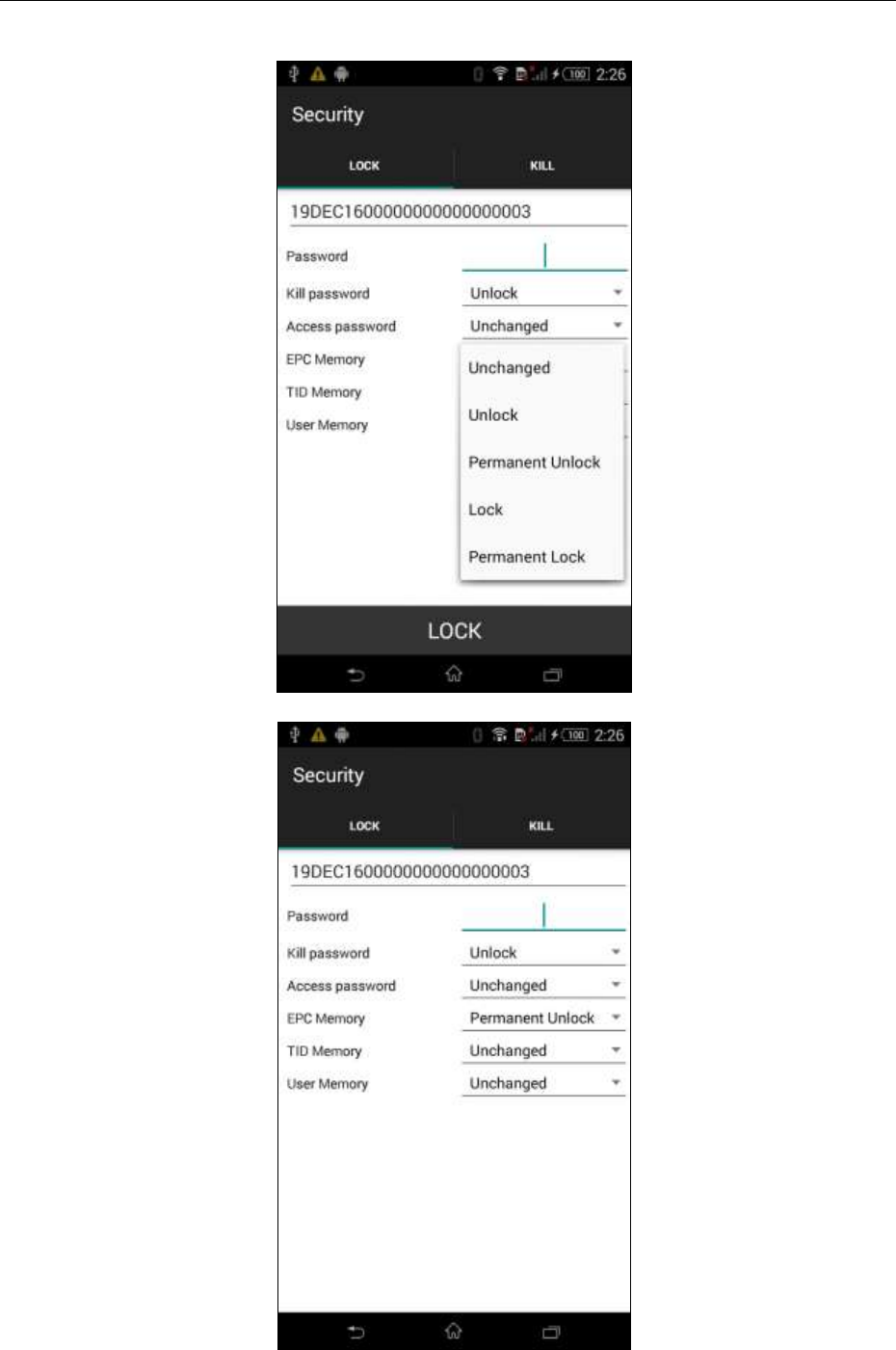

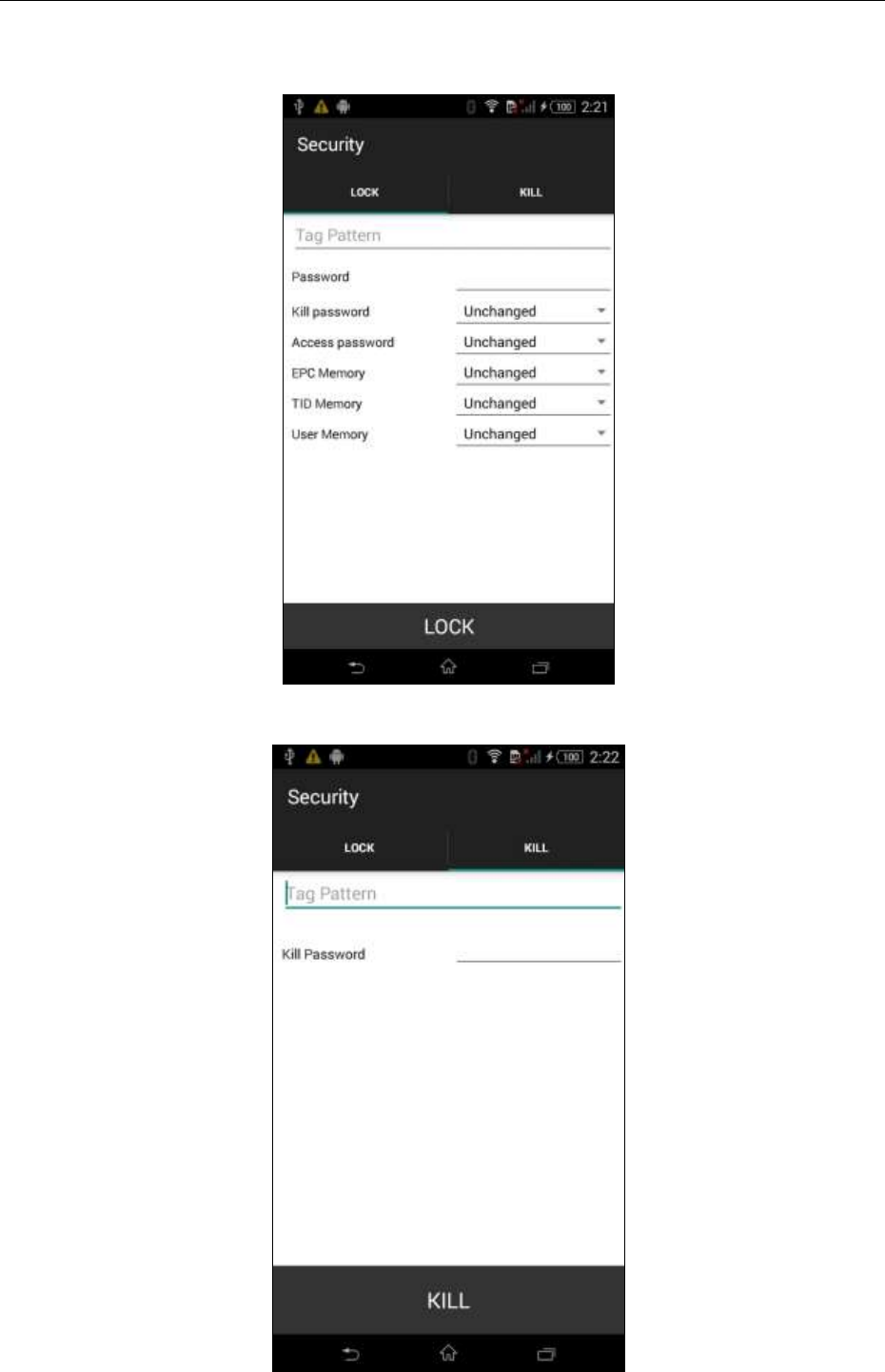

You can either lock or kill a tag. Here is locking a tag:

Here is killing a tag. Note it asks you for the Kill password immediately:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

53

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

54

After a successful operation, here is the screen pop up. Command End means successful

implementation of the lock command.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

55

4.5.1.12 Register Tags

TBD

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

56

4.5.1.13 Special Functions

TBD

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

57

4.5.1.14 Exiting the Software

By pressing the Home button, middle icon of the menu at the bottom, one can exit the software.

Note that the software is not really completely stopped, as is well known by smart phone users.

The software is really only sleeping.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

58

4.5.1.15 Truly Exiting the Software

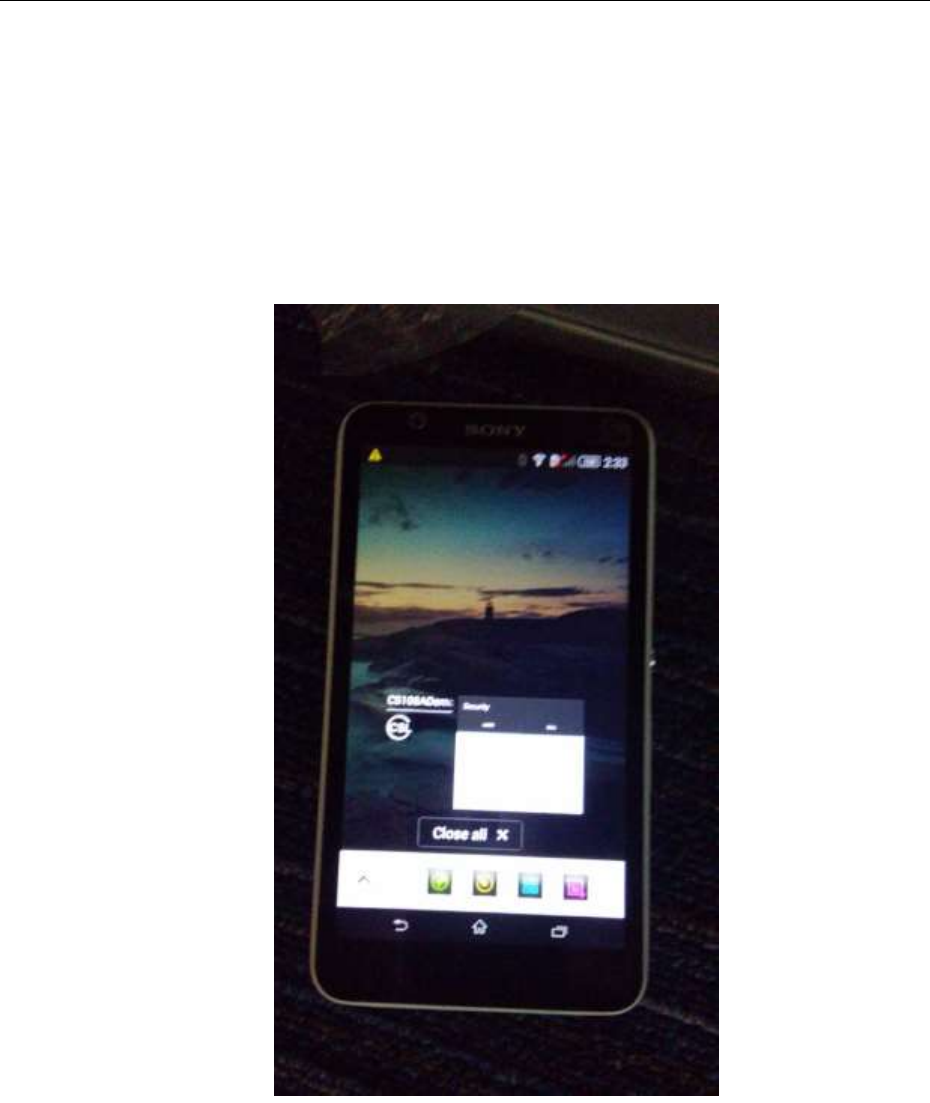

To truly exit the software, press the lower right hand side button (folder view), and then you

will see the following screen:

At this point, you can truly exit the software by pressing your finger on the software and drag it

out of the smart phone.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

59

4.5.1.16 Source Codes

Source codes of this application are available on Convergence Systems Limited website:

www.convergence.com.hk

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

60

4.5.2 Software on iPhone

4.5.2.1 Installing the iPhone Software

Formal CS108 App:

The formal CS108 iPhone App can be downloaded from App Store. However, at this point,

since the software is still in beta stage, it is not available on App Store yet.

Beta Stage CS108 App:

In Beta stage the App is downloaded using TestFlight. TestFlight is a free software from

Apple for distribution of Beta software. After installing it, then you can download beta

software. The process is as follows:

1) Download and install TestFlight from App Store. TestFlight is free of charge software

from Apple Inc.

2) Send user’s Apple ID to Convergence support team. Apple ID is an email address.

Make sure that email address is real and you can receive that email.

3) Convergence support team will submit the Apple ID to Apple and the new software, and a

special email will be sent to the email address of the Apple ID to invite you to join iTunes

Connect. The following is an example email. Click the “activate your account” in your

email to participate in iTunes Connect.

Hi Albert,

CONVERGENCE SYSTEMS LIMITED invited you to join iTunes Connect. To get started, activate

your account. Sign in with your Apple ID, or if you don’t have one, click the link to create an Apple

ID.

If you have any questions, contact us.

Regards, The iTunes Store team

4) After that, you will receive another email inviting you to participate in the test. Open that

email, and click the link inside to acknowledge to Apple. Note that your opened email

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

61

needs to be in the iPhone in order to immediately “view in TestFlight”.

5) After that the new beta software will appear inside TestFlight. Open TestFlight to find out

this application is there.

6) You can then download and then open that App.

7) After that you can start using the CS108 iPhone App.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

62

4.5.2.2 Starting the iPhone Software

With the CS108 App for iPhone installed, you will see an icon in your iPhone:

Now press that icon to start the CS108 iPhone App.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

63

4.5.2.3 Searching and Connecting to (Pairing with)

CS108

The first thing you will see when you start the CS108 iPhone App is the search and connect

screen. The search and connect screen starts immediately when you start the App. It will

search for CS108 nearby and list them out. Please make sure the CS108 Bluetooth button has

been pressed until the Blue LED is flashing, meaning the CS108 is ready for discovery by

Smart Phones nearby.

You can refresh the search process by using a finger to swipe the whole menu DOWNWARD

and then release. (This is a typical method in iPhone environment)

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

64

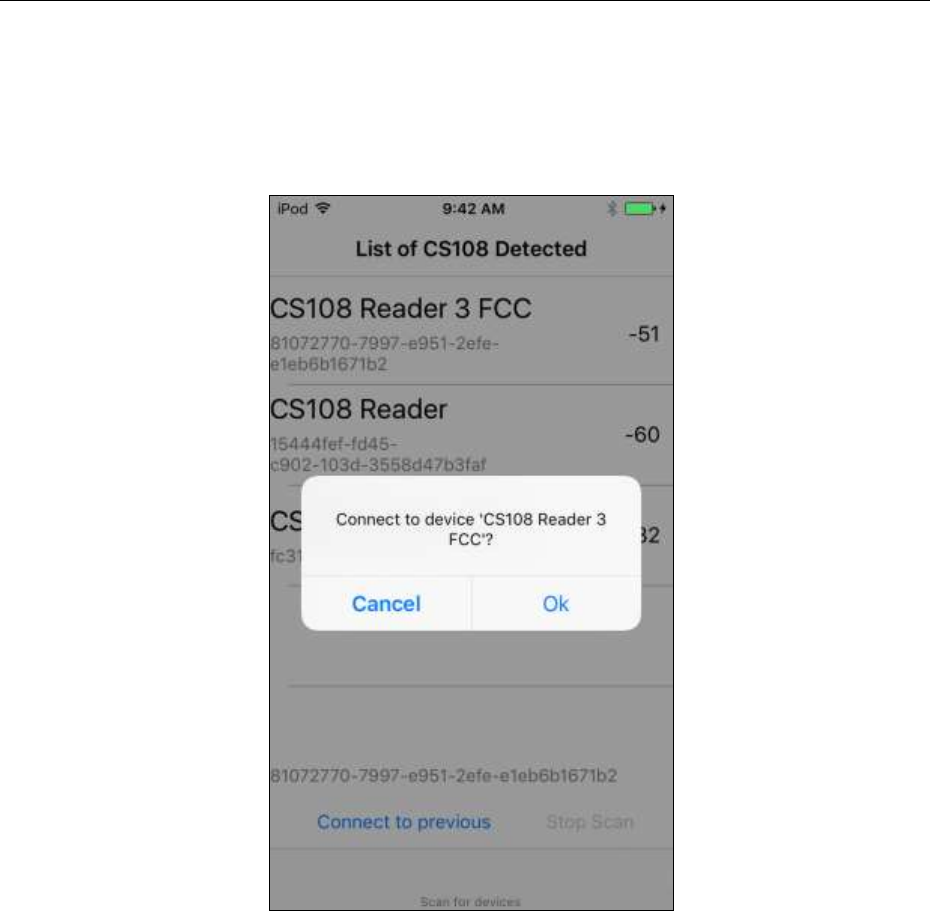

Once you select a particular reader, then a pop up window will ask you if you want to connect

to that reader. Type “Ok” to connect.

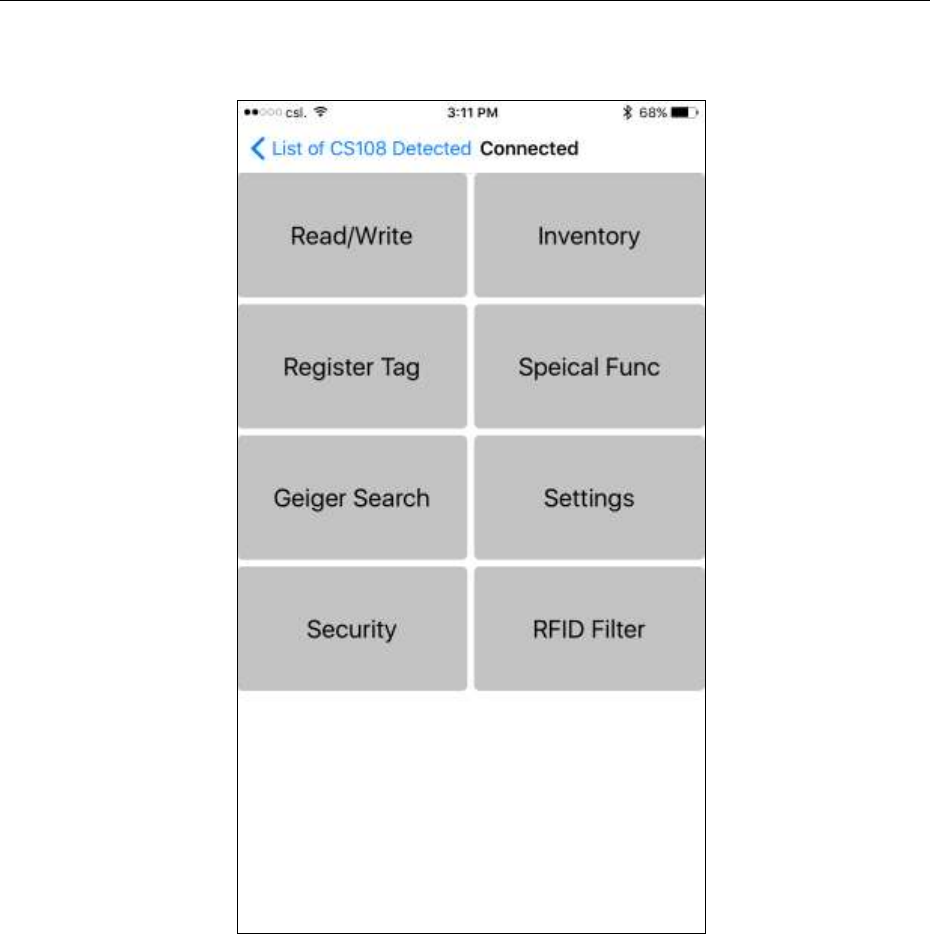

After that, you will enter the main screen of the application:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

65

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

66

4.5.2.4 RFID Inventory

Press the Inventory button to go to the Inventory page. You can either read RFID tag or

barcode, selected at the bottom of the App.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

67

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

68

4.5.2.5 Barcode Inventory

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

69

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

70

4.5.2.6 RFID Read and Write memory banks

TBD

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

71

4.5.2.7 Geiger Search

One can search and home in onto a tag using the Geiger Search page.

First you go to Inventory page and inventory the tag, then select that tag. A pop up window

asks if you want to select that tag for subsequent Read/Write operation or Geiger Search

operation. Press OK here.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

72

Now return to Main Menu and then enter the Geiger Search menu. The tag ID would already

be there. Press Start to begin Geiger Search.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

73

4.5.2.8 Setup

One can go to Setup page to edit the operation parameters.

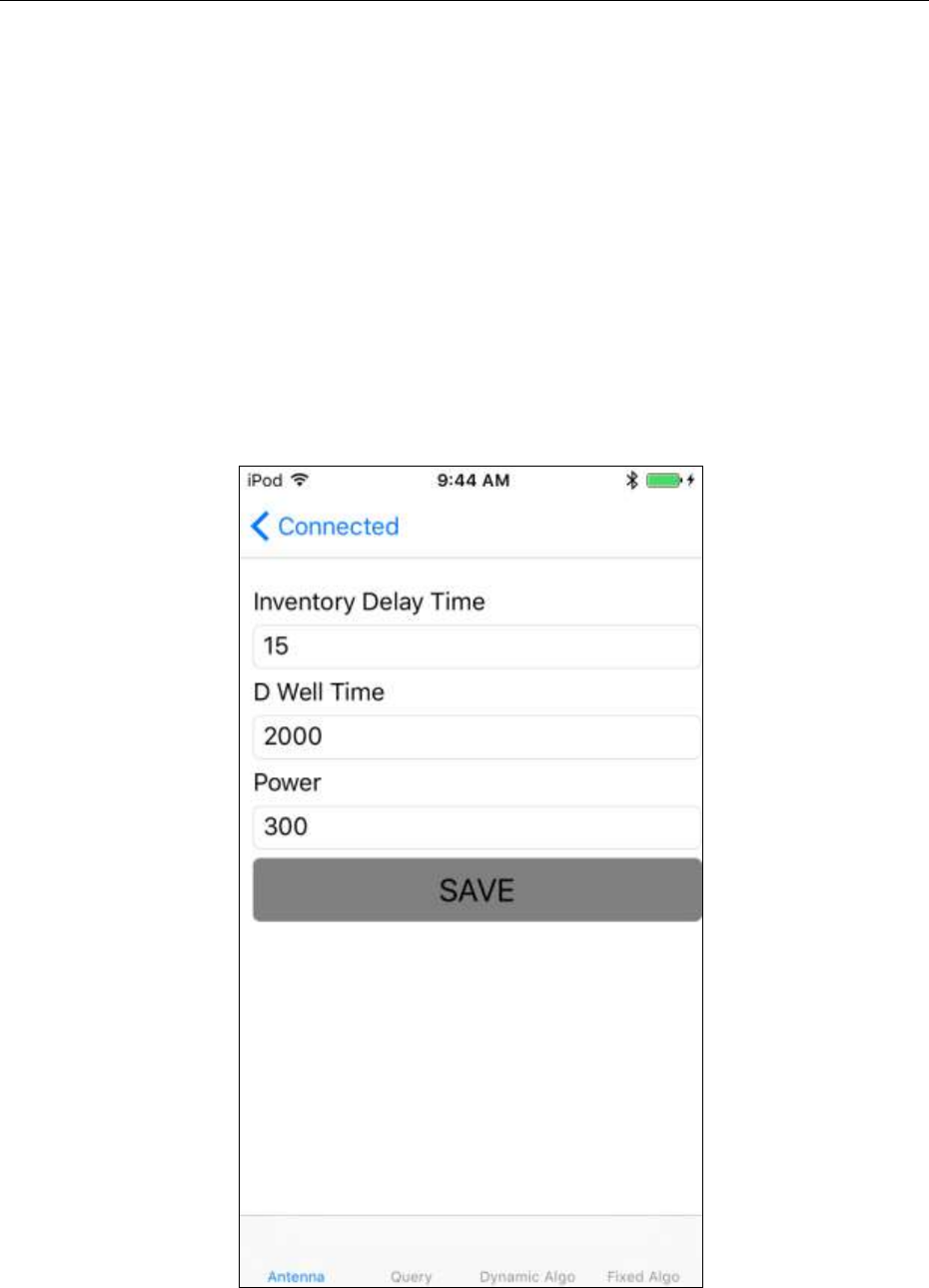

In Antenna page, Inventory Delay Time is a smart phone specific Bluetooth operation

parameters. DO NOT CHANGE THIS VALUE OF 15.

Dwell Time is the time of antenna port operation. 2000 means 2 seconds.

Power is 300, meaning 30 dBm.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

74

Query page contains all the query setting. Refer to EPC Air Interface protocol document for

details.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

75

Dynamic Algo contains the parameters for Dynamic Q algorithm:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

76

Fixed Algo contains the parameters for Fixed Q algorithm:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

77

4.5.2.9 Filter: Pre Filter

Pre-filter page contains the settings for Select Filter:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

78

4.5.2.10 Filter: Post Filter

Post Filter contains parameters for filtering AFTER the tags are inventoried by the reader:

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

79

4.5.2.11 Security

TBD

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

80

4.5.2.12 Register Tags

TBD

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

81

4.5.2.13 Special Functions

TBD

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

82

4.5.2.14 Exiting the Software

One can exit the software by simply pressing the Home button. However, as smart phone

users know, this is only sending the App to sleep.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

83

4.5.2.15 Truly Exiting the Software

To truly exit the software, one needs to double click the Home button, and then the CS108

demo App will show as one of the pages piled. Select that page and then use finger to drag it

out of the phone to truly exit the software.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

84

4.5.2.16 Source Codes

Source codes of this application are available on Convergence Systems Limited website:

www.convergence.com.hk

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

85

4.6 Software on PC

The CS108-2 can also be controlled via the USB cable. In this case the mobile phone is not

required and Bluetooth is not turned on.

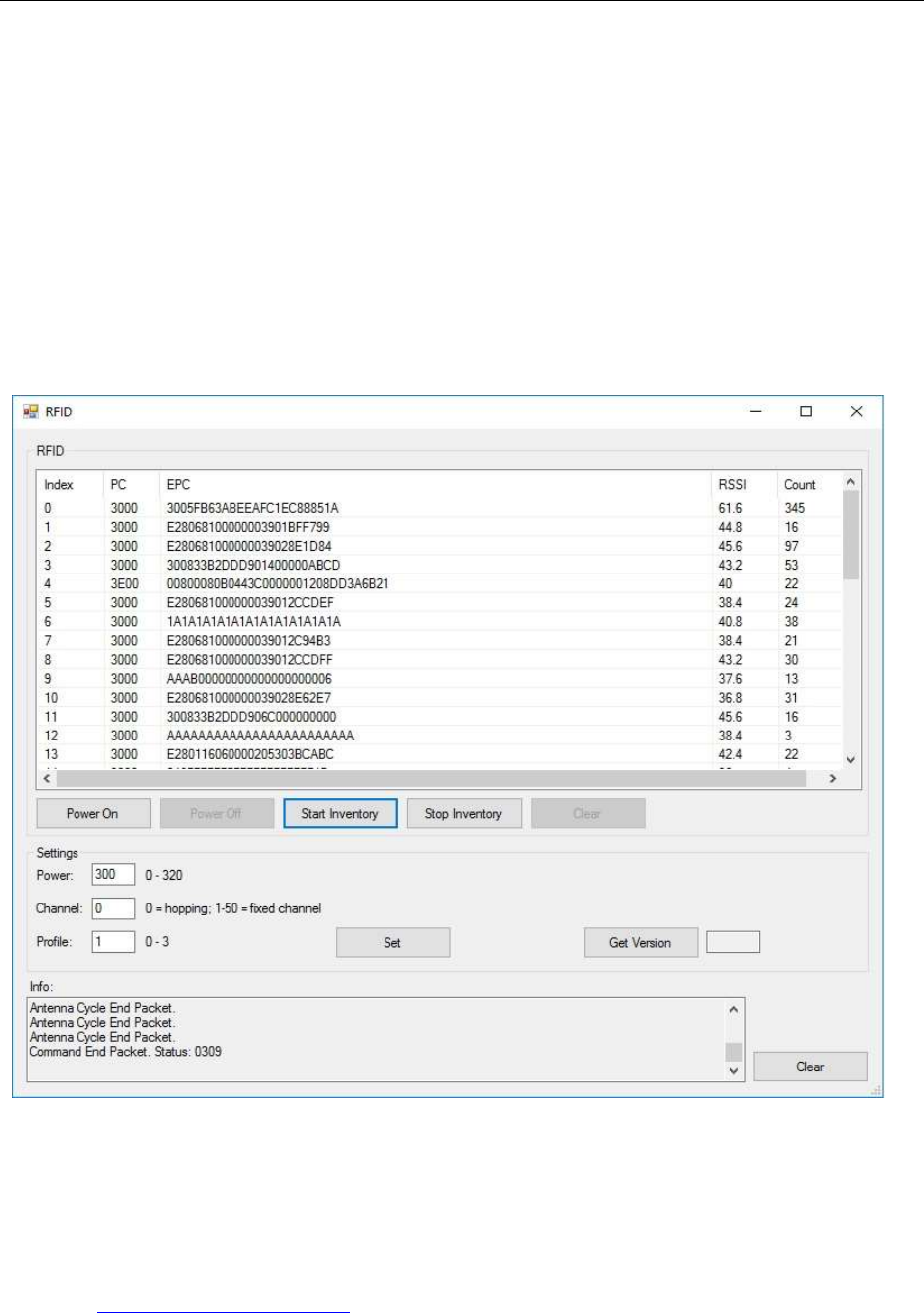

Below is the screen capture of an application on PC controlling CS108-2. Everything is

self-explanatory in the application:

Figure 4-5 PC Application Screen – controlling CS108-2 via USB

Source codes of the PC App for CS108 is also available for download from Convergence

website: www.convergence.com.hk

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

86

Appendix A. Federal Communications

Commission Compliance

This equipment has been tested and found to comply with the limits for a class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna

 Increase the separation between the equipment and receiver

 Consult the dealer or an qualified radio/TV technician for assistance

FCC NOTICE:

To comply with FCC part 15 rules in the United States, the system must be professionally

installed to ensure compliance with the Part 15 certification. It is the responsibility of the

operator and professional installer to ensure that only certified systems are deployed in the

United States. The use of the system in any other combination (such as co-located antennas

transmitting the same information) is expressly forbidden.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Note:

Changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

CSL CS101-2 EPC CLASS 1 GEN 2 RFID HANDHELD READER

USER'S MANUAL, VERSION 5.0

87

Appendix B. Link Profiles of CS108 RFID

Reading

Link Profile

0

1

2

3

R-T Modulation

DSB-ASK

PR-ASK

DSB-ASK

Tari (μs)

25.00

6.25

X

1.00

0.50

PW (Pulse Width in usec)

12.50

3.13

RTcal (usec)

75.00

62.50

15.63

TRcal (usec)

200.00

85.33

71.11

20.00

DR (Divide Ratio)

8

64/3

8

T-R Modulation

FM0

Miller-4

FM0

TRExt

1

LF (kbps)

40

250

300

400

Data Rate (kbps)

40

62.5

75

400

Convergence Systems CS108C1GEN2 CS108 Sled Handheld for RFID/2D Barcode User Manual CSL CS101 2 EPC Class 1 Gen 2 RFID Handheld Reader

Convergence Systems Limited CS108 Sled Handheld for RFID/2D Barcode CSL CS101 2 EPC Class 1 Gen 2 RFID Handheld Reader

Users Manual

Navigation menu

Namespaces

Views

Navigation
