CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

CSL CS203ETHER-2LHCP/2RHCP EPC

Class 1 Gen 2 RFID INTEGRATED Reader

User’s Manual

Version 1.0

CSL: The One-Stop-Shop for RFID Solutions

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER  USER'S  MANUAL,  VERSION  1.0

Content

CONTENT.......................................................................................................................................................2
FCC STATEMENT.........................................................................................................................................4
INTRODUCTION............................................................................................................................................5
1 PRODUCT PACKAGE .................................................................................................................................5
1.1 BASIC PACKAGE CONTENT.......................................................................................................................5
1.2 PRODUCT SPECIFICATIONS .......................................................................................................................6
HARDWARE INSTALLATION....................................................................................................................8
1 HARDWARE CONTENT OF SHIPMENT PACKAGE ........................................................................................8
1.1 CS203 READER........................................................................................................................................8
2 MOUNTING ............................................................................................................................................10
3 OPERATING SETUP .................................................................................................................................11
4 CABLE CONNECTION FOR CS203 ...........................................................................................................13
4.1 ETHERNET CABLE CONNECTION FOR CS203 .........................................................................................13
5 READER MECHANICAL MOUNTING ........................................................................................................17
SOFTWARE INSTALLATION...................................................................................................................18
1 SOFTWARE CONTENT OF SHIPMENT PACKAGE .......................................................................................18
2 PC SIDE PREREQUISITES ........................................................................................................................18
3 PC SIDE LIBRARIES AND API DOCUMENT..............................................................................................19
4 DEFAULT EX-FACTORY IP SETTINGS ......................................................................................................20
5 CHANGING IP ADDRESSES .....................................................................................................................21
5.1 "NETFINDER" PROGRAM METHOD .........................................................................................................21
5.1.1 HARDWARE SETUP ............................................................................................................................21
5.1.2 SOFTWARE SETUP..............................................................................................................................21
5.1.3 SEARCH CS203 BOARD.....................................................................................................................22

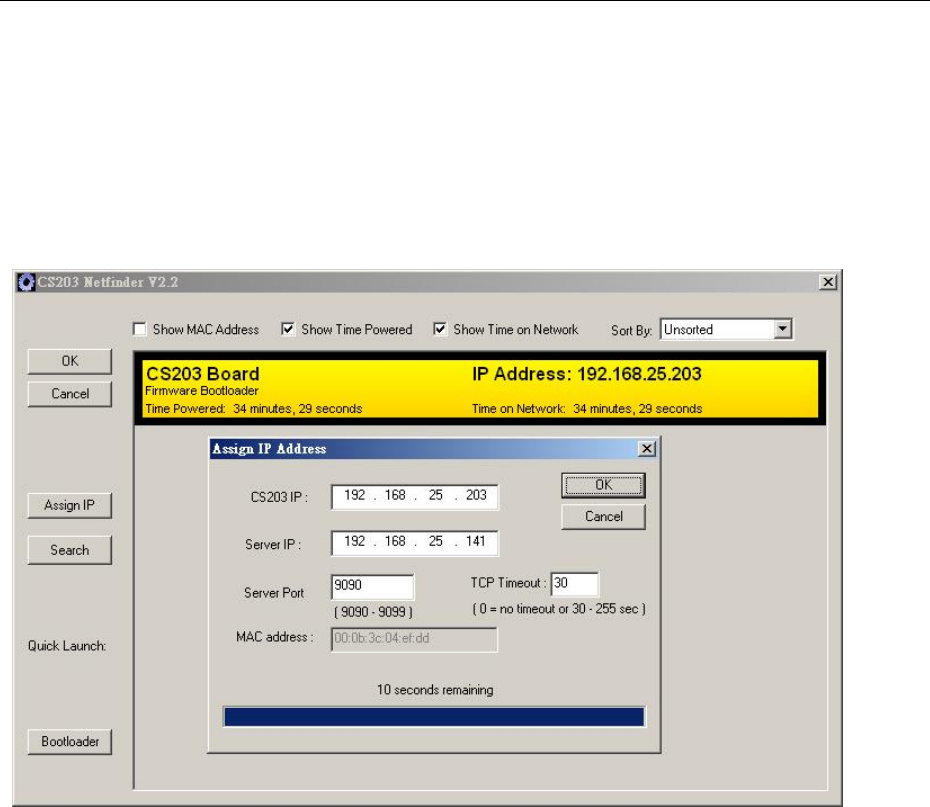

5.1.4 ASSIGN CS203 IP, SERVER IP AND TCP TIMEOUT .............................................................................23
5.2 "CS203 GPIO" PROGRAM METHOD ......................................................................................................25
6 STATUS VERIFICATION ...........................................................................................................................27
7 EXCEPTION SITUATIONS .........................................................................................................................28
8 FINDING A "LOST" CS203 ......................................................................................................................29
DEMO APPLICATIONS .............................................................................................................................33
1 INTRODUCTION ......................................................................................................................................33
2 PROGRAM STRUCTURE...........................................................................................................................33
Copyright © Convergence Systems Limited, All Rights Reserved  2

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

6.3 BUILD PROJECT REQUIREMENTS............................................................................................................34

6.4 CS203 CALLBACK API DEMO PROGRAM OPERATIONS ......................................................................35

7 MIDDLEWARE CONNECTIVITY ...........................................................................................................52

8 SOFTWARE UPGRADE.............................................................................................................................53

8.1 UPGRADE OF PC SIDE LIBRARIES ..........................................................................................................53

8.2 UPGRADE OF READER FIRMWARES ........................................................................................................54

8.2.1 UPGRADE OF NETWORK PROCESSOR FIRMWARE ...................................................................................54

8.2.1.1 NETWORK PROCESSOR APPLICATION UPGRADE................................................................................54

8.2.1.1.1 HARDWARE SETUP ............................................................................................................................54

8.2.1.1.2 SOFTWARE SETUP..............................................................................................................................54

8.2.1.1.3 SEARCH CS203 BOARD.....................................................................................................................55

8.2.1.1.4 IMAGE UPDATE .................................................................................................................................56

8.2.2 UPGRADE OF RFID BOARD FIRMWARE..................................................................................................58

9 REGULATORY INFORMATION..............................................................................................................59

9.1 FEDERAL COMMUNICATIONS COMMISSION (FCC) COMPLIANCE ...........................................................59

APPENDIX A. RFID BASICS ..............................................................................................................................60

APPENDIX B. OPERATION PROFILES...........................................................................................................61

APPENDIX C. RF CHANNELS...........................................................................................................................62

APPENDIX D. FAQ...............................................................................................................................................63

APPENDIX E. COMMON MISTAKES ..............................................................................................................64

APPENDIX D. TECHNICAL SUPPORT............................................................................................................65

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

2 FCC Statement

FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must be

professionally installed to ensure compliance with the Part 15 certification. It is the

responsibility of the operator and professional installer to ensure that only certified systems are

deployed in the United States. The use of the system in any other combination is expressly

forbidden. This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with minimum

distance 20cm between the radiator & your body.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

3 Introduction

3.1 Product Package

3.1.1 Basic Package Content

The reader package contains:

• Integrated reader

• waterproof LAN Cable for converting to regular RJ45 Ethernet connector

• GPIO cable

• 12V switching power supply

• Extended mounting stud and nuts

• Plastic caps for connectors and cables

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

3.1.2 Product Specifications

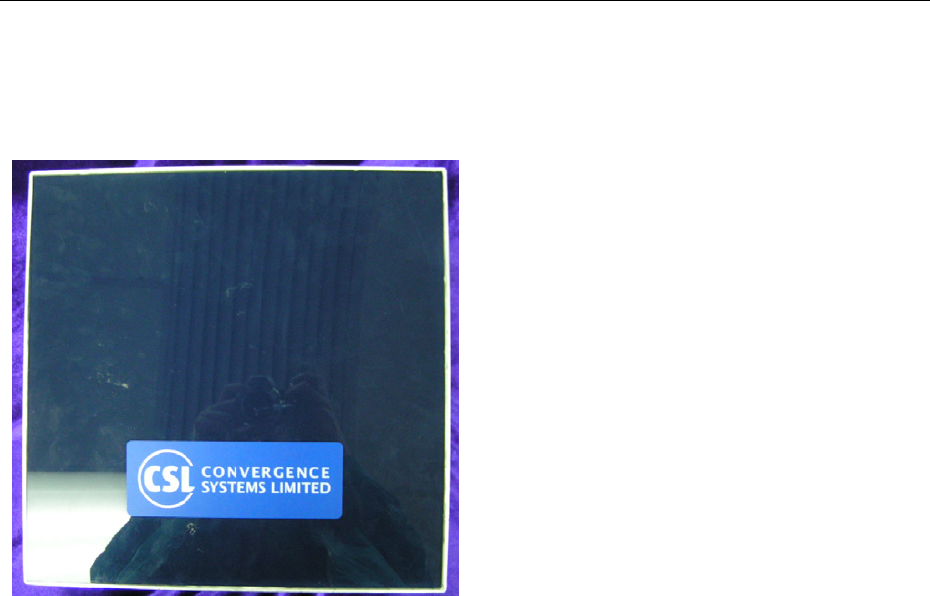

Fig 1-1 CS203ETHER-2 Reader

Features:

 ISO 18000-6C and EPCglobal Class 1

Gen 2 UHF RFID protocol compliant

including dense reader mode

 Ultra long read range – peak at 7 meters

for Banjo tag

 Ultra high read rate – peak at 300 tags per

second

 Choices of right hand circular

polarization antenna version and left hand circular polarization antenna version for

different application scenarios

 400 kbps tag-to-reader data rate profile

 Robust performance in dense-reader environments

 Excellent in transmit and receive mode – generates a different combination of unique

reader-to-tag command rate, tag-to-reader backscatter rate, modulation format, and

backscatter type

 Configurable parameters offer maximum throughput and optimal performance

 Supports all Gen 2 commands, including write, lock and kill

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Specifications:

Physical Characteristics: Length: 30 cm; Width: 30 cm; Height: 7.5 cm; Weight: 2 Kg

Environment: Operating Temp: 00C to 500C

Storage Temp: -400C to 850C

Humidity: 5% to 95% non-condensing

Enclosure: IP-65

Antenna: Choice of:

Left Hand Circular Polarized Antenna (LHCP)

Right Hand Circular Polarized Antenna (RHCP)

Power: 12 Volt supplied via an AC/DC adaptor or IEEE 802.3af

compliant Power Over Ethernet enabled power source

RFID Frequency Ranges: 902-928 MHz band

Interfaces LAN TCP/IP

( Configurable to use fixed IP address or DHCP )

Maximum Tag Read Rate: 150 tag/sec.

Maximum Speed of Tag: 660 ft/min

Accessories: • SFTP waterproof LAN Cable for converting to regular

RJ45 Ethernet connector

• GPIO cable

• 12V switching power supply

• Extended mounting stud and nuts

• Plastic caps for connectors and cables

Accessories (Optional) POE Adaptor

Order Code: CS203ETHER-2LHCP

CS203ETHER-2RHCP

Restrictions on Use: Approvals, features and parameters may vary depending on

country legislation and may change without notice

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

4 Hardware Installation

4.1 Hardware Content of Shipment Package

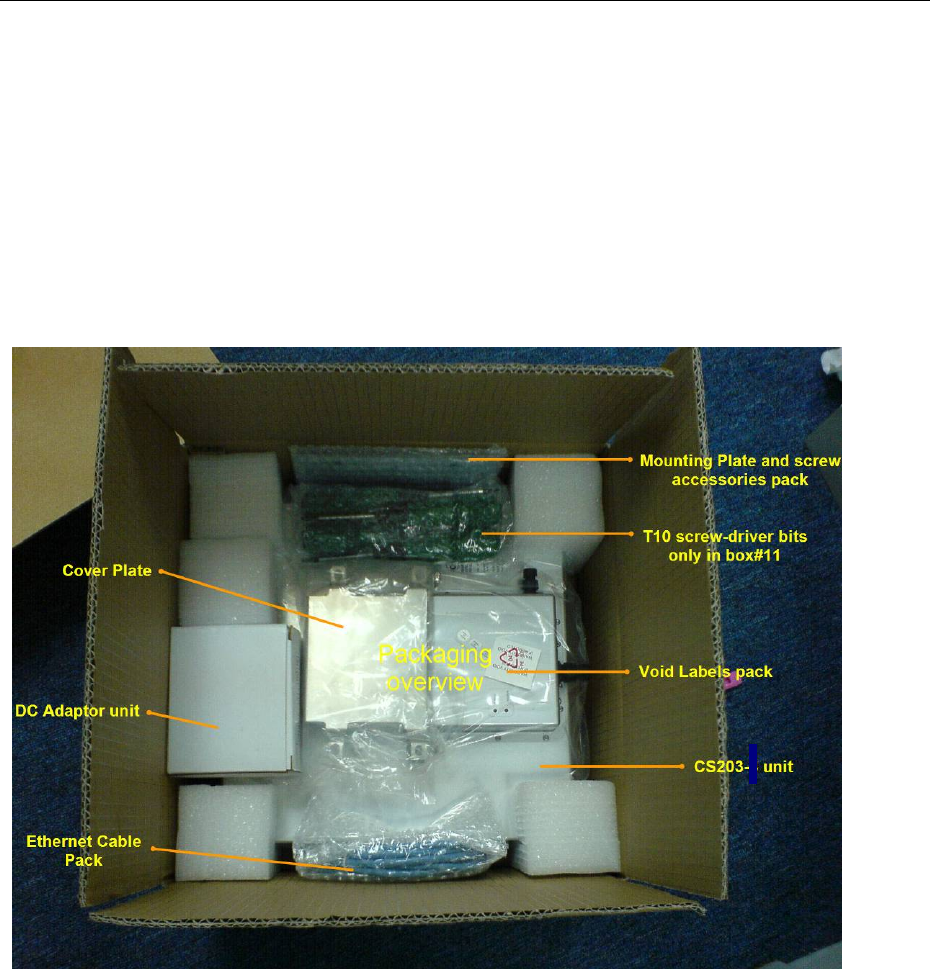

Figure 4.1 Packing Content

4.1.1 CS203 Reader

The CSL CS203ETHER-2 integrated RFID Reader is an EPCglobal Class 1 Gen 2 integrated

reader product.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

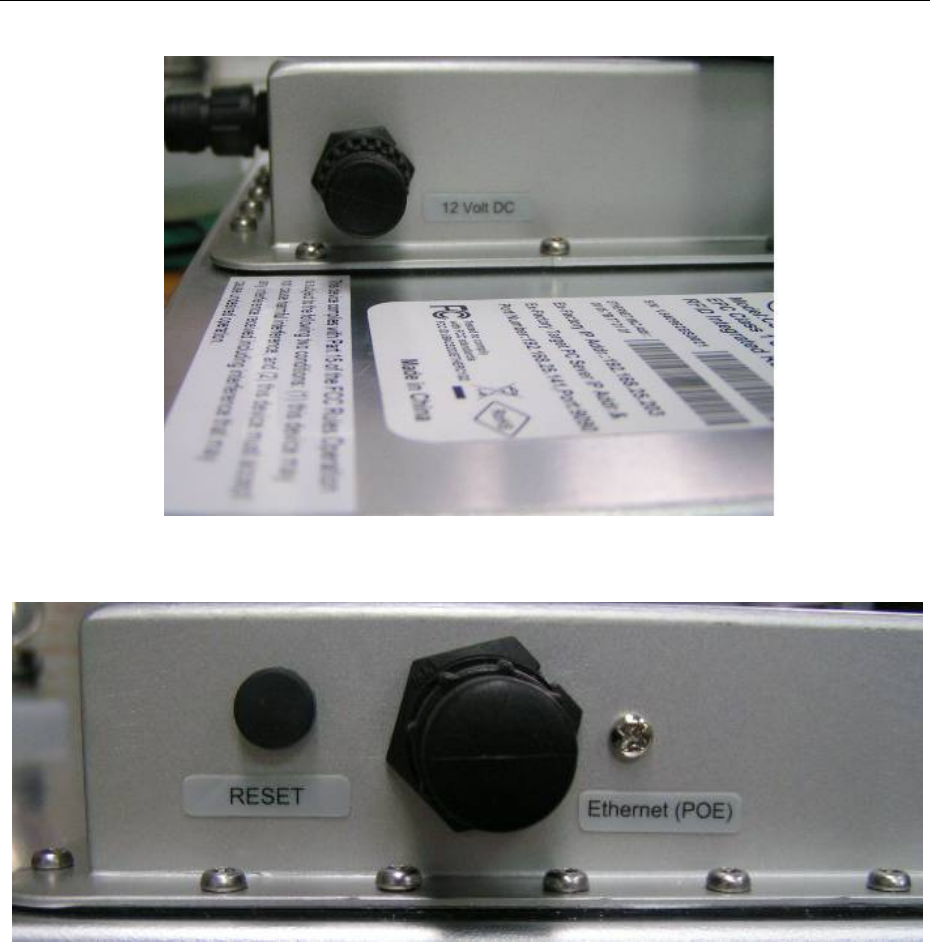

Figure 4-2 CS203ETHER Reader Side View

Figure 4-3 CS203ETHER Reader Side View

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

GPIO

Figure 4-4 CS203ETHER Reader Side View

4.2 Mounting

4 Mounting Holes

Figure 4-5 CS203ETHER Mounting

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

4.3 Operating Setup

CS203ETHER-2 has two power up modes: POE mode and 12V power supply mode.

To PC

Figure 2-5 POE adaptor Setup

The reader is connected to POE adaptor’s output port via the cable provided in the package.

The input port of POE adaptor is connected to a host computer.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

To PC

Figure 2-6 12V power supply Setup

The reader is directly connected to a host computer via the cable provided in the package.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

4.4 Cable Connection for CS203

4.4.1 Ethernet Cable Connection for CS203

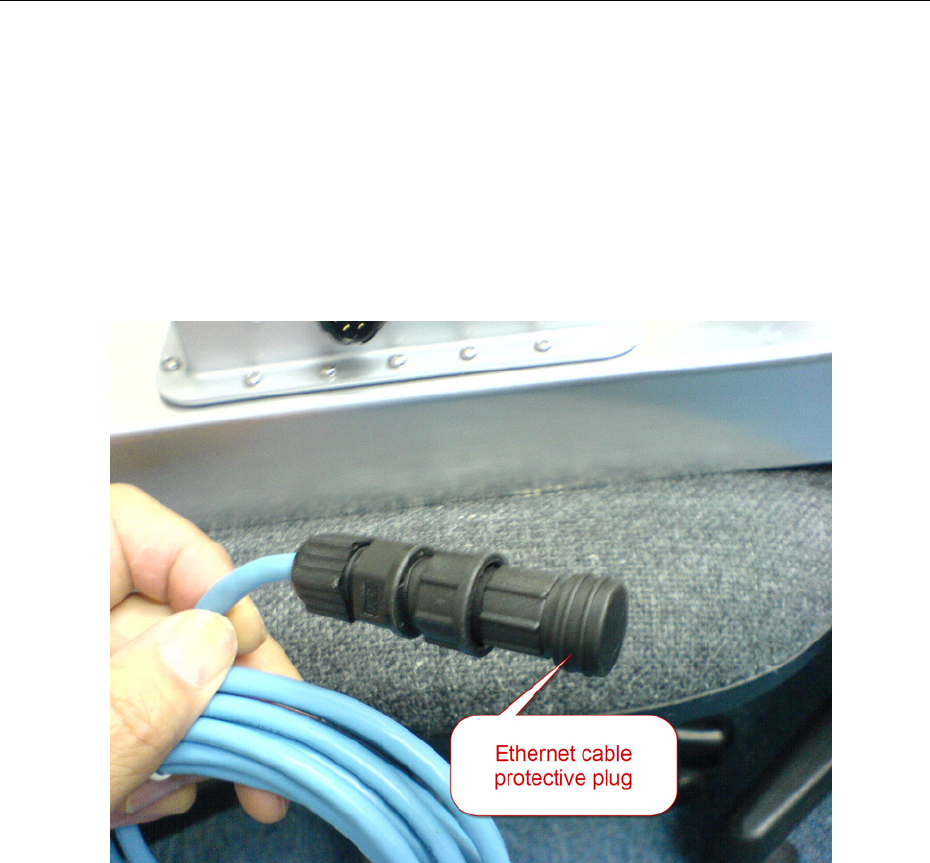

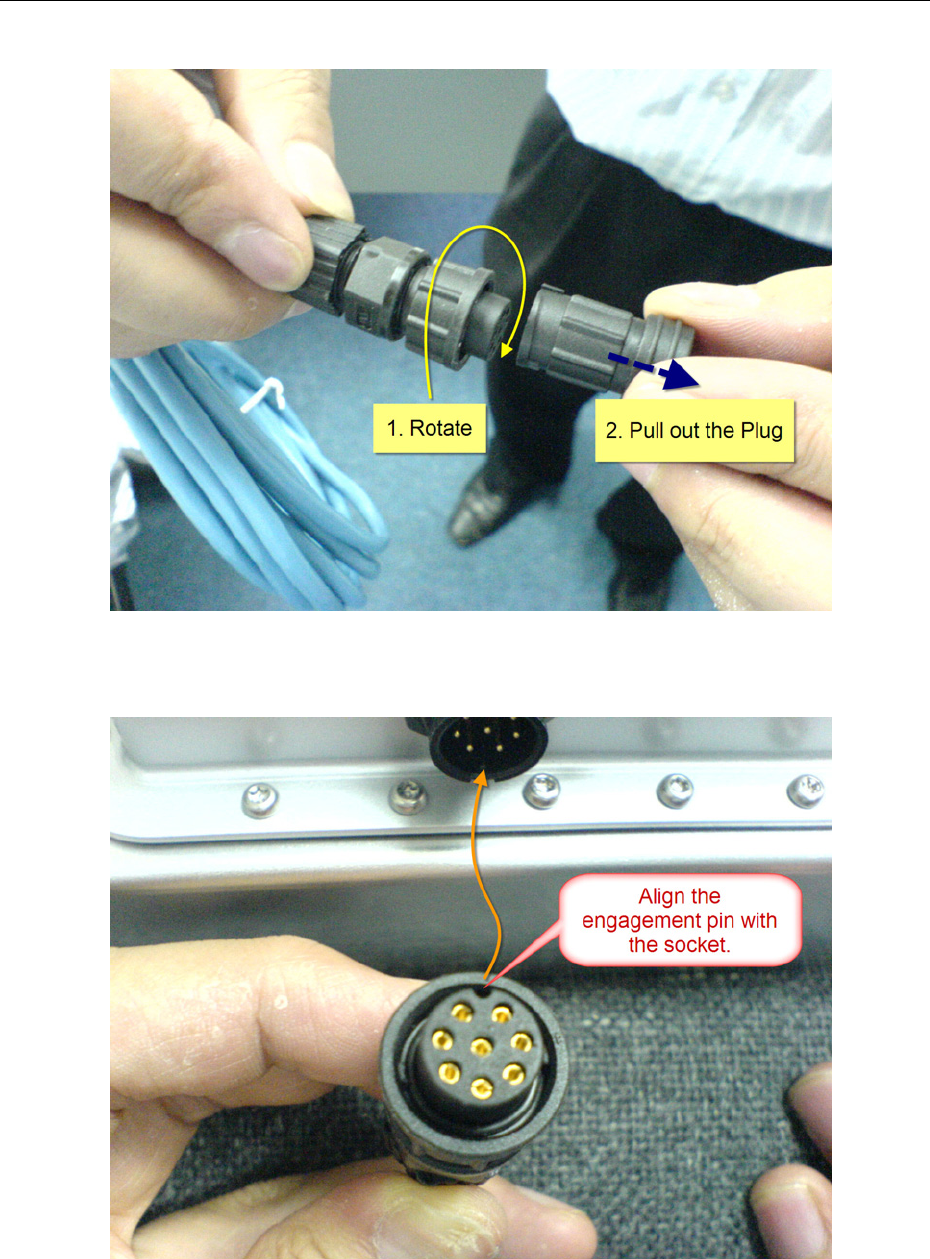

For Ethernet cable, remove the protective plug first followed with the below procedure.

Rotate the security cap and then pull out the protective cover.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

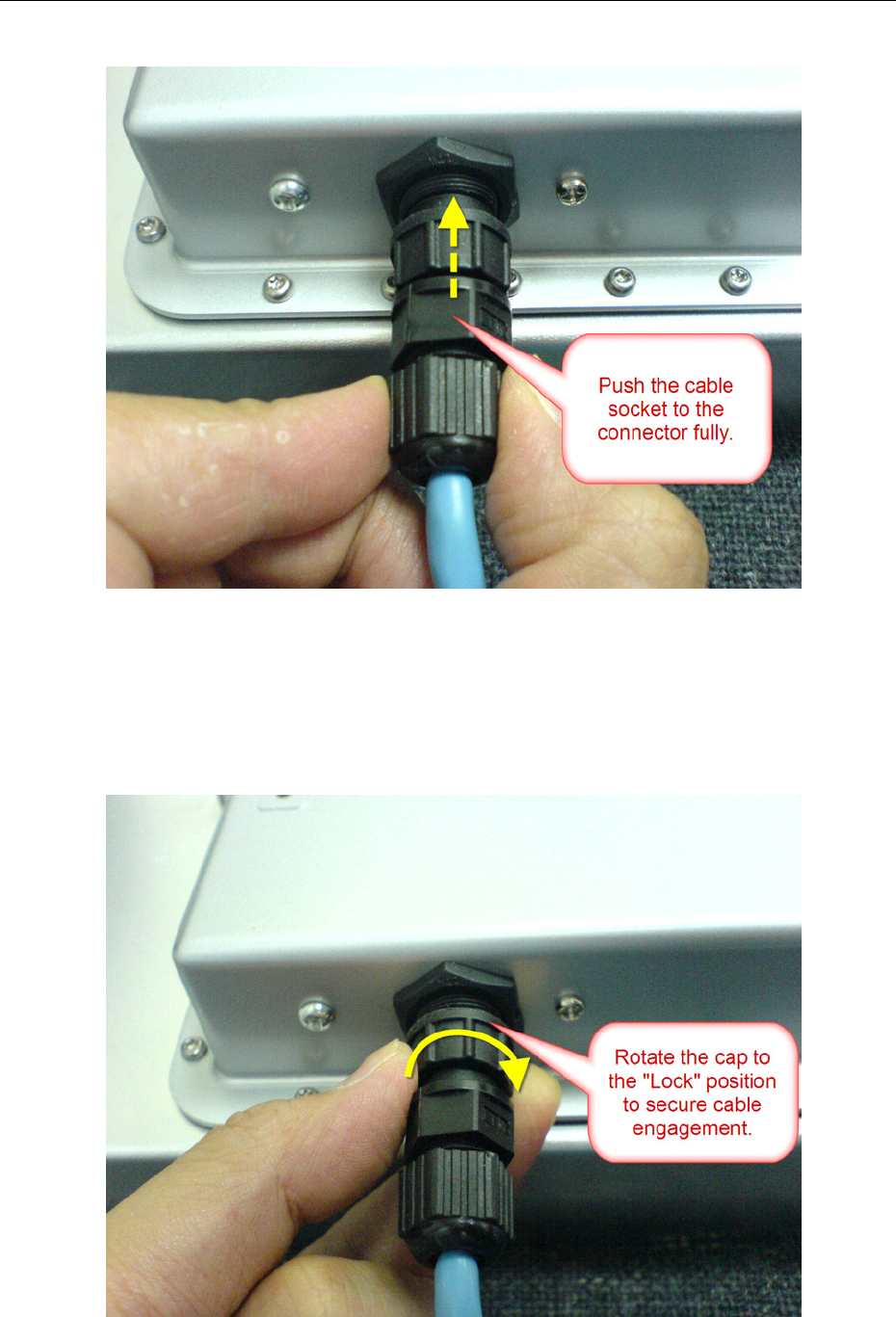

Align the engagement pin with the rib on the Ethernet cable socket on the CS203.

Engage the pins on the connector and push fully the cable head to the socket.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Secure the Ethernet cable engagement by rotating the cap to the “LOCK” position on the cable

gland. Finish.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

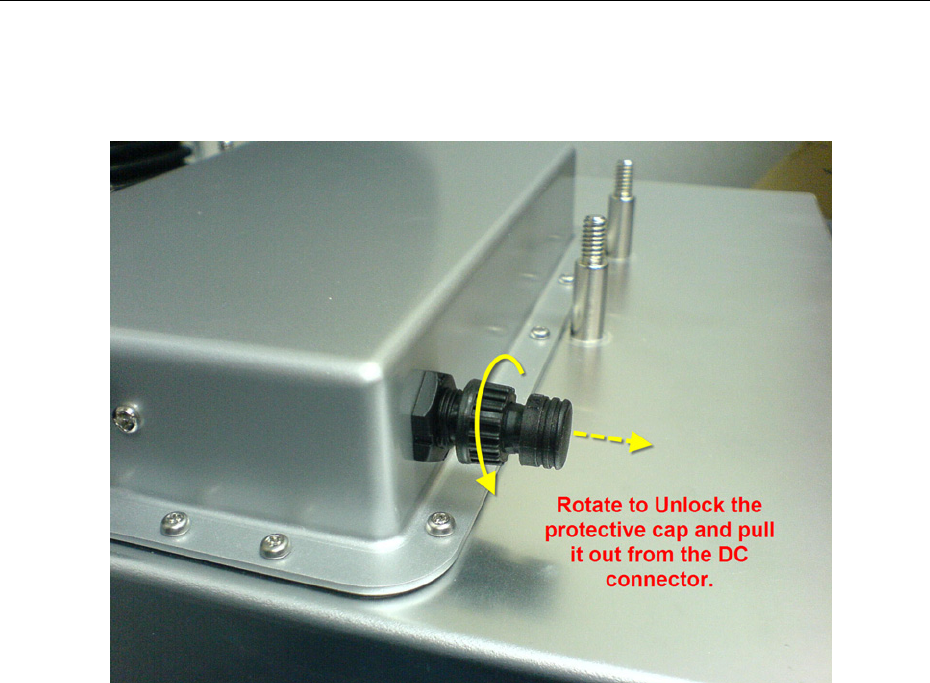

For DC connector, remove the protective cap. Connect the DC adaptor cable to the socket in

the same manner as the Ethernet connector. Finish.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

4.5 Reader Mechanical Mounting

The four rear mounting holes are spaced in the following manner for mechanical mounting:

¼ x 0.625 inch studs with 20 threads/inch

7 cm

15 cm

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

5 Software Installation

5.1 Software Content of Shipment Package

The shipment CDROM contains a zip file that includes 6 folders.

1. CS203 GPIO Demo how to change GPIO and IP settings

2. CS203 Start Stop Debug This shows how to start and stop CS203 many times

3. CSLibrary CSL Library is placed here

4. DEMO Demo Application setup folder

5. Document All documents are placed in this directory

6. Demo App Source Code CS203 Demo Application Source Code

5.2 PC Side Prerequisites

The PC needs to be installed with Dot Net Framework 3.5.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

5.3 PC Side Libraries and API Document

On the PC side, there are 4 dll libraries:

1. RFID_XP.dll

2. rfid.dll

3. rfidtx.dll

4. cpl.dll

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

5.4 Default Ex-Factory IP Settings

CS203 is shipped out with the following default ex-factory IP settings:

Reader IP address:

IP = 192.168.25.203

Target PC Server IP address and Subnet Mask:

IP = 192.168.25.141

Subnet Mask = 255.255.255.0

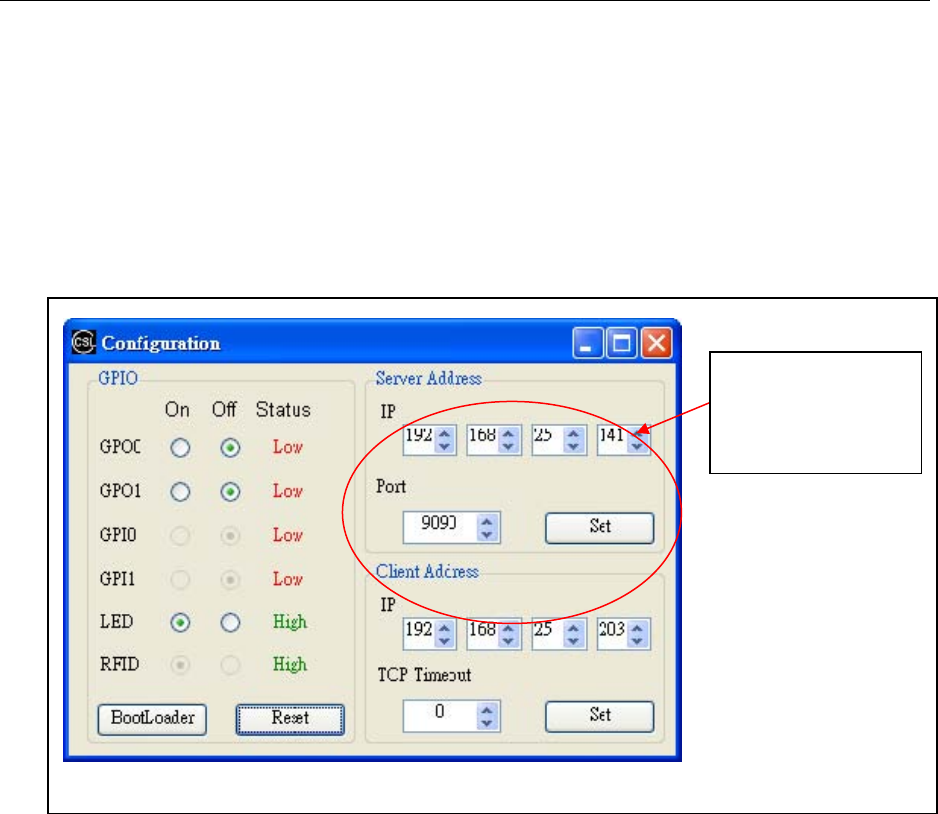

For the first connection to it, one can use a PC or a laptop, set it to the IP address of

192.168.25.141 with subnet mask 255.255.255.0, then run the CS203GPIO application that

comes with the CS203 package. On that application, one can then change CS203's own IP as

well as its targeted PC server IP address. This is described in the next section.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

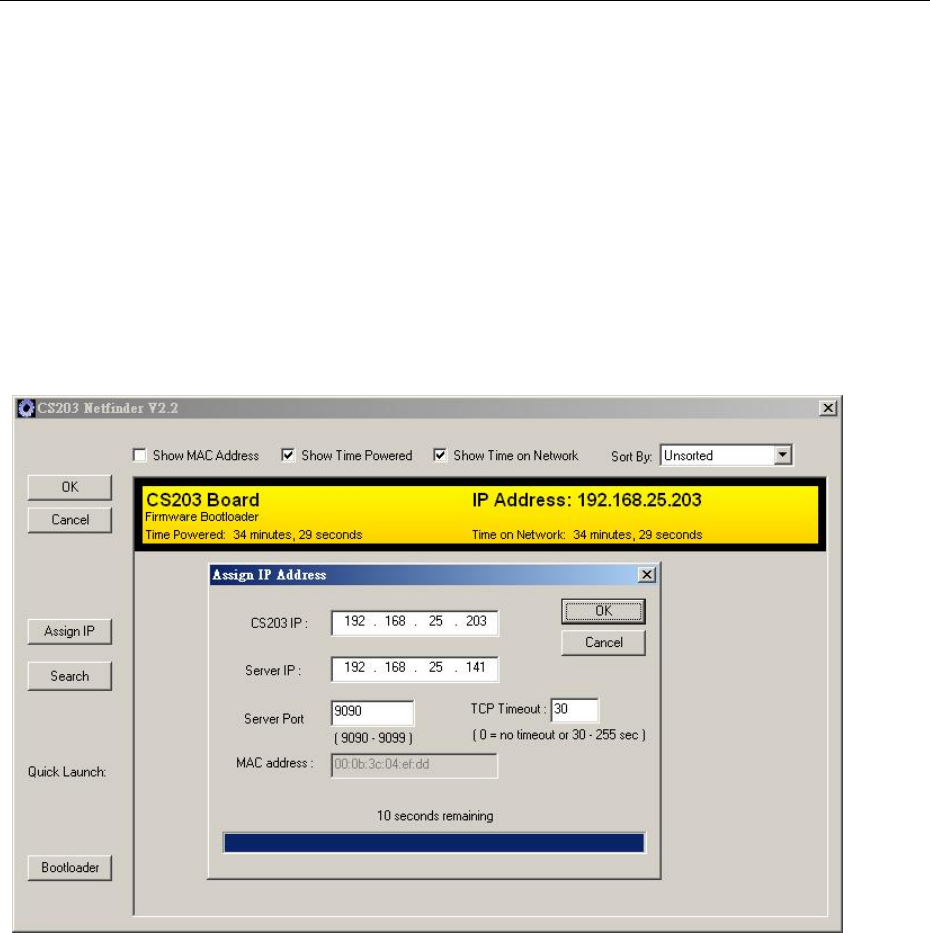

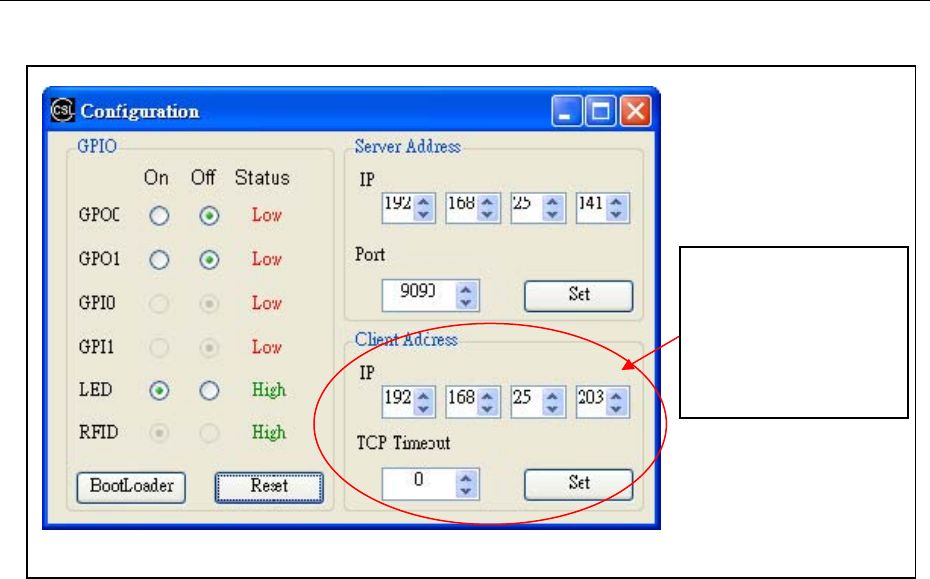

5.5 Changing IP Addresses

After initial unpacking and connecting to the CS203 reader using the default ex-factory device

and PC server IP address, the system integrator will need to change the IP address of the CS203

reader, as well as the PC server it connects to, to the actual IP address at the site.

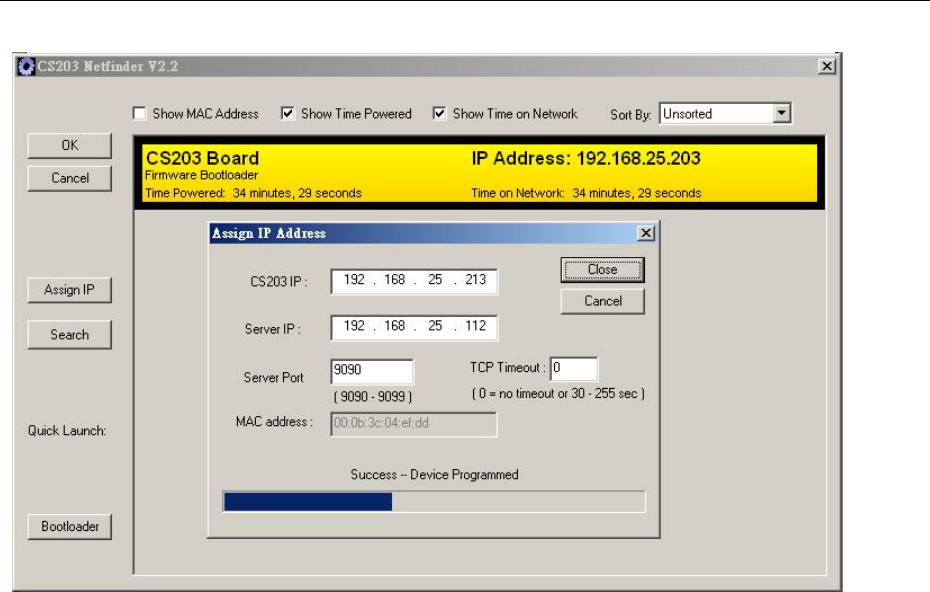

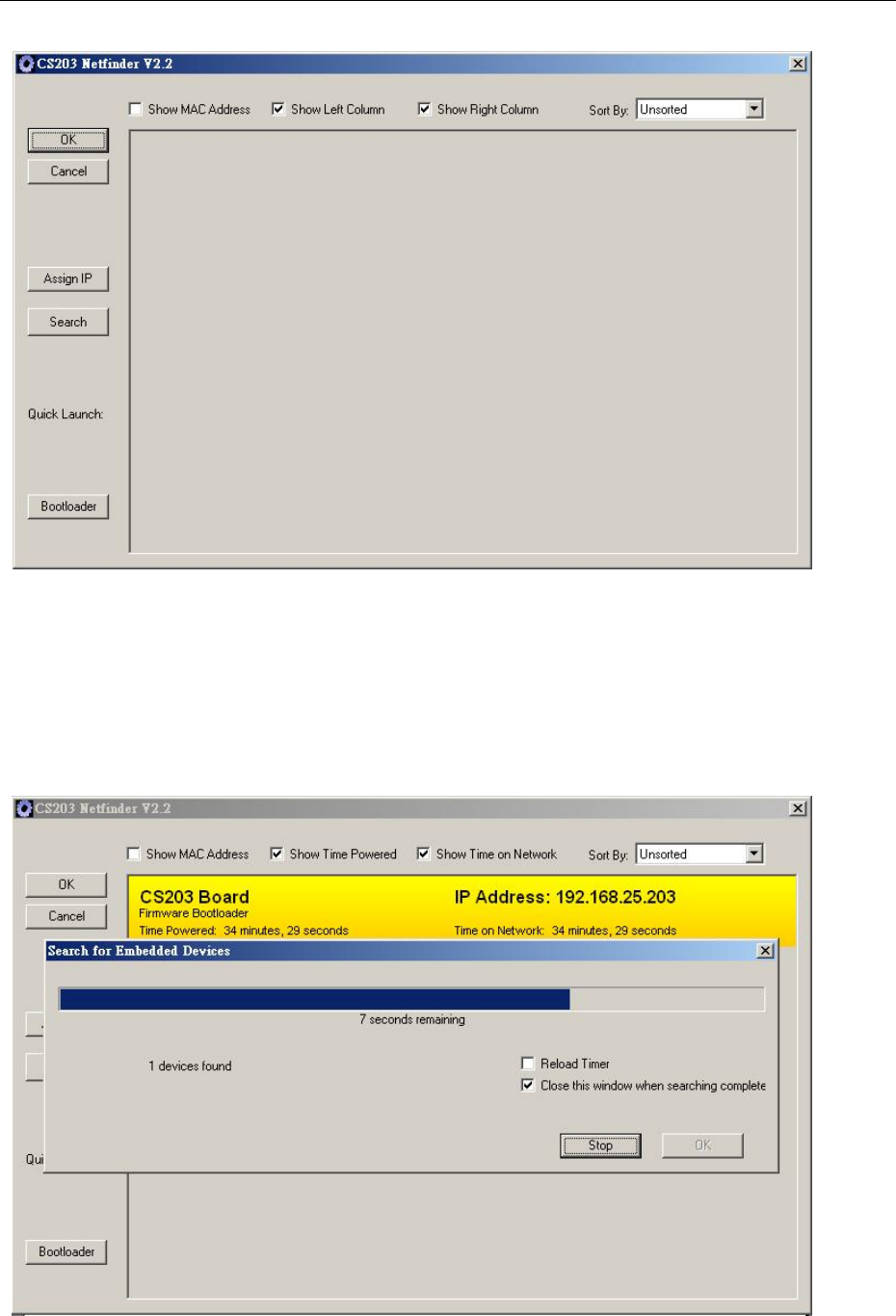

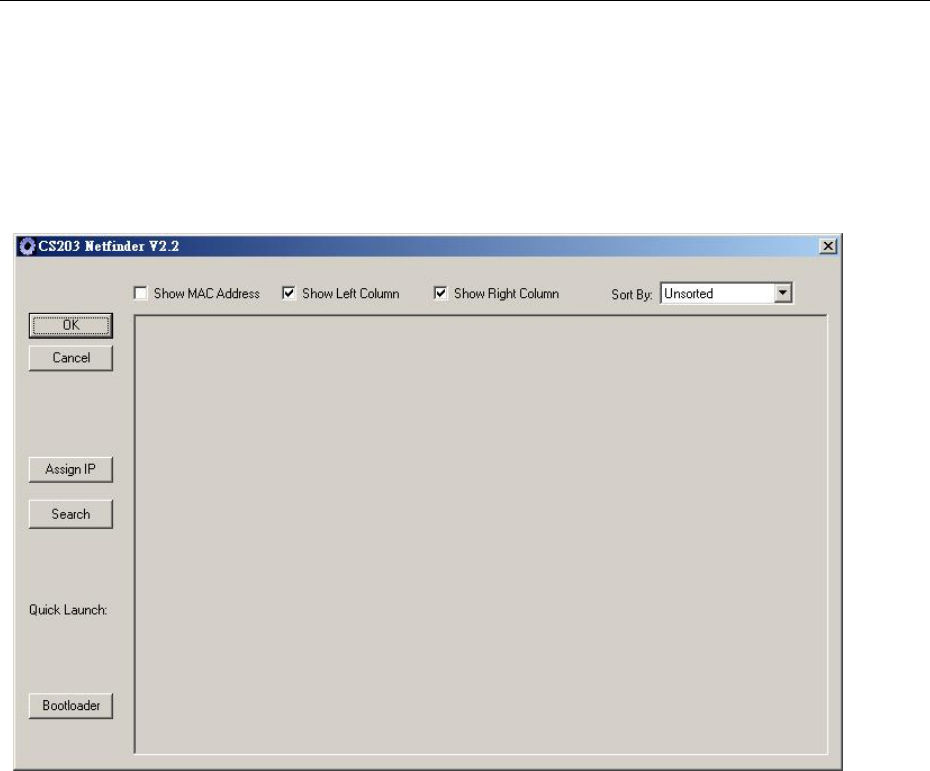

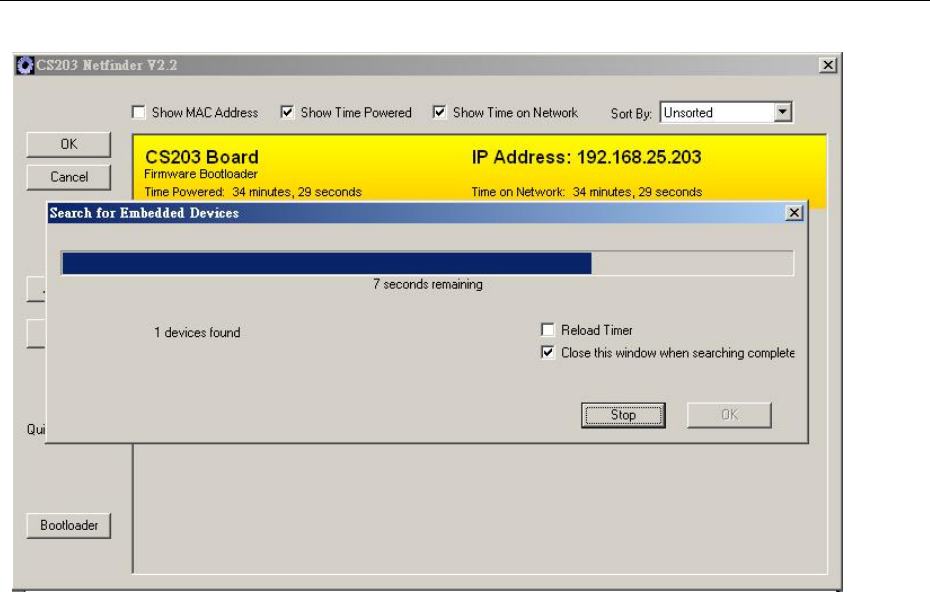

There are 2 ways to change the IP. Either using the "Netfinder" program or the "CS203 GPIO

Program". The "Netfinder" Program is run by setting the CS203 into bootloader mode. The

"CS203 GPIO" program is run with the CS203 in normal operation mode.

5.5.1 "Netfinder" Program Method

5.5.1.1 Hardware Setup

The only external hardware connections required by the CS203 are power and a connection to a

network.

1. Connect the CS203 to a network with Ethernet cable.

2. Push the reset button and hold it.

3. Power up the CS203.

4. Wait for 5 seconds and release the reset button.

5.5.1.2 Software Setup

After the hardware setup, open the Netfinder utility (“CS203 Netfinder.exe”). The utility provides

the following functions:

5. Search for available CS203 board in the network.

6. Change the CS203 IP and port.

7. Change the server IP and port.

8. Change the TCP timeout value.

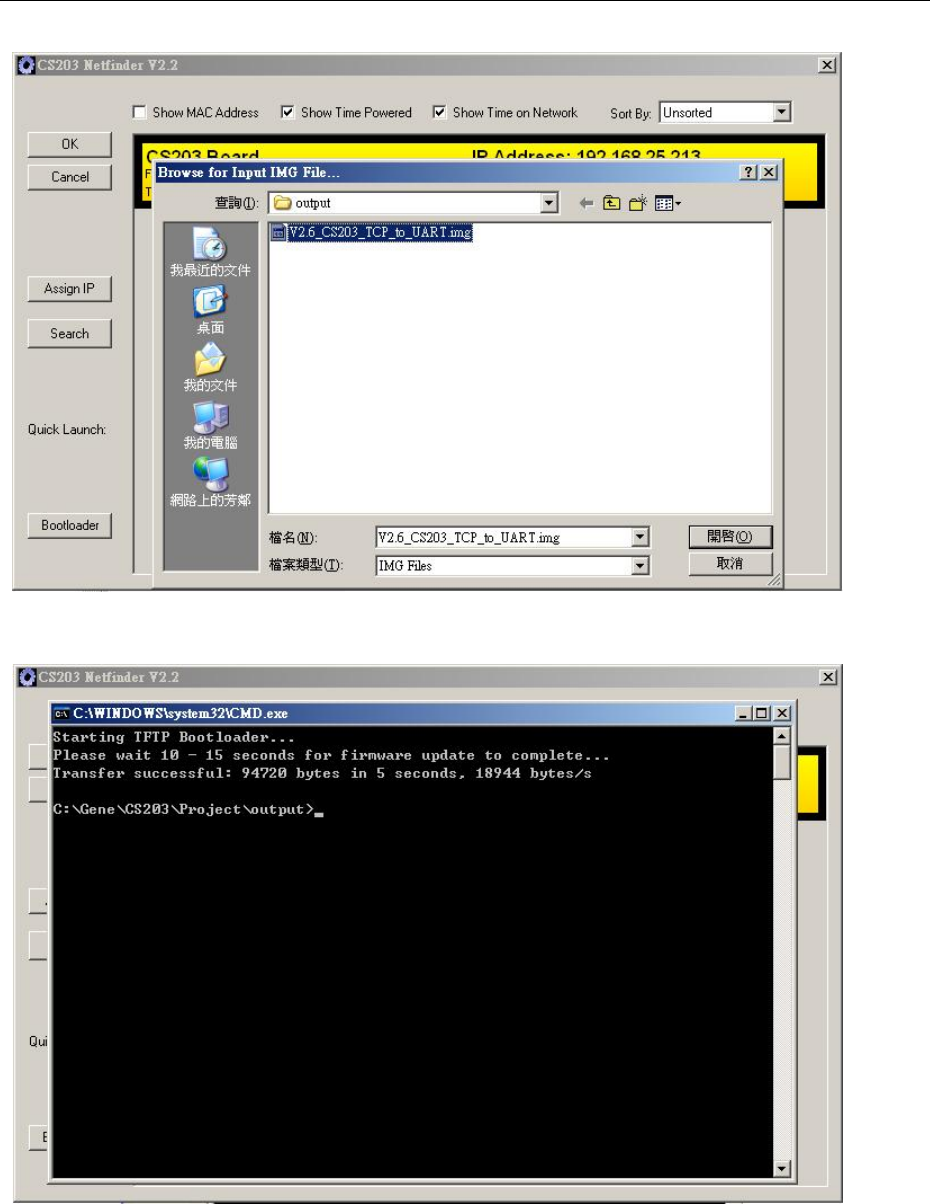

9. Update the CS203 Bootloader.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Fig. 1. CS203 Netfinder Utility

5.5.1.3 Search CS203 Board

10. Press the “Search” button.

11. Available CS203 board will be listed as shown in Fig. 2.

Fig. 2. Searching CS203 Board

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

5.5.1.4 Assign CS203 IP, Server IP and TCP Timeout

. Select the found CS203 board. The selected one will be highlighted by a black border.

etting and press “OK”.

yed as shown in Fig. 4

1

2. Press the “Assign IP” button.

3. Change the IP, TCP timeout s

4. Wait until “Success – Device Programmed” has displa

Fig. 3. Assign IP(1)

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Fig. 4. Assign IP(2)

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

5.5.2 "CS203 GPIO" Program Method

This can be done easily by API or simply by running the CS203 GPIO program.

Target PC Server

address and

Port

IP

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

CS203 reader IP

address and TCP

eout value

(recommend = 0)

Tim

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

5.6 Status Verification

The status of the reader, the PC software, and the network link in between should be constantly

monitored. The following are the methods:

1. PC server side IP configuration: run command prompt and then run "ipconfig"

2. CS203 reader side IP configuration confirmation: run command prompt and then run

"ping 192.168.25.203" (or any other IP address that you have already modified the

CS203 reader into.

3. Socket status: run command prompt and then run "netstat -na"

4. Reader read tag capability: put a reference tag (tag with an ID that you know a priori) on

the CS203 front face corner. Reference tag is actually an excellent idea to check the

health of a reader. The backend system should monitor the presence of this ID. If this

ID is seen, then the reader is still alive and well.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

5.7 Exception Situations

The following are standard exception situations:

1. CS203 reader is turned off and on for

1. Very short time: due to power spikes

2. A few minutes or more, due to site maintenance or other regular site

electrical operations

2. PC side software is turned off and on for

1. Very short time, due to manual software application reset

2. A few minutes or more, due to site PC OS maintenance or other regular site

PC server hardware maintenance

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

5.8 Finding a "Lost" CS203

Sometimes, the operator may have changed the IP address of CS203 and then forgot what it is.

In that case the user can use the "Netfinder" to search for the CS203.

2. Hardware Setup

The only external hardware connections required by the CS203 are power and a connection to the

network.

1. Connect the CS203 to a network with Ethernet cable. Please note that the weatherproof

cable that comes with the CS203 shipment package is a "Straight" cable. So connecting it to

a network switch or router is OK. For connecting it directly to a PC, it depends on whether the

PC's network card can auto-switch to handle straight cable. If not, then an Ethernet to

Ethernet adaptor is needed.

2. Press the reset button and hold it.

3. Power up the CS203.

4. Wait for 5 seconds and then release the reset button.

5. The CS203 Network Board will then enter the "Boot Loader Mode"

3. Software Setup

After the hardware setup, open the Netfinder utility (“CS203 Netfinder.exe”). The utility provides

the following functions:

1. Search for available CS203 board in the network.

2. Change the CS203 IP address and port number.

3. Change the targeted server IP address and port number.

4. Change the TCP timeout value. (best set to zero)

5. Update the CS203 Boot Loader to newer version.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

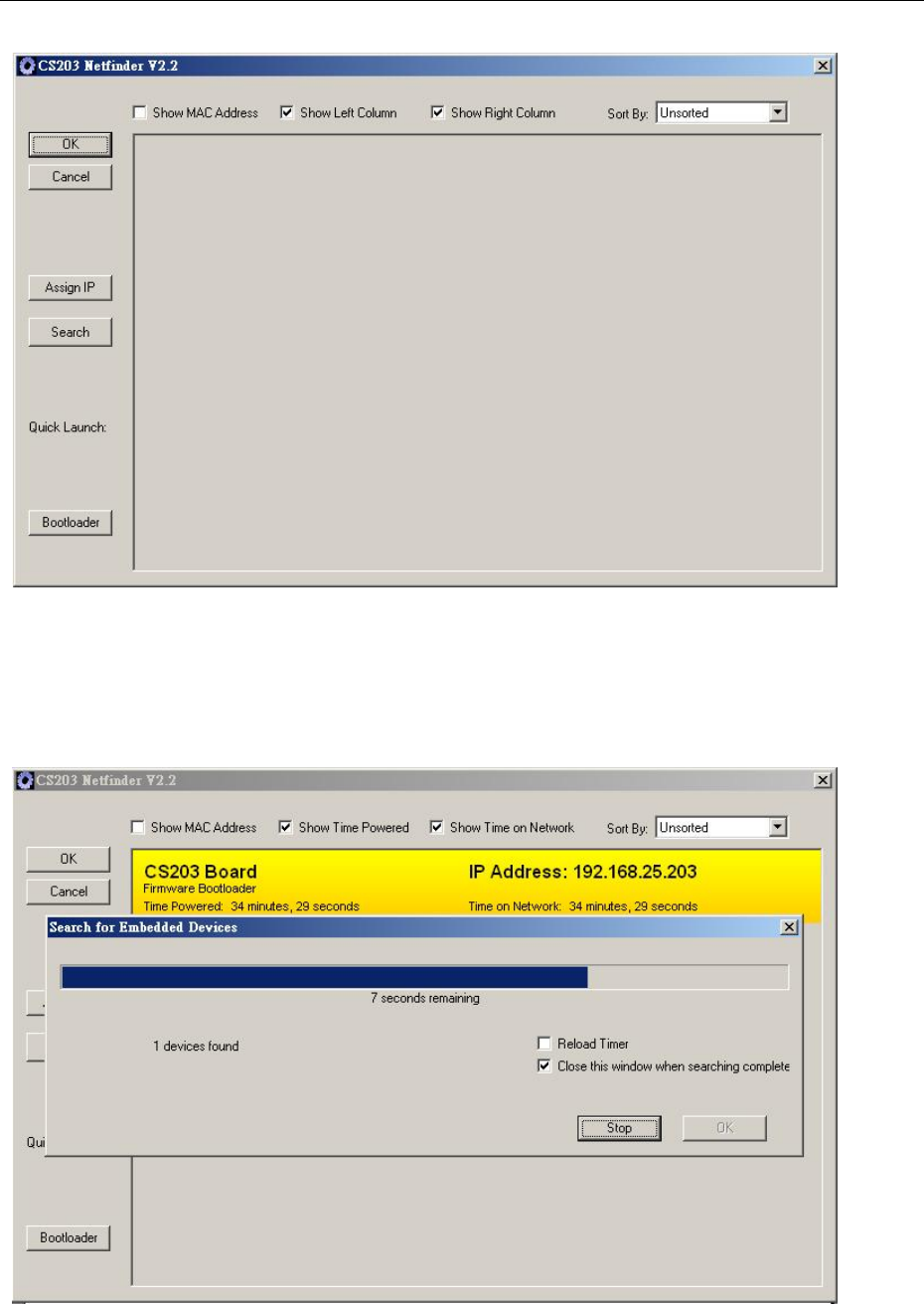

Fig. 5. CS203 Netfinder Utility

4. Search CS203 Board

1. Press the “Search” button.

2. Available CS203 board will be listed as shown in Fig. 2.

Fig. 6. Searching CS203 Board

. Assign CS203 IP, Server IP and TCP timeout 5

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

1. Select the found CS203 board. The selected one will be highlighted by a black border.

etting and press “OK”.

yed as shown in Fig. 4

2. Press the “Assign IP” button.

3. Change the IP, TCP timeout s

4. Wait until “Success – Device Programmed” has displa

Fig. 7. Assign IP(1)

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Fig. 8. Assign IP(2)

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

6 Demo Applications

6.1 Introduction

This document will describe the details about the CS203 demo application program

(CS203_Callback-API_DemoApp) that is based on the Callback-Based API set. Software

developers can refer to this demo program for programming CS203 based on this new set of

API.

6.2 Program Structure

The shipment package consists of the following directories:

CS203 GPIO Demonstrate the GPIO and IP setting function of the

reader

CS203 Start Stop Debug Demonstrate start stop reader function

CS203 CALLBACK API

DEMO

Demonstrate basic operation of the reader. E.g., inventory,

read and write etc...

CSL Library All necessarily dll library files will put to this folder

Document User Documents: API Library manual, User Manual, etc.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

6.3 Build Project Requirements

To build demo application successfully, you need to install Microsoft Visual Studio 2005 (with

Visual C# component and SP1 patch) or above. For more detailed information, please go to

Microsoft webpage (http://msdn.microsoft.com/en-us/vstudio/default.aspx).

Visual Studio 2005 SP1 -

http://www.microsoft.com/downloads/details.aspx?familyid=bb4a75ab-e2d4-4c96-b39d-37baf

6b5b1dc&displaylang=en

To run CS203 application, the PC must have Dot Net Framework 3.5 or above. This can be

downloaded from Microsoft.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

6.4 CS203 CALLBACK API Demo Program

Operations

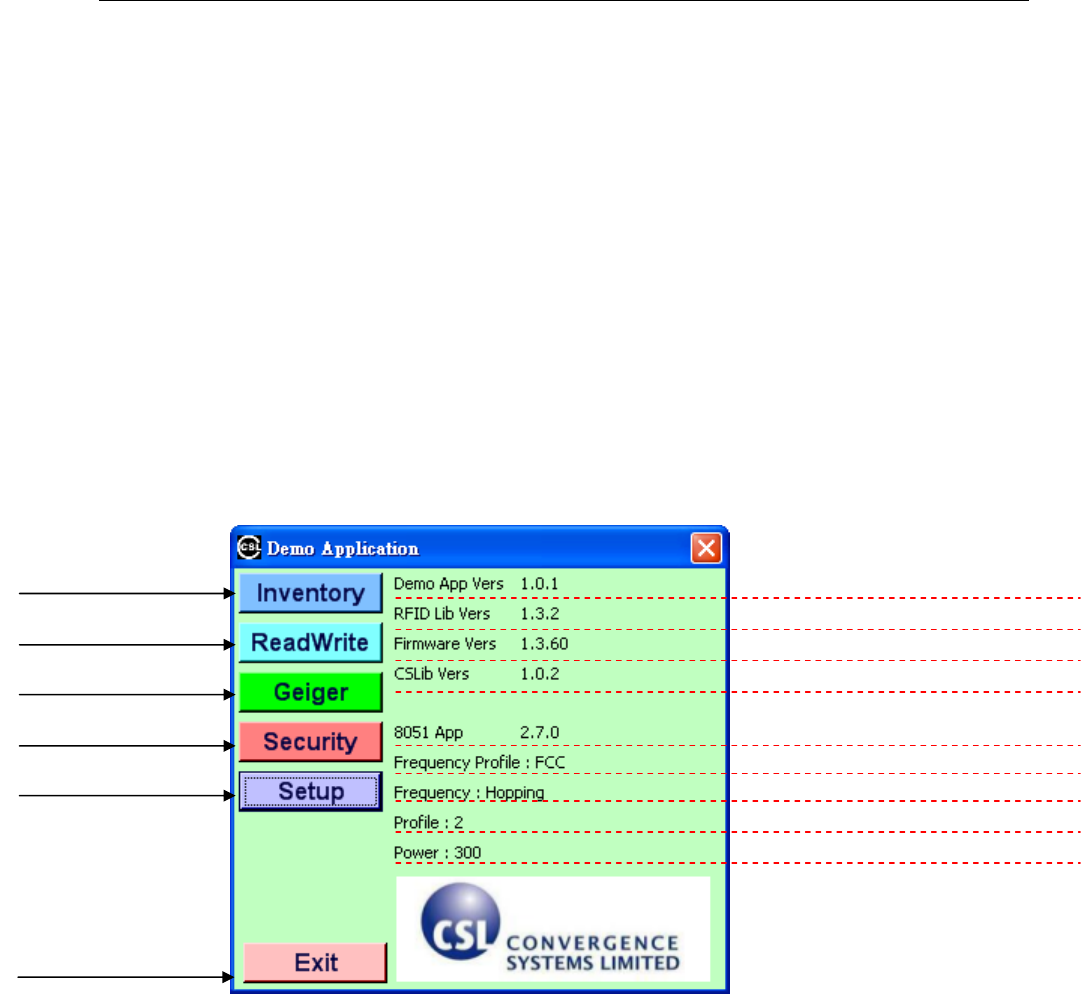

A. Main Menu

In main menu of the CS203 CALLBACK API DEMO program, the configuration

information of the reader is shown and you can select the various functions.

Intel RFID Library (rfid.dll, rfidtx.dll, cpl.dll)

CSLibrar

y

Version

(

RFIDXP.DLL

)

○

1 Inventory tags Demo Application Version

○

2 Read and write Reader FW Version

○

3 Geiger Search

○

4 Tag Securities

○

5 Channel Setup

8051 Ethernet Application Version

Frequency profile currently setting

Frequency Hopping

Link Profile 2 is using

30dBm Power Level

○

6 Exit program

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

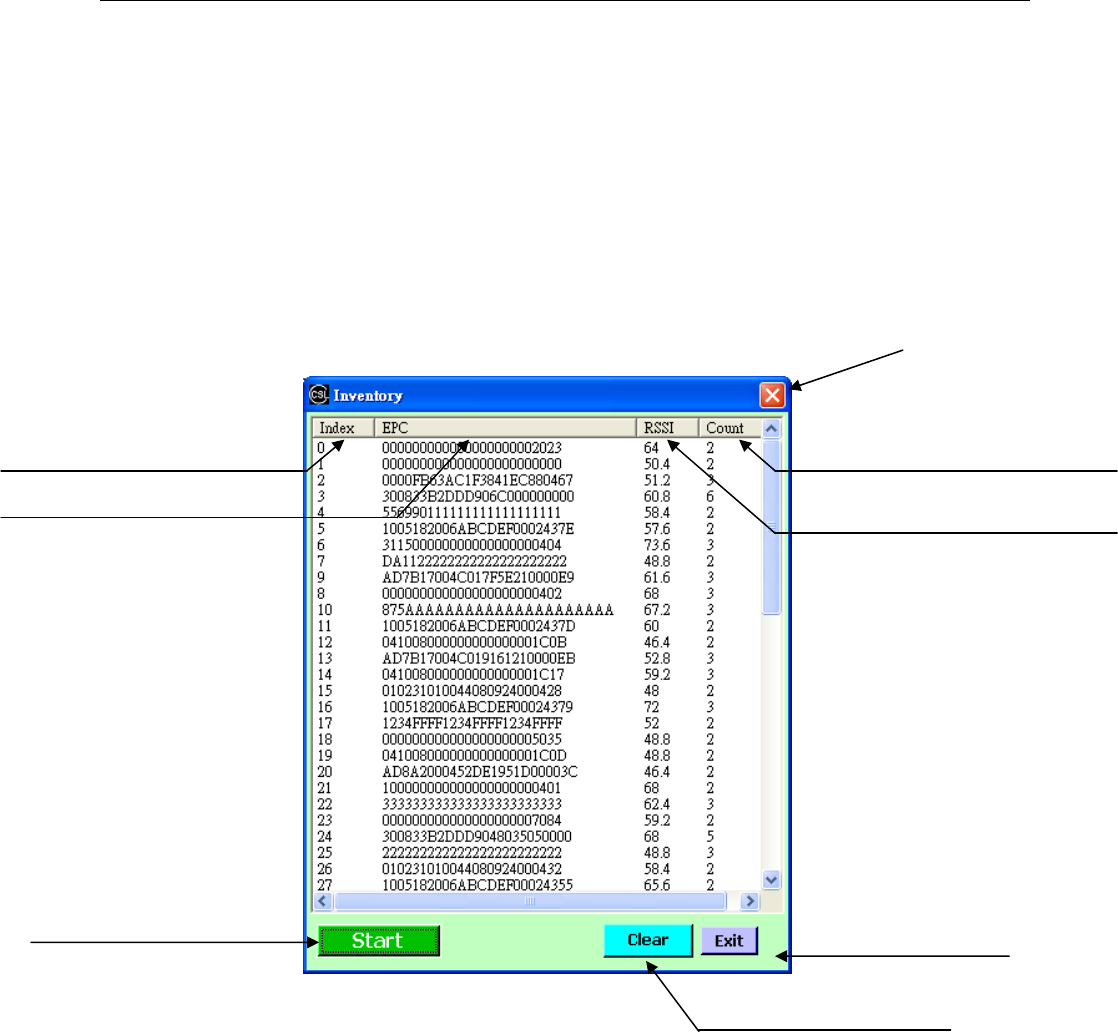

B. Inventory

This page demonstrates the tag inventory functions for reading tags continuously with the

RSSI value and read count.

Click the “Start” button to start reading tags.

Back to main

Clear all tags in data list

Click to sort Tags by

Index

Click to sort Tags by EPC

Click to sort Tags by total

Count

Click to sort Tags by RSSI

Start continuous inventory

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

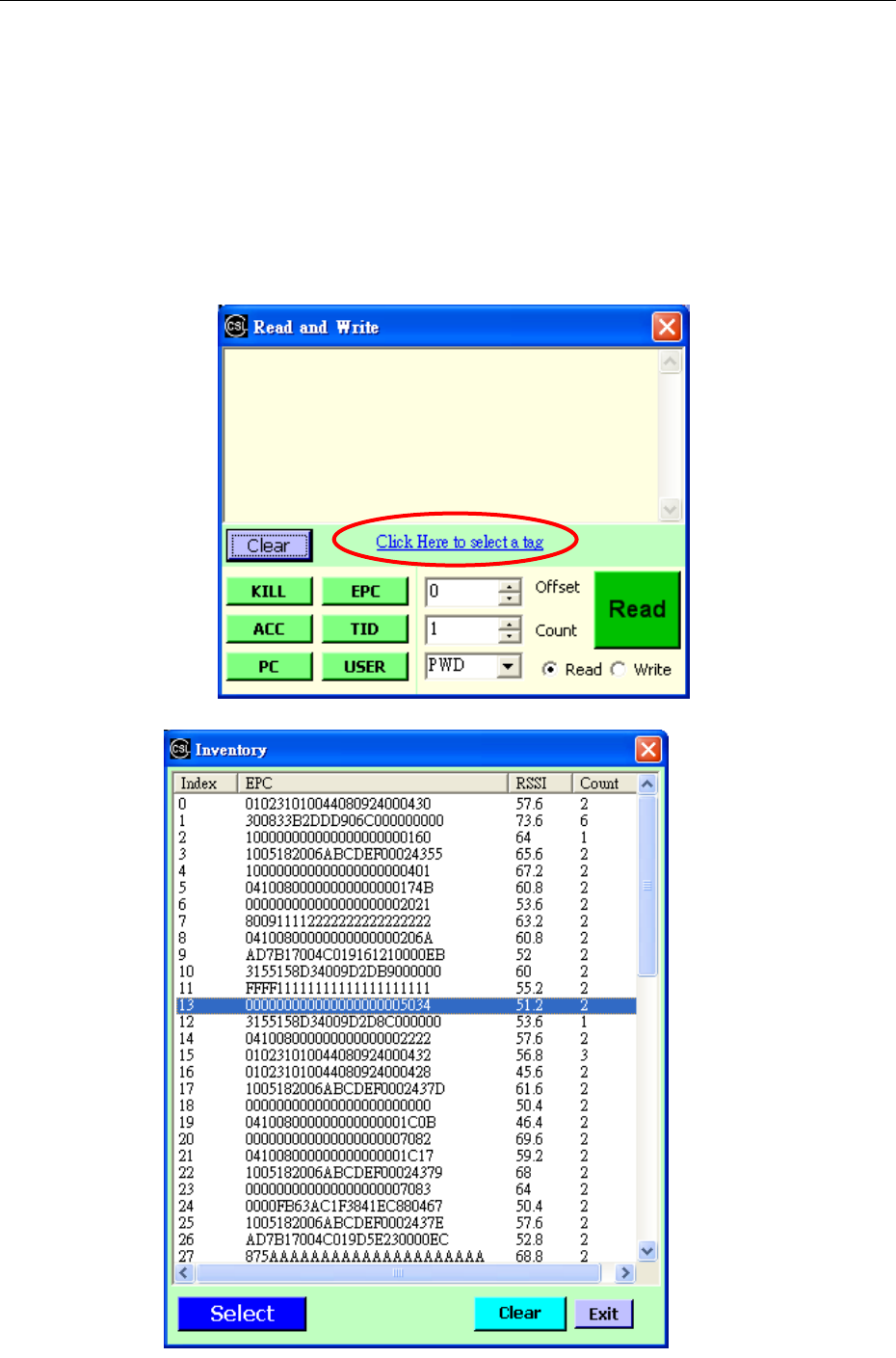

C. Read/Write

This page demonstrates the function of reading and writing different memory banks of a

selected tag.

Click on the “Click Here to select a tag” to scan for and select the tag you want to access.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

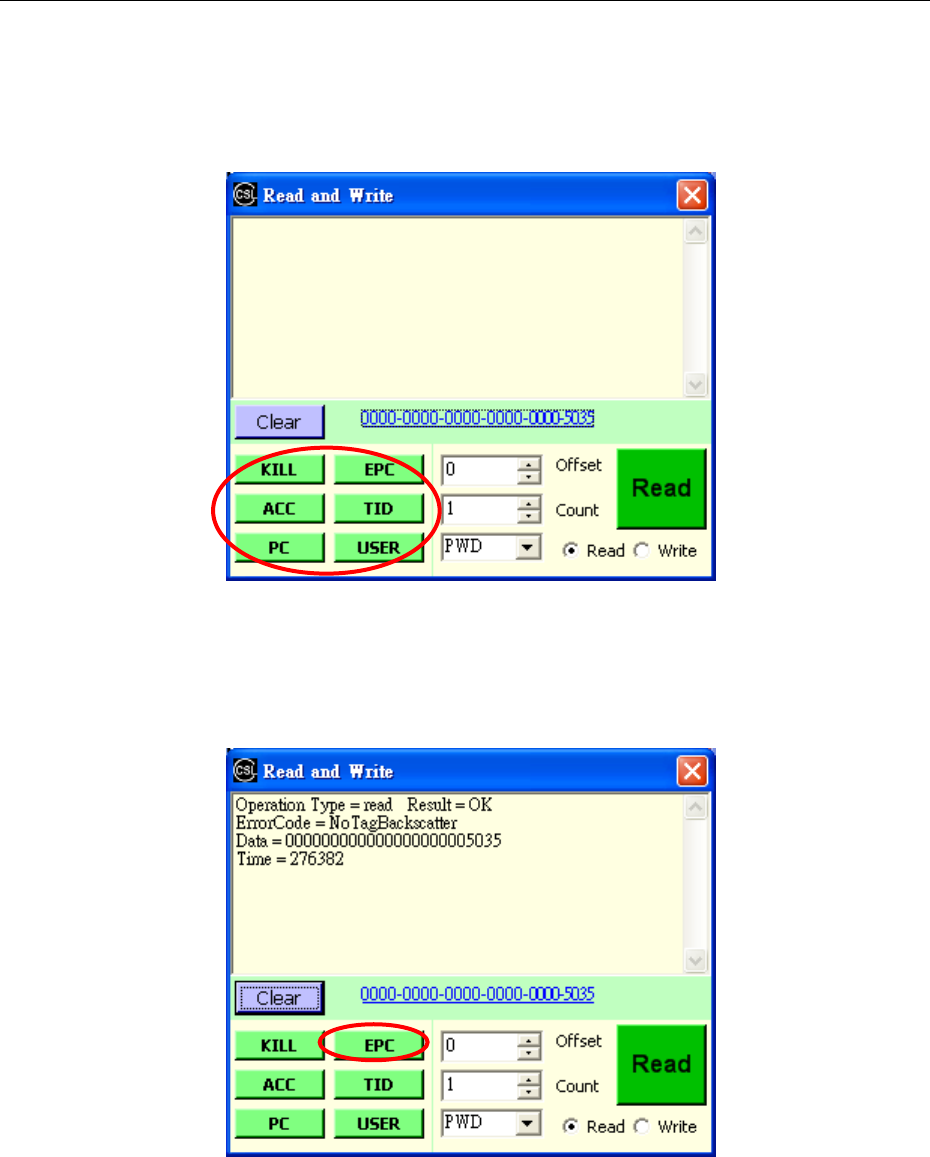

After the tag is selected, you can click on the left hand side buttons to read the

corresponding data on the tag.

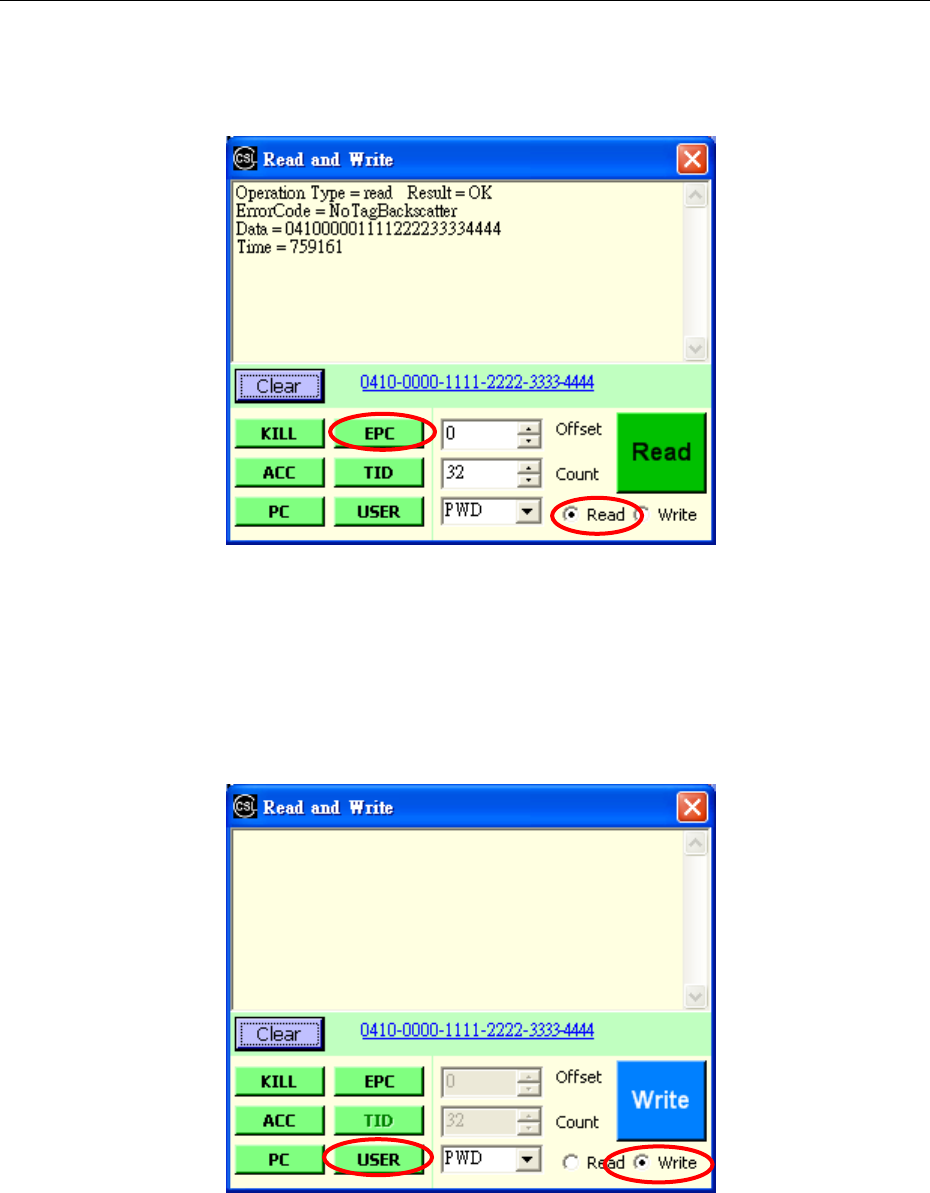

Read EPC: click on the “EPC” button to read the EPC ID

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

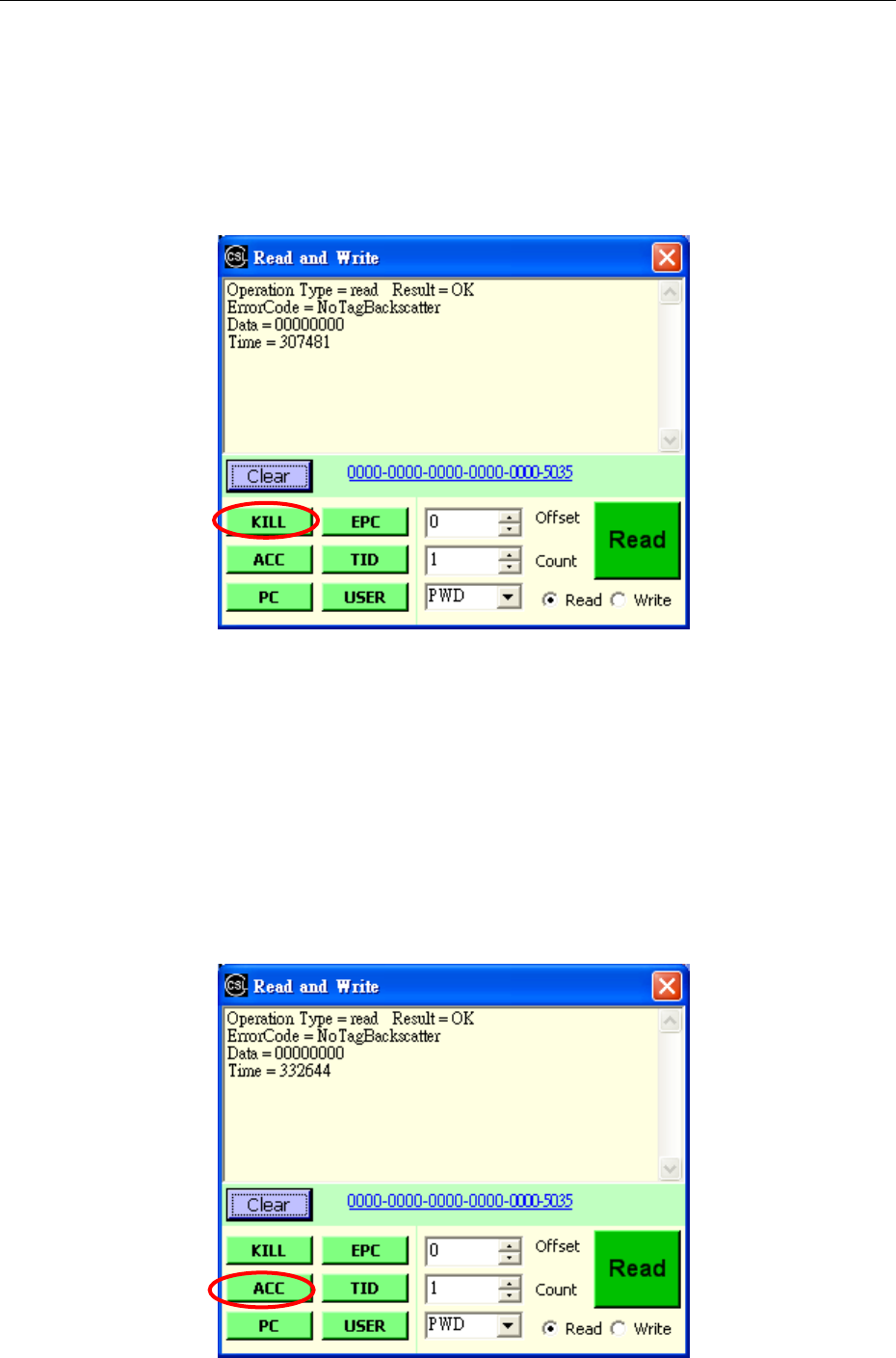

Read Kill Password: click on the “Kill” button to read the kill password

Read Access Password: click on the “ACC” button to read the access password.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

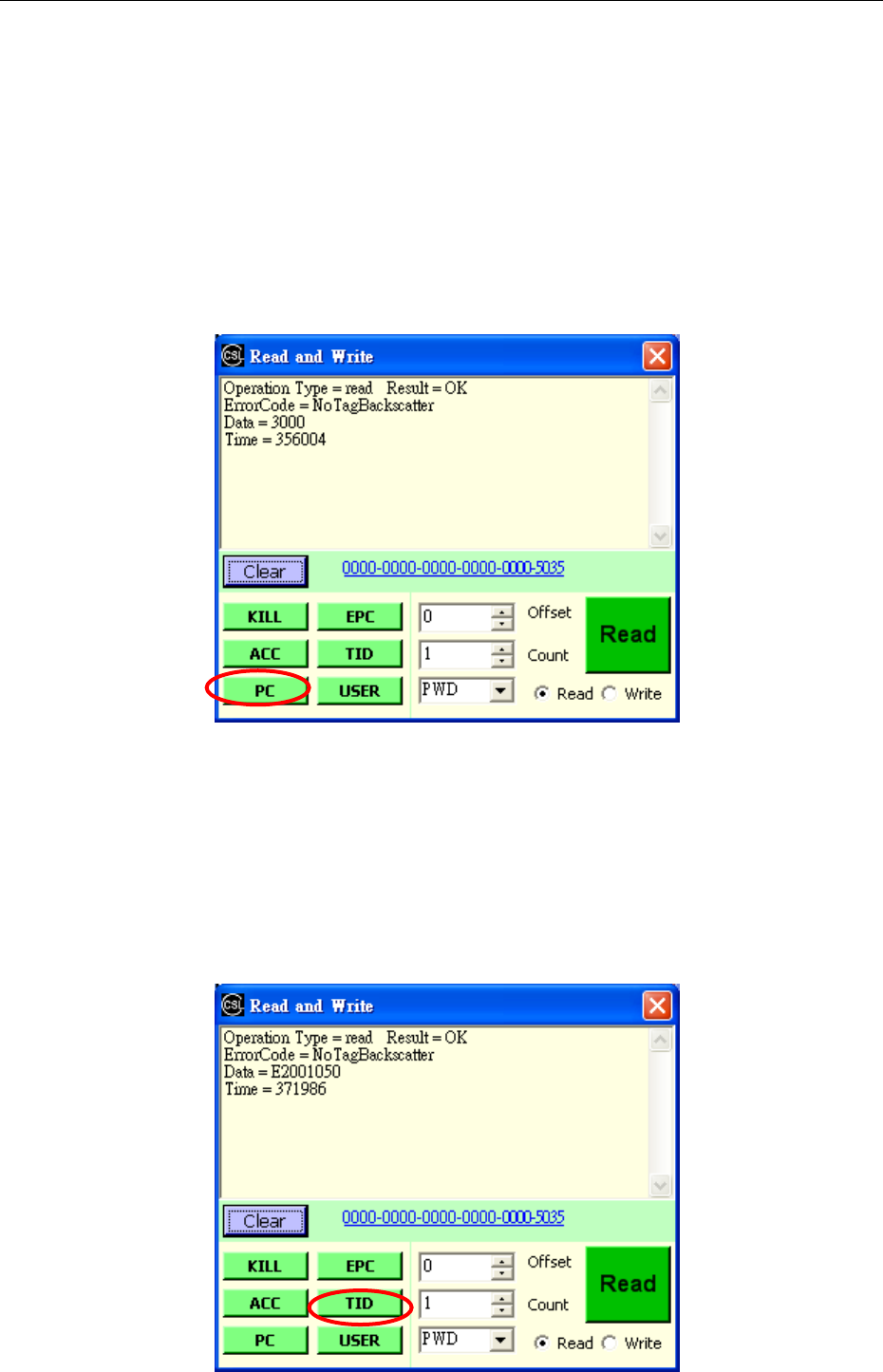

Read Protocol Control (PC): click on the “PC” button to read the PC value.

Read TID Value: click on the “TID” button to read the TID value.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

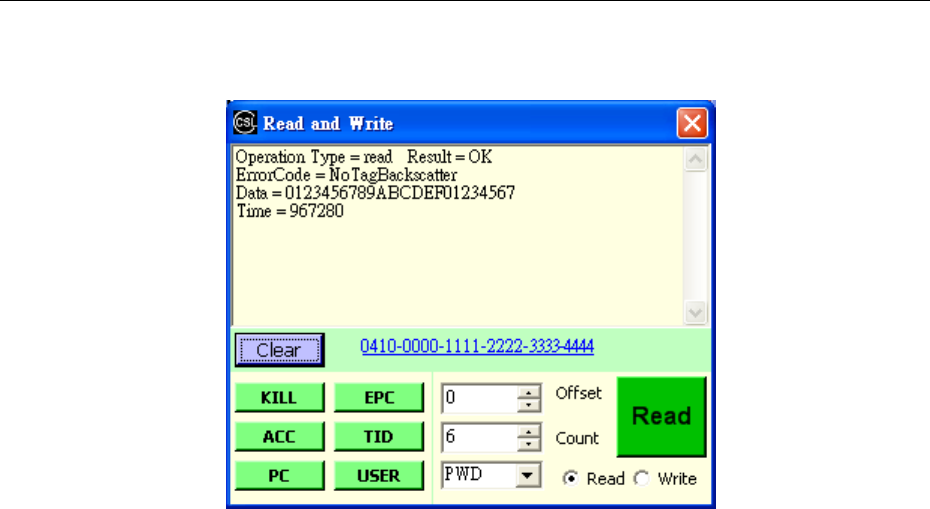

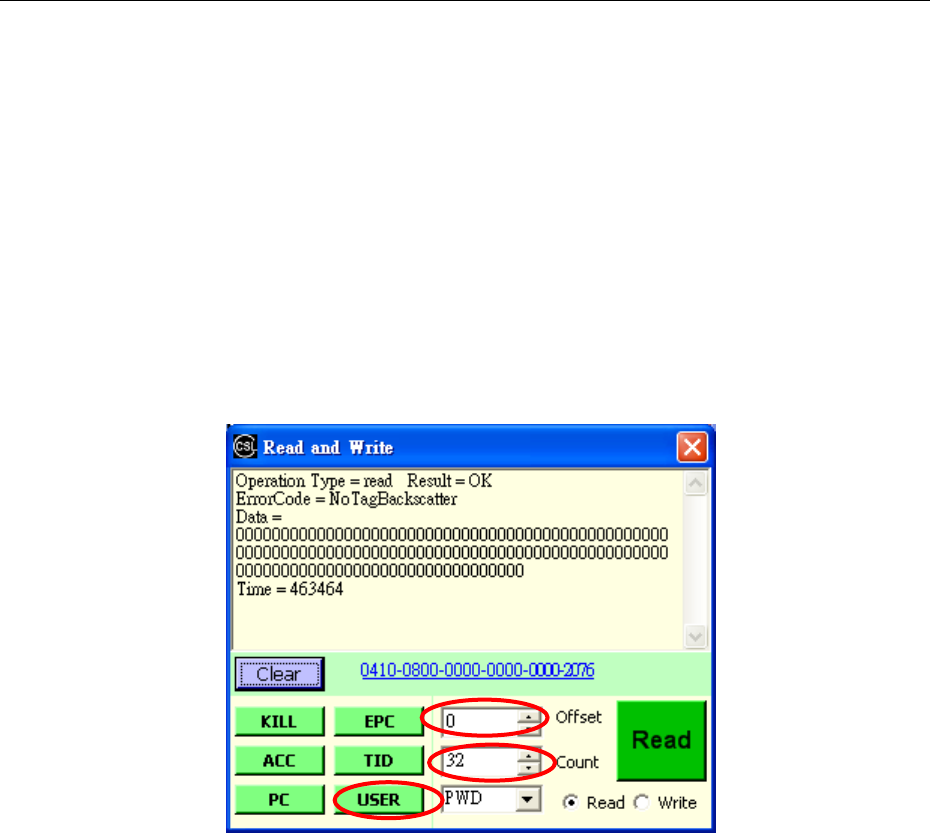

Read User Memory: Set the offset word and length of words you want to read for the

user memory bank and click “USER” button to read it.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

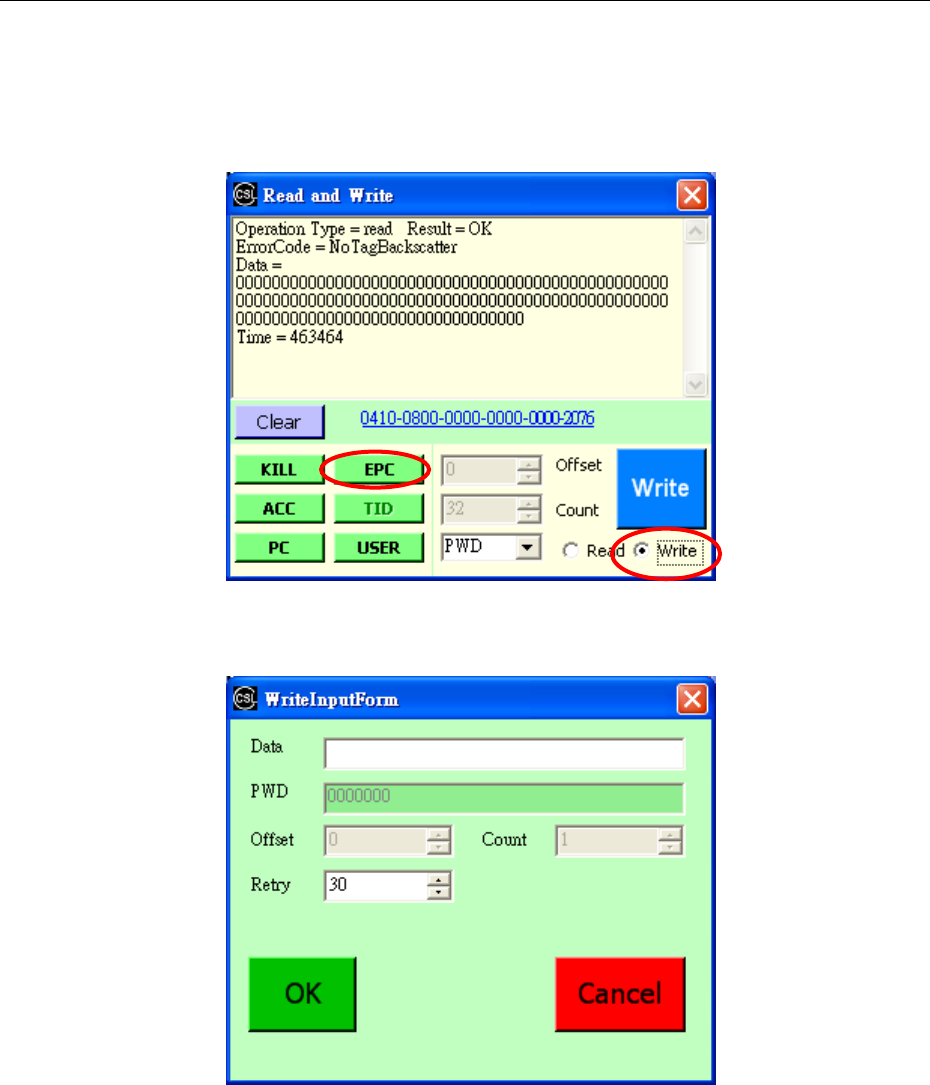

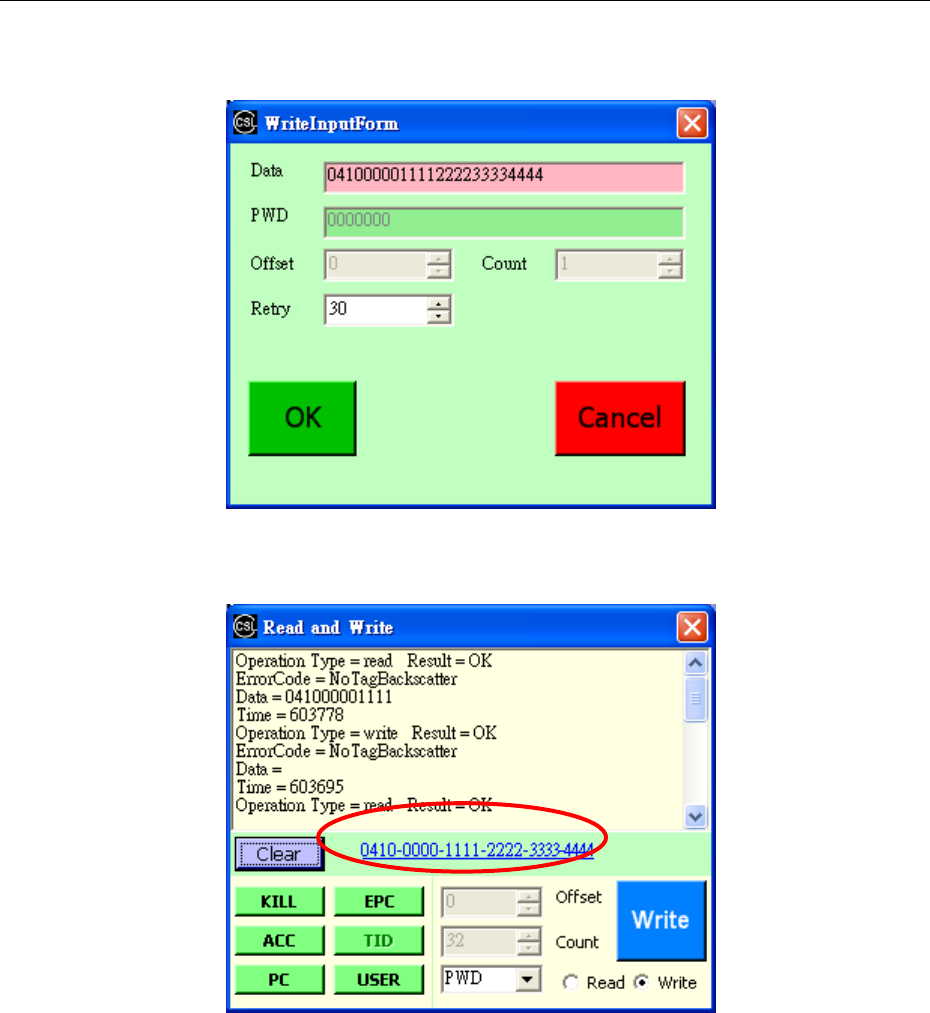

Write EPC: select “Write” and click on “EPC” button to enter the write EPC page

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Input the new EPC ID in the “Data” field and then click “OK” button

If write success, not error will show on the screen.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

After the EPC is written, you could verify by reading the EPC ID again

Write User Memory: select “Write” and click on “USER” button to enter the write

user memory page.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

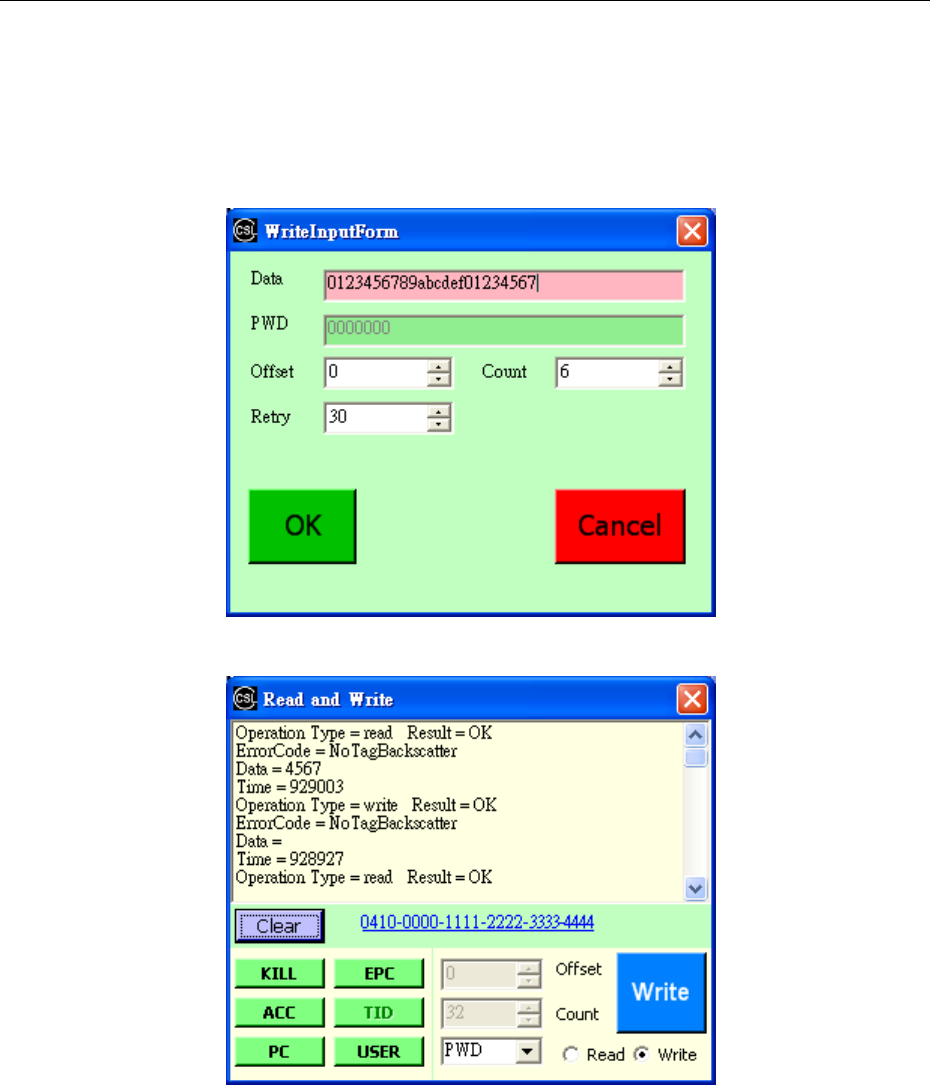

Select the offset word and length of words you want to write, then input the data into

“Data” field and click “OK” button to write the tag.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

After writing the user memory, you can verify by reading the user memory again.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

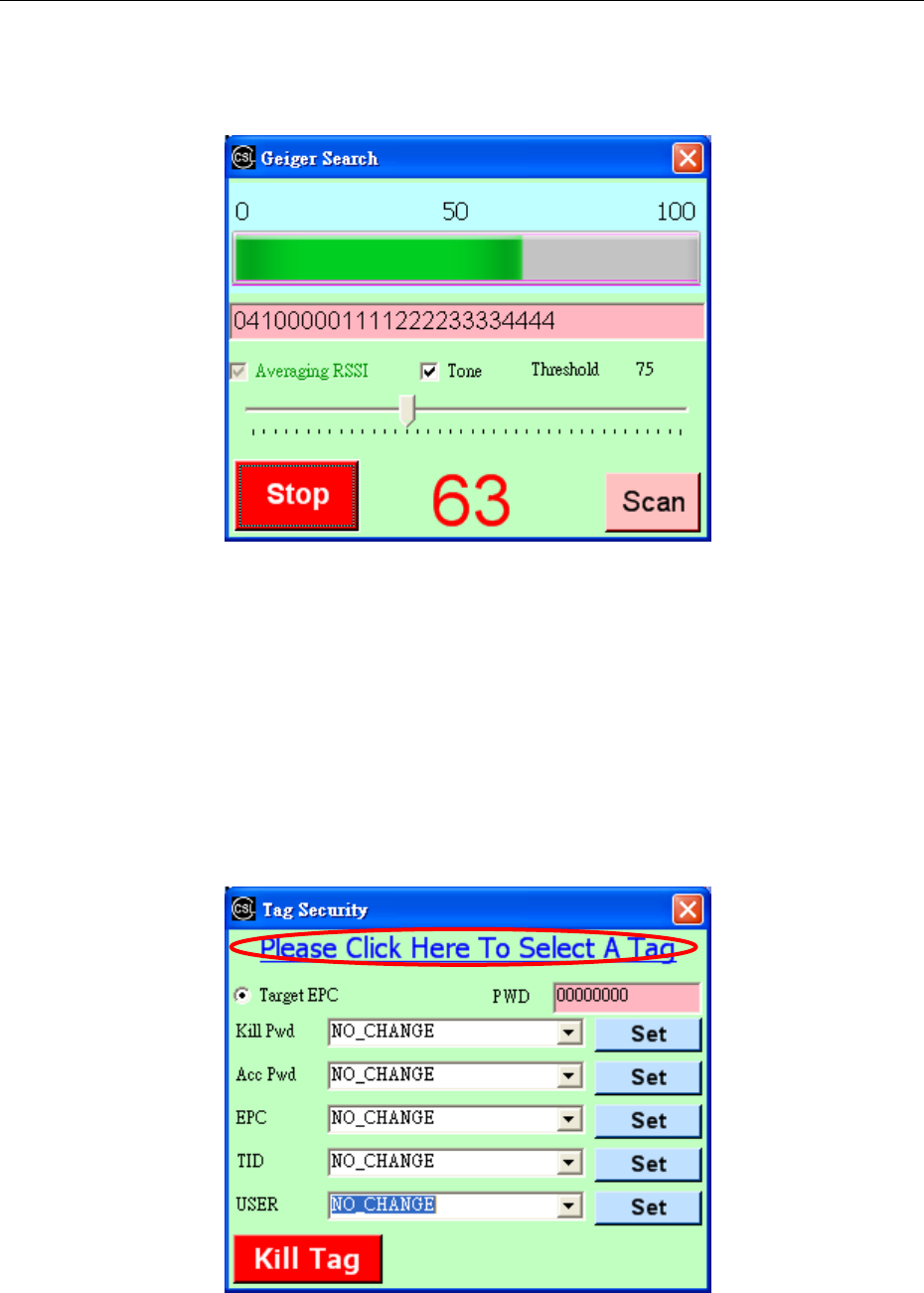

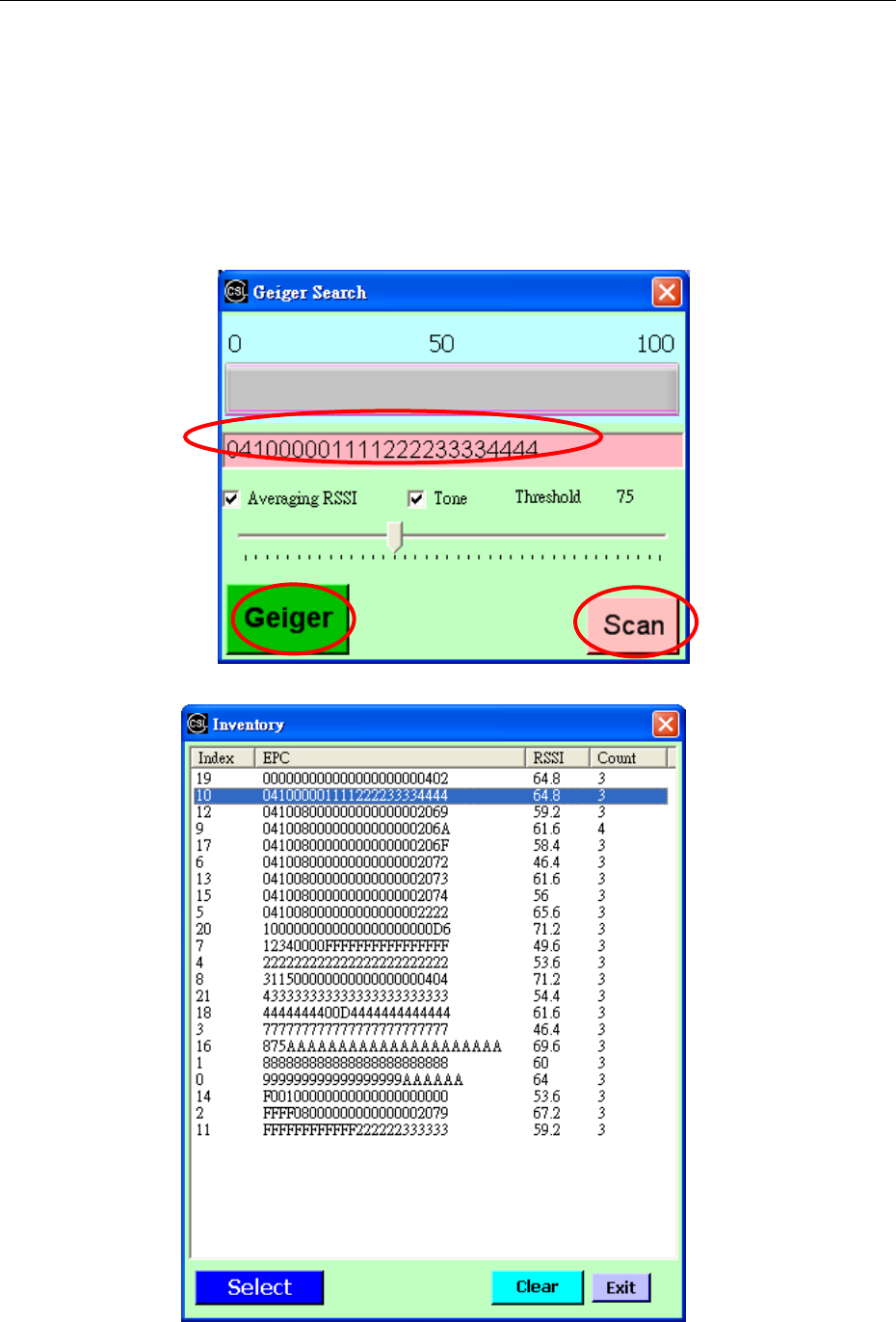

D. Geiger Counter Search

This page demonstrates the Geiger counter tag search mode. Input the EPC ID of the tag

or scan a tag you want to search and then click the “Geiger” button.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

When the tag is seen, it shows the RSSI value.

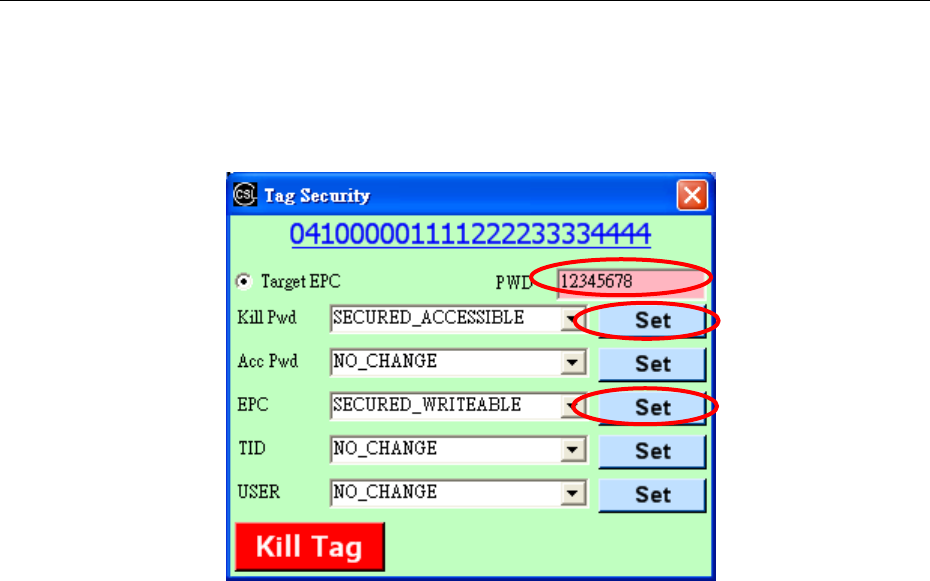

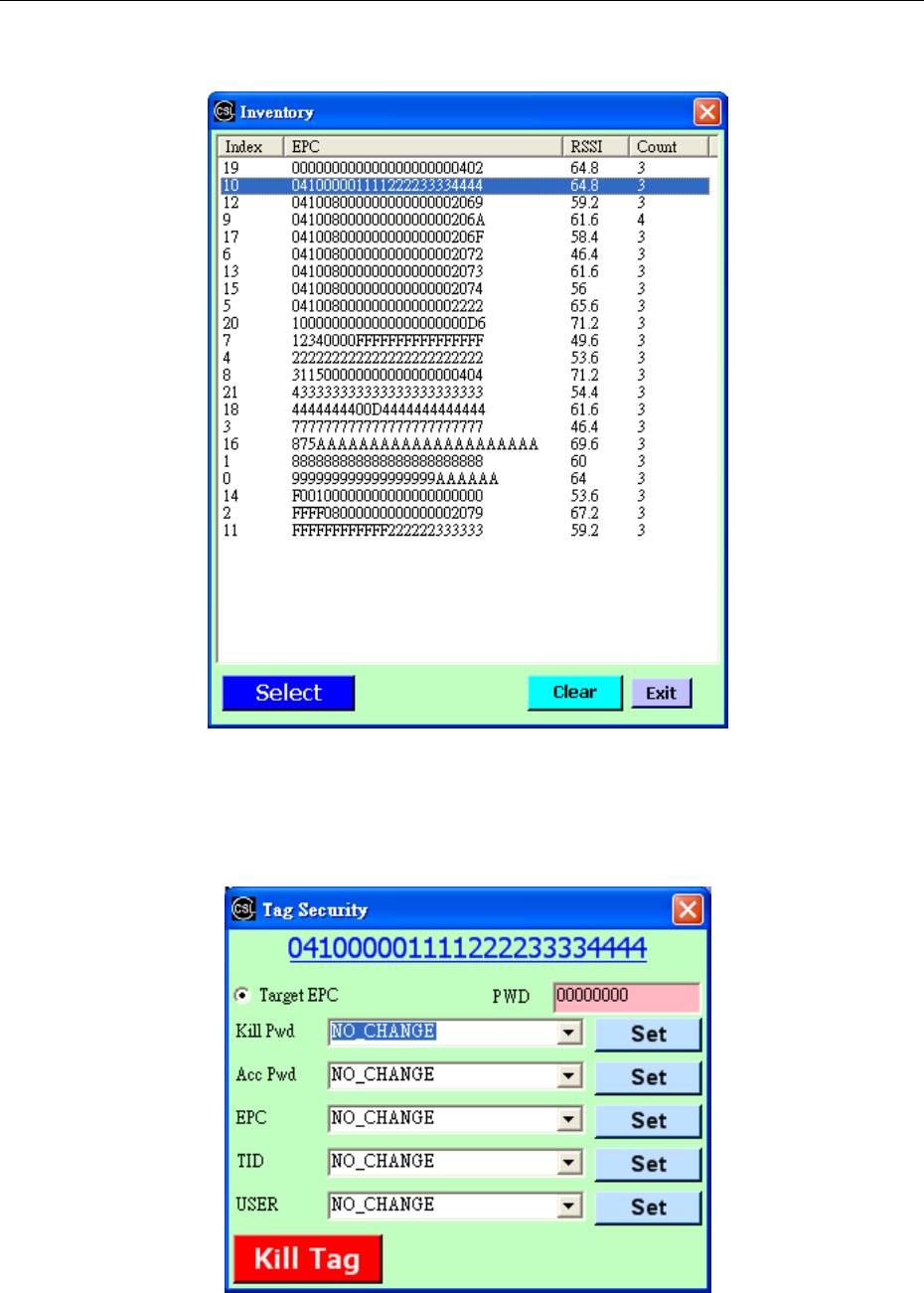

E. Tag Security

This page demonstrates the tag security operations (lock, unlock and kill)

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Enter the access password in “PWD” and click “Set” button to set the security setting.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

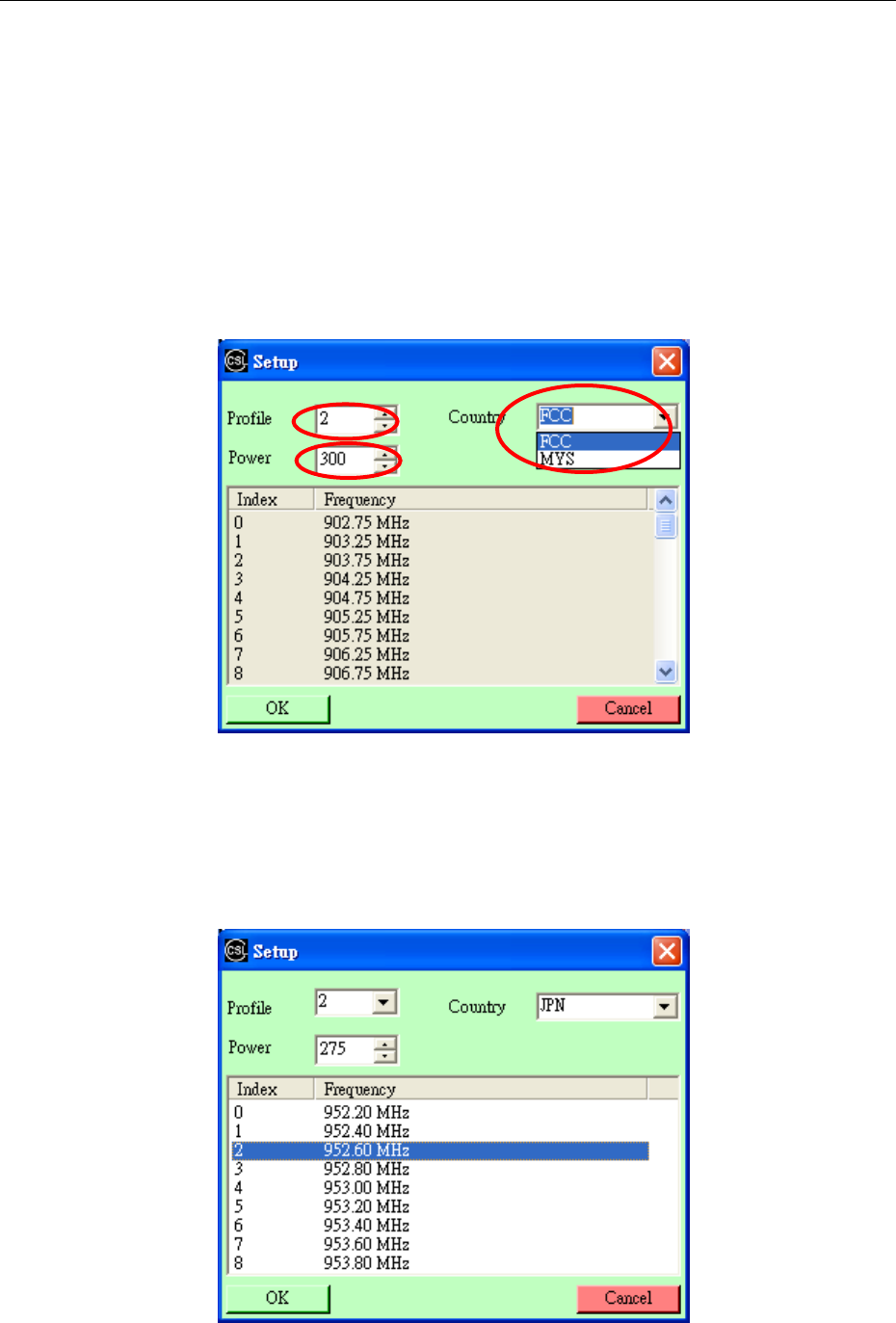

F. Setup

The “Setup” page allows the user to configure the country setting and link profile.

For FCC, you can only set link profile, power and country but not the fixed frequency

channel.

For JPN, you can set fixed frequency channel. Note that Channel 952.20 MHz and

Channel 953.80 MHz are not allowed with CS203.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

7 Middleware Connectivity

The CS203 is connected to many middleware, and the list of compatibility will continuously

grow. Currently there are 2 middleware already connected:

1. Sybase iAnywhere

2. Microsoft Biztalk

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

8 Software Upgrade

8.1 Upgrade of PC Side Libraries

On the PC side, there are 4 dll libraries required:

5. RFID_XP.dll

6. rfid.dll

7. rfidtx.dll

8. cpl.dll

The main dll library that user application has to call is the RFID_XP.dll. This is a C# library

under Dot Net Compact Framework. The other 3 dlls are called by RFID_XP.dll

For upgrading, just copy the latest versions of these 4 dll libraries to the appropriate Visual

Studio directory and then recompile and create new installer (.msi file). The end customer

can then take this new installer and then install into their PC.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

8.2 Upgrade of Reader Firmwares

8.2.1 Upgrade of Network Processor Firmware

The network processor firmware is further divided into 2 pieces:

1. Boot Loader

2. Application

The Boot Loader cannot be upgraded in the field by user.

The Application code is upgraded using Netfinder. The reader is first put into Boot Loader

Mode, so that the Netfinder can search for it. Once found, the boot loader code can be

downloaded.

8.2.1.1 Network Processor Application Upgrade

8.2.1.1.1 Hardware Setup

The only external hardware connections required by the CS203 are power and a connection to a

network.

1. Connect the CS203 to a network with Ethernet cable.

2. Push the reset button and hold it.

3. Power up the CS203.

4. Wait for 5 seconds and release the reset button.

8.2.1.1.2 Software Setup

After the hardware setup, open the Netfinder utility (“CS203 Netfinder.exe”). The utility provides

the following functions:

1. Search for available CS203 board in the network.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

2. Change the CS203 IP and port.

3. Change the server IP and port.

4. Change the TCP timeout value.

5. Update the CS203 Bootloader.

Fig. 9. CS203 Netfinder Utility

8.2.1.1.3 Search CS203 Board

1. Press the “Search” button.

2. Available CS203 board will be listed as shown in Fig. 2.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Fig. 10. Searching CS203 Board

8.2.1.1.4 Image Update

. Select the found CS203 board. The selected one will be highlighted by a black border.

tting and press “OK”.

ful:” will be displayed as shown in Fig. 6. Remark: If

r utility

image software.

1

2. Press the “Bootloader” button.

3. Change the IP, TCP timeout se

4. Select a *.img fire to update (Fig. 5).

5. Wait about 6-15 Seconds.

6. If success, “Transfer success

“Transfer successful:” doesn’t appear after 20 seconds, please re-open the Netfinde

and repeat the image update process from step 1 again.

7. Turn off and turn on the power of CS203 to run the new

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Fig. 11. Select image file to update

Fig. 12. Image update successful.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

8.2.2 Upgrade of RFID Board Firmware

The RFID board firmware cannot be upgraded in the field by user.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

9 Regulatory Information

9.1 Federal Communications Commission (FCC)

Compliance

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:

z Reorient or relocate the receiving antenna.

z Increase the separation between the equipment and receiver.

z Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

z Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This device and its antenna(s) must not be co-located or operating in conjunction with any

other antenna or transmitter. This product must be installed by a professional

technician/installer.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Appendix A. RFID Basics

Passive tag RFID technology involves the reader, the antenna and the tag.

The reader sends out energy in the relevant frequency band to the antenna via RF cables, and

the antenna radiates the energy out. This energy impinges on an RFID tag.

The RFID tag consists of an antenna coupled to an RFID IC. This IC converts the AC voltage

it receives at the antenna port to DC voltage that in turn is used to empower the digital circuit

inside.

The digital circuit then turns on and off some components connected to the antenna port,

thereby changing its scattering behavior, in a pre-designed clock rate.

This changing of antenna port parameters then causes a “modulation” of the back-scattered RF

energy.

This modulated back-scattered energy is detected by the reader and the modulation is captured

and analyzed.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Appendix B. Operation Profiles

Region 2: FCC

Profile 0 1 2 3 4 5

R-T Modulation DSB-ASK DSB-ASK PR-ASK PR-ASK DSB-ASK PR-ASK

Tari (μs) 25.00 12.50 25.00 25.00 6.25 25.00

R-T speed (kbps) 40 80 40 40 160 40

PIE 2:1 2:1 1.5:1 1.5:1 1.5:1 1.5:1

Pulse Width (uS) 12.50 6.25 12.50 12.50 3.13 12.50

T-R LF (kbps) 40 160 250 300 400 250

T-R Modulation FM0 Miller-2 Miller-4 Miller-4 FM0 Miller-2

Divide Ratio 8 8 64/3 64/3 8 64/3

T-R Data Rate

(kbps)

40 80 62.5 75 400 125

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Appendix C. RF channels

Region 2: FCC

Channel

number

Frequency

(MHz)

Channel

number

Frequency

(MHz)

Channel

number

Frequency

(MHz)

1 902.75 18 911.25 35 919.75

2 903.25 19 911.75 36 920.25

3 903.75 20 912.25 37 920.75

4 904.25 21 912.75 38 921.25

5 904.75 22 913.25 39 921.75

6 905.25 23 913.75 40 922.25

7 905.75 24 914.25 41 922.75

8 906.25 25 914.75 42 923.25

9 906.75 26 915.25 43 923.75

10 907.25 27 915.75 44 924.25

11 907.75 28 916.25 45 924.75

12 908.25 29 916.75 46 925.25

13 908.75 30 917.25 47 925.75

14 909.25 31 917.75 48 926.25

15 909.75 32 918.25 49 926.75

16 910.25 33 918.75 50 927.25

17 910.75 34 919.25

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Appendix D. FAQ

1. How can I connect to CS203 wirelessly?

Easy. Just purchase any off-the-shelf Ethernet to Wi Fi bridge or Ethernet to

GSM/GPRS bridge or 3G bridge, then you can convert the CS203 to a wireless reader.

2. others

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Appendix E. Common Mistakes

1. The weatherproof Ethernet cable that comes with the product package is a "STRAIGHT"

cable. If user wants to connect directly to a PC, then it may or may not work depending

on whether the network card on the PC can handle a straight cable. Newer PCs have

Ethernet card capable of "Auto-Detect" and "Auto-Switch". Older PCs are not capable

of that. So for older PC one has to use a network switch or router to go in between.

First connect the CS203 via the weatherproof cable to the network switch, then use

another straight cable to connect from the network switch to the PC. Another option is

an Ethernet to Ethernet bridge. This is a small adaptor with Ethernet socket on both ends.

This will cross switch the cable.

2. The CS203 comes ex-factory with a standard IP address and also a "target PC server IP

address". When the user first open the unit from the box, the user must use a laptop with

that particular "target PC server IP address" for them to connect. Once connected, then

the user can change the IP address on the CS203 and also change the "target PC server IP

address". Once that is done, the CS203 can be deployed in the actual site.

CSL CS203ETHER-2 EPC CLASS 1 GEN 2 RFID INTEGRATED READER USER'S MANUAL, VERSION 1.0

Appendix D. Technical Support

System integrators setting up the CSL CS203 Integrated Reader may encounter some problems.

To quickly solve that, they are welcome to send the symptoms and configuration files back to

techsupport@convergence.com.hk for support. Please send the following:

1) CS203 Factory Serial Number - best to take a photo of the label at the back of the

reader and send the photo to CSL technical support team

2) Final firmware versions of reader

3) Final library version on PC side

4) Brief description of problems

5) Screen capture of problems or error messages on PC with time

6) Screen capture of command window doing "netstat -na" command

7) Screen capture of command window doing "ipconfig" command

8) Screen capture of Windows Task Manager "Processes" window

9) Screen capture of Windows Task Manager "Applications" window

10) Screen capture of Windows Task Manager "Performance" window

11) Photos of the overall site (if that can be released)

Send the above sets of data to techsupport@convergence.com.hk

Convergence Systems CS203ETHERC1G2 Class 1 Gen 2 RFID Integrated Reader User Manual CSL CS101 1 EPC Class 1 Gen 2 RFID Handheld Reader

Convergence Systems Limited Class 1 Gen 2 RFID Integrated Reader CSL CS101 1 EPC Class 1 Gen 2 RFID Handheld Reader

User Manual

Navigation menu

Namespaces

Views

Navigation
