CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

CSL CS468-2 EPC Class 1 Gen 2 RFID

Fixed Reader

User’s Manual

Version 1.0

CSL: The One-Stop-Shop for RFID Solutions

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

1 Content

1 CONTENT ....................................................................................................................................................... 2

2 FCC STATEMENT ......................................................................................................................................... 3

3 INTRODUCTION ............................................................................................................................................ 4

3.1 PRODUCT PACKAGE ................................................................................................................................. 4

3.1.1 Basic Package Content ....................................................................................................................... 4

3.1.2 Product Specifications ........................................................................................................................ 5

4 INSTALLATION ............................................................................................................................................ 7

4.1 DEVICES .................................................................................................................................................. 7

4.1.1 Reader ................................................................................................................................................ 7

4.1.2 Switch ................................................................................................................................................. 8

4.2 OPERATING SETUP ................................................................................................................................. 10

5 REGULATORY INFORMATION .............................................................................................................. 12

5.1 FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT ................................................ 12

APPENDIX A. RFID BASICS .............................................................................................................................. 13

APPENDIX B. OPERATION PROFILES ........................................................................................................... 14

APPENDIX C. RF CHANNELS ........................................................................................................................... 15

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

2 FCC Statement

FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must be

professionally installed to ensure compliance with the Part 15 certification. It is the

responsibility of the operator and professional installer to ensure that only certified systems are

deployed in the United States. The use of the system in any other combination is expressly

forbidden.

RF exposure information: To maintain compliance with FCC RF exposure requirements, use

the device that maintain a 20cm separation distance between the user's body and the host.

MPE limit for RF exposure at prediction frequency is 0.61mW/cm2, the MPE for this model

is 0.36 mW/cm2. It satisfy RF exposure compliance.

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

3 Introduction

3.1 Product Package

3.1.1 Basic Package Content

The reader package contains:

• Fixed reader

• 16 port switch

• RF cables (two cables to support two installation topologies)

• USB cable

• GPIO cable

• 12V switching power supply

• Extended mounting stud and nuts

• Plastic caps for connectors and cables

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

3.1.2 Product Specifications

Fig 1-1 CS468 Reader

Features:

• ISO 18000-6C and EPCglobal Class 1 Gen 2 UHF RFID protocol compliant including

dense reader mode

• Ultra long read range – peak at 9 meters for UPM Dogbone RFID tag

• Ultra high read rate – peak at 300 tags per second

• Sophisticated data handling for efficient management of large streams of tag data.

• Highly configurable buffering and tag filtering modes to eliminate the redundant tag data

so as to reduce LAN traffic and server loading

• 400 kbps tag-to-reader data rate profile

• Robust performance in dense-reader environments

• Excellent in transmit and receive mode – generates a different combination of unique

reader-to-tag command rate, tag-to-reader backscatter rate, modulation format, and

backscatter type

• Configurable parameters offer maximum throughput and optimal performance

• Supports all Gen 2 commands, including write, lock and kill

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

Specifications:

Physical Characteristics: Reader:

Length: 27 cm; Width: 16 cm; Height: 2.4 cm; Weight: 700g

Switch:

Length: 16cm; Width: 13.5; Height: 2cm; Weight:415g

Environment: Operating Temp: -200C to 500C

Storage Temp: -400C to 850C

Humidity: 5% to 95% non-condensing

Power: 12 Volt supplied via an AC/DC adaptor or IEEE 802.3af

compliant Power Over Ethernet enabled power source

RFID Frequency Ranges: 902-928 MHz band

Interfaces LAN TCP/IP

( Configurable to use fixed IP address or DHCP )

Maximum Tag Read Rate: 300 tag/sec.

Maximum Speed of Tag: 660 ft/min

Accessories: • Two RF cables

• USB cable

• GPIO cable

• 12V switching power supply

• Extended mounting stud and nuts

• Plastic caps for connectors and cables

Order Code: CS468-2

Restrictions on Use: Approvals, features and parameters may vary depending on

country legislation and may change without notice

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

4 Installation

4.1 Devices

4.1.1 Reader

The CSL CS468 fixed RFID Reader is an EPCglobal Class 1 Gen 2 reader product.

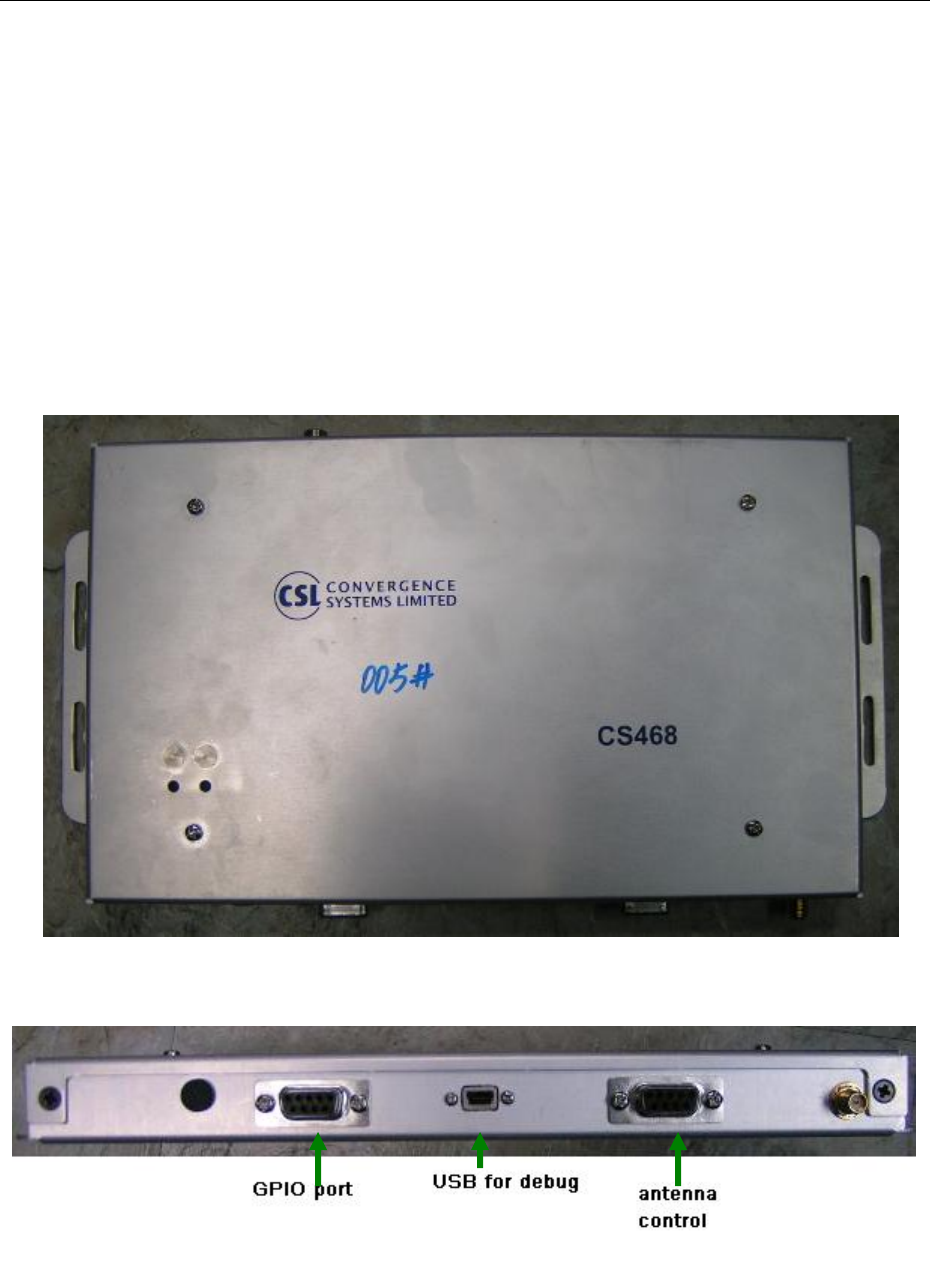

Figure 4-1 CS468 Reader Top View

Figure 4-2 CS468 Reader Side View

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

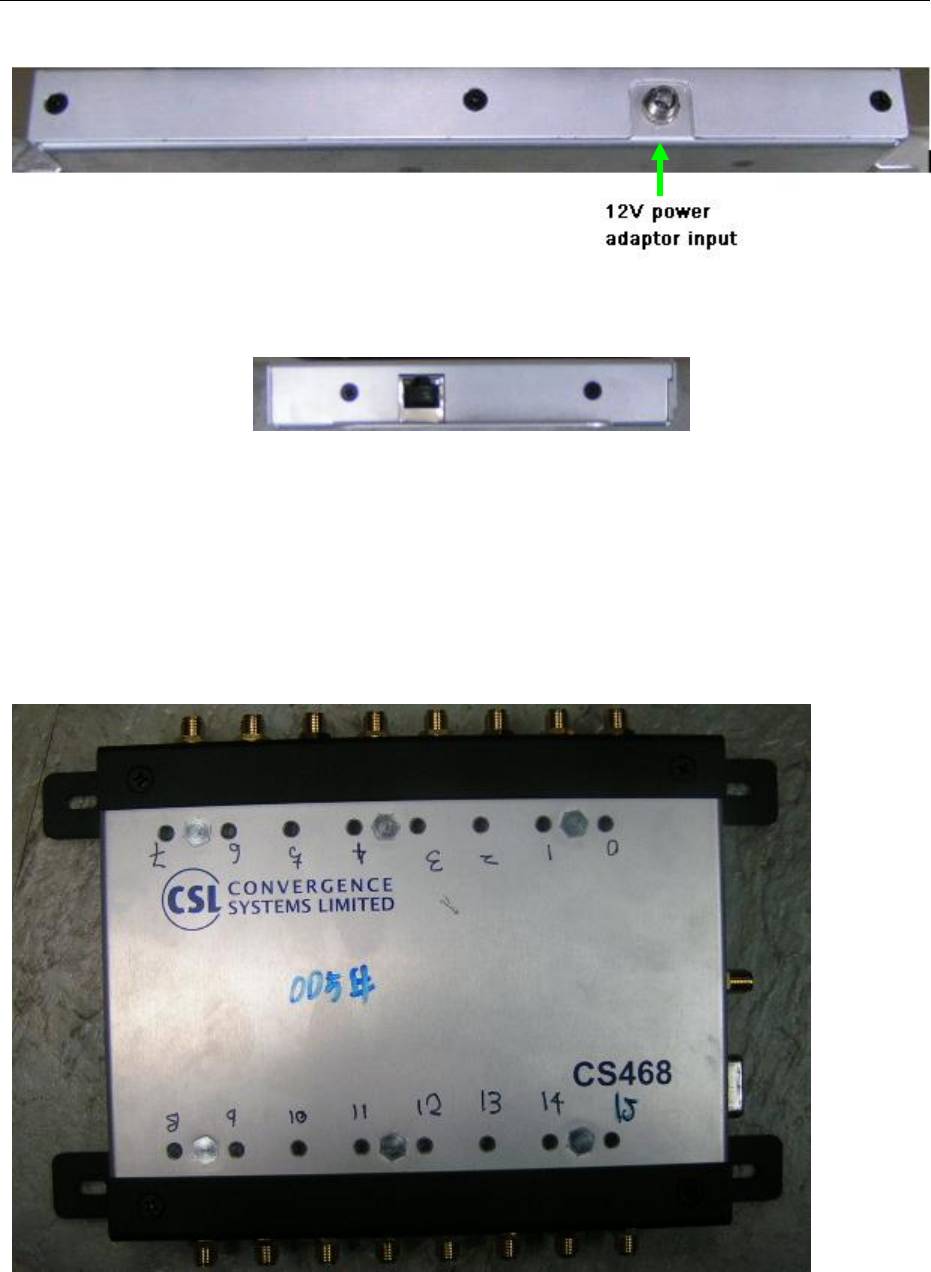

Figure 4-3 CS468 Reader Side View

Figure 4-4 CS468 Reader Side View

4.1.2 Switch

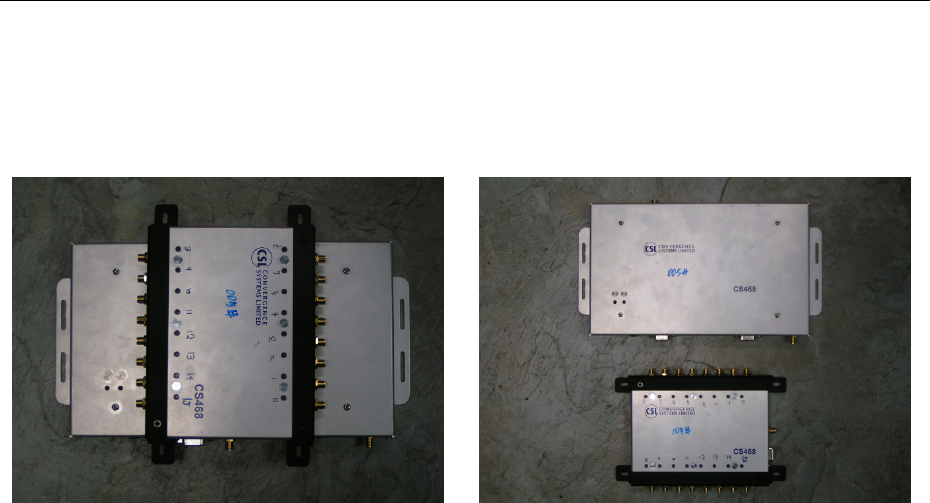

Figure 4-5 CS468 Switch Top View

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

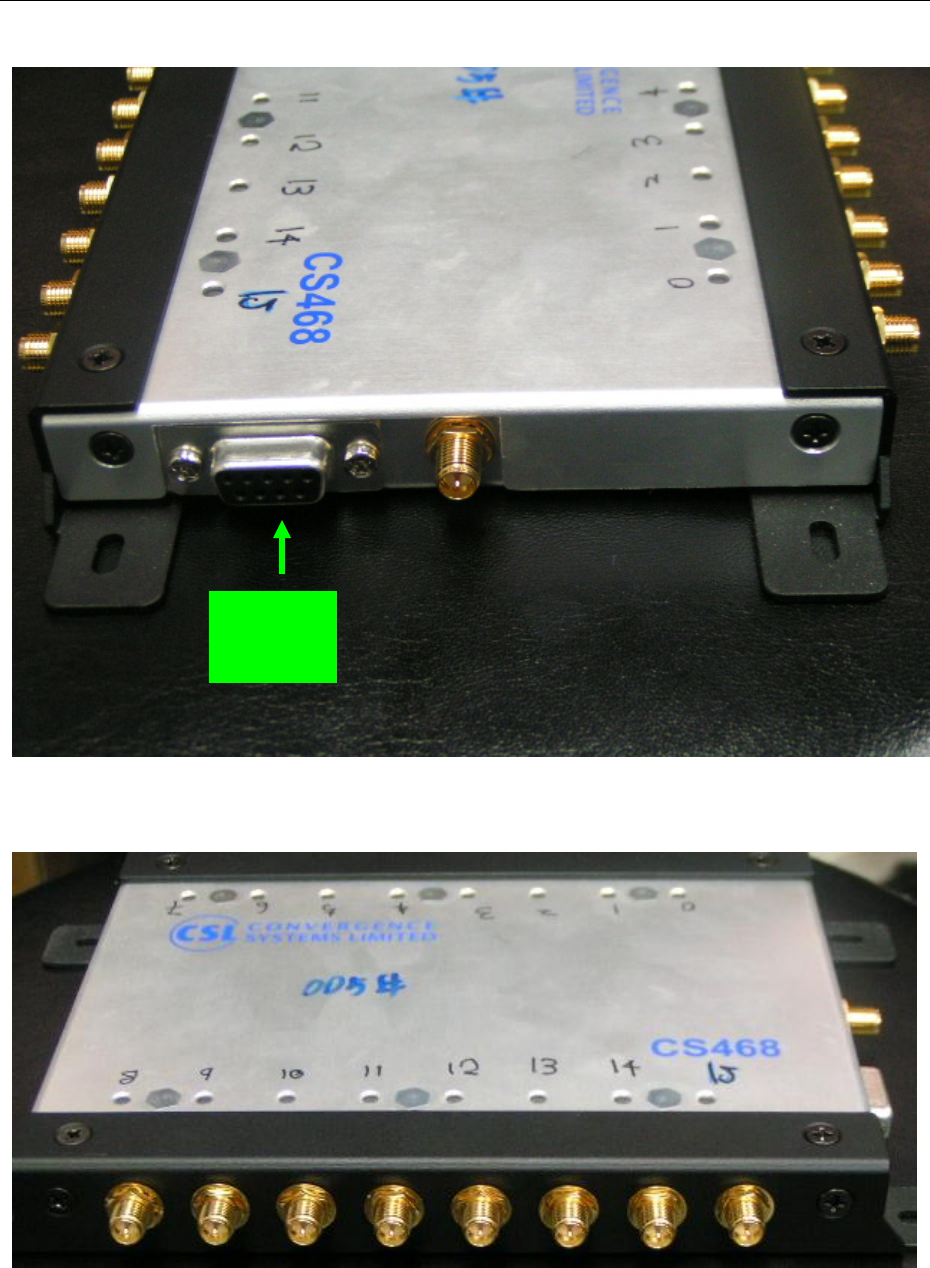

Figure 4-6 CS468 Switch Side View

Figure 4-7 CS468 Switch Side View

Antenna

Control

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

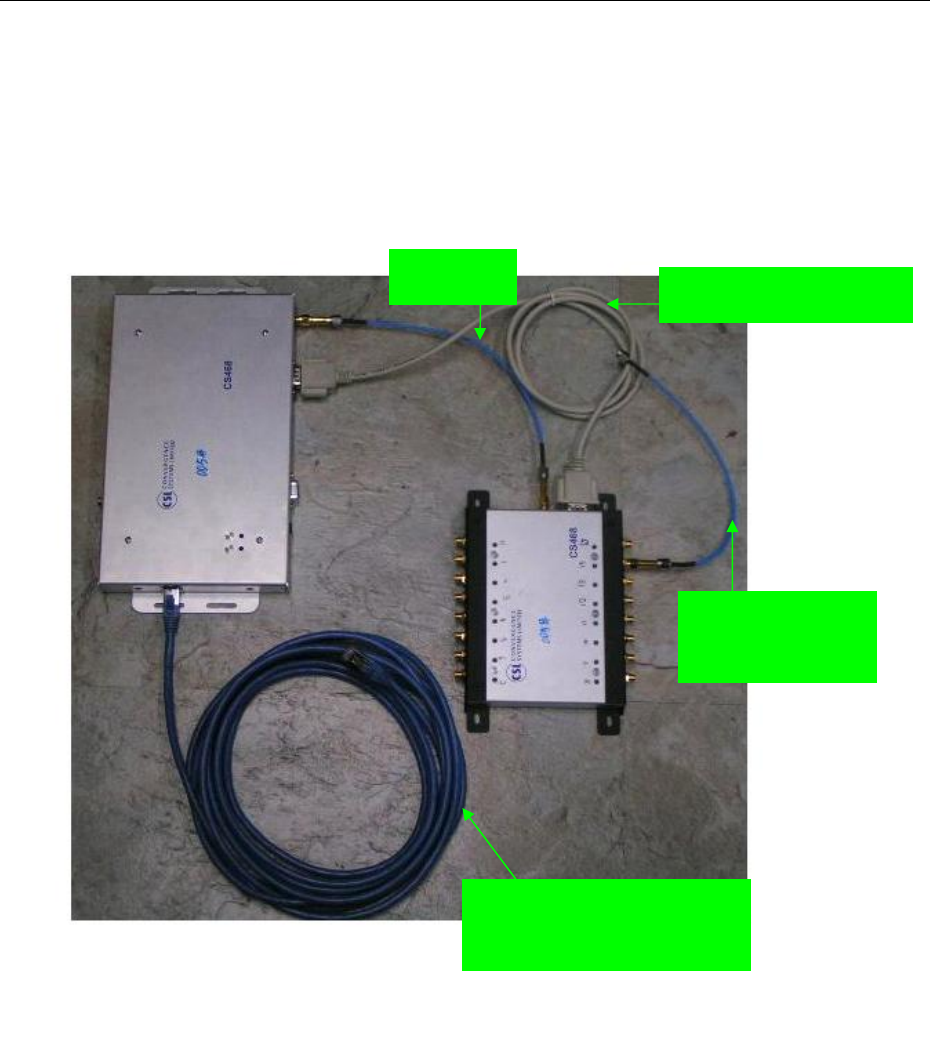

4.2 Operating Setup

CS468-2 has two power up modes: POE mode and 12V adaptor mode.

Figure 2-5 POE mode Setup

The reader is connected to POE enabled power source’s output port via the cable provided in

the package.

LAN cable to POE

enabled power source

Antenna control cable

RF cable

RF measurement

cable

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

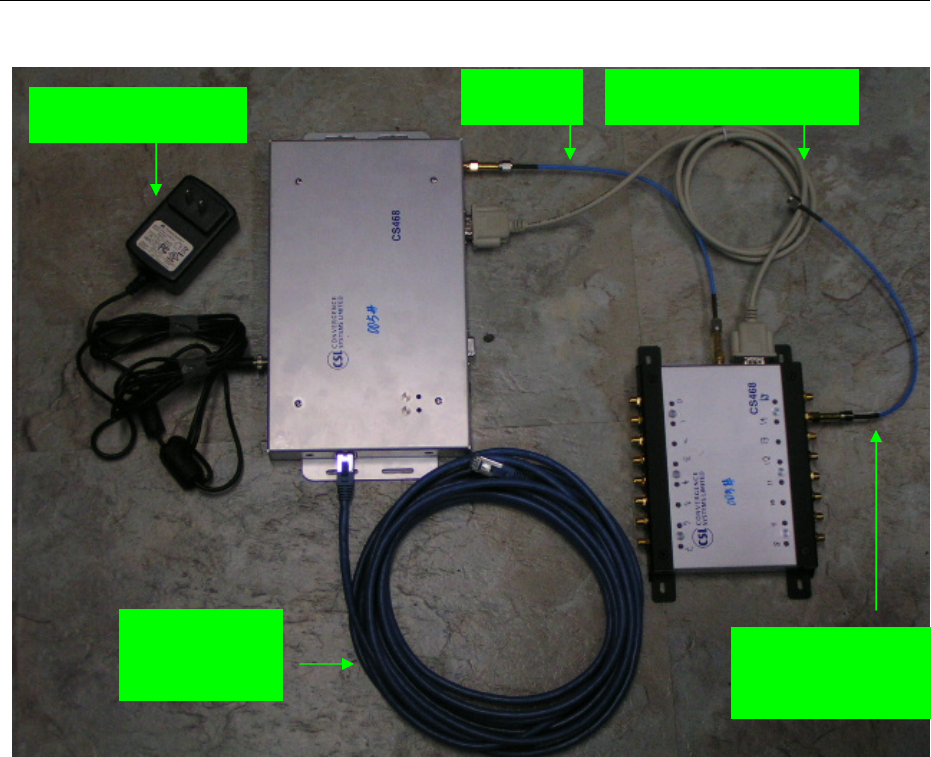

Figure 2-6 12V power adaptor mode Setup

The reader is directly connected to a host computer via the cable provided in the package.

LAN cable to

host PC

12V power adaptor Antenna control cable RF cable

RF measurement

cable

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

5 Regulatory Information

5.1 Federal Communications Commission

Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:

z Reorient or relocate the receiving antenna.

z Increase the separation between the equipment and receiver.

z Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

z Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This device and its antenna(s) must not be co-located or operating in conjunction with any

other antenna or transmitter. This product must be installed by a professional

technician/installer.

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

Appendix A. RFID Basics

Passive tag RFID technology involves the reader, the antenna and the tag.

The reader sends out energy in the relevant frequency band to the antenna via RF cables, and

the antenna radiates the energy out. This energy impinges on an RFID tag.

The RFID tag consists of an antenna coupled to an RFID IC. This IC converts the AC voltage

it receives at the antenna port to DC voltage that in turn is used to empower the digital circuit

inside.

The digital circuit then turns on and off some components connected to the antenna port,

thereby changing its scattering behavior, in a pre-designed clock rate.

This changing of antenna port parameters then causes a “modulation” of the back-scattered RF

energy.

This modulated back-scattered energy is detected by the reader and the modulation is captured

and analyzed.

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

Appendix B. Operation Profiles

Region 2: FCC

Profile 0 1 2 3 4 5

R-T Modulation DSB-ASK DSB-ASK PR-ASK PR-ASK DSB-ASK PR-ASK

Tari (μs) 25.00 12.50 25.00 25.00 6.25 25.00

R-T speed (kbps) 40 80 40 40 160 40

PIE 2:1 2:1 1.5:1 1.5:1 1.5:1 1.5:1

Pulse Width (uS) 12.50 6.25 12.50 12.50 3.13 12.50

T-R LF (kbps) 40 160 250 300 400 250

T-R Modulation FM0 Miller-2 Miller-4 Miller-4 FM0 Miller-2

Divide Ratio 8 8 64/3 64/3 8 64/3

T-R Data Rate

(kbps)

40 80 62.5 75 400 125

CSL CS468-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 1.0

Appendix C. RF channels

Region 2: FCC

Channel

number

Frequency

(MHz)

Channel

number

Frequency

(MHz)

Channel

number

Frequency

(MHz)

1 902.75 18 911.25 35 919.75

2 903.25 19 911.75 36 920.25

3 903.75 20 912.25 37 920.75

4 904.25 21 912.75 38 921.25

5 904.75 22 913.25 39 921.75

6 905.25 23 913.75 40 922.25

7 905.75 24 914.25 41 922.75

8 906.25 25 914.75 42 923.25

9 906.75 26 915.25 43 923.75

10 907.25 27 915.75 44 924.25

11 907.75 28 916.25 45 924.75

12 908.25 29 916.75 46 925.25

13 908.75 30 917.25 47 925.75

14 909.25 31 917.75 48 926.25

15 909.75 32 918.25 49 926.75

16 910.25 33 918.75 50 927.25

17 910.75 34 919.25
