3 Introduction

3.1 Product Package

3.1.1 Basic Package Content

The reader package contains:

• Fixed reader

• 4 port switch

• RF cables (two cables to support two installation topologies)

• USB cable

• GPIO cable

• 12V switching power supply

• Extended mounting stud and nuts

• Plastic caps for connectors and cables

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

3.1.2 Product Specifications

Fig 1-1 CS469-2 Reader

Features:

•

ISO 18000-6C and EPCglobal Class 1 Gen 2 UHF RFID protocol compliant including dense

reader mode

•

Ultra long read range – peak at 9 meters for UPM Dogbone RFID tag

•

Ultra high read rate – peak at 300 tags per second

•

Sophisticated data handling for efficient management of large streams of tag data.

•

Highly configurable buffering and tag filtering modes to eliminate the redundant tag data so as

to reduce LAN traffic and server loading

•

400 kbps tag-to-reader data rate profile

•

Robust performance in dense-reader environments

•

Excellent in transmit and receive mode – generates a different combination of unique

reader-to-tag command rate, tag-to-reader backscatter rate, modulation format, and backscatter

type

•

Configurable parameters offer maximum throughput and optimal performance

•

Supports all Gen 2 commands, including write, lock and kill

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

Specifications:

Physical Characteristics: Length: 27 cm; Width: 16 cm; Height: 2.4 cm; Weight: 700g

Environment: Operating Temp: -20

0

C to 50

0

C

Storage Temp: -40

0

C to 85

0

C

Humidity: 5% to 95% non-condensing

Power:

12 Volt supplied via an AC/DC adaptor or IEEE 802.3af

compliant Power Over Ethernet enabled power source

RFID Frequency Ranges: 902-928 MHz band

Interfaces LAN TCP/IP

( Configurable to use fixed IP address or DHCP )

Maximum Tag Read Rate: 300 tag/sec.

Maximum Speed of Tag: 660 ft/min

Accessories: • USB cable

• GPIO cable

• 12V switching power supply

• Plastic caps for connectors and cables

Order Code: CS469-2

Restrictions on Use: Approvals,

features and parameters may vary depending on

country legislation and may change without notice

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

4 Installation

4.1 Devices

The CSL CS469-2 fixed RFID Reader is an EPCglobal Class 1 Gen 2 reader product.

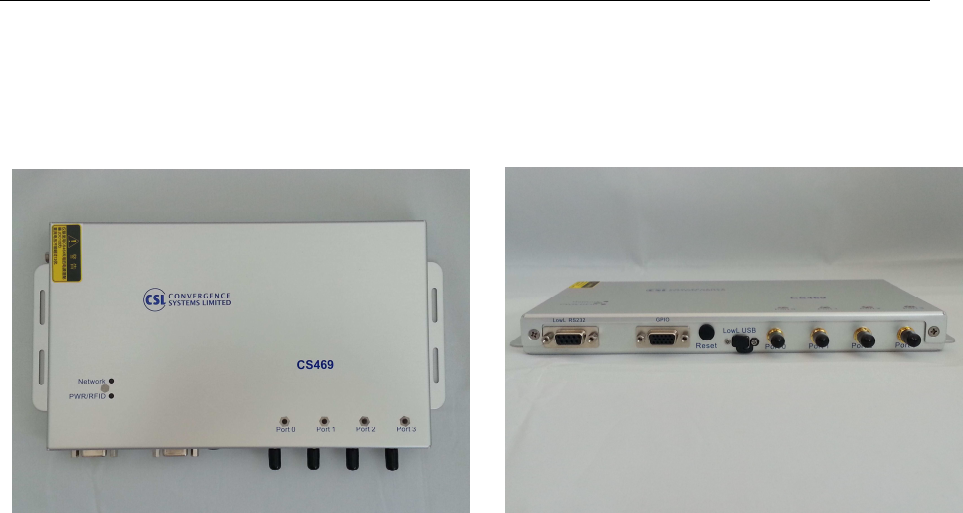

Figure 4-1 CS469-2 Reader Top View

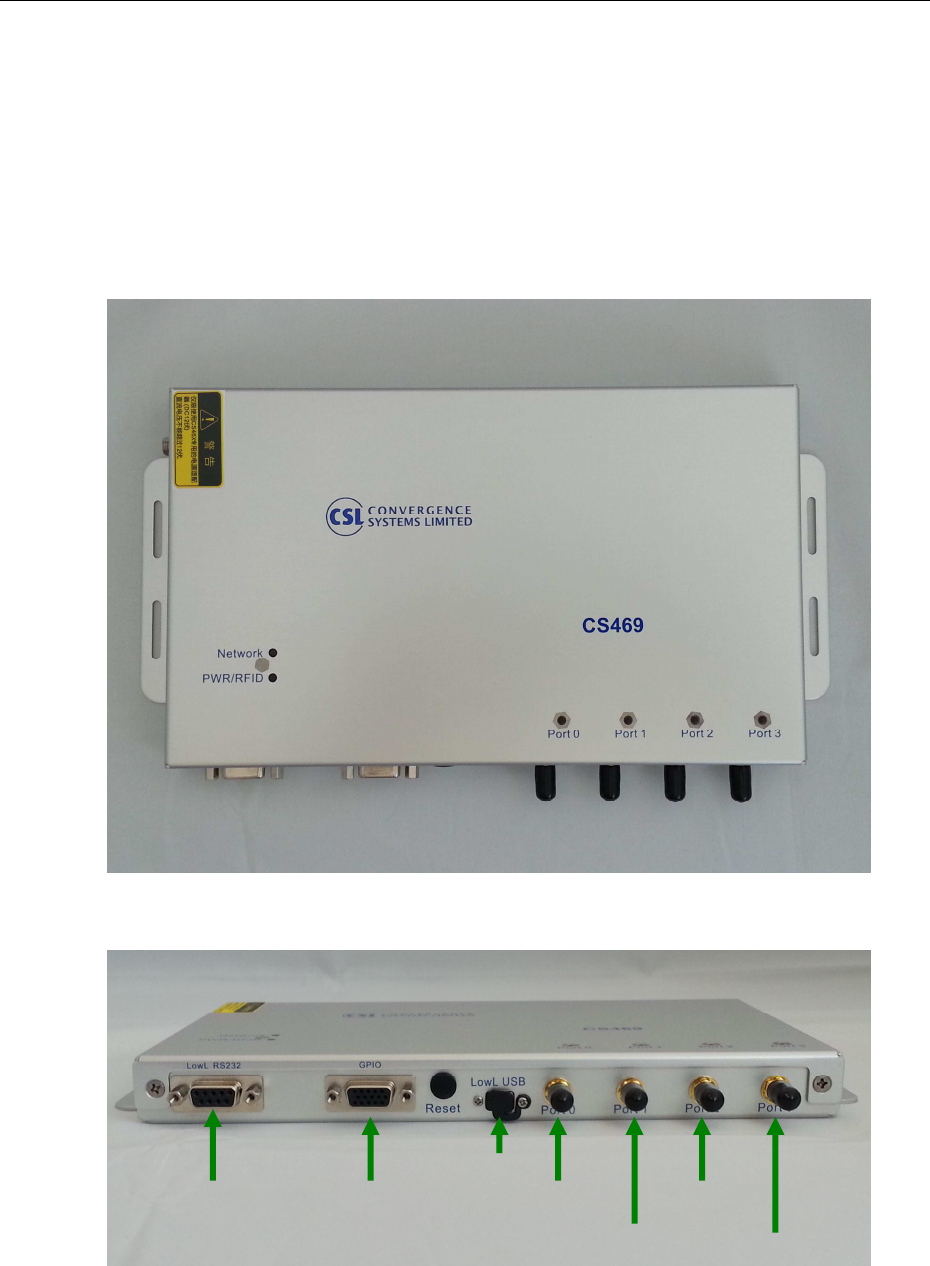

Figure 4-2 CS469-2 Reader Front View

RF

-

Port0

RF

-

Port1

RF

-

Port2

RF

-

Port3

USB

GPIO

RS

-

232

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

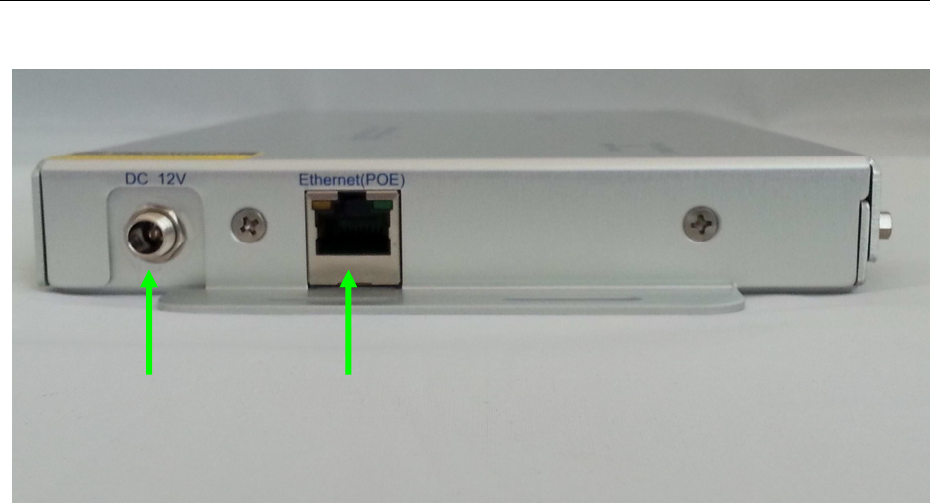

Figure 4-3 CS469-2 Reader Side View

Ethernet

12Vdc

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

4.2 Operating Setup

4.2.1 CS469-2 operates in POE mode.

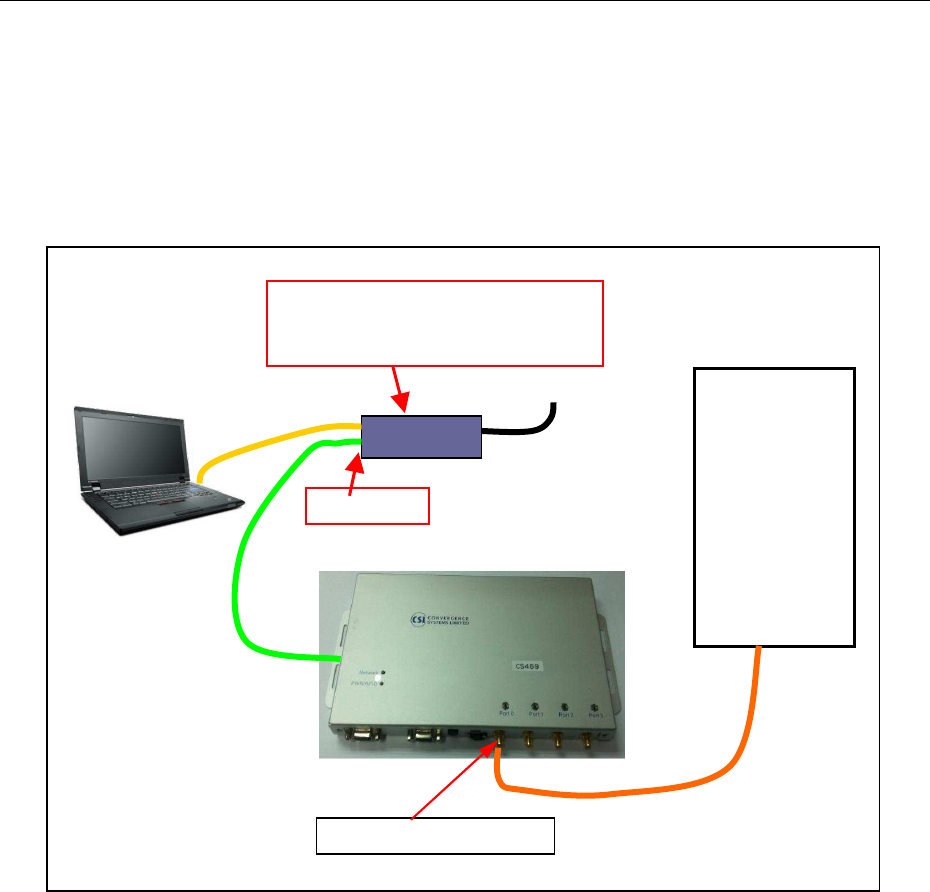

Figure 4-4 POE mode Setup

The reader is connected to POE enabled power source’s output port via the cable

provided in the package.

PC

CS469-2

Ethernet Cable 1

CS771S-2

Antenna or

Test

Equipment

with 50R

Input port

RF Cable

PoE Adaptor or Ethernet Switch with

PoE output port

AC100~240V

RF Output: SMA RP Jack

Ethernet Cable 2

PoE Output

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

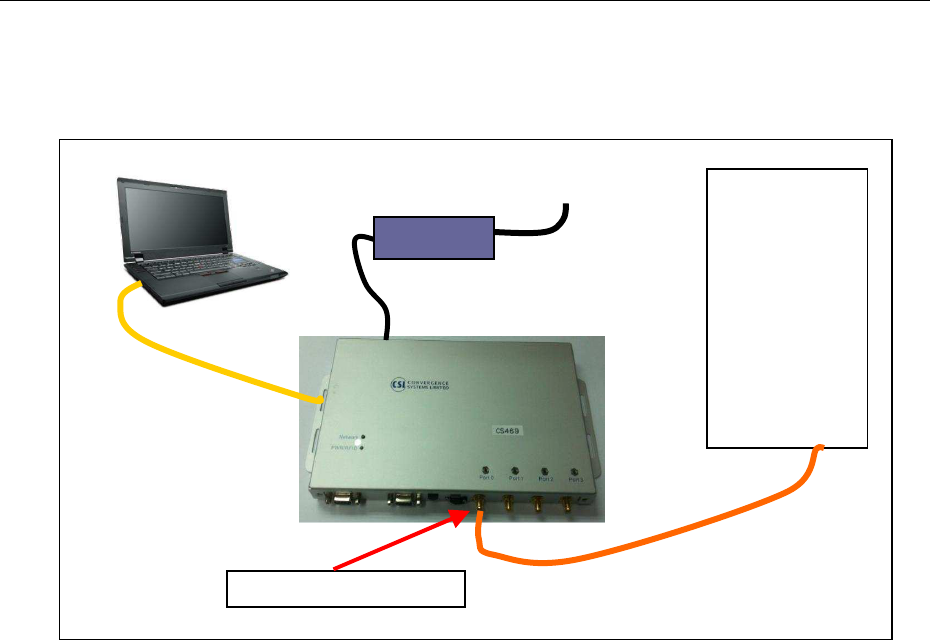

4.2.2 CS469-2 operates in 12V adaptor mode

Figure 4-5 12V power adaptor mode Setup

The reader is directly connected to a host computer via the cable provided in the

package.

PC

CS469-2

Ethernet Cable

CS771S-2

Antenna or

Test

Equipment

with 50R

Input port

RF Cable

AC/DC Adaptor

DC12V

AC100~240V

RF Output: SMA RP Jack

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

5 Regulatory Information

5.1 Federal Communications Commission

Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.



Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm

between the radiator & your body.

This device and its antenna(s) must not be co-located or operating in conjunction with any

other antenna or transmitter. This product must be installed by a professional

technician/installer.

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

5.2 Maximum Permissible Exposure (MPE)

5.2.1 Introduction

This section has been prepared on behalf of CSL FHSS RFID Device to show compliance with

the RF exposure requirements as defined in FCC §1.1307.

5.2.2 Requirements

Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These

categories are fixed installation, mobile, and portable and are defined as follows:

 Fixed Installations: fixed location means that the device, including its antenna, is

physically secured at a permanent location and is not able to be easily moved to another

location. Additionally, distance to humans from the antenna is maintained to at least 2

meters.

 Mobile Devices: a mobile device is defined as a transmitting device designed to be used

in other than fixed locations and to be generally used in such a way that a separation

distance of at least 20 centimeters is normally maintained between the transmitter's

radiating structures and the body of the user or nearby persons. Transmitters designed to

be used by consumers or workers that can be easily re-located, such as a wireless modem

operating in a laptop computer, are considered mobile devices if they meet the 20

centimeter separation requirement. The FCC rules for evaluating mobile devices for RF

compliance are found in 47 CFR §2.1091.

 Portable Devices: a portable device is defined as a transmitting device designed to be

used so that the radiating structure(s) of the device is/are within 20 centimeters of the

body of the user. Portable device requirements are found in Section 2.1093 of the FCC's

Rules (47 CFR§2.1093).

This CSL RFID device with 5dBiC antenna (CS771S-2) is considered a fixed installation as it

is used for the purpose of reading tags.

The FCC also categorizes the use of the device as based upon the user’s awareness and ability

to exercise control over his or her exposure. The two categories defined are Occupational/

Controlled Exposure and General Population/Uncontrolled Exposure. These two categories

are defined as follows:

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

 Occupational/Controlled Exposure: In general, occupational/controlled exposure limits are

applicable to situations in which persons are exposed as a consequence of their

employment, who have been made fully aware of the potential for exposure and can

exercise control over their exposure. This exposure category is also applicable when the

exposure is of a transient nature due to incidental passage through a location where the

exposure levels may be higher than the general population/uncontrolled limits, but the

exposed person is fully aware of the potential for exposure and can exercise control over

his or her exposure by leaving the area or by some other appropriate means. Awareness

of the potential for RF exposure in a workplace or similar environment can be provided

through specific training as part of a RF safety program. If appropriate, warning signs

and labels can also be used to establish such awareness by providing prominent

information on the risk of potential exposure and instructions on methods to minimize

such exposure risks.

 General Population/Uncontrolled Exposure: The general population / uncontrolled

exposure limits are applicable to situations in which the general public may be exposed or

in which persons who are exposed as a consequence of their employment may not be

made fully aware of the potential for exposure or cannot exercise control over their

exposure. Members of the general public would come under this category when

exposure is not employment-related; for example, in the case of a wireless transmitter that

exposes persons in its vicinity. Warning labels placed on low-power consumer devices

such as cellular telephones are not considered sufficient to allow the device to be

considered under the occupational/controlled category, and the general

population/uncontrolled exposure limits apply to these devices.

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

CS469-2 is a 4 port reader where the ports are switched on in time one by

one. At any time only 1 port is switched on and the RF power comes out

only at that port. The rest of the ports are turned off so that no energy

comes out from the other ports.

The control logic of the antenna is shown as below table

Time

Slot

Antenna Port

Status

P0

P1

P2

P3

1 On

Off

2 Off

On

Off

3 Off

Off

On

Off

4 Off

Off

On

The Antenna should be set up 0.5 meter apart is shown as below:

Antenna 1 Antenna 2 ……… Antenna 4

0.5 meter

Energy coming out of 1 antenna (note that CS469-2 is switched on in time

one by one

so that

at any 1 moment in time ONLY

1 antenna is turned on)

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

CS469-2

Reader

Buit-in Antenna

Switch

PA Out

Ant CTRL

CS7

7

1S

CS7

7

1S

CS7

7

1S

CS7

7

1S

The distance between each antenna should be 50cm or more

The CS469-2 switch is at time slot-2 at this moment. The port-1 is turned

on. So only Ant-2 is active for transmitting the power at this moment.

P1

P2

P3

P0

Ant-1

Ant-2

Ant-3

Ant-4

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

Appendix A. RFID Basics

Passive tag RFID technology involves the reader, the antenna and the tag.

The reader sends out energy in the relevant frequency band to the antenna via RF cables, and

the antenna radiates the energy out. This energy impinges on an RFID tag.

The RFID tag consists of an antenna coupled to an RFID IC. This IC converts the AC voltage

it receives at the antenna port to DC voltage that in turn is used to empower the digital circuit

inside.

The digital circuit then turns on and off some components connected to the antenna port,

thereby changing its scattering behavior, in a pre-designed clock rate.

This changing of antenna port parameters then causes a “modulation” of the back-scattered RF

energy.

This modulated back-scattered energy is detected by the reader and the modulation is captured

and analyzed.

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

Appendix B. Operation Profiles

Region 2: FCC

Profile 0 1 2 3 4 5

R-T Modulation DSB-ASK

DSB-ASK PR-ASK PR-ASK DSB-ASK PR-ASK

Tari (µs) 25.00 12.50 25.00 25.00 6.25 25.00

R-T speed (kbps)

40 80 40 40 160 40

PIE 2:1 2:1 1.5:1 1.5:1 1.5:1 1.5:1

Pulse Width (uS) 12.50 6.25 12.50 12.50 3.13 12.50

T-R LF (kbps) 40 160 250 300 400 250

T-R Modulation FM0 Miller-2 Miller-4 Miller-4 FM0 Miller-2

Divide Ratio 8 8 64/3 64/3 8 64/3

T-

R Data Rate

(kbps)

40 80 62.5 75 400 125

CSL CS469-2 EPC CLASS 1 GEN 2 RFID FIXED READER USER'S MANUAL, VERSION 0.0

Appendix C. RF channels

Region 2: FCC

Channel

number

Frequency

(MHz)

Channel

number

Frequency

(MHz)

Channel

number

Frequency

(MHz)

1 902.75 18 911.25 35 919.75

2 903.25 19 911.75 36 920.25

3 903.75 20 912.25 37 920.75

4 904.25 21 912.75 38 921.25

5 904.75 22 913.25 39 921.75

6 905.25 23 913.75 40 922.25

7 905.75 24 914.25 41 922.75

8 906.25 25 914.75 42 923.25

9 906.75 26 915.25 43 923.75

10 907.25 27 915.75 44 924.25

11 907.75 28 916.25 45 924.75

12 908.25 29 916.75 46 925.25

13 908.75 30 917.25 47 925.75

14 909.25 31 917.75 48 926.25

15 909.75 32 918.25 49 926.75

16 910.25 33 918.75 50 927.25

17 910.75 34 919.25

Convergence Systems CS469C1GEN2 RFID Reader User Manual CSL CS469 2 User s Manual Version 0 0 0

Convergence Systems Limited RFID Reader CSL CS469 2 User s Manual Version 0 0 0

User Manual

Navigation menu

Namespaces

Views

Navigation
