Convergence Systems CS506 RFID ACTIVE TAG User Manual CSL RTLS 2 0 2
Convergence Systems Limited RFID ACTIVE TAG CSL RTLS 2 0 2
Users Manual
1
User Manual of CSL RTLS System
CS506 Tag
CS5111TD Reader
CS5112TD Reader
CS5113TD Reader with Ethernet Bridge
CS5114TD Reader with Ethernet Bridge
CS5116TD Reader
CS5118TD Reader with Ethernet Bridge
2
FCC Statement
FCC NOTICE: To comply with FCC part 15 rules in the United States, the system must
be professionally installed to ensure compliance with the Part 15 certification. It is the
responsibility of the operator and professional installer to ensure that only certified
systems are deployed in the United States. The use of the system in any other
combination is expressly forbidden.
3
Table of Content
User Manual of CSL RTLS System...............................................................................1
Introduction..................................................................................................................4
1 System Component Description..........................................................................5
1.1 CS506.........................................................................................................5
1.1.1 Product Description .......................................................................5
1.1.2 Installation Procedure ....................................................................6
1.1.3 Product Specification.....................................................................7
1.2 CS5111TD/CS5112TD ..............................................................................8
1.2.1 Product Description .......................................................................8
1.2.2 Installation Procedure ....................................................................9
1.2.3 Product Specifications .................................................................11
1.3 CS5113TD/CS5114TD ............................................................................12
1.3.1 Product Description .....................................................................12
1.3.2 Installation procedure...................................................................14
1.3.3 Product Specifications .................................................................15
4
Introduction
The CSL RTLS solution is based on the application of time of arrival technology.

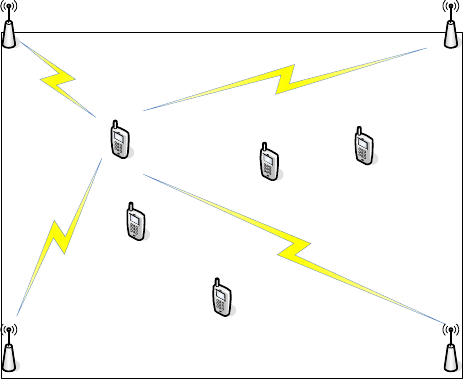

In the RTLS, an anchor is the device installed in a known position inside a zone,
normally, at the corners of the zone. The moving tag inside the zone can measure the
range to each anchor so as to obtain its absolute position inside the zone.
A Zone
Anchor Anchor
AnchorAnchor
Tag
In a minimum system, 4 anchors – 3 slave anchors CS5111TD/CS5112TD and 1
master anchor CS5113TD/CS5114TD- are installed in a zone. However, the more the
anchors are installed, the higher the accuracy of the tag position to be obtained.
The accuracy of positioning is +/-1 meter.
5
1 System Component Description
1.1 CS506
1.1.1 Product Description

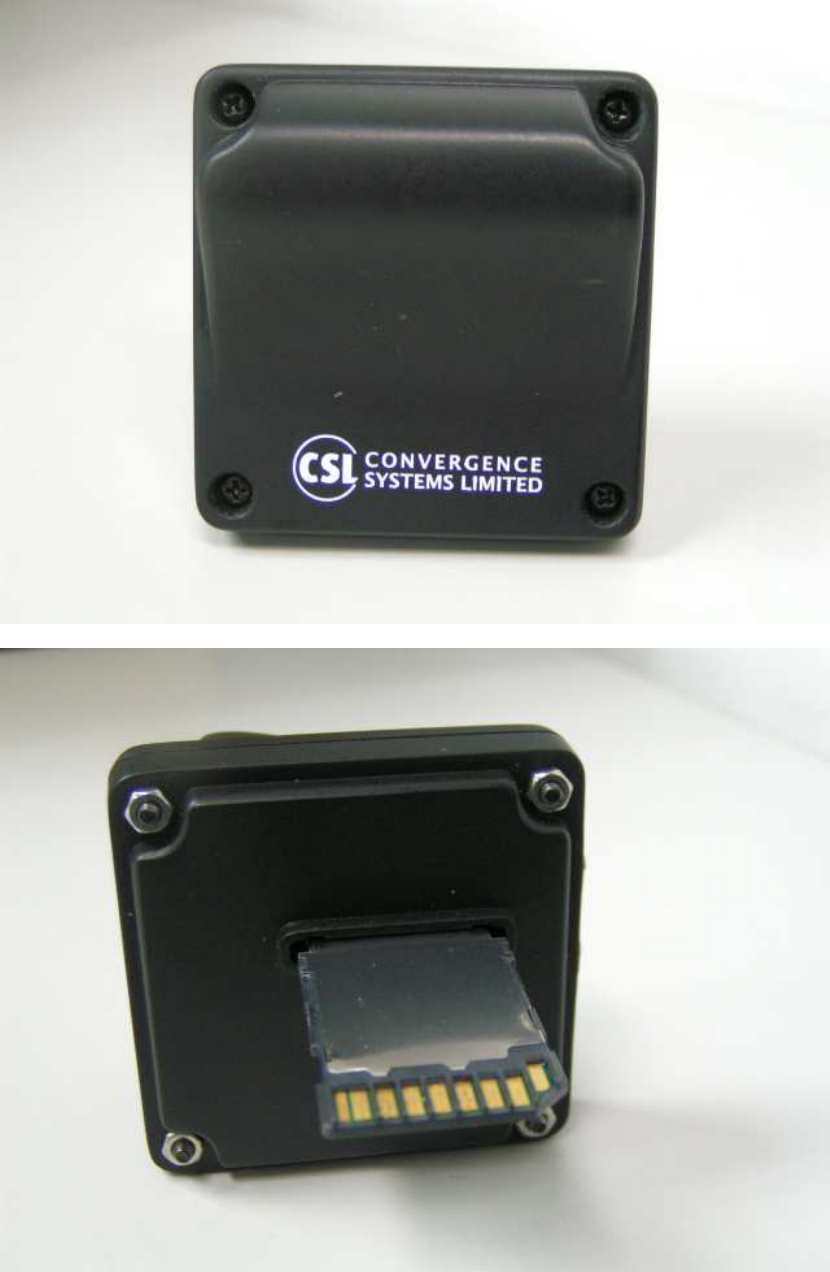

CS506 is an active RFID tag operating in the 2.4GHz band. The power is
provided via the SDIO interface of platform( such as a PDA).
6
1.1.2 Installation Procedure
7

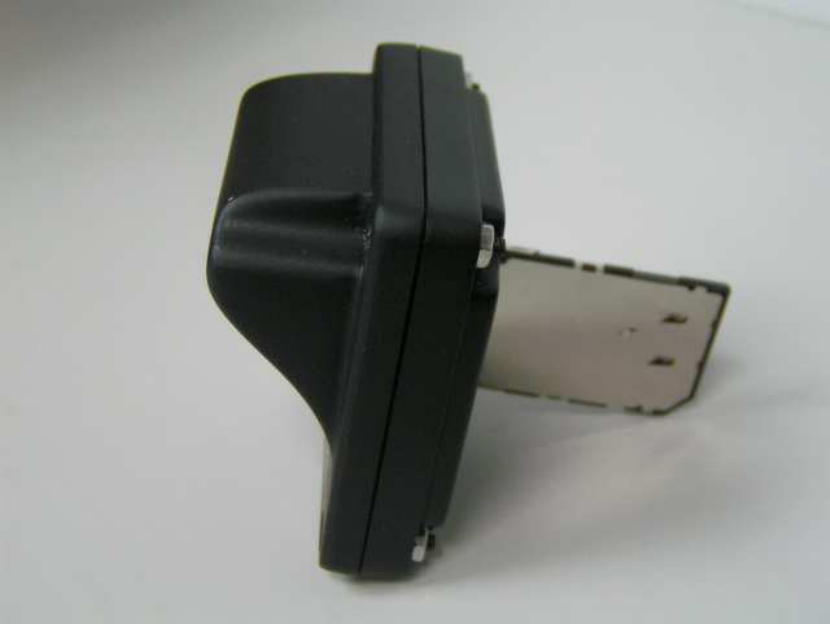

When the CS506 is plugged into the platform, it will start to operate
automatically. In the first few seconds, it is in the registration mode. Once it
is registered to a CS5113LP master anchor, it will be drawn into operating
mode immediately and ready for RTLS tracking.
1.1.3 Product Specification
Specifications:
Physical
Characteristics:
Plastic sealed enclosure: 57 mm x 57 mm x 18 mm
;
Weight 35 g for the CS506 standalone
Read Range: Up to 100 meters depending on reader power
Frequency: 2400-2483 MHz ISM license-free band
Environment: Operating Temp: -40°
°°
°C to 65°
°°
°C (-40°
°°
°F to 149°
°°
°F)
Storage Temp: -40°
°°
°C to 85°
°°
°C (-40°
°°
°F to 185°
°°
°F)
Humidity: 0% to 95% RH non-condensing
Technology: CHIRP
Output RF Power:
0 dBm EIRP
Ranging Method: Time Of Arrival (TOA)
Ranging Accuracy:
+/- 1 meter
Protocol: CSL RTLS Protoco
l, orderly inventory method to handle
large tag population
Power: +3.3V 180mA via SDIO interface
Order Code: CS506
8

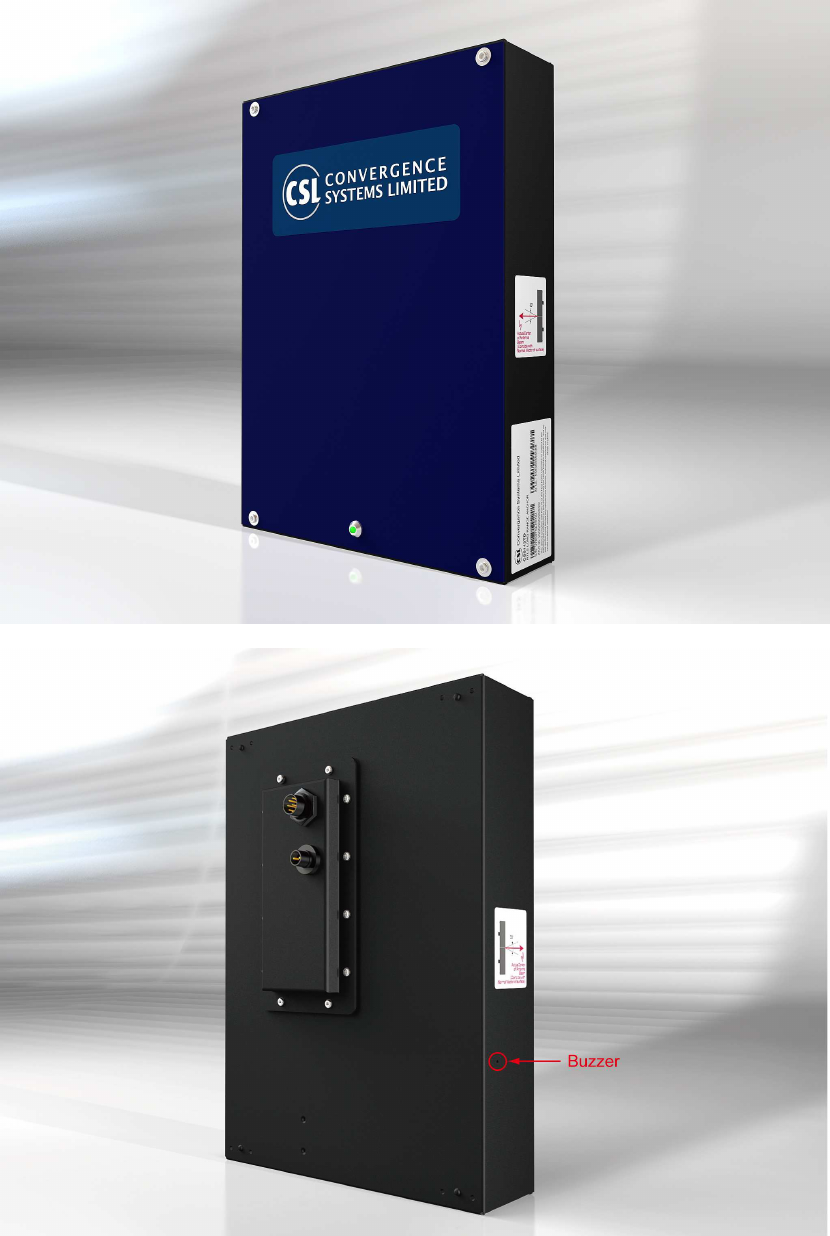

1.2 CS5111TD/CS5112TD
1.2.1 Product Description

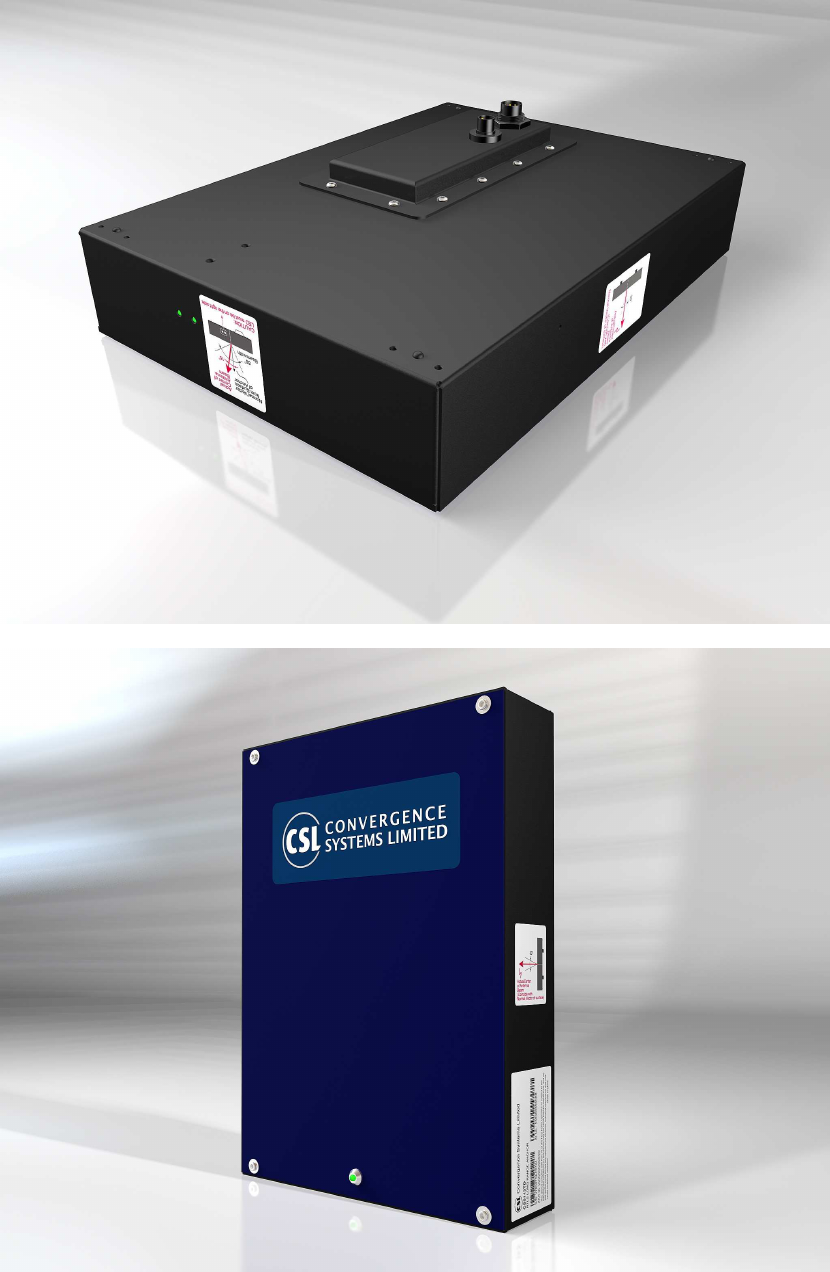

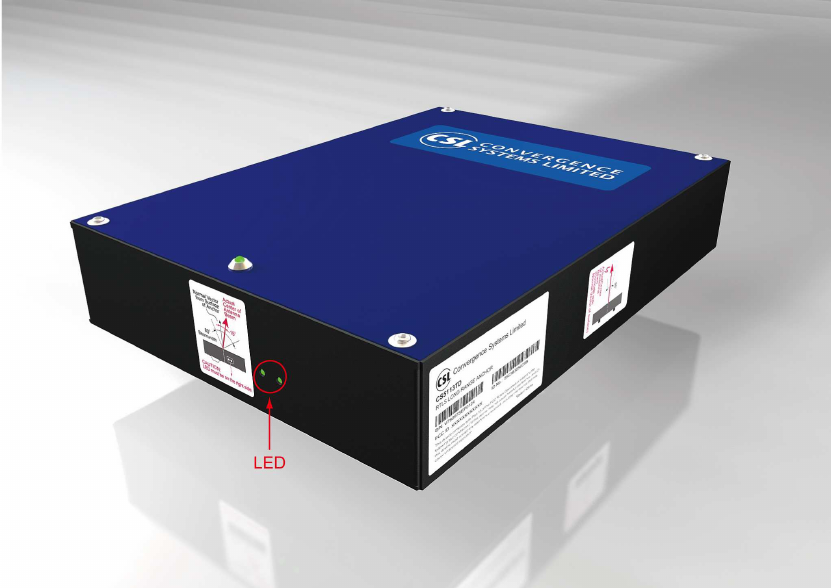

CS5111TD/CS5112TD are the RTLS anchor( or reader). The high gain
2.4GHz ISM band antenna and the electronics PCB are integrated into one
housing for robustness and easy installation. CS5111TD/CS5112TD are
designed to be mounted at the back panel.
9
1.2.2 Installation Procedure
CS5111TD/CS5112TD can be fed with DC voltage ranges from 12V to
24Vdc. The dc plug is 2.5mm locked type. CS5111TD/CS5112TD are fully
10
programmed and ready for normal operation once power is on. No extra
configuration procedure is required.
11

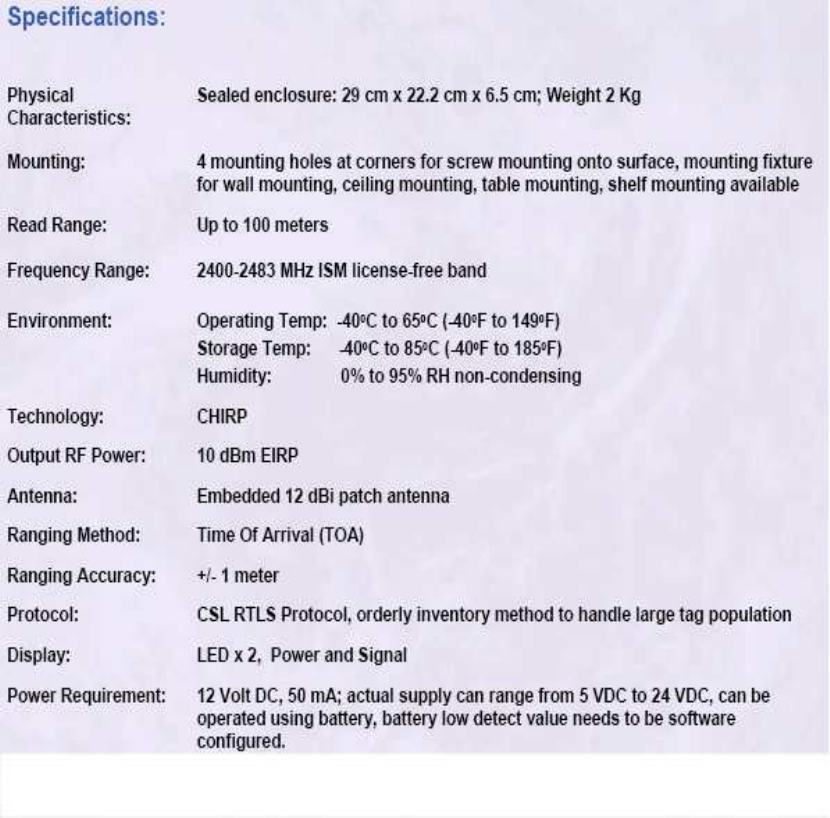

1.2.3 Product Specifications
12
1.3 CS5113TD/CS5114TD
1.3.1 Product Description

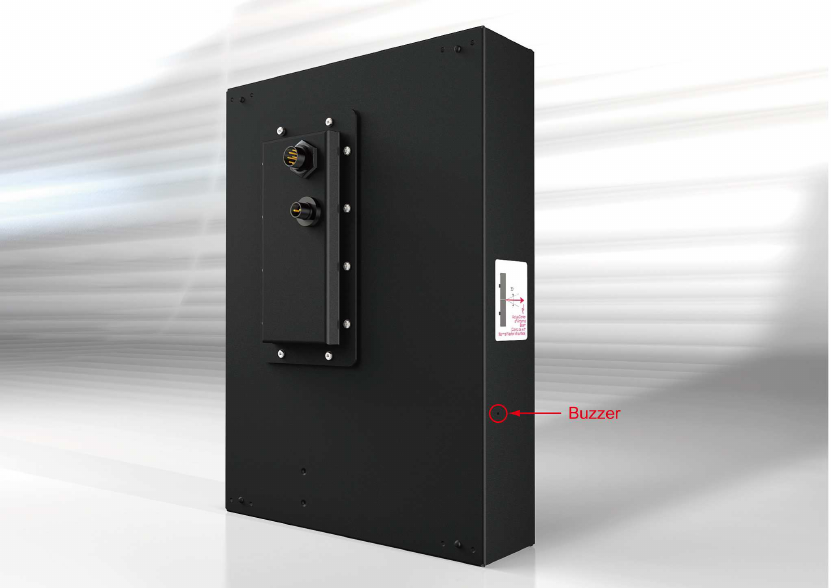

CS5113TD/CS5114TD is the RTLS master anchor( or reader). It integrates
the high gain 2.4GHz ISM band antenna and the electronics PCB into one
housing for robustness and easy installation. CS5113TD/CS5114TD has
Ethernet connectivity function to communicate with the server application.
CS5113TD/CS5114TD is also a POE PD that can allow it to be powered
through IEEE 802.3 certified PSE.
13
14
1.3.2 Installation procedure
CS5113TD/CS5114TD can be fed with DC voltage ranges from 12V to
34Vdc. The dc plug is 2.5mm locked type. Once powered on,
CS5113TD/CS5114TD is ready to communicate with server through
Ethernet port for configuration and RTLS functions.
CS5113TD/CS5114TD can also be powered by a IEEE802.3 certified PSE.
When the POE is in function, the DC adapter should be unplugged from the
DC jack.
When connected to the server via Ethernet connection, Shielded-FTP
Ethernet cables should be used to for optimal performance.
15

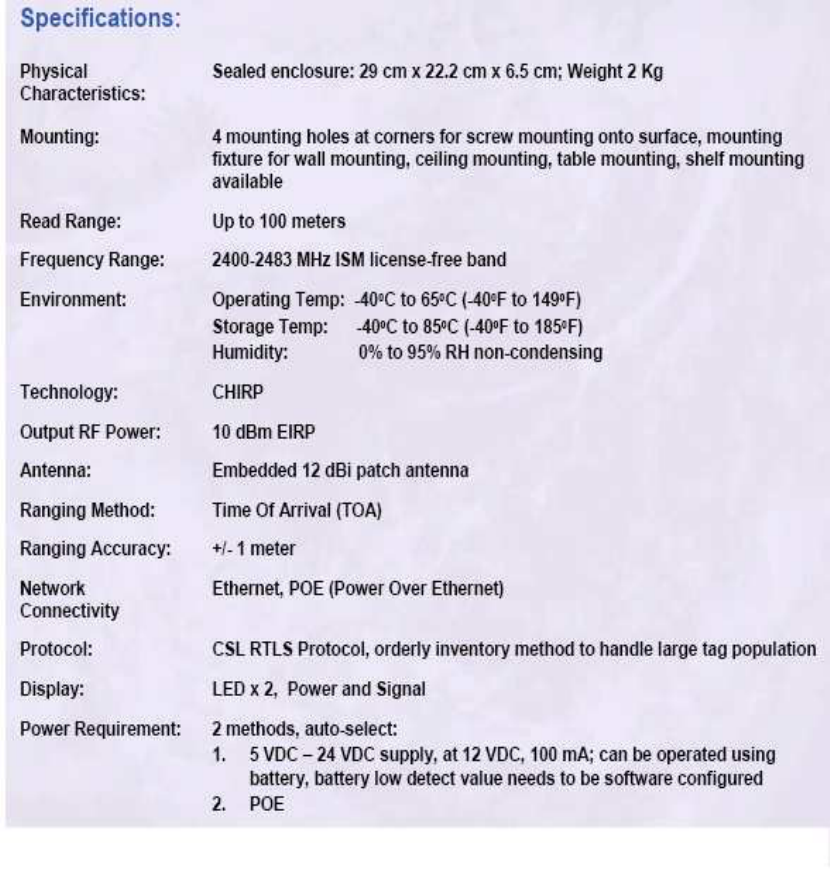

1.3.3 Product Specifications
16
Federal Communications Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
_ Reorient or relocate the receiving antenna.
_ Increase the separation between the equipment and receiver.
_ Connect the equipment into an outlet on a circuit different from that to which the
receiver
is connected.
_ Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.(3) This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter.
