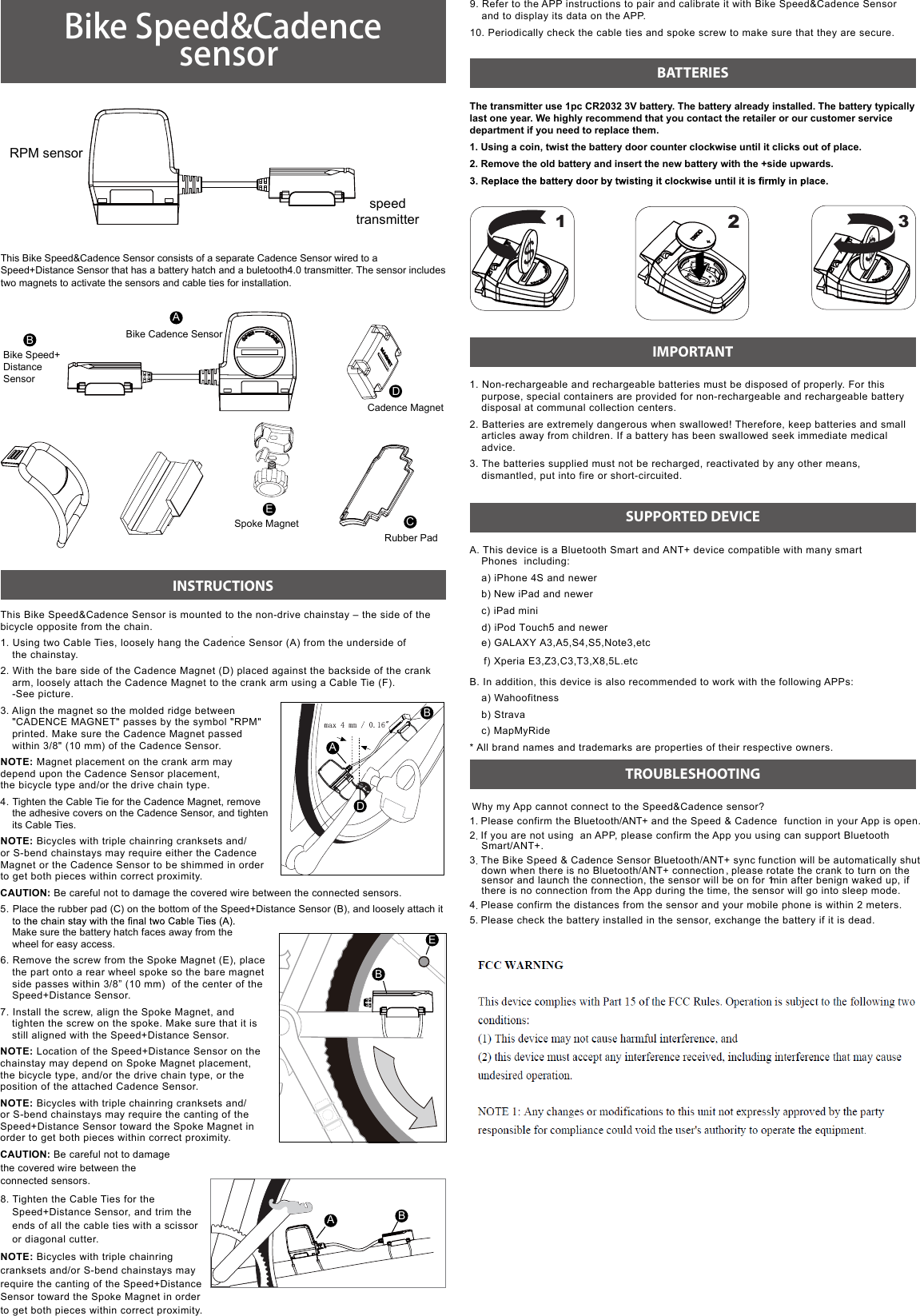

CooSpo Tech BK8 bike speed/cadence sensor User Manual

Shenzhen CooSpo Tech Co., Ltd bike speed/cadence sensor Users Manual

Contents

Users Manual

Bike Speed&Cadence
sensor

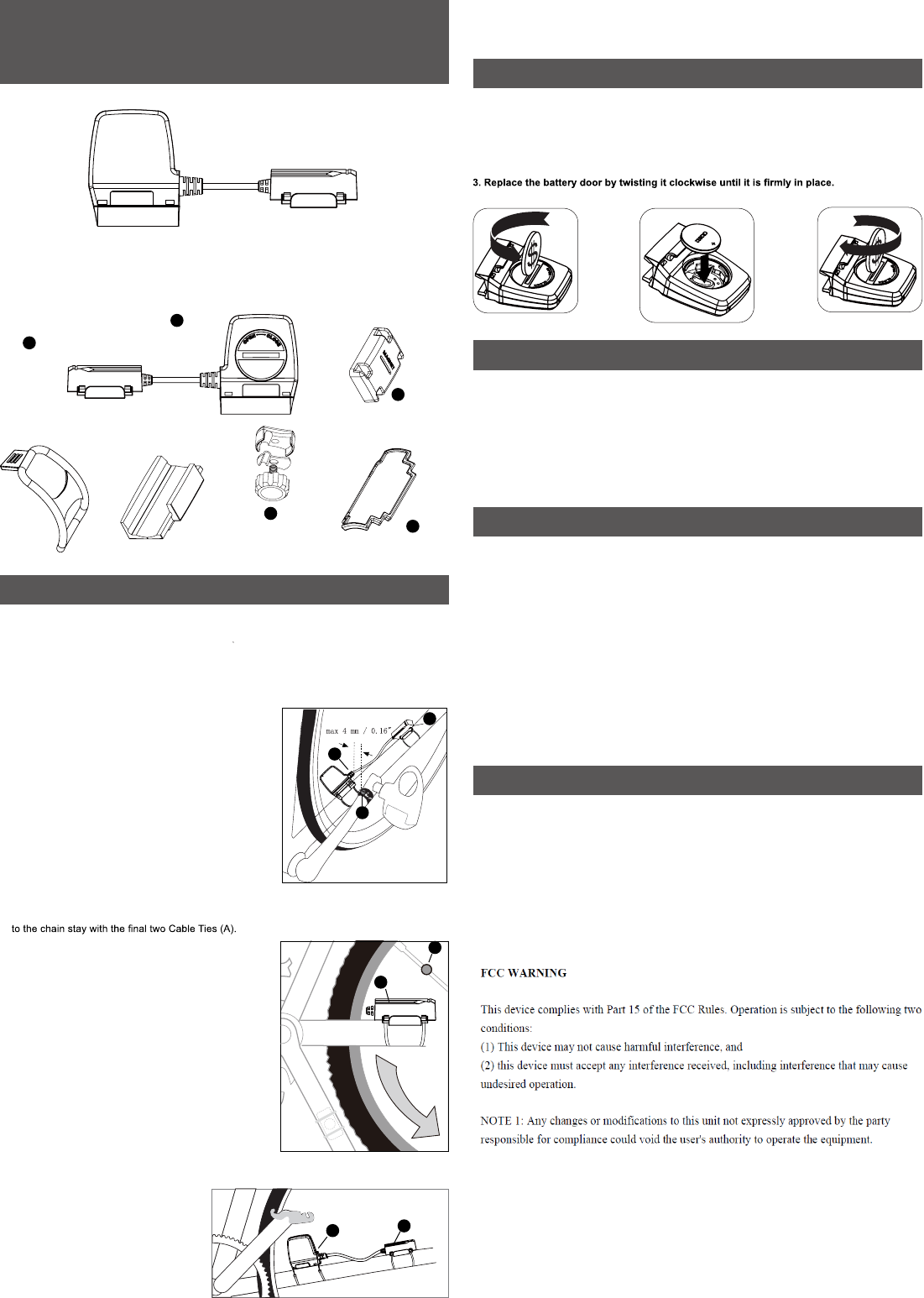

This Bike Speed&Cadence Sensor consists of a separate Cadence Sensor wired to a
Speed+Distance Sensor that has a battery hatch and a buletooth4.0 transmitter. The sensor includes
two magnets to activate the sensors and cable ties for installation.
INSTRUCTIONS
This Bike Speed&Cadence Sensor is mounted to the non-drive chainstay – the side of the
bicycle opposite from the chain.
1. Using two Cable Ties, loosely hang the Cadence Sensor (A) from the underside of
the chainstay.
2. With the bare side of the Cadence Magnet (D) placed against the backside of the crank
arm, loosely attach the Cadence Magnet to the crank arm using a Cable Tie (F).
-See picture.
3. Align the magnet so the molded ridge between
"CADENCE MAGNET" passes by the symbol "RPM"
printed. Make sure the Cadence Magnet passed
within 3/8" (10 mm) of the Cadence Sensor.
NOTE: Magnet placement on the crank arm may
depend upon the Cadence Sensor placement,
the bicycle type and/or the drive chain type.
4. Tighten the Cable Tie for the Cadence Magnet, remove
the adhesive covers on the Cadence Sensor, and tighten
its Cable Ties.
NOTE: Bicycles with triple chainring cranksets and/
or S-bend chainstays may require either the Cadence
Magnet or the Cadence Sensor to be shimmed in order
to get both pieces within correct proximity.
CAUTION: Be careful not to damage the covered wire between the connected sensors.
5. Place the rubber pad (C) on the bottom of the Speed+Distance Sensor (B), and loosely attach it
Make sure the battery hatch faces away from the
wheel for easy access.
6. Remove the screw from the Spoke Magnet (E), place
the part onto a rear wheel spoke so the bare magnet
side passes within 3/8” (10 mm) of the center of the
Speed+Distance Sensor.
7. Install the screw, align the Spoke Magnet, and
tighten the screw on the spoke. Make sure that it is
still aligned with the Speed+Distance Sensor.
NOTE: Location of the Speed+Distance Sensor on the
chainstay may depend on Spoke Magnet placement,
the bicycle type, and/or the drive chain type, or the
position of the attached Cadence Sensor.
NOTE: Bicycles with triple chainring cranksets and/
or S-bend chainstays may require the canting of the
Speed+Distance Sensor toward the Spoke Magnet in
order to get both pieces within correct proximity.
CAUTION: Be careful not to damage
the covered wire between the
connected sensors.
8. Tighten the Cable Ties for the
Speed+Distance Sensor, and trim the
ends of all the cable ties with a scissor
or diagonal cutter.
NOTE: Bicycles with triple chainring
cranksets and/or S-bend chainstays may
require the canting of the Speed+Distance
Sensor toward the Spoke Magnet in order
to get both pieces within correct proximity.
The transmitter use 1pc CR2032 3V battery. The battery already installed. The battery typically
last one year. We highly recommend that you contact the retailer or our customer service
department if you need to replace them.
1. Using a coin, twist the battery door counter clockwise until it clicks out of place.
2. Remove the old battery and insert the new battery with the +side upwards.
1. Non-rechargeable and rechargeable batteries must be disposed of properly. For this
purpose, special containers are provided for non-rechargeable and rechargeable battery
disposal at communal collection centers.
2. Batteries are extremely dangerous when swallowed! Therefore, keep batteries and small
articles away from children. If a battery has been swallowed seek immediate medical
advice.
3. The batteries supplied must not be recharged, reactivated by any other means,
dismantled, put into fire or short-circuited.
A. This device is a Bluetooth Smart and ANT+ device compatible with many smart
Phones including:
a) iPhone 4S and newer
b) New iPad and newer
c) iPad mini
d) iPod Touch5 and newer
e) GALAXY A3,A5,S4,S5,Note3,etc
f) Xperia E3,Z3,C3,T3,X8,5L.etc
B. In addition, this device is also recommended to work with the following APPs:
a) Wahoofitness
b) Strava
c) MapMyRide
* All brand names and trademarks are properties of their respective owners.
Why my App cannot connect to the Speed&Cadence sensor?
1. Please confirm the Bluetooth/ANT+ and the Speed & Cadence function in your App is open.
2. If you are not using an APP, please confirm the App you using can support Bluetooth
Smart/ANT+.
3. The Bike Speed & Cadence Sensor Bluetooth/ANT+ sync function will be automatically shut
down when there is no Bluetooth/ANT+ connection, please rotate the crank to turn on the
sensor and launch the connection, the sensor will be on for 1 min after benign waked up, if
there is no connection from the App during the time, the sensor will go into sleep mode.
4. Please confirm the distances from the sensor and your mobile phone is within 2 meters.
5. Please check the battery installed in the sensor, exchange the battery if it is dead.
RPM sensor
speed
transmitter
A
B
C
D
E
Bike Cadence Sensor
Bike Speed+
Distance
Sensor
Spoke Magnet
Rubber Pad
Cadence Magnet
BATTERIES
IMPORTANT
SUPPORTED DEVICE
TROUBLESHOOTING
123
9. Refer to the APP instructions to pair and calibrate it with Bike Speed&Cadence Sensor
and to display its data on the APP.
10. Periodically check the cable ties and spoke screw to make sure that they are secure.
A
A
B
B
D
E
B
