Cooper Wiring Devices RF9640N Z-Wave Plus Universal Dimmer User Manual
Cooper Wiring Devices Inc Z-Wave Plus Universal Dimmer
User Manual

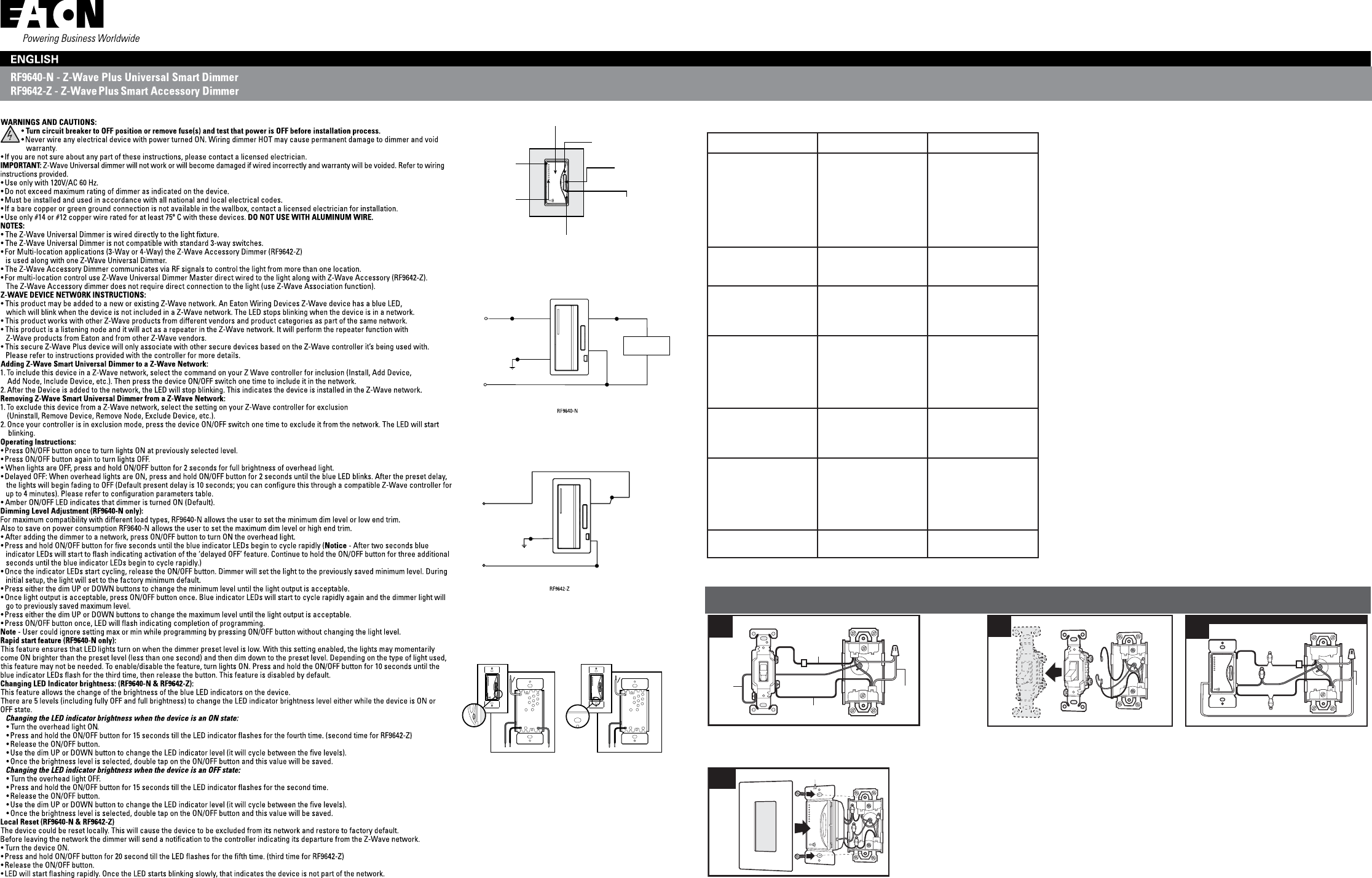

![](/img.php?id=4045953&img=bg1.png)
ACCESSORY
ACCESSORY
ACCESSORY
White
White
Master Control Accessory
Disconnect Switch
Red
Black Black
Green Green
Switch Identification
Disconnect Switch
Pull out to change bulbs
(Master Dimmer only)
Press to DIM
Light level may be
adjusted with lights
ON or OFF
Press to BRIGHTEN
ON/OFF Button
Light level
indicators
(blue)
LED ON/OFF
indicator (amber)
Hot
Neutral
120V
Green
Ground
White White
White
Black
ACCESSORY
DIMMER
Light Fixture
Black Red
Neutral
120V
Green
Ground
White
White
MASTER
DIMMER
Neutral
Hot
Single Location Control Installation (requires one Master dimmer)
Identify existing wiring (This switch will be a single-pole) and tag “Hot” wire. Use
voltage tester as necessary to confirm “Hot” wire (Voltage will be present at the
“Hot” wire when the lights are off).
Disconnect existing switch and remove. Connect master dimmer as shown by connecting black
wire of dimmer to tagged “Hot” wire. Red wire must
be connected to the wire that goes to the light.
Gently push dimmer into place and secure with mounting screws. Make
sure disconnect switch at bottom of master is fully pushed in
Black
1.3
White
Black
Bare
1.1 1.4
1.2
1.5
Master
Black
Black
Green
Red
Black
White
White
1.3
1.6 TOP
1.4
Tag
-
To Light
Tag
- Hot
Troubleshooting Guide
Symptom Possible Cause Solution
No Function. All LEDs are OFF A) Light bulb(s) burned out
B) Circuit breaker is off or
tripped
C) Disconnect switch on the
dimmer is pulled out to the
OFF position
D) Improper wiring
E) Defective dimmer
A) Replace light bulb
B) Turn on the circuit breaker
C) Push in the disconnect
switch on the dimmer
D) Check and correct wiring
E) Replace dimmer
Erratic operation or flickering
LEDs
A) Loose wiring connections
B) Low dim setting
(RF9640-N)
A) Check and correct wiring
B) Set minimum brightness to
a higher level (RF9640-N)
Lights turns on after long
delay
A) Rapid start feature is
disabled (RF9640-N)
B) Low dim setting
(RF9640-N)
A) Enable rapid start feature
(RF9640-N)
B) Set minimum brightness to
a higher level (RF9640-N)
Functions normally using the
dimmer push buttons but not
from Z-Wave controller and
one of the blue LEDs blinks
ON and OFF about once per
second
Dimmer is not included in
Z-Wave network
Include dimmer in a Z-Wave
network using a Z-Wave
controller. Refer to Z-Wave
controller user manual for
details
Functions normally using the
Master dimmer control but
not from Z-Wave controller
and no LEDs are blinking
Problem with RF communica -
tion on dimmer
Replace dimmer
Functions normally both
locally and from a Z-Wave
controller but can’t be
controlled from a dimmer
accessory switch (RF9642-Z)
or other Z-Wave device
The dimmer accessory or
other Z-Wave device is not
associated with the dimmer
you wish to control
Create an association
between the dimmer acces -
sory or other device and the
dimmer. Refer to your Z-Wave
controller user manual for
details
Dimmer is warm to touch
after a period of time
This is normal No action required
