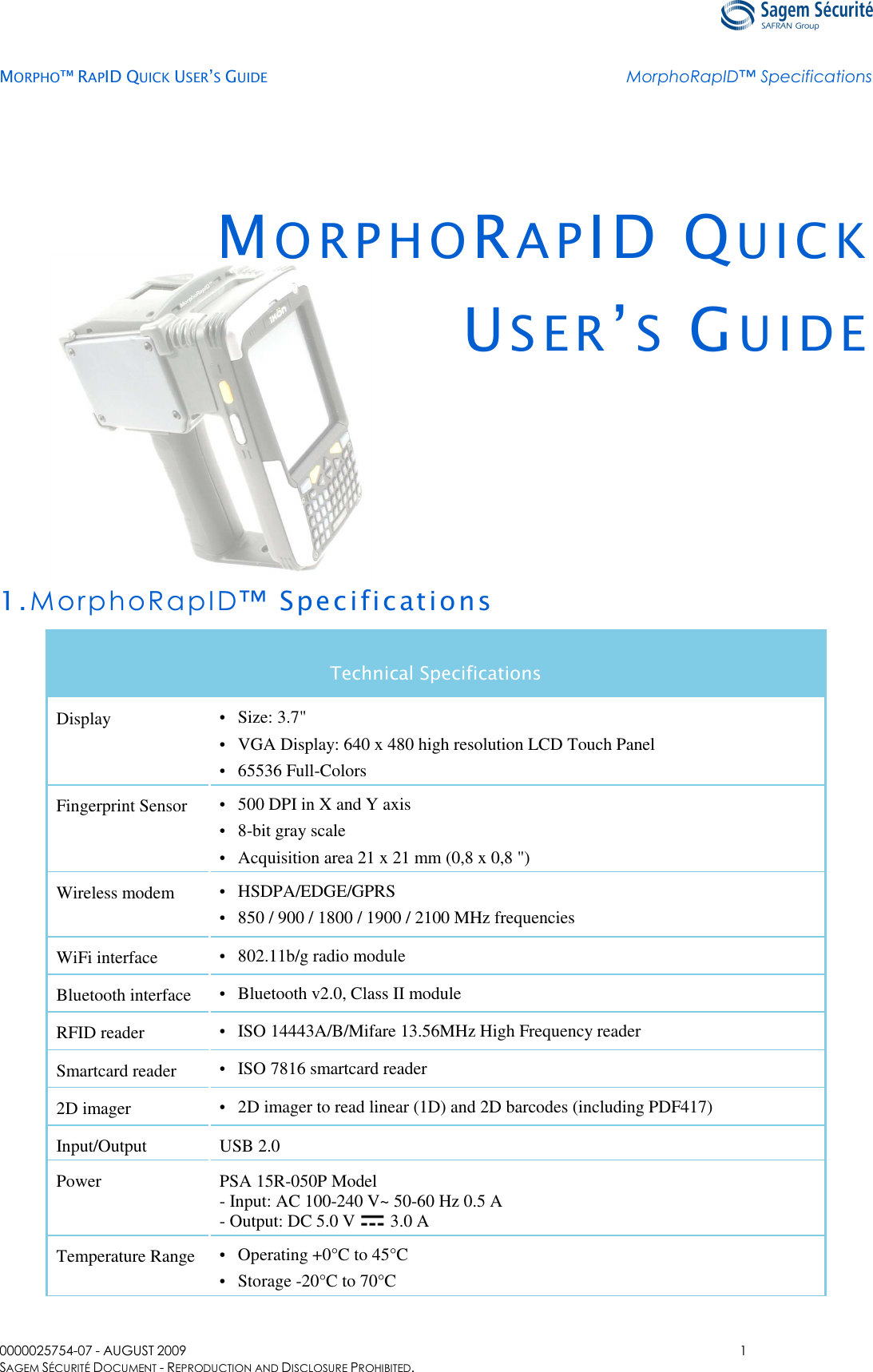

MORPHO™ RAPID QUICK USER’S GUIDE MorphoRapID™ Specifications 0000025754-07 - AUGUST 2009 1 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. MO R P H O RAPID QUICK US E R ’S GU I D E 1.MorphoRapID™ Specifications Technical Specifications Display • Size: 3.7" • VGA Display: 640 x 480 high resolution LCD Touch Panel • 65536 Full-Colors Fingerprint Sensor • 500 DPI in X and Y axis • 8-bit gray scale • Acquisition area 21 x 21 mm (0,8 x 0,8 ") Wireless modem • HSDPA/EDGE/GPRS • 850 / 900 / 1800 / 1900 / 2100 MHz frequencies WiFi interface • 802.11b/g radio module Bluetooth interface • Bluetooth v2.0, Class II module RFID reader • ISO 14443A/B/Mifare 13.56MHz High Frequency reader Smartcard reader • ISO 7816 smartcard reader 2D imager • 2D imager to read linear (1D) and 2D barcodes (including PDF417) Input/Output USB 2.0 Power PSA 15R-050P Model - Input: AC 100-240 V~ 50-60 Hz 0.5 A - Output: DC 5.0 V 3.0 A Temperature Range • Operating +0°C to 45°C • Storage -20°C to 70°C

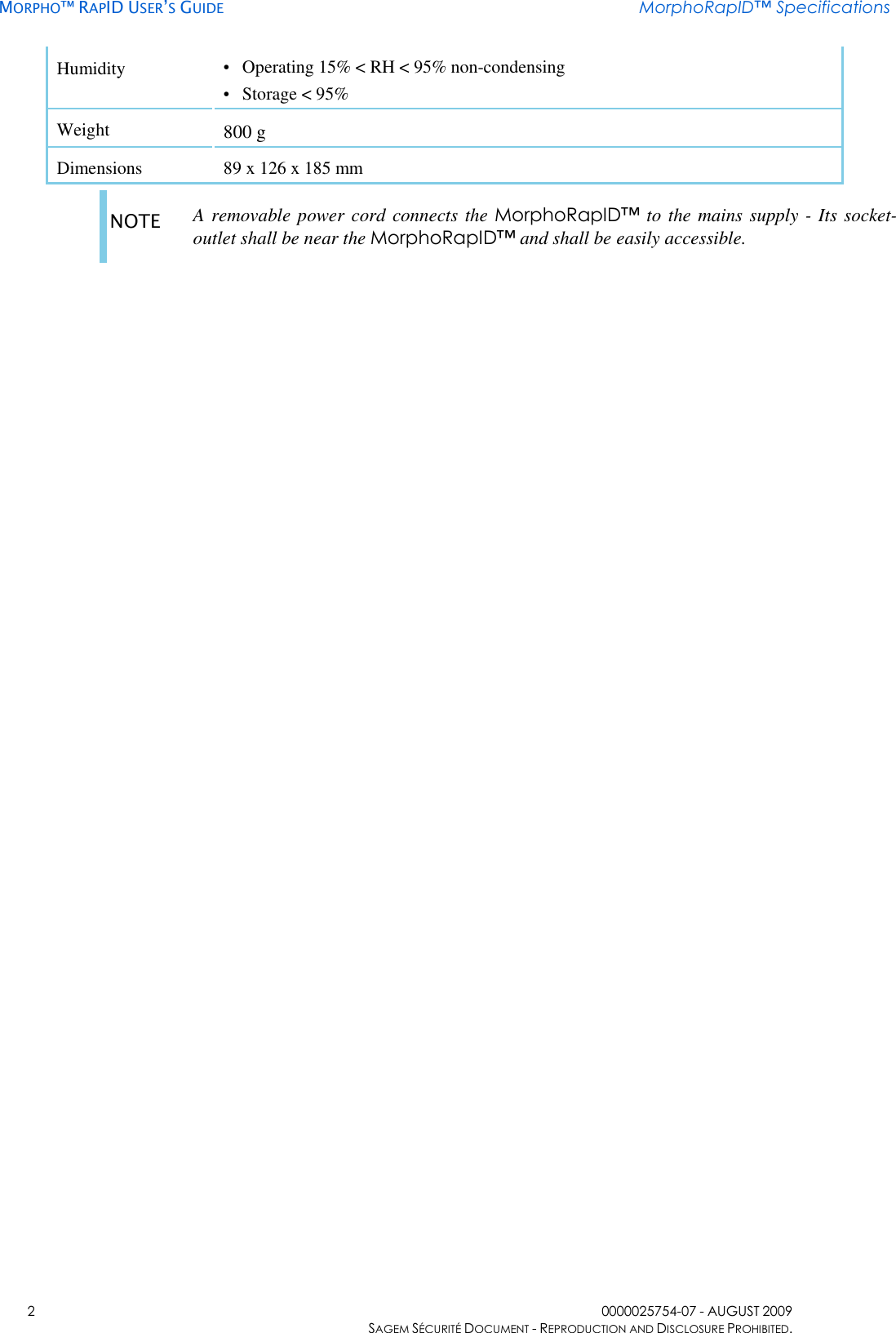

MORPHO™ RAPID USER’S GUIDE MorphoRapID™ Specifications 2 0000025754-07 - AUGUST 2009 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Humidity • Operating 15% < RH < 95% non-condensing • Storage < 95% Weight 800 g Dimensions 89 x 126 x 185 mm NOTE A removable power cord connects the MorphoRapID™ to the mains supply - Its socket-outlet shall be near the MorphoRapID™ and shall be easily accessible.

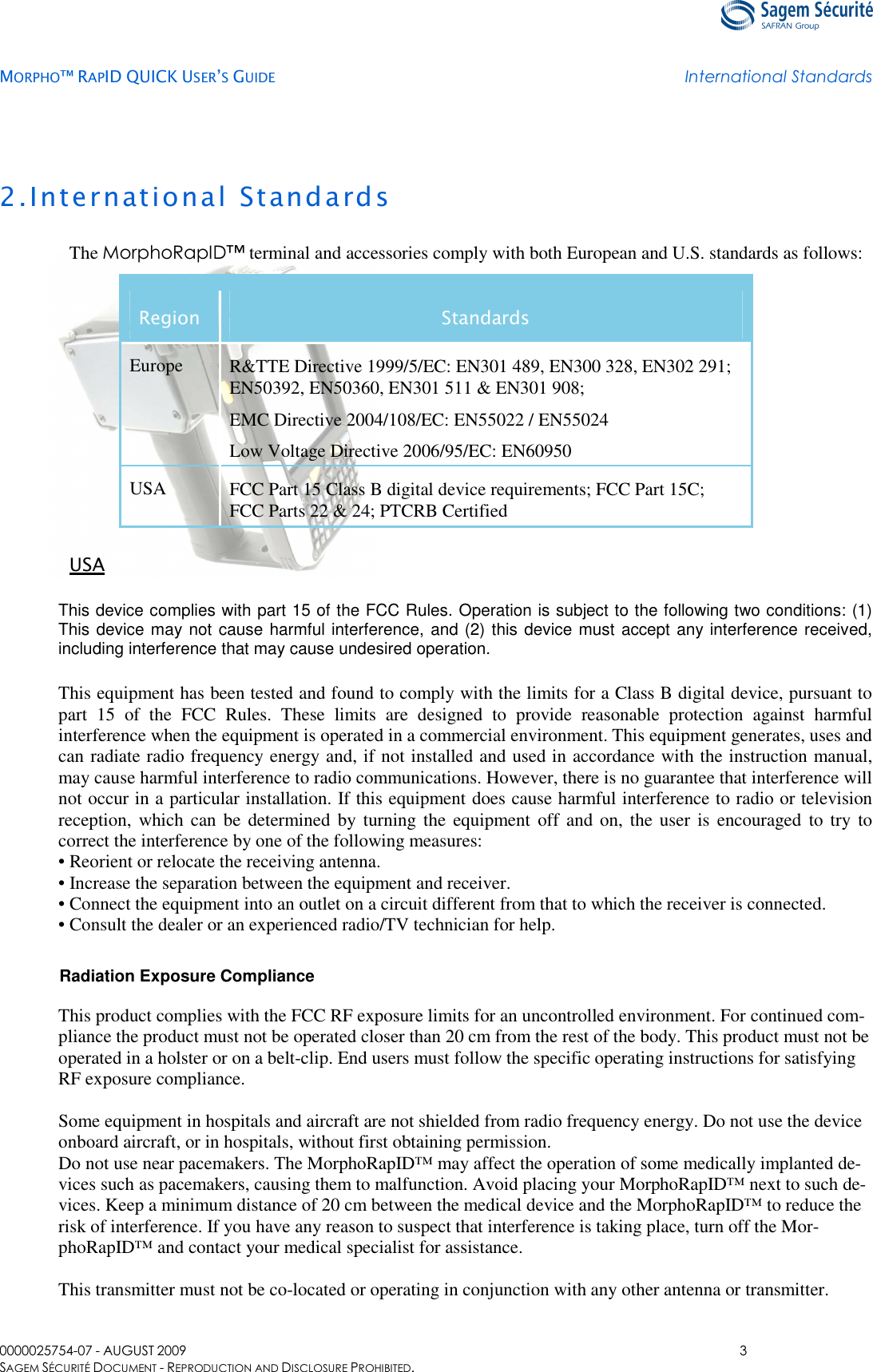

MORPHO™ RAPID QUICK USER’S GUIDE International Standards 0000025754-07 - AUGUST 2009 3 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. 2.International Standards The MorphoRapID™ terminal and accessories comply with both European and U.S. standards as follows: Region Standards Europe R&TTE Directive 1999/5/EC: EN301 489, EN300 328, EN302 291; EN50392, EN50360, EN301 511 & EN301 908; EMC Directive 2004/108/EC: EN55022 / EN55024 Low Voltage Directive 2006/95/EC: EN60950 USA FCC Part 15 Class B digital device requirements; FCC Part 15C; FCC Parts 22 & 24; PTCRB Certified USA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Compliance This product complies with the FCC RF exposure limits for an uncontrolled environment. For continued com-pliance the product must not be operated closer than 20 cm from the rest of the body. This product must not be operated in a holster or on a belt-clip. End users must follow the specific operating instructions for satisfying RF exposure compliance. Some equipment in hospitals and aircraft are not shielded from radio frequency energy. Do not use the device onboard aircraft, or in hospitals, without first obtaining permission. Do not use near pacemakers. The MorphoRapID™ may affect the operation of some medically implanted de-vices such as pacemakers, causing them to malfunction. Avoid placing your MorphoRapID™ next to such de-vices. Keep a minimum distance of 20 cm between the medical device and the MorphoRapID™ to reduce the risk of interference. If you have any reason to suspect that interference is taking place, turn off the Mor-phoRapID™ and contact your medical specialist for assistance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

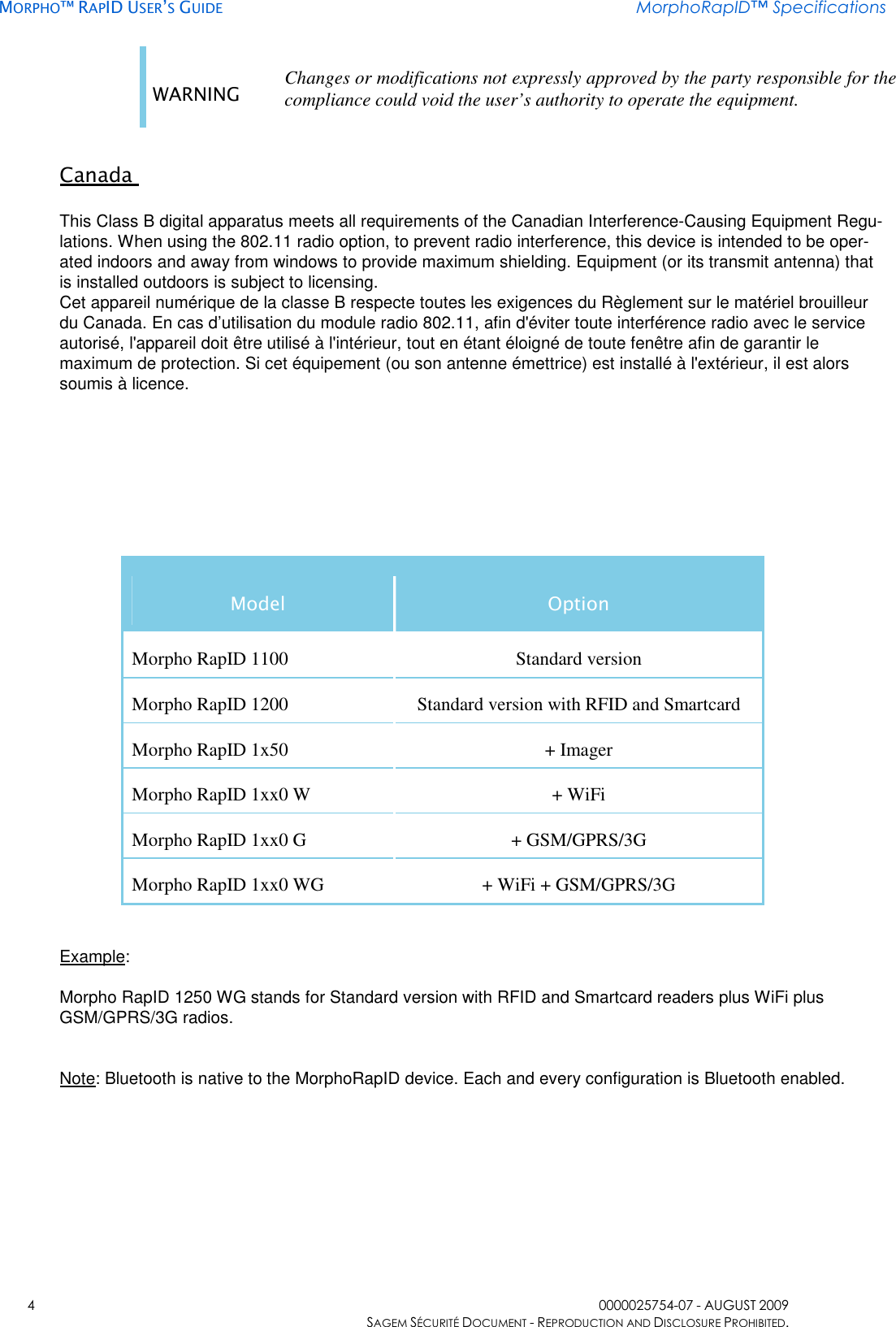

MORPHO™ RAPID USER’S GUIDE MorphoRapID™ Specifications 4 0000025754-07 - AUGUST 2009 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. WARNING Changes or modifications not expressly approved by the party responsible for the compliance could void the user’s authority to operate the equipment. Canada This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regu-lations. When using the 802.11 radio option, to prevent radio interference, this device is intended to be oper-ated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. En cas d’utilisation du module radio 802.11, afin d'éviter toute interférence radio avec le service autorisé, l'appareil doit être utilisé à l'intérieur, tout en étant éloigné de toute fenêtre afin de garantir le maximum de protection. Si cet équipement (ou son antenne émettrice) est installé à l'extérieur, il est alors soumis à licence. Model Option Morpho RapID 1100 Standard version Morpho RapID 1200 Standard version with RFID and Smartcard Morpho RapID 1x50 + Imager Morpho RapID 1xx0 W + WiFi Morpho RapID 1xx0 G + GSM/GPRS/3G Morpho RapID 1xx0 WG + WiFi + GSM/GPRS/3G Example: Morpho RapID 1250 WG stands for Standard version with RFID and Smartcard readers plus WiFi plus GSM/GPRS/3G radios. Note: Bluetooth is native to the MorphoRapID device. Each and every configuration is Bluetooth enabled.

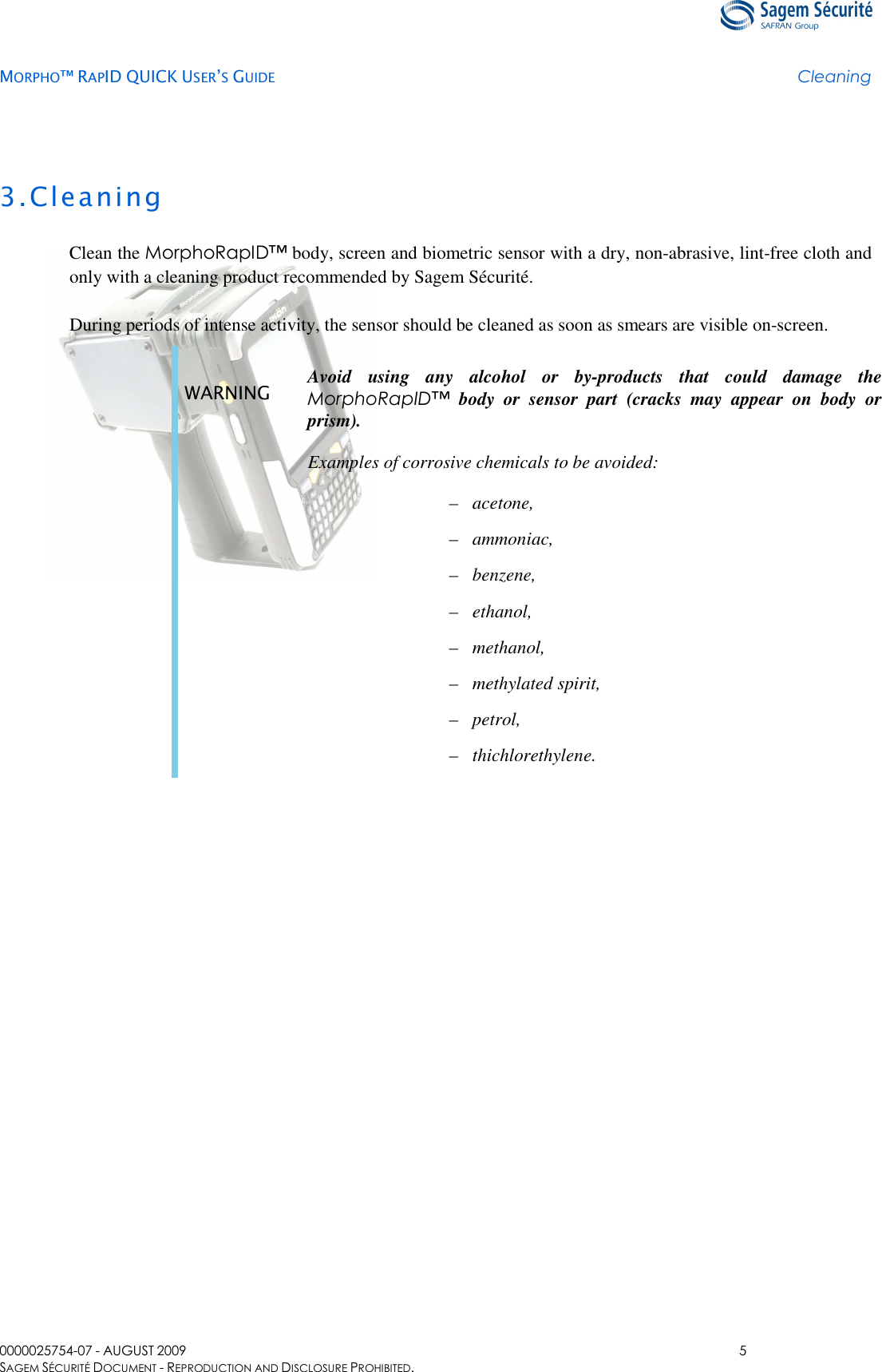

MORPHO™ RAPID QUICK USER’S GUIDE Cleaning 0000025754-07 - AUGUST 2009 5 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. 3.Cleaning Clean the MorphoRapID™ body, screen and biometric sensor with a dry, non-abrasive, lint-free cloth and only with a cleaning product recommended by Sagem Sécurité. During periods of intense activity, the sensor should be cleaned as soon as smears are visible on-screen. WARNING Avoid using any alcohol or by-products that could damage the MorphoRapID™ body or sensor part (cracks may appear on body or prism). Examples of corrosive chemicals to be avoided: – acetone, – ammoniac, – benzene, – ethanol, – methanol, – methylated spirit, – petrol, – thichlorethylene.

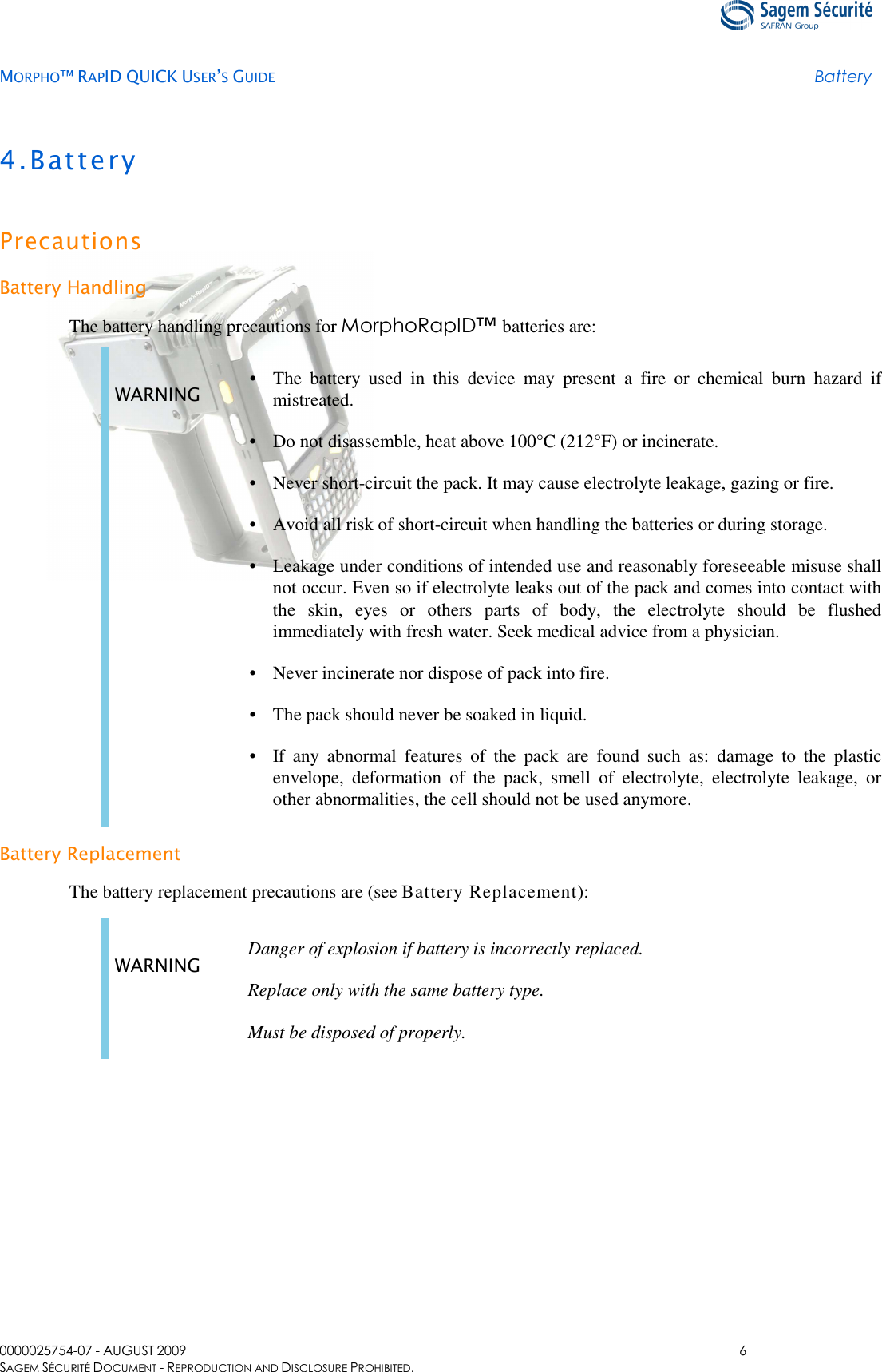

MORPHO™ RAPID QUICK USER’S GUIDE Battery 0000025754-07 - AUGUST 2009 6 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. 4.Battery Precautions Battery Handling The battery handling precautions for MorphoRapID™ batteries are: WARNING • The battery used in this device may present a fire or chemical burn hazard if mistreated. • Do not disassemble, heat above 100°C (212°F) or incinerate. • Never short-circuit the pack. It may cause electrolyte leakage, gazing or fire. • Avoid all risk of short-circuit when handling the batteries or during storage. • Leakage under conditions of intended use and reasonably foreseeable misuse shall not occur. Even so if electrolyte leaks out of the pack and comes into contact with the skin, eyes or others parts of body, the electrolyte should be flushed immediately with fresh water. Seek medical advice from a physician. • Never incinerate nor dispose of pack into fire. • The pack should never be soaked in liquid. • If any abnormal features of the pack are found such as: damage to the plastic envelope, deformation of the pack, smell of electrolyte, electrolyte leakage, or other abnormalities, the cell should not be used anymore. Battery Replacement The battery replacement precautions are (see Battery Replacement): WARNING Danger of explosion if battery is incorrectly replaced. Replace only with the same battery type. Must be disposed of properly.

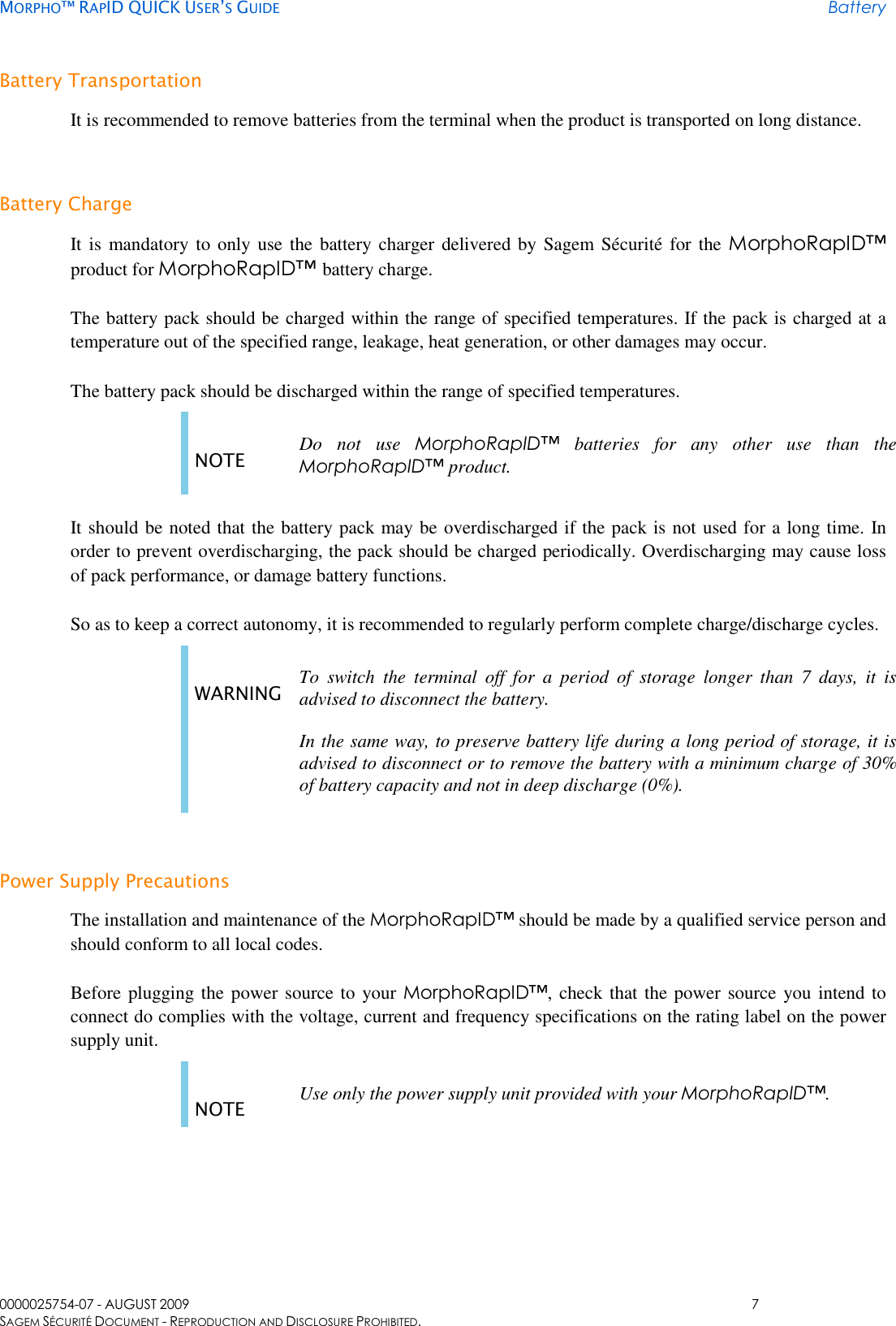

MORPHO™ RAPID QUICK USER’S GUIDE Battery 0000025754-07 - AUGUST 2009 7 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Battery Transportation It is recommended to remove batteries from the terminal when the product is transported on long distance. Battery Charge It is mandatory to only use the battery charger delivered by Sagem Sécurité for the MorphoRapID™ product for MorphoRapID™ battery charge. The battery pack should be charged within the range of specified temperatures. If the pack is charged at a temperature out of the specified range, leakage, heat generation, or other damages may occur. The battery pack should be discharged within the range of specified temperatures. NOTE Do not use MorphoRapID™ batteries for any other use than the MorphoRapID™ product. It should be noted that the battery pack may be overdischarged if the pack is not used for a long time. In order to prevent overdischarging, the pack should be charged periodically. Overdischarging may cause loss of pack performance, or damage battery functions. So as to keep a correct autonomy, it is recommended to regularly perform complete charge/discharge cycles. WARNING To switch the terminal off for a period of storage longer than 7 days, it is advised to disconnect the battery. In the same way, to preserve battery life during a long period of storage, it is advised to disconnect or to remove the battery with a minimum charge of 30% of battery capacity and not in deep discharge (0%). Power Supply Precautions The installation and maintenance of the MorphoRapID™ should be made by a qualified service person and should conform to all local codes. Before plugging the power source to your MorphoRapID™, check that the power source you intend to connect do complies with the voltage, current and frequency specifications on the rating label on the power supply unit. NOTE Use only the power supply unit provided with your MorphoRapID™.

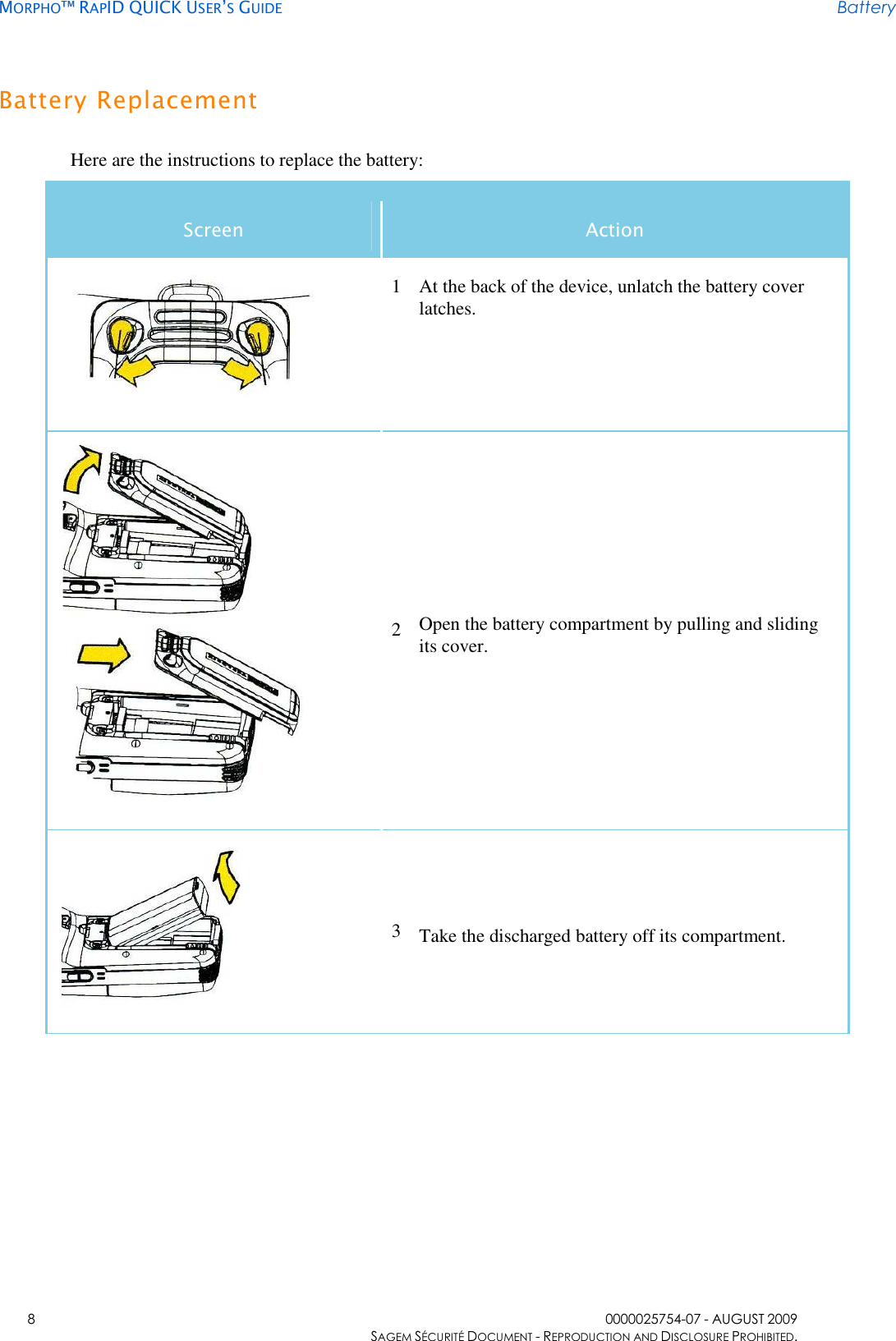

MORPHO™ RAPID QUICK USER’S GUIDE Battery 8 0000025754-07 - AUGUST 2009 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Battery Replacement Here are the instructions to replace the battery: Screen Action 1 At the back of the device, unlatch the battery cover latches. 2 Open the battery compartment by pulling and sliding its cover. 3 Take the discharged battery off its compartment.

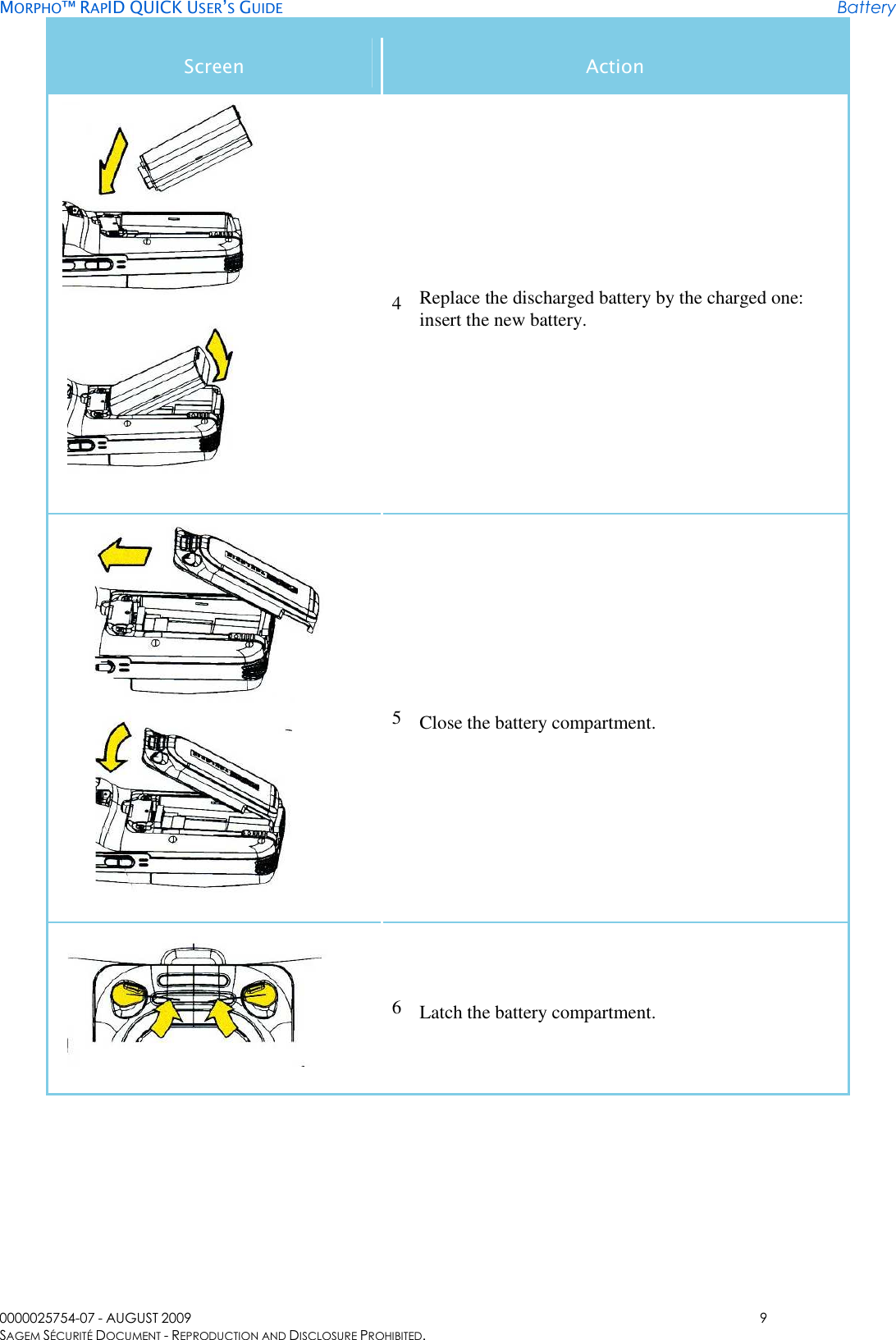

MORPHO™ RAPID QUICK USER’S GUIDE Battery 0000025754-07 - AUGUST 2009 9 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Screen Action 4 Replace the discharged battery by the charged one: insert the new battery. 5 Close the battery compartment. 6 Latch the battery compartment.

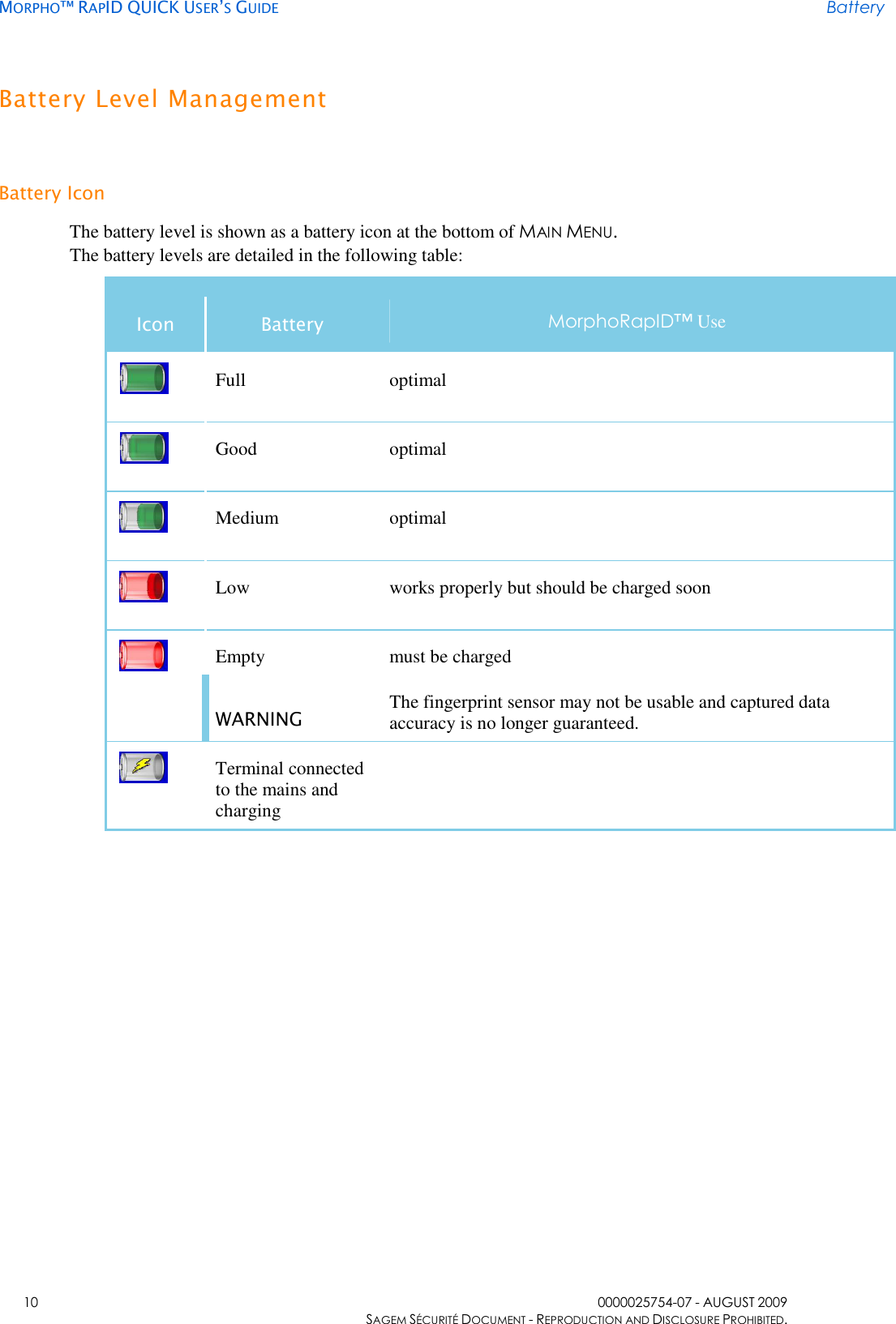

MORPHO™ RAPID QUICK USER’S GUIDE Battery 10 0000025754-07 - AUGUST 2009 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Battery Level Management Battery Icon The battery level is shown as a battery icon at the bottom of MAIN MENU. The battery levels are detailed in the following table: Icon Battery MorphoRapID™ Use Full optimal Good optimal Medium optimal Low works properly but should be charged soon Empty must be charged WARNING The fingerprint sensor may not be usable and captured data accuracy is no longer guaranteed. Terminal connected to the mains and charging

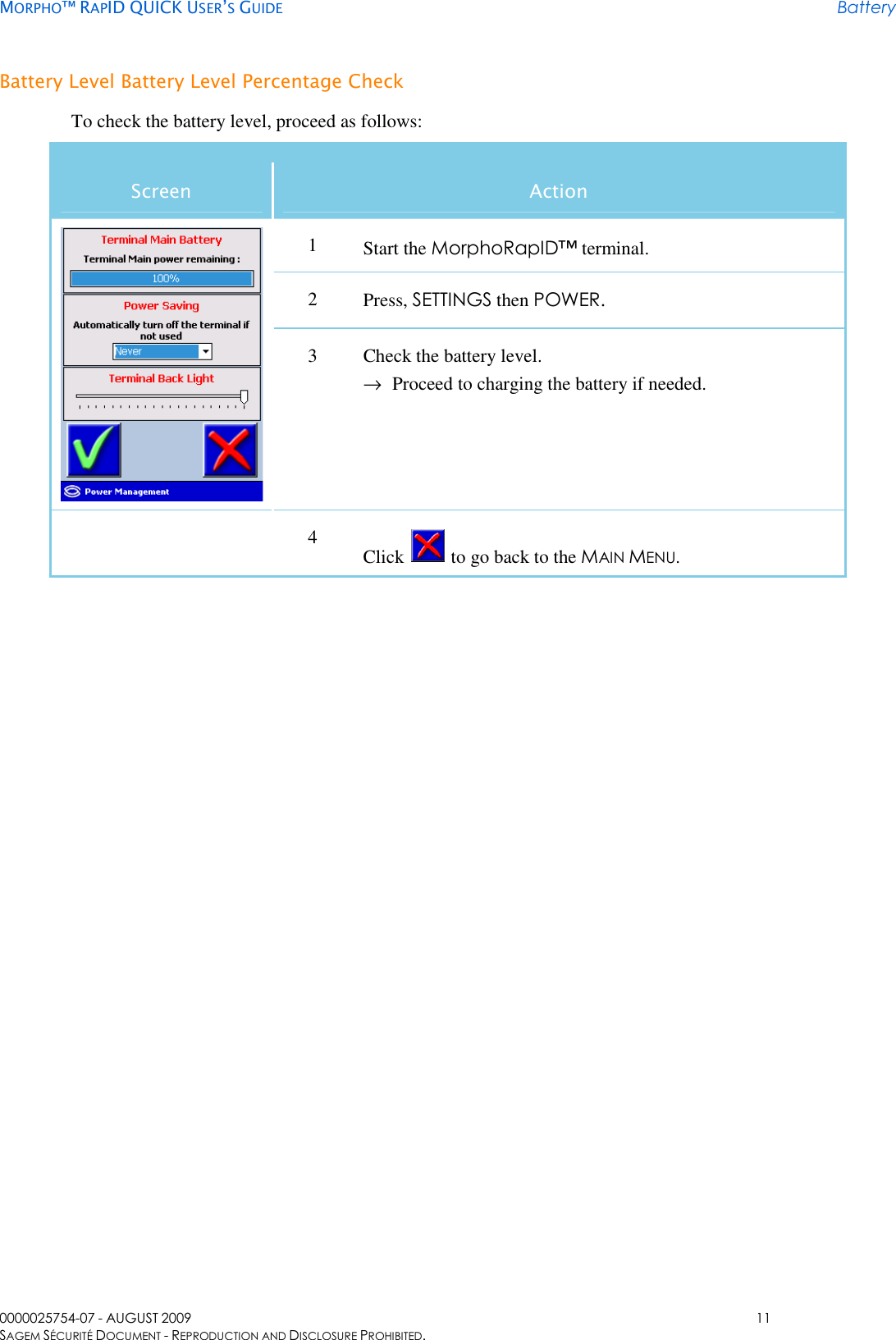

MORPHO™ RAPID QUICK USER’S GUIDE Battery 0000025754-07 - AUGUST 2009 11 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Battery Level Battery Level Percentage Check To check the battery level, proceed as follows: Screen Action 1 Start the MorphoRapID™ terminal. 2 Press, SETTINGS then POWER. 3 Check the battery level. → Proceed to charging the battery if needed. 4 Click to go back to the MAIN MENU.
MORPHO™ RAPID QUICK USER’S GUIDE Recommendations 0000025754-07 - AUGUST 2009 12 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Power Management Description POWER MANAGEMENT provides a means of: •knowing battery power level, •setting power saving, • setting terminal back light. NOTE The terminal backlight setting can also be accessed by clicking on the Sagem Sécurité logo at the bottom left corner of the screen. NOTE The terminal backlight setting can also be accessed by pressing twice the Orange key and then the ESC key . ♦Press the key as many times as needed to adjust backlight. 5.Recommendations General Precautions . WARNING The manufacturer cannot be held responsible if the above recommendations are not followed or if the Sagem Sécurité MorphoRapID™ is used incorrectly. – Do not attempt to repair your Sagem Sécurité MorphoRapID™ yourself. The manufacturer cannot be held responsible for any damage/accident that may result from attempts to repair components. – Any work carried out by non-authorized personnel will invalidate your warranty. – Do not expose your Sagem Sécurité MorphoRapID™ to extreme temperatures. – Attempts to integrate the MorphoRapID™ with unapproved accessories will void your warranty. – The MorphoRapID™ is not waterproof: Do not attempt to immerse it.

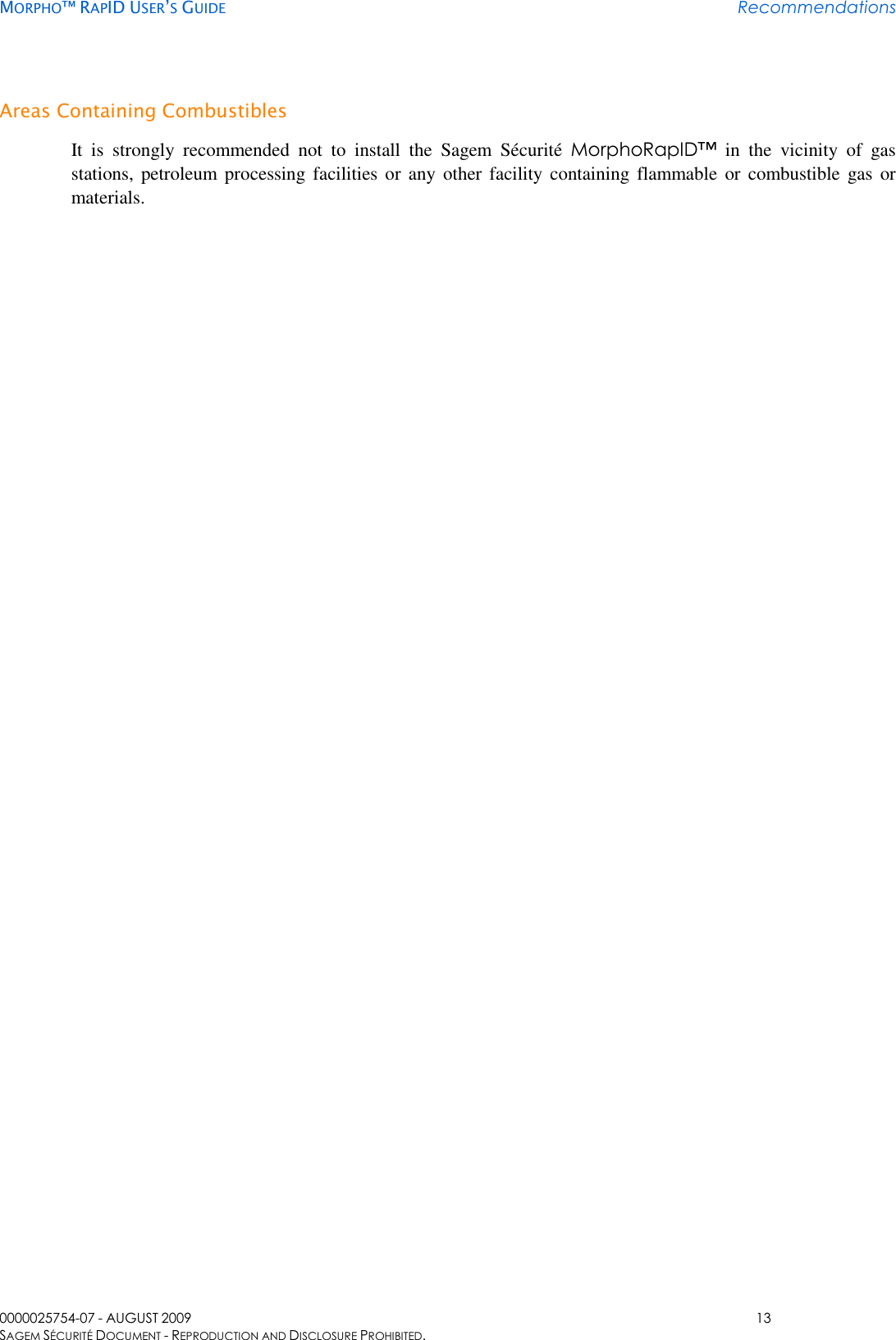

MORPHO™ RAPID USER’S GUIDE Recommendations 0000025754-07 - AUGUST 2009 13 SAGEM SÉCURITÉ DOCUMENT - REPRODUCTION AND DISCLOSURE PROHIBITED. Areas Containing Combustibles It is strongly recommended not to install the Sagem Sécurité MorphoRapID™ in the vicinity of gas stations, petroleum processing facilities or any other facility containing flammable or combustible gas or materials.
