Cora Tine Teoranta T A Kelsius K101 Wireless Sensor Module User Manual Manual
Cora Tine Teoranta T/A Kelsius Wireless Sensor Module Manual
Manual
Product Manual
Wireless Sensor Module K101
FCC ID: Z4GK101
Analogue Sensors (2):
Thermistor:
R@25 deg C = 10KOhms +/- 1%
B = 3977 +/- 1%
Digital Sensor: Normally Open contact
5VDC 25mA
Radio Frequency Band: 902 to 928MHz
Line of sight Radio Range: 100m
Modulation Type: FHSS
Power Output: 10mW
Reprogrammability: Fully Reprogrammable over RF
Battery: LithiumTiCl 3.6V 2AHr. AA Size.
Battery Lifetime: 5 years with a 10 minute
data transmission interval.
Antenna: 915MHz ¼ wave antenna 82mm long
Copper core 1.0mm
2
PVC coated to 2.5mm OD
Instruction for installation
Note the enclosure into which this module is installed must display a Label clearly visible to the
user without magnification stating “Contains FCC ID: Z4GK101”
This module is to be installed only in the end products of Cora Tine Teoranta t/a Kelsius

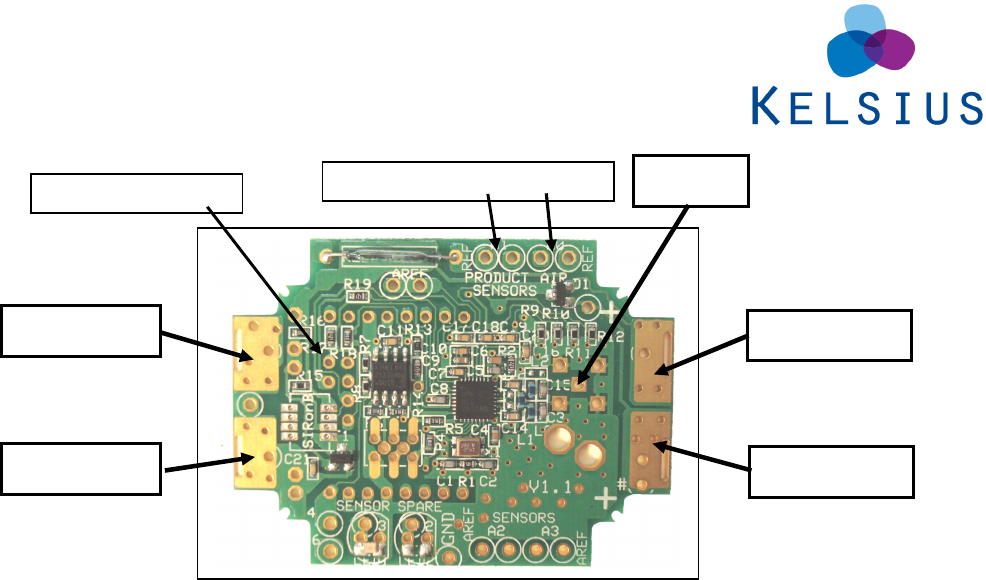

Battery A -ve
Antenna
Battery B
+ve
Battery B -
ve
Battery A +ve
Analogue Sensor Inputs
Digital Sensor Input
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
WARNING! This module is to be installed only in Cora Tine Teoranta t/a Kelsius
end products by Cora Tine Teoranta t/a Kelsius personnel, and shall not be
offered to 3rd party OEM integrators or the general public.
The RF Module is labeled with its own FCC ID Number. If the FCC ID is not visible when the
module is installed inside another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module. This exterior label can use
wording such as the following:
Contains Transmitter Module FCC ID: Z4GK101
or
Contains FCC ID: Z4GK101
To comply with FCC RF exposure limits for general population/uncontrolled exposure, the
antenna(s) used for this transmitter must not be collocated or operating in conjunction with any
other antenna or transmitter.
