Cora Tine Teoranta T A Kelsius K102 Wireless Repeater User Manual K102 Wireless Repeater Module Manual v2
Cora Tine Teoranta T/A Kelsius Wireless Repeater K102 Wireless Repeater Module Manual v2
Manual
Product Manual

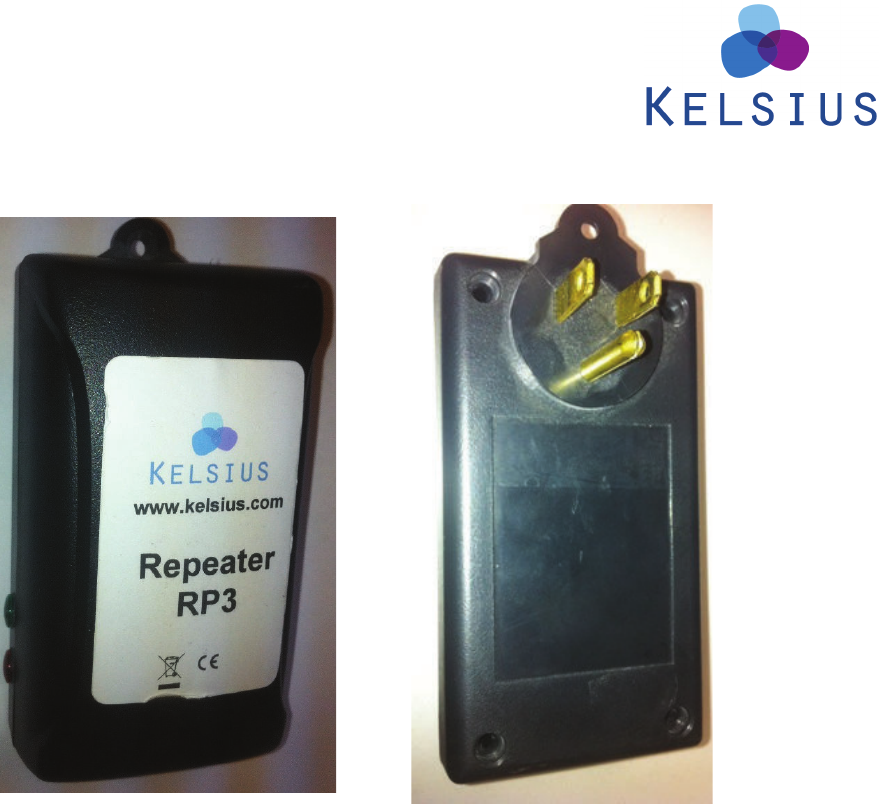

Wireless Repeater K102
FCC ID: Z4GK102
/ŶƐƚƌƵĐƚŝŽŶĨŽƌŝŶƐƚĂůůĂƚŝŽŶ
dŚĞ&/͗Z4GK102ĨŽƌƚŚĞ<ϭϬϮZĞƉĞĂƚĞƌhŶŝƚŝƐůŽĐĂƚĞĚŽŶƚŚĞƐŝĚĞŽĨƚŚĞƵŶŝƚ
WůƵŐƚŚĞƵŶŝƚƐĞĐƵƌĞůLJŝŶƚŽĂƐƚĂŶĚĂƌĚĞůĞĐƚƌŝĐŝƚLJŵĂŝŶƐƐƵƉƉůLJƐŽĐŬĞƚ͘
/ŶƚĞƌŶĂůƌĞĐŚĂƌŐĞĂďůĞďĂƚƚĞƌŝĞƐŵĂŝŶƚĂŝŶŽƉĞƌĂƚŝŽŶŝŶƚŚĞĞǀĞŶƚŽĨƉŽǁĞƌĨĂŝůƵƌĞĨŽƌƵƉƚŽϮĚĂLJƐ͘
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with FCC RF radiation exposure limits set forth for general population
(uncontrolled exposure). This device must not be collocated or operating in conjunction with any other
antenna or transmitter.
Specifications
Input: 90 to 125 VAC.
Radio Frequency Band: 902 to 928MHz
Line of sight Radio Range: 100m
Modulation Type: FHSS
Power Output: 10mW
Reprogrammability: Fully Reprogrammable over RF
Battery: 3.6V 1AHr. Nickel Cadmium battery pack.
Battery Lifetime: If line power is disconnected, battery pack will operate
the module for 50 hours.
Antenna: 915MHz ¼ wave antenna 82mm long
Copper core 1.0mm
2
PVC coated to 2.5mm OD
