Corbin Russwin Visio Set Delayed Egress X MKA2 BPS 120857

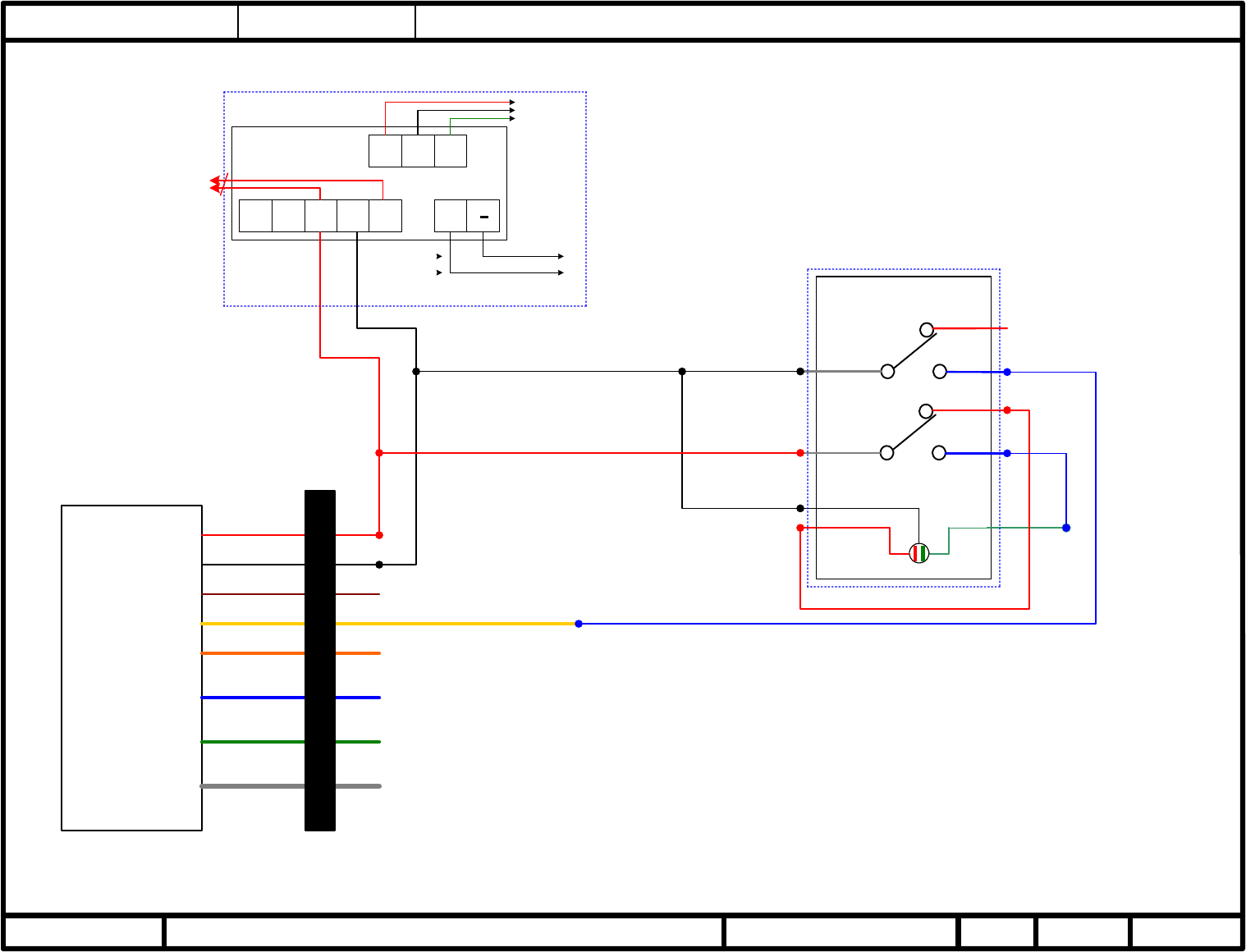

User Manual: Corbin Russwin Delayed Egress x MKA2 x BPS Wiring Diagrams and Instructions

Open the PDF directly: View PDF .
Page Count: 1

ASSA ABLOY Applications

Web: www.assaabloydss.com Phone: 800-810-WIRE Email: 800810WIRE@assaabloyusa.com Point-To-Point Diagram 06/22/10

Date Drawn By Revision

ASSA ABLOY

Drawing #120857

RLM A

Richard McKeown

RED +

Black -

Reset

Bypass

NO Secure

Relay

NC Secure

Relay

NO Alarm

Relay

NC Alarm

Relay

J2 Connector

Hinge or Power

Transfer C White

NC Red

NO Blue

MKA2

GreenRed

Black GRD

NC Red

NO Blue

C White

To battery Negative

To Battery Positive

GNH

+

F

-

+

ACAC

120 VAC Input

BPS-24-1

To NC Fire Alarm

contacts

Battery optional

Delayed Egress x MKA2 x BPS

Note: Rotating Key Switch Puts DEED in

Maintained Bypass (Green LED). Rotate again to

Rearm DEED (Red LED).
