Corbin Russwin ED3000 Series Lever Handle Control FM36905 14

ED3000 Series Lever Handle Control COrbinFM369 Installation Instructions

User Manual: Corbin Russwin ED3000 Series Lever Handle Control Wiring Diagrams and Instructions

Open the PDF directly: View PDF .
Page Count: 2

®

ASSA ABLOY

In U.S.:

Corbin Russwin, Inc.

225 Episcopal Road

Berlin, CT 06037 USA

www.corbinrusswin.com

In Canada:

ASSA ABLOY Door Security Solutions Canada

160 Four Valley Drive

Vaughan, Ontario, Canada L4K4T9

www.assaabloy.ca

Technical Product Support: Phone: 888-607-5703

Installation Instructions

1 of 2

Copyright © 2014 Corbin Russwin Inc., an ASSA ABLOY Group company.

All rights reserved. Reproduction in whole or in part without the express written

permission of Corbin Russwin, Inc. is prohibited.

FM369 (05/14)

FM369 (05/14)

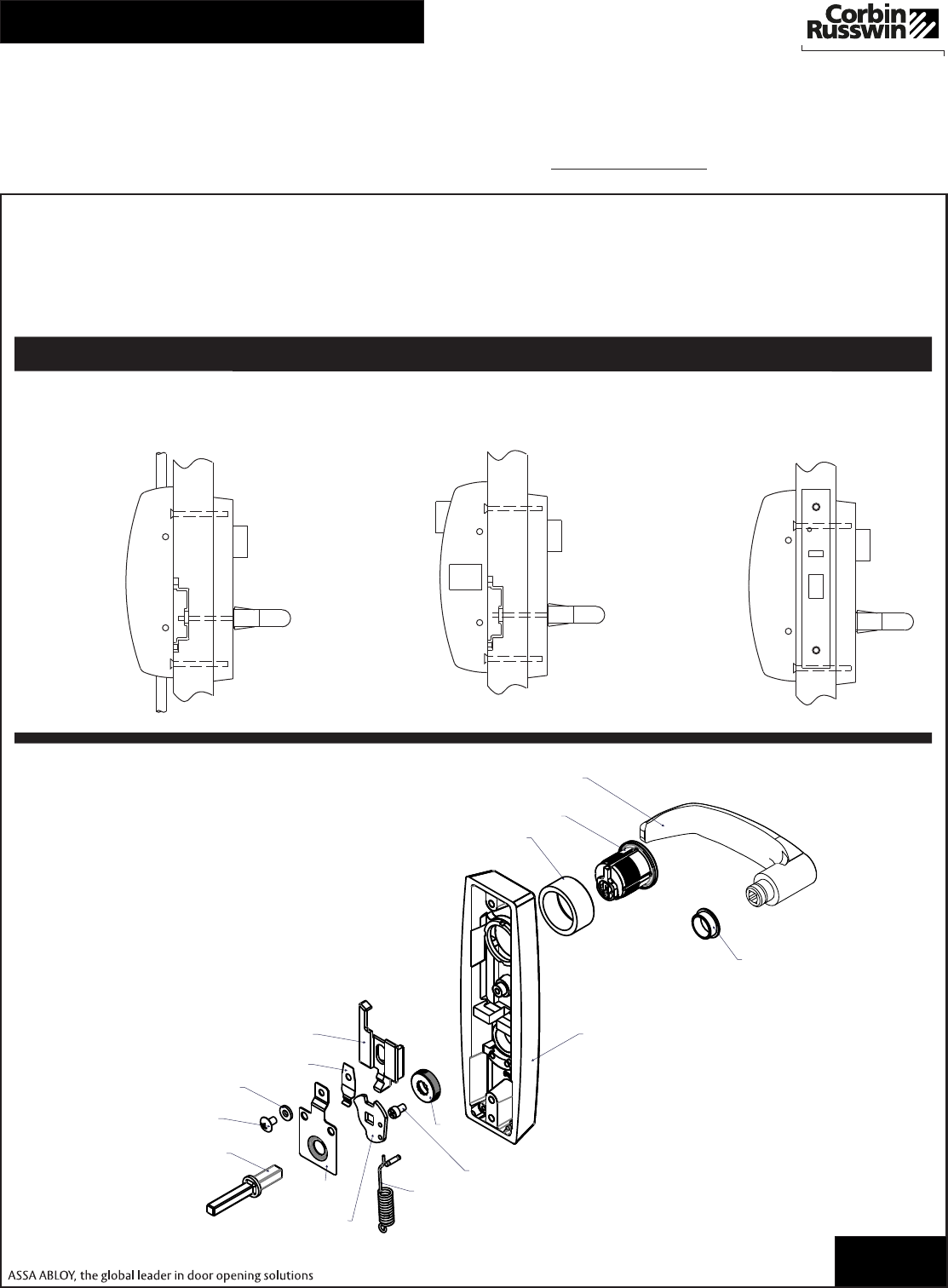

SPINDLE

PHMS

RETAINING

PLATE

HUB

SPRING

(STD)

FUSIBLE

LINK

LOCKING

SLIDE

SPRING

HUB

PLATE

LOCKING

SLIDE

CHMS

CAP

NUT

ESCUTCHEON

COLLAR,

CYLINDER

CYLINDER

HANDLE,

LEVER

BUSHING INSERT

General Description

ED3000 Series

Lever Handle Control

ATTENTION:

To prepare door, use instruction sheets and templates packed

with exit device and outside trim.

Please leave this instruction sheet for maintenance use.

LEVER HANDLE CONTROL USED

WITH ED3400 SURFACE MOUNTED

VERTICAL ROD EXIT DEVICES

LEVER HANDLE CONTROL USED

WITH ED3200 RIM EXIT DEVICES

LEVER HANDLE CONTROL USED

WITH ED3600 MORTISE LOCK

EXIT DEVICES

CLASSROOM TRIM SHOWN

®

ASSA ABLOY

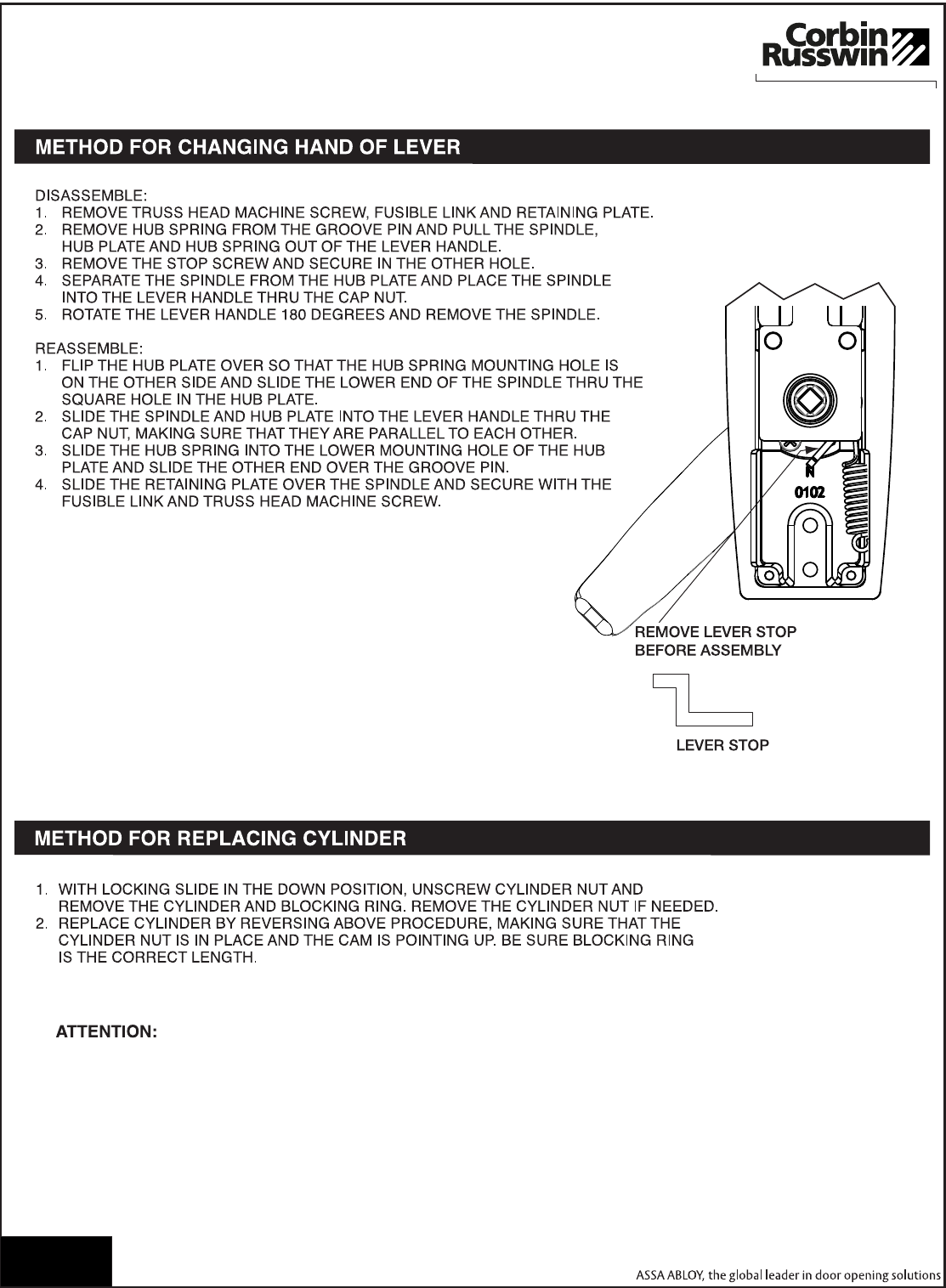

2 of 2 Copyright © 2014 Corbin Russwin Inc., an ASSA ABLOY Group company.

All rights reserved. Reproduction in whole or in part without the express written

permission of Corbin Russwin, Inc. is prohibited.

FM369 (05/14)

ED3000 Series

Lever Handle Control

1. DIRKE LEVER DESIGN IS NOT REVERSIBLE.
