THERMAL PIN PACKET - 744F688
For Pairs of Doors with "Less Bottom Rod"
Used on Fire Rated Doors for:
ED5470B SVR Exit Devices
ED5860B CVR Exit Devices
FM547A  02/08  (617416047)
Copyright © 2008 Corbin Russwin, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of Corbin Russwin, Inc. is prohibited.

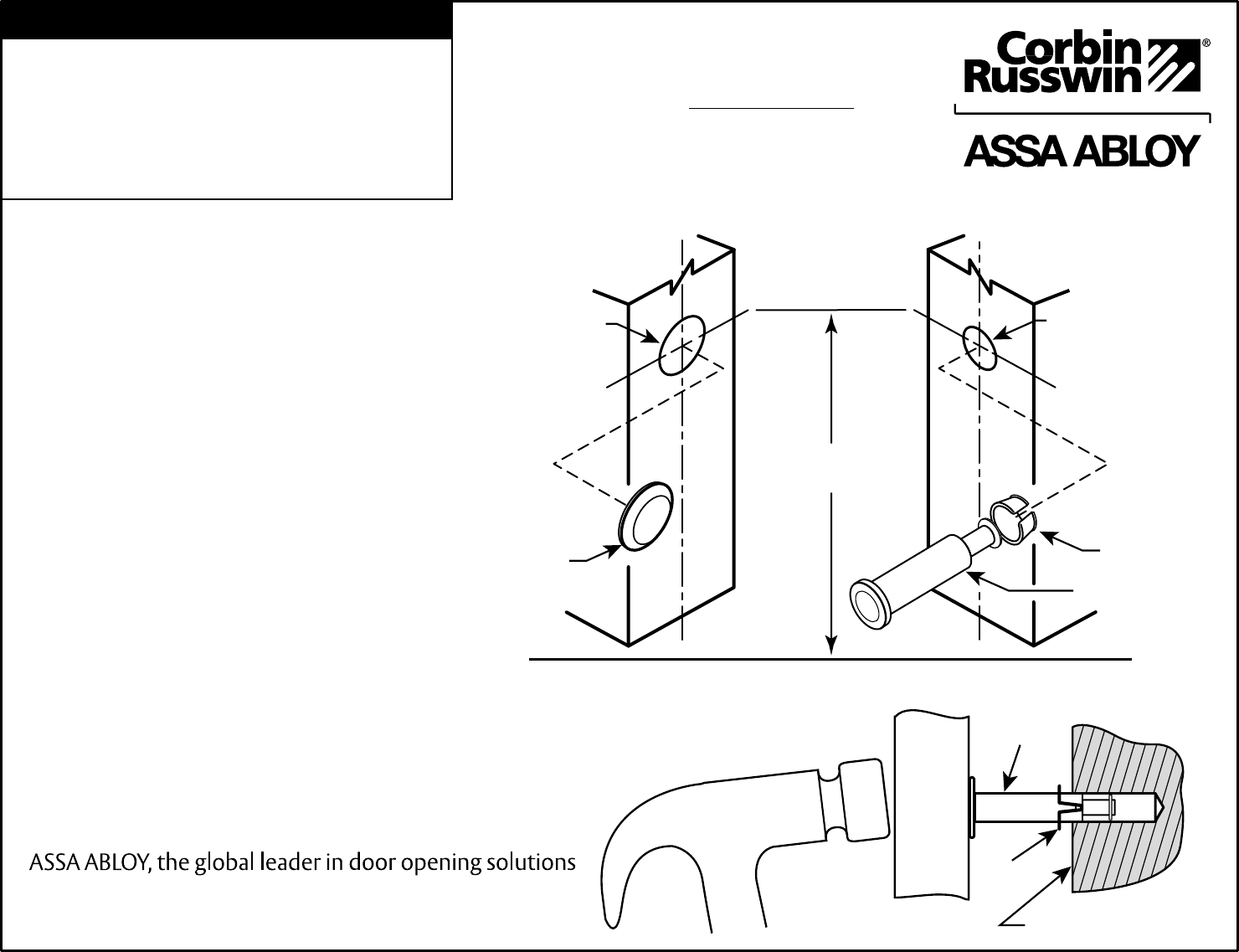

Installation Instructions
1. Drill 5/8" diameter hole as shown in "active"
leaf of door edge. Install Cap Plug.
2. Drill 9/16" diameter hole as shown in
"inactive" leaf of door edge.
3. Install Thermal Pin and Sleeve.
a. Metal Doors:
Insert Sleeve into "inactive" leaf of door
  edge.
Insert Thermal Pin into Sleeve.
Using wood block as spacer, tap Thermal
Pin and Sleeve into 9/16" hole in door
edge with hammer.
b. Wood Doors:
Install Sleeve onto end of Thermal Pin.
Using wood block as spacer, tap Thermal
Pin and Sleeve into 9/16" hole in door
edge with hammer.
Note:Reinforcement required where Thermal 
Pin and Cap Plug are to be installed.
In U.S.: Corbin Russwin, Inc.
225 Episcopal Road
Berlin, CT 06037-4004
www.corbinrusswin.com
Technical Product Support:
Phone: 888-607-5703 Fax: 800-659-7293
In Canada: ASSA ABLOY DSS Canada
160 Four Valley Drive
Vaughan, ON, L4K 4T9
www.assaabloycanadadss.ca
HAMMER
WOOD
BLOCK
OR
SPACER
EDGE OF DOOR
SLEEVE
THERMAL
PIN
C
LC
L
C
LC
L
12"
(305mm)
9/16" Dia. (14) Hole
2-7/8" (73) Deep Min.
5/8" Dia. (16) Hole
7/8" (22) Deep Min.
Thermal Pin
Sleeve
Cap Plug
Finished Floor or Threshold
