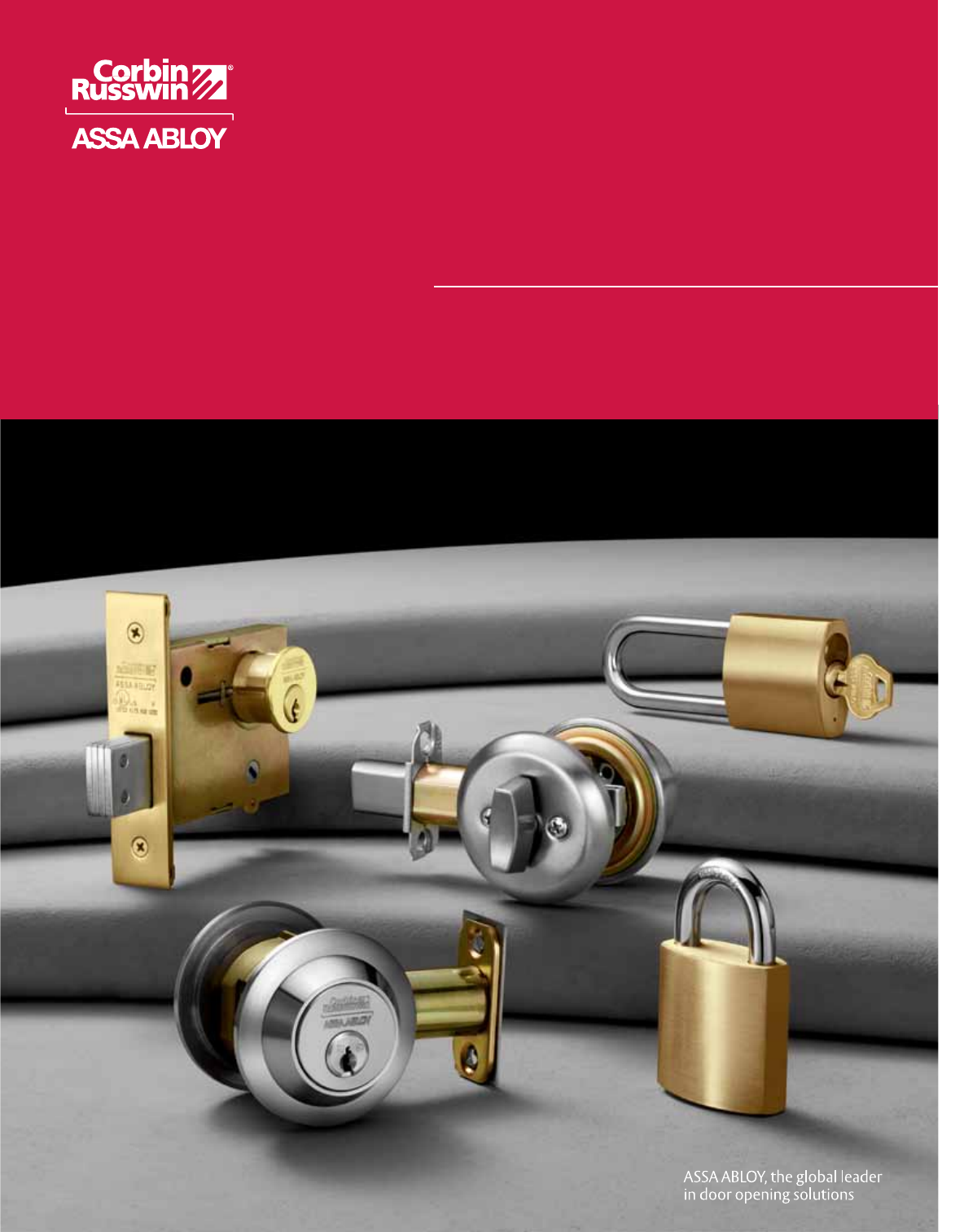

Padlocks & Deadlocks
PL5000, DL2200/DL3200, DL3000 &
DL4100 Series

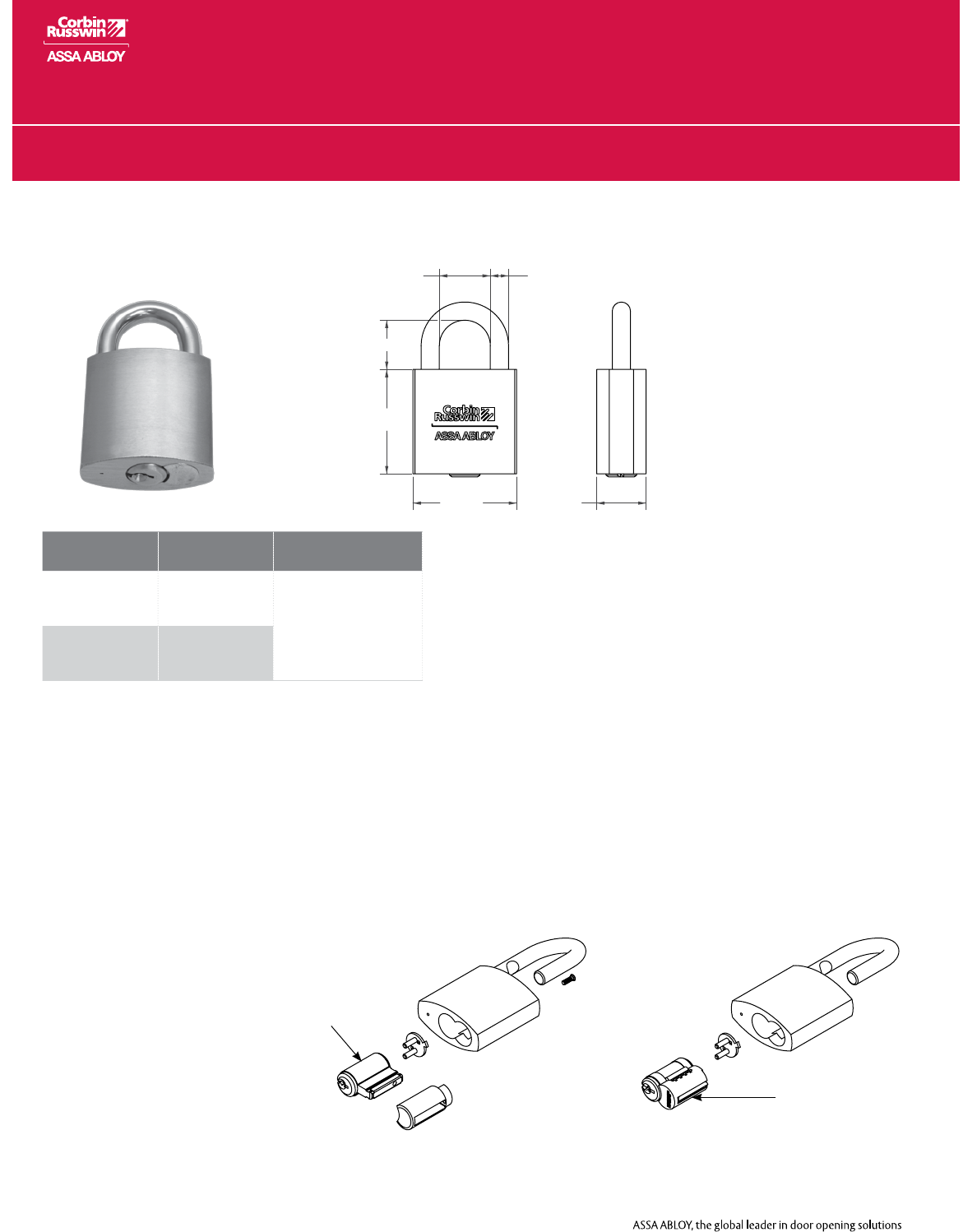

Padlocks PL5000 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.2
Features
Case
Extruded brass.
Shackle
11/32" (9mm) diameter hardened steel
(PL5000 Series), brass (PL5100 Series) or
stainless steel (PL5200 Series).
Locking
Ball-bearing locking heel and toe.
Cylinder
RFC model: 6-pin Fixed Core (2300)
IC model: 6-Pin, Security, Pyramid &
Access 3 (8000 Series)
L4 keyway standard
Keying Features Available
Master keying
Construction master keying
Interchangeable core (IC) 6-pin
IC security
Concealed key control
Visual key control (not for HS)
Pyramid (IC only)
Access 3® (IC only)
Rekeyable Fixed Core (RFC) and
Interchangeable Core (IC) Models
Keys
Two nickel silver standard.
Warranty
One-year limited.
Finish
BHMA 606 Satin Brass (US4) only.
Model Series Shackle Clearance
S
RFC
PL5000R
PL5100R
PL5200R Std: 7/8" (22mm)
258: 2-5/8" (67mm)
IC
PL5070
PL5170
PL5270
RFC MODEL IC MODEL
2300 Series
Cylinder
8000 Series
IC Core
45012-12/13
S
15/16
(24mm)
11/32 DIA.
(9mm)
2
(51mm)
1-15/16
(49mm)
15/16
(24mm)
Padlocks PL5000 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.3
Series/Function
Description
Series/Function
Hardened
Steel Shackle
Brass
Shackle
Stainless
Steel Shackle
Rekeyable Fixed Core
(RFC) PL5000R PL5100R PL5200R
Interchangeable core
(IC) less core PL5070 PL5170 PL5270
IC 6-pin PL5080 PL5180 PL5280
IC security PL5090 PL5190 PL5290
Pyramid High
Security (IC) PL5030 PL5130 PL5230
Pyramid Security (IC) PL5037 PL5137 PL5237
Contract/Detailed Order
Quantity Keyset Series/Function Shackle Length Misc. Options
4 AJ3 PL5080 258 M45 x S19866
Stock Order
Quantity Series/Function
10 PL5000R
Ordering Examples
Quick Codes
Miscellaneous Options
Description Specify
Chain and clevis attached M44
Custom die stamped case
(specify existing die number, or provide lettering
specifications or artwork)
M45 x #
Shackle Clearance
Description Specify
7/8" (22mm) (standard)
2-5/8" (67mm) 258
Cylinder and Keying
Description Specify
Keyed random
(standard for Pyramid & IC security padlocks) KR
0-bitted
(not available for Pyramid & IC security padlocks) (standard)
Construction Master Keyed (RFC & IC 6-pin padlocks only) CMK
Temporary construction core (Red)
(IC 6-pin padlocks only) CT6R
Temporary Construction Core (Blue)
(IC 6-pin padlocks only) CT6B
Temporary Construction Core (Green)
(IC 6-pin padlocks only) CT6G
Visual key control (VKC)
- Keys only VKC1
- Locks and keys
(RFC & IC 6-pin padlocks only) VKC2
- Locks only
(RFC & IC 6-pin padlocks only) VKC3
Concealed key control (CKC)
(IC 6-pin & IC security padlocks only)
- CKC cores and VKC keys CKC2
- CKC cores only CKC3
2 keys per lock (standard)
More than 2 keys KY#
(e.g., KY6)
Rekeyable FC (RFC) Less Cylinder LC
Access 3® Patented IC ACP
Access 3® Security IC ACS
Access 3® High Security IC ACHS
Cylinder Only
Description Specify
Removable Core
Standard 6-pin 2300
Interchangeable Core
Standard 6-pin 8000
Security 8010
Pyramid High Security 8020
Pyramid Security 8027
Access 3® - Patented 8500
Access 3® - Security 8600
Access 3® - High Security 8700
45012-12/13

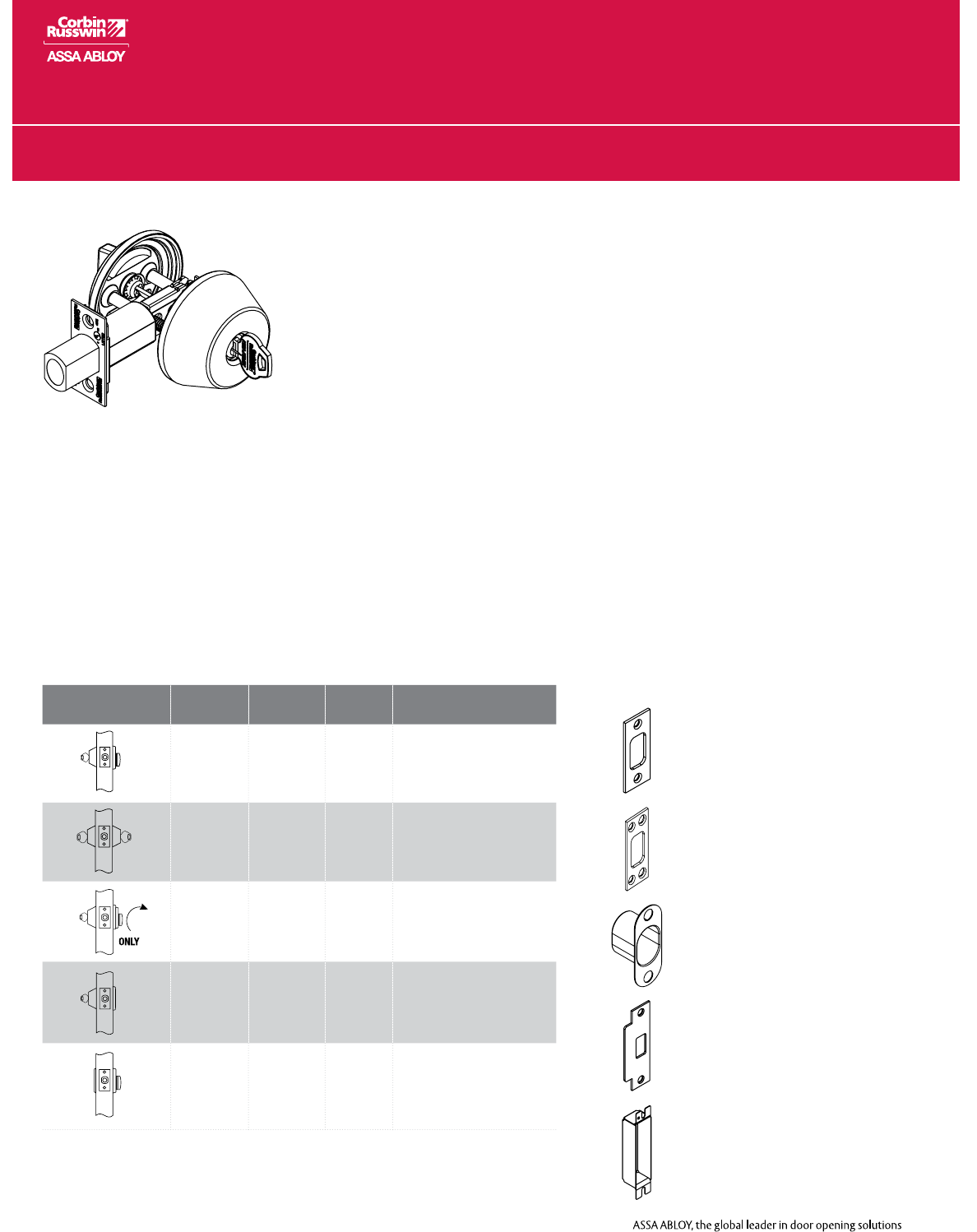

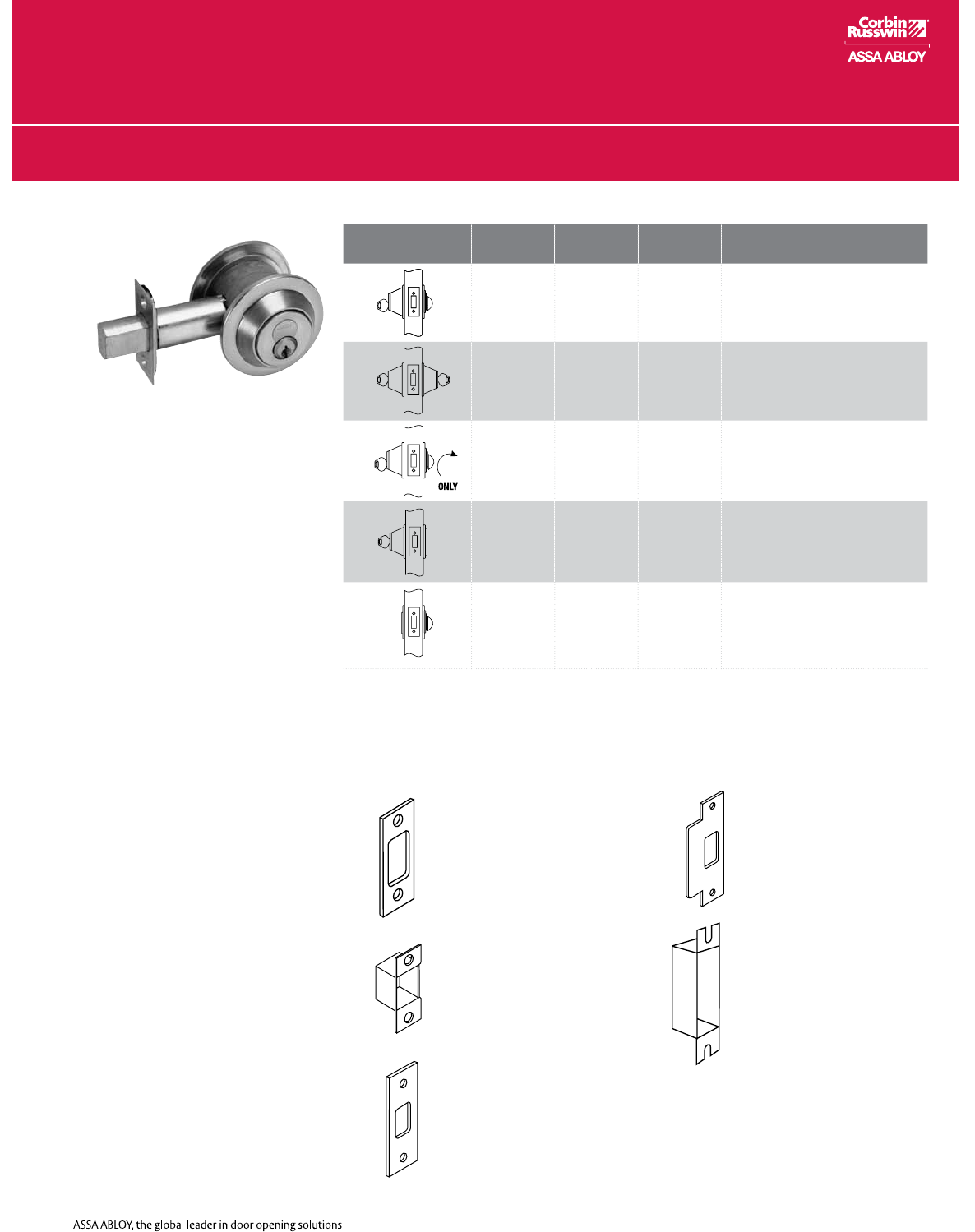

Deadlocks DL2200/DL3200 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.4
Strikes
Features
Handing Non-handed.
Door Thickness Standard: 1-3/4"
(44mm). Optional door thicknesses
available; see Quick Codes.
Backset Standard: 2-3/4" (70mm)
Optional: 2-3/8" (60mm)
Front Standard: brass or stainless
steel, 2-1/4" (57mm) x 1-1/8" (29mm).
Optional: 1" width; see Quick Codes.
Deadbolt 1" throw, solid steel deadbolt
with hardened, free spinning, steel pin
insert.
Strike Standard; 2-3/4" (70mm) x
1-1/8" (29mm). Optional strikes and
wrought boxes available; see Strikes, this
page.
Cylinder Standard: brass, 6-pin, L4
keyway, 0-bitted. Security cylinder
optional; see Quick Codes.
Keys Two nickel silver standard.
Keying Features Available
Master keying
Construction master keying
Security
Visual key control
Concealed key control
Warranty One-year limited.
Certification/Compliance
UL
UL10B/UL10C Fire Rated Auxiliary Lock
for A label and lesser class doors when
used with a correspondingly rated primary
latching device.
ANSI
DL2200 - 156.5 Grade 2
DL3200 - 156.5 Grade 1
Any retrofit or other field modification to
a fire rated opening can potentially impact
the fire rating of the opening, and Corbin
Russwin, Inc. makes no representations or
warranties concerning what such impact may
be in any specific situation. When retrofitting
any portion of an existing fire-rated opening,
or specifying and installing a new fire-rated
opening, please consult with a code specialist
or local code official (Authority Having
Jurisdiction) to ensure compliance with all
applicable codes and ratings.

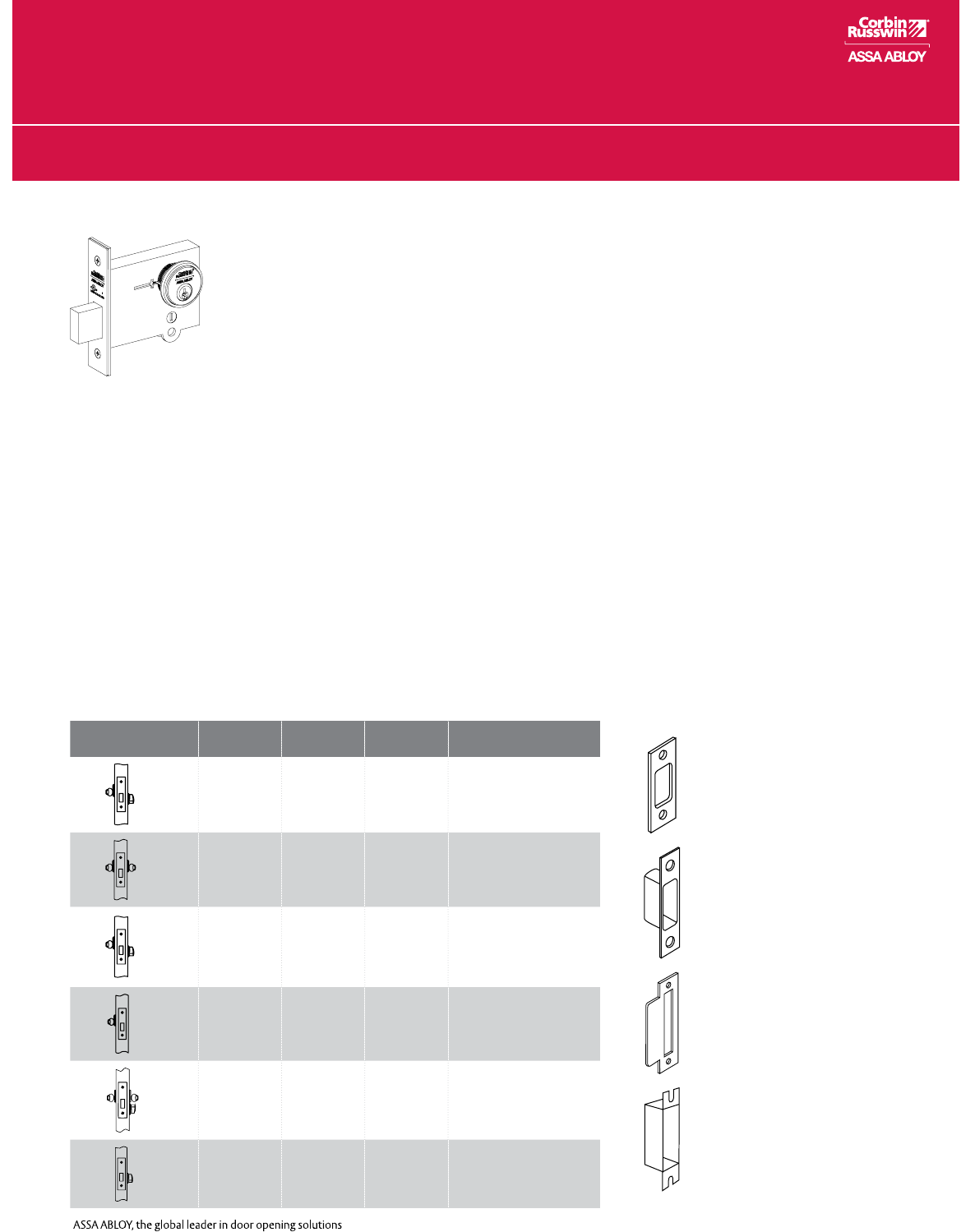

Functions
Outside Inside Series/
Function Type ANSI
No. Function Description
DL2213
DL3213
Single
Cylinder
E0150
Series
- By key outside and by
thumbturn inside.
DL2212
DL3212
Double
Cylinder
E0140
Series - By key either side.
DL2217
DL3217 Classroom E0170
Series
- By key outside and by
thumbturn inside.
- Thumbturn will retract
but not project deadbolt.
DL2211
DL3211
Cylinder
x Blank
E0160
Series
- By key one side only;
opposite side blank.
DL2260
DL3260
Thumbturn
x Blank
E0190
Series
- By thumbturn one side
only; opposite side blank.
Metal Frame Strike
Standard
2-3/4" (70mm) x 1-1/8" (29mm).
To order separately, specify
781F568 x Finish
Wood Frame Strike
Standard
2-3/4" (70mm) x 1-1/8" (29mm).
To order separately, specify
781F558 x Finish.
Strike Box
Standard with standard strikes.
To order separately, specify
781F599.
ANSI Strike
Optional; see Quick Codes.
To order separately, specify
423L71 x Finish.
ANSI Wrought Strike Box
Optional for use with ANSI
strike; see Quick Codes. To order
separately, specify 120F768.
45012-12/13
Deadlocks DL2200/DL3200 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.5
Contract/Detailed Order
Quantity Keyset Series/Function Finish Strike Options
24 AA1 DL2213 626 SS078 HS-CKC2
Stock Order
Quantity Series/Function Finish
24 DL2213 626
Ordering Examples
Cylinder Only (less housing)
Function Part Number Cylinder Type Door Thickness
11,13,17
4400-134-A51 6-Pin Conventional
1-3/8" (35mm)
1-3/4" (44mm)
2" (51mm)
2-1/4" (57mm)
4400-134-A51-7 7-Pin Conventional
4410-134-A51 Security
4420-134-A51 Pyramid High Security
4427-134-A51 Pyramid Security
4500-134-A51 Access 3® Patented
4600-134-A51 Access 3® Security
4700-134-A51 Access 3® High Security
12
4400-134-A52 6-Pin Conventional
1-3/8" (35mm)
1-3/4" (44mm)
4400-134-A52-7 7-Pin Conventional
4410-134-A52 Security
4420-134-A52 Pyramid High Security
4427-134-A52 Pyramid Security
4500-134-A52 Access 3® Patented (AP)
4600-134-A52 Access 3® Security (AS)
4700-134-A52 Access 3® High Security (AHS)
4400-214-A52 6-Pin Conventional
2" (51mm)
2-1/4" (57mm)
4400-214-A52-7 7-Pin Conventional
4410-214-A52 Security
4420-214-A52 Pyramid High Security
4427-214-A52 Pyramid Security
4500-214-A52 Access 3® Patented (AP)
4600-214-A52 Access 3® Security (AS)
4700-214-A52 Access 3 High Security (AHS)
11,12,13,17
8000 6-Pin IC
See the Housing Assembly
for Interchangeable Core
Cylinder chart below.
8000-7 7-Pin IC
8010 Security IC
8020 Pyramid High Security IC
8027 Pyramid Security IC
8500 Access 3® Patented IC
8600 Access 3® Security IC
8500 Access 3® High Security IC
Housing Assembly - Interchangeable Core Cylinder
Function Part Number Accept Cylinder Door Thickness
11,13,17
4440-134-A51 6 & 7 Pin SFIC
1-3/8" (35mm)
1-3/4" (44mm)
2" (51mm)
2-1/4" (57mm)
4470-134-A51 6-Pin LFIC
4470-134-A51-7 7-Pin LFIC
12
4440-138-A52-XX (*) 6 & 7 Pin SFIC
1-3/8" (35mm)4470-138-A52-XX 6-Pin LFIC
4470-138-A52-7-XX 7-Pin LFIC
4440-134-A52-XX 6 & 7 Pin SFIC
1-3/4" (44mm)4470-134-A52-XX 6-Pin LFIC
4470-134-A52-7-XX 7-Pin LFIC
4440-200-A52-XX 6 & 7 Pin SFIC
2" (51mm)4470-200-A52-XX 6-Pin LFIC
4470-200-A52-7-XX 7-Pin LFIC
4440-214-A52-XX 6 & 7 Pin SFIC
2-1/4" (57mm)
4470-214-A52-XX 6-Pin LFIC
4470-214-A52-7-XX 7-Pin LFIC
(*) Specify "OS" for outside of door or "IS" for inside of door.
Cylinders
Cylinder and Keying
Description Specify
Conventional 6-pin (standard)
Less cylinder(s) LC
Conventional 7-pin 7P
Interchangeable core (IC) 6-pin C6
IC 6-pin less core CL6
SFIC 6-pin with Less Core CLS6
IC 6-pin with temporary
construction core CT6
IC 7-pin C7
IC 7-pin less core CL7
SFIC 7-pin with Less Core CLS7
IC 7-pin with temporary
construction core CT7
Security HS
Security IC CHS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid Security Fixed Core PS
Pyramid Security IC PCS
Access 3® Patented Fixed Core AP
Access 3® Security Fixed Core AS
Access 3® High Security Fixed Core AHS
Access 3® Patented IC ACP
Access 3® Security IC ACS
Access 3® High Security IC ACHS
0-bitted with 2 blank keys (standard)
Keyed random KR
Construction Master Keyed (not
available for Pyramid & Security
cylinders)
CMK
Visual key control (VKC)
- Keys only VKC1
- Cylinders and keys
(not available with HS or CHS) VKC2
- Cylinders only
(not available with HS or CHS) VKC3
Concealed key control (CKC)
- CKC cylinders and VKC keys CKC2
- CKC cylinders only CKC3
2 keys per lock (standard)
More than 2 keys
(e.g., KY6) KY#
45012-12/13
Deadlocks DL2200/DL3200 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.6

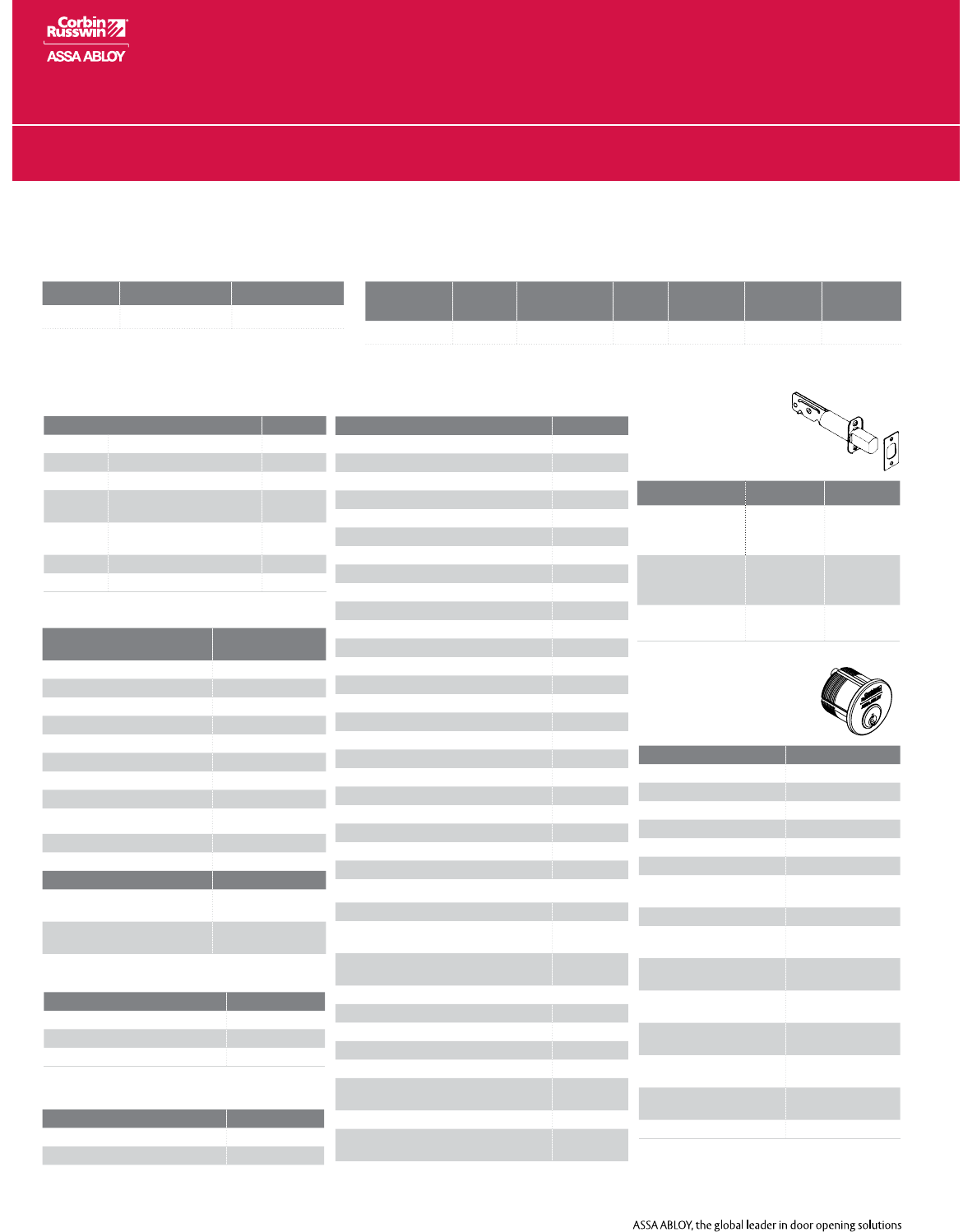

Quick Codes
Finish
Description Specify
US3 Bright Brass 605
US4 Satin Brass 606
US10 Satin Bronze 612
US10B Dark Oxidized Satin Bronze,
oil rubbed 613
US10BE Dark Oxidized Satin Bronze -
equivalent 613E
US26 Bright Chromium Plated 625
US26D Satin Chromium Plated 626
Miscellaneous Options
Description Specify
ANSI wrought strike box M17
Plastic box for standard strike (standard)
Door Thickness
Description Specify
1-3/8" (35mm) D138
1-3/4" (44mm) (standard)
2" (51mm) D200
2-1/4" (57mm) D214
Strike
Lip to Center ANSI Straight Lip
Specify
7/8" (22mm) SS078
1-1/8" (29mm) SS118
1-1/4" (32mm) SS114
1-3/8" (35mm) SS138
1-1/2" (38mm) SS112
1-3/4" (44mm) SS134
2" (51mm) SS200
2-1/4" (57mm) SS214
2-1/2" (64mm) SS212
2-3/4" (70mm) SS234
3" (76mm) SS300
Bolt Assembly
Description Part No. Specify
2-3/8" (60mm) Backset 781F528 B238
2-3/4" (70mm) Backset 781F538 (standard)
Front Trim Plates
1" (25mm) Wide 781F50M x Finish M14
1-1/8" (29mm) Wide 781F51M x Finish (standard)
45012-12/13
Functions
Outside Inside Series/
Function Type ANSI No. Function Description
DL3013 Single
Cylinder
E0150
Series
- By key outside and by
thumbturn inside.
DL3012 Double
Cylinder
E0140
Series - By key either side.
DL3017 Classroom E0170
Series
- By key outside and by
thumbturn inside.
- Thumbturn will retract but not
project deadbolt.
DL3011 Cylinder
x Blank
E0160
Series
- By key one side only; opposite
side blank.
DL3060 Thumbturn
x Blank
E0190
Series
- By thumbturn one side; opposite
side blank.
Deadlocks DL3000 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.7
Features
Handing
Non-handed, except DL3017, which is
handed and field reversible.
Door Thickness
Standard: 1-3/4" (44mm) - 2-1/4" (57mm).
Optional door thicknesses available; see
Quick Codes.
Backset
Standard: 2-3/4" (70mm)
Optional: 2-3/8" (60mm)
Front
Standard: wrought brass or bronze,
2-1/4" (57mm) x 1-1/8" (29mm).
Accommodates flat doors and doors
beveled 1/8" (3mm) in 2" (51mm).
Deadbolt
Zinc diecast hardened steel insert. 1"
(25mm) throw, 5/8" (16mm) wide x 3/4"
(19mm) high.
Strike
Standard; 2-3/4" (70mm) x 1-1/8"
(29mm).
Optional strikes and wrought boxes
available; see Strikes, this page.
Cylinder
Brass, 6-pin, L4 keyway, 0-bitted. Security
cylinders optional; see Quick Codes.
Keys
Two nickel silver standard.
Keying Features Available
Master keying
Construction master keying
7-pin (FC) conventional
Interchangeable core (IC)
Security
Security (IC)
Visual key control
Concealed key control
Pyramid (FC)
Pyramid (IC)
Warranty
One-year limited.
Strikes
Standard Strike
2-3/4" (70mm) x
1-1/8" (29mm).
To order separately,
specify 424F83 x
Finish.
Wrought
Strike Box
Standard with
Standard Strike.
To order separately,
specify 496F71-8.
Optional Strike
3-1/2" (89mm) x
1-1/8" (29mm); see
Quick Codes.
To order separately,
specify 394F19 x
Finish.
ANSI Strike
Optional; see Quick
Codes.
To order separately,
specify 423L71 x
Finish.
ANSI Wrought
Strike Box
Optional for use
with ANSI Strike; see
Quick Codes.
To order separately,
specify 120F76-8.
45012-12/13
Deadlocks DL3000 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.8
Contract/Detailed Order
Quantity Keyset Series/
Function Finish Optional
Strike
Door
Thickness
Misc.
Options
24 AA1 DL3013 613 SS118 D214 C6-M17
Stock Order
Quantity Series/Function Finish
24 DL3013 626
Ordering Examples
Quick Codes
Finish
Description Specify
US3 Bright Brass 605
US4 Satin Brass 606
US10 Satin Bronze 612
US10B Dark Oxidized Satin Bronze,
oil rubbed 613
US10BE Dark Oxidized Satin Bronze
- equivalent 613E
US26 Bright Chromium Plated 625
US26D Satin Chromium Plated 626
Strike
Lip to Center ANSI Straight Lip
Specify
7/8" (22mm) SS078
1-1/8" (29mm) SS118
1-1/4" (32mm) SS114
1-3/8" (35mm) SS138
1-1/2" (38mm) SS112
1-3/4" (44mm) SS134
2" (51mm) SS200
2-1/4" (57mm) SS214
2-1/2" (64mm) SS212
2-3/4" (70mm) SS234
3" (76mm) SS300
Other Strikes (no lip) Specify
2-3/4" (70mm) x
1-1/8" (29mm) (standard)
3-1/2" (89mm) x
1-1/8" (29mm SD001
Door Thickness
Description Specify
1-3/4" (44mm) - 2" (51mm) (standard)
2-1/4" (57mm) D214
1-3/8" (35mm) D138
Miscellaneous Options
Description Specify
ANSI wrought strike box M17
Wrought box for standard strike (standard)
Bolt and Front
Description Part No. Specify
2-3/4" (70mm)
backset bolt
(less front)
467F35-8 (standard)
2-3/8" (60mm)
backset bolt
(less front)
693F20-8 B238
1-1/8" (29mm)
front 467F36 —
Cylinder Only
Specify Part No. x Keyway x Finish
Description Number
Conventional 6-pin 1000-118-A03
Conventional 7-pin 1000-114-A03-7
IC 6-pin 1080-114-A03
IC 6-pin less core 1070-114-A03
Security 1010-118-A03
Security IC 1090-114-A03
Pyramid (FC)
Conventional 1020-114-A03
Pyramid (IC) 1030-114-A03
Access 3 Patented Fixed
Core 1500-114-A03
Access 3 Security Fixed
Core 1600-114-A03
Access 3 High Security
Fixed Core 1700-114-A03
Access 3 Patented
Interchangeable Core 1580-114-A03
Access 3 Security
Interchangeable Core 1680-114-A03
Access 3 High Security
Interchangeable Core 1788-114-A03
Access 3 UL 6-Pin Housing 1078-114-A03
Cylinder and Keying
Description Specify
Conventional 6-pin (standard)
Less cylinder(s) LC
Conventional 7-pin 7P
SFIC 7-pin with Less Core CLS7
Interchangeable core (IC) 6-pin C6
IC 6-pin less core CL6
SFIC 6-pin with Less Core CLS6
IC 6-pin with temporary construction core CT6
Security HS
Security IC CHS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid Security Fixed Core PS
Pyramid Security IC PCS
Pyramid Temp Core CTP
Access 3® Patented Fixed Core AP
Access 3® Security Fixed Core AS
Access 3® High Security Fixed Core AHS
Access 3® Patented IC ACP
Access 3® Security IC ACS
Access 3® High Security IC ACHS
0-bitted with 2 blank keys (standard)
Keyed random KR
Construction master keyed CMK
Visual key control (VKC)
- Keys only VKC1
- Cylinders and keys
(not available with HS or CHS) VKC2
- Cylinders only
(not available with HS or CHS) VKC3
Concealed key control (CKC)
- CKC cylinders and VKC keys CKC2
- CKC cylinders only CKC3
UL IC 6-Pin Housing Less Core CL6AH
UL IC 6-Pin Housing with Disposable Core CTAHD
UL IC 6-Pin Housing with (Red/Blue/
Green) Temporary Construction Core
CT6AH(R/B/G)
2 keys per lock (standard)
More than 2 keys
(e.g., KY6) KY#
Note: Interchangeable core not available with 1-3/8" door
thickness (D138) option and 2-3/8" backset (B238) option.
45012-12/13
Functions
Outside Inside Series/
Function Type ANSI No. Function Description
DL4113 Single
Cylinder
E6070
Series
- By key outside and by
thumbturn inside.
DL4112 Double
Cylinder
E6060
Series - By key either side.
DL4117 Classroom E6090
Series
- By key outside and by
thumbturn inside.
- Thumbturn will retract but
not project deadbolt.
DL4111 Cylinder
x Blank
E6080
Series
- By key one side only;
opposite side blank.
DL4122
Double
Cylinder x
Thumbturn
—
- By key either side and
by thumbturn inside.
- Thumbturn will
retract but not project
deadbolt.
DL4160 Thumbturn
x Blank —
- By thumbturn inside
only; opposite side
blank.
Deadlocks DL4100 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.9
Features
Handing
Non-handed.
Door Thickness
Standard: 1-3/4" (44mm). Optional door
thicknesses available; see Quick Codes.
Backset
2-3/4" (70mm).
Lockcase
Heavy wrought steel; zinc dichromate
finish.
Front
Brass, bronze, stainless steel.
4-5/8"(117mm) x 1-1/8" (29mm).
Adjustable for flat or beveled doors (bevel
adjustment 1/8"(3mm) in 2"(51mm).
Deadbolt
Steel with hardened pin; 1" (25mm)
throw.
Strike
Standard: wrought brass or bronze,
3-1/2" (89mm) x 1-1/8" (29mm).
Optional strikes available; see Strikes, this
page.
Cylinder
6-pin, L4 keyway, 0-bitted. Security
cylinder optional; see Quick Codes.
Keys
Two nickel silver standard.
Keying Features Available
Master keying
Construction master keying
7-pin (FC) conventional
Interchangeable core (IC)
Security
Security (IC)
Visual key control
Concealed key control
Pyramid (FC)
Pyramid (IC)
Warranty
One-year limited.
Certification/Compliance
UL
Listed for use on fire doors.
Any retrofit or other field modification to
a fire rated opening can potentially impact
the fire rating of the opening, and Corbin
Russwin, Inc. makes no representations or
warranties concerning what such impact
may be in any specific situation. When
retrofitting any portion of an existing fire-
rated opening, or specifying and installing
a new fire-rated opening, please consult
with a code specialist or local code official
(Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
Strikes
Standard Strike
3-1/2" (89mm) x 1-1/8" (29mm).
To order separately, specify
796F34 x Finish.
Strike Box
Optional with Standard Strike;
see Quick Codes.
To order separately, specify
466F27-9.
ANSI Strike
Optional; see Quick Codes. To
order separately, specify 240L08
x Finish.
ANSI Wrought
Strike Box
Optional for use with ANSI
Strike; see Quick Codes. To order
separately, specify 120F76-8.
45012-12/13
Deadlocks DL4100 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.10
Contract/Detailed Order
Quantity Keyset Series/
Function Finish Optional
Strike
Door
Thickness
Misc.
Options
7 AA13 DL4112 626 SS118 D234 C6-VKC2
Stock Order
Quantity Series/Function Finish
24 DL4113 626
Ordering Examples
Quick Codes
Strike
Lip to Center ANSI Straight Lip
Specify
7/8" (22mm) SS078
1-1/8" (29mm) SS118
1-1/4" (32mm) SS114
1-3/8" (35mm) SS138
1-1/2" (38mm) SS112
1-3/4" (44mm) SS134
2" (51mm) SS200
2-1/4" (57mm) SS214
2-1/2" (64mm) SS212
2-3/4" (70mm) SS234
3" (76mm) SS300
Cylinder and Keying
Description Specify
Conventional 6-pin (standard)
Less cylinder(s) LC
Conventional 7-pin 7P
Interchangeable core (IC) 6-pin C6
IC 6-pin less core CL6
IC 6-pin with temporary construction core CT6
IC 7-pin C7
IC 7-pin less core CL7
IC 7-pin with temporarY construction core CT7
Security HS
Security IC CHS
Pyramid High Security Fixed Core PHS
Pyramid High Security IC PCHS
Pyramid Security Fixed Core PS
Pyramid Security IC PCS
Access 3® Patented Fixed Core AP
Access 3® Security Fixed Core AS
Access 3® High Security Fixed Core AHS
Access 3® Patented IC ACP
Access 3® Security IC ACS
Access 3® High Security IC ACHS
0-bitted with 2 blank keys (standard)
Keyed random KR
Construction master keyed CMK
Visual key control (VKC)
- Keys only VKC1
- Cylinders and keys (not available with HS or CHS) VKC2
- Cylinders only (not available with HS or CHS) VKC3
Concealed key control (CKC)
- CKC cylinders and VKC keys CKC2
- CKC cylinders only CKC3
UL IC 6-Pin Housing Less Core CL6AH
UL IC 6-Pin Housing with Disposable Core CTAHD
UL IC 6-Pin Housing with (Red/Blue/Green) Temporary
Construction Core
CT6AH(R/B/G)
2 keys per lock (standard)
More than 2 keys (e.g., KY6) KY#
Finish
Description Specify
BHMA 605 (US3) Bright Brass 605
BHMA 606 (US4) Satin Brass 606
BHMA 611 (US9) Bright Bronze 611
BHMA 612 (US10) Satin Bronze 612
BHMA 613 (US10B) Dark Oxidized Satin Bronze, Oil
Rubbed 613
BHMA 613E
(US10BE)
Dark Oxidized Satin Bronze -
equivalent 613E
613L Dark Oxidized Satin Bronze, Clear
Coated 613L
BHMA 618 (US14) Bright Nickel 618
BHMA 619 (US15) Satin Nickel 619
BHMA 625 (US26) Bright Chromium Plated 625
BHMA 626 (US26D) Satin Chromium Plated 626
45012-12/13
Deadlocks DL4100 Series
Padlocks & Deadlocks
Padlocks & Deadlocks.11
Door Thickness
Description Specify
1-3/4" (44mm) - 2" (51mm) (standard)
2-1/4" (57mm) D214
2-1/2" (64mm) D212
2-3/4" (70mm) D234
3" (76mm) D300
3-1/4" (83mm) D314
3-1/2" (89mm) D312
3-5/8" (92mm) D358
3-3/4" (95mm) D334
3-7/8" (98mm) D378
4" (102mm) D400
Miscellaneous Options
Description Specify
Spanner head screws M02
Torx® head screws M04
ANSI wrought strike box M17
Lead wrapped case M29
Ergonomic thumbturn M34
Box for standard strike M40
Cylinder Only
Specify Part No. x Keyway x Finish
Description Number
Conventional 6-pin 1000-118-A07
Conventional 7-pin 1000-114-A07-7
IC 6-pin 1080-114-A07
IC 6-pin less core 1070-114-A07
IC 7-pin 1080-112-A07-7
IC 7-pin less core 1070-112-A07-7
Security 1010-118-A07
Security IC 1090-114-A07
Pyramid (FC) Conventional 1020-114-A07
Pyramid (IC) 1030-114-A07
Access 3® Patented Fixed Core 1500-114-A07
Access 3® Security Fixed Core 1600-114-A07
Access 3® High Security Fixed Core 1700-114-A07
Access 3® Patented
Interchangeable Core 1580-114-A07
Access 3® Security Interchangeable
Core 1680-114-A07
Access 3® High Security
Interchangeable Core 1788-114-A07
45012-12/13
For more information regarding Corbin Russwin Locksets, Exit Devices,
Door Controls and Key Systems, contact your authorized Corbin Russwin
Distributor or Sales Representative.
In U.S.
Corbin Russwin
Architectural Hardware
225 Episcopal Road
Berlin, CT 06037
Phone: 800-543-3658
Fax: 800-447-6714
corbinrusswin.com
In Canada
ASSA ABLOY Door
Security Solutions Canada
160 Four Valley Drive
Vaughan, Ontario
Canada L4K 4T9
Phone: 800-461-3007
Fax: 905-738-2478
www.assaabloy.ca
Corbin Russwin and Design® and Access 3® are registered trademarks of Corbin Russwin, Inc., an ASSA ABLOY Group company. Other products’ brand names may be
trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under US copyright laws. All
contents current at time of publication. Corbin Russwin, Inc., an ASSA ABLOY Group Company, reserves the right to change availability of any item in this catalog, its design,
construction, and/or its materials. Copyright © 2001, 2013 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part
without the express written permission of Corbin Russwin, Inc. is prohibited.
45012-12/13
