CL3800 Series

Standard-Duty Key-in-Lever Locksets

Applications

CL3800

2

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45355-8/15

Index

Applications ................................ 2

Features ...................................... 3

Functions ................................. 4-6

Trim Designs ............................... 7

Options &

Accessories ............................... 8-9

How to Order ............................ 10

Quick Codes .........................11-12

How to Specify .......................... 13

An economical, Grade 2 standard-duty lever lockset which

provides an outstanding combination of value and performance.

It’s the ideal lever lockset for standard commercial applications.

When used in conjunction with the CL3300 Series Extra Heavy-Duty

Grade 1 and the CL3500 Series Heavy-Duty Grade 1 Cylindrical

Lever Locksets, the overall cost of many projects may be reduced

without compromising functionality and durability.

Typical applications

include:

Advantages

• LeverRelease™ for vandal

resistance

• Solidcastlevers

• ANSI/BHMAGrade2

certification

• UL-cUL3-hourfirerating

•Independentleverreturn 

springs

•Through-boltsondoorfor

solid attachment

• CoversANSI/BHMAdoorprep

A156.115

logo

•Interioroffices

•Closets

•Multi-familyhousing

•Restaurants

•Retailcomplexes

3

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45355-8/15

Features

CL3800

Features

Handing

Non-handed.

Door Thickness Adjustment

Standard 1-3/8" to 1-3/4" (35 to

45mm); factory set for 1-3/4" doors.

For 2" (51mm) and 2-1/4" (57mm)

doors, specify door thickness. See

Quick Codes, page 11-12.

Lock Chassis

Steel, zinc dichromated for

corrosion resistance.

Backset

2-3/4" (70mm) standard.

Optional: 2-3/8" (60mm), 3-3/4"

(95mm) and 5" (127).

See Quick Codes, page 11-12.

Latchbolt

1/2" (13mm) throw latch with

universal “floating” front to fit both

flat and beveled doors.

2-1/4" x 1-1/8" (57 x 29mm) square

corner front for 2-3/4" (70mm)

backset standard. For other latch

options, See Quick Codes,

page 11-12.

Auxiliary Latchbolt

Deadlocking latchbolt prevents

manipulation when door is closed.

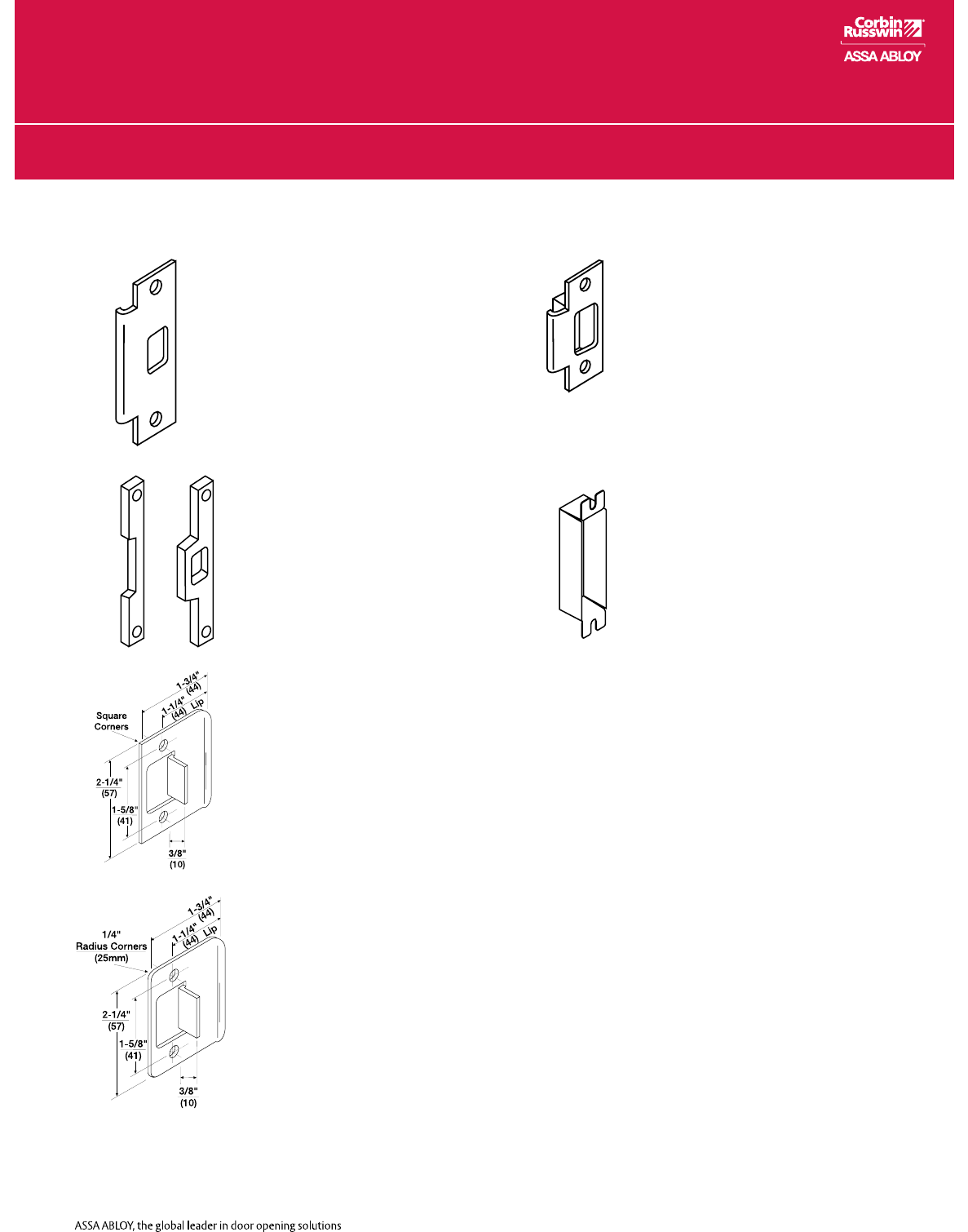

Strike

ANSIcurvedlipstrikestandard,4-7/8"

x 1-1/4" x 1-1/4" (124 x 32 x 32mm)

lip to center. Optional strikes, lip

lengthsandANSIwroughtstrikebox

available; See Quick Codes, page

11-12.

Cylinder

Brass, 6-pin, L4 keyway,

“0” bitted standard.

Keying Features Available

Conventional 6-pin

Conventional 7-pin

Masterkeying

Construction master keying

Visual key control

Concealed key control

Pyramid® Security

Pyramid High Security

Interchangeable core (IC)

Security

Security IC

Pyramid Security IC

Pyramid High Security IC

Access 3®

Keys

Two nickel silver standard.

Warranty

Seven-year limited.

Certification/Compliance

ANSI/BHMA

Certified meets A156.2 Series 4000,

Grade 2.

MeetsA117.1AccessibilityCode.

Federal

MeetsFF-H-106C.

California State Reference Code

(Formerly Title 19, California State Fire

Marshal Standard)

All levers with returns comply; levers

return to within 1/2" of door face.

UL-cUL

All locks listed for “A” label single

doors.

Letter“F”andULsymbolonlatch

front indicate listing.

Any retrofit or other field modification

to a fire rated opening can potentially

impact the fire rating of the opening,

and Corbin Russwin, Inc. makes

no representations or warranties

concerning what such impact may

be in any specific situation. When

retrofitting any portion of an existing

fire-rated opening, or specifying and

installing a new fire-rated opening,

please consult with a code specialist

or local code official (Authority Having

Jurisdiction) to ensure compliance with

all applicable codes and ratings.

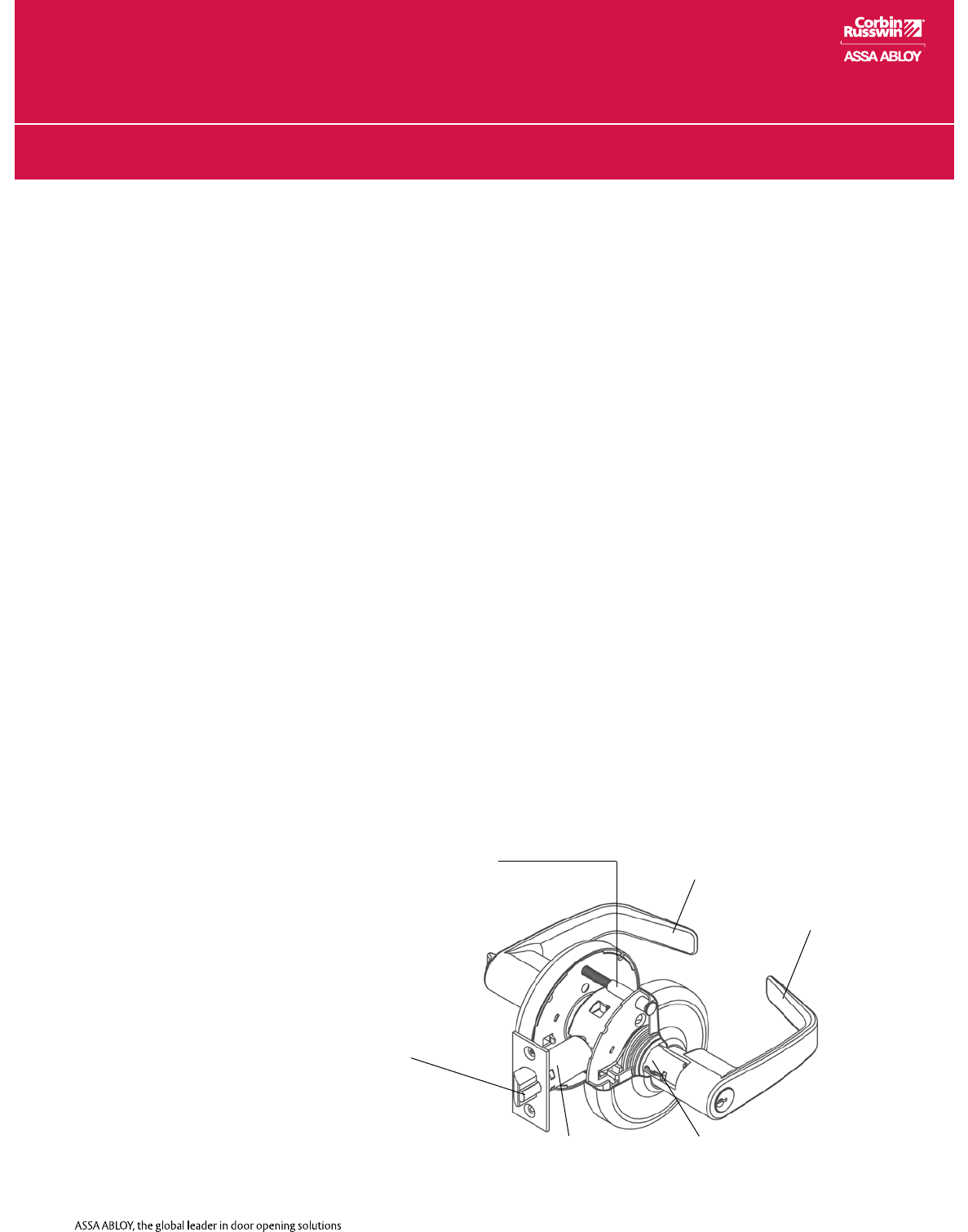

Through-bolts prevent

chassis rotation; ensure

proper alignment, smooth

operation and long life

Solid cast levers

with no plastic inserts

Lever designs compatible

withCorbinRusswinMortise

Locks, Exit Devices and other

Lever Locksets

1/2” throw latchbolt

accommodates 7/8” and

1” edge bore preps

2-3/8”, 2-3/4”, 3-3/4”

and 5” backsets available

Non-handedspringcassette

prevents lever sag

Lever release design

for vandal resistance

Functions

CL3800

4

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45355-8/15

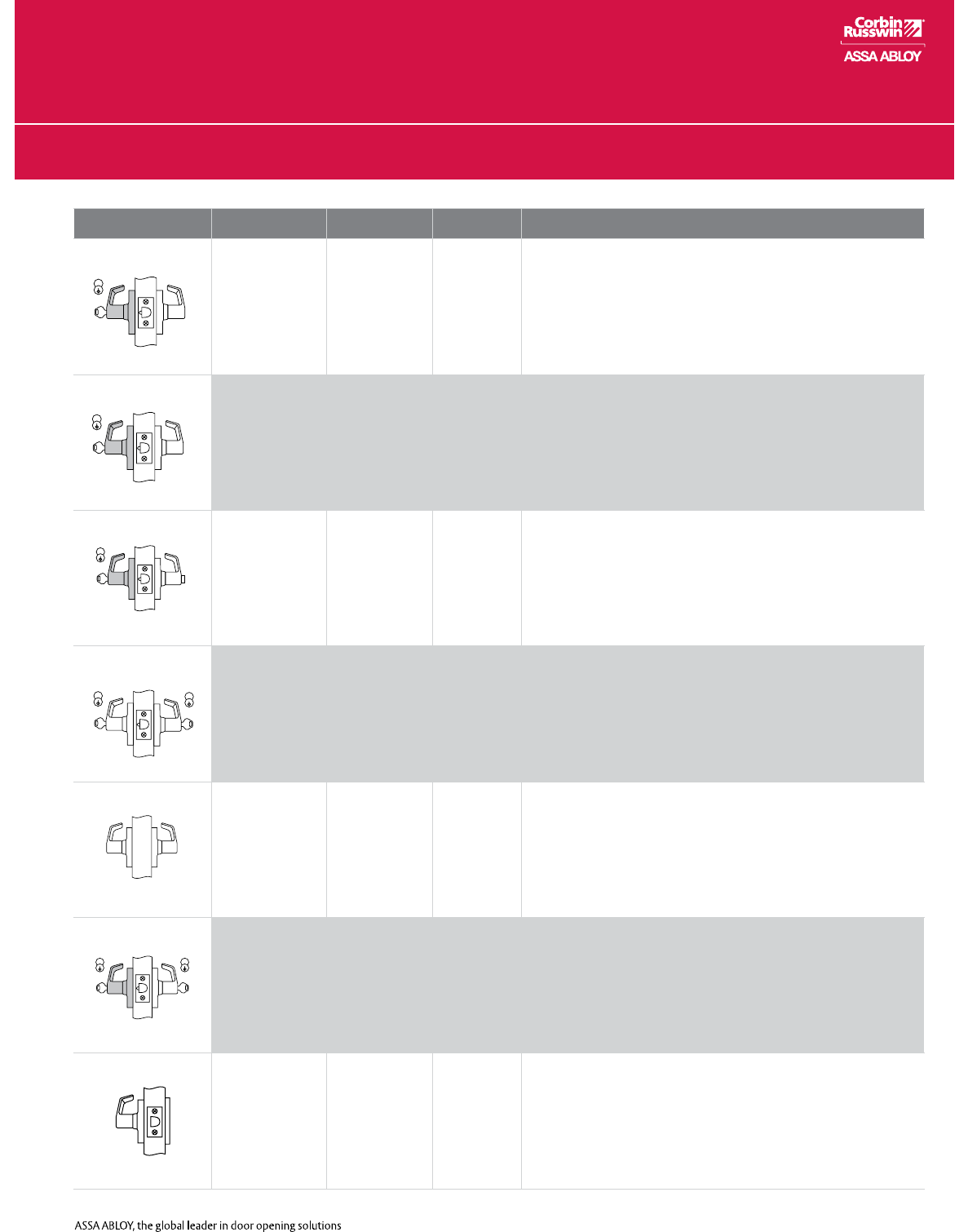

Outside Inside Series/Function Type ANSI No. Function Description

CL3810 Passage

or Closet F75 •Latchboltbylevereitherside

•Bothleversalwaysfree.

CL3820

Privacy

Bedroom or

Bathroom

F76A

•Throw-offlatchboltbylevereitherside,exceptwhenpushbutton

locks outside lever. (Lever handle is free-wheeling in locked

position.)

•Outsideleverlockedbypushbutton.(Leverhandleisfree-wheeling

in locked position.)

•Outsideleverunlockedbyemergencyreleasetool,byrotatinginside

lever or by closing door.

•Insideleveralwaysfree.

CL3832 Institutional

orUtility F87 •Deadlockinglatchboltbykeyeitherside.(Leverhandleisfree-

wheeling in locked position.)

CL3840 Patio or

Privacy F77

•Throw-offlatchboltbylevereithersideexceptwhenpushbutton

locks outside lever. (Lever handle is free-wheeling in locked

position.)

•Outsideleverlockedbypushbutton.

•Outsideleverunlockedbyrotatinginsideleverorbyclosingdoor.

•Insideleveralwaysfree.

•Shouldnotbeusedinroomsthathavenootherentrance.

CL3840NT Exit Latch F89

•Deadlockinglatchboltbyleverinside.

•Outsideleveralwayslocked.(Leverhandleisfree-wheeling.)

•Insideleveralwaysfree.

•Shouldnotbeusedinroomswithnootherentrance.

CL3850 Half Dummy

Trim —•Leveractsaspullonly;nooperation.

•Leverisrigid.

CL3851 Entrance

or Office F109

•Deadlockinglatchboltbylevereithersideexceptwhenturn

button locks outside lever. (Lever handle is free-wheeling in locked

position). Pushing turn button locks outside lever, requiring use of

key outside to unlock.

•Turninginsideleverunlocksoutsidelever.

•Pushinginandturningbuttonlocksoutsidelever,requiringkeyat

all times. Turning inside lever does not unlock outside lever until

button is manually turned to unlocked position.

•Turninginsideleverunlocksoutsidelever.

•Insideleveralwaysfree.

5

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45355-8/15

Functions

CL3800

Outside Inside Series/Function Type ANSI No. Function Description

CL3855 Classroom F84

•Deadlockinglatchboltbylevereithersideexceptwhenkeyoutside

locks outside lever. (Lever handle is free-wheeling in locked

position.)

•Outsideleverunlockedbykeyoutside.

•Insideleveralwaysfree.

CL3857 Storeroom

or Closet F86

•Deadlockinglatchboltbykeyinoutsideleverorbyrotatinginside

lever.

•Outsideleveralwayslocked(leverhandleisfree-wheelinginlocked

position).

•Insideleveralwaysfree.

CL3861 Entry

or Office F82

•Deadlockinglatchboltbylevereitherside,exceptwhenpush

button locks outside lever.

•Pushbuttonreleasedbyturninginsideleverorbykeyinoutside

lever. (Lever handle is free-wheeling in locked position.)

•Closingdoordoesnotreleasepushbutton.

•Insideleveralwaysfree.

CL3862 Communicating F80

•Deadlockinglatchboltbylevereithersideexceptwhenkeyineither

lever locks or unlocks the lever independently of the other. (Lever

handle is free-wheeling in locked position.)

•Shouldbeusedonlyinofficeorroomswithmultipleentries.

•Keyedalikeunlessotherwisespecified.

CL3870 Full Dummy

Trim —•Leversactaspullsonly;nooperation.

•Leversarerigid.

CL3872

Apartment,

Exit or

Public Toilet

F88

•Deadlockinglatchboltbylevereitherside,exceptwhenkeyinside

locks outside lever. (Lever handle is free-wheeling in locked position.)

•Keyoutsideretractslatchbolt.

•Keyinsideunlocksoutsidelever.

•Insideleveralwaysfree.

•Keyedalikeunlessotherwisespecified.

CL3880

Passage

Lever x

Blank Plate

F111

•Deadlockinglatchboltbylever.

•Leverononeside;blankplateontheother.

•Leveralwaysfree.

•Forsingleordoublecommunicatingdoors.

Functions

CL3800

6

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45355-8/15

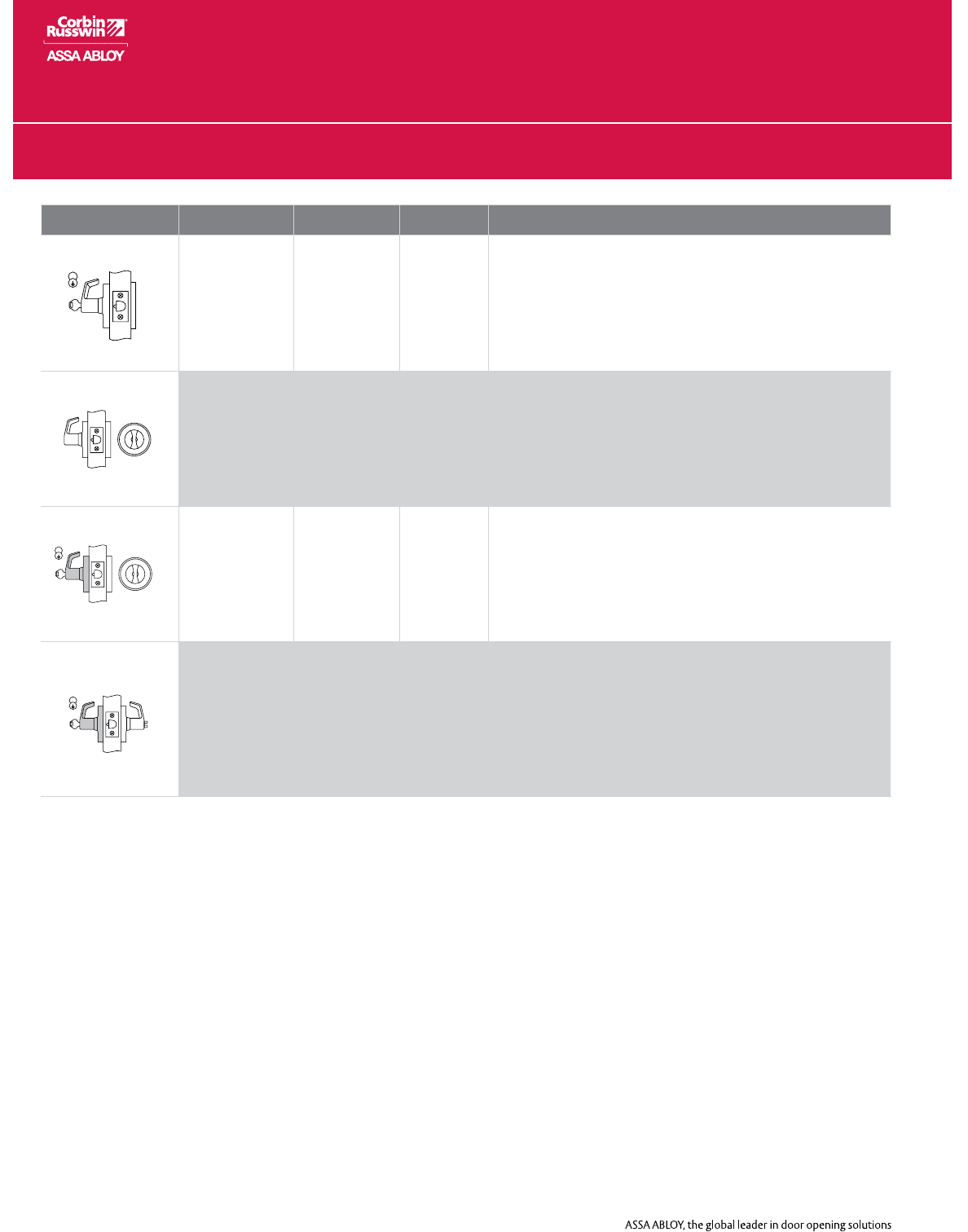

Outside Inside Series/Function Type ANSI No. Function Description

CL3881 Keyed Lever

x Blank Plate F113

• Deadlockinglatchboltbyleverexceptwhenkeylockslever(lever

handle is free-wheeling in locked position).

• Leverononeside;blankplateonotherside.

•Keyunlockslever.

CL3890

Passage

Lever x

Turnpiece

—

• Latchboltbyleverorbyturnpiece.

• Leverononeside;turnpieceonotherside.

• Leverandturnpiecealwaysfree.

CL3891

Keyed

Lever x

Turnpiece

—

• Deadlockinglatchboltbyleverexceptwhenkeylockslever.

(Lever handle is free-wheeling in locked position.)

•Whenleverislocked,latchboltisoperatedbyturnpiece.(Lever

handle is free-wheeling in locked position.)

• Leveronoutside;turnpieceoninside.

• Turnpiecealwaysfree.

•Keyunlockslever.

CL3893 Service

Station F92

• Throw-offlatchboltbylever,closingdoor,orbyturninginsidelever.

•Outsideleverlockedbyslottedpushbutton.(Leverhandleis

free-wheeling in locked position.)

•Whenslottedpushbuttonispushedinandturned,outsidelever

becomes free-wheeling and deadlocking latch is activated. Key

outside retracts latch.

•Turninginsideleverdoesnotunlockoutsideleveruntilbuttonis

manually turned to unlocked position.

• Insideleveralwaysfree.

7

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45355-8/15

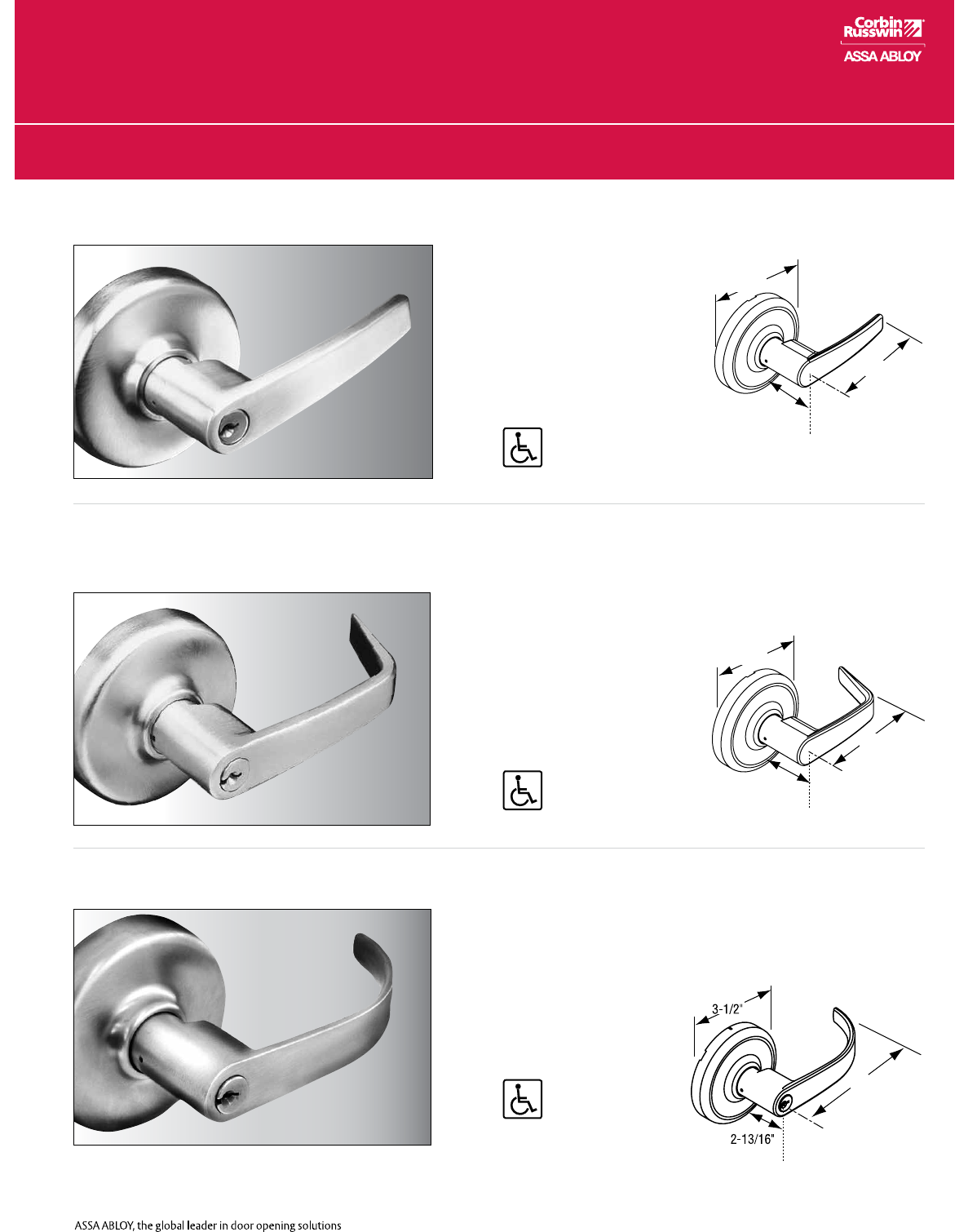

Trim Designs

CL3800

AZD

Lever: Die-cast zinc

Rose: Wrought brass

or bronze

PZD

Lever: Die-cast zinc

Rose: Wrought brass

or bronze

NZD

Lever: Die-cast zinc

Rose: Wrought brass

or bronze

Armstrong

Newport

Complies with codes requiring lever to return to

within 1/2" (13mm) of door face.

Princeton

Complies with codes requiring lever to return to

within 1/2" (13mm) of door face.

5"

4-1/2"

3-1/2"

2-13/16"

4"

3-1/2"

2-13/16"

Options & Accessories

CL3800

8

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45355-8/15

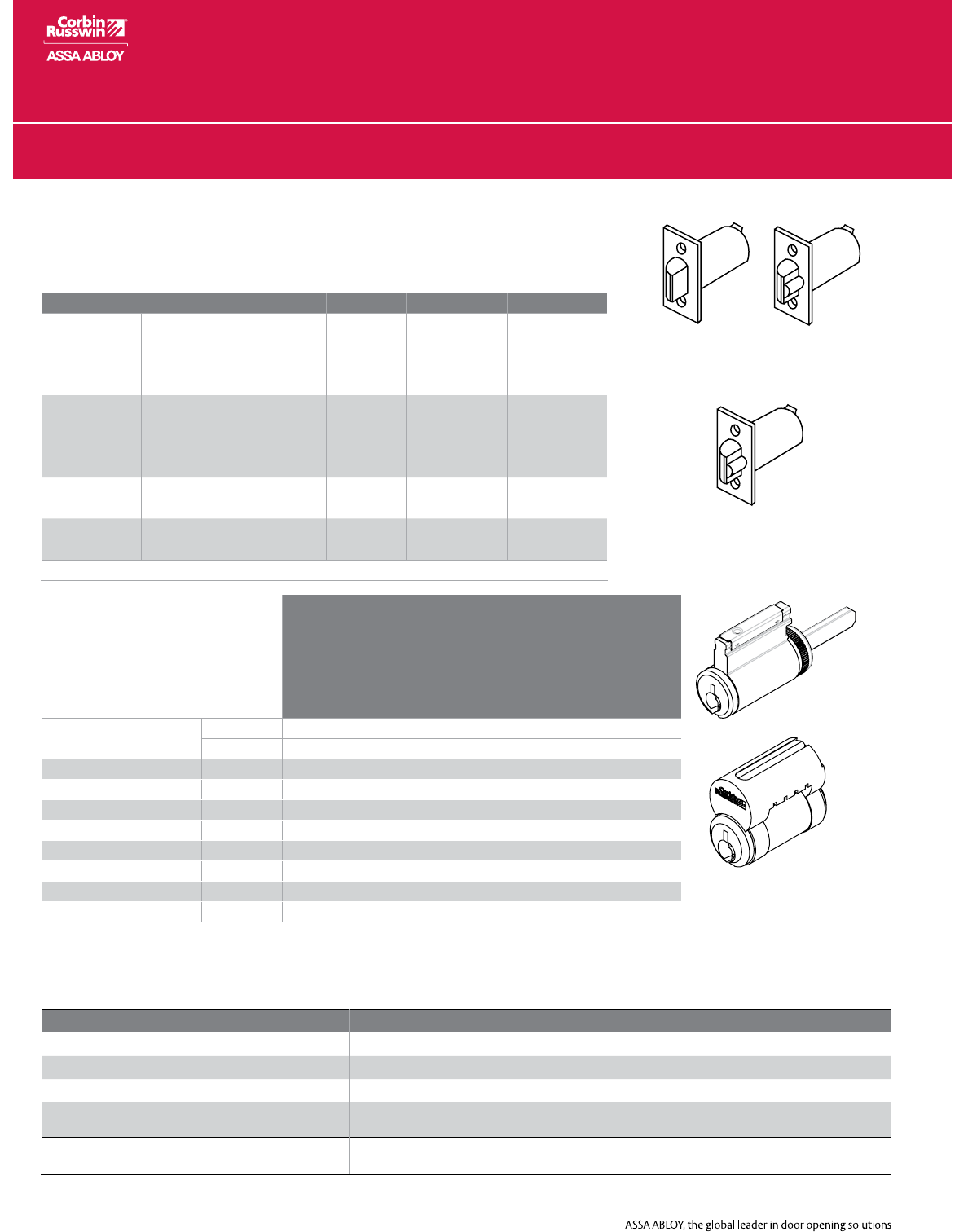

Standard Cylinder

.509" plug diameter conventional

.552" plug diameter security

.496" plug diameter Pyramid

Brass, 6-pin

2 nickel silver keys

Finishes: 606, 626

Interchangeable Core

.509" plug diameter conventional

.552" plug diameter security

.496" plug diameter Pyramid

Brass, 6-pin

2 nickel silver keys

Finishes: 605, 606, 611, 612, 613,

613E, 625, 626, 722

Conventional 6-pin 2000-033 (standard) 8000

7-pin 2000-033-7 8000-7

Security 6-pin 2010-033 8010

Pyramid High Security 7-pin 2020-033 8020

Pyramid Security 7-pin 2027-033 8027

Access 3® AP 6-pin 2500-033 8500

Access 3® AS 6-pin 2600-033 8600

Access 3® AHS 6-pin 2700-033 8700

Schlage® C Keyway 6-pin 2400-033-C —

Sargent® LA Keyway 6-pin 2400-033-LA —

Latches

To order optional latchbolt with lockset, see How to Order, page 10.

Toorderlatchboltseparately,specifyPartNo.xFinish(e.g.,599F91x626).

Cylinders

Compatibility with Competitive Cylinders

Deadlocking

(All other functions)

Plain

(CL3810)

Throw-Off

(CL3820, CL3893 &

CL3840)

Backset and Front Description Plain Deadlocking Throw-Off

2-3/8" Backset

1" width, square corner 599F91 599F92 599F93

1" width, rounded corner 599F94 599F95 599F96

1-1/8" width, square corner 599F97 599F98 599F99

1-1/8" width, rounded corner 600F00 600F01 600F02

2-3/4" Backset

1" width, square corner 600F03 600F04 600F05

1" width, rounded corner 600F06 600F07 600F08

1-1/8" width, square corner 600F09 600F10 600F11

1-1/8" width, rounded corner 600F12 600F13 600F14

3-3/4" Backset 1-1/8" width, square corner 600F62 600F63 600F64

1-1/8" width, rounded corner 600F65 600F66 600F67

5" Backset 1-1/8" width, square corner 600F68 600F69 600F70

1-1/8" width, rounded corner 600F71 600F72 600F73

Housing diameter 7/8" for all models. 1" diameter latch sleeve furnished with each latchbolt.

To order optional cylinder with lockset, see How to Order, page 10.

Toordercylinderseparately,specifyPartNo.xKeywayxFinish(e.g.,8000xL4x626).

For Assa®andMedeco® retrofit cylinders, consult those manufacturers' catalogs.

Competitive Cylinder Parts Required for Installation

Schlage conventional 21-002, 23-001 or 23-013 682F398tailpieceincludedwithM06option.

Schlage Primus 20-548, 20-550, 20-748 or 20-750 682F398tailpieceincludedwithM06option.

Schlage 6-pin Interchangeable Core SpecifyM69-697F942TailpieceincludedwithM69option.

SFIC style core, 6 or 7-pin 682F95-8tailpiecekitandspeciallever(NZDandPZDdesignsonly)includedwithM08option.

Accommodates 6 and 7-pin cores.

Sargent 13-3266 599F38-9Tailpiecekitandspeciallever.IncludedwithM09options.

See How to Order, page 10.

9

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45355-8/15

Options & Accessories

CL3800

Strikes

Curved Lip "T" Strike

Brass.

2-3/4" x 1-1/8" x 1-1/4" lip to center.

Optional lip lengths: 1", 1-1/8",

1-3/8", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2",

2-3/4", 3".

To order with lockset, specify quick code

found on pages 11.

To order separately, specify 586L19 x Lip

Length x Finish.

ANSI Wrought Strike Box

To order with lockset, specify quick code

found on page 12. To order separately,

specify 120F768.

ANSI Curved Lip (standard)

Brass or stainless steel.

4-7/8" x 1-1/4" x 1-1/4" lip to center.

Optional lip lengths: 1", 1-1/8",

1-3/8", 1-1/2", 1-3/4", 2", 2-1/4", 2-1/2",

2-3/4", 3".

To order separately, specify 217L13 x Lip

Length x Finish.

Rabbeted Front and Strike

Brass or bronze.

4" x 5/8" for 1/2" rabbet.

Nooptionalliplengths.

To order with lockset, specify quick code

found on pages 11.

To order separately, specify 601F28 x Finish.

Full Lip Strike

Brass or stainless steel.

2-1/4" x 1-3/4" x 1-1/4" lip to center.

Nooptionalliplengths.

To order with lockset, specify quick code

found on pages 11.

Toorderseparatelyspecify680L50M020x

Finish.

Anti-rattle tab.

Full Lip Strike – 1/4" Radius Corners

Brass or stainless steel.

Similar in dimension and function to L50

strike (above) but with radius corners for

easy mortising by power tools.

To order with lockset, specify quick code

found on pages 11.

Toorderseparatelyspecify680L51M020x

Finish.

Anti-rattle tab.

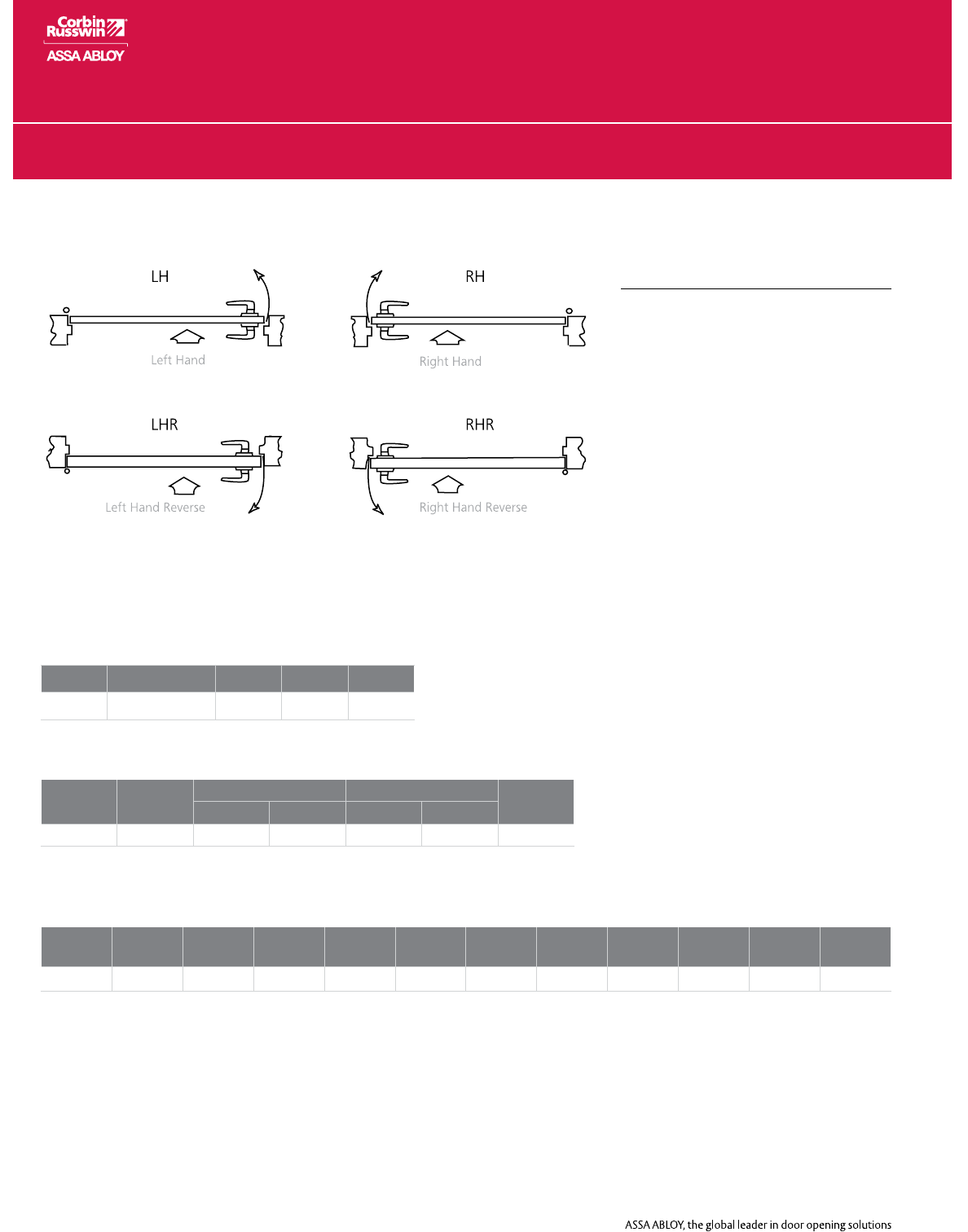

How to Order

CL3800

10

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45355-8/15

Ordering Examples Where to find ordering

information and quick

codes

Series/Function Pages 4-6

Trim Designs Page 7

Finish Page 11

Door Thickness Page 11

Backset Page 11

Strike Page 11

Cylinders and Keying Page 11

MiscellaneousOptions Page12

Split Trim / Finish Order

Stock Order

Contract / Detailed Order

Quantity Series/Function Trim Finish Hand

100 CL3855 NZD 626 RHR

Quantity Series/

Function

Trim Finish Hand

Outside Inside Outside Inside

12 CL3855 NZD AZD 626 625 RH

Quantity Keyset Series/

Function Trim Finish Hand Door

Thickness Backset Optional

Strike

Misc.

Options

Optional

Cylinder Keying

24 AA1 CL3855 NZD 626 RHR D214 B238 SC114 M17 PHS CKC2

11

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45355-8/15

Quick Codes

CL3800

Cylinder and Keying

Description Specify

Conventional 6-pin (standard)

Conventional 7-pin 7P

Less cylinder(s) LC

IC 6-pin C6

IC 6-pin with Temporary Construction Core (Red) CT6R

IC 6-pin with Temporary Construction Core (Blue) CT6B

IC 6-pin with Temporary Construction Core (Green) CT6G

IC 6-pin with temporary construction core CT6

IC 6-pin less core CL6

SFIC 6- or 7-pin Small Format Disposable Core CTSD

IC 7-pin C7

IC 7-pin less core CL7

IC 7-pin with temporary construction core CT7

IC 7-pin with Temporary Construction Core (Red) CT7R

IC 7-pin with Temporary Construction Core (Blue) CT7B

IC 7-pin with Temporary Construction Core (Green) CT7G

Security HS

Security IC CHS

Access 3® AP Fixed Core AP

Access 3® AS Fixed Core AS

Access 3® AHS Fixed Core AHS

Access 3® AP IC ACP

Access 3® AS IC ACS

Access 3® AHS IC ACHS

Pyramid High Security Fixed Core PHS

Pyramid High Security IC PCHS

Pyramid IC Less Core CLP

Pyramid with temporary construction core CTP

Pyramid Security Fixed Core PS

Pyramid Security IC PCS

Pyramid Disposable Core CTPD

6-Pin Disposable Core CT6D

7-Pin Disposable Core CT7D

0-bitted with 2 blank keys (standard)

Keyed random KR

Construction master keyed CMK

Visual key control (VKC)

 Nobittingorkeysetstampingonkeys VKC0

Keys only VKC1

Cylinders and keys (not for HS, CHS,

PHS, PCHS or Access 3®)VKC2

Cylinders only (not for HS, CHS, PHS,

PCHS or Access 3®)VKC3

Concealed key control (CKC)

CKC cylinders with VKC keys CKC2

CKC cylinders only (not for PHS, PCHS, Access 3®) CKC3

2 keys per lock (standard)

Morethan2keys KY# (e.g., KY6)

Schlage® C keyway cylinder C

Sargent® LA keyway cylinder LA

Finishes

Description Specify

ANSI/BHMA605(US3) Bright Brass 605

ANSI/BHMA606(US4) Satin Brass 606

ANSI/BHMA611(US9) Bright Bronze 611

ANSI/BHMA612(US10) Satin Bronze 612

ANSI/BHMA613(US10B) Dark Oxidized Satin Bronze, Oil

Rubbed 613

613E Dark Oxidized Satin Bronze,

Equivalent 613E

613L Dark Oxidized Satin Bronze, Clear

Coated 613L

ANSI/BHMA618(US14) BrightNickelPlated 618

ANSI/BHMA619(US15) SatinNickelPlated 619

619C SatinNickelPlatedwith

Microshield®619C

ANSI/BHMA625(US26) Bright Chromium Plated 625

ANSI/BHMA626(US26D) Satin Chromium Plated 626

626C Satin Chromium Plated

withMicroShield®626C

ANSI/BHMA722 Black Oxidized Bronze, oil rubbed 722

Strikes

ANSI

Lip to Center

ANSI

Curved Lip

Specify

Curved Lip

Box

Specify

Full Lip

Specify

Full Lip

Radius Corner

Specify

1" (25mm) SA100 SC100 N/A N/A

1-1

/

8" (29mm) SA118 SC118 N/A N/A

1-1

/

4" (32mm) (standard) SC114 SF114 SFR114

1-3

/

8" (35mm) SA138 SC138 N/A N/A

1-1

/

2" (38mm) SA112 SC112 N/A N/A

1-3

/

4" (44mm) SA134 SC134 N/A N/A

2" (51mm) SA200 SC200 N/A N/A

2-1

/

4" (57mm) SA214 SC214 N/A N/A

2-1

/

2" (64mm) SA212 SC212 N/A N/A

2-3

/

4" (70mm) SA234 SC234 N/A N/A

3" (76mm) SA300 SC300 N/A N/A

Rabbeted front and strike Specify SR118

Door Thickness

Door Thickness Specify

1-3/8" (35mm) - 1-3/4" (44mm) (standard)

2" (51mm) - 2-1/4" (57mm) D214

Backset

Description Specify

2-3/8" (60mm) B238

2-3/4" (70mm) (standard)

3-3/4" (95mm) B334

5" (127mm) B500

Quick Codes

CL3800

12

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45355-8/15

Miscellaneous Options

Description Specify

Spanner head screws M02

Less cylinder, with tailpiece for Schlage® cylinder M06

Lever to accept SFIC 6 or 7-pin interchangeable core

(NZD&PZDdesignonly) M08

Lever to accept Sargent® cylinder(NZD&PZDdesigns

only) M09

Lever to accept Schlage® Interchangeable core

(NZD&PZDdesignonly) M69

Rounded corners on latch front M13

1" latch front, square corners (standard for 2-3/8"

backset) M14

1" latch front, rounded corners M15

ANSIwroughtstrikebox M17

Knurling outside and inside M20

Knurling outside only M21

Knurling inside only M22

Abrasive coat outside and inside M23

Abrasive coat inside only M24

Abrasive coat outside only M25

1-1/8" front, square corners (standard for 2-3/4",

3-3/4"and 5" backsets) M32

13

Copyright © 2007-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45355-8/15

How to Specify

CL3800

Suggested Specification

Lockset chassis shall be constructed of heavy gauge steel and cast components, plated to protect against rust and corrosion. Locksets

shall be adjustable for 1-3/8" (35mm) and 1-3/4" (44mm) or 2" (51mm) and 2-1/4" (57mm) door thickness.

Locksets shall be non-handed, and shall install easily without the need for specialized installation tools. Locksets shall have separate

anti-rotation through-bolts in the 6 o’clock and 12 o’clock position outside the 2-1/8" face bore, and shall have no exposed mounting

screws.

Locksets shall have solid one-piece, cast levers without plastic inserts, and shall be a minimum of 4" (102mm) in length. Levers shall

operate independently, and shall have inside and outside lever return springs. Outside levers on the keyed locksets shall be removable

only when the designated key is in the cylinder.

Vandal-resistant levers shall be offered as a standard feature in all locking functions and shall be free-wheeling in the locked condition.

Locksets that are rigid in the locked condition, or must require resetting (breakaway) are not acceptable.

All locksets shall carry a seven-year mechanical warranty.

All locksets shall comply with the following certifications:

•UL-cUL3-HourFireRating

•ANSI/BHMAA156.2Series4000,Grade2

•ANSI/BHMAA117.1AccessibilityCode

•ANSI/BHMAA115.1BPreparation

All locksets shall be CL3800 Series Grade 2 Key-in-Lever Cylindrical Locksets as manufactured by Corbin Russwin Architectural

Hardware.

For more information regarding Corbin Russwin Locksets,

Exit Devices, Door Controls and Key Systems, contact your

authorized Corbin Russwin Distributor or Sales Representative.

In U.S.

Corbin Russwin

Architectural Hardware

225 Episcopal Road

Berlin, CT 06037

Phone: 800-543-3658

Fax: 800-447-6714

corbinrusswin.com

In Canada

ASSA ABLOY Door

Security Solutions Canada

160 Four Valley Drive

Vaughan, Ontario

Canada L4K 4T9

Phone: 800-461-3007

Fax: 905-738-2478

www.assaabloy.ca

Corbin Russwin and Design® and Access 3® are registered trademarks of Corbin Russwin, Inc., an ASSA ABLOY Group company. Lever Release™ is a trademark of Corbin

Russwin, Inc., an ASSA ABLOY Group company. Other products’ brand names may be trademarks or registered trademarks of their respective owners and are mentioned

forreferencepurposesonly.ThesematerialsareprotectedunderUScopyrightlaws.Allcontentscurrentattimeofpublication.CorbinRusswin,Inc.,anASSAABLOYGroup

45355-8/15

MicroShield®

Aspartoftheirpromisetoprovideinnovativesolutionstotheircustomers,certainASSAABLOYGroupbrandsoffertheMicroShield®technology,asilver-

based antimicrobial coating designed to inhibit the growth of bacteria.

MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.

Corbin Russwin CL3800 Series Cylindrical Lock Catalog Aadss1004522

Navigation menu

Versions of this User Manual:

Views

Navigation
