ML2000 Series
Mortise Locksets

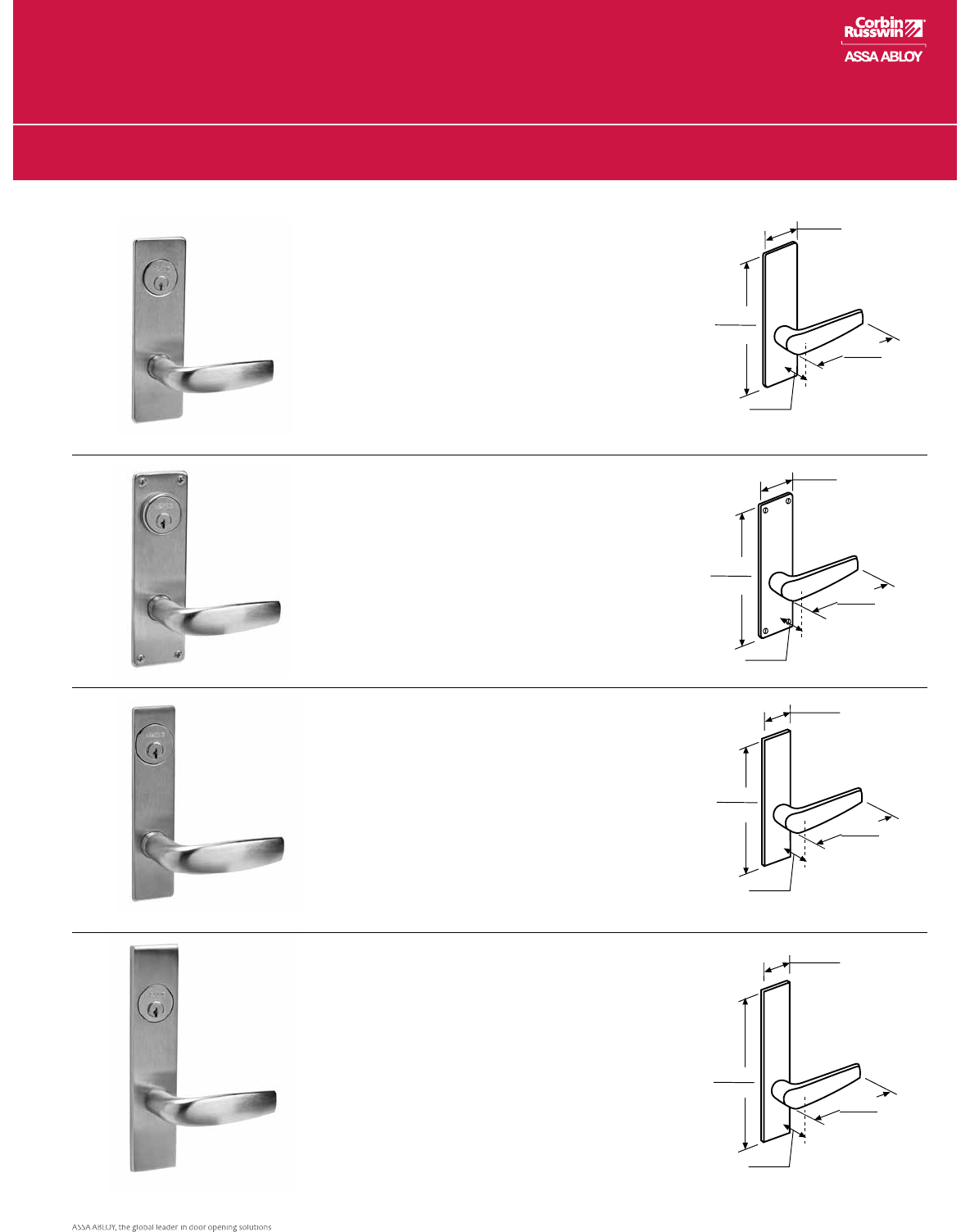

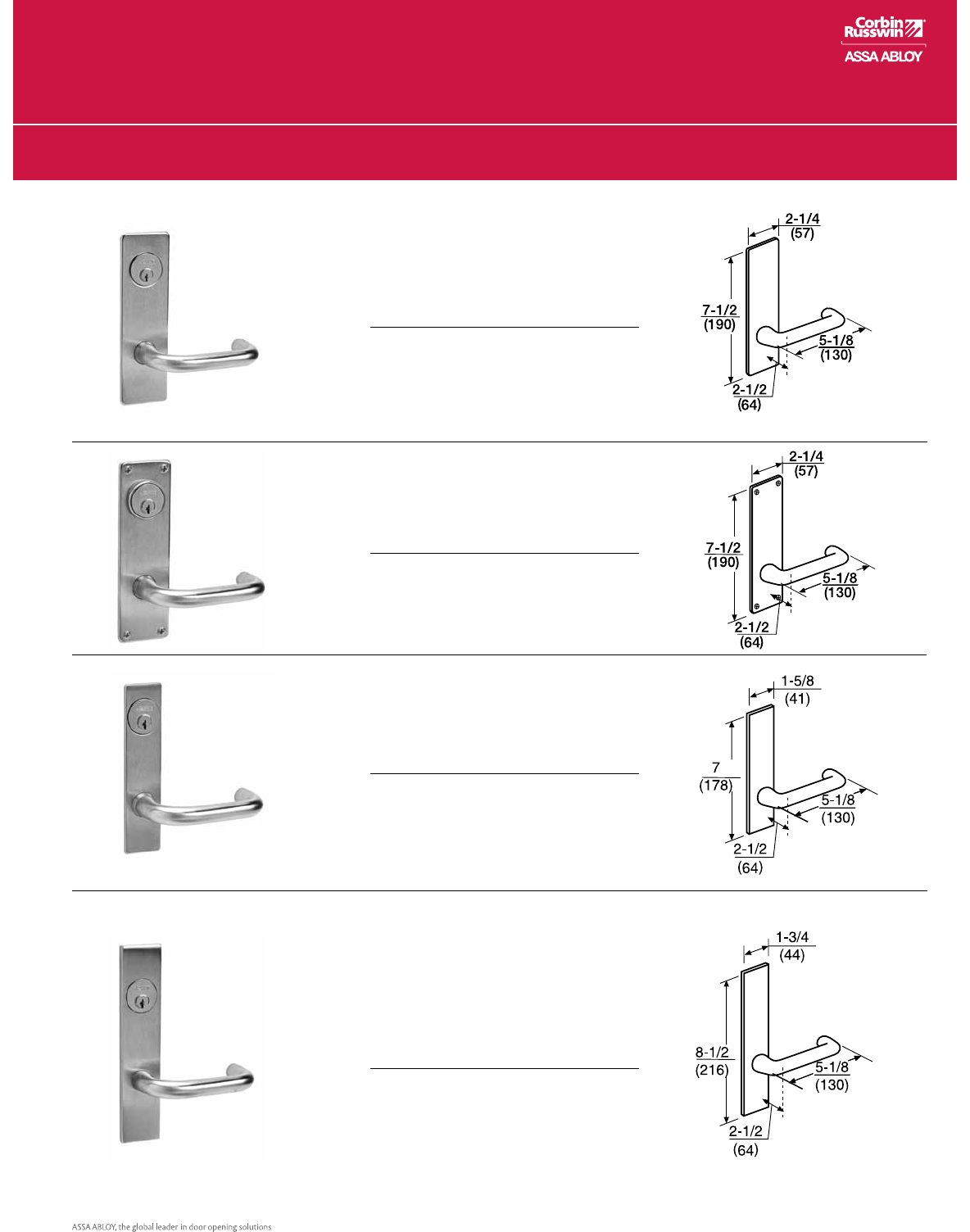

Overview
ML2000
ML2000.2
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Overview
ML2000
Quality
The ML2000 series is a Grade 1 mortise
lock designed to meet the rigors of
high-traffic commercial, institutional,
industrial and government applications.
Constructed of heavy-gauge steel, the
lockbody features our patented Quick
Reversible latchbolt, and a 1" stainless
steel deadbolt. A wide variety of trim
designs and functions and a 10-year
warranty lend to the ML2000’s versatility
and reliability, making it the ideal choice
for use in offices, schools, hospitals, hotels
and other high-use applications.
Security
Further discourage intrusion and abuse
with the ML2000HS (High Security) or
ML2000VR (Vandal Resistant) series
mortise lock. Both locks feature vandal-
resistant stainless steel escutcheons with
tapered edges and Torx® pin tamper
resistant screws. When matched with
Corbin Russwin patented high-security
cylinders, any door can become a
formidable barrier to intruders.
Aesthetics
Complement any application with the full
range of trim designs and finishes offered
with ML2000 Series. From stainless steel
security trims to bright brass Vineyard™
levers, design continuum can be achieved
without forfeiting aesthetics. For
additional information regarding designer
trim, see the Corbin Russwin Vineyard™
Collection and Muséo® Collection
catalogs.
Key Advantages
• PatentedQuickReversiblefeature
enables reversal of hands without
 disassemblingthelockcase(Patent#
6,349,982)
• Securitytrimsprovideavandal-resistant
barrier
• Canbeusedwithneworexisting
Corbin Russwin key systems. Also
accepts cylinders of most other
manufacturers.
• Provideslifesafetyandsecurityina
single door prep, saving the additional
cost of a deadlock
• Through-boltedtrimdesignsforproper
alignment and increased security
Table of Contents
ML2000 Overview ...................2
ML2000 Features .................3-4
ML2000 Functions ...............5-9
ML20900 ECL Applications ...10
ML20900 ECL Features .........12
ML20900 ECL Functions .......13
ML20600 NAC Series
Electrified Mortise Lock with
High Security Monitoring ......14
NAC Functions .................15-16
NAC How to Order ...............17

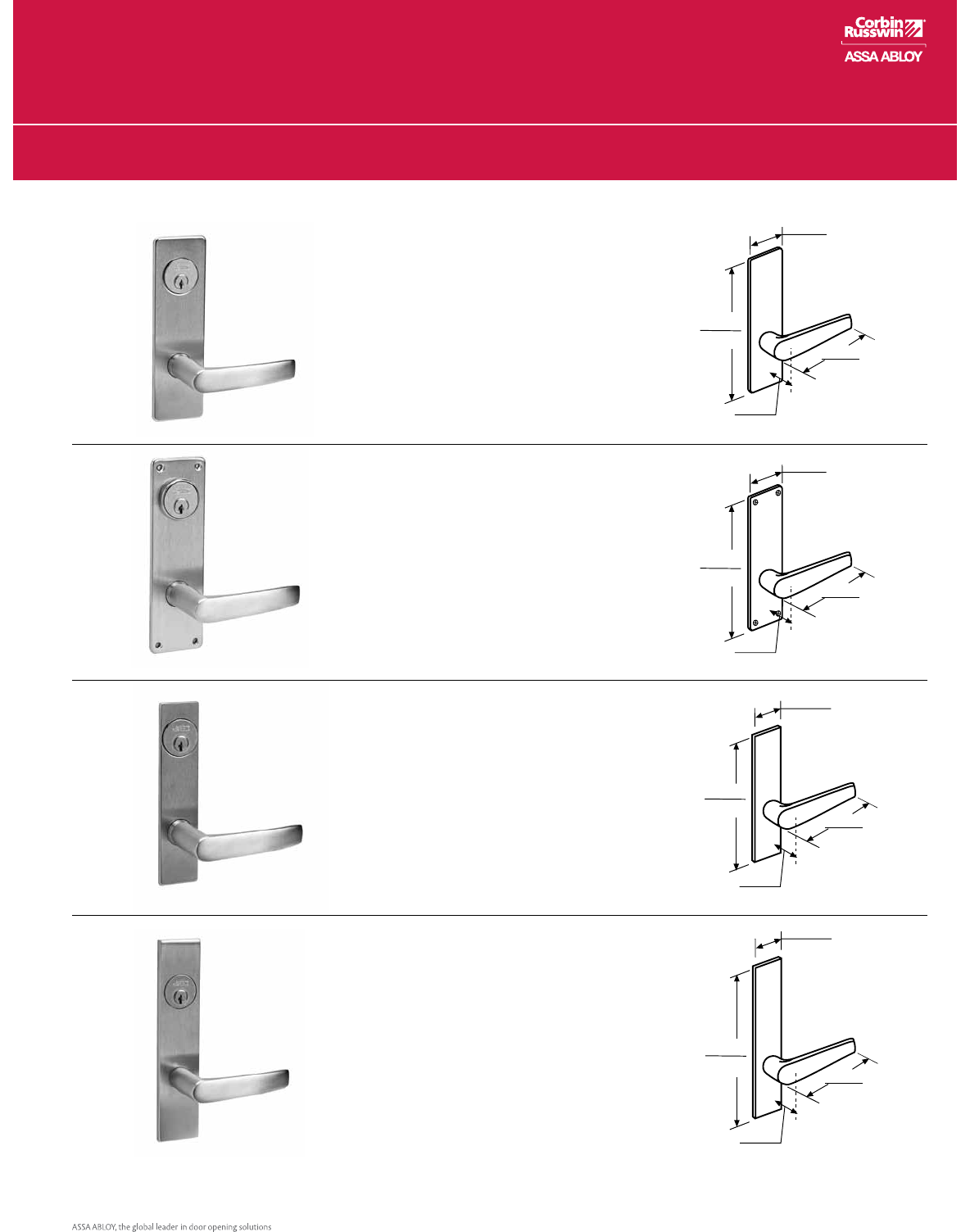

Trim Designs ....................18-39
Muséo® Trim .........................40
Muséo® Inspire™
Roseless Trim ........................41

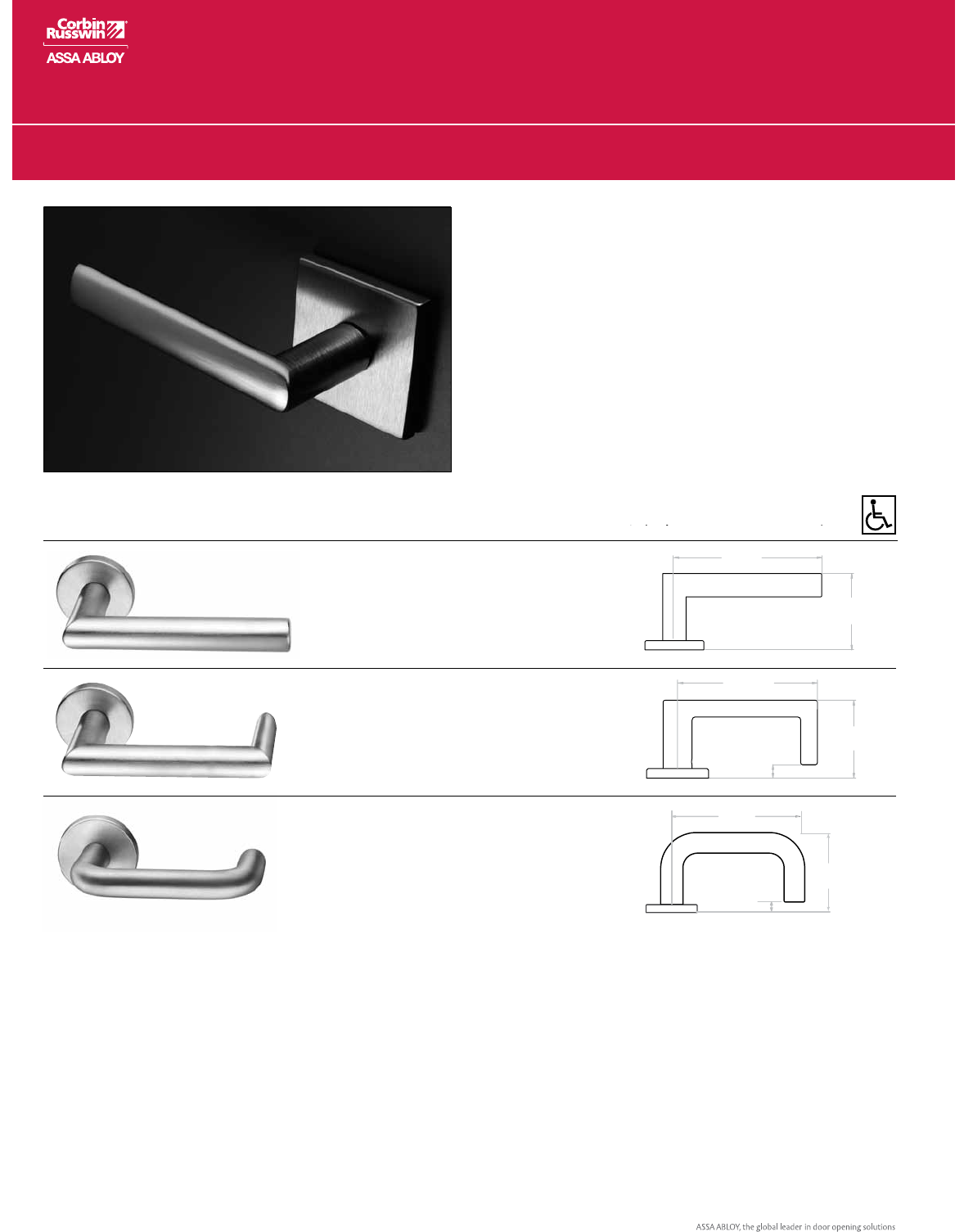

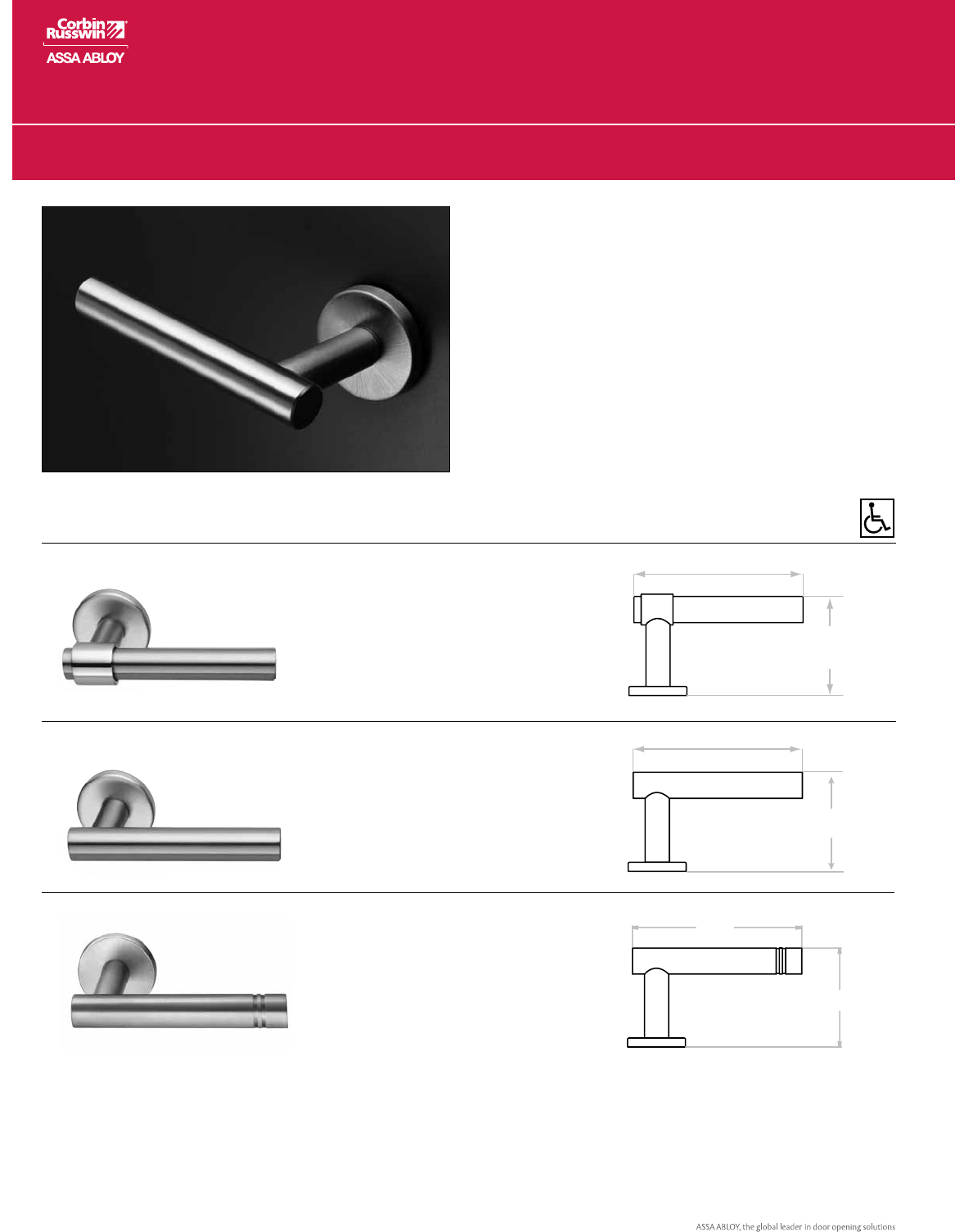

Muséo® Levers .................42-54

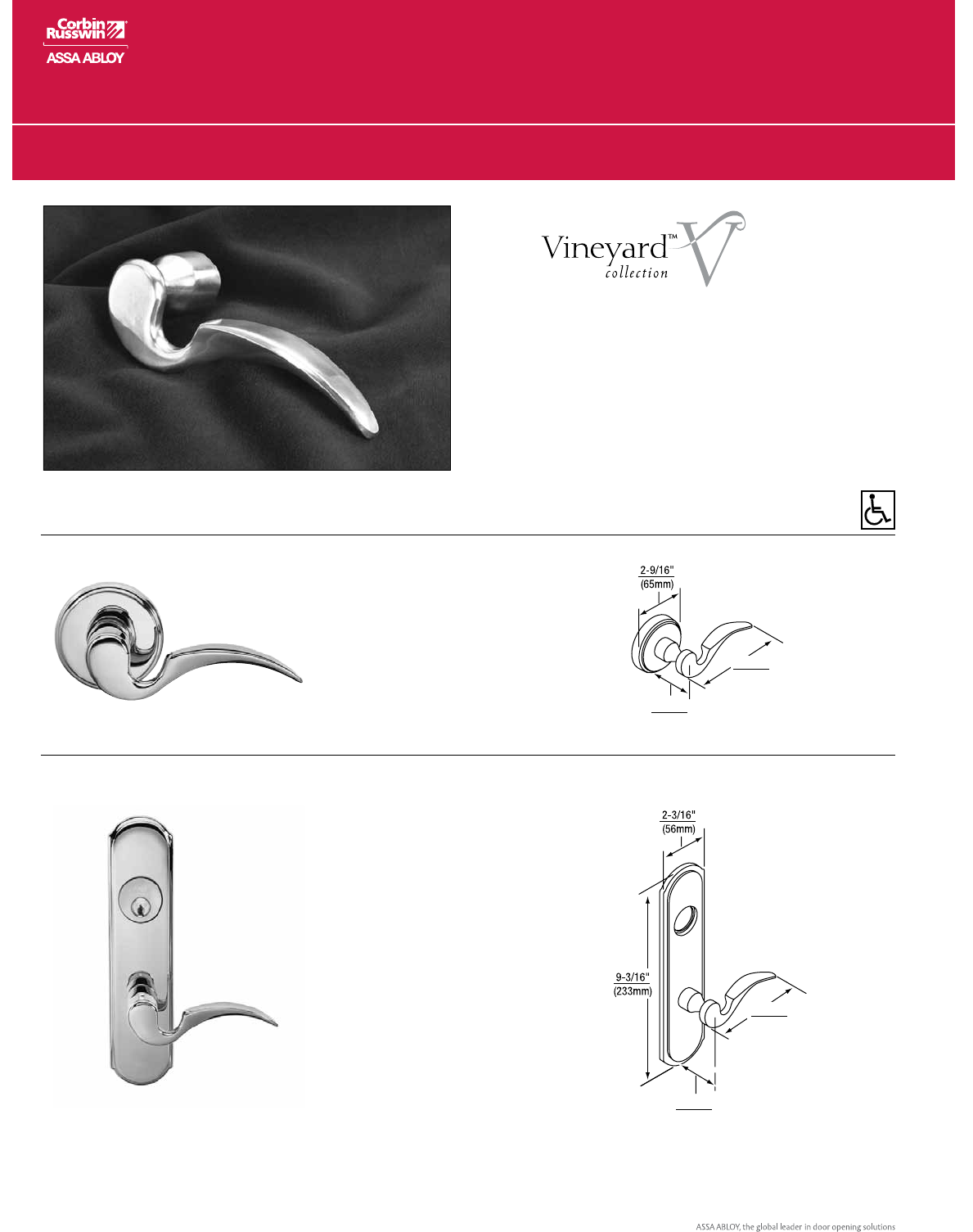

Vineyard™ Collection
Trim .................................55-57
High Security Trim (HS) .........58
Vandal Resistant Trim (VR) ......59
Behavioral Health
Trim (BHSS)............................60
Behavioral Health Lever
Trim (BLSS) ............................61
Push/PullTrim(HPSK) ............. 62
Anti-Harm Trim (HSS) ............. 63

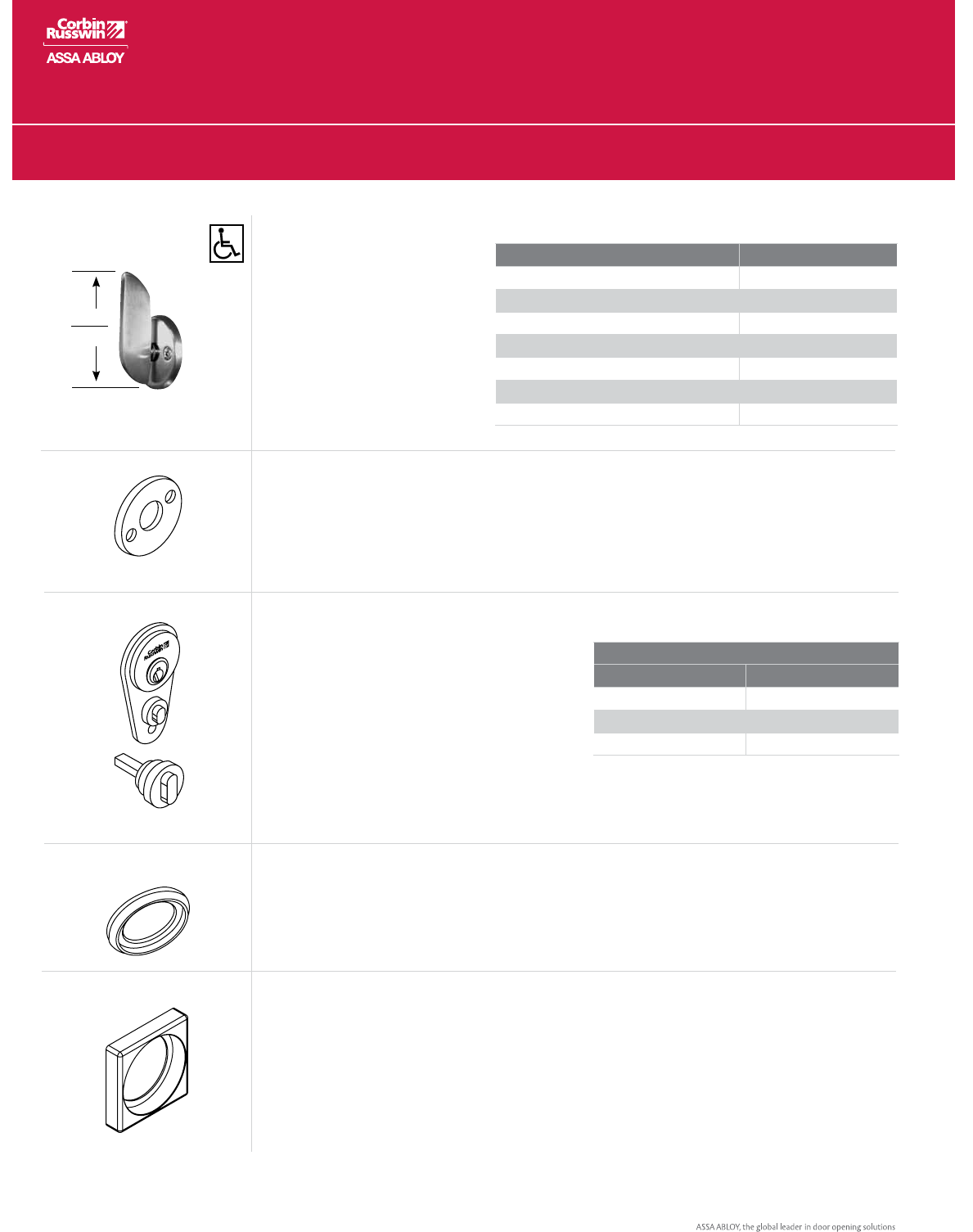

Options and Accessories ....64-72
How to Order ..................73-75
Quick Codes ....................76-78
How to Specify ................79-81

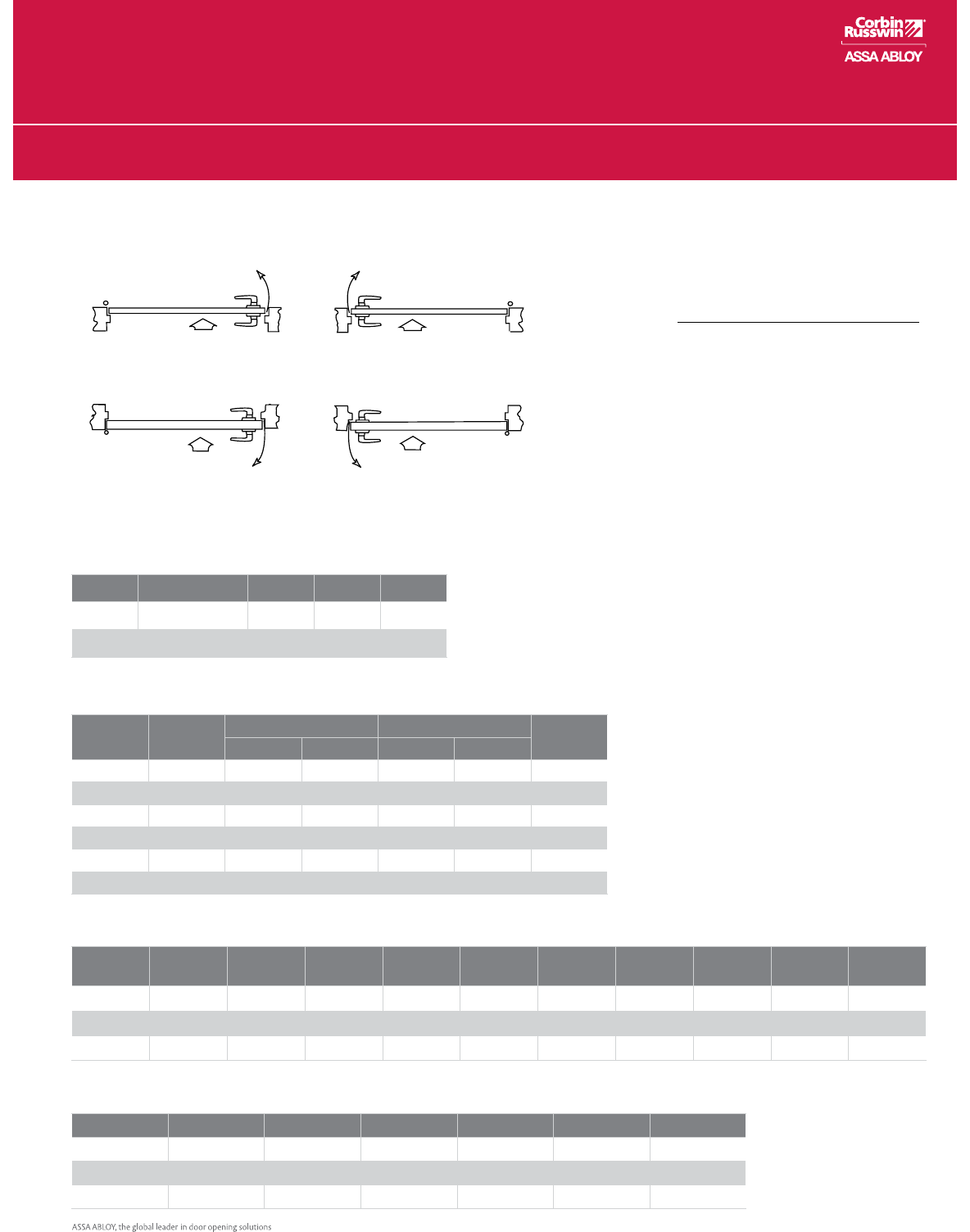

Reversing Handing ................82
www.corbinrusswin.com
Overview
ML2000
ML2000.3
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Features
ML2000
Features
Handing
Handed; quick reversible. The lockset can
be re-handed without disassembling the
lock case; see page 73.
Door Thickness
1-3
/
4" (44mm) standard.
Optional door thicknesses available; see
Quick Codes, page 77.
Backset
2-3
/
4" (70mm).
Lockcase
Heavy-gauge steel, 5-7
/
8" (149mm) x 4"
(102mm) x 15
/
16" (24mm).
Optional: non-ferrous lockcase for
corrosion resistance; see Quick Codes,
page 77.
Front
Heavy-gauge steel, 8" (203mm) x 1-1
/
4"
(32mm) x -3
/
32" (2mm). Accommodates
flat doors and doors beveled 1
/
8" (3mm)
in 2" (51mm). Furnished 1-1
/
16" (27mm),
optional D138, wide for 1-3
/
8" (35mm)
doors.
Armored Front
Wrought brass, bronze or stainless steel
attached by machine screws to lockcase
front. ML2000HS & ML2000VR utilizes
security Torx® screws.
Latchbolt
2-piece mechanical with anti-friction
insert, 5
/
8" (16mm) x 1" (25mm) x 3
/
4"
(19mm) throw.
Auxiliary Latchbolt
9
/
16" (14mm) effective throw and
3
/
8" (10mm) effective auxiliary latch
deadlocking.
Deadbolt
One-piece stainless steel, 19/32" (15mm)
x 1-1/4" (32mm) x 1" (25mm) throw.

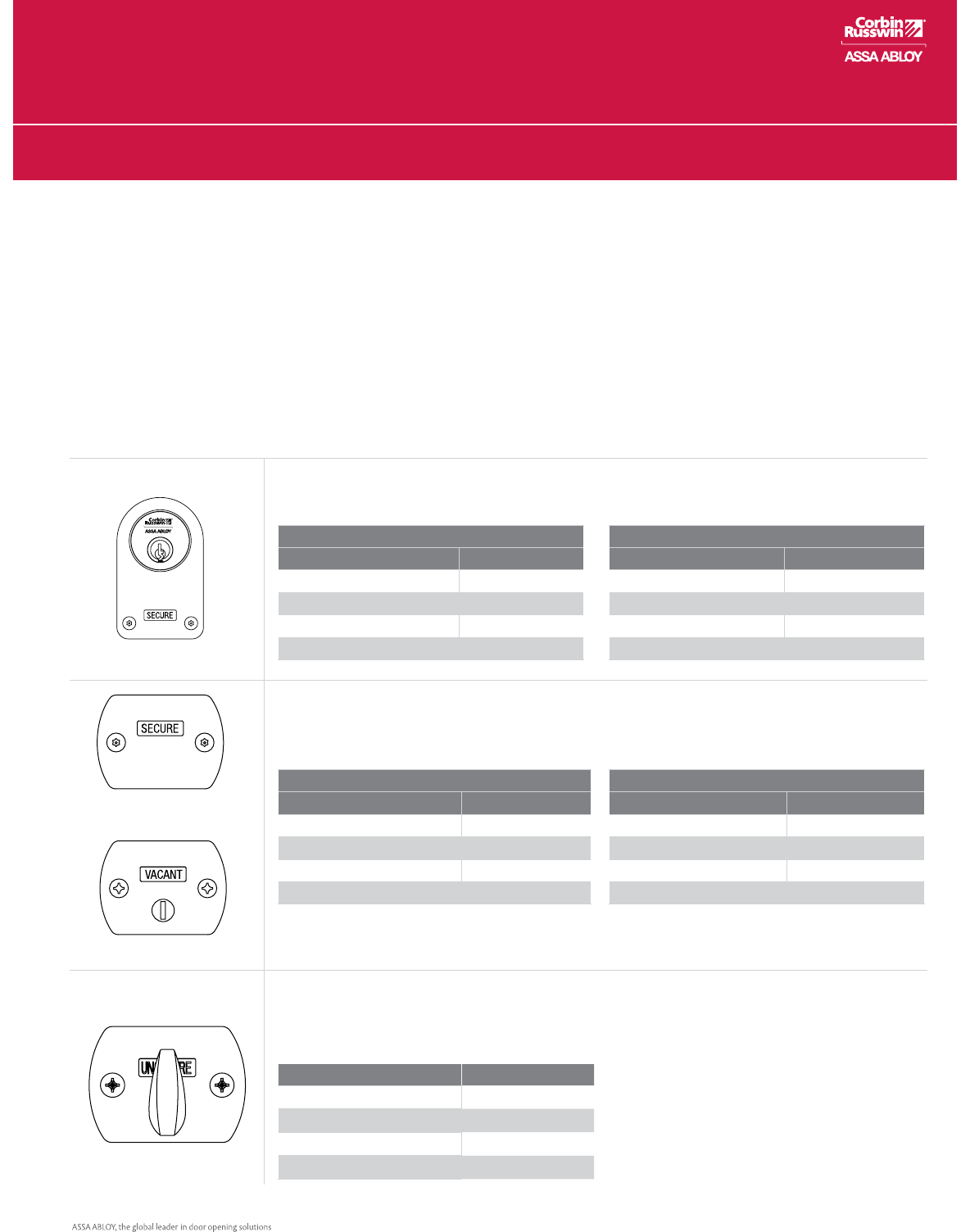

Occupancy Indicator
Occupancy indicators for use with ML2000
x sectional trim. Design features option
for dual indicators on double cylinder
functions, confirming door is secured from
either side. Emergency override standard
for all non-keyed functions.
Hub
• Knob:stainlesssteel,9
/
32" (7mm) x
9
/
32" (7mm). 3
/
8" (10mm)
stainless steel.
• Lever:steel,5/16"(8mm).(Including)
Spacing
C. to c. knob/lever to cylinder: 3-5
/
8"
(92mm).
C. to c. knob/lever to thumbturn: 2-7
/
16"
(62mm).

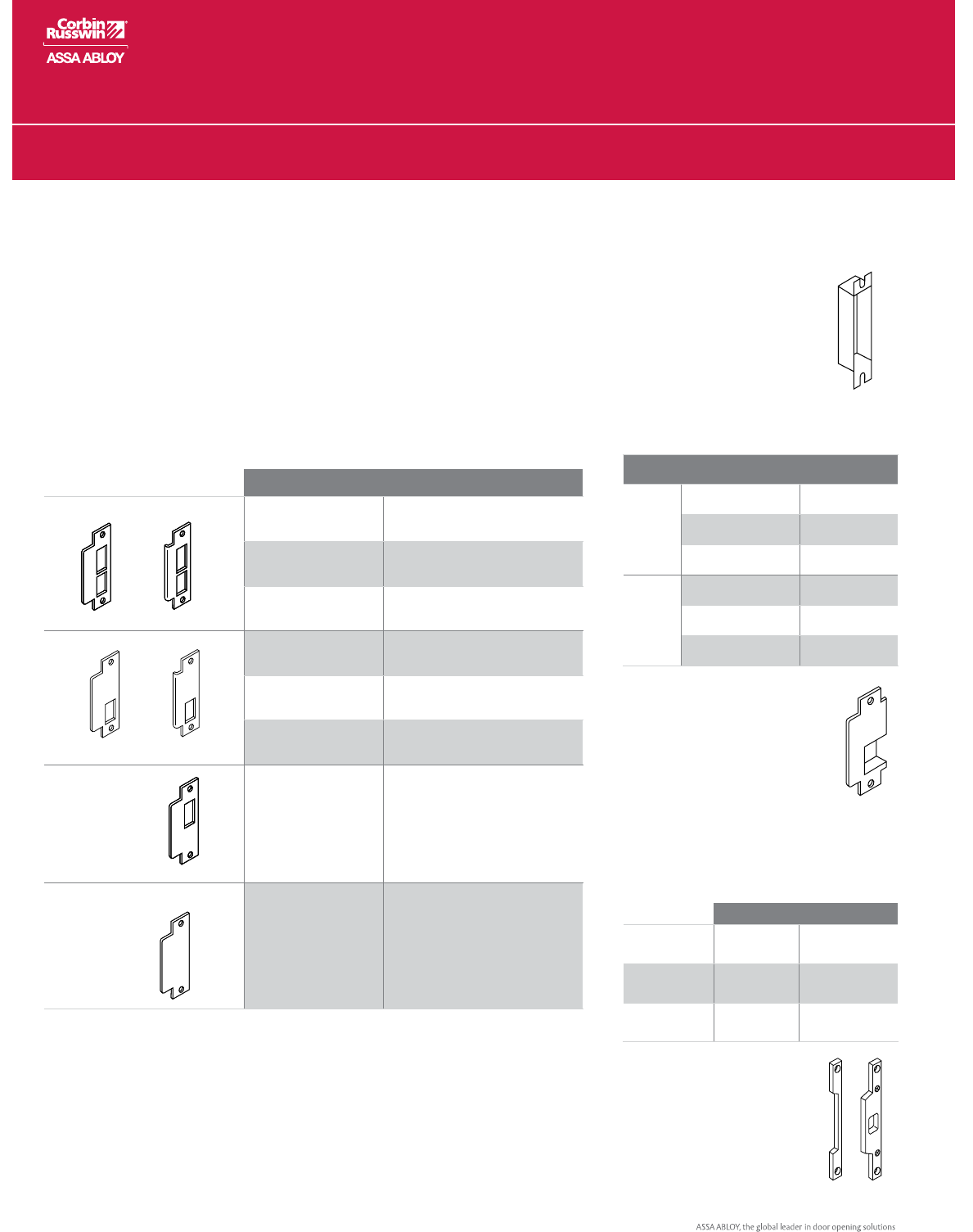

Strike
Wrought brass, bronze or stainless steel,
ANSI straight lip standard, 4-7/8" (124mm)
x 1-1/4" (32mm) x 1-1/8" (29mm) lip to
center. Optional strikes, lip lengths and
ANSI wrought strike box available; see
Quick Codes, page 77.

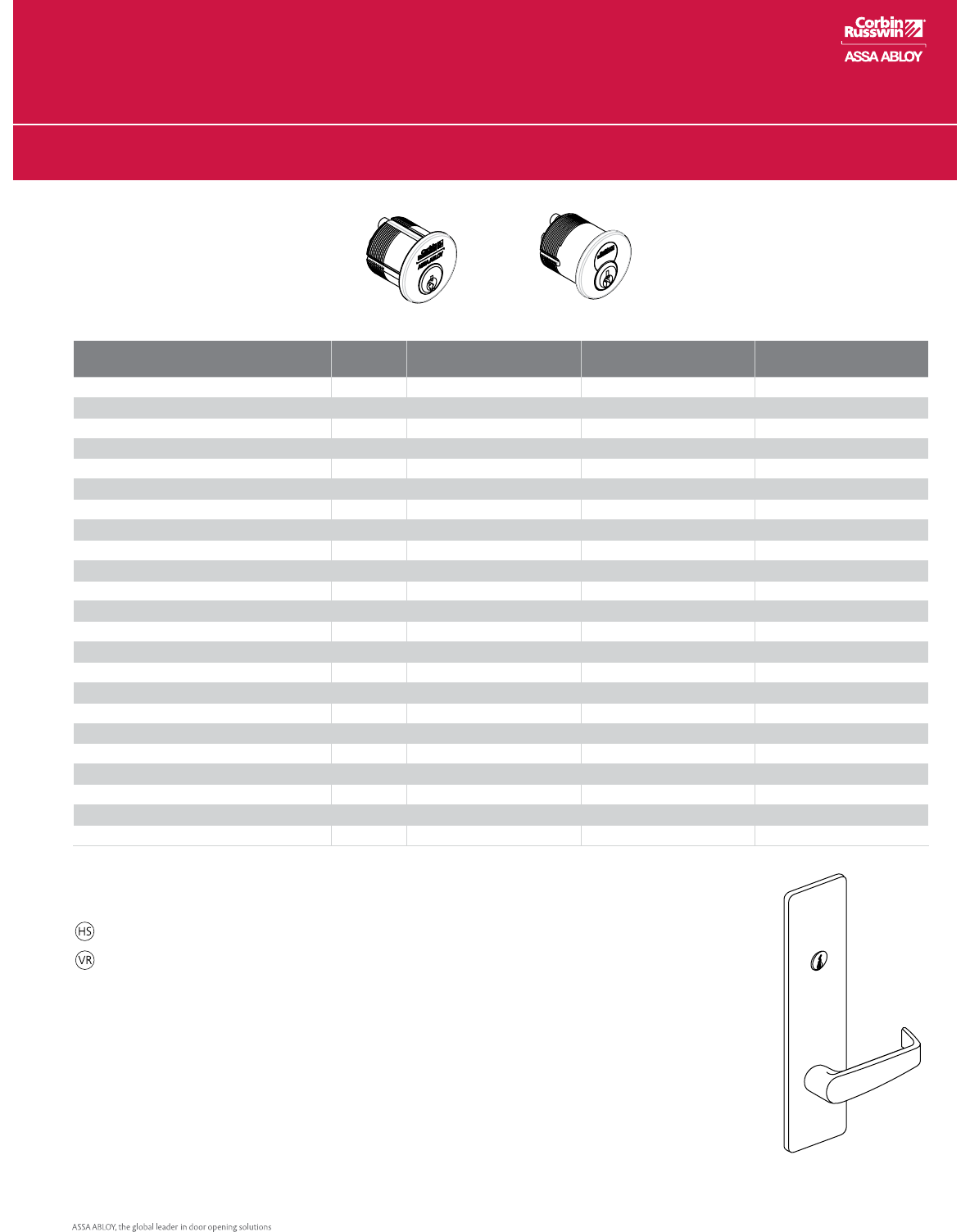

Cylinder
Brass, 6-pin, L4 keyway, 0-bitted standard.
Brass, fixed 6-pin conventional fixed
core cylinder, L4 keyway standard for
ML2000HS.
Optional cylinders available; see Quick
Codes, page 76.
Keys
Two nickel silver standard.
Keying Features Available
Master keying
Construction master keying
Visual key control
Concealed key control
Plugonlytoshow(concealedshell)
7-pin cylinder
Security cylinder
Access 3® cylinder
Pyramidcylinder
Interchangeable core (IC)
Security IC
PyramidIC
Access 3® IC
Master ring cylinder
Blockout cylinder
Flex head cylinder
Warranty
Ten-year limited.
Certification/Compliance
ANSI/BHMA
Certified A156.13 Series 1000,
Operational and Security Grade 1.
Meets A117.1 Accessibility Code.
Federal
Meets FF-H-106C.
UL/cUL-UL10C Positive Pressure
All locks listed for A label and lesser class
doors, 4' (122cm) x 10' (305cm) single or
8' (244cm) x 10' (305cm) pair (3 hour fire
door). Letter F and UL symbol on armored
front indicate listing.
Any retrofit or other field modification to
a fire rated opening can potentially impact
the fire rating of the opening, and Corbin
Russwin, Inc. makes no representations or
warranties concerning what such impact
may be in any specific situation. When
retrofitting any portion of an existing fire-
rated opening, or specifying and installing
a new fire-rated opening, please consult
with a code specialist or local code official
(Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
(Formerly Title 19, California State Fire Marshal
Standard)
All levers with returns, return to within
1/2" (13mm) of door face.
Windstorm/Hurricane
Certified (refer to local codes).
Indicates ML2000HS (High Security) availability.
Indicates ML2000VR (Vandal Resistant) availability.
HS
VR
HS
VR
Overview
ML2000
ML2000.4
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Finishes
ANSI/BHMA 605 (US3) Bright Brass
ANSI/BHMA 606 (US4) Satin Brass
ANSI/BHMA 611 (US9) Bright Bronze
ANSI/BHMA 612 (US10) Satin Bronze
ANSI/BHMA 613 (US10B) Oxidized Bronze, oil rubbed
613E (US10BE) Dark Oxidized Satin Bronze - Equivalent
613L Dark Oxidized Satin Bronze, Clear Coated
ANSI/BHMA 618 (US14) BrightNickelPlated
ANSI/BHMA 619 (US15) SatinNickelPlated
ANSI/BHMA 625 (US26) BrightChromiumPlated
ANSI/BHMA 626 (US26D) SatinChromiumPlated
626C SatinChromiumPlatedwithMicroShield®
ANSI/BHMA 629 (US32) Bright Stainless Steel
ANSI/BHMA 630 (US32D) Satin Stainless Steel
630C Satin Stainless Steel with MicroShield®
ANSI/BHMA 722 Black Oxidized Bronze, oil rubbed

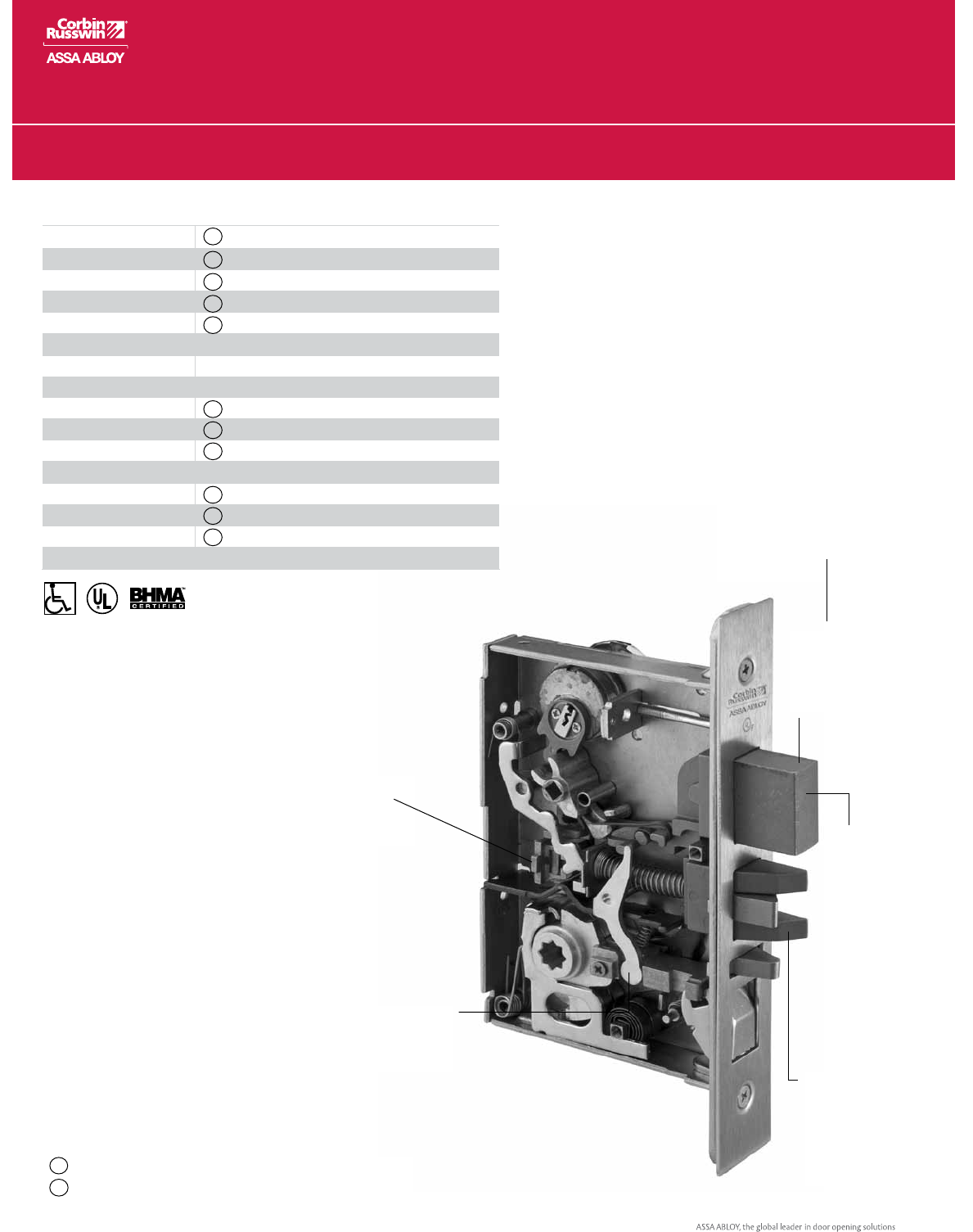

Patentedlatchtail
enables easy
handing changes
(Patent#6,349,982)
Heavy-gauge
internal parts provide
security, reliability,
and durability
Armored front conceals lock
mounting screws and one-
piece heavy- gauge steel front
Heavy-duty
3/4" throw
latchbolt with
stainless steel
insert provides
positive secure
latching
1" throw,
one-piece
deadbolt
meets
security
Grade 1
Indicates ML2000HS (High Security) availability.
Indicates ML2000VR (Vandal Resistant) availability.
HS
VR
Features
ML2000
HS
HS
HS
HS
HS
HS
HS
Deadbolt at 1"
throw will project
further than
latchbolt at 3/4"
throw
VR
HS
VR
HS
Overview
ML2000
ML2000.5
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

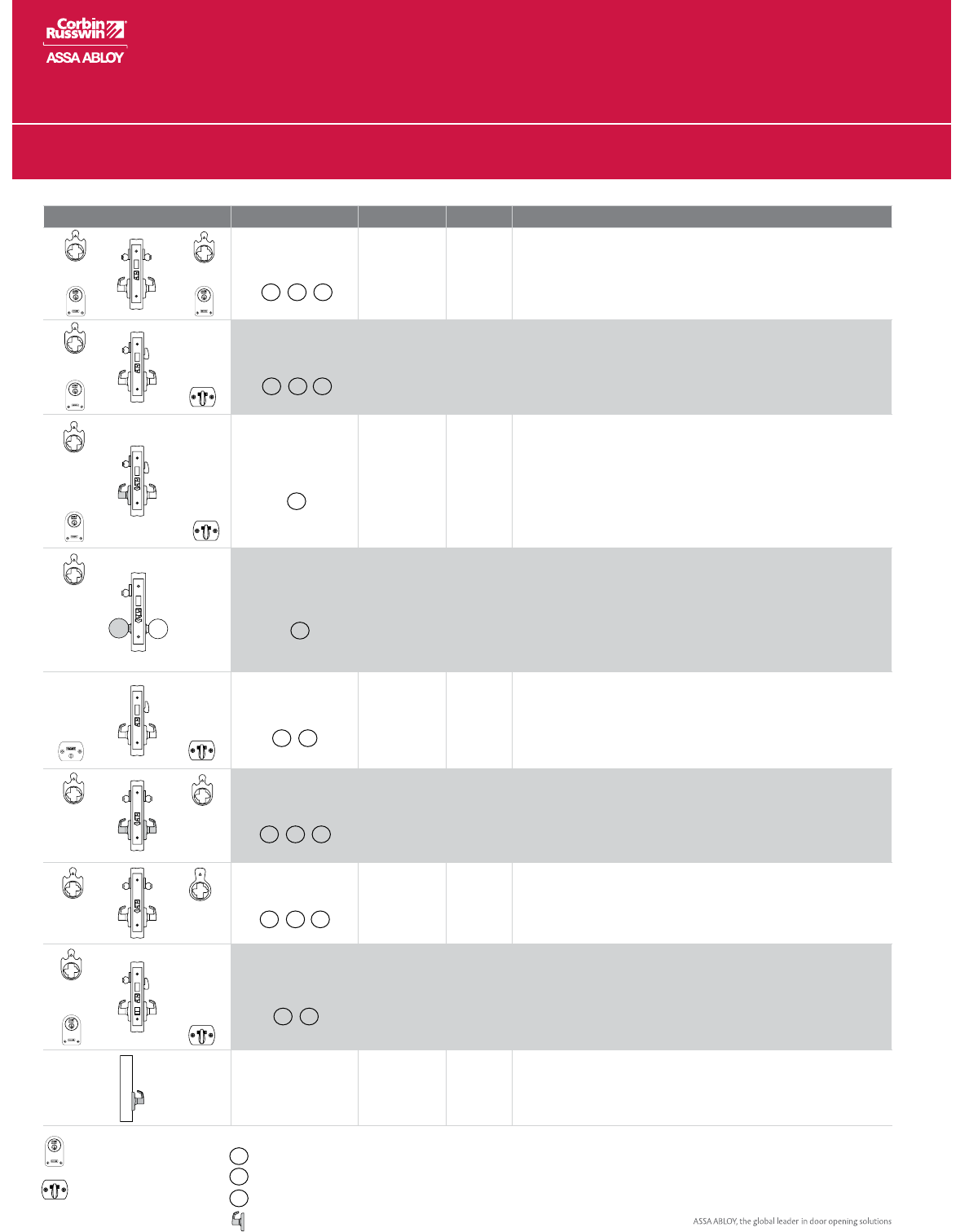

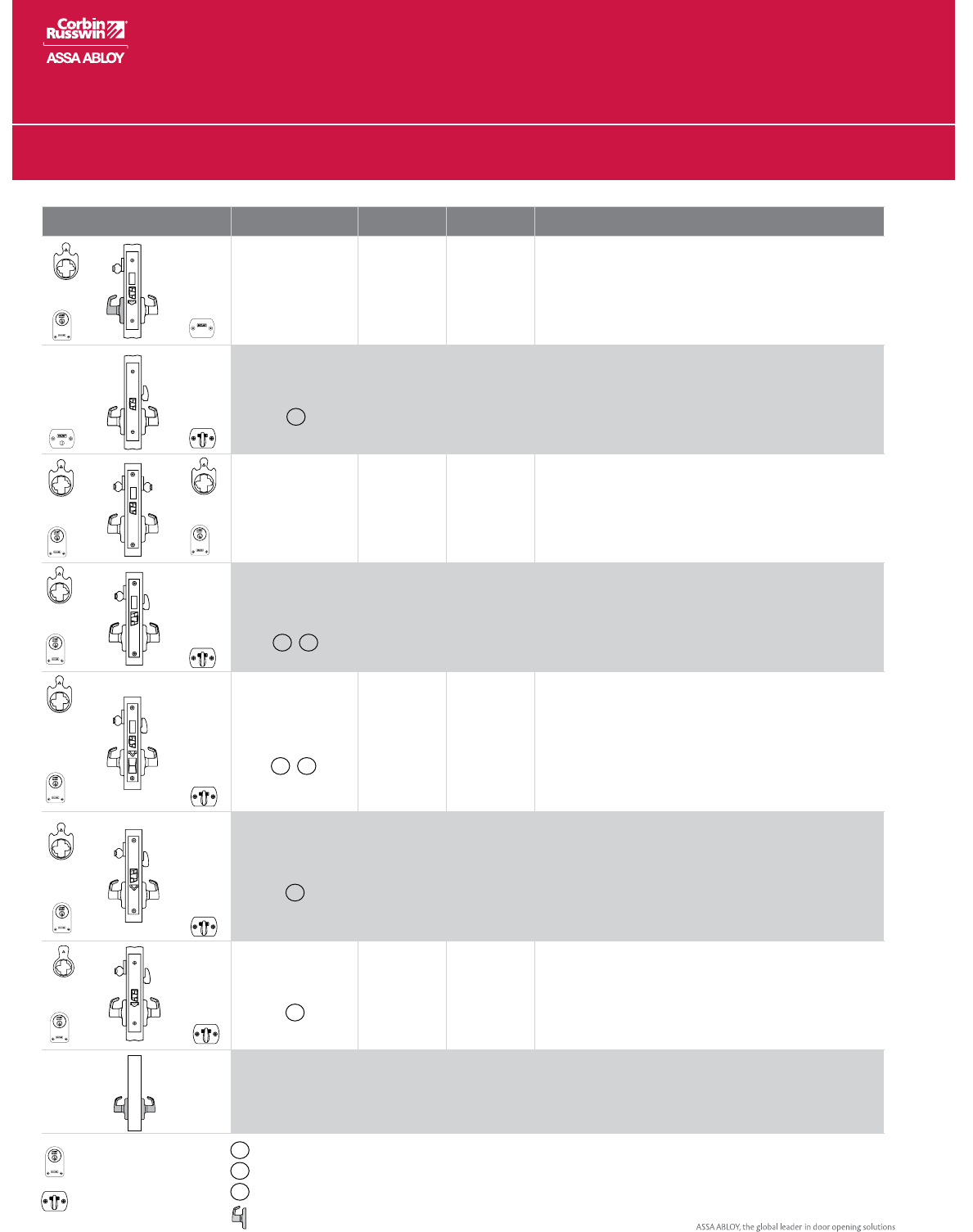

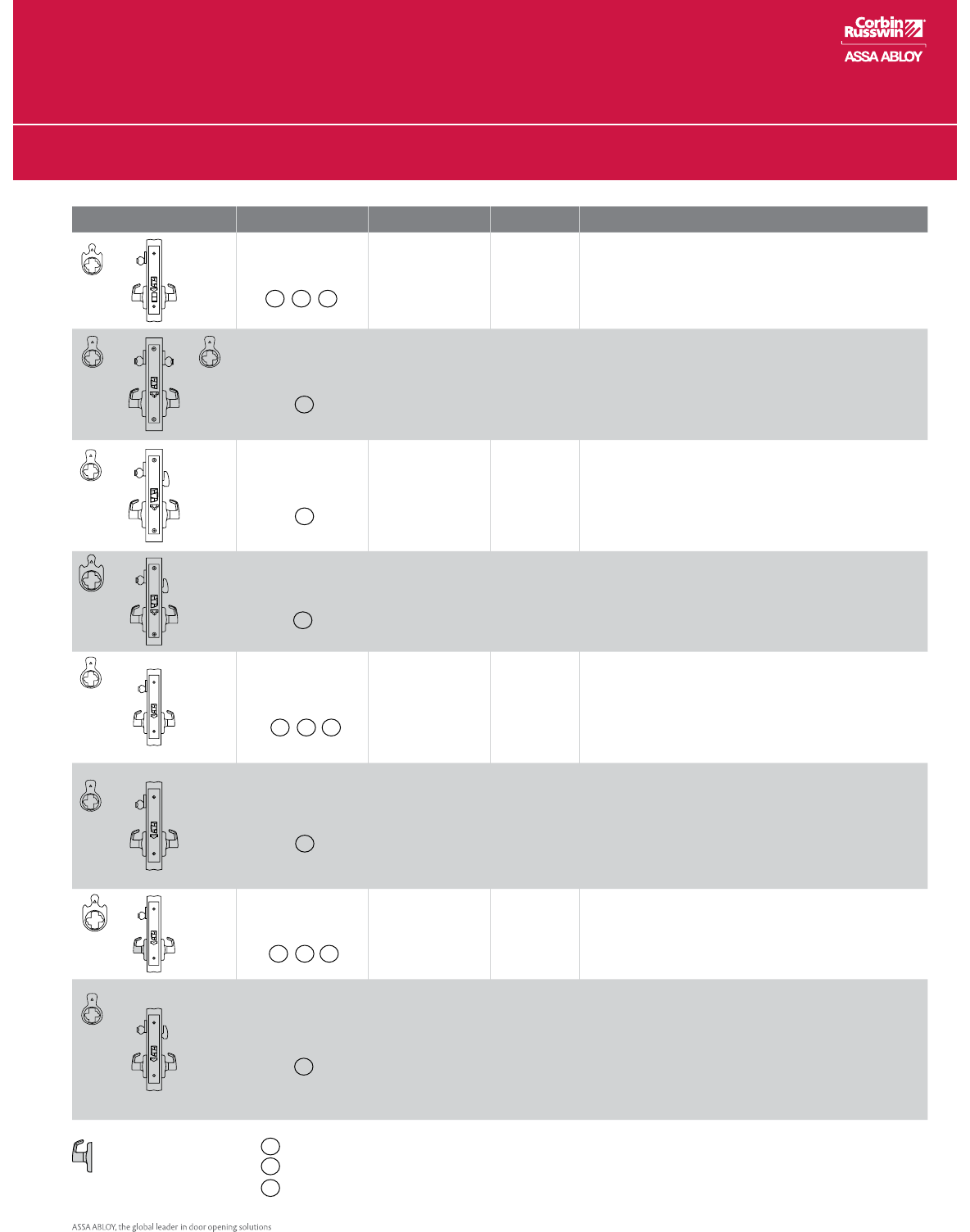

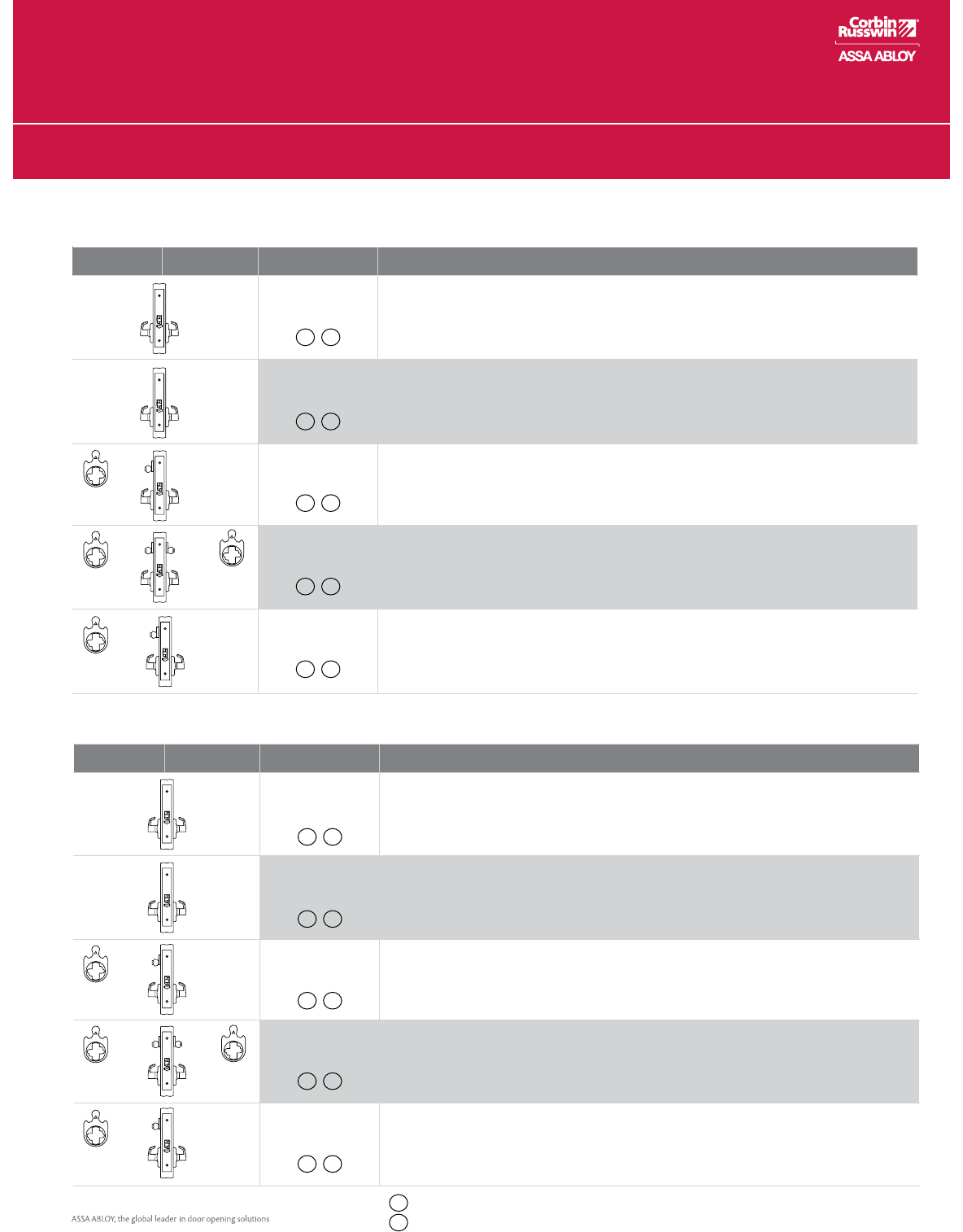

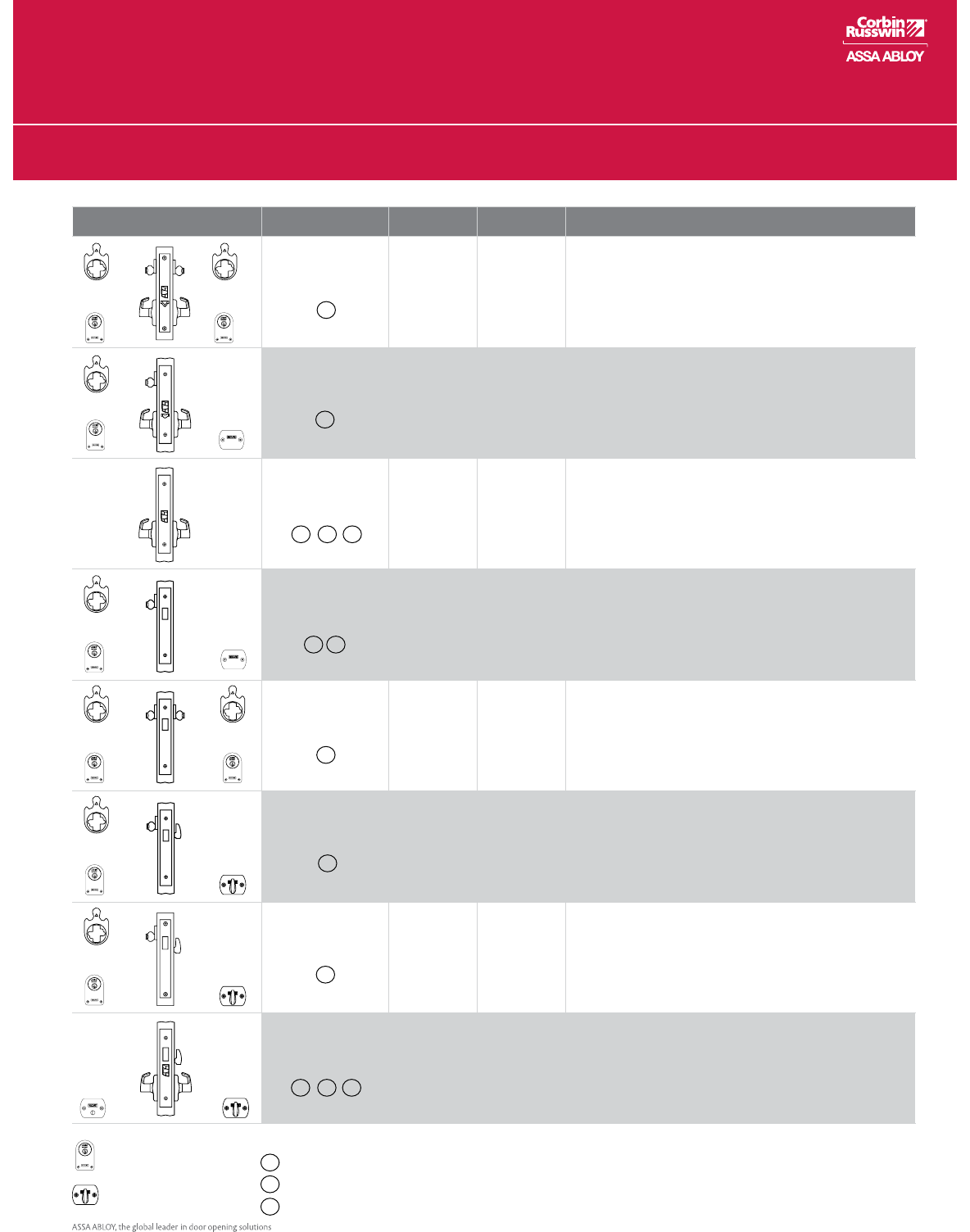

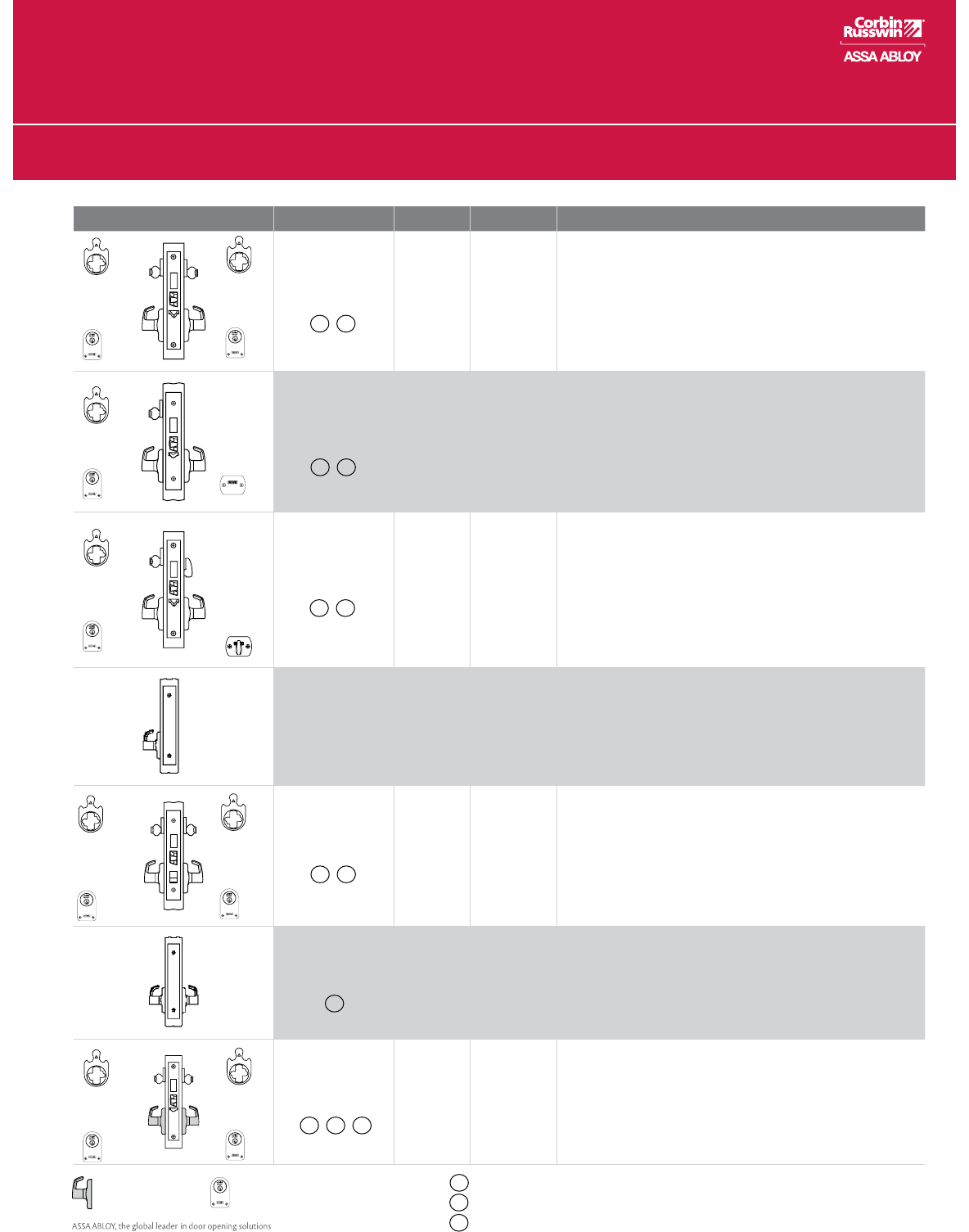

Functions
ML2000
Indicates Indicator
option is available
Indicates Indicator
option is available
* When lever handles are furnished, both outside and inside are locked when deadbolt is projected.
Indicates function availability in ML2000HS.
Indicates function available in Vandal Resistant Trim.
Indicates function available in Anti-Harm Trim
Outside Inside Series/Function Type ANSI No. Function Description
ML2002 Classroom
Intruder
• Latchboltbygripeitherside,unlessoutsidegripislocked
by key either side.
• Outsidegriplockedorunlockedbycylindereitherside.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
ML2003 Classroom
• Lockorunlockoutsidegripbykey.
• Latchboltbygripeitherside,unlessoutsidegripislocked.
• Insidegripalwaysfree.
• Auxiliary latch deadlocks latch.
ML2010
Passage
or Closet F01 •Latchboltbygripeitherside.
•Bothgripsalwaysfree.
ML2011 Deadlock F18 •Deadboltbykeyoutside.
•Noinsideoperation.
ML2012 Deadlock F16 •Deadboltbykeyeitherside.
ML2013 Deadlock F17 • Deadboltbykeyoutsideorbythumbturngripinside.
ML2017 Classroom
Deadlock F29
• Deadboltbykeyoutside.
• Thumbturngripinsideretractsdeadboltonly;willnot
project deadbolt.
ML2020
Privacy
Bedroom or
Bathroom
F02
• Latchboltbygrip*eitherside,whendeadboltisretracted.
• Deadboltbythumbturngripinsideorbyemergency
release tool outside.
• Nosimultaneousdeadboltandlatchretraction
• Non-panicrelease
• NotavailablewithM19SroM19SN
HS VR
A01 A01
A01
HS VR
A01
A01 A01
A01
A01
HS
VR
VR
R
HSS
HSS
HSS
HSS
HSS
HSS
HSS
HSS
HSS
R
R
Overview
ML2000
ML2000.6
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Functions
ML2000
Outside Inside Series/Function Type ANSI No. Function Description
ML2022 Store Door F14
• Latchboltbygrip*eithersidewhendeadboltisretracted.
• Deadboltbykeyeitherside.
• Non-panicrelease.
• Nosimultaneousdeadboltandlatchretraction
ML2024 Entrance or
Storeroom F21
• Latchboltbygrip*eithersidewhendeadboltisretracted.
• Deadboltbykeyoutsideorbythumbturngripinside.
• Non-panicrelease.
• Nosimultaneousdeadboltandlatchretraction
ML2029 Hotel or
Motel F15
• Latchboltbygripinsideandbyguestkeyormasterkeyoutside.
• Outsidegripalwaysrigid.
• Deadboltbythumbturngripinsideorbyemergencykeyoutside.
• Insidegripsimultaneouslyretractslatchboltanddeadbolt.
• Emergencykeyshutsoutallotherkeys.
• Auxiliarylatchdeadlockslatchbolt.
Note: Indicator shows deadbolt position only
ML2029HS Hotel or
Motel —
• Latchboltbygripinsideandbyguestkeyormasterkeyoutside.
• Outsidegripalwaysrigid.
• Emergencykeythrowsdeadbolt,shuttingoutallotherkeysand
preventing exit from inside.
• Auxiliarylatchdeadlockslatchbolt.
Note: Indicator shows deadbolt position only
ML2030
Privacy
Bedroom or
Bathroom
F19
• Latchboltbygripeithersideunlessoutsidegriplockedbythumbturn
•Deadboltbythumbturngripinsideorbyemergencyreleasetool
outside.
• Insidegripsimultaneouslyretractslatchboltanddeadboltand
unlocks outside grip.
• NotavailablewithM19SorM19SN
ML2032 Institution or
Utility F30
•Latchboltbykeyeitherside.
•Bothgripsalwaysrigid.
•Auxiliarylatchdeadlockslatchbolt.
Note: This function does not allow free egress and can pose a life
safety hazard in event of an emergency. Installation should be in
accordance with approved codes only.
ML2042
Entrance
orPublic
Restroom
F09
• Latchboltbygripeitherside,unlessoutsidegripislockedbykey
from inside.
• Latchboltbykeyoutsidewhenoutsidegripislocked.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
ML2048
Entrance
or
Apartment
F08
F10
• Latchbolt*bykeyoutsideorbygripeitherside,unlessoutsidegrip
is locked by toggle-action stop.
• Deadboltbykeyoutsideorbythumbturngripinside.
• Insidegripfreewhendeadboltisretracted.
• Non-panicrelease.
• Nosimultaneousdeadboltandlatchretraction
Note: Indicator shows deadbolt position only
ML2050
Half
Dummy
Trim
—• Gripactsaspullonly;nooperation.
A01 A01
A01
A01
(Hotel Cylinder)
A01
HS VR
HS VR
VR
HS VR
HS VR
HS VR
HS VR
Indicates Indicator
option is available
Indicates Indicator
option is available
* When lever handles are furnished, both outside and inside are locked when deadbolt is projected.
Indicates function availability in ML2000HS.
Indicates function available in Vandal Resistant Trim.
Indicates function available in Anti-Harm Trim.
Indicates rigid grip.
HS
VR
A01 A01
A01 A02
A01
(Hotel Cylinder)
HS
HSS
HSS
HSS
HSS
HSS
R
Overview
ML2000
ML2000.7
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Outside Inside Series/Function Type ANSI No. Function Description
ML2051 Entrance
or Office F04
• Latchboltbykeywhenoutsidegriplockedbytoggleaction
stop.
• Latchboltbygripeitherside,unlessoutsidegripislockedby
toggle-action stop.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
ML2052 Classroom
Intruder F32
• Latchboltbygripeitherside,unlessoutsidegripislockedby
key either side.
• Latchboltbykeywhenoutsidegriplocked.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
• Outside grip remains locked unless unlocked by key either side.
Note: Not available with indicator, specify ML2002.
ML2053 Entrance
or Office —
• Latchboltbygripeitherside,unlessoutsidegripislockedor
unlocked by key or thumbturn.
• Unlockedbykeyorthumbturn.
• Outsidegriplockedorunlockedbykeyorthumbturn.
• Latchboltbykeywhenoutsidegriplocked.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
ML2054 Entrance
or Office F04
• Latchboltbygripeitherside,unlessoutsidegripislocked.
• Outsidegriplockedorunlockedbythumbturn.
• Latchboltbykeywhenoutsidegriplocked.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
ML2055 Classroom F05
• Latchboltbygripeitherside,unlessoutsidegripislockedby
key outside
• Latchboltbykeywhenoutsidegriplocked
• Auxiliarylatchdeadlockslatchbolt
• Insidegripalwaysfree
• Outsidegripremainslockedunlessunlockedbykey
Note: Not available with indicator, specify ML2003
ML2056 Classroom
Holdback F06
• Latchboltbygripeitherside,unlessoutsidegripislockedor
unlocked by key.
• Latchboltbykeyoutsidewhenoutsidegripislocked.
• Latchboltcanbeheldinaretractedpositionbykey,or
released by key.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
Note: Not approved for use on U.L. fire listed applications.
ML2057 Storeroom
or Closet F07
• Latchboltbygripinsideorbykeyoutside.
• Outsidegripalwaysrigid.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
ML2058 Entrance or Office
Holdback —
• Latchboltbygripeitherside,unlessoutsidegripislocked.
• Outsidegriplockedorunlockedbykeyorthumbturn.
• Latchboltretractedbykeyoutsidewhenoutsidegripis
locked.
• Latchboltcanbeheldinaretractedpositionbykeyor
thumbturn, or released by key or thumbturn.
• Auxiliarylatchdeadlockslatchbolt.
• Insidegripalwaysfree.
Note: Not approved for use on U.L. fire listed applications.
HS VR
HS VR
HS VR
A02
A01
A02
A02
Indicates rigid grip. Indicates function availability in ML2000HS.
Indicates function available in Vandal Resistant Trim.
Indicates function available in Anti-Harm Trim.
HS
VR
A01
A02 A02
A02
A01
Functions
ML2000
HSS
HSS
HSS
HSS
HSS
HSS
HSS
HSS
HSS
Overview
ML2000
ML2000.8
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Outside Inside Series/Function Type ANSI No. Function Description
ML2059
Security
Storeroom
or Closet —
• Latchboltanddeadboltbygripinsideorbykeyoutside
• Insidegripsimultaneouslyretractsdeadbolt&latchbolt
• Outsidegripalwaysrigid
• Auxiliarylatchdeadlockslatchbolt
• Insidegripalwaysfree
Note: Indicator shows deadbolt position only
ML2060 Privacy F22
• Latchboltbygripeitherside,exceptwhenoutsidegripis
locked by thumbturn inside.
• Operatinginsidegrip,closingdoororoperating
emergency key outside unlocks outside grip.
•Insidegripalwaysfree.
• NotavailablewithM19SorM19SN
ML2062 Intruder
Deadbolt F33
•Latchboltbygripeitherside,unlessoutsidegripislocked
by projection of deadbolt
• Deadboltthrownorretractedbykeyfromeitherside
•Insidegripsimultaneouslyretractslatchboltanddeadbolt
and unlocks outside grip
•Insidegripalwaysfree
ML2065
Dormitory or
Entrance F13
• Latchboltbygripeithersideunlessoutsidegriplockedby
projection of deadbolt.
• Deadboltthrownorretractedbykeyoutsideorbythumbturn
grip inside.
• Insidegripsimultaneouslyretractslatchboltanddeadbolt
and unlocks outside grip.
•Insidegripalwaysfree.
ML2067
Apartment
or
Dormitory
F20
• Latchboltbygripeitherside,unlessoutsidegripislocked
by toggle-action stop or by projection of deadbolt.
• Deadboltthrownorretractedbykeyoutsideorbythumbturn
grip inside.
• Insidegripsimultaneouslyretractslatchboltanddeadbolt;
outside grip remains locked.
• Auxiliarylatchdeadlockslatchbolt.
•Outsidegripunlockedbytoggle-actionstop
Note: Occupancy Indicator shows deadbolt position only
ML2068
Privacy
or
Apartment
• Latchboltbygripeitherside,unlessoutsidegripislocked
•Outsidegriplockedorunlockedbykeyorthumbturn
• Operatinginsidegrip,closingthedoororusingkey
unlocks outside grip
• Insidegripalwaysfree
• Auxiliarylatchdeadlockslatch
ML2069 Institutional
Privacy F26
• Latchboltbygripeitherside,exceptwhenoutsideislockedby
thumbturn inside.
• Operatinginsidegriporclosingdoorunlocksoutsidegrip.
• Keyoutsideretractslatchatalltimes,evenifthumbturnis
held in locked position.
• Auxiliarylatchdeadlockslatchbolt.
ML2070
Full
Dummy
Trim
—• Gripsactaspullsonly;nooperation.
A01
HS VR
HS VR
A01 A01
A01
A01
Indicates Occupancy Indicator
option is available
Indicates Indicator
option is available
Indicates function availability in ML2000HS.
Indicates function available in Vandal Resistant Trim.
Indicates function available in Anti-Harm Trim.
Indicates rigid grip.
HS
VR
A01
Functions
ML2000
HSS
HSS
HSS
HSS
R
R
A02
Overview
ML2000
ML2000.9
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Outside Inside Series/Function Type ANSI No. Function Description
ML2072 Classroom
Intruder —
•Latchboltbygripfromeithersideunlessoutsidegripislockedby
projection of deadbolt
•Deadboltthrownorretractedbykeyfromeitherside
•Insidegripsimultaneouslyretractslatchboltanddeadbolt;
outside grip remains locked
•Keyeithersideunlocksoutsidegrip;outsidegripremainslocked
unless unlocked by key
•Auxiliarylatchdeadlockslatchbolt
Note: Indicator shows deadbolt position only
ML2073 Classroom
Security —
•Latchboltbygripfromeithersideunlessoutsidegripislockedby
projection of deadbolt
•Deadboltthrownorretractedbykey
•Insidegripsimultaneouslyretractslatchboltanddeadbolt;
outside grip remains locked
•Keyunlocksoutsidegrip;outsidegripremainslockedunless
unlocked by key
•Auxiliarylatchdeadlockslatchbolt
Note: Indicator shows deadbolt position only
ML2075
Security
Entrance
or Office
—
•Latchboltbygripfromeithersideunlessoutsidegripislockedby
projection of deadbolt
•Deadboltthrownorretractedbyoutsidekeyorinside
thumbturn
•Insidegripsimultaneouslyretractslatchboltanddeadbolt;
outside grip remains locked
•Keyunlocksoutsidegrip;outsidegripremainslockedunless
unlocked by key
•Auxiliarylatchdeadlockslatchbolt
Note: Indicator shows deadbolt position only
ML2080
Half Active
Dummy
Trim
—• Non-latchingoperation
• Gripalwaysactive;actsaspushorpullonly
ML2082 Dormitory
or Exit F11
• Latchboltbygripeitherside,unlessoutsidegripislocked
by toggle-action stop or by projection of deadbolt
• Deadboltthrownbykeyfromeitherside
• Deadboltandlatchboltretractedbyoutsidekeywhen
outside grip locked
• Outsidegripunlockedbytoggle-actionstop
• Insidegripsimultaneouslyretractslatchboltanddeadbolt;
outside grip remains locked
Note: Indicator shows deadbolt position only
ML2090
Full Active
Dummy
Trim
—• Non-latchingoperation
• Bothgripsalwaysactive;actsaspushorpullsonly
ML2092
Security
Institution
or Utility
—
• Latchboltbykeyeitherside
• Deadboltthrownandretractedbykeyeitherside
• Auxiliarylatchdeadlockslatchbolt
• Insideandoutsidegripsremainlockedatalltimes
Note: Indicator shows deadbolt position only
Note: This function does not allow free egress and can pose a life
safety hazard in event of an emergency. Installation should be in
accordance with approved codes only.
Functions
ML2000
A01 A01
A01
A01 A01
A01 A01
Indicates rigid grip. Indicates Indicator option
is available
A01
R
HS VR
HS VR
HS VR
HS VR
HS VR
HSS
HSS
Indicates function availability in ML2000HS.
Indicates function available in Vandal Resistant Trim.
Indicates function available in Anti-Harm Trim.
HS
VR
HSS
Overview
ML2000
ML2000.10
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
ML20900 ECL Series
Electrified Mortise Lockset
Simplicity
Combine simplicity and access control
with the Corbin Russwin ML20900
ECL series electrically controlled
mortise lock. Utilizing the proven
ML2000 Series mortise lockset
with the patented quick reversible
latchbolt, the ML20900 series provides
remote locking and unlocking. The
electrified lock can be installed in a
standard mortise prep with slight
modification by door manufacturer.
The ML20900 ECL is ideal for use
where increased security is necessary
at all times, such as tenant space,
pharmacies, computer rooms, and
high security areas.
Security
In applications where increased
security is required, look no further
than the ML2000VR Vandal Resistant
Trim. This cast stainless steel trim
features tapered edges, double
through bolts, torx-pin tamper
resistant screws and the lever remains
attached to the escutcheon when
the spindle is broken.
Aesthetics
Access control doesn’t mean a loss of
visual appeal. The Vineyard™
Collection and the Muséo® Collection
feature beautifully designed levers,
perfect for high-profile applications
where pleasing aesthetics is a must.
Additional Features
•Mechanicalkeyoverride
•PatentedQuickReversiblelatchbolt,
Patent#6,349,982

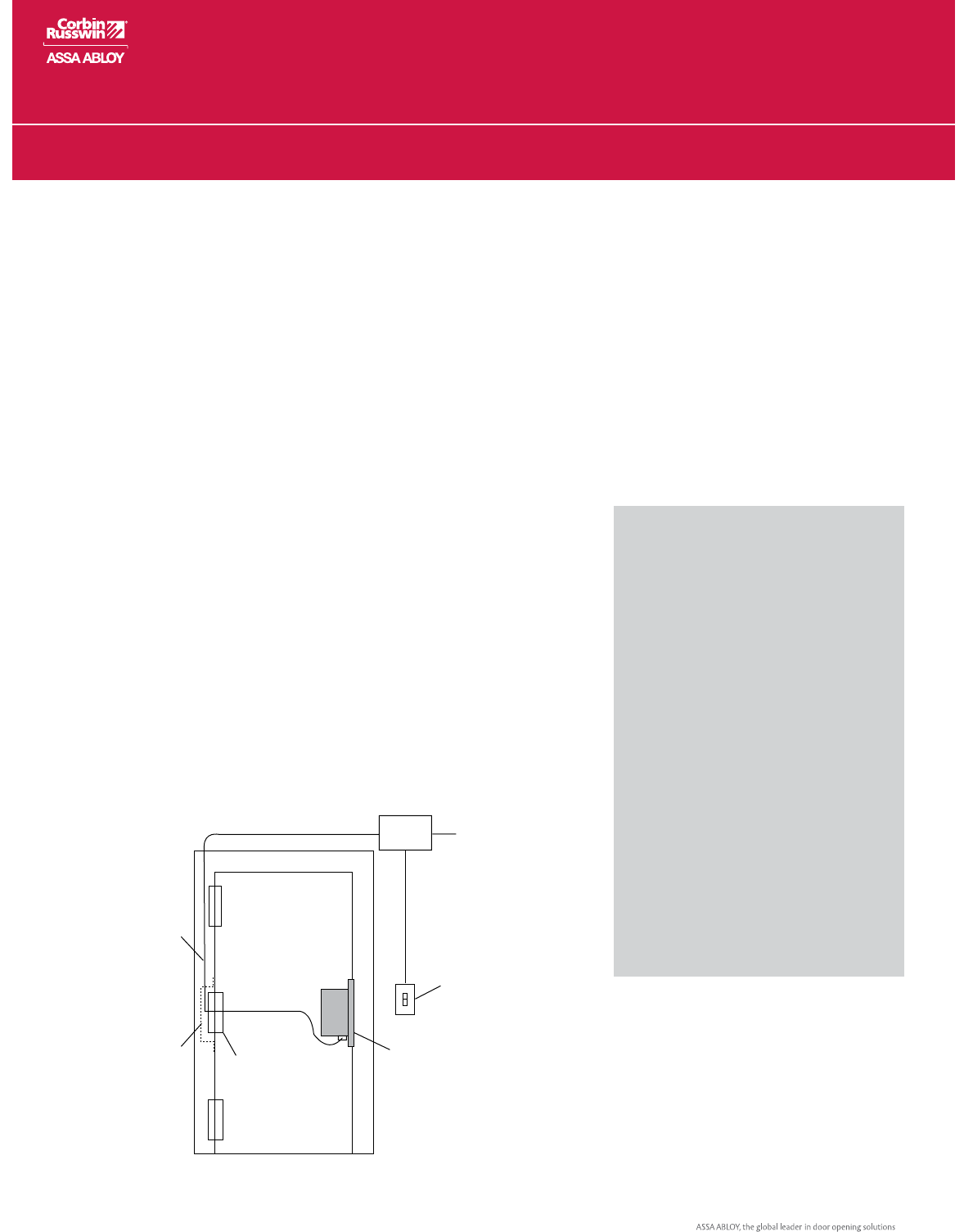

BPS
Supply
Series
Power
Supply Power Input
Door Control
PB Push Buttons
ML20900 ECL
Electric Thru
Wire Hinge
EPT
EPTL
Power Transfers
Wires in Conduit
(If Frames Are Filled)
Mortar Guard
(If Frames Are Filled)
Door Cable
Typical Application
Applications
ML20900 ECL
Featuring EcoFlex™ Technology*:
•Reducesenergyconsumptionupto
96%, as certified by GreenCircle
– Lower operating costs
– Assists with load reduction in
optimizing energy performance
credit in LEED
– Reduces number of power
supplies required
•Fieldcongurabletofail-safeorfail-
secure
•Operatesfrom12-24VDC,offering
greater flexibility in system design
•Innovativeactuatordesignprovides
superior reliability
– Higher performance and reduced
maintenance
– Ability to have longer cable runs
without negatively impacting lock
function
– Reduces risk of voltage drops and
eliminates inductive kickback
– Lower total cost of ownership
* Patent Pending
Overview
ML2000
ML2000.11
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

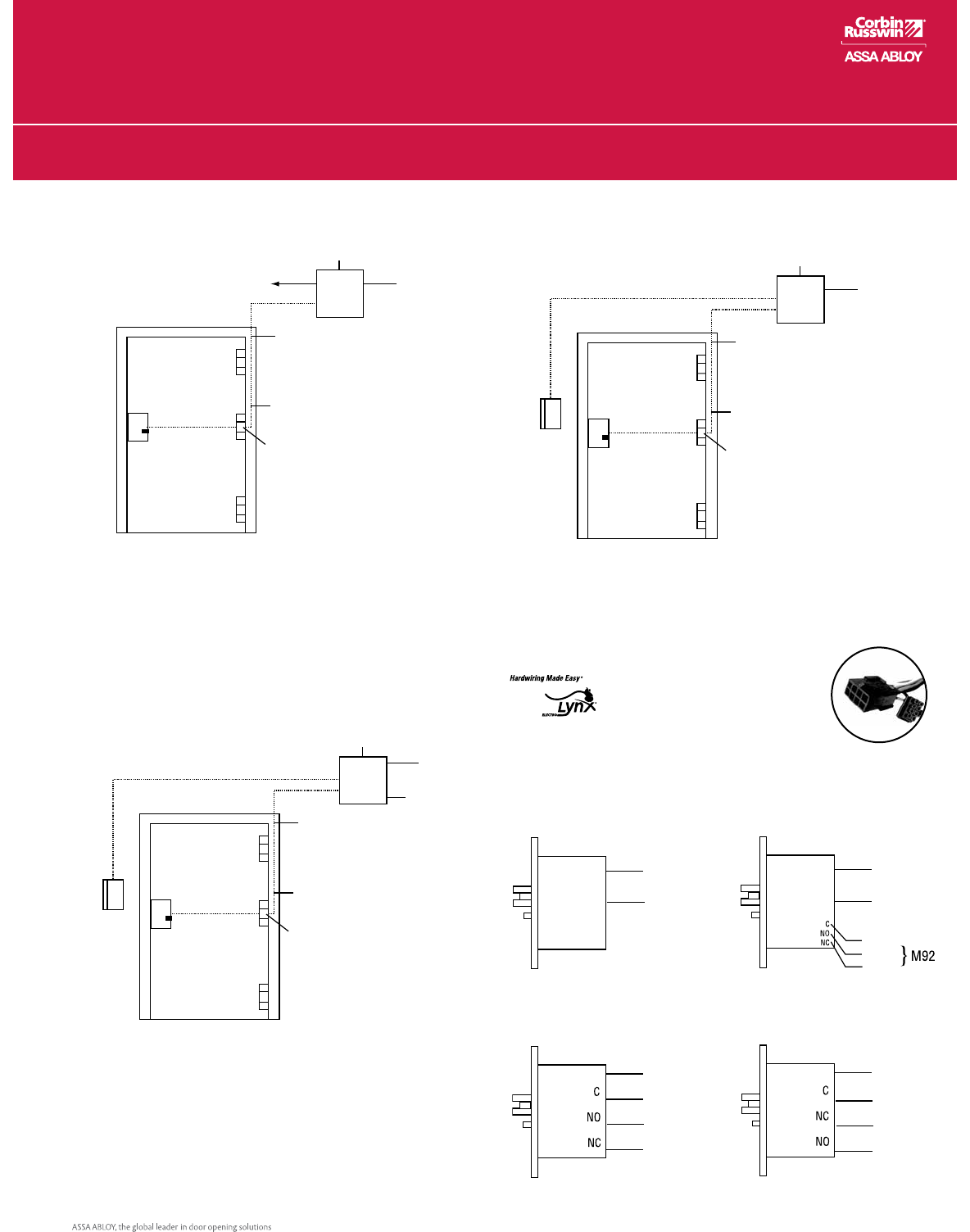

Typical System Components (For Reference Only)
ML20900 ECL
ML20906
Electric
Mortise Lock
Wire Transfer
Hinge
EPT
EPTL
BPS
115VAC
Input
2 x 18AWG
To Fire Alarm Power
Supply
Wires in
Conduit
(If Frames
Are Filled)
Operation:
Free egress at all times. Door is locked at all times preventing
entry from the stairwell to a floor. Fire alarm activation will allow
re-entryfromthestairwelltothefloor.Powerfailurewillallow
re-entry from the stairwell to the floor.
ML20906
Electric
Mortise Lock
Wire Transfer
Hinge
EPT
EPTL
BPS
115VAC
Input
2 x 18AWG
Power
Supply
Wires in
Conduit
(If Frames
Are Filled)
Access
Control
Reader
HID
Prox
Operation:
Free egress at all times. Door is locked at all times preventing
unauthorized entry. Authorized entry is permitted by presenting a
valid user card.
Tower Stairwell Access Control on Employee Entrance
ML20906 x
M91 x M92
Electric
Mortise Lock
Wire Transfer
Hinge
EPT
EPTL
BPS
115VAC
Input
2 x 18AWG
6 x 22AWG
Power
Supply
Wires in
Conduit
(If Frames
Are Filled)
Access
Control
Reader
HID
Prox
Alarm Horn
Operation:
Free egress at all times. User exits through the door which
triggers the M92 switch which shunts the alarm. Door is locked
at all times preventing unauthorized entry. Authorized entry is
permitted by presenting a valid user card. Forced entry will trigger
M91 switch and activate alarm. Alarm is deactivated by a valid
user card.
Controlled Entry With Alarm
Red +
Black -
AC/DC
Red +
Black -
Blue
Brown
Yellow
Red +
Black -
Blue
Brown
Yellow
Red +
Black -
AC/DC
White
Green
Orange
Power Leads Power Leads x M92
(Request to Exit)
Power Leads x M91
(Latchbolt Monitor)
Power Leads x M105
(Security Monitor)
Consult factory for electrical system layouts, riser and wiring diagrams.

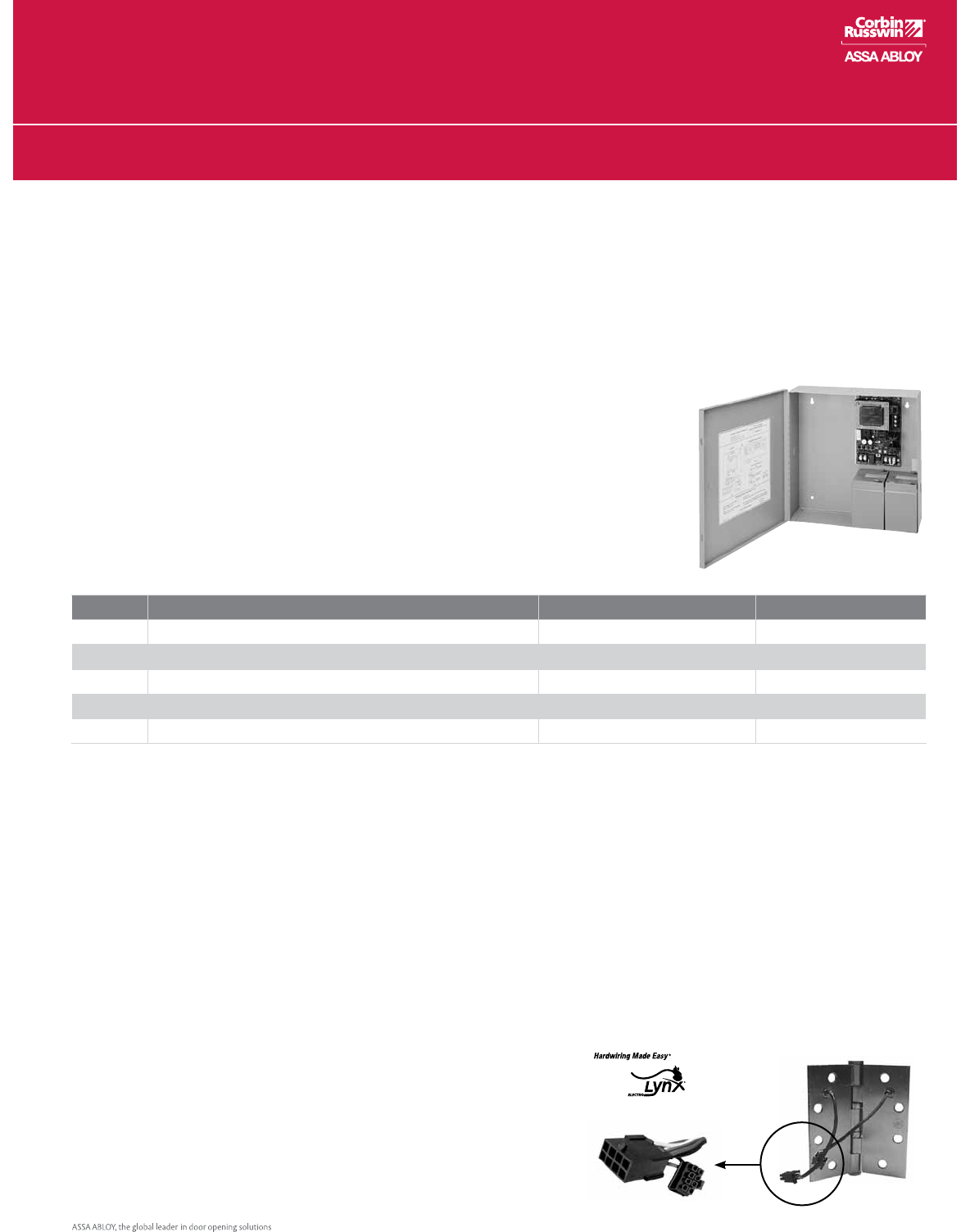

ElectroLynx®, a system of universal
Molex® plug-in connectors and
standardized color-coded wiring,
makes installing electrified doorway
components a snap!
Red +
Black -
AC/DC
Red +
Black -
Blue
Brown
Yellow
Red +
Black -
Blue
Brown
Yellow
Red +
Black -
AC/DC
White
Green
Orange
Lock Schematics
Overview
ML2000
ML2000.12
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Features
Handing
Handed; quick reversible. The lockset can
be re-handed without disassembling the
lockcase.
Door Thickness
1-3/4" (44mm) standard. Optional door
thicknesses available; see Quick Codes,
page 70.
Backset
2-3/4" (70mm).
Lockcase
Heavy-gauge steel, 5-7/8" (149mm) x 4"
(102mm) x 15/16" (24mm).
Front
Heavy gauge steel, 8" (203mm) x 1-1/4"
(32mm) x 3/32" (2mm).
Accommodates flat doors and doors
beveled 1/8" (3mm) in 2" (51mm).
Armored Front
Wrought brass, bronze or stainless steel
attached by machine screws to lockcase
front.
Latchbolt
2-piece mechanical anti-friction insert,
5/8" (16mm) x l" (25mm) x 3/4" (19mm)
throw.
Auxiliary Latchbolt
9/16" (14mm) effective throw and
3/8" (10mm) effective auxiliary latch
deadlocking.
Hub
• Knob:stainlesssteel,9
/
32" (7mm) x
9
/
32" (7mm).
• Lever:steel,5/16"(8mm).(Including)
• 3
/
8" (10mm) stainless steel.
Spacing
C. to c. knob/lever to cylinder: 3-5/8"
(92mm)
C. to c. knob/lever to thumbturn: 2-7/16"
(62mm).
Strike
Wrought brass, bronze or stainless steel
ANSI straight lip standard, 4-7/8" (124mm)
x 1-1/4" (32mm) x 1-1/8'' (29mm) lip to
center. Optional strikes, lip lengths and
ANSI wrought strike box available; see
Quick Codes, page 70.
Trim
Available with all ML2000 Series trim
designs including the Vineyard™
Collection and the Muséo® Collection. See
pages 40-57.
Cylinder
Brass, 6-pin, L4 keyway, 0-bitted standard.
Optional cylinders available; see Quick
Codes, page 69.
Keys
Two nickel silver standard.
Warranty
Ten-year limited warranty on ML2000
mortise lockset. Two-year limited warranty
on electronic components.
Electrical Specifications
(Fail Safe/Fail Secure)
12/24VDC @ 15mA Continuous
12/24VDCPeakcurrentdraw=.5A
(Maximumof2locksper1APower
Supply)
Monitor Switch Rating: 2 amp @ 24VDC
Note: Operating voltage not to exceed
+/- 10%.
See Quick Codes, page 71.
Monitor Options
M91 - Latchbolt Monitor
LatchboltmonitoringisaSPDTswitch
which monitors the full extension of the
main latch.
M92 - Request to Exit Monitor
RequesttoExitmonitoringisaSPDT
switch which monitors the activation of
the trim. (Both levers activate switch)
M105 - Security Monitor
Security Monitor is two switches in series
that monitors lock status (locked or
unlocked) and Auxiliary Latch position.
Note: Monitoring options may only be
ordered together as follows: M91xM92,
M92xM105.
Certification/Compliance
ANSI/BHMA
Certified A156.13 Series 1000,
operational and security Grade 1.
Meets A117.1 Accessibility Code.
Federal
Meets FF-H-106C.
UL/cUL
All locks listed for A label and lesser class
doors, 4' x 10' single or 8' x 10' pair.
Letter F and UL symbol on armored front
indicate listing. Meets requirements of
UL1034.
Any retrofit or other field modification to
a fire rated opening can potentially impact
the fire rating of the opening, and Corbin
Russwin, Inc. makes no representations or
warranties concerning what such impact
may be in any specific situation. When
retrofitting any portion of an existing fire-
rated opening, or specifying and installing
a new fire-rated opening, please consult
with a code specialist or local code official
(Authority Having Jurisdiction) to ensure
compliance with all applicable codes and
ratings.
California State Reference Code
(Formerly Title 19, California State Fire Marshal
Standard)
All levers with returns comply; levers return
to within 1/2" of door face.

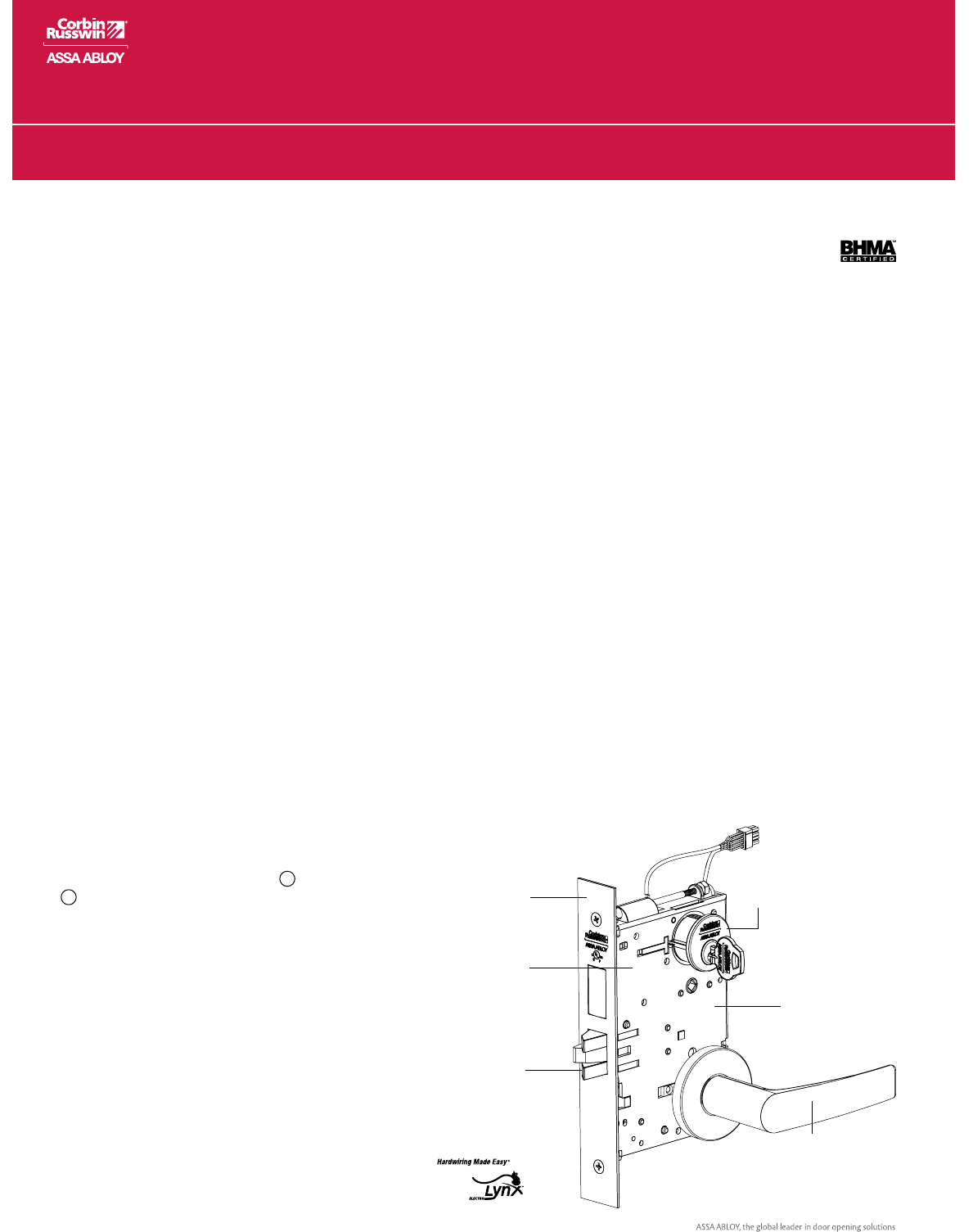

One-piece, corrosion-
resistant, heavy-gauge
steel front
Auxiliary
latch
Completely self-contained
actuator; lock fits in standard
mortise door prep
6-pin solid brass cylinder;
Corbin Russwin and competitive
cylinder compatibility available
Available to match Corbin
Russwin trim designs
Heavy-gauge
internal parts
HS
VR
Features
ML20900 ECL
Overview
ML2000
ML2000.13
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

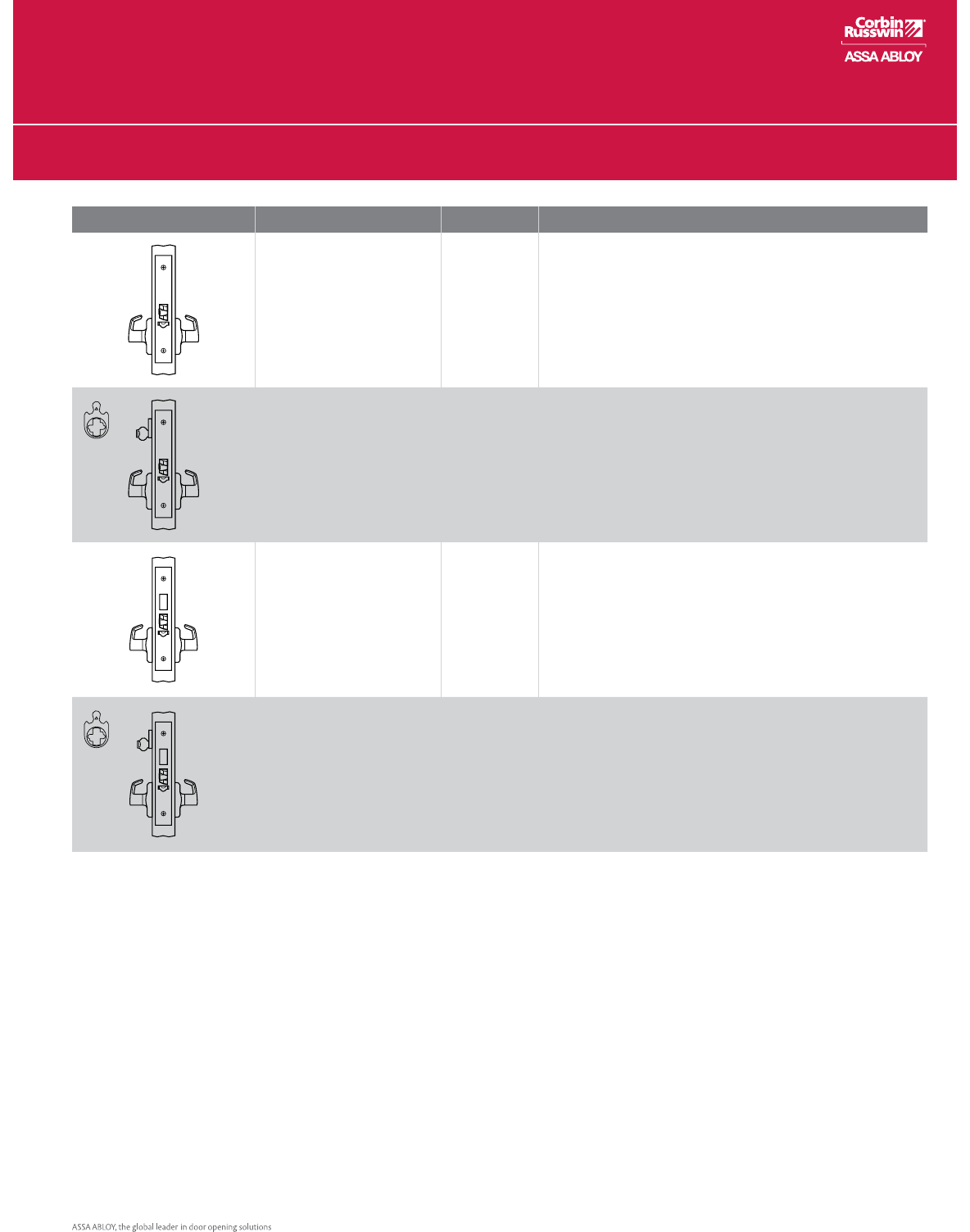

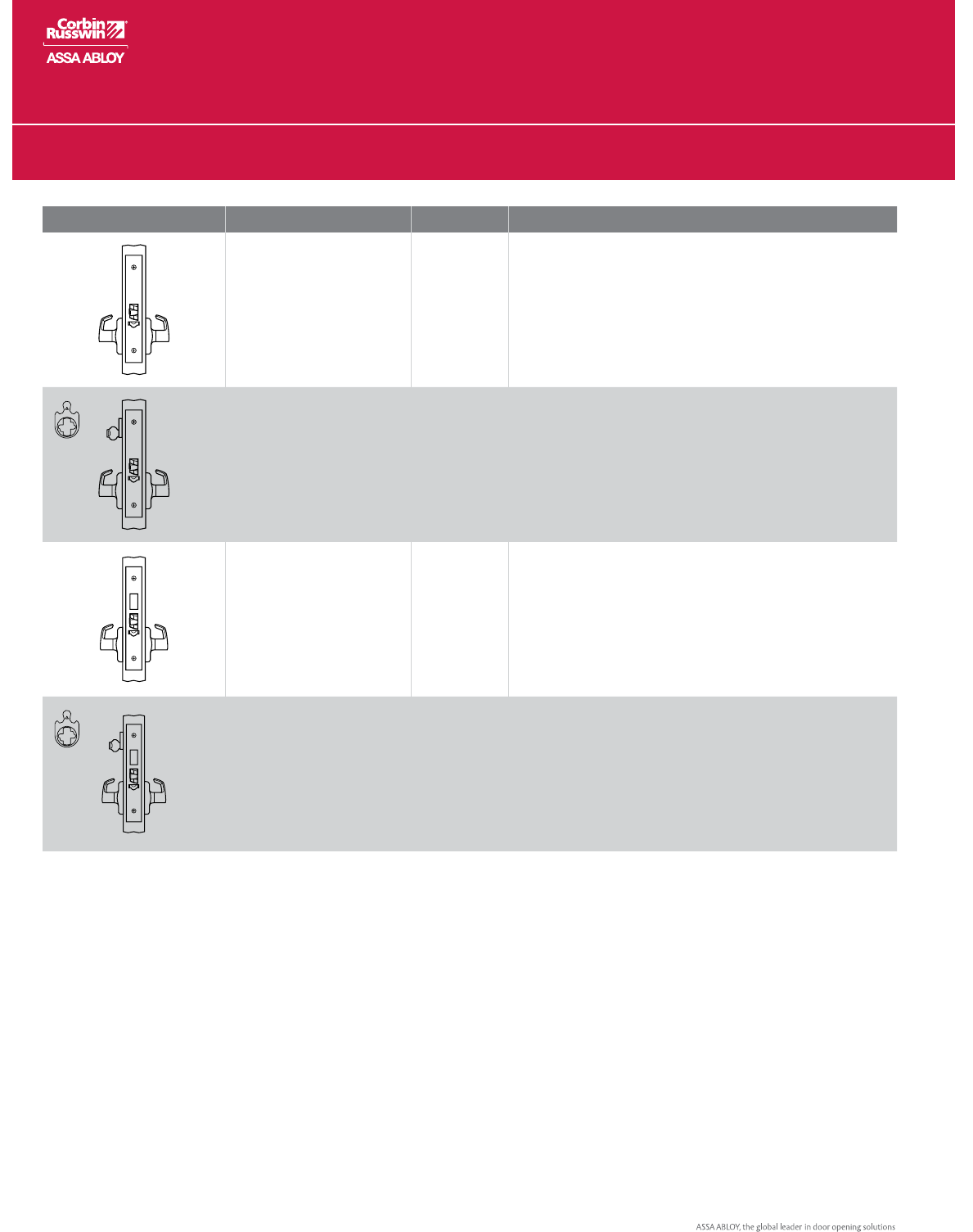

Functions
ML20900 ECL
Outside Inside Series/Function Description
ML20907 x SEC
• Latchboltbygripeithersideonlywhenlockisenergized.
• Outsidegriplockedwhenlockisnotenergized.
• Insidegripalwaysfree.
• Auxiliarylatchdeadlockslatchbolt.
ML20915 x SEC
• Latchboltbygripeithersideonlywhenlockisenergized.
• Bothgripslockedwhenlockisnotenergized.
• Auxiliarylatchdeadlockslatchbolt.
ML20914 x SEC
• Latchboltbygripeithersideonlywhenlockisenergized.
• Bothgripslockedwhenlockisnotenergized.
• Latchboltbykeyoutsidewhenlockisnotenergized.
• Auxiliarylatchdeadlockslatchbolt.
ML20932 x SEC
• Latchboltbygripeithersideonlywhenlockisenergized.
• Bothgripslockedwhenlockisnotenergized.
• Latchboltbykeyinsideoroutsidewhenlockisnotenergized.
• Auxiliarylatchdeadlockslatchbolt
ML20906 x SEC
• Latchboltbygripeithersideonlywhenlockisenergized.
• Outsidegriplockedwhenlockisnotenergized.
• Latchboltbykeyoutsidewhenlockisnotenergized.
• Insidegripalwaysfree.
• Auxiliarylatchdeadlockslatchbolt.
Outside Inside Series/Function Description
ML20907 x SAF
• Latchboltbygripeitherside,unlessoutsidegripislockedbyenergizinglock.
• Insidegripalwaysfree.
• Auxiliarylatchdeadlockslatchbolt.
ML20915 x SAF • Latchboltbygripeitherside,unlessbothgripsarelockedbyenergizinglock.
• Auxiliarylatchdeadlockslatchbolt.
ML20914 x SAF
• Latchboltbygripeitherside,unlessbothgripsarelockedbyenergizinglock.
• Latchboltbykeyoutsidewhenlockisenergized.
• Auxiliarylatchdeadlockslatchbolt.
ML20932 x SAF
• Latchboltbygripeitherside,unlessbothgripsarelockedbyenergizinglock.
• Latchboltbykeyinsideoroutsidewhenlockisenergized.
• Auxiliarylatchdeadlockslatchbolt.
ML20906 x SAF
• Latchboltbygripeitherside,unlessoutsidegripislockedbyenergizinglock.
• Latchboltbykeyoutsidewhenlockisenergized.
• Insidegripalwaysfree.
• Auxiliarylatchdeadlockslatchbolt.
Fail Safe
The following functions are unlocked when power is off and locked when the power is on.
Fail Secure
The following functions are locked when power is off and unlocked when the power is on.
VR
A01
A01
A01
A01
A01
A01
A01
A01
HS
VR HS
VR HS
VR HS
VR HS
VR HS
VR HS
VR HS
VR HS
VR HS
Indicates function availability in ML2000HS.
Indicates function available in Vandal Resistant Trim.
HS
VR
Applications
ML20600 NAC
ML2000.14
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
ML20600 NAC Series Electrified Mortise Lock
with High Security Monitoring
The high security monitoring options of our industry-leading Integrated Wiegand
locks are now available in a mortise lock with ElectroLynx® connectors that can be
used as a stand-alone electrified lock or in conjunction with a wall reader. Every
NAC lock is shipped with door position and request to exit monitoring installed.
NAClocksorderedwithdeadboltaresuppliedwithdeadboltmonitoring.(PHR
options will replace deadbolt monitoring with deadbolt privacy)
High Security Monitoring Options
• InternalEnd-of-LineMonitoring
Integrated directly into the mortise lock, internal end-of-line resistors monitor
the line from the access control panel to the lock. Typically, resistors are
installed at the panel or above the door, creating vulnerability between the
resistors and the locks. Incorporating resistors within the lock eliminates any
risk of undetected tampering or damage, while also reducing installation costs,
simplifying specifications, and offering the assurance of a factory installed and
tested product.
Select a compatible resistor configuration and add the appropriate quick code
to the beginning of your order string:
– R01:MercuryandLenelcompatible1KΩ/2KΩ resistance supervision
– R03:SoftwareHousecompatible1KΩ/2KΩ resistance supervision
– R04: AMAG compatible 4-state supervision
• DeadboltPrivacyFunction(PHR)
– Engaging the deadbolt disables remote access control unlocking (keypad or
card reader) or scheduled unlock.
– Ideal for personal privacy areas, such as nursing rooms, on-call doctors’
rooms, restrooms, and shower areas
– Toorder,addthePHRtotheoptionsofyourorderstring(availablewith
deadbolt functions only)
Featuring EcoFlex™ Technology*:
•Reducesenergyconsumptionupto
96% as certified by GreenCircle
– Lower operating costs
– Assists with load reduction in
optimizing energy performance
credit in LEED
– Reduces number of power
supplies required
•Fieldcongurabletofail-safeorfail-
secure
•Operatesfrom12-24VDC,offering
greater flexibility in system design
•Innovativeactuatordesignprovides
superior reliability
– Higher performance and reduced
maintenance
– Ability to have longer cable runs
without negatively impacting lock
function
– Reduces risk of voltage drops and
eliminates inductive kickback
– Lower total cost of ownership
Functions
ML20600 NAC
ML2000.15
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Outside Inside Series/Function Type Function Description
ML20607 x NAC x SAF
Fail Safe
NoKeyOverrideNoDeadbolt
Entry
•FailSafe-Poweroffunlocksoutsidetrim
•Deadlockinglatch
•Latchretractedbyinsideleveratalltimes
•Outsideleverrigidexceptwhenlockisnotenergized
•Requesttoexitandsecuredoorpositionmonitorarestandard
ML20606 x NAC x SAF
Fail Safe
WithKeyOverrideNo
Deadbolt
Entry
•FailSafe-Poweroffunlocksoutsidetrim
•Deadlockinglatch
•Latchretractedbyinsideleveratalltimes
•Outsideleverrigidexceptwhenlockisnotenergized
•Keyoutsideretractslatch
•Requesttoexitandsecuredoorpositionmonitorarestandard
ML20609 x NAC x SAF
Fail Safe
NoKeyOverrideWith
Deadbolt
Entry
With Deadbolt
•FailSafe-Poweroffunlocksoutsidetrim
•Deadlockinglatch
•Latchanddeadboltretractedbyinsideleveratalltimes
•Outsideleverrigidexceptwhenlockisnotenergized
•Turnpieceinsideextendsandretractsdeadbolt
•Requesttoexitandsecuredoorpositionmonitorarestandard
ML20608 x NAC x SAF
Fail Safe
WithKeyOverrideWith
Deadbolt
Entry
With Deadbolt
•FailSafe-Poweroffunlocksoutsidetrim
•Deadlockinglatch
•Latchanddeadboltretractedbyinsideleveranddeadboltatalltimes
•Outsideleverrigidexceptwhenlockisnotenergized
•Keyoutsideprojectsorretractsdeadboltandretractslatch
•Turnpieceinsideextendsandretractsdeadbolt
•Requesttoexitandsecuredoorpositionmonitorarestandard
A01
A01
Functions
ML20600 NAC
ML2000.16
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Outside Inside Series/Function Type Function Description
ML20607 x NAC x SEC
Fail Secure
NoKeyOverrideNoDeadbolt
Entry
•FailSecure-Poweroff,trimoutsideislocked
•Deadlockinglatch
•Latchretractedbyinsideleveratalltimes
•Outsideleverrigidexceptwhenlockisenergized
•Requesttoexitandsecuredoorpositionmonitorarestandard
ML20606 x NAC x SEC
Fail Secure
WithKeyOverrideNo
Deadbolt
Entry
•FailSecure-Poweroff,trimoutsideislocked
•Deadlockinglatch
•Latchretractedbyinsideleveratalltimes
•Outsideleverrigidexceptwhenlockisenergized
•Keyoutsideretractslatch
•Requesttoexitandsecuredoorpositionmonitorarestandard
ML20609 x NAC x SEC
Fail Secure
NoKeyOverrideWith
Deadbolt
Entry
With Deadbolt
•FailSecure-Poweroff,trimoutsideislocked
•Deadlockinglatch
•Latchanddeadboltretractedbyinsideleveratalltimes
•Outsideleverrigidexceptwhenlockisenergized
•Turnpieceinsideextendsandretractsdeadbolt
•Requesttoexitandsecuredoorpositionmonitorarestandard
ML20608 x NAC x SEC
Fail Secure
WithKeyOverrideWith
Deadbolt
Entry
With Deadbolt
•FailSecure-Poweroff,trimoutsideislocked
•Deadlockinglatch
•Latchanddeadboltretractedbyinsideleveranddeadboltatalltimes
•Outsideleverrigidexceptwhenlockisenergized
•Keyoutsideprojectsorretractsdeadboltandretractslatch
•Turnpieceinsideextendsandretractsdeadbolt
•Requesttoexitandsecuredoorpositionmonitorarestandard
A01
A01
How to Order
ML20600 NAC
ML2000.17
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Stock Order
Quantity Series/Function Technology Code Trim Finish Hand Fail-Safe/
Fail-Secure
High Security
Monitoring
Options
24 ML20608 NAC 111X 626 RHR SEC PHRR01
Ordering Examples
•ML2000 Mortise Lock x NAC x No Cylinder x Deadbolt x Fail-Secure
•Muséo® lever 111 with X rose
•Satin chrome finish
•Right hand reverse
•Deadboltprivacyfunction,MercuryandLenelcompatible1KΩ/2KΩ resistance supervision
Stock Order
Quantity Series/Function Technology Code Trim Finish Hand Fail-Safe/
Fail-Secure
High Security
Monitoring
Options
24 ML20607 NAC 111X 626 RHR SEC R03
•ML2000 Mortise Lock x NAC x No Cylinder x No Deadbolt x Fail-Secure
•Muséo® lever 111 with X rose
•Satin chrome finish
•Right hand reverse
•SoftwareHousecompatible1KΩ/2KΩ resistance supervision
Overview
ML2000
ML2000.18
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15

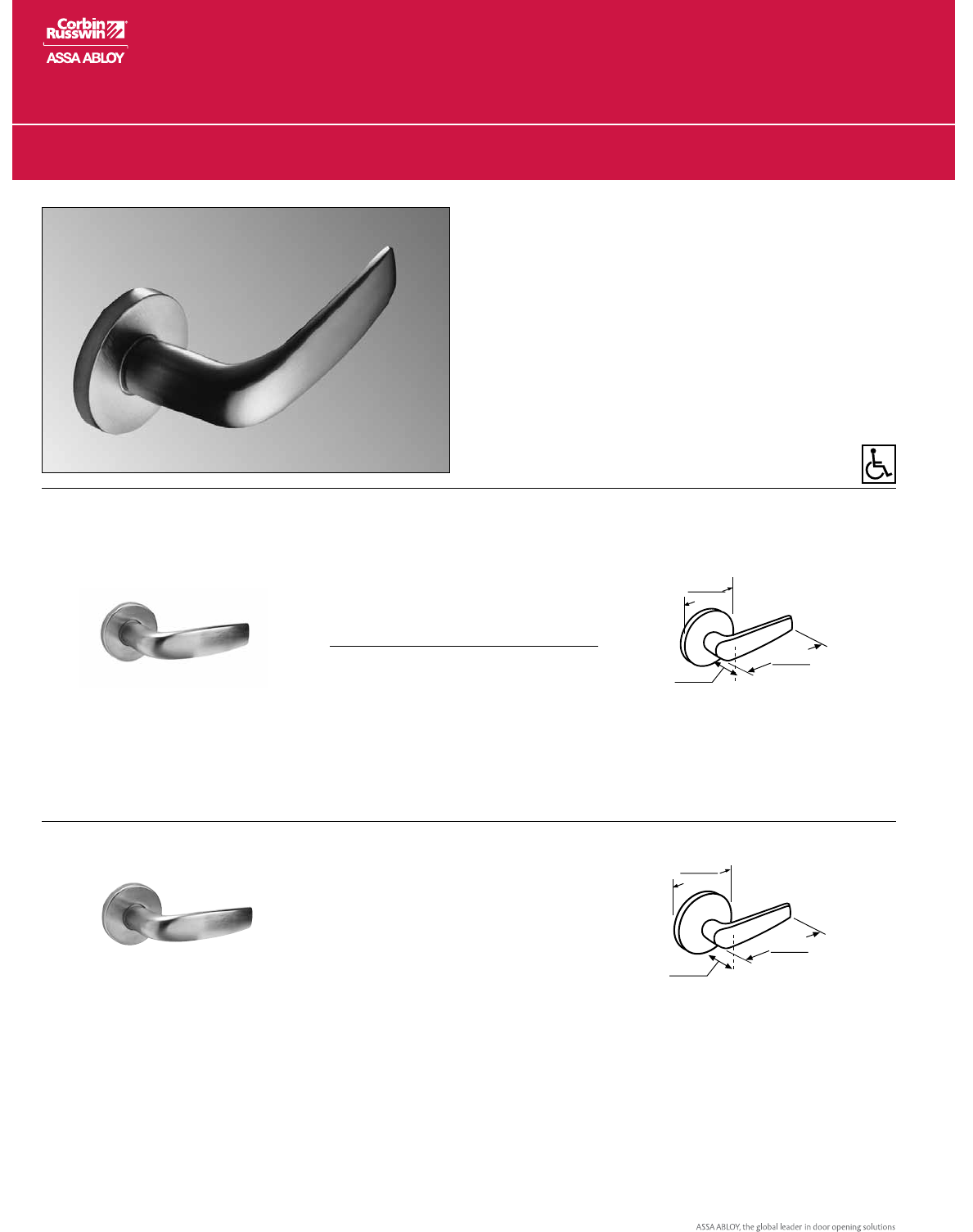

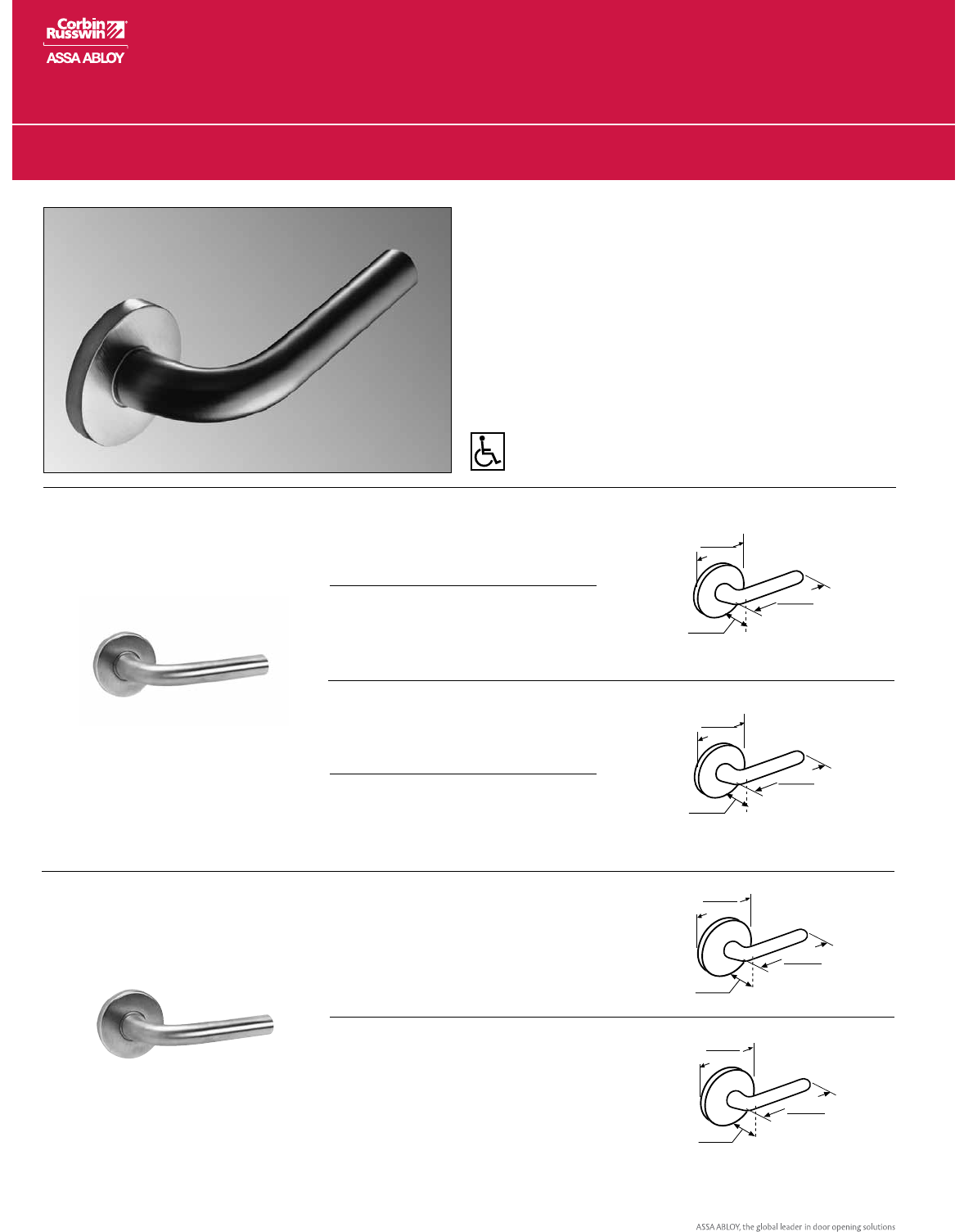

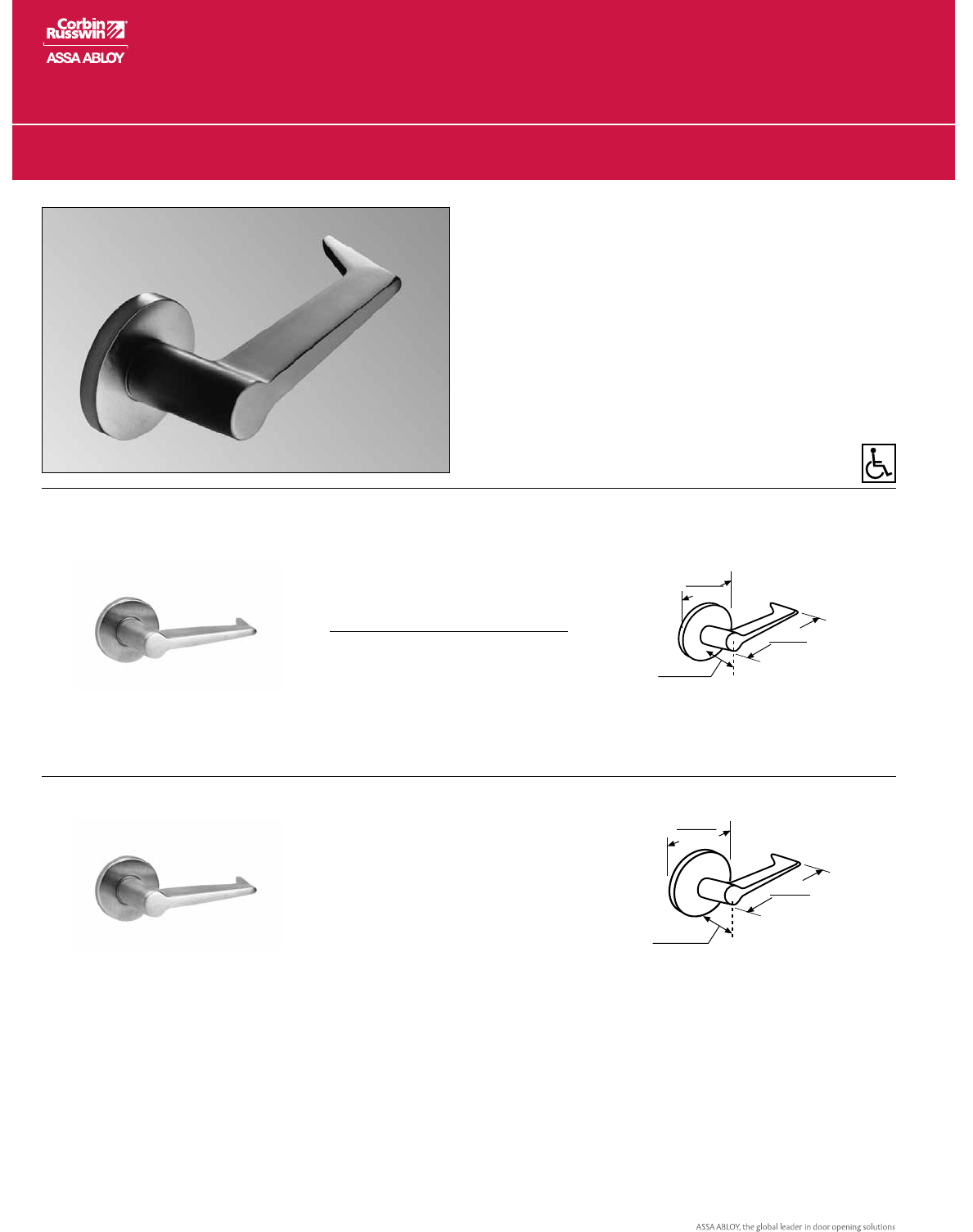

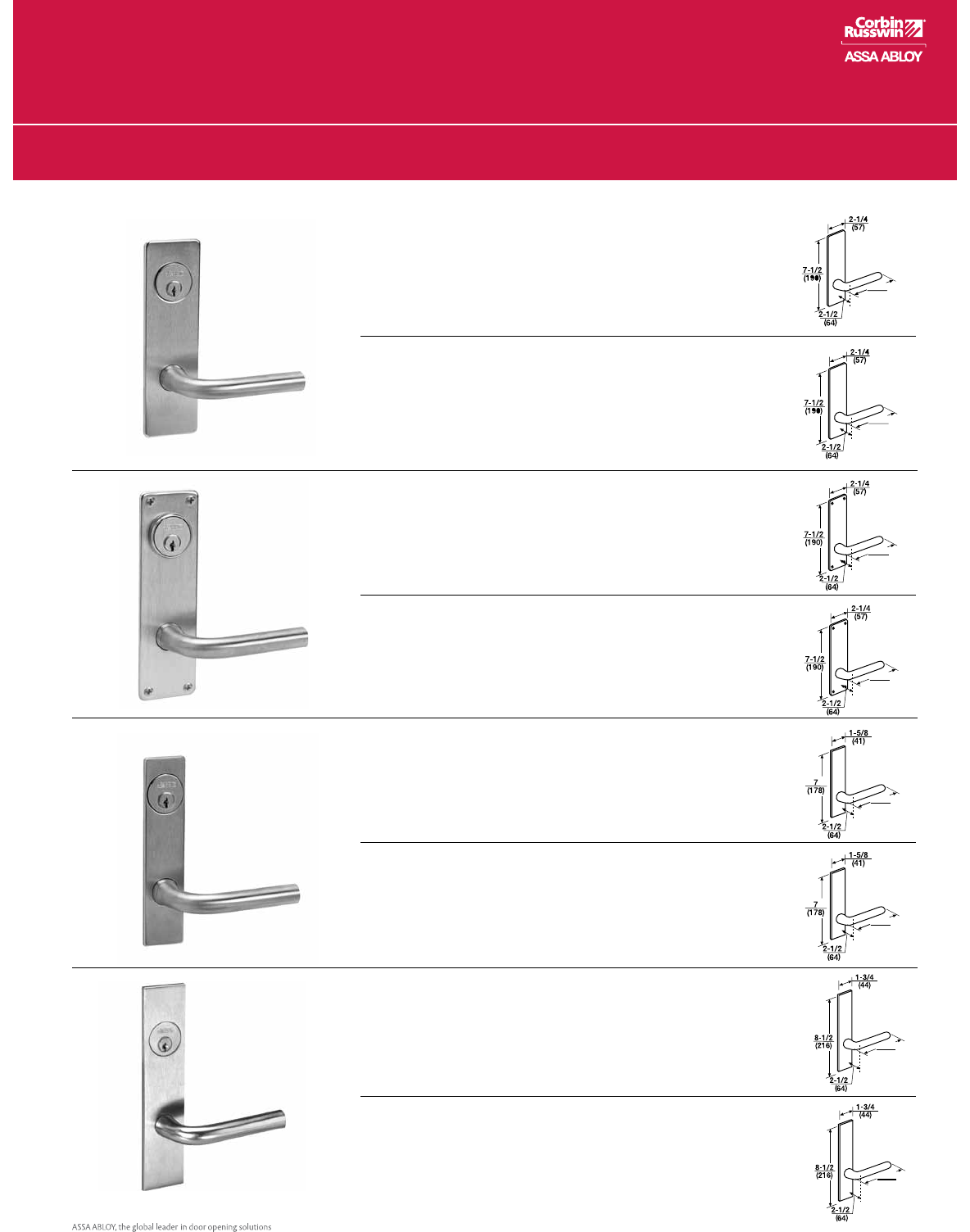

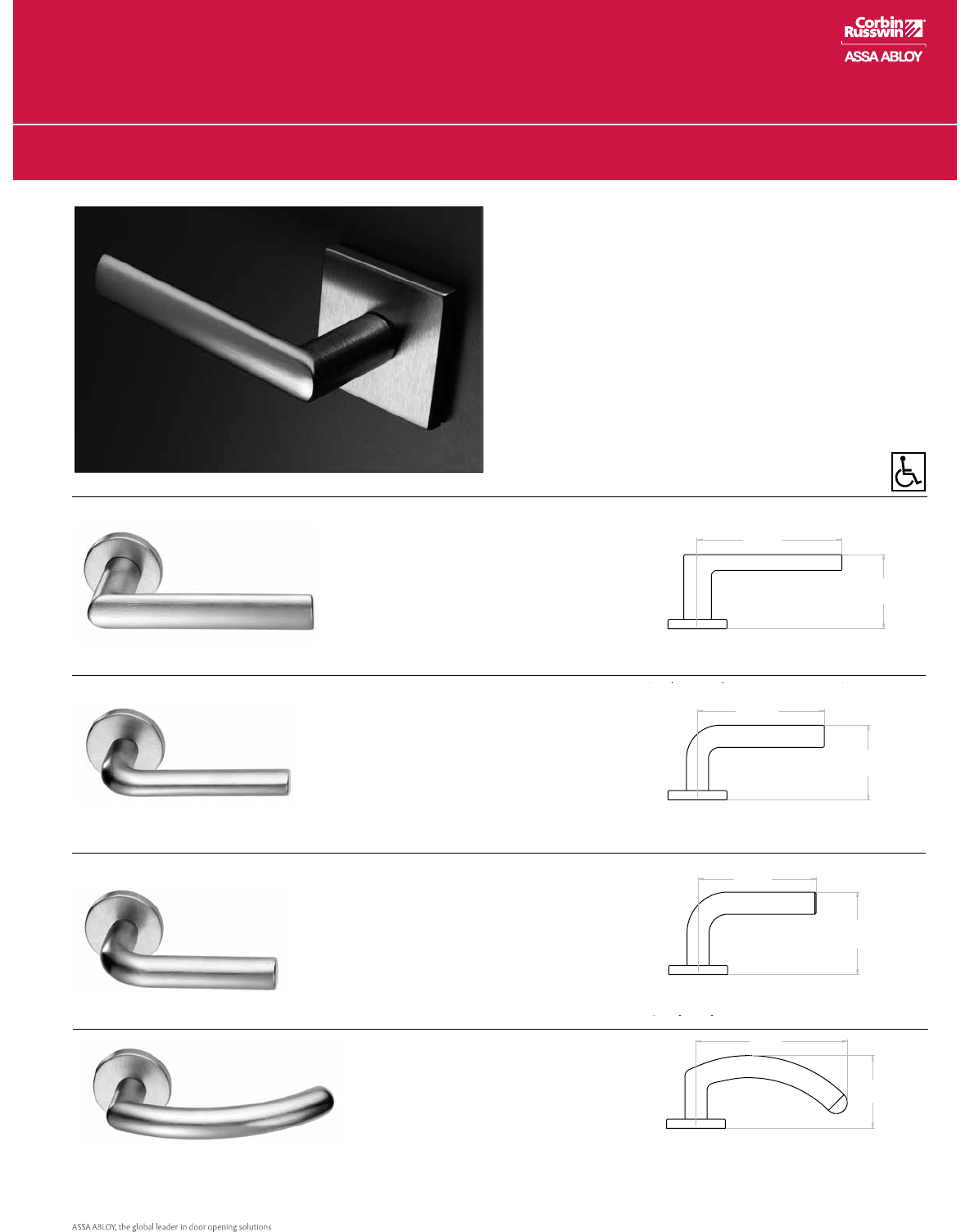

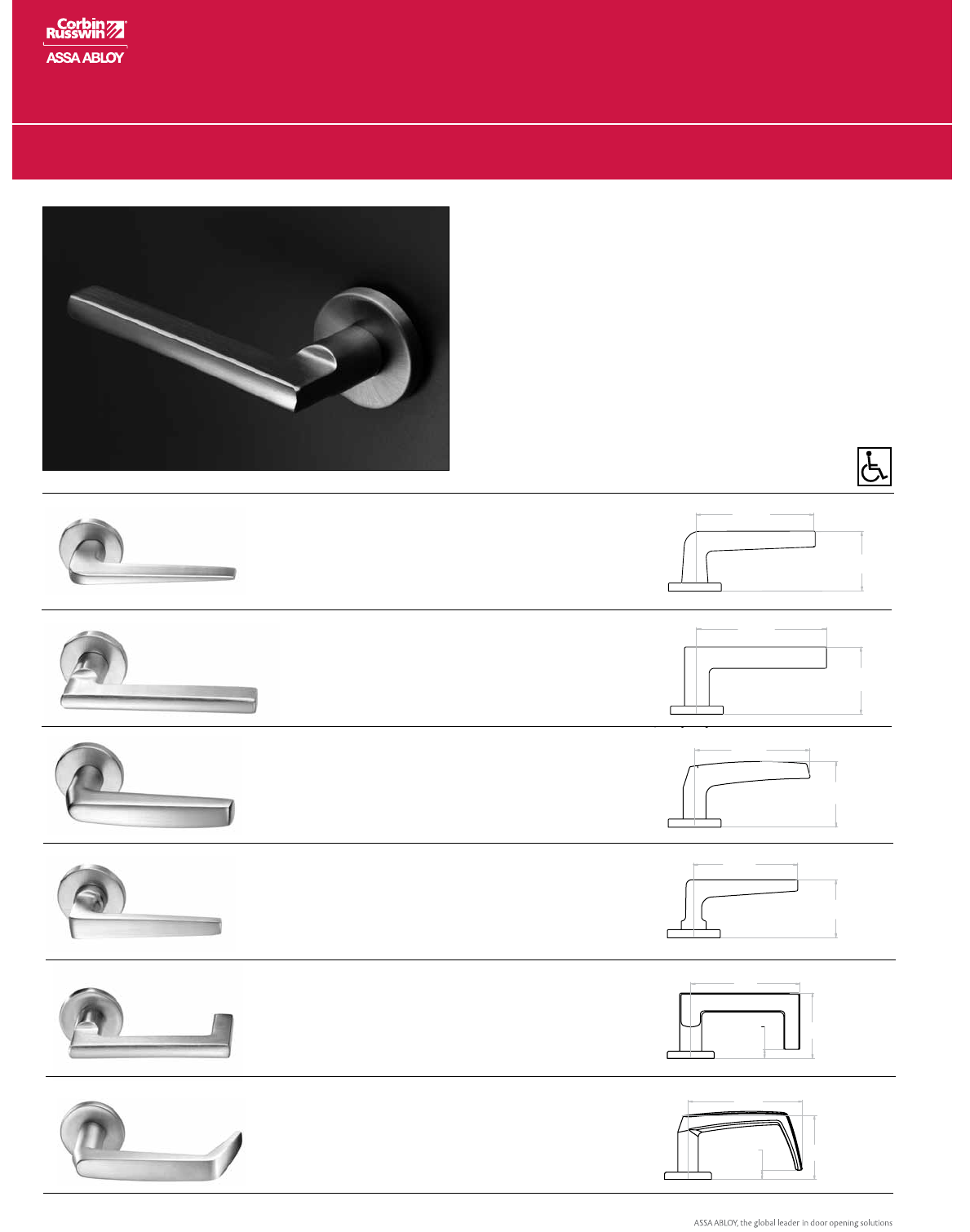

Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.
LWA
Lever: Wrought
Rose: Wrought
LWB
Lever: Wrought
Rose: Cast
LSA
Lever: Cast
Rose: Wrought
Lustra
Complies with codes requiring lever to return to
within 1
/
2" (13mm) of door face. Brass, bronze or
stainless steel.
LSB
Lever: Cast
Rose: Cast
LWF
Lever: Wrought
Rose: Cast
LSF
Lever: Cast
Rose: Cast
LWA
2-1/4
(57)
5-1/8
(130)
2-1/2*
(64)
LWF
2-7/8
(73)
5-1/8
(130)
2-1/2*
(64)
Dimensions:
inches
millimeters
Overview
ML2000
ML2000.19
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
*

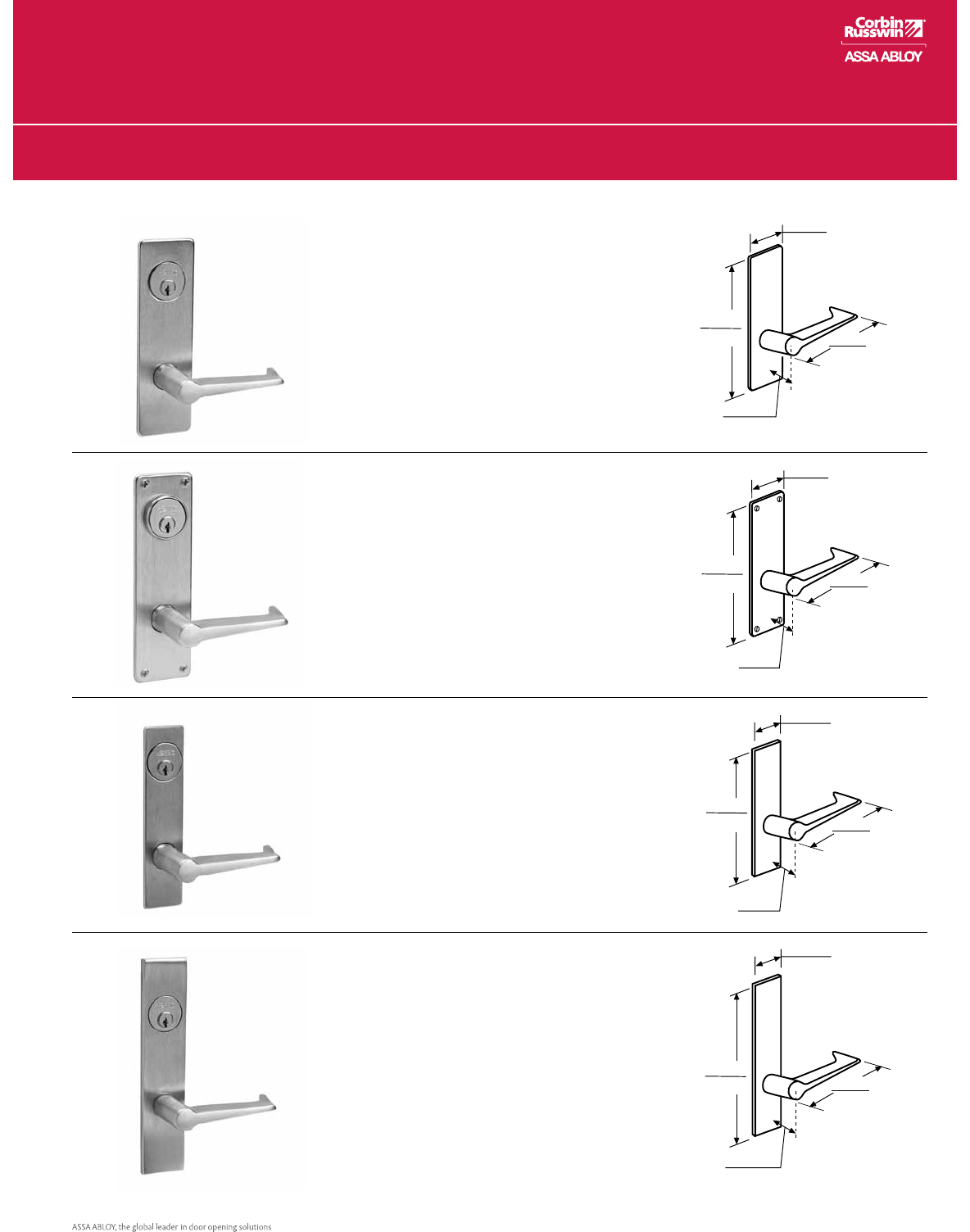

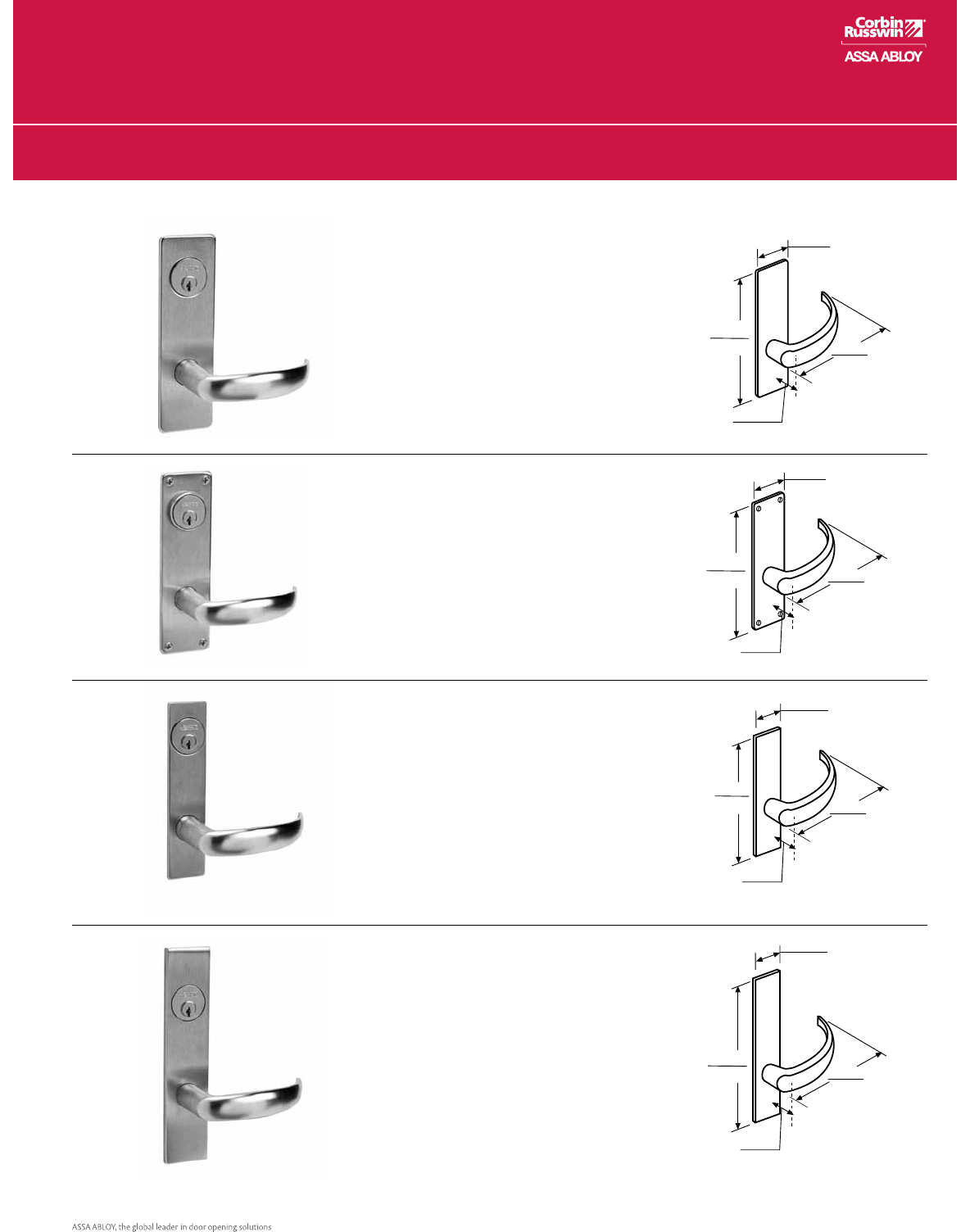

LWN
Lever: Wrought
Escutcheon: Wrought
LWM
Lever: Wrought
Escutcheon: Wrought
Optional:Plugonlytoshow;masterring
LSM
Lever: Cast
Escutcheon: Wrought
Optional:Plugonlytoshow;masterring
LSN
Lever: Cast
Escutcheon: Wrought
LWP
Lever: Wrought
Escutcheon: Wrought
LSP
Lever: Cast
Escutcheon: Wrought
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
*
*
*
*
*
*
LWR
Lever: Wrought
Escutcheon: Solid stainless steel; forged
brass
Optional:Plugonlytoshow
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
LSR
Lever: Cast
Escutcheon: Solid stainless steel,
forged brass
Optional:Plugonlytoshow
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or
escutcheon.
Overview
ML2000
ML2000.20
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15

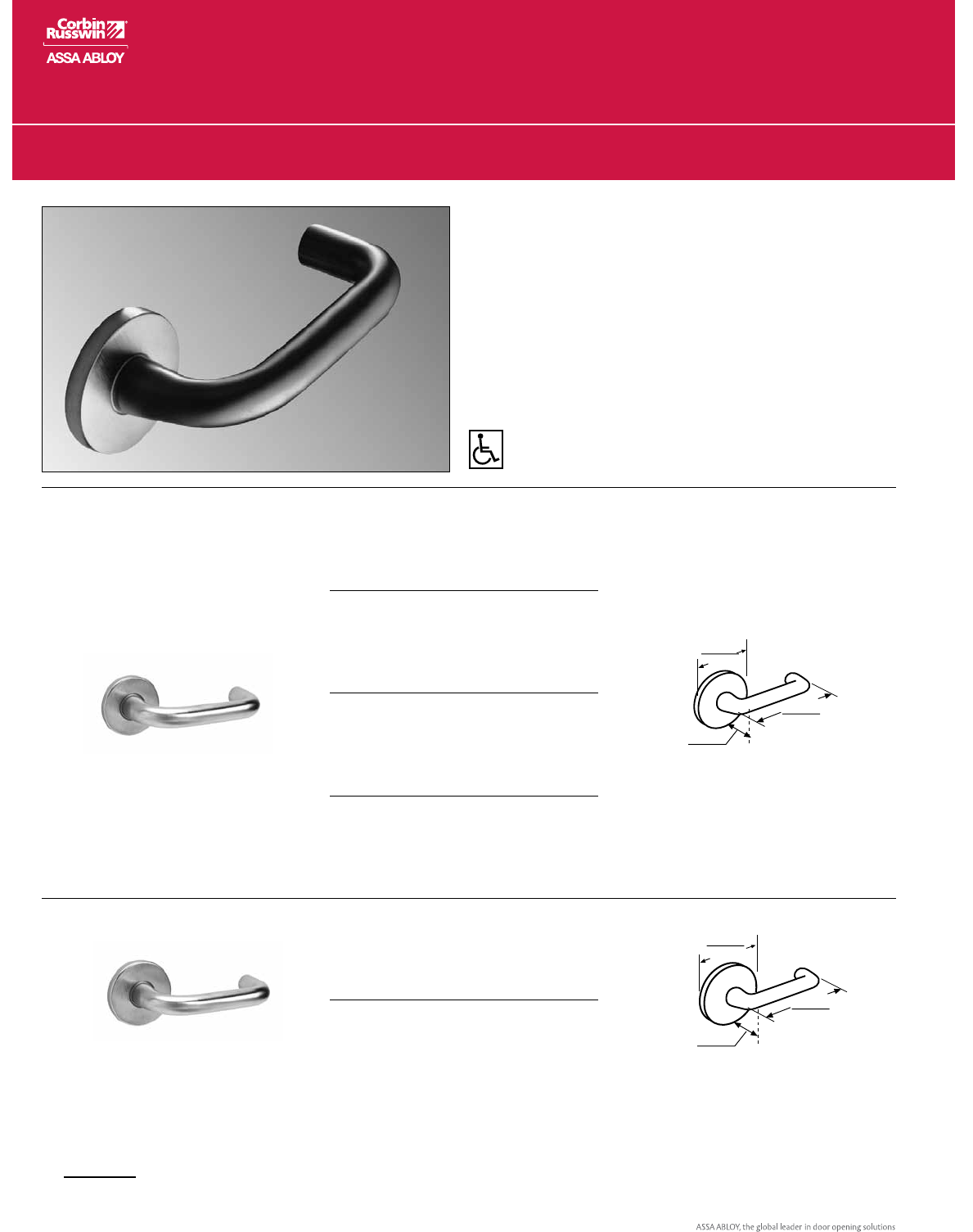

Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.

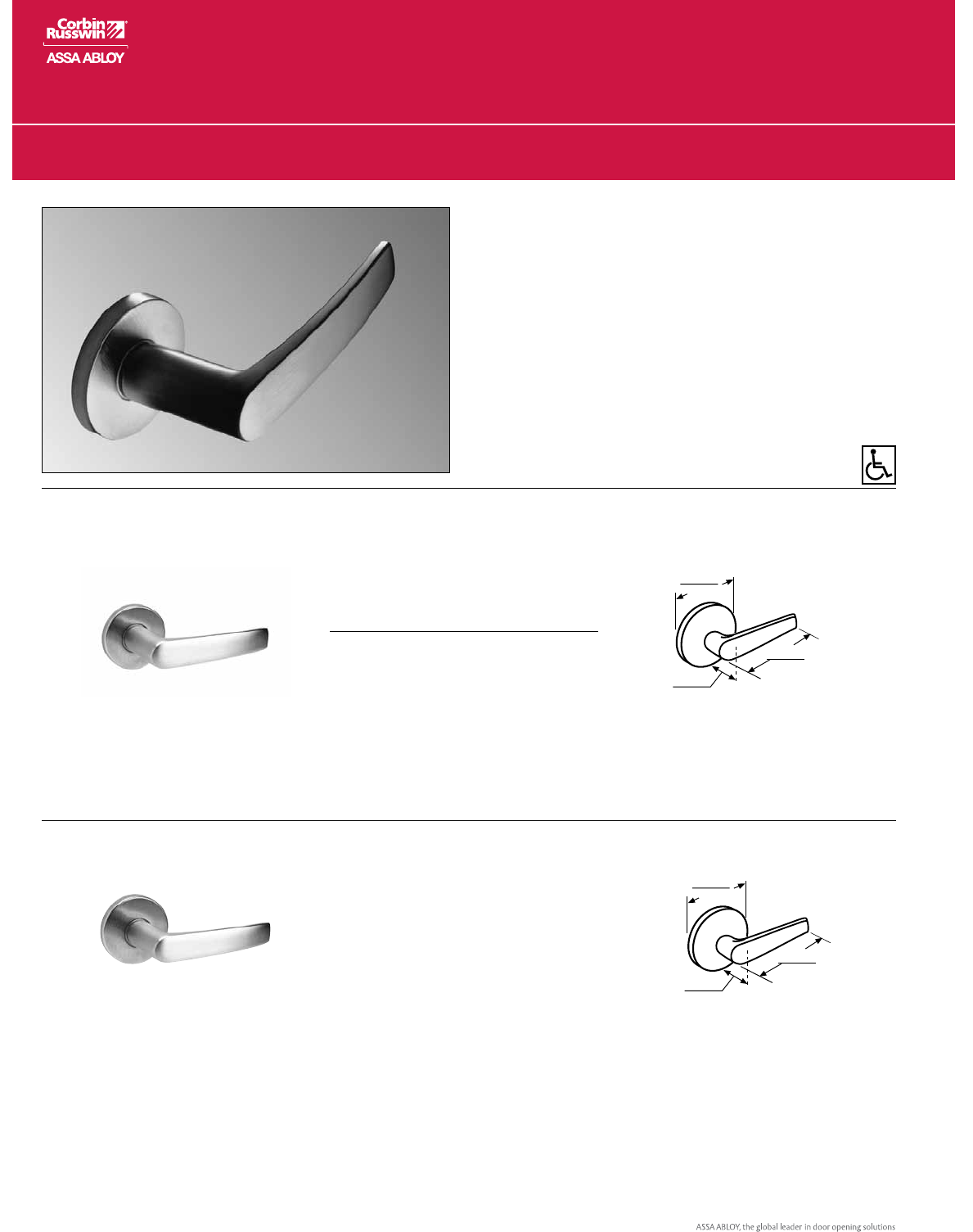

Regis
Brass, bronze or stainless steel
RWA
Lever: Wrought
Rose: Wrought
RSB
Lever: Cast
Rose: Cast
RWB
Lever: Wrought
Rose: Cast
RSA
Lever: Cast
Rose: Wrought
2-1/4
(57)
4-7/8
(124)
2-1/2*
(64)
2-1/4
(57)
4-3/8
(111)
2-1/2*
(64)
RSF
Lever: Cast
Rose: Cast
RWF
Lever: Wrought
Rose: Cast
2-7
/8
(
73
)
2-1/2*
(
64
)
4-7/8
(124)
2-7
/
8
(
73
)
2-1/2*
(
64
)
4-3/8
(111)
Overview
ML2000
ML2000.21
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
**
*
*
*
4-7/8
(124)
*
4-3/8
(111)
RSM
4-7/8
(124)
*
4-3/8
(111)
RSN
4-7/8
(124)
*
4-3/8
(111)
RSP
4-7/8
(124)
*
4-3/8
(111)
RWR
*Dimension from face of door, not surface of rose or
escutcheon.
**
*
*
*
4-7/8
(124)
*
4-3/8
(111)
RSM
4-7/8
(124)
*
4-3/8
(111)
RSN
4-7/8
(124)
*
4-3/8
(111)
RSP
4-7/8
(124)
*
4-3/8
(111)
RWR
**
*
*
*
4-7/8
(124)
*
4-3/8
(111)
RSM
4-7/8
(124)
*
4-3/8
(111)
RSN
4-7/8
(124)
*
4-3/8
(111)
RSP
4-7/8
(124)
*
4-3/8
(111)
RWR
**
*
*
*
4-7/8
(124)
*
4-3/8
(111)
RSM
4-7/8
(124)
*
4-3/8
(111)
RSN
4-7/8
(124)
*
4-3/8
(111)
RSP
4-7/8
(124)
*
4-3/8
(111)
RWR
RWM
Lever: Wrought
Escutcheon: Wrought
Optional:Plugonlytoshow;masterring
RSM
Lever: Cast
Escutcheon: Wrought
Optional:Plugonlytoshow;masterring
RWN
Lever: Wrought
Escutcheon: Wrought
RSN
Lever: Cast
Escutcheon: Wrought
RWP
Lever: Wrought
Escutcheon: Wrought
RSP
Lever: Cast
Escutcheon: Wrought
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
*
*
*
*
*
4-7/8
(124)
*
4-3/8
(111)
RSM
4-7/8
(124)
*
4-3/8
(111)
RSN
4-7/8
(124)
*
4-3/8
(111)
RSP
4-7/8
(124)
*
4-3/8
(111)
RWR
**
*
*
*
4-7/8
(124)
*
4-3/8
(111)
RSM
4-7/8
(124)
*
4-3/8
(111)
RSN
4-7/8
(124)
*
4-3/8
(111)
RSP
4-7/8
(124)
*
4-3/8
(111)
RWR
**
*
*
*
4-7/8
(124)
*
4-3/8
(111)
RSM
4-7/8
(124)
*
4-3/8
(111)
RSN
4-7/8
(124)
*
4-3/8
(111)
RSP
4-7/8
(124)
*
4-3/8
(111)
RWR
**
*
*
*
4-7/8
(124)
*
4-3/8
(111)
RSM
4-7/8
(124)
*
4-3/8
(111)
RSN
4-7/8
(124)
*
4-3/8
(111)
RSP
4-7/8
(124)
*
4-3/8
(111)
RWR
RWR
Lever: Wrought
Escutcheon: Solid stainless steel; forged brass
Optional:Plugonlytoshow
Door thickness: 1-3/8" (35mm), 1-3/4" (44mm), 2-1/4" (57mm)
RSR
Lever: Cast
Escutcheon: Solid stainless steel; forged brass
Optional:Plugonlytoshow
Door thickness: 1-3/8" (35mm), 1-3/4" (44mm), 2-1/4" (57mm)
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.22
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.
Citation
•Brass,bronzeorstainlesssteel
•Laserengravingoption
(See Custom Laser Engraving brochure)
CSA
Lever: Cast
Rose: Wrought
CSB
Lever: Cast
Rose: Cast
CSA/CSB
2-1/4
(57)
4-3/8
(111)
2-5/8*
(67)
CSF
Lever: Cast
Rose: Cast
CSF
2-7/8
(73)
4-3/8
(111)
2-5/8*
(67)
Overview
ML2000
ML2000.23
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
*Dimension from face of door, not surface of rose or escutcheon.
CSM
Lever: Cast
Escutcheon: Wrought
Optional:
•Plugonlytoshow;masterring
•Laserengravingonleverorescutcheon
2-5/8*
(67)
4-3/8
(111)
2-1/4
(57)
7-1/2
(190)
CSM
CSN
Lever: Cast
Escutcheon: Wrought
Optional: Laser engraving on lever
CSP
Lever: Cast
Escutcheon: Wrought
Optional: Laser engraving on lever
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
CSR
Lever: Cast
Escutcheon: Solid stainless steel;
forged brass
Optional:
•Plugonlytoshow
•Laserengravingonlever
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
2-1/4
(57)
7-1/2
(190)
CSN
2-5/8*
(67)
4-3/8
(111)
2-5/8*
(67)
4-3/8
(111)
1-3/4
(44)
8-1/2
(216)
CSR
CSP
4-3/8
(111)
1-5/8
(41)
7
(178)
2-5/8*
(67)
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.24
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
*Dimension from face of door, not surface of rose or escutcheon.
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Newport
•Complieswithcodesrequiringlevertoreturnto
within 1/2" (13mm) of door face.
•Brass,bronzeorstainlesssteel
•Laserengravingoption
(See Custom Laser Engraving brochure)
NSA
Lever: Cast
Rose: Wrought
NSB
Lever: Cast
Rose: Cast
2-1/4
(57)
4-13/16
(122)
2-5/8*
(67)
NSF
Lever: Cast
Rose: Cast
2-7/8
(73)
4-13/16
(122)
2-5/8*
(67)
Overview
ML2000
ML2000.25
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
*Dimension from face of door, not surface of rose or escutcheon.
NSM
Lever: Cast
Escutcheon: Wrought
Optional:
•Plugonlytoshow;masterring
•Laserengravingonleverorescutcheon
4-13/16
(122)
2-5/8*
(67)
2-1/4
(57)
7-1/2
(190)
NSM
NSN
Lever: Cast
Escutcheon: Wrought
Optional: Laser engraving on lever
NSP
Lever: Cast
Escutcheon: Wrought
Optional: Laser engraving on lever
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
NSR
Lever: Cast
Escutcheon: Solid stainless steel;
forged brass
Optional:
•Plugonlytoshow
•Laserengravingonlever
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
4-13/16
(122)
2-5/8*
(67)
2-1/4
(57)
7-1/2
(190)
4-13/16
(122)
2-5/8*
(67)
1-5/8
(41)
7
(178)
4-13/16
(122)
2-5/8*
(67)
1-3/4
(44)
8-1/2
(216)
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.26
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.
Armstrong
•Brass,bronzeorstainlesssteel
•Laserengravingoption
(See Custom Laser Engraving brochure)
ASB
Lever: Cast
Rose: Cast
2-1/4
(57)
2-5/8*
(67)
4
(102)
ASF
Lever: Cast
Rose: Cast
2-7/8
(73)
2-5/8*
(67)
4
(102)
ASA
Lever: Cast
Rose: Wrought
Overview
ML2000
ML2000.27
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
*Dimension from face of door, not surface of rose or escutcheon.
ASM
Lever: Cast
Escutcheon: Wrought
Optional:
•Plugonlytoshow;masterring
•Laserengravingonleverorescutcheon
4-1/2
(114)
2-5/8*
(67)
2-1/4
(57)
7-1/2
(190)
ASM
ASN
Lever: Cast
Escutcheon: Wrought
Optional: Laser engraving on lever
ASP
Lever: Cast
Escutcheon: Wrought
Optional: Laser engraving on lever
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
ASR
Lever: Cast
Escutcheon: Solid stainless steel;
forged brass
Optional:
•Plugonlytoshow
•Laserengravingonlever
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
4-1/2
(114)
2-5/8*
(67)
2-1/4
(57)
7-1/2
(190)
ASN
4-1/2
(114)
2-5/8*
(67)
1-5/8
(41)
7
(178)
4-1/2
(114)
1-3/4
(44)
8-1/2
(216)
2-5/8*
(67)
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.28
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.
Dirke
Brass, bronze or stainless steel
•Notreversible
•Handedlevers
DSA
Lever: Cast
Rose: Wrought
Specify hand
DSB
Lever: Cast
Rose: Cast
Specify hand
DSA
2-1/4
(57)
2-9/16*
(65)
4-1/2
(114)
DSF
Lever: Cast
Rose: Cast
Specify hand
DSF
2-7/8
(73)
2-9/16*
(65)
4-1/2
(114)
Overview
ML2000
ML2000.29
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
DSN
Lever: Cast
Escutcheon: Wrought
Specify hand
DSP
Lever: Cast
Escutcheon: Wrought
Specify hand
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
DSR
Lever: Cast
Escutcheon: Solid stainless steel;
forged brass
Optional:Plugonlytoshow
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
Specify hand
2-9/16*
(65)
4-1/2
(114)
2-1/4
(57)
7-1/2
(190)
DSN
2-9/16*
(65)
4-1/2
(114)
1-5/8
(41)
7
(178)
1-3/4
(44)
8-1/2
(216)
2-9/16*
(65)
4-1/2
(114)
DSM
Lever: Cast
Escutcheon: Wrought
Optional:Plugonlytoshow;masterring
Specify hand
2-9/16*
(65)
4-1/2
(114)
2-1/4
(57)
7-1/2
(190)
DSM
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.30
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.
Essex
Complies with codes requiring lever to return to
within 1
/
2" (13mm) of door face.
Brass, bronze or stainless steel
ESA
Lever: Cast
Rose: Wrought
ESB
Lever: Cast
Rose: Cast
ESA
2-1/4
(57)
2-3/8*
(60)
4-5/8
(117)
ESF
Lever: Cast
Rose: Cast
ESF
2-7/8
(73)
2-3/8*
(60)
4-5/8
(117)
Overview
ML2000
ML2000.31
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
*Dimension from face of door, not surface of rose or escutcheon.
ESN
Lever: Cast
Escutcheon: Wrought
ESP
Lever: Cast
Escutcheon: Wrought
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
ESR
Lever: Cast
Escutcheon: Solid stainless steel;
forged brass
Optional:Plugonlytoshow
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
4-5/8
(117)
2-3/8*
(60)
2-1/4
(57)
7-1/2
(190)
ESN
4-5/8
(117)
2-3/8*
(60)
1-5/8
(41)
7
(178)
4-5/8
(117)
2-3/8*
(60)
1-3/4
(44)
8-1/2
(216)
ESM
Lever: Cast
Escutcheon: Wrought
Optional:Plugonlytoshow;masterring
4-5/8
(117)
2-3/8*
(60)
2-1/4
(57)
7-1/2
(190)
ESM
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.32
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.
Princeton
•Complieswithcodesrequiringlevertoreturnto
within 1/2" (13mm) of door face.
•Brass,bronzeorstainlesssteel
•Laserengravingoption
(See Custom Laser Engraving brochure)
PSA
Lever: Cast
Rose: Wrought
PSB
Lever: Cast
Rose: Cast
PSA
2-1/4
(57)
2-1/2*
(64)
5-1/4
(133)
PSF
Lever: Cast
Rose: Cast
PSF
2-7/8
(73)
2-1/2*
(64)
5-1/4
(133)
Overview
ML2000
ML2000.33
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
*Dimension from face of door, not surface of rose or escutcheon.
PSN
Lever: Cast
Escutcheon: Wrought
Optional: Laser engraving on lever
PSP
Lever: Cast
Escutcheon: Wrought
Optional: Laser engraving on lever
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
PSR
Lever: Cast
Escutcheon: Solid stainless steel;
forged brass
Optional:
•Plugonlytoshow
•Laserengravingonlever
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
2-1/4
(57)
7-1/2
(190)
PSN
5-1/4
(133)
2-1/2*
(64)
1-5/8
(41)
7
(178)
2-1/2*
(64)
5-1/4
(133)
1-3/4
(44)
8-1/2
(216)
2-1/2*
(64)
5-1/4
(133)
PSM
Lever: Cast
Escutcheon: Wrought
Optional:
•Plugonlytoshow;masterring
•Laserengravingonleverorescutcheon
2-1/4
(57)
7-1/2
(190)
PSM
5-1/4
(133)
2-1/2*
(64)
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.34
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
2-7/8*
(73)
2-1/8
(54)
3
(76)
GWE
GRE
Knob:Wroughtreinforced
Rose: Wrought reinforced
GWE
Knob:Wrought
Rose: Wrought reinforced
GRC
Knob:Wroughtreinforced
Rose: Wrought reinforced
GWC
Knob:Wrought
Rose: Wrought reinforced
GRD
Knob:Wroughtreinforced
Rose: Wrought reinforced
GWD
Knob:Wrought
Rose: Wrought reinforced
GSA
Knob:Cast
Rose: Wrought
Global
Brass, bronze or stainless steel
2-7/8
(73)
3*
(76)
2-1/4
(57)
GRC
2-7/8
(73)
2-7/8*
(73)
2-1/8
(54)
GWC
3-1/2
(89)
3*
(76)
2-1/4
(57)
GWD
3-1/2
(89)
2-7/8*
(73)
2-1/8
(54)
GWD
GSF
Knob:Cast
Rose: Cast
2-1/4
(57)
2-3/4*
(64)
2
(51)
GWD
2-7/8
(73)
2-3/4*
(64)
2
(51)
GSF
GRC GWC
GRD GWD
3
(76)
3*
(76)
2-1/4
(57)
GRE
GRE GWE
GSB
Knob:Cast
Rose: Cast GSA GSF
GSB
*Dimension from face of door, not surface of rose or escutcheon.
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.35
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

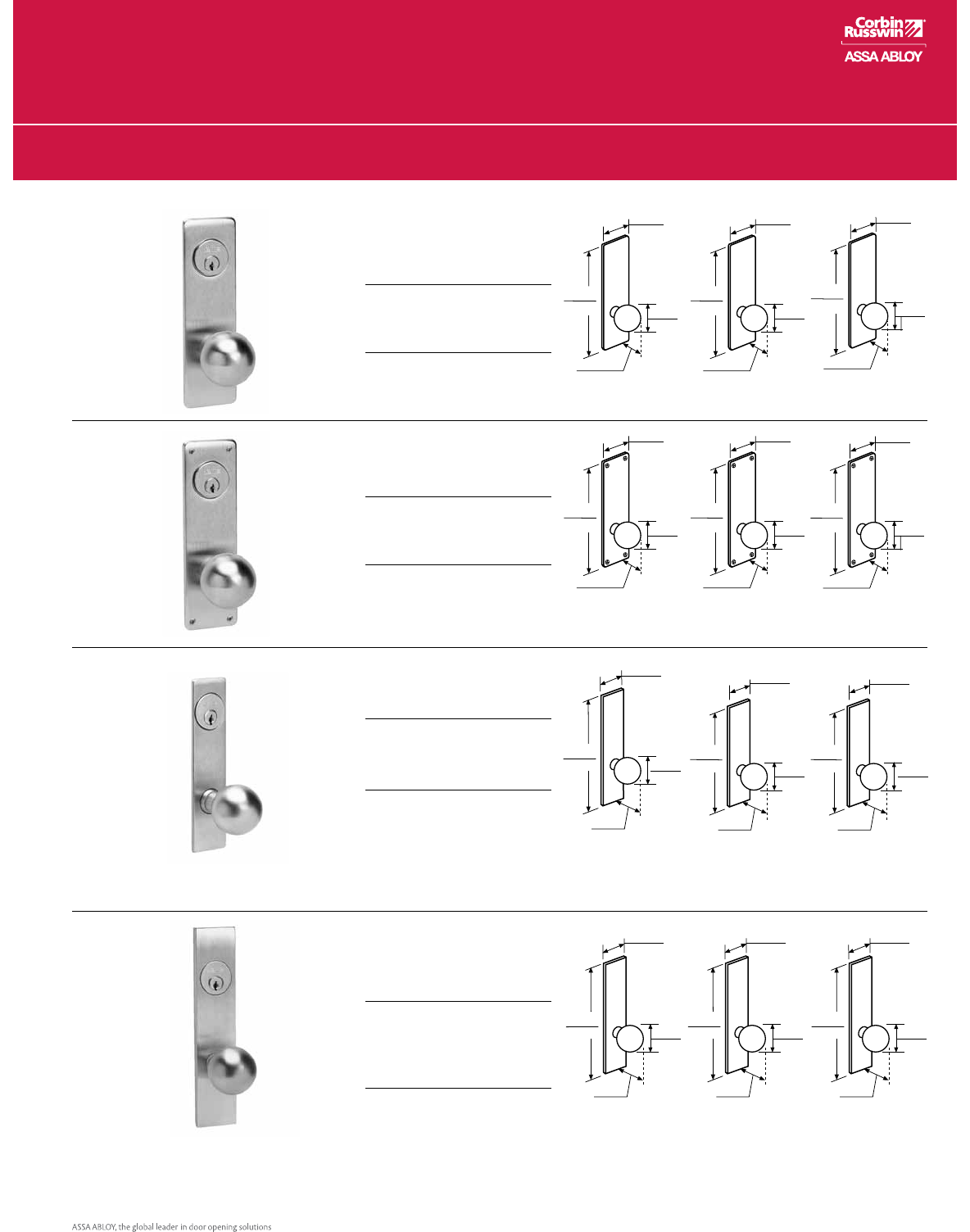

Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
7-1/2
(190)
2-7/8*
(73)
2-1/8
(54)
2-1/4
(57)
GWN
1-5/8
(41)
7
(178)
2-7/8*
(73)
2
(51)
GSP
1-5/8
(41)
7
(178)
2-3/4*
(70)
2-1/8
(54)
GWP
GSP
Knob:Cast
Escutcheon: Wrought
GRP
Knob:Wroughtreinforced
Escutcheon: Wrought
GSR1, 2
Knob:Cast
Escutcheon: Solid stainless
steel; forged brass
7-1/2
(190)
3*
(76)
2-1/4
(57)
2-1/4
(57)
GRN
7-1/2
(190)
2-3/4*
(70)
2
(51)
2-1/4
(57)
GSN
GRN GSN GWN
GRPGSPGWP
GWN
Knob:Wrought
Escutcheon: Wrought
GSN
Knob:Cast
Escutcheon: Wrought
7-1/2
(190)
2-7/8*
(73)
2-1/8
(54)
2-1/4
(57)
GWM
7-1/2
(190)
3*
(76)
2-1/4
(57)
2-1/4
(57)
GRM
7-1/2
(190)
2-7/8*
(73)
2
(51)
2-1/4
(57)
GSM
GRM GSM GWM
GRM1
Knob:Wroughtreinforced
Escutcheon: Wrought
GRN
Knob:Wroughtreinforced
Escutcheon: Wrought
GSM1
Knob:Cast
Escutcheon: Wrought
1-5/8
(41)
7
(178)
3*
(76)
2-1/4
(57)
GSR
1.Optional:Plugonlytoshow;masterring
2. Door thickness: 1-3
/
8" (35mm), 1-3
/
4" (44mm), 2-1
/
4" (57mm)
*Dimension from face of door, not surface of rose or escutcheon.
GWR1, 2
Knob:Wrought
Escutcheon: Solid stainless
steel; forged brass
GRR1, 2
Knob:Wroughtreinforced
Escutcheon: Solid stainless
steel; forged brass
1-3/4
(44)
8-1/2
(216)
3*
(76)
2
(51)
GSR
1-3/4
(44)
8-1/2
(216)
2-7/8*
(73)
2-1/4
(57)
GRR
1-3/4
(44)
8-1/2
(216)
2-1/2*
(64)
2-1/8
(54)
GWR
GSR GRR GWR
GWM1
Knob:Wrought
Escutcheon: Wrought
GWP
Knob:Wrought
Escutcheon: Wrought
Note:PSeriesescutcheonisnot
compatible with ML20900 ECL or
ML20600 NAC mortise locks
Overview
ML2000
ML2000.36
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.
BRE
Knob:Wroughtreinforced
Rose: Wrought reinforced
BWE
Knob:Wrought
Rose: Wrought reinforced
BRC BWC
BRD BWD
BRE BWE
3
(76)
2-13/16*
(71)
2-3/16
(55)
BRE
2-3/4*
(70)
2-1/8
(54)
3
(76)
BWE
BRC
Knob:Wroughtreinforced
Rose: Wrought reinforced
BWC
Knob:Wrought
Rose: Wrought reinforced
BRD
Knob:Wroughtreinforced
Rose: Wrought reinforced
BWD
Knob:Wrought
Rose: Wrought reinforced
Belmont
Brass, bronze or stainless steel
2-7/8
(73)
2-13/16*
(71)
2-3/16
(55)
BRC
2-7/8
(73)
2-3/4*
(70)
2-1/8
(54)
BWC
3-1/2
(89)
2-13/16*
(71)
2-3/16
(55)
BRD
3-1/2
(89)
2-3/4*
(70)
2-1/8
(54)
BWD
Overview
ML2000
ML2000.37
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
*Dimension from face of door, not surface of rose or escutcheon.
BWN
Knob:Wrought
Escutcheon: Wrought
BWP
Knob:Wrought
Escutcheon: Wrought
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
BRP
Knob:Wroughtreinforced
Escutcheon: Wrought
BRN
Knob:Wroughtreinforced
Escutcheon: Wrought 7-1/2
(190)
2-13/16*
(71)
2-3/16
(54)
2-1/4
(57)
BRN
7-1/2
(190)
2-3/4*
(70)
2-1/8
(54)
2-1/4
(57)
BWN
1-5/8
(41)
7
(178)
2-13/16*
(71)
BRP
2-3/16
(55)
1-5/8
(41)
7
(178)
2-3/4*
(70)
BWP
2-1/8
(54)
1.Optional:Plugonlytoshow;masterring
2. Door thickness: 1-3
/
8" (35mm), 1-3
/
4" (44mm), 2-1
/
4" (57mm)
BRN BWN
BWM1
Knob:Wrought
Escutcheon: Wrought
BRM1
Knob:Wroughtreinforced
Escutcheon: Wrought 7-1/2
(190)
2-13/16*
(71)
2-3/16
(55)
2-1/4
(57)
BRM
7-1/2
(190)
2-3/4*
(70)
2-1/8
(54)
2-1/4
(57)
BWM
BRM BWM
BRPBWP
BWR1, 2
Knob:Wrought
Escutcheon: Solid stainless steel;
forged brass
BRR1, 2
Knob:Wroughtreinforced
Escutcheon: Solid stainless steel;
forged brass
1-3/4
(44)
8-1/2
(216)
2-13/16*
(71)
BRR
2-3/16
(55)
1-3/4
(44)
8-1/2
(216)
2-1/2*
(64)
BWR
2-1/8
(54)
BRR BWR
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.38
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
*Dimension from face of door, not surface of rose or escutcheon.

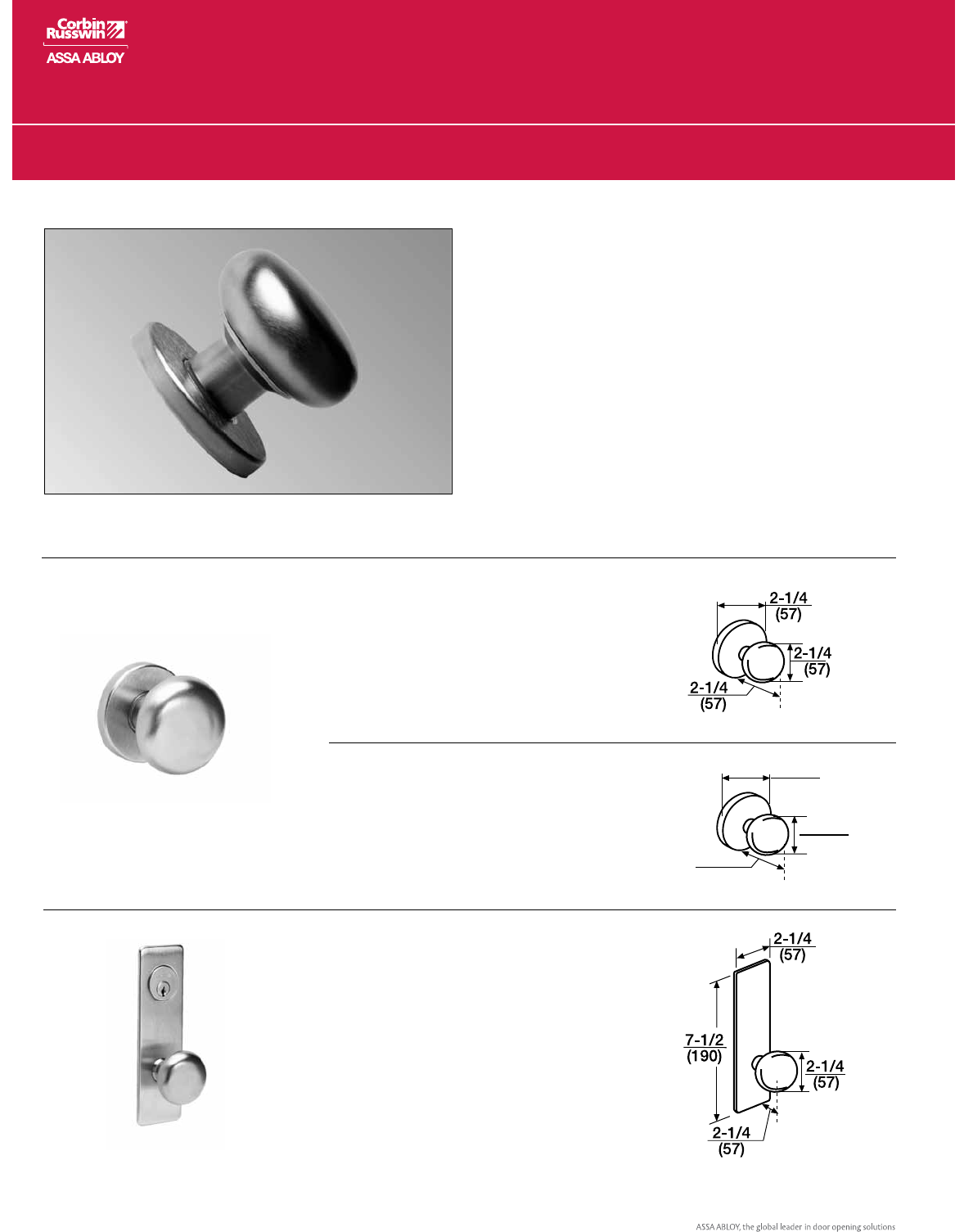

Yankee
Brass, bronze or stainless steel
YWA
Knob:Wrought
Rose: Wrought
YWB
Knob:Wrought
Rose: Cast
YWF
Knob:Wrought
Rose: Cast
YWM
Knob:Wrought
Escutcheon: Wrought
Optional:Plugonlytoshow;masterring
*
2-7/8
73
2-1/4
(57)
2-1/4*
(57)
*
Overview
ML2000
ML2000.39
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

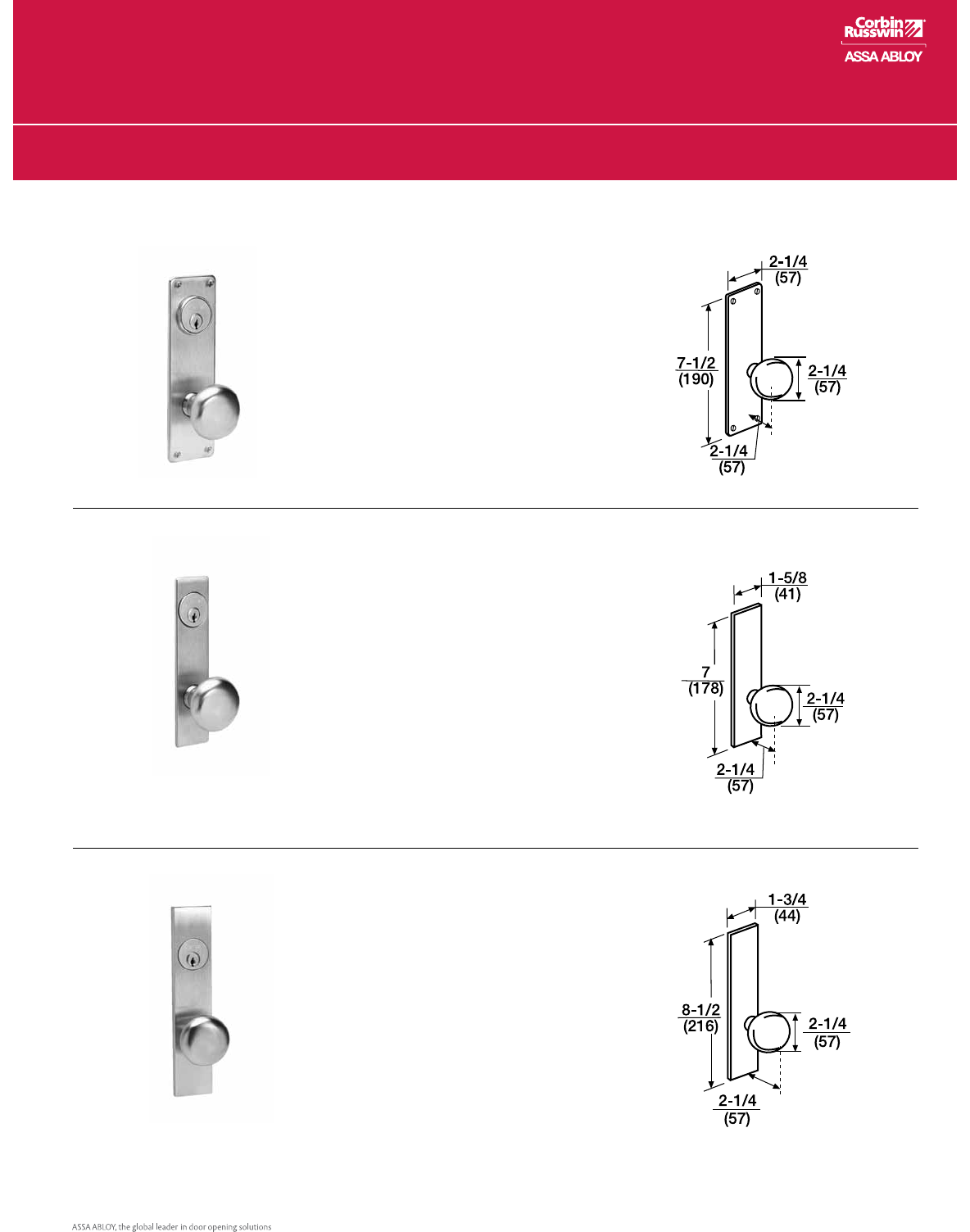

*Dimension from face of door, not surface of rose or escutcheon.
YWN
Knob:Wrought
Rose: Wrought
YWR
Knob:Wrought
Escutcheon: Solid stainless steel or
forged brass
Optional:Plugonlytoshow
Door thickness: 1-3/8" (35mm),
1-3/4" (44mm), 2-1/4" (57mm)
YWP
Knob:Wrought
Escutcheon: Wrought
Note:PSeriesescutcheonisnotcompatiblewith
ML20900 ECL or ML20600 NAC mortise locks
*
*
*
Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Overview
ML2000
ML2000.40
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
R Escutcheon
Solid Stainless Steel
or Forged Brass
8-1/2"
215.9mm
1-3/4"
44.45mm

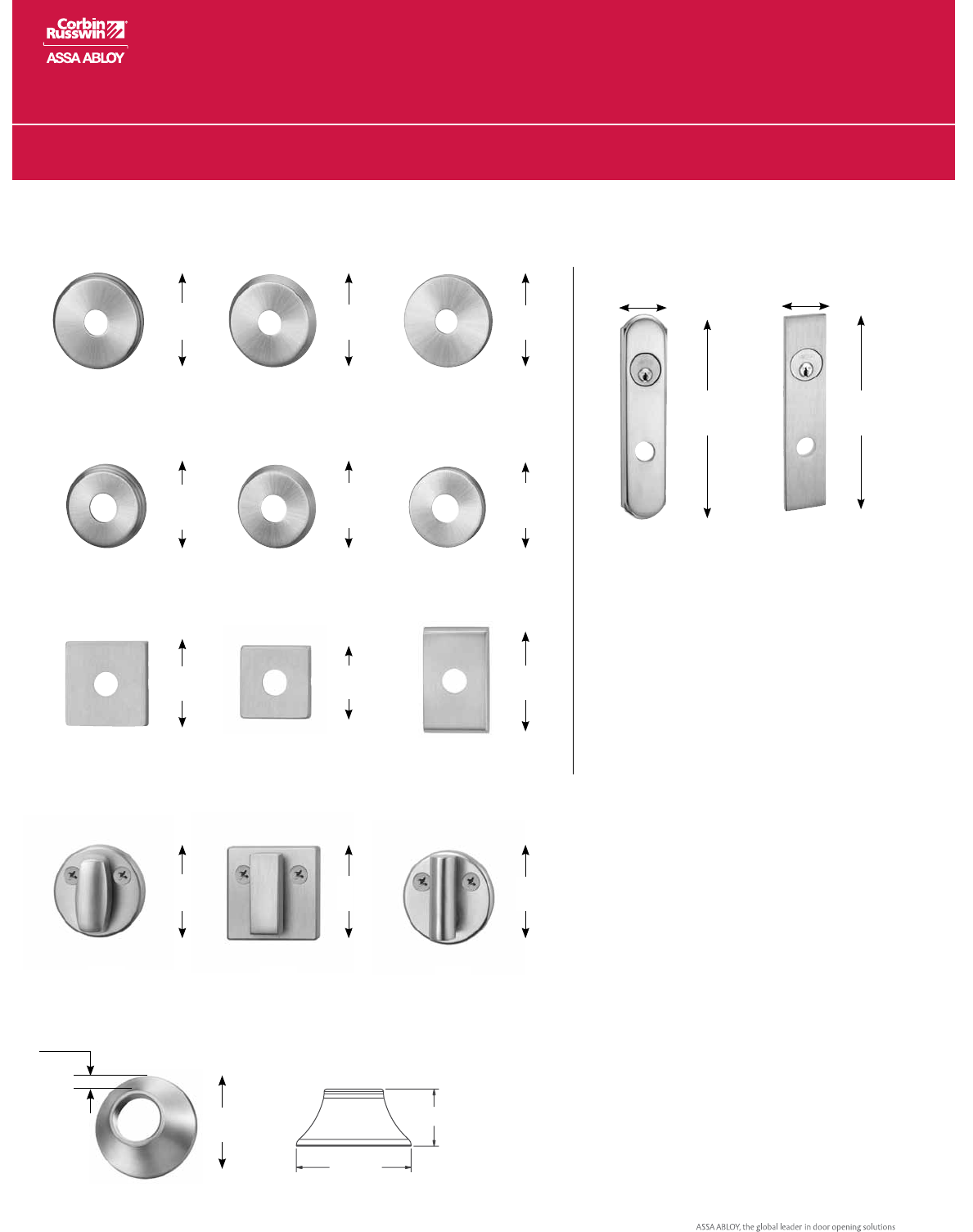

Muséo® Trim
ML2000, ML20900 ECL and ML20600 NAC
Muséo Collection Roses1 and Escutcheons
V Rose
Wrought
U Rose
Wrought
T Rose
Wrought
2-3/4"
69.85mm
2-3/4"
69.85mm
2-3/4"
69.85mm
Y Rose
Wrought
X Rose
Wrought
W Rose
Wrought
2-3/16"
55.56mm
2-1/8"
53.98mm
2-5/16"
58.97mm
L Escutcheon
Cast Brass
9-3/16"
233.36mm
2-3/16"
55.56mm
Inspire™ Roseless Trim
Brass or Stainless Steel
1-1/2"
38.1mm
3/4"
19mm
1-1/2"
3/4"
E2 Rose2
Wrought
2-11/16
68.26mm
MT1 MT2 MT3
1-1/2" dia
38.1mm
1-1/2"
38.1mm
1-1/2" dia
38.1mm

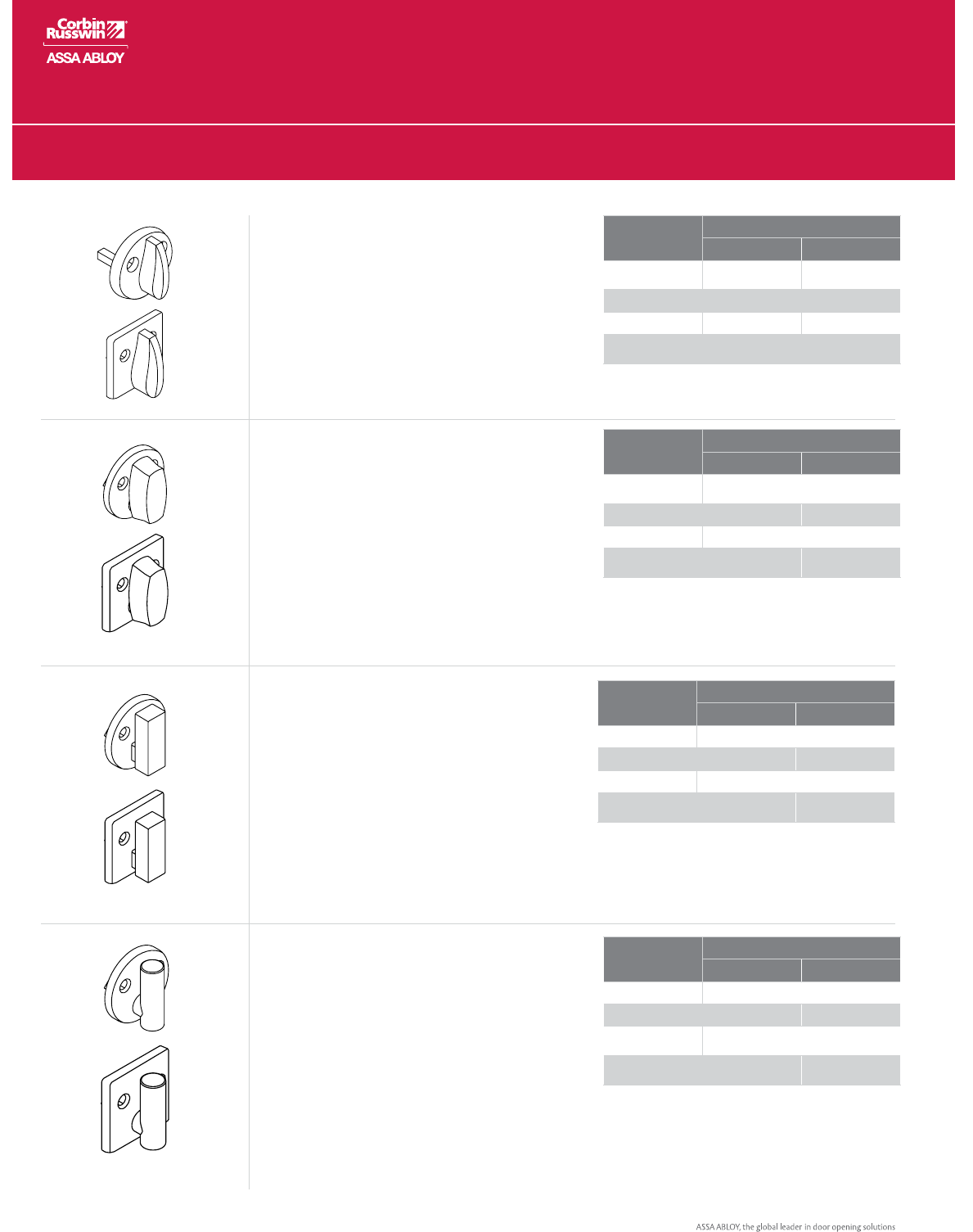

Thumbturns3
E3 Rose2
Wrought
2-1/16
52.39mm
Notes:
1. Roses and Inspire trim are only available with
Muséo levers.
2. Square cylinder collar and thumbturn
backplate automatically supplied with E2, E3
and E4 roses.
3. Thumbturn back plate will match shape of
rose chosen (i.e. round or square).
E4 Rose2
Wrought
3-1/4"
82.55mm
Overview
ML2000
ML2000.41
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

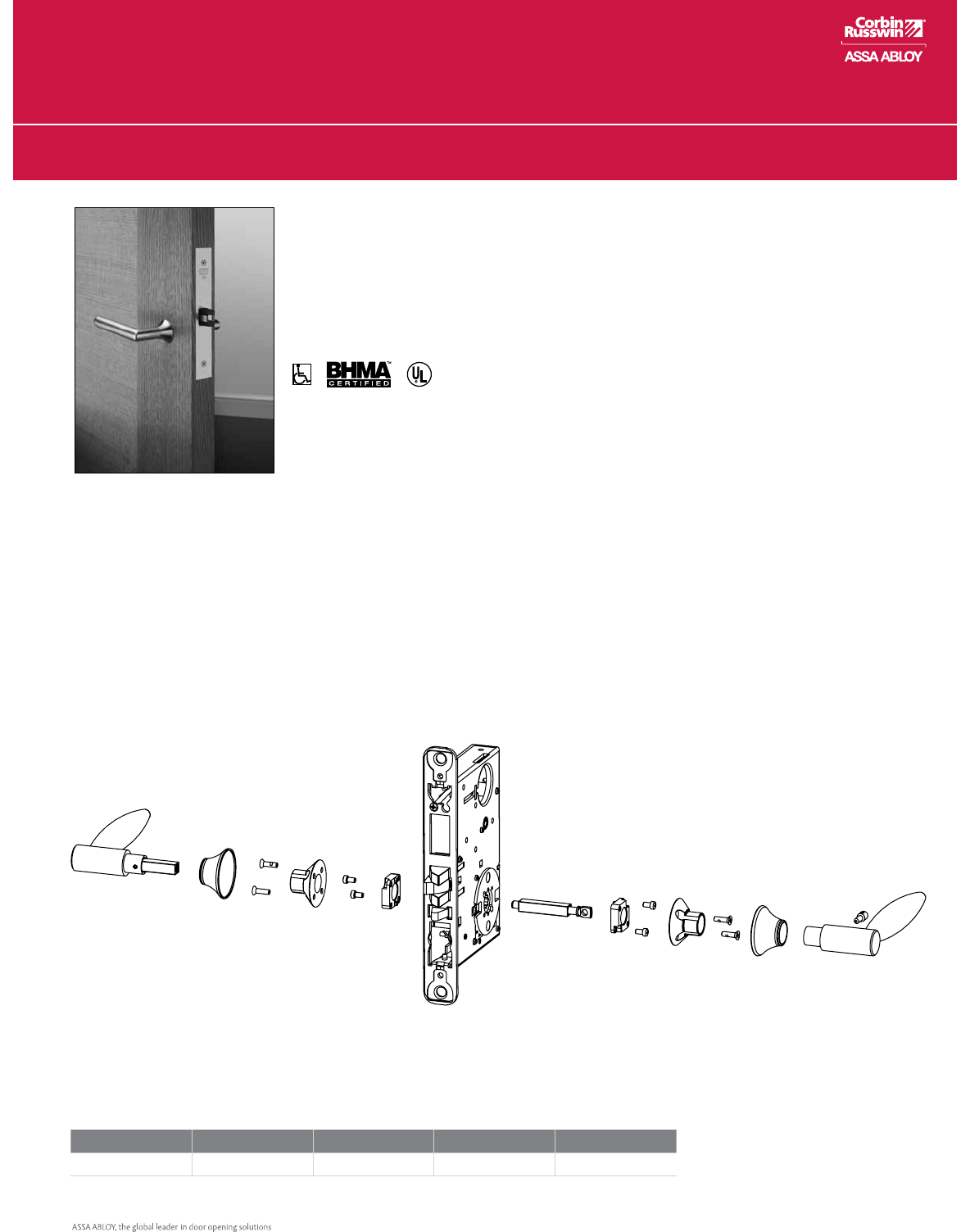

Inspire™ Roseless Trim
ML2000, ML20900 ECL and ML20600 NAC
Inspire™ Roseless Trim
Inspire roseless trim blends the lever and the door creating an artful apprach to every opening. Offered with most Muséo®
decorative levers, this exquisite trim will inspire the creation of beautiful openings.
Features:
•CertiedtoandexceedsANSI/BHMAA156.13,Series1000,OperationalGrade1andSecurityGrade1
•Attachmentmethodsimilartostandardtrim
•Availablewithallmortiselockfunctions
•CompatiblewithmostMuséoLinelevers(except104,111,113,121,Josef,GeorgesandPietlevers)
•Selectedleversreturnwithin1/2"ofthedoorface
•Allstandardcylinderoptionsareavailable
•Availablefor1-3/8",1-3/4",and2-1/4"thickdoorsonly(contactfactoryforotherdoorthicknesses)
How to Order
Inspire Roseless Trim
Quantity Series/Function Trim* Finish Hand
50 ML2055 102J 626 RHR
Exploded view of the
ML2000 lockbody with
Inspire roseless trim
*Specify J for the rose when ordering Inspire roseless trim.
Overview
ML2000
ML2000.42
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
1012/3
Lever: Cast
Non-Handed lever
103
Lever: Cast
Non-Handed lever
2 1/2"
63.5mm
4 1/2"
114.3mm
4 9/64"
105.2mm
2 21/32"
67.80mm
4 19/64"
109.1mm
2 27/32"
71.88mm
3 7/8"
98.4mm
2 15/32"
62.47mm
4 3/16"
106.4mm
7/8"
21.92
2 3/4"
69.85mm
9/16"
14.40
23/32"
18.14 7/8"
21.97
2 3/16"
55.75mm
5/8"
15.70
3/8"
9.19
25/32"
19.83
13/16"
20.96
5/8"
15.73
4 5/8"
117.5mm
3"
76.08mm
4 3/8"
111.1mm
2 5/16"
58.36mm
2 1/8"
53.59mm
2"
50.72
4 5/8"
117.5mm
50.72
2"
5/16"
8
2"
50.72
21/32"
16.50
17.69
50.72
11/16"
2"
7/16"
11.44
2"
50.72
3 29/32"
99.2mm
2"
50.72
2"
50.72
2"
50.72
2"
50.72
2 3/4"
69.85mm
Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
2 11/16"
68.3mm
3/8"
9.5mm
4 7/8"
123.8mm
102
Lever: Cast
Non-Handed lever
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
2 1/2"
63.5mm
4 1/2"
114.3mm
4 9/64"
105.2mm
2 21/32"
67.80mm
4 19/64"
109.1mm
2 27/32"
71.88mm
3 7/8"
98.4mm
2 15/32"
62.47mm
4 3/16"
106.4mm
7/8"
21.92
2 3/4"
69.85mm
9/16"
14.40
23/32"
18.14 7/8"
21.97
2 3/16"
55.75mm
5/8"
15.70
3/8"
9.19
25/32"
19.83
13/16"
20.96
5/8"
15.73
4 5/8"
117.5mm
3"
76.08mm
4 3/8"
111.1mm
2 5/16"
58.36mm
2 1/8"
53.59mm
2"
50.72
4 5/8"
117.5mm
50.72
2"
5/16"
8
2"
50.72
21/32"
16.50
17.69
50.72
11/16"
2"
7/16"
11.44
2"
50.72
3 29/32"
99.2mm
2"
50.72
2"
50.72
2"
50.72
2"
50.72
2 3/4"
69.85mm
Georgia
Timeless elegance in forms inspired by the
natural world.
Laser Engraving offered on 102, 103, 124
and 125. See Custom Laser Engraving
brochure for details.
1042
Lever: Cast
Non-Handed lever
1241
Lever: Cast
Non-Handed lever
1251
Lever: Cast
Non-Handed lever
2 3/4"
69.85mm
4 5/8"
117.5mm
3/8"
9.5mm
1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
2. Not available with Inspire™ roseless trim.
3. Contact factory for current lead times.
Overview
ML2000
ML2000.43
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

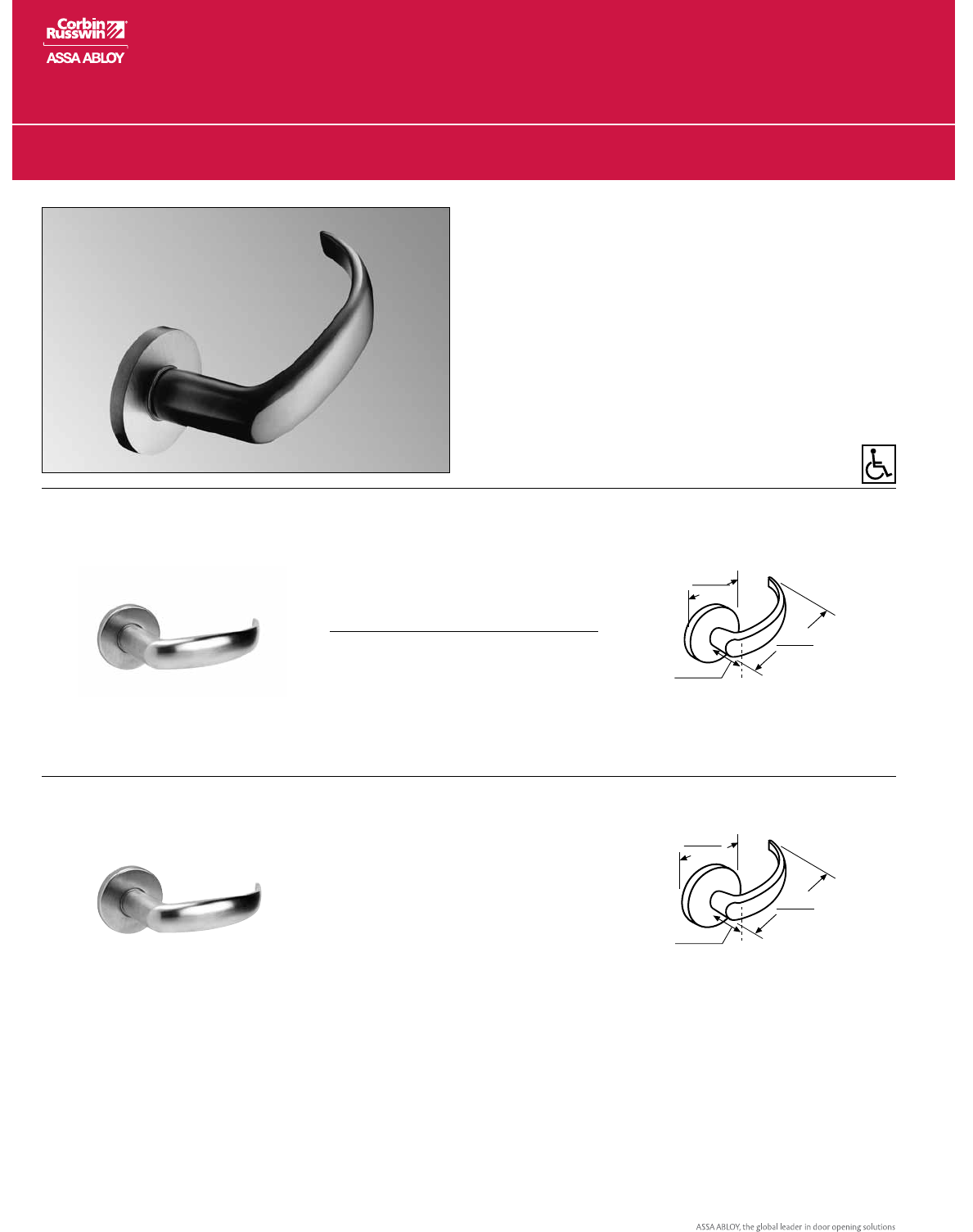

Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Pablo
Diminutive, yet distinctive and
striking in style.
117
Lever: Cast
Non-Handed lever
2 1/2"
63.5mm
4 1/2"
114.3mm
4 9/64"
105.2mm
2 21/32"
67.80mm
4 19/64"
109.1mm
2 27/32"
71.88mm
3 7/8"
98.4mm
2 15/32"
62.47mm
4 3/16"
106.4mm
7/8"
21.92
2 3/4"
69.85mm
9/16"
14.40
23/32"
18.14 7/8"
21.97
2 3/16"
55.75mm
5/8"
15.70
3/8"
9.19
25/32"
19.83
13/16"
20.96
5/8"
15.73
4 5/8"
117.5mm
3"
76.08mm
4 3/8"
111.1mm
2 5/16"
58.36mm
2 1/8"
53.59mm
2"
50.72
4 5/8"
117.5mm
50.72
2"
5/16"
8
2"
50.72
21/32"
16.50
17.69
50.72
11/16"
2"
7/16"
11.44
2"
50.72
3 29/32"
99.2mm
2"
50.72
2"
50.72
2"
50.72
2"
50.72
2 3/4"
69.85mm
1261
Lever: Cast
Handed - Specify hand
Non-Reversible
2 7/8"
73.02mm
4 3/4"
120.7mm
3/8"
9.5mm
1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
Overview
ML2000
ML2000.44
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
1053
Lever: Cast
Non-handed lever
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
119
Lever: Cast
Handed - Specify hand
Non-Reversible
2 1/2"
63.5mm
4 1/2"
114.3mm
4 9/64"
105.2mm
2 21/32"
67.80mm
4 19/64"
109.1mm
2 27/32"
71.88mm
3 7/8"
98.4mm
2 15/32"
62.47mm
4 3/16"
106.4mm
7/8"
21.92
2 3/4"
69.85mm
9/16"
14.40
23/32"
18.14 7/8"
21.97
2 3/16"
55.75mm
5/8"
15.70
3/8"
9.19
25/32"
19.83
13/16"
20.96
5/8"
15.73
4 5/8"
117.5mm
3"
76.08mm
4 3/8"
111.1mm
2 5/16"
58.36mm
2 1/8"
53.59mm
2"
50.72
4 5/8"
117.5mm
50.72
2"
5/16"
8
2"
50.72
21/32"
16.50
17.69
50.72
11/16"
2"
7/16"
11.44
2"
50.72
3 29/32"
99.2mm
2"
50.72
2"
50.72
2"
50.72
2"
50.72
2 3/4"
69.85mm
122
Lever: Cast
Handed - Specify hand
Non-Reversible
1212
Lever: Cast
Handed - Specify hand
Non-Reversible
1 1/4"
31.45
1 5/32"
29.03
3 1/16"
78.10mm
15/16"
23.46
1"
25.49
4 11/16"
119.06mm
2 7/8"
73.02mm
4 1/2"
114.30mm
2 15/32"
62.34mm
2"
50.72
2"
50.72
2 9/16"
65.09mm
4 9/16"
115.89mm
4 5/16"
109.54mm
2"
50.72
2"
50.72
Marketing Spec
Harry Proscino 20Dec05
XP33-816-16 - SH3
Rev 1 27Dec05
2 21/32"
67.29mm
2 1/2"
63.5mm
4 1/2"
114.3mm
4 9/64"
105.2mm
2 21/32"
67.80mm
4 19/64"
109.1mm
2 27/32"
71.88mm
3 7/8"
98.4mm
2 15/32"
62.47mm
4 3/16"
106.4mm
7/8"
21.92
2 3/4"
69.85mm
9/16"
14.40
23/32"
18.14 7/8"
21.97
2 3/16"
55.75mm
5/8"
15.70
3/8"
9.19
25/32"
19.83
13/16"
20.96
5/8"
15.73
4 5/8"
117.5mm
3"
76.08mm
4 3/8"
111.1mm
2 5/16"
58.36mm
2 1/8"
53.59mm
2"
50.72
4 5/8"
117.5mm
50.72
2"
5/16"
8
2"
50.72
21/32"
16.50
17.69
50.72
11/16"
2"
7/16"
11.44
2"
50.72
3 29/32"
99.2mm
2"
50.72
2"
50.72
2"
50.72
2"
50.72
2 3/4"
69.85mm
Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
2 15/16"
74.6mm
4 3/4"
120.7mm
3/8"
9.5mm
1271
Lever: Cast
Handed - Specify hand
Non-Reversible
Jackson
Intuitive shapes, moving with the energetic
rhythm of modern life.
1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
2. Not available with Inspire™ roseless trim.
3. Contact factory for current lead times.
Overview
ML2000
ML2000.45
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Salvador
Dreamlike beauty manifested in solid,
familiar forms.
106
Lever: Cast
Non-handed lever
107
Lever: Cast
Non-handed lever
108
Lever: Cast
Non-handed lever
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
109
Lever: Cast
Non-Handed lever
Overview
ML2000
ML2000.46
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Salvador
Dreamlike beauty manifested in solid,
familiar forms.
1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
110
Lever: Cast
Non-handed lever
1231
Lever: Cast
Non-handed lever
4 1/2"
114.3mm
2 1/2"
63.5mm
7/16"
11.11mm
25/32"
20.07mm
2"
50.72mm
1281
Lever: Cast
Non-handed lever
4-5/8"
117.86mm
3/8"
9.53mm
2-13/16"
71.37mm
Overview
ML2000
ML2000.47
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
1 1/4"
31.45
1 5/32"
29.03
3 1/16"
78.10mm
15/16"
23.46
1"
25.49
4 11/16"
119.06mm
2 7/8"
73.02mm
4 1/2"
114.30mm
2 15/32"
62.34mm
2"
50.72
2"
50.72
2 9/16"
65.09mm
4 9/16"
115.89mm
4 5/16"
109.54mm
2"
50.72
2"
50.72
Marketing Spec
Harry Proscino 20Dec05
XP33-816-16 - SH3
Rev 1 27Dec05
2 21/32"
67.29mm

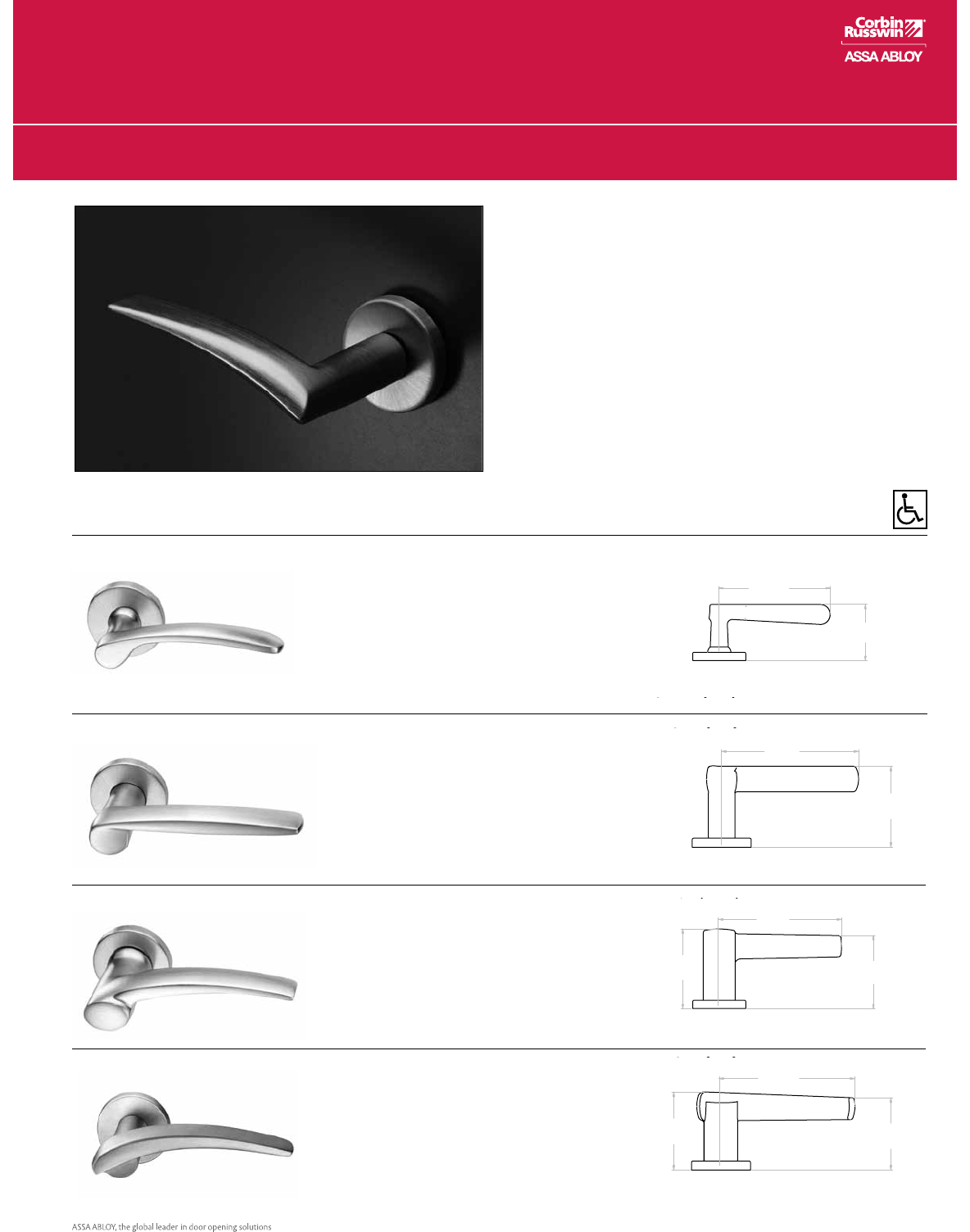

Marc
Fluid lyricism expressed through whimsical
lines and dynamic contours.
1112
Lever: Cast
Handed - Specify hand
Non-Reversible
112
Lever: Cast
Handed - Specify hand
Non-Reversible
1132
Lever: Cast
Handed - Specify hand
Non-Reversible
114
Lever: Cast
Handed - Specify hand
Non-Reversible
2 1/2"
63.5mm
4 1/2"
114.3mm
4 9/64"
105.2mm
2 21/32"
67.80mm
4 19/64"
109.1mm
2 27/32"
71.88mm
3 7/8"
98.4mm
2 15/32"
62.47mm
4 3/16"
106.4mm
7/8"
21.92
2 3/4"
69.85mm
9/16"
14.40
23/32"
18.14 7/8"
21.97
2 3/16"
55.75mm
5/8"
15.70
3/8"
9.19
25/32"
19.83
13/16"
20.96
5/8"
15.73
4 5/8"
117.5mm
3"
76.08mm
4 3/8"
111.1mm
2 5/16"
58.36mm
2 1/8"
53.59mm
2"
50.72
4 5/8"
117.5mm
50.72
2"
5/16"
8
2"
50.72
21/32"
16.50
17.69
50.72
11/16"
2"
7/16"
11.44
2"
50.72
3 29/32"
99.2mm
2"
50.72
2"
50.72
2"
50.72
2"
50.72
2 3/4"
69.85mm
2 13/32"
61.34mm
27/32"
21.80
2 17/32"
64.52mm
7/8"
21.84
2 15/32"
62.59mm
3/4"
19.05
4 1/2"
114.3mm
4 21/32"
118.3mm
3/16"
5.04 13/32"
10.48
5"
127.0mm
4 7/8"
123.8mm
2 1/2"
63.5mm
6.94
9/32"
2"
50.72
4 29/32"
124.6mm
15/16"
23.75
2"
50.72
2"
50.72
4 3/4"
120.7mm
15/32"
12.19
2"
50.72
3/4"
19.05
2"
50.72
2"
50.72
2 1/4"
57.03mm
4"
101.6mm
2 13/16"
71.44mm
19/32"
14.99
2"
50.72
4 5/16"
109.54mm
2 9/16"
65.09mm
2 3/4"
69.85mm
25/32"
20.07
2"
50.72
2"
50.72
5"
127.0mm
2 19/32"
65.79mm
2 1/2"
63.5mm
4 1/2"
114.3mm
4 9/64"
105.2mm
2 21/32"
67.80mm
4 19/64"
109.1mm
2 27/32"
71.88mm
3 7/8"
98.4mm
2 15/32"
62.47mm
4 3/16"
106.4mm
7/8"
21.92
2 3/4"
69.85mm
9/16"
14.40
23/32"
18.14 7/8"
21.97
2 3/16"
55.75mm
5/8"
15.70
3/8"
9.19
25/32"
19.83
13/16"
20.96
5/8"
15.73
4 5/8"
117.5mm
3"
76.08mm
4 3/8"
111.1mm
2 5/16"
58.36mm
2 1/8"
53.59mm
2"
50.72
4 5/8"
117.5mm
50.72
2"
5/16"
8
2"
50.72
21/32"
16.50
17.69
50.72
11/16"
2"
7/16"
11.44
2"
50.72
3 29/32"
99.2mm
2"
50.72
2"
50.72
2"
50.72
2"
50.72
2 3/4"
69.85mm
2. Not available with Inspire™ roseless trim.
Overview
ML2000
ML2000.48
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
4 1/2"
114.3mm
2 15/16"
74.6mm
3/8"
9.5mm
2 7/8"
73.02mm
4 3/4"
120.7mm
3/8"
9.5mm
1 1/4"
31.45
1 5/32"
29.03
3 1/16"
78.10mm
15/16"
23.46
1"
25.49
4 11/16"
119.06mm
2 7/8"
73.02mm
4 1/2"
114.30mm
2 15/32"
62.34mm
2"
50.72
2"
50.72
2 9/16"
65.09mm
4 9/16"
115.89mm
4 5/16"
109.54mm
2"
50.72
2"
50.72
Marketing Spec
Harry Proscino 20Dec05
XP33-816-16 - SH3
Rev 1 27Dec05
2 21/32"
67.29mm

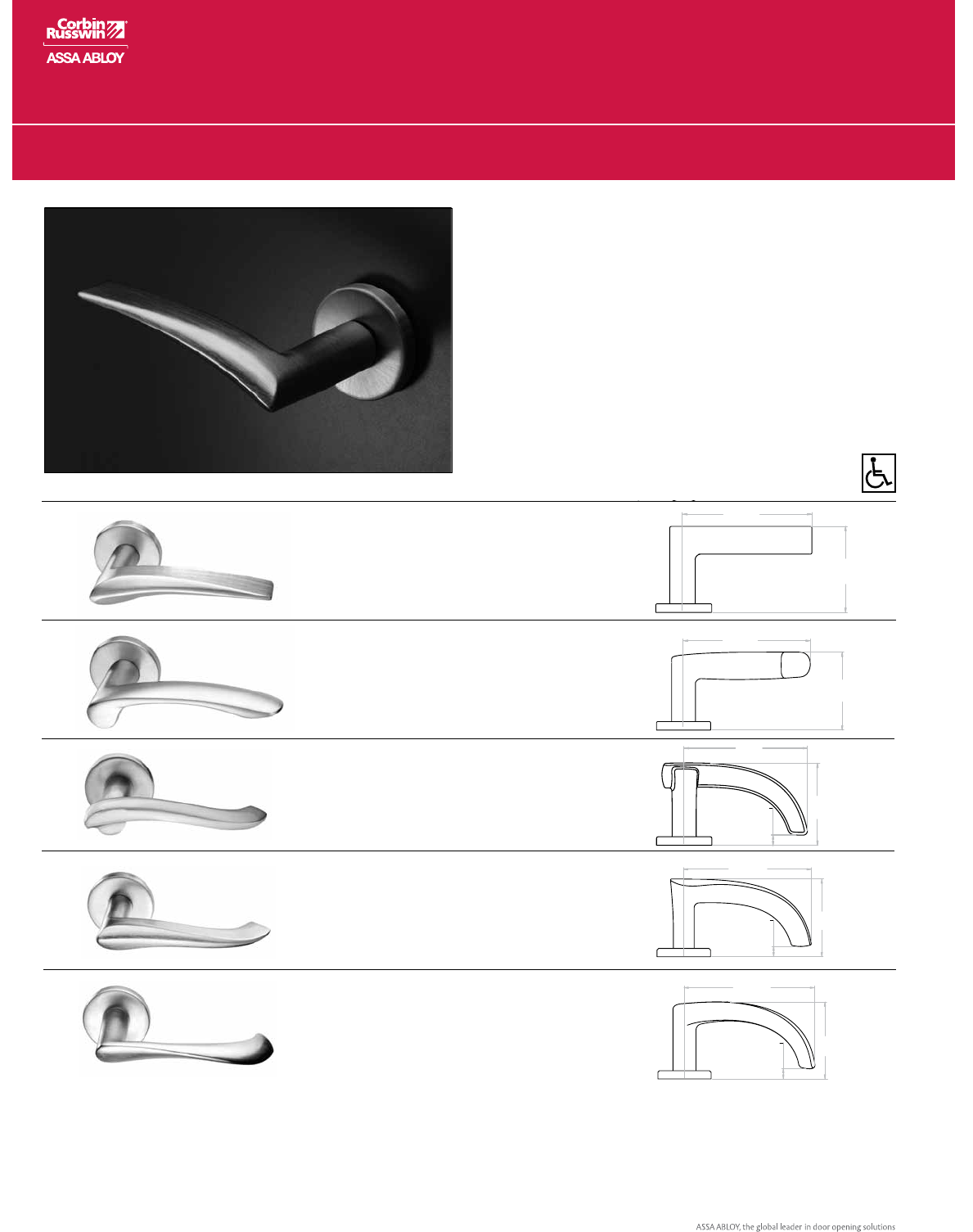

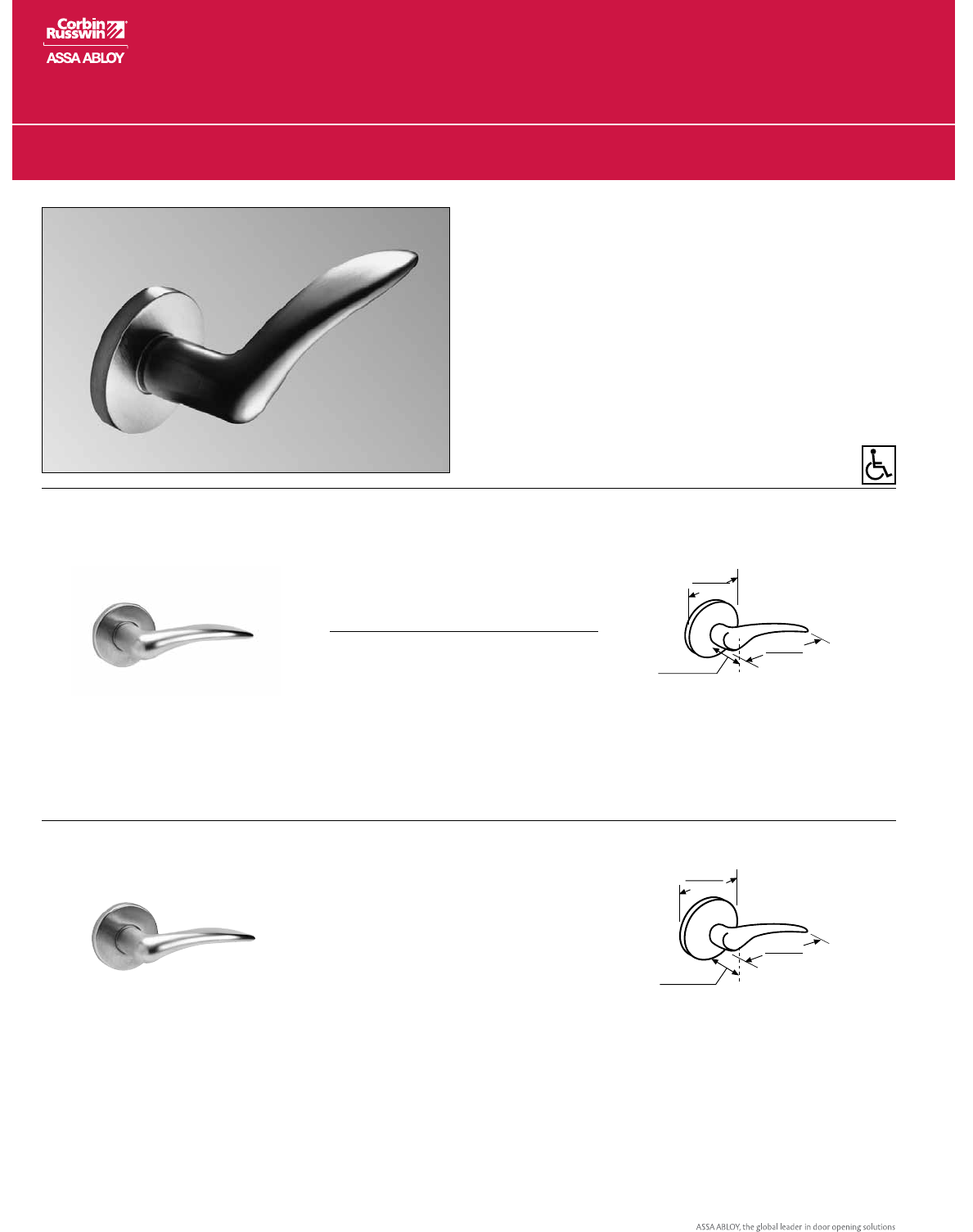

Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
2 7/8"
73.02mm
4 15/16"
125.4mm
3/8"
9.5mm
Marc
Fluid lyricism expressed through whimsical
lines and dynamic contours.
115
Lever: Cast
Handed - Specify hand
Non-Reversible
116
Lever: Cast
Handed - Specify hand
Non-Reversible
1 1/4"
31.45
1 5/32"
29.03
3 1/16"
78.10mm
15/16"
23.46
1"
25.49
4 11/16"
119.06mm
2 7/8"
73.02mm
4 1/2"
114.30mm
2 15/32"
62.34mm
2"
50.72
2"
50.72
2 9/16"
65.09mm
4 9/16"
115.89mm
4 5/16"
109.54mm
2"
50.72
2"
50.72
Marketing Spec
Harry Proscino 20Dec05
XP33-816-16 - SH3
Rev 1 27Dec05
2 21/32"
67.29mm
1301
Lever: Cast
Handed - Specify hand
Non-Reversible
1311
Lever: Cast
Handed - Specify hand
Non-Reversible
1321
Lever: Cast
Handed - Specify hand
Non-Reversible
1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
Overview
ML2000
ML2000.49
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
5-1/4"
133.35mm
3-3/32"
78.58mm
Piet*
Striking levers with sleek, clean lines.
21L
Leather Insert
Lever: Cast
Non-Handed Lever
21M
PolishedwithSatinInsert
Lever: Cast
Non-Handed Lever
21S
Santoprene™ Insert
Lever: Cast
Non-Handed Lever
21W
Wood Insert
Lever: Cast
Non-Handed Lever
5-1/4"
133.35mm
3-3/32"
78.58mm
5-1/4"
133.35mm
3-3/32"
78.58mm
5-1/4"
133.35mm
3-3/32"
78.58mm
* Refer to page 68 for how to order the Muséo® Piet Lever Collection.
Not available with Inspire™ roseless trim.
21G
Grooved Insert
Lever: Cast
Non-Handed Lever
5 1/4"
133.35mm
3 3/32"
78.58mm
Overview
ML2000
ML2000.50
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Piet*
Striking levers with sleek, clean lines.
* Refer to page 68 for how to order the Muséo® Piet Lever Collection.
Not available with Inspire™ roseless trim.
23M
With Raised Band
Lever: Cast
Non-Handed Lever
25M
Plain
Lever: Cast
Non-Handed Lever
5-1/4"
133.35mm
3-3/32"
78.58mm
5-1/4"
133.35mm
3-3/32"
78.58mm
27M
PlainwithTwoGrooves
Lever: Cast
Non-Handed Lever
5 1/4"
133.35mm
3 3/32"
78.58mm
Overview
ML2000
ML2000.51
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

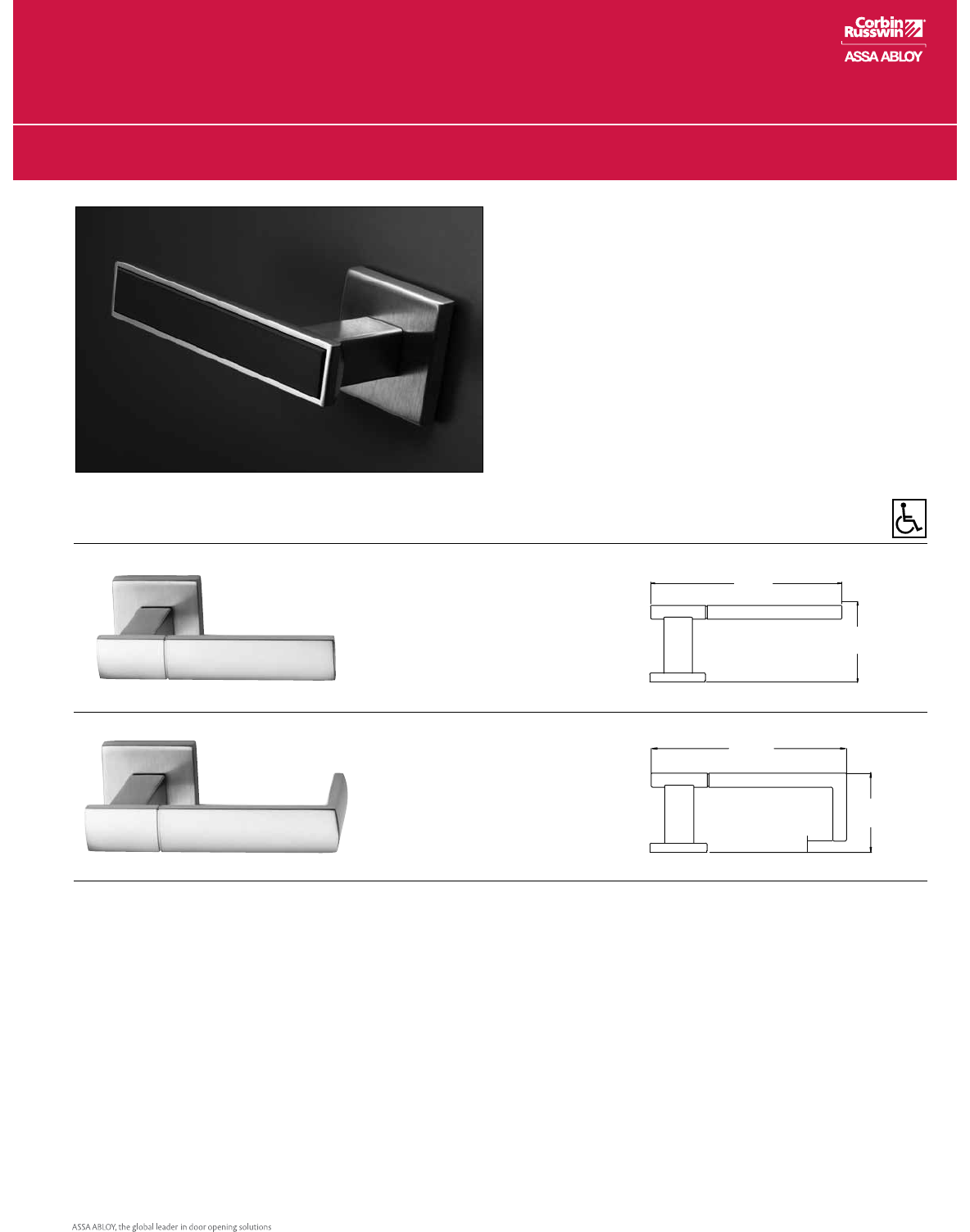

Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
133
Lever: Cast
Non-Handed lever
5-3/8"
136.53mm
2-1/4"
57.25mm
1341
Lever: Cast
Non-Handed lever
5-3/8"
136.53mm
2-1/4"
57.25mm
3/8"
9.53mm
1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
2. Not available with Inspire™ roseless trim.
3. 135-138 contain white or black polycarbonate insert
Josef2/3
Tribute to the square with beautifully simple, but
dramatic forms.

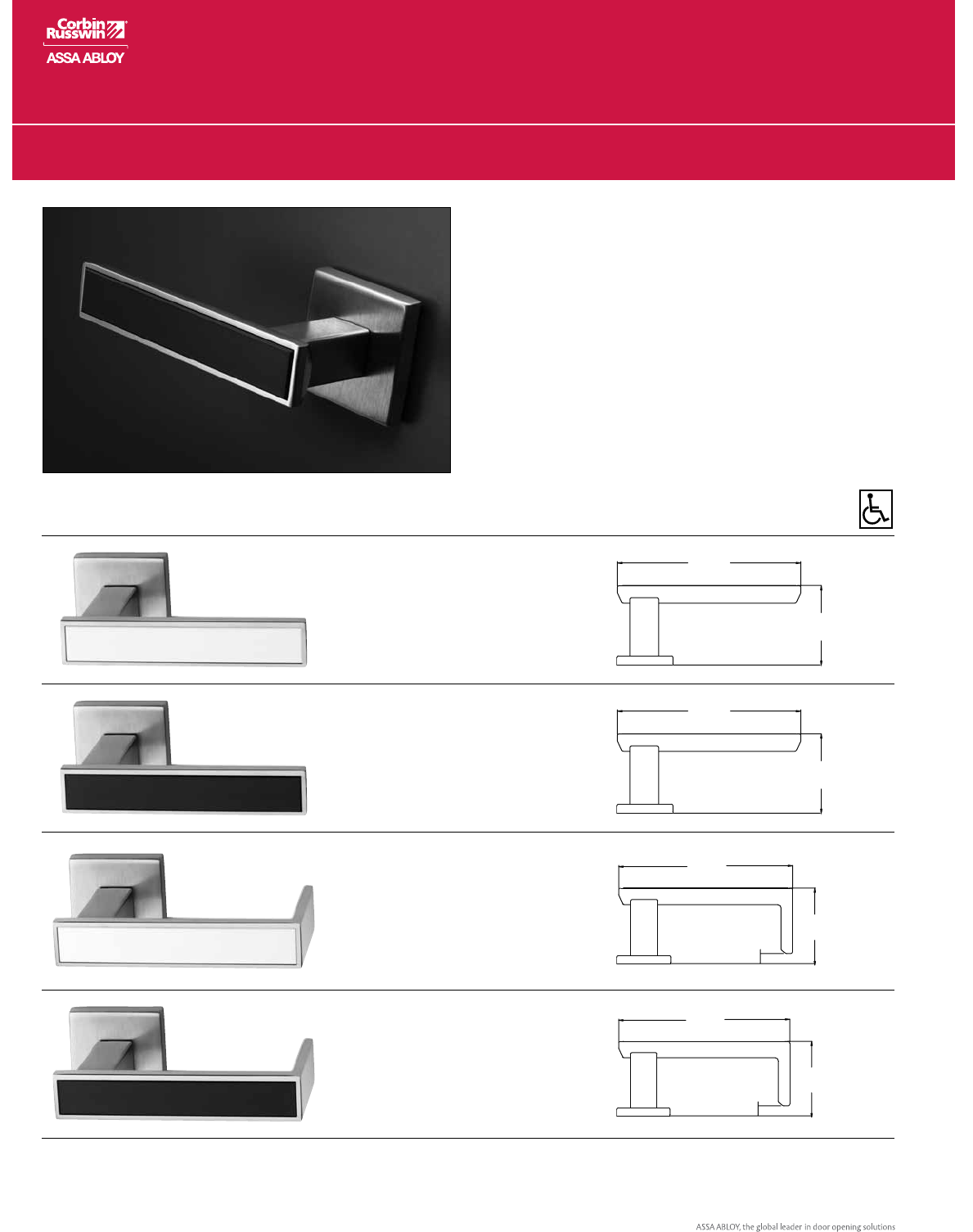

Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
ML2000.52
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
135
Lever: Cast
Non-Handed lever
5-1/8"
130.18mm
2-5/16"
58.85mm
136
Lever: Cast
Non-Handed lever
5-1/8"
130.18mm
2-5/16"
58.85mm
1371
Lever: Cast
Non-Handed lever
5-1/8"
130.18mm
2-5/16"
58.85mm
3/8"
9.53mm
138
1
Lever: Cast
Non-Handed lever
5-1/8"
130.18mm
2-5/16"
58.85mm
3/8"
9.53mm
1. Complies with codes requiring lever to return to within 1/2" (13mm) of door face.
2. Not available with Inspire™ roseless trim.
3. 135-138 contain white or black polycarbonate insert
Josef2/3
Tribute to the square with beautifully simple, but
dramatic forms.
Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
ML2000.53
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

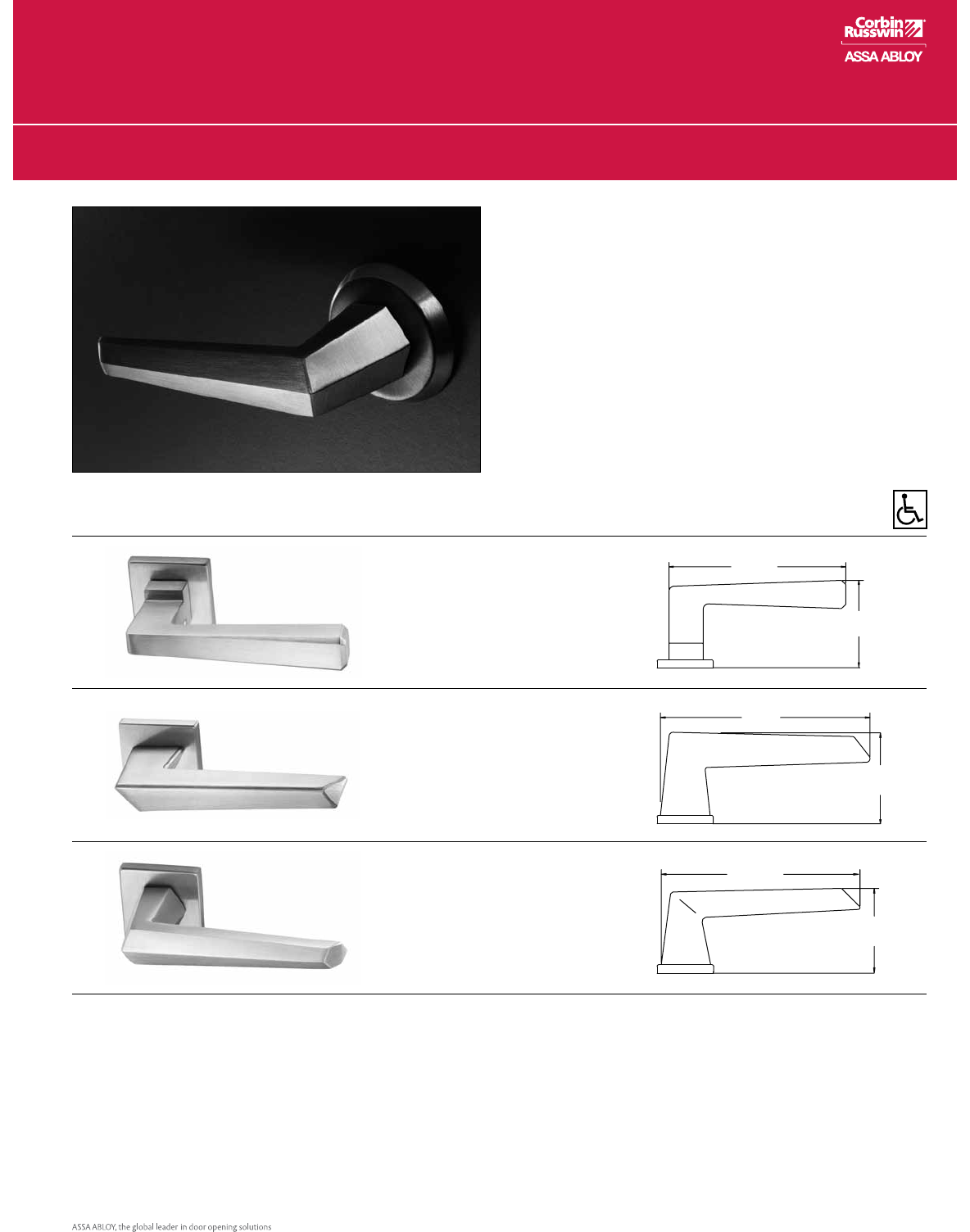

Georges2
Structural pieces that evoke an emotional
response with sophisticated design.
139
Lever: Cast
Non-Handed lever
5-5/32"
130.97mm
2-5/8"
66.68mm
140
Lever: Cast
Handed lever
5-5/8"
142.86mm
2-9/16"
65.09mm
141
Lever: Cast
Non-Handed lever
5-15/32"
138.91mm
2-7/16"
61.91mm
2. Not available with Inspire™ roseless trim.
Overview
ML2000
ML2000.54
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15

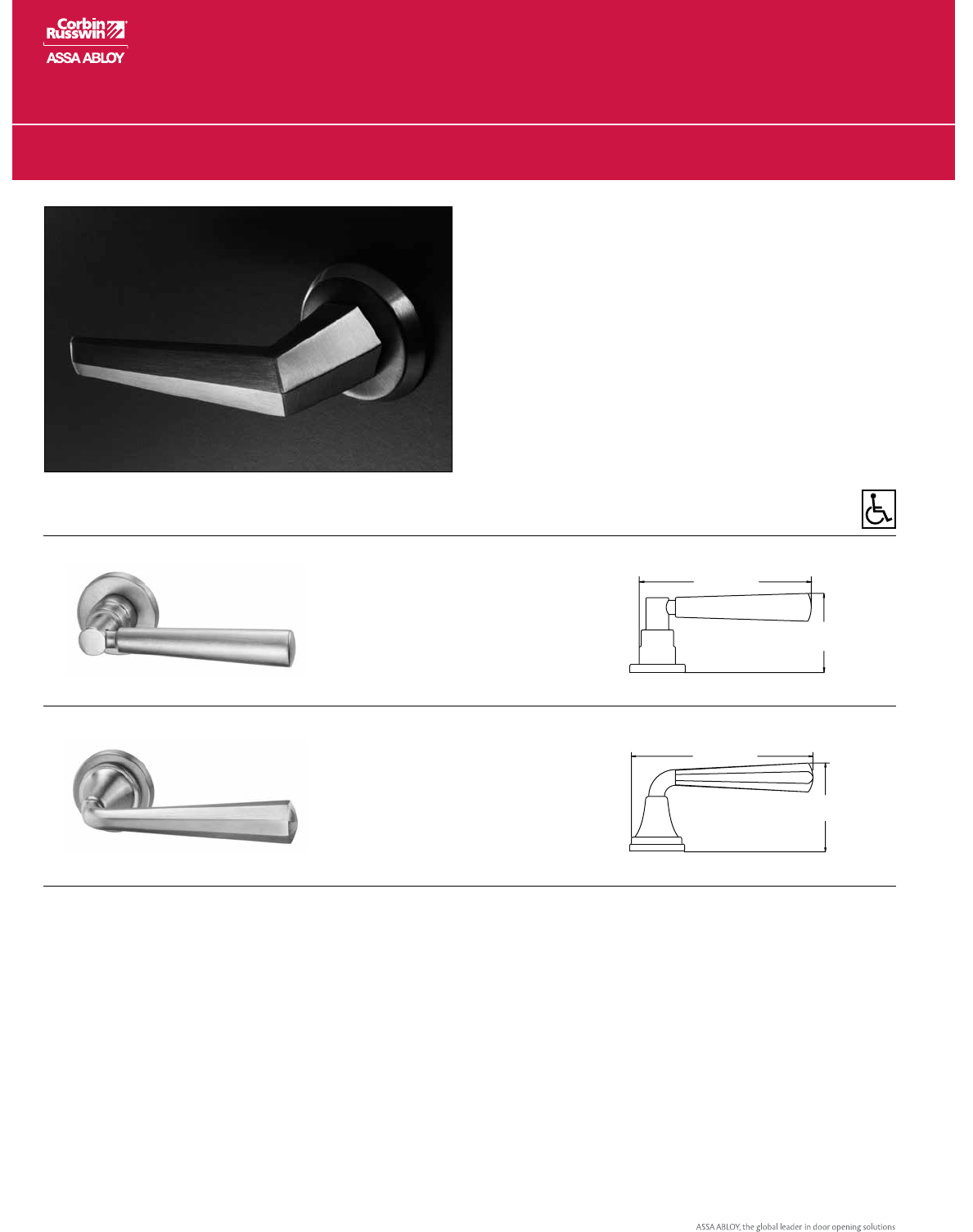

Muséo® Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Georges2
Structural pieces that evoke an emotional
response with sophisticated design.
142
Lever: Cast
Non-Handed lever
5-5/16"
134.94mm
2-5/32"
54.77mm
143
Lever: Cast
Non-Handed lever
5-25/32"
146.84mm
2-7/8"
73.03mm
2. Not available with Inspire™ roseless trim.
Overview
ML2000
ML2000.55
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Vineyard™ Collection Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Merlot
Like its namesake, the Merlot blends
with — and enhances — any decor.
MSG
Lever: Cast
Rose: Cast
MSL
Lever: Cast
Escutcheon: Cast
2-5/8"
(67mm)
2-1/2"
(64mm)
2-5/8"
(67mm)
2-1/2"
(64mm)
Overview
ML2000
ML2000.56
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Vineyard™ Collection Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Zinfandel
Vigorous and complex in
design, the Zinfandel adds
finesse to any opening.
•HandedLevers
ZSG
Lever: Cast
Rose: Cast
Specify hand.
ZSL
Lever: Cast
Escutcheon: Cast
Specify hand.
2-5/8"
(67mm)
2-1/2"
(64mm)
4-13/16"
(122mm)
4-13/16"
(122mm)
2-5/8"
(67mm)
2-1/2"
(64mm)
4-13/16"
(122mm)
4-13/16"
(122mm)
Overview
ML2000
ML2000.57
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Vineyard™ Collection Trim Designs
ML2000, ML20900 ECL and ML20600 NAC
Frascati
Fresh yet classic, the Frascati exudes
the casual, timeless elegance of the
Roman hills.
•Non-Reversible
•HandedLevers
FSG
Lever: Cast
Rose: Cast
FSL
Lever: Cast
Escutcheon: Cast
2-5/8"
(67mm)
2-1/2"
(64mm)
Overview
ML2000
ML2000.58
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15

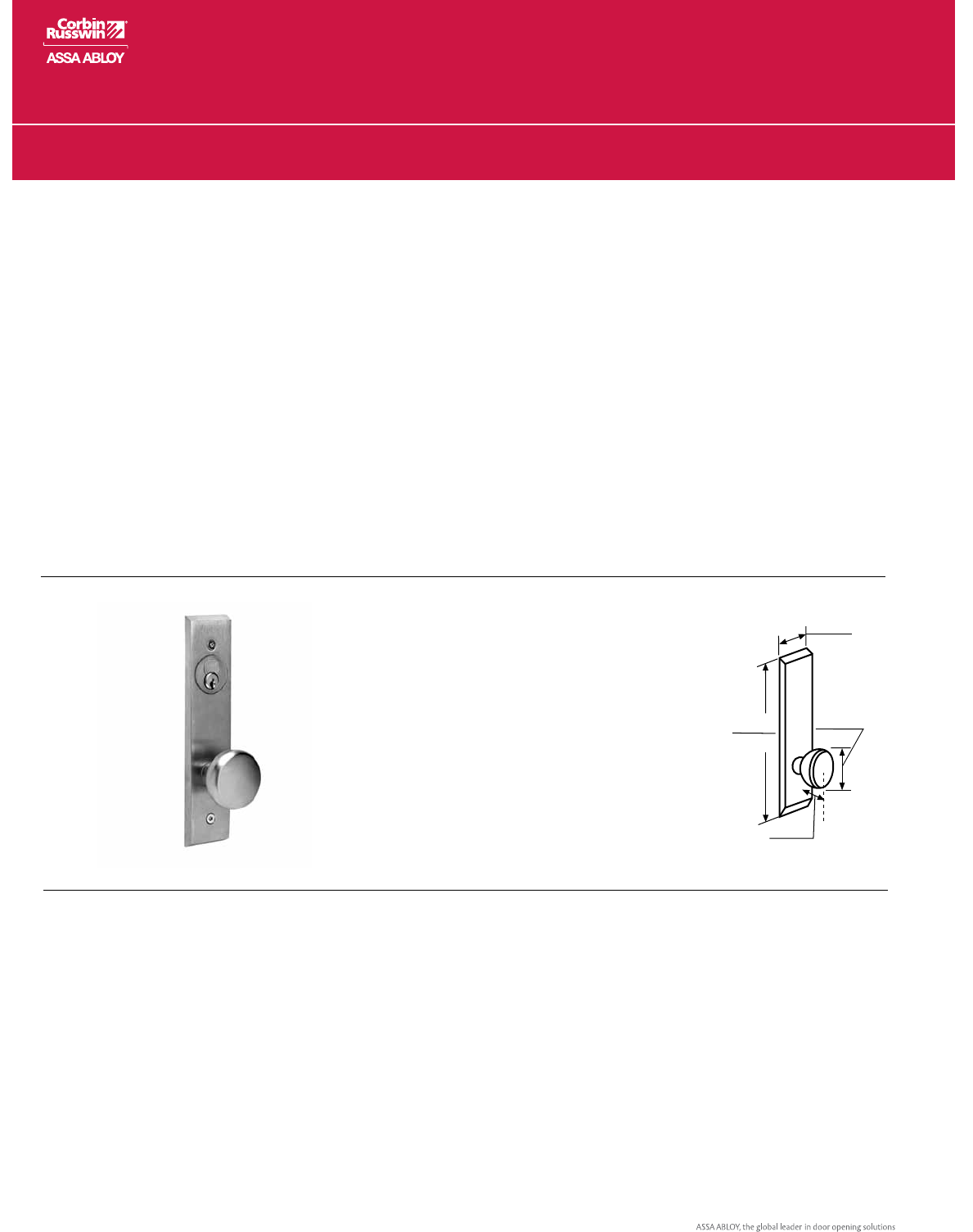

High Security Trim
ML2000
SST
Knob:Castbrassorbronze
Escutcheon: Cast brass or bronze
Optional: Blank inside escutcheon (M07)
Door thickness:1-3/4" (44mm),
2" (51mm), 2-1/4" (57mm)
Surety
Brass or bronze
1-3/4
(44)
8-1/2
(216)
2-1/8*
(54)
SST
2-3/16
(55)
Note: This is the only trim that is available on the ML2000HS. It is not available on the standard ML2000 lockset.
ML2000HS High Security
Mortise Trim
Applications
Designed for high-traffic commercial,
industrial, institutional and government
buildings that require a greater degree
of security than traditional mortise trim
provide. Applications may include:
•Computerrooms
•Hospitalpharmacies
•Banks
•Storagefacilities
•Governmentinstallations
•Prisonsanddetentionfacilities
•Evidencerooms
•Weaponsstorage
Advantages
•Flush-mountedconventionalfixedcore
cylinder
•Castescutcheonsandknobs,double
through-bolted
•Torx® pin tamper resistant security screws
•Armoredfronttoprotectagainst
tampering
•1"throw1-piecestainlesssteeldeadbolt
•10-yearlimitedwarranty
Overview
ML2000
ML2000.59
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

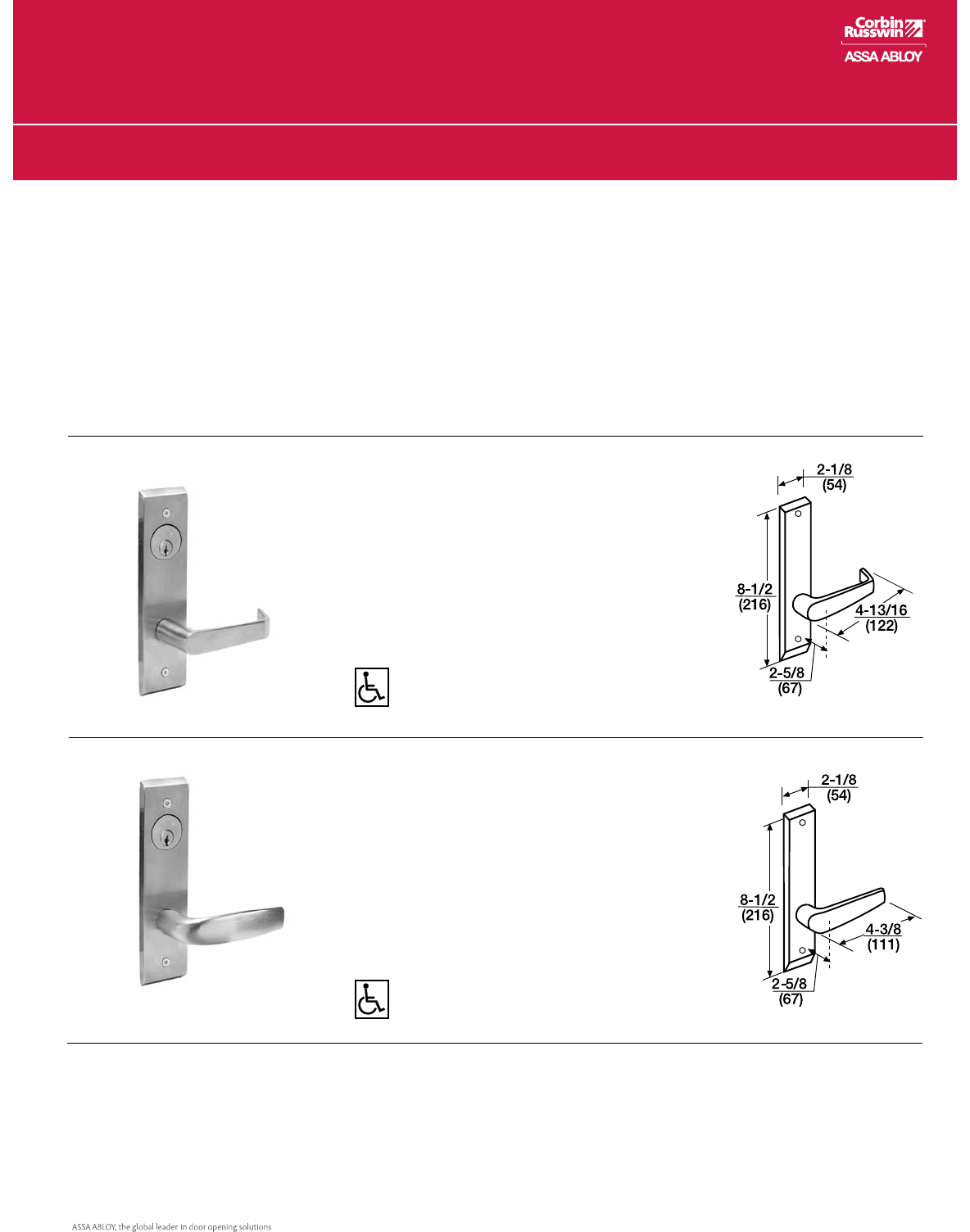

Vandal Resistant Trim
ML2000
ML2000VR Series Vandal-
Resistant Mortise Trim
Applications
Designed for high-traffic commercial,
industrial, institutional and government
buildings that require a greater degree of
security and vandal resistance not found
on other mortise trims. Applications may
include:
•Schoolsanduniversities
•Computerrooms
•Hospitalpharmacies
•Banks
•Storagefacilities
•Governmentinstallations
•Prisonsanddetentionfacilities
•Evidencerooms
•Weaponsstorage
*
*
Newport
NSV
Lever: Cast stainless steel
Escutcheon: Cast stainless steel
Door thickness: 1-3/4" (44mm) standard,
2" (51mm) specify D200, 2-1/4" (57mm)
specify D214
Citation
CSV
Lever: Cast stainless steel
Escutcheon: Cast stainless steel
Door thickness: 1-3/4" (44mm) standard,
2" (51mm) specify D200, 2-1/4" (57mm)
specify D214
Advantages
•Flush-mountedconventionalfixedcore
cylinder
•Castescutcheonsandlevers;double
through-bolted
•Torx® pin tamper resistant security screws
•Armoredfronttoprotectagainst
tampering
•Free-floatingspindleself-adjustsfordoor
thicknesses from 1-3/4" to 2-1/4"
•Leversremainattachedifspindleis
broken
Notes: This trim only available for ML2000VR and ML20900VR locksets.
Only available in 630 (US32D) finish.
Overview
ML2000
ML2000.60
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15

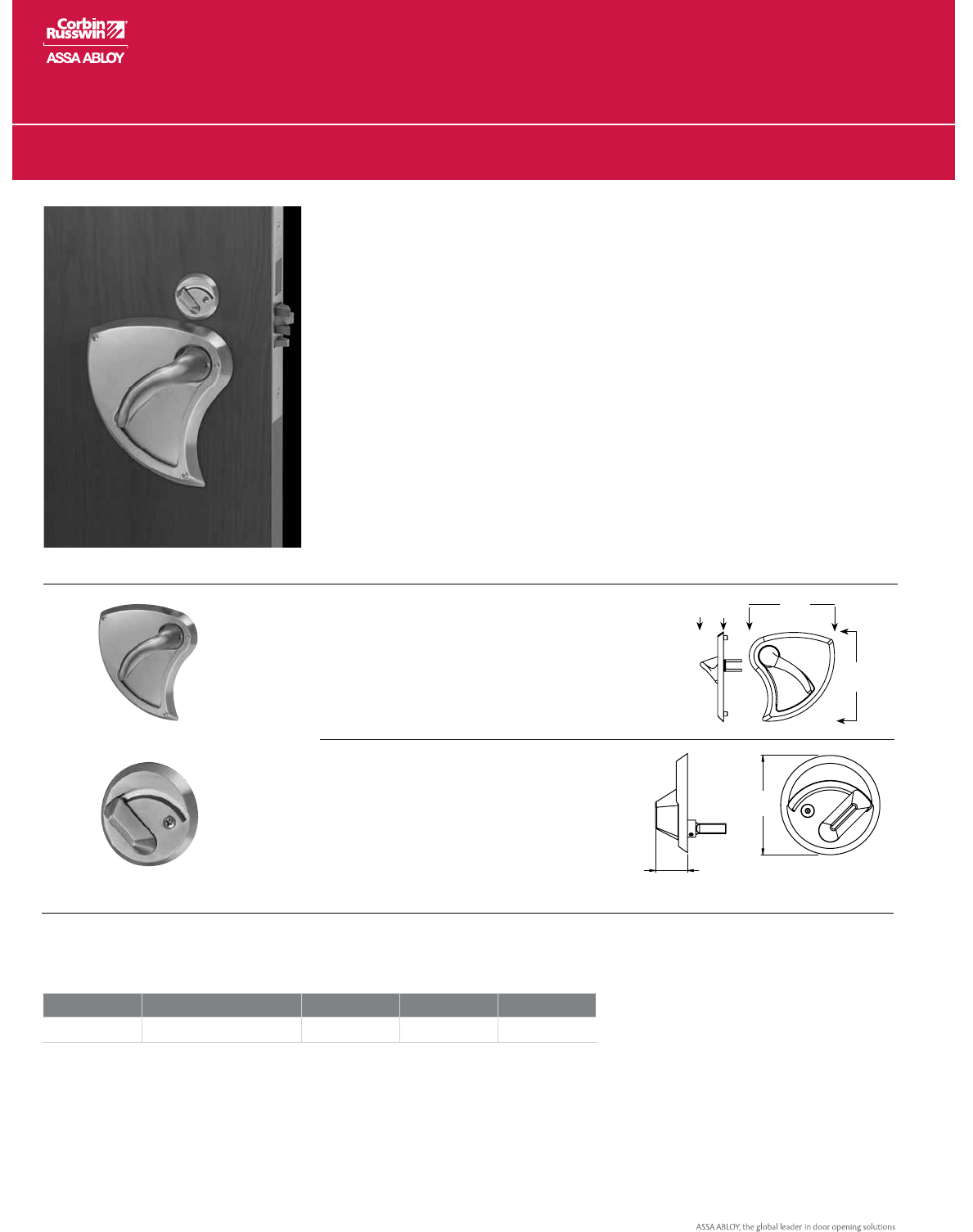

Behavioral Health Trim
ML2000
Quantity Series/Function Trim Finish** Hand
100 ML2010 BHSS 630 RHR
BHSS*
PartoftheBehavioralHealthSeries™ofproducts,the
ML2000 mortise lock with BHSS trim provides an innovative
solution for behavioral health environments. The unique
integrated lever and escutcheon combines aesthetics with
safety. Ease of operation, along with the strength and
versatility of the ML2000 mortise lock allows its use in many
applications.
Refer to the Specialty Hardware Catalog (45205) for more information.
BHSS
Stainless Steel
How to Order
BHSS
**BHSS is not available in 625 (Bright Chrome) or 626 (Satin Chrome) finishes. Please order 629 (Bright Stainless Steel) or 630 (Satin Stainless Steel) instead.
*Although these products are better designed for behavioral health applications than traditional trim, they do not eliminate the risk that an object can
be affixed to, or around them.
Thumbturn - BHSS
Stainless Steel
Door thickness: 1-3/4" (44mm)
through 2-1/4" (57mm)
(Not available with Occupancy Indicator)
2-1/4"
(56mm)
7-1/4"
(183mm)
7-1/2"
(190mm)
3/4"
(18mm)
2"
(51mm)
U.S.PatentNumber:D690,577
Overview
ML2000
ML2000.61
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

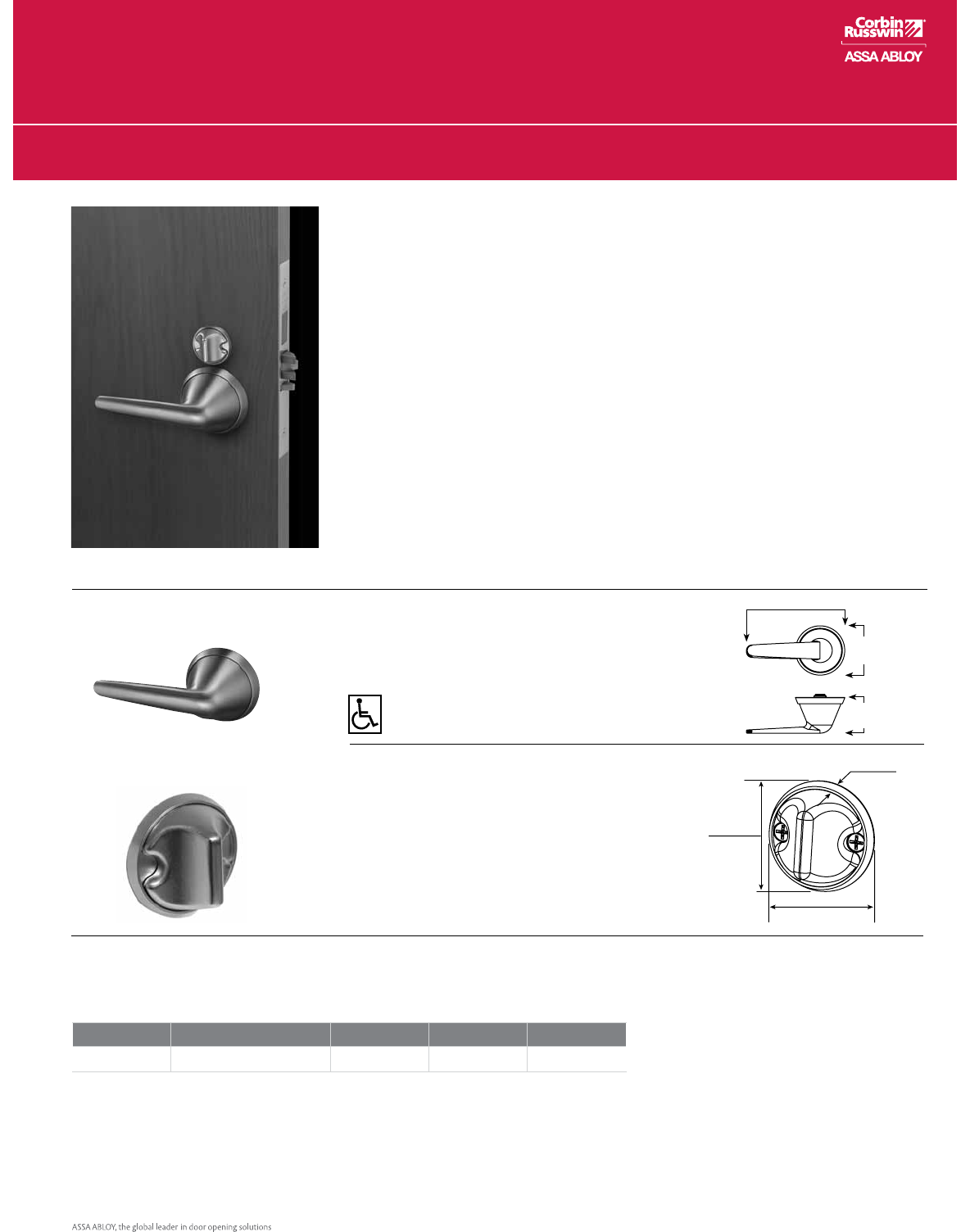

Behavioral Health Lever Trim
ML2000
Quantity Series/Function Trim Finish** Hand
100 ML2010 BLSS 630 RHR
BLSS*
The BLSS trim is part of the Behavioral Health Series™ of
products. With an array of functions, this trim can be used
on virtually any opening in healthcare applications. Sloping
surfaces and overlapping rose and lever address safety
concerns common in behavioral health. Optimal for tough
environments, the ML2000 mortise lock provides impressive
strength and reliability.
Refer to the Specialty Hardware Catalog (45205) for more information.
BLSS
Stainless Steel
How to Order
BLSS
** BLSS is not available in 625 (Bright Chrome) or 626 (Satin Chrome) finishes. Please order 629
(Bright Stainless Steel) or 630 (Satin Stainless Steel) instead.
1-3/4"
(44mm)
1-3/4"
(44mm)
1"
(25mm)
Thumbturn - BLSS
Stainless Steel
Door thickness: 1-3/4" (44mm)
through 2-1/4" (57mm)
(Not available with Occupancy Indicator)
*Although these products are a better design for behavioral health applications than traditional trim, they do not eliminate the risk that an
object can be affixed to, or around them.
6"
(152mm)
2-1/4"
(56mm)
3"
(76mm)
Overview
ML2000
ML2000.62
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15

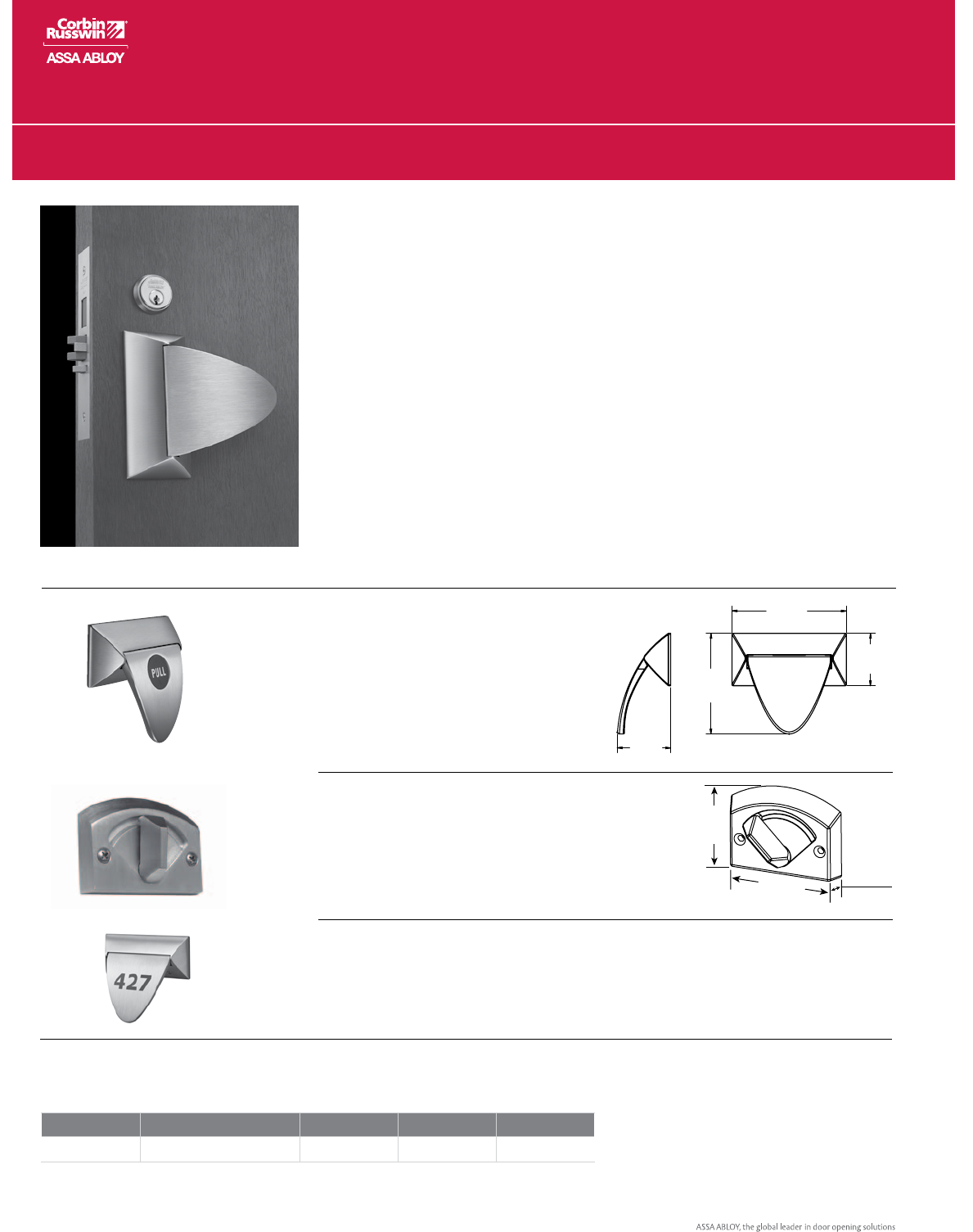

Push/PullTrim
ML2000
Quantity Series/Function Trim Finish* Hand
100 ML2010 HPSK 630 RHR
6"
(152mm)
2-3/4"
(70mm)
5-1/4"
(134mm)
2-4/5"
(71mm)
U.S. Patent Numbers: D646,548S; D646,549S
HPSK
The ML2000 mortise lock with push/pull paddle trim
provides an aesthetically pleasing alternative to products
with standard push/pull trim. Its heavy-duty design and ANSI/
BHMA Grade1 strength help it to withstand abuse from
rigorous environments. Multiple mounting orientations,
hands free operation and a sleek, aesthetic form, make the
ML2000 mortise lock ideal for use in healthcare facilities and
educational facilities.
Refer to the Specialty Hardware Catalog (45205) for more information.
HPSK
Covers: Cast stainless steel or brass
Paddles:Caststainlesssteelorbrass
Specify hand.
How to Order
HPSK Push/Pull
Thumbturn - HPSK
Brass or Stainless Steel
Door thickness: 1-3/4" (44mm) through 2-1/4" (57mm).
(Not available with Occupancy Indicator) 2-3/4"
(70mm)
2"
(50mm)
7/8"
(22mm)
* HPSK is not available in 625 (Bright Chrome) or 626 (Satin Chrome) finishes. Please order 629
(Bright Stainless Steel) or 630 (Satin Stainless Steel) instead.
Laser Engraving - HPSK
Brass or stainless steel
Offered on all 3 paddle orientations
2-1/2" w x 2-1/2" h max laser engraving area
(See Custom Laser Engraving brochure for more details)
Overview
ML2000
ML2000.63
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

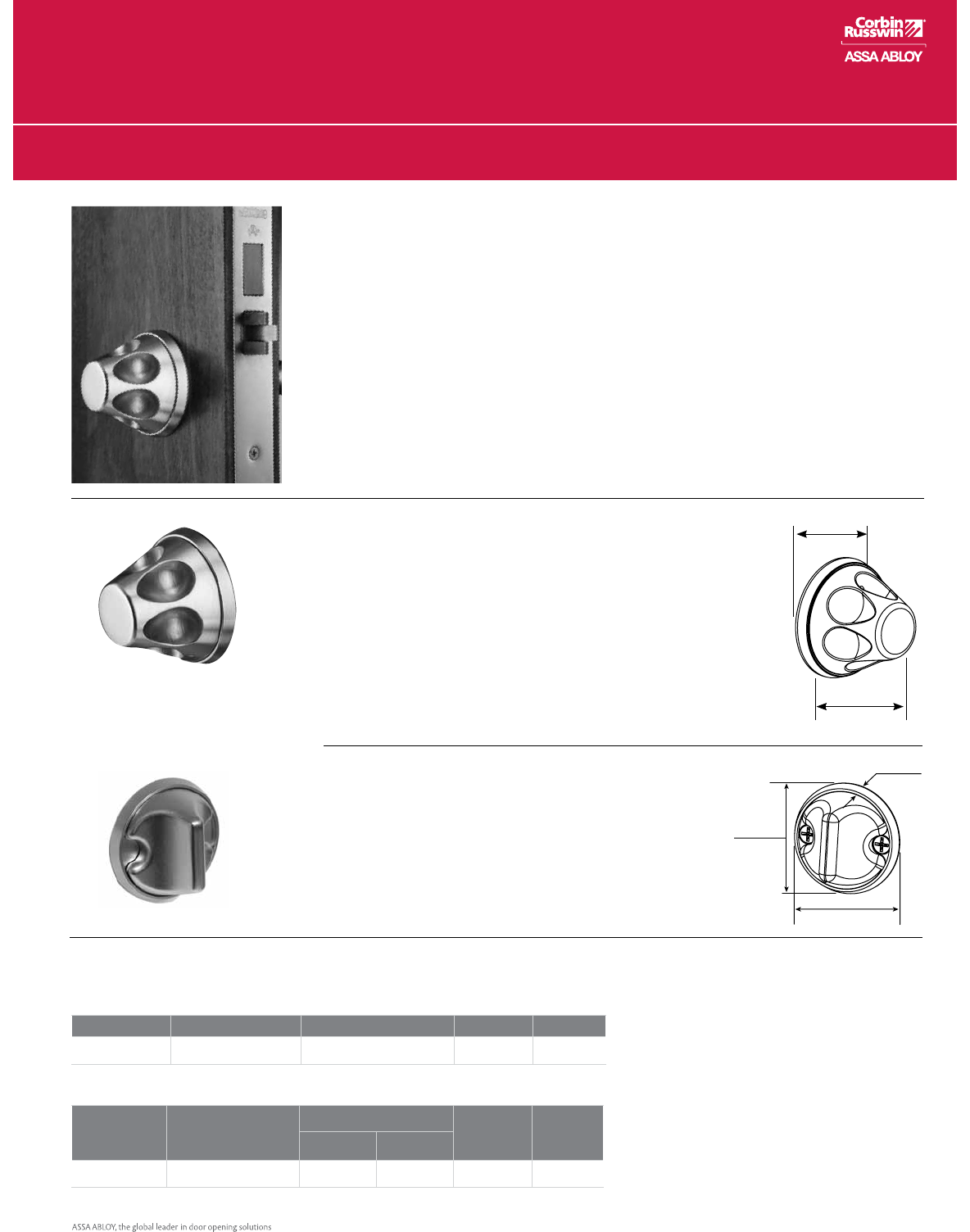

Anti-Harm Trim
ML2000
Notes: OnlevertrimxHSSKnob,theoutsideleverwillberetainedwithasetscrew.
 HSSKnobisonlyavailablewiththeroseshown.Nooptionalrosesorescutcheons.
Knob:Brass
Door thickness: 1-3/4" (44mm) through 4" (102mm) in
1/4" increments.
Finishes: 606, 626, and 626C
Anti-Harm Knob
HSS
Brass
2-3/4"
(70)
1-7/8"
(48)
How to Order
Anti-Harm Knob (HSS) Trim – HSS Knob x HSS Knob
Quantity Series/Function Trim Finish Hand
6 ML2032 HSS 626 RH
Quantity Series/Function Trim Finish Hand
Outside Inside
6 ML2055 NSA HSS 626C RH
1-3/4"
(44mm)
1-3/4"
(44mm)
1"
(25mm)
Thumbturn - HSS
Standard for all ML2000 x HSS
thumbturn functions
(Not available with Occupancy Indicator)
Anti-Harm Knob HSS
The anti-harm knob is designed for safety and security by
eliminating catch points with a tapered knob recessed into the
rose, a tapered thumbturn (for mortise lock thumbturn functions)
with Torx® pin security screws, tapered cylinder collars and
concealed mounting screws. Available as sectional trim, the anti-
harm knob features recessed finger holes for a better grip and the
reliability of the ML2000 ANSI/BHMA grade 1 mortise lock. Ideal
for psychiatric or detention facilities.
Refer to the Specialty Hardware Catalog (45205) for more information.
Anti-Harm Knob (HSS) Trim – Lever Trim x HSS Knob
Overview
ML2000
ML2000.64
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Options & Accessories
ML2000
Standard Thumbturn
Cast brass or bronze. Standard on functions utilizing
thumbturn. Sectional Trim.
Turn Size: 1-1
/
4" (32mm)
Spindle Size: 3
/
16" (5mm)
Plate Size: 1-3
/
8" (35mm)
Surface screw mounted To order separately, see table.
• AvailablewithStandard,MuséoandVineyardlevers
• Rosedesignwilldesignateshapeofthumbturn
backplate
•E2,E3andE4roses-squarebackplate
Decorative Thumbturn MT1
Cast bronze or stainless steel. Used on functions
utilizing a thumbturn. Sectional trim only.
To order with lock and trim, specify Quick Code MT1.
To order separately, see table.
Turn Size: 1-3/10" (33mm)
Plate Size: 1-1/2" (38.1mm)
• AvailablewithStandard,MuséoandVineyard
levers
• Rosedesignwilldesignateshapeofthumbturn
backplate
•Roundroses-roundbackplate
•E2,E3andE4roses-squarebackplate
Door Packet
Round Square
1-3
/
8" (35mm) 723F70M x F IN 723F71M x FIN
1-3
/
4" (44mm) 723F76M x F IN 723F77M x FIN
2-1
/
4" (57mm) 723F88M x F IN 723F89M x FIN
Up to 4"
(102mm) 723F82M x F IN 723F83M x FIN
Decorative Square Thumbturn MT2
Cast bronze or stainless steel. Used on functions
utilizing a thumbturn. Sectional trim only.
To order with lock and trim, specify Quick Code MT2.
To order separately, see table.
Turn Size: 1-3/10" (33mm)
Plate Size: 1-1/2" (38.1mm)
• AvailablewithStandard,MuséoandVineyard
levers
• Rosedesignwilldesignateshapeofthumbturn
backplate
•Roundroses-roundbackplate
•E2,E3andE4roses-squarebackplate
Door Packet
Round Square
1-3
/
8" (35mm) 723F72M x F IN 723F73M x FIN
1-3
/
4" (44mm) 723F78M x F IN 723F79M x FIN
2-1
/
4" (57mm) 723F90M x F IN 723F91M x FIN
Up to 4"
(102mm) 723F84M x F IN 723F85M x FIN
Decorative Cylinder Thumbturn MT3
Cast bronze or stainless steel. Used on functions
utilizing a thumbturn. Sectional trim only.
To order with lock and trim, specify Quick Code MT3.
To order separately, see table.
Turn Size: 1-3/10" (33mm)
Plate Size: 1-1/2" (38.1mm)
•AvailablewithStandard,MuséoandVineyard
levers
•Rosedesignwilldesignateshapeofthumbturn
backplate
•Roundroses-roundbackplate
•E2,E3andE4roses-squarebackplate
Door Packet
Round Square
1-3
/
8" (35mm) 723F74M x F IN 723F75M x FIN
1-3
/
4" (44mm) 723F80M x F IN 723F81M x FIN
2-1
/
4" (57mm) 723F92M x F IN 723F93M x FIN
Up to 4"
(102mm) 723F86M x F IN 723F87M x FIN
Door Packet
Round Square
1-3
/
8" (35mm) 519F09 x FIN 814F10 x FIN
1-3
/
4" (44mm) 519F10 x FIN 814F11 x FIN
2-1
/
4" (57mm) 519F11 x FIN 814F12 x FIN
Up to 4"
(102mm) 581F96 x FIN 814F13 x FIN
Overview
ML2000
ML2000.65
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Options & Accessories
ML2000

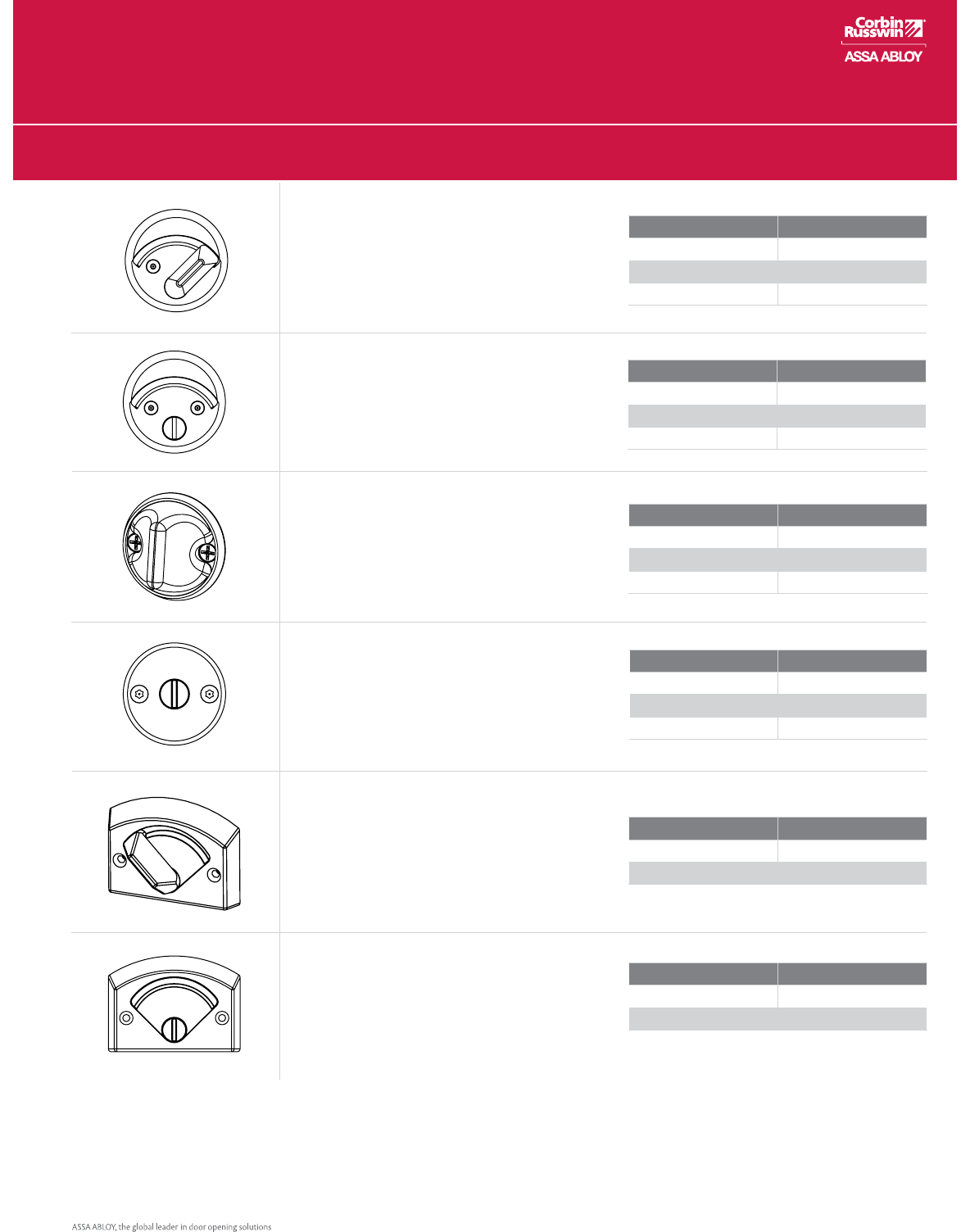

BLSS & HSS Thumbturn*
Cast bronze or stainless steel. Used on functions
utilizing a thumbturn. Sectional trim only.
To order, see table.
Plate Size: 1-3/4" (44mm) diameter
HPSK Thumbturn*
Cast bronze or stainless steel. Used on functions
utilizing a thumbturn. Sectional trim only.
To order, see table.
Plate Size: 2-3/4" (70mm) x 2" (50mm)
Door Packet
1-3/4" - 2" (44-51mm) 811F91M x FIN
2-1/4" (57mm) 811F92M x FIN
HPSK Emergency Turn*
Stainless steel. Used on functions utilizing a
thumbturn. Sectional trim only. To order, see table.
Plate Size: 2-3/4" (70mm) x 2" (50mm)
Door Packet
1-3/4" - 2" (44-51mm) 812F97M x FIN
2-1/4" (57mm) 812F98M x FIN
Door Packet
1-3
/
4" (44mm) 723F04 x FIN
2" (51mm) 723F05 x FIN
2-1/4" (57mm) 723F06 x FIN
BHSS Thumbturn*
Stainless steel. Used on functions utilizing a
thumbturn. Sectional trim only. To order, see table.
Plate Size: 2-1/4" (57mm) diameter
Door Packet
1-3
/
4" (44mm) 813F177 x FIN
2" (51mm) 813F187 x FIN
2-1/4" (57mm) 813F097 x FIN
BHSS Emergency Turn*
Stainless steel. Used on functions utilizing a
thumbturn. Sectional trim only. To order, see table.
Plate Size: 2-1/4" (57mm) diameter
Door Packet
1-3
/
4" (44mm) 813F747 x FIN
2" (51mm) 813F757 x FIN
2-1/4" (57mm) 813F767 x FIN
BLSS & HSS Emergency Turn*
Stainless steel. Used on functions utilizing a thumb-
turn. Sectional trim only. To order, see table.
Plate Size: 1-3/4" (44mm) diameter
Door Packet
1-3
/
4" (44mm) 813F92M x FIN
2" (51mm) 813F93M x FIN
2-1/4" (57mm) 813F94M x FIN
* Not available with Occupancy Indicators
Overview
ML2000
ML2000.66
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Options & Accessories
ML2000
Key Plate
Cast brass or bronze. Standard for privacy function with emergency release only. Sectional Trim.
Plate Size: 1-3
/
8"(35mm)diameter.Toorderseparately,specifyPacket438F90xFinish.
Hotel Occupancy Indicators
For use with ML2029 hotel locks. Furnished only
when ordered. When door is locked from inside,
push button cannot be depressed, indicating that the
room is occupied. To order specify quick code M19.
For use with sectional trim designs having 2-7
/
8"
(73mm) maximum rose diameter. Cylinder collar and
indicator combined.
Size: 3-1
/
16" (78mm) x 1-3
/
4" (44mm). To order
separately, see table. For use with escutcheon designs only. Indicator is fastened to escutcheon at
factory. It is included for illustration purposes only and is not sold separately.
Tapered Cylinder Collar
Furnished only for CSV or NSV trims with 1-1/4" cylinders, double cylinder functions or with 1-1/2"
cylinders, single cylinder functions.*
*1-3/4" thick doors. Only used with VR trims.
Collar and Indicator Assembly
Door Packet
1-3
/
8" (35mm) 429F08 x FIN
1-3
/
4" (44mm) 416F84 x FIN
2-1
/
4" (57mm) 484F74 x FIN
Ergonomic Thumbturn
Cast brass or bronze. Large profile
and offset center makes it easier
to grasp and rotate. Available on
both sectional and escutcheon
trim. To order with lock and trim,
specify Quick Code M34. To order
separately, see table.
Note: Not available with the M19N, M19SN,
orM19VNindicators.NotavailablewithHPSK
trim.
Door Packet
Escutcheon Trim up to 4" (102mm) 711F002
Sectional Trim
1-3
/
8" (35mm) - 1-5/8" (41mm) 707F57 x FIN
1-3
/
4" (44mm) - 2" (51mm) 707F58 x FIN
2" (51mm - 2-1
/
4" (57mm) 707F59 x FIN
2-3/8" (60mm) - 3" (76mm) 707F60 x FIN
3" (76mm) - 4" (102mm) 706F70 x FIN
2-1/2"
(64mm)
Square Cylinder Collar
Included when ordering Muséo® E2, E3 and E4 square/rectangular roses.
Used on all cylinder functions.
Size: 1-5/8" (41mm) square
ContactTPStodeterminecorrectcollarsize.
Overview
ML2000
ML2000.67
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Options & Accessories
ML2000
Indicators – Keyed Functions
• Canbeusedoneithersideofdoorfordoublecylinderfunctions
• Compatiblewithselectsectionaltrimrosedesigns:A,B,W,X,Y
Indicators – Non Keyed Functions
• InsideIndicatoralwaysreadsSecure/Unsecure
• OutsideIndicatorfeaturesslot-turnemergencyoverride
• Compatiblewithallsectionaltrimrosedesigns:A,B,C,D,E,F,G,T,U,V,W,X,Y
Thumbturn Indicator
• Locatedontheinsideofthedoorandreadssecure/unsecure
• Builtintotheoccupancyindicator
• OnlyavailableinML2013,ML2017,ML2020,ML2024,ML2029,ML2030,ML2048,ML2060,ML2065,
ML2067, ML2068, ML2069 and ML2075 functions
Occupancy Indicators*
Occupancy indicators for use with ML2000 x sectional trim. Design features option for dual indicators on double cylinder
functions, confirming door is secured from either side. Emergency override standard for all non keyed functions.
Features:
•Designeliminatesunauthorizedentryviaindicatortampering
•Nonkeyedindicatorsavailablewithemergencyslotturnoverride
•Usewithbothkeyedandnon-keyedfunctions
•Foruseoutside,insideorbothsidesofdoor
•Chooseoutsideindicatortext:Vacant/OccupiedorSecure/Unsecure
•InsideindicatorsalwaysreadSecure/Unsecure
•Torxpinsecurityfasteners(standardwithcylinderindicators)
Inside Indicator
Outside Indicator
Secure
Door Packet
1-3/8" (35mm) 720F21 x Finish
1-3/4" (44mm) - 2" (51mm) 720F22 x Finish
2-1/4" (57mm) 720F24 x Finish
Over 2-1/4" (57mm) 720F25 x Finish
Vacant
Door Packet
1-3/8" (35mm) 741F21 x Finish
1-3/4" (44mm) - 2" (51mm) 741F22 x Finish
2-1/4" (57mm) 741F23 x Finish
Over 2-1/4" (57mm) 741F24 x Finish
Secure
Door Packet
1-3/8" (35mm) 721F16 x Finish
1-3/4" (44mm) - 2" (51mm) 721F17 x Finish
2-1/4" (57mm) 721F18 x Finish
Over 2-1/4" (57mm) 721F19 x Finish
Vacant
Door Packet
1-3/8" (35mm) 720F61 x Finish
1-3/4" (44mm) - 2" (51mm) 720F62 x Finish
2-1/4" (57mm) 720F64 x Finish
Over 2-1/4" (57mm) 720F65 x Finish
Door Packet
1-3/8" (35mm) 723F69 x Finish
1-3/4" (44mm) - 2" (51mm) 723F26 x Finish
2-1/4" (57mm) 791F59 x Finish
Over 2-1/4" (57mm) 791F60 x Finish
* Not available with BHSS or BLSS Trim
Overview
ML2000
ML2000.68
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Options & Accessories
ML2000
Occupancy Indicator Quick Codes and Functions
Quick
Code Outside Inside
ML2002
ML2003
ML2011
ML2012
ML2013
ML2017
ML2020
ML2022
ML2024
ML2029
ML2030
ML2048
ML2059
ML2060
ML2062
ML2065
ML2067
ML2068
ML2069
ML2072
ML2073
ML2075
ML2082
ML2092
Single Indicator
M19S Secure/Unsecure — X X X X X X X X X X X X X X X X X X X X X
M19V Vacant/Occupied —XXXXXXXXXXXXXXXXXXXXXXXX
M19N — Secure/UnsecureXXXXXXXXXXXXXXXXXXXXXXXX
Double Indicator
M19SN Secure/Unsecure Secure/Unsecure X X X X X X X X X X X X X X X X X X X X X
M19VN Vacant/Occupied Secure/Unsecure X X X X X X X X X X X X X X X X X X X X X X X X
How to Order:
ML2060 x NSA x 626 x RH x M19V
Non keyed function x sectional trim x outside indicator with slot turn (text reads Vacant/Occupied)
ML2072 x NSA x 626 x RH x M19SN x PHS x KA
Double cylinder x sectional trim x outside indicator (Secure/Unsecure) x inside indicator (Secure/Unsecure) x keyed alike
Overview
ML2000
ML2000.69
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Options and Accessories
ML2000, ML20900 ECL and ML20600 NAC
To order optional cylinder with lockset, see Quick Codes, page 69.
Toordercylinderseparately,specifyPartNo.xKeywayxFinish
(e.g., 1000-118-A01 x L4 x 626).
Indicates cylinder is available with ML2000HS lockset.
Indicates function is available with vandal resistant ML2000VR lockset.
**Not available for ML2017, ML2029, ML2060, ML2061, ML2068, ML2069, ML2032 x MR,
ML2000HS,ML2000VR,ML20900andPescutcheons(allfunctions).
Note: Master ring cylinder meets ANSI/BHMA operational Grade 1.
2 nickel silver keys
Finishes:SeeKeySystemscatalog
Cylinders
Plug only to show
(concealed shell)
Only the cylinder plug
face is visible when lock
trim is in place. Available with
“M”, “R”, and “L” escutcheons.
See individual trim designs
for availability.
Mortise
Cylinder Type
Quick
Code Hotel Function 42 (inside) 52, 53, 55, 56,
58, 69 Functions
All Other Keyed and 42
(outside) Functions
Access 3®Patented AP 1501-114-A01 1500-114-A02 1500-114-A01
Access 3® Security AS 1601-114-A01 1600-114-A02 1600-114-A01
Access 3® High Security AHS 1701-114-A01 1700-114-A02 1700-114-A01
Access 3®PatentedIC ACP N/A 1580-114-A02 1580-114-A01
Access 3® Security IC ACS N/A 1680-114-A02 1680-114-A01
Access 3® High Security IC ACHS N/A 1788-114-A02 1788-114-A01
PyramidHS PHS N/A 1020-114-A02 1020-114-A01
PyramidHSIC PCHS N/A 1030-114-A02 1030-114-A01
PyramidSecurity PS N/A 1027-114-A02 1027-114-A01
PyramidSecurityIC PCS N/A 1037-114-A02 1037-114-A01
Conventional 6-pin N/A 1001-114-A01 1000-118-A02 1000-118-A01
Conventional 7-pin 7P N/A 1000-114-A02-7 1000-114-A01-7
6-pin IC C6 1081-138-A01 1080-114-A02 1080-114-A01
7-pin IC C7 N/A 1080-112-A02-7 1080-112-A01-7
Security HS 1011-114-A01 1010-118-A02 1010-118-A01
Security IC CHS 1091-138-A01 1090-114-A02 1090-114-A01
Flex head 6-pin FX6 1101-118-A01 1100-100-A02 1100-100-A01
Flex head 7-pin FX7 N/A 1100-118-A02-7 1100-118-A01-7
Master ring** MR N/A 1060-118-A62 1060-118-A61
Master ring flex head** FXM N/A 1160-100-A62 1160-100-A61
Blockout BO N/A 1012-114-A02 1012-114-A01
Plugonlytoshow-6-pin P06 1201-114-A01 1200-118-A02 1200-118-A01
Plugonlytoshow7-pin P07 N/A 1200-114-A02-7 1200-114-A01-7
Interchangeable Core (I.C.)
Shown
Overview
ML2000
ML2000.70
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Options and Accessories
ML2000, ML20900 ECL and ML20600 NAC
Part No. Description
236L72 Straight Lip
340L60 Curved Lip for RH/LHR
340L61 Curved Lip for LH/RHR
236L73 Straight Lip
340L62 Curved Lip for RH/LHR
340L63 Curved Lip for LH/RHR
236L74 Straight Lip
236L70 Straight Lip
ANSI Wrought Strike Box
To order with lockset, see
Quick Codes, page 70.
To order separately, specify
120F76.
Open Back
Size: 5-1/4" (133mm) x 1/4" (32mm).
To order with lockset, see
Quick Codes, page 70. To order
separately,specifyPartNo.x
Door Thickness x Finish (e.g.,
411L62 x 2" x 626).
Rabbeted Front and Strike
Brass or bronze
For 1/2" (13mm) rabbet
No optional lip lengths
To order with lockset, see
Quick Codes, page 70.
To order separately,
specifyPartNo.xFinish
(e.g., 318F66 x 626).
Strikes
ANSI Straight Lip (standard)
Brass, bronze or stainless steel
Non-handed
4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8"
(29mm) lip to center (standard)
Optional lip lengths: 7/8" (22mm), 1"
(25mm), , 1-1/8" (29mm), 1-1/4" (32mm),
1-3/8" (35mm), 1-1/2" (38mm), 1-3/4"
(44mm), 2" (51mm), 2-1/4" (57mm),
2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm)
ANSI Curved Lip
Brass, bronze or stainless steel
Handed
4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4"
(32mm) lip to center (standard)
Optional lip lengths: 1-1/8" (29mm), 1-3/8"
(35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2"
(51mm), 2-1/4" (57mm), 2-1/2" (64mm),
2-3/4" (70mm), 3" (76mm)
To order strike with lockset, see How to Order, page 66.
Toorderstrikeseparately,specifyPartNo.xLipLengthxFinish
(e.g., 340L60 x 1-1
/
2" x 626).
Rabbeted Front and Strike
Open Back Strike
Hand Door Thickness Part
LHR
1-3/4" (44mm) 411L63 016
2" (51mm) 411L63 018
2-1/4" (57mm) 411L63 020
RHR
1-3/4" (44mm) 411L62 016
2" (51mm) 411L62 018
2-1/4" (57mm) 411L62 020
Strike Box
Part No. Hand
Latchbolt x
Deadbolt
318F66
318F69
RH/LHR
LH/RHR
Latchbolt only 318F64
318F67
RH/LHR
LH/RHR
Deadbolt only 318F65
318F68
RH/LHR
LH/RHR
LH Shown
LH Shown
Note: Only Available with ML2000
Latchbolt x Deadbolt
Latchbolt Only
Deadbolt Only
BlankFillerPlate
Overview
ML2000
ML2000.71
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Options and Accessories
ML2000, ML20900 ECL and ML20600 NAC
Model Enclosure Input Output
BPS-24-1 12" (304mm) x 9" (229mm) x 4" (102mm) 115VAC, 50/60 Hz. 1 Amp @ 24 VDC
BPS-24-2 14" (356mm) x 14" (356mm) x 4" (102mm) 115VAC, 50/60 Hz. 2 Amp @ 24 VDC
BPS-24-4 15" (381mm) x 18" (457mm) x 6" (152mm) 115VAC, 50/60 Hz. 4 Amp @ 24VDC
BPS-12-1 12" (304mm) x 9" (229mm) x 4" (102mm) 115VAC, 50/60 Hz. 1 Amp @ 12 VDC
BPS-12-3 14" (356mm) x 14" (356mm) x 4" (102mm) 115VAC, 50/60 Hz. 3 Amp @ 12 VDC
BPS Power Supply
Operation
Powersuppliesaredesignedtoprovide
reliable filtered and regulated power for
long life to a variety of electrified hardware
components. All modular power supplies
are designed to meet UL 1481 Standards.
Recommended for the ML20900, delayed
egress exit devices and electric trim.
Features
• Firepanelemergencyreleaseinput
• PCBoardmountedsystemLED
indicator
• Regulatedandfilteredwithinput
and output protection
• Batterychargingisprovidedfroma
separate output terminal
Electrical Specifications
• Inputs:115VAC@600mA
• Outputs:12/24VDC@1Amp,1.5
Amp or 4 Amp, Filtered and
regulated output
Listings
• UL&cULlisted1012General
 PurposePowerSupply
• Fire&BurglarAlarmPowerSupply
Unit URT2
• ReleasingdeviceAccessorySYSW
• AccessControlSystemsUnitsALVY
• BurglarAlarmSystemsPowerSupply
 APHY
Applications
• D–DelayedEgress
• M97–ElectricDogging
• SAF–FailSafemortisedevicetrim
control
• SEC–FailSecuremortisedevice
trim control
• ML20900
Note:BatteriesarenotincludedwiththeBPSpowersupply
To answer the demand for "smart" electronic access control
and locking solutions that require fast, easy, and cost-effective
installation, ASSA ABLOY Group brands use the ElectroLynx®
standardized plug-in connectors and color-coded wiring system.
With ElectroLynx, doorway components come pre-wired for easy
hookup to the power source. The key to the system is the transfer
device hinge that carries power from the frame to the locking
hardware.
Features of ElectroLynx:
• Makesiteasytobringpowertothelockinghardware
• Wireshaveconnectorsthatsnaptogether,likeplugging
a telephone into a jack
To connect a ML20900 electrified mortise lock to the electronic
access control system, the following items are required:
•ML20900electrifiedmortiselock
• ASSAABLOYDoorGrouppre-wireddoor,orElectroLynx
 retrofitcable(orderfromMcKinney)
• Electronictransferdevice(ElectroLynx electronic transfer
 hingeorElectricalPowerTransferwithstandardhinge,
 fromMcKinney)
• ElectroLynx cable from the hinge to above the ceiling
 (orderfromMcKinney)
Information regarding cable selection, hinge requirements and
orderstringscanbefoundintheMcKinneyTransferDevice
Solutions catalog. Consult 800-810-WIRE (9473) with questions
on application specifications and requirements.
TheMcKinneyQC8ElectroLynxHingeisrecommendedforall
ML20900 functions and electrified options.
Requirements for Electrical and Data Transfer
Overview
ML2000
ML2000.72
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Electrified Options & Accessories
ML20900 ECL and ML20600 NAC

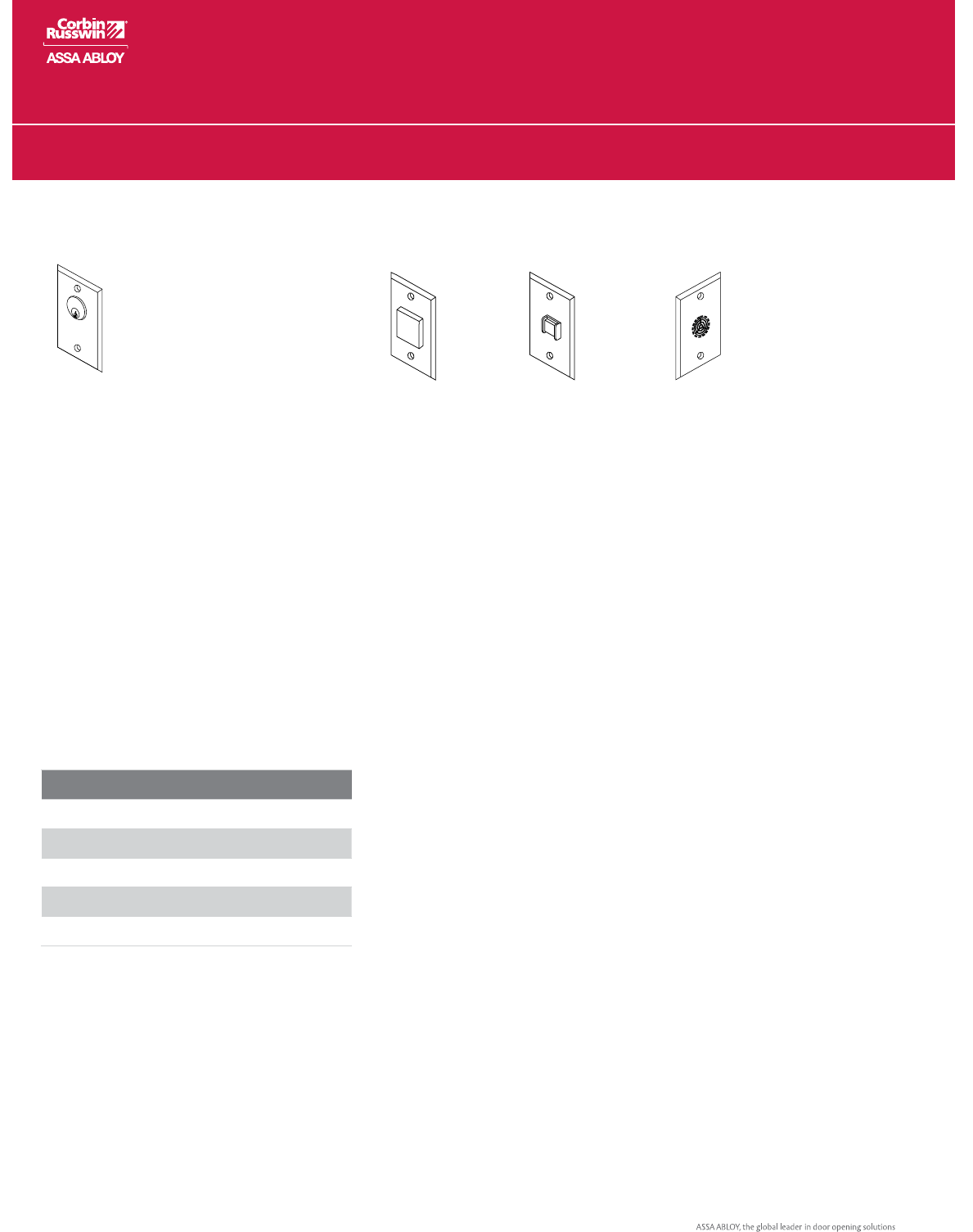

Exit Controls and Switches
Key Switches
MKA-(1)SPDTMaintained
MK-(1)SPDTMomentary
MKN-(1)SPDTMomentaryNS
MK2-(1)DPDTMomentary
MKPZ x MKS - (1)SPDTMomentarywith
audio Double Gang x Additional Switch
Note: All key switches come standard with
12/24 VDC bi-color LED.
Specifications
• Keyswitchforoperationusinga
standard 1-1/8" mortise cylinder (A02
cam) (cylinder not included).
• Contact Rating 5 Amps @ 12-24VDC
• SPDT3-position.
Push Buttons
PB2-(1)SPDTMomentary
PB2-(1)DPSTRemoteMomentary
PB3-(1)DPSTMomentary
PB3A-(1)DPSTMaintained(Alt.Action)
PB3EA-(1)DPSTAlternate
Specifications
• 3Amps@12-24VDC
Indicator
ZLP - (1)RedandGreenLEDonnarrow
gang plate.
Audible/Visual Annunciators
PZ1-Sonalert90db@2ft.12-24VDC.
Mounted on one gang stainless steel plate.
Digital Entry
DK-11-DigitalKeypad-4User
DK-26SS - DigitalKeypadNS-59User -
SS Finish
DK-26BK - DigitalKeypadNS-59User -
Black Finish
Power Transfers
TSB B-C - Door Cord
MKA PB3PB2 PZ1
Electric Accessories
Description
Powersupply1.0Amp@12VDCoutput
Powersupply3.0Amp@12VDCoutput
Powersupply1.0Amp@24VDCoutput
Powersupply2.0Amp@24VDCoutput
Powersupply4.0Amp@24VDCoutput
Overview
ML2000
ML2000.73
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
How to Order
ML2000
Working Trim Only
Contract / Detailed Order
Split Trim / Finish Order
Ordering Examples - ML2000 Series Where to find
ordering
information and
Quick Codes
ML2000 Series/Function 5-9
ML20900 ECL Series/Function 13
Trim Designs 14-54
CylinderandKeying 69
Finish 69
Strikes 70
Miscellaneous Options 70
Door Thickness 70
Handing 71
(Includes grip and spindle,
rose or escutcheon,
thumbturn lever,
emergency key plate,
adapters and screws)
Quantity Series/Function Trim Finish Hand
100 ML2055 LWA 626 RHR
50 ML2055HS SST 626 LHR
Stock Order
Quantity Keyset Series/
Function Trim Finish Hand Door
Thickness
Optional
Strike
Misc.
Options
Optional
Cylinder Keying
24 AA1 ML2055 LWA 626 RHR D214 SA200 M17-M26 C7 VKC3
12 AA1 ML2055HS SST 626 LHR D214 SS200 M07 C6 VKC1
6AA1 ML2055VR NSV 630 RH D214 SS114 M17 PCHS VKC1
Quantity Function Only Trim Finish Hand Door Thickness Misc. Options
6ML2055 LWA 626 RHR D214 M31
3ML2055HS SST 626 LHR D214 M31
1ML2055VR NSV 630 RH D214 M31
Quantity Series/
Function
Trim Finish Hand
Outside Inside Outside Inside
12 ML2055 LWA GRC 626 625 RHR
6ML2055HS SST —626 606 LHR
12 ML2055 ZSL —626 625 RHR
24 ML2051 MSG —605 625 LH
12 ML2055 102U —626 606 RHR
24 ML2051 122R 110R 605 625 LH
LH RH
LHR RHR
Left Hand Right Hand
Left Hand Reverse Right Hand Reverse
Note: Arrow indicates secure side of door.
Overview
ML2000
ML2000.74
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
How To Order
ML2000 and ML20900 ECL
Lock Only (Includes lock case, armored front, strike and screw pack)
*TRIMKEY
KK KnobxKnob
LL Lever x Lever
LK LeverxKnob
KL KnobxLever
HL Lever Inside Only
HK KnobInsideOnly
Quantity Series/
Function Trim* Finish Hand Door
Thickness
Optional
Strike
Misc.
Options
6ML2055 LL 626 RHR D138 SS078 M17
3ML2055HS KK 626 LHR D214 SA200 M29
Ordering Examples - ML20900 ECL Series
Lock Only (Includes lock case, armored front, strike and screw pack)
Quantity Series/
Function Trim* Finish Hand Fail Safe/
Fail Secure
Misc.
Options
6ML20914 LL 626 RHR SAF M105
Contract / Detailed Order
Quantity Keyset Series/
Function Trim Finish Hand Fail Safe/
Fail Secure Misc.Options Optional
Cylinder Keying
24 AA1 ML20914 LWA 626 RHR SEC M20 7P VKC3
*TRIMKEY
KKKnobxKnob
LL Lever x Lever
LKLeverxKnob
KLKnobxLever
HL Lever Inside Only
HKKnobInsideOnly
Overview
ML2000
ML2000.75
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15

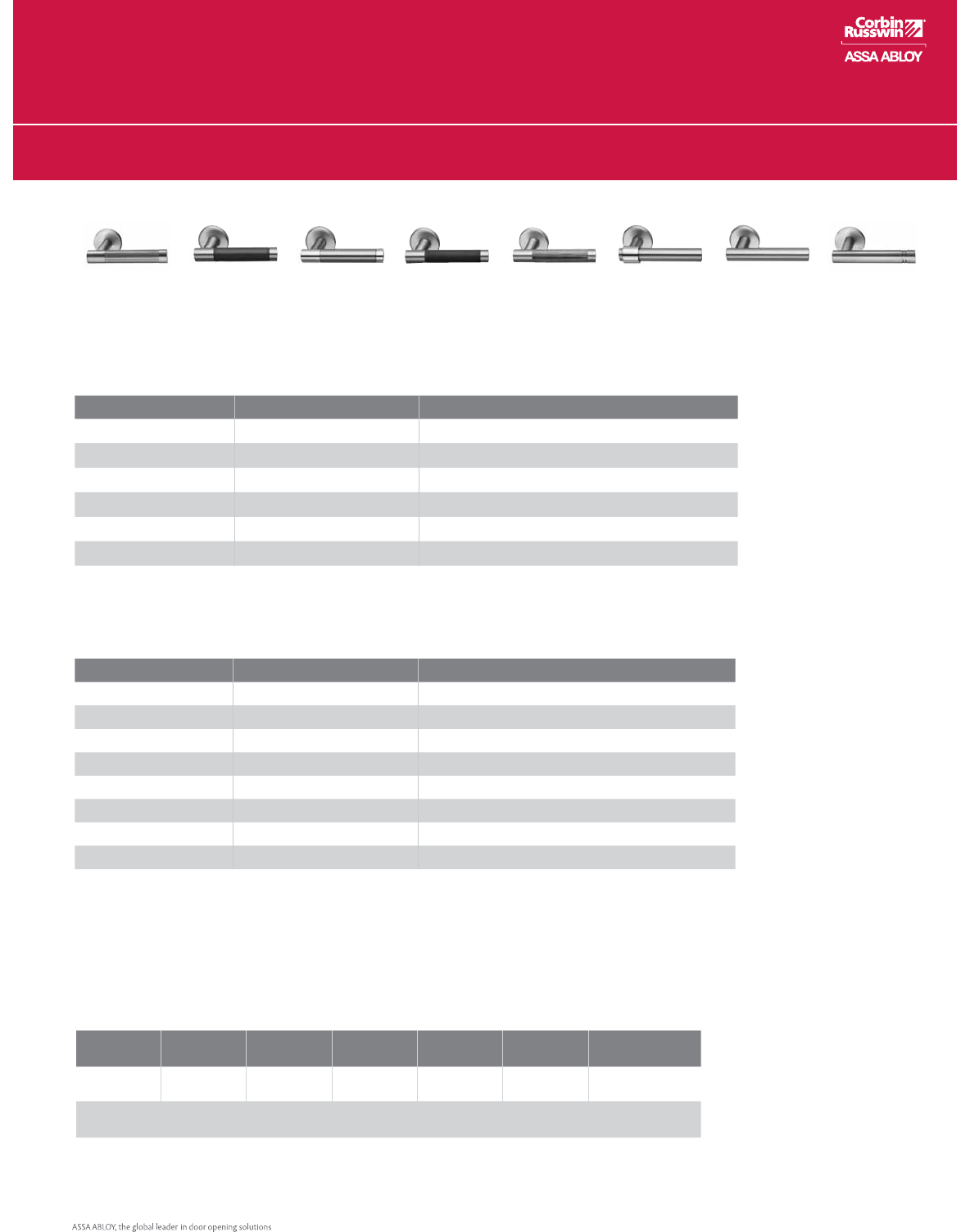

How to Order the Muséo®PietLevers
ML2000 and ML20900 ECL
Rose Options: E2, E3, E4, T, U, V, W, X, Y
Escutcheon Options: L, R
Quantity Series/
Function Trim Lever Finish Lock Finish Hand Thumbturn
Options
2 ML2055 21LU 29BK29 629 RH MT3
1 ML2051 23ML 290030 629 RH MT3
Grooved Insert
21G
Leather Insert
21L
Polished with
Satin Insert
21M
Santoprene™
Insert
21S
Wood Insert
21W
With Raised
Band
23M
Plain
25M
Plain with Two
Grooves
27M
ANSI/BHMA Finish Piet Code* Description
630 30 Satin Stainless Steel
629 29 Bright Stainless Steel
N/A BH Wood insert
N/A BK Black (Santoprene™ or leather insert)
N/A BN Brown (leather insert)
N/A 00 No Insert
Piet Finish Codes
Lever Designation Lever Description Available Finishes (as ordered)
21G Grooved Insert 292929 or 303030
21L Leather Insert 29BK29,29BN29or30BK30,30BN30
21M Metallic Insert 293029** only
21S Santoprene Insert 29BK29or30BK30
21W Wood Insert 29BH29 or 30BH30
23M Raised Band 290029, 300030 or 290030**
25M Plain 290029 or 300030
27M Two Grooves 290029 or 300030
Piet Lever Descriptions & Available Finishes
**Two-tone finish - grip of lever is 630, balance of lever is 629. Rose/escutcheon and lock finish will be 629.
*CodeusedtospecifyPietCollectionnishesonly.Useavailablenisheslisttospecifydesirednishwhenordering.
Ordering Examples
Overview
ML2000
ML2000.76
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Quick Codes
ML2000, ML20900 ECL and ML20600 NAC
Cylinder and Keying
Indicates cylinder is available with ML2000HS lockset
Indicates availability with ML200VR lockset
Description Specify
Keyedrandom KR
Construction master keyed (not
availableforPyramid) CMK
Visual key control
- No keying data stamped on key or
cylinder VKC0
-Keysonly VKC1
-Cylindersandkeys(notforHS,CHS,PHS,
PCHS,AS,ACS,AHS,orACHS) VKC2
-Cylindersonly(notforHS,CHS,PHS,
PCHS,A P, ACP,AS,ACS,AHSorACHS) VKC3
Concealedkeycontrol(CKC)
-CKCcylinderswithVKCkeys CKC2
-CKCcylindersonly(notforHS,CHS,PHS,
 PCHS,A P, ACP,AS,ACS,AHSorACHS)
CKC3
2 keys per lock
More than 2 keys
(standard)
KY#(e.g.,KY6)
1. Not available with ML2029.
2. Not available for ML2017, ML2029 or ML2032 x MR, ML2000HS or ML2000VR.
Description Specify
Conventional 6-pin (standard)
Conventional 7-pin 7P
Less cylinder(s) LC
IC 6-pin C6
IC 6-pin with temporary construction core
Red CT6R
Blue CT6B
Green CT6G
IC 6-pin less core CL6
SFIC 6-pin with SFIC disposable temporary core CT6SD
SFIC 6-pin with Less Core1 CLS6
IC 7-pin C7
IC 7-pin with temporary construction core
Red CT7R
Blue CT7B
Green CT7G
IC 7-pin less core CL7
SFIC 7-pin with SFIC disposable temporary core CT7SD
SFIC 7-pin with Less Core1 CLS7
Security HS
Security IC CHS
Access3-Patented AP
Access 3 - Security AS
Access 3 - High Security AHS
Access3IC-Patented ACP
Access 3 IC - Security ACS
Access 3 IC- High Security ACHS
ULIC6-PinHousingLessCore CL6AH
ULIC6-PinHousingwithDisposableCore CTAHD
ULIC6-PinHousingwith(Red/Blue/Green)Temporary
Construction Core CT6AH(R/B/G)
PyramidHighSecurityFixedCore PHS
PyramidHighSecurityIC PCHS
PyramidICLessCore CLP
Pyramidwithtemporary
construction core CTP
PyramidSecurity PS
PyramidSecurityIC PCS
PyramidDisposableCore CTPD
6-PinDisposableCore CT6D
7-PinDisposableCore CT7D
Master ring2 MR
Blockout function cylinder BO
Flex head cylinder, 6-pin (sectional trim) FX6
Flex head cylinder, 7-pin (sectional trim) FX7
Flex head cylinder, master ring2
(sectional trim) FXM
Plugonlytoshow,6-pin(concealedshell;MandR
escutcheons only, single cylinder only) PO6
Plugonlytoshow,7-pin(concealedshell;MandR
escutcheons only, single cylinder only) PO7
Plugonly,lesscylinder PO-LC
Laser Engraving LASER
Finishes
ANSI/BHMA 605 (US3) Bright Brass
ANSI/BHMA 606 (US4) Satin Brass
ANSI/BHMA 611 (US9) Bright Bronze
ANSI/BHMA 612 (US10) Satin Bronze
ANSI/BHMA 613 (US10B) Oxidized Bronze, oil rubbed
613E (US10BE) Dark Oxidized Satin Bronze -
Equivalent
613L Dark Oxidized Satin Bronze, Clear
Coated
ANSI/BHMA 618 (US14) BrightNickelPlated
ANSI/BHMA 619 (US15) SatinNickelPlated
ANSI/BHMA 625 (US26) BrightChromiumPlated
ANSI/BHMA 626 (US26D) SatinChromiumPlated
626C SatinChromiumPlatedwith
MicroShield®
ANSI/BHMA 629 (US32) Bright Stainless Steel
ANSI/BHMA 630 (US32D) Satin Stainless Steel
630C Satin Stainless Steel with
MicroShield®
ANSI/BHMA 722 Black Oxidized Bronze, oil rubbed
HS
HS
HS
HS
HS
HS
HS
HS
HS VR
Overview
ML2000
ML2000.77
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Quick Codes
ML2000, ML20900 ECL and ML20600 NAC
Miscellaneous Options Door Thickness
Description Specify
Spanner head screws M02
Torx® head screws (not available for “N” escutcheon
trims (Standard for ML2000HS and VR. Optional for
other trims)
M04
Blank Escutcheon Inside (only available
for ML2000HS and VR, not available
for ML2000)
M07
ANSI wrought strike box M17
Hotel occupancy indicator (Only available for
ML2029) M19
Single Occupancy Indicator - Secure/Unsecure
(Outside) M19S
Single Occupancy Indicator - Vacant/Occupied
(Outside) M19V
Single Occupancy Indicator - Secure/Unsecure
(Inside) M19N
Double Occupancy Indicator - Secure/Unsecure
(Outside) Secure/Unsecure (Inside) M19SN
Double Indicator Vacant/Occupied (Outside) Secure/
Unsecure (Inside) M19VN
*Knurlingoutsideandinside M20
*Knurlingoutsideonly M21
*Knurlinginsideonly M22
*Abrasive coat outside and inside M23
*Abrasive coat inside only M24
*Abrasive coat outside only M25
Non-ferrous lockcase (ML2000 only) M26
Lead-wrapped case M29
Half trim (for ML2010, ML2020, ML2022, ML2024,
ML2029, ML2030, ML2032, ML2052, ML2053,
ML2055, ML2056, ML2057, ML2058, ML2059,
Ml2062, ML2065) (Supplied with inside trim only.
Includes cylinder)
M30
Working trim only M31
Latch hold back (for ML2042, ML2052, ML2055,
ML2051, ML2057 only) LHB**
TaperedCylinderCollar(HPSKonly) M111
*Not available with Vineyard™ or Muséo® levers.
** Must use A02 cam when LHB is specified
Door Thickness Sectional
Trim - Specify
Escutcheon*
Trim - Specify
1-3
/
8"(35mm)** D138 D138
1-3
/
4"(44mm) (standard) (standard)
1-7
/
8"(48mm) D178 D178
2" (51mm) D200 D200
2-1
/
8" (54mm) D218 D218
2-1
/
4" (57mm) D214 D214
2-3
/
8" (60mm) D238 D238
2-1
/
2" (64mm) D212 D212
2-5
/
8" (67mm) D258 D258
2-3
/
4" (70mm) D234 D234
2-7
/
8" (73mm) D278 D278
3" (76mm) D300 D300
3-1
/
8" (79mm) D318 D318
3-1
/
4" (83mm) D314 D314
3-3
/
8" (86mm) D338 D338
3-1
/
2" (89mm) D312 D312
3-5
/
8" (92mm) D358 D358
3-3
/
4" (95mm) D334 D334
3-7
/
8" (98mm) D378 D378
4" (102mm) D400 D400
* For 2-3
/
8" (60mm) to 4" (102mm) door thickness: throughbolts and
thumbturn lever spindle for 4" door will be provided; may be field cut. “R” &
“L” escutcheons only available 1-3
/
8" (35mm), 1-3
/
4" (44mm), and 2-1
/
4"(57mm).
** 1-1/16" (27mm) front standard for 1-3
/
8" (35mm) door
Vandal Resistant trim accommodates doors 1-3
/
4" (44mm) to 2-1
/
4"(57mm).
Door thicknesses other than 1-3
/
4" (19mm) must be specified.
Strikes
Available for ML2000HS and ML2000VR
ANSI
Lip to Center
ANSI
Straight Lip Specify
Curved Lip
Specify
7
/
8" (22mm) SS078 N/A
1-1
/
8" (29mm) (standard) SA118
1-1
/
4" (32mm) SS114 SA114
1-3
/
8" (35mm) SS138 SA138
1-1
/
2" (38mm) SS112 SA112
1-3
/
4" (44mm) SS134 SA134
2" (51mm) SS200 SA200
2-1
/
4" (57mm) SS214 SA214
2-1
/
2" (64mm) SS212 SA212
2-3
/
4" (70mm) SS234 SA234
3" (76mm) SS300 SA300
Open Back Strike Door Thickness Specify
1-3
/
4" (44mm) SB134
2" (51mm) SB200
2-1
/
4" (57mm) SB214
Rabbeted front and strike – Specify SR118
Overview
ML2000
ML2000.78
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Quick Codes
ML2000, ML20900 ECL and ML20600 NAC
Handing
Hand Specify
Right Hand RH
Left Hand LH
Right Hand Reverse RHR
Left Hand Reverse LHR
These options may be ordered together only as follows:
M91xM92, M92xM105.
Electric Monitor Options
(ML20900 Series Only)
Description Specify
Latchbolt Monitor M91
Request to Exit M92
Security Monitor M105
Description Specify
Fail safe SAF
Fail secure SEC
Fail Safe/Fail Secure
Thumbturns
Description Specify
Ergonomic M34
Decorative MT1
Decorative Square MT2
Decorative Cylinder MT2
See page 40 for images of decorative thumbturns
Description Specify
Centerline of lockcase
to edge of panel not
to exceed 2"
PNL
Panel Applications
(Material added to the door face,
increasing the overall door thickness)
EcoFlex™ Mortise Lock End-of-Line Resistors
and Deadbolt Privacy Quick Code
Description Specify
No End-of-Line Resistors Blank
Mercury/Lenel1KΩ/2KΩR01
SoftwareHouse1KΩ/2KΩR03
AMAG 4-State Supervision R04
DeadboltPrivacy PHR
DeadboltPrivacyandMercury/Lenel1KΩ/2KΩPHRR01
DeadboltPrivacyandSoftwareHouse1KΩ/2KΩPHRR03
DeadboltPrivacyandAMAG4-StatePHRR04
Electric Accessories
Description Specify
Powersupply1.0Amp@12VDCoutput BPS-12-1
Powersupply3.0Amp@12VDCoutput BPS-12-3
Powersupply1.0Amp@24VDCoutput BPS-24-1
Powersupply2.0Amp@24VDCoutput BPS-24-2
Powersupply4.0Amp@24VDCoutput BPS-24-4
Overview
ML2000
ML2000.79
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
How To Specify
ML2000
ML2000 Series Suggested Specification
All locksets shall be ML2000 Series Mortise
Locksets as manufactured by Corbin
Russwin Architectural Hardware.
Locks shall have all functions available in
one size case, manufactured from heavy
gauge steel, minimum thickness 3/32"
(2mm). The handing of all locks shall be
reversible without the disassembly of the
lockcase. Cases are to be closed on all
sides to protect internal parts. Locks are
to have adjustable, beveled and armored
fronts, standard 2-3/4" (70mm) backset,
a full 3/4" (19mm) throw two-piece
mechanical anti-friction latchbolt, and
a one-piece stainless steel 1" (25mm)
throw deadbolt, and shall be available
for a minimum door thickness of 1-3/8"
(35mm). Internal parts shall be heavygauge
steel, zinc dichromate plated for
corrosion resistance.
All locksets with latchbolts, regardless
of trim, shall be listed by Underwriters
Laboratories for A label and lesser class
doors, 4' x 10' single or 8' x 10' pair.
Locksets to be used on specified exterior
doors or doors subject to special
atmospheric conditions (roofs, pool areas,
chemical laboratories, sewage disposal
plants, etc.) shall have non-ferrous lock
cases and critical internal components.
Cylinder options shall include master
ring, flexible head, concealed shell,
interchangeable core, security, blockouts,
PyramidandAccess3types.
Lock trim (knob, lever, sectional or
escutcheon) shall be throughbolted
through the lockcase to ensure correct
alignment and proper operation.
Certification:
UBC-7-2andUL10C-Positive
Pressure
Federal Specification FF-H-106G
ANSI/BHMA A156.13 Series 1000, Grade 1
ANSI/BHMA A117.1, Accessibility Code
(formerly Title 19, California State Fire
Marshal Standard) (lever handle trim).
All locks, trim, and cylinders shall be from
one manufacturer.
All locksets shall carry a ten-year limited
warranty.
ML2000 Series
Mortise Locks with BHSS and BLSS Trim
A. Ligature Resistant, Mortise: ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1 mortise type manufactured to
accepted OMH requirements with ligature-resistant lever and escutcheon trim. Locksets to be manufactured with a corrosion
 resistant,formedsteelcase.Leversandescutcheonsaremanufacturedfromstainlesssteelmaterial.Provideoptionallead-lining
(lock body), Torx® fasteners, and Antimicrobial coating as specified in Hardware Sets.
B. Ligature Resistant, Mortise: ANSI/BHMA A156.13, Series 1000, Operational and Security Grade 1 mortise type manufactured
to [accepted] [Use with caution] OMH requirements with ligature-resistant lever and rose trim. Locksets to be manufactured with a
 corrosionresistant,formedsteelcase.Leversandrosesaremanufacturedfromstainlesssteelmaterial.Provideoptionallead-lining
(lock body), Torx® fasteners, and Antimicrobial coating as specified in Hardware Sets.
Overview
ML2000
ML2000.80
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
How To Specify
ML2000
All locksets shall be ML2000VR Series
Mortise Locksets as manufactured by
Corbin Russwin Architectural Hardware.
Locks shall have all functions available in
one size case, manufactured from heavy
gauge steel, minimum thickness 3/32"
(2mm). The handing of all locks shall be
reversible without the disassembly of the
lockcase. Cases are to be closed on all
sides to protect internal parts. Locks are
to have adjustable, beveled and armored
fronts, standard 2-3/4" (70mm) backset,
a full 3/4" (19mm) throw two-piece
mechanical anti-friction latchbolt, and
a one-piece stainless steel 1" (25mm)
throw deadbolt, and shall be available
for a minimum door thickness of 1-3/4"
(44mm). Internal parts shall be heavy
gauge steel, zinc dichromate plated for
corrosion resistance.
High security escutcheon trim shall be
cast (stainless) steel with tapered design
top and bottom to resist forced entry,
excessive abuse and vandalism. Size to be
8-1/2" (216mm) high x 2-1/8" (54mm)
wide x 5/16" (8mm) thick with double
throughbolts and 2 post lugs to receive
torx® pin tamper-resistant security screws
through both escutcheons. Alignment
posts shall be located over and under the
spindle for rigidity and security and shall
project through the lock case to ensure
proper alignment. Escutcheons to accept
cast levers (Newport or Citation) which
accept free-floating spindles with a torque
resistance of 700 inch lbs. Size of spindle
to be 5/16" (8mm) and extend from both
sides of the escutcheon. Levers will remain
attached if spindle is broken. Lobular torx®
pin drive self-tapping screws and lobular
throughbolts furnished standard for vandal
resistance.
Locksets that are to be used on specified
exterior doors or doors subject to special
atmospheric conditions (roofs, pool areas,
chemical laboratories, sewage disposal
plants, etc.) shall have non-ferrous lock
cases and critical internal components.
Locksets to be furnished standard with
conventional 6-pin fixed core cylinders.
Optional cylinders shall include IC, Access
3,blockout,securityandPyramid.Furnish
a tapered vandal-resistant cylinder collar
where necessary.
Certification:
UBC-7-2andUL10C-Positive
Pressure
Federal Specification FF-H-106G
ANSI/BHMA A156.13 Series 1000, Grade 1
ANSI/BHMA A117.1, Accessibility Code
(formerly Title 19, California State Fire
Marshal Standard) (lever handle trim).
All locks, trim, and cylinders shall be from
one manufacturer.
All locksets shall carry a ten-year limited
warranty.
ML2000 Series Mortise Locksets with Vandal Resistant Trim
Suggested Specification
Mortise Locksets ML2000HS High Security Series
Suggested Specification
All locksets shall be ML2000HS Series
High-Security Mortise Locksets as
manufactured by Corbin Russwin
Architectural Hardware.
Locks shall be manufactured from heavy-
gauge steel, minimum thickness 3
/
32"
(2mm). Cases are to be closed on all sides
to protect internal parts. Locks are to have
adjustable, beveled and armored fronts,
standard 2-3
/
4" (70mm) backset, a full
3
/
4" (19mm) throw two-piece mechanical
anti-friction latchbolt, and a one-piece
stainless steel 1" (25mm) throw deadbolt.
Internal parts shall be heavy-gauge steel,
zinc dichromate plated for corrosion
resistance.
High-security trim shall be cast brass or
bronze, designed to resist forcible removal.
Knobsshallhave3
/
8" (10mm) spindles on
both sides and shall be attached to the
escutcheons. Escutcheons shall be 8-1
/
2"
(216mm) x 1-3/4" (44mm) x 3
/
8" (10mm)
thick, having a 30° chamfer at top and
bottom to resist forcible removal. Locksets
shall be furnished with 4 through bolts
and 2 post lugs to receive security screws
through both escutcheons. Alignment
posts shall be located over and under
the knob spindle for rigidity and security,
and shall project through the lockcase to
ensure proper alignment. Cylinders shall
be mounted flush with the escutcheon. All
exposed screws shall be security type.
Certification:
UBC-7-2andUL10C-PositivePressure
Federal Specification FF-H-106G
ANSI/BHMA A156.13 Series 1000, Grade 1
ANSI/BHMA A117.1, Accessibility Code.
All locks, trim, and cylinders shall be from
one manufacturer.
All locksets shall carry a ten-year limited
warranty.
Overview
ML2000
ML2000.81
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
How To Specify
ML2000
A. CORBIN RUSSWIN ML20900
Electrified Mortise Locks
1. General: ANSI/BHMA certified extra heavy duty, lever type mortise lock conforming to ANSI/BHMA A156.13 Series 1000, Grade 1
requirements and ANSI A117.1 accessibility guidelines. All functions manufactured in a single sized case formed from a minimum
12 gauge steel. Lockset is field-adjustable for handing without opening the lock body with a beveled armored front that is 0.125"
minimum thickness and utilizes a one piece 3/4" anti-friction stainless steel latchbolt. To insure proper alignment, all trim, shall be
thru-bolted and fully interchangeable between rose and escutcheon designs. Lock is UL/cUL listed and labeled for use on up to 3
hour fire rated openings.
a. Backsets: 2-3/4”.
b. Deadbolt: Optional 1" throw made of stainless steel and 2 hardened steel roller inserts.
  c. Strikes:Providewroughtboxesandstrikeswithproperliplengthtoprotecttrimbutnottoprojectmorethan1/8”beyond
trim, frame or inactive leaf. Where required, provide open back strike and protected to allow practical and secure operation.
 2.Provideaccesscontrolmortiselockseries,typeandfunctionswherespecifiedinhardwaregroups,withprovisionsbelow:
a. Emergency override access capability with key cylinder retraction of lock latch bolt without necessary electronic activation.
b. Inside lever retracts latch and deadbolt simultaneously for free egress.
  c. Referto"KEYING"specificationsectionforkeyingsystemrequirements.
d. Lever and finish to match corresponding mechanical locking hardware.
3. Locking and unlocking of the lever handle by electronic operation contained completely within the body of the mortise lock.
  a. FieldconfigurableFailSafe/FailSecurebymeansofanexternalDIPswitchsetting.
b. Operationally voltage-insensitive 12 to 24 VDC.
  c. EnergyPerformance:Maximumstandbycurrentrequiredforfunctionaloperationnottoexceed50mAat24VDClimiting
potential inductive kickback or the need for external diodes.
d. Functional locking operation not affected by cable runs greater than 500 feet using a minimum 22 AWG wire.
4. Monitoring: Optional real time monitoring of latchbolt, deadbolt, door open/closed status and valid egress where specified. Valid
egress signaled by activation of the Request-to-Exit (RX) micro switch integral to the inside lever of the lockset on the unsecure
side of the door capable of shunting external alarms. Door open/closed status provided by monitoring the deadlatch and
latchbolt in series with optional integrated magnetic door position switch.
5. Performcentralizedcontroloftheintegratedlockingfunctionsbymeansofasinglecableruntotheaccesscontrolpanel
independent of any proprietary power supplies, interface boards or controllers.
a. End of line termination points by means of factory pre-wired Molex® connectors and harnesses.
b. Source power electrical hard wiring and connections by others.
ML20900 ECL Series
Suggested Specification
ECOFLEX™ ELECTRIFIED
MORTISE LOCKS
Overview
ML2000
ML2000.82
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Reversing Handing
ML2000
Instructions for reversing the hand of the ML2000.
Mortise Lock Handing Instructions
RED Locking Screw
Step 1) Move the Red locking screw to
side of lock-body being locked (Fig. 1)
Step 2) Push in latch then depress catch
plate with screw driver (Fig. 1)
Catch Plate
Step 3) Pull latch out of lock-body
and turn latch over (Fig. 2)
Figure 1
Figure 2
Figure 3
Step 4) Push in latch while holding
screw driver behind latch tail (Fig. 3)
Note: Push in latch until catch plate is
no longer depressed (Fig. 4)
Figure 5
Step 5) Rotate lock front to match
bevel of door as shown (Fig. 5)
MAKE SURE CATCH PLATE IS
EVEN W/ TOP SURFACE
GOOD BAD
Figure 4
WARNING:
LOCK-IN CAN
OCCUR IF LATCH
IS NOT PROPERLY
INSTALLED
Overview
ML2000
ML2000.83
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
Notes
ML2000
Notes
ML2000
ML2000.84
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited. 45300-8/15
Notes
ML2000
ML2000.85
Copyright © 2001-2015 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.45300-8/15
For more information regarding Corbin Russwin Locksets,
ExitDevices,DoorControlsandKeySystems,contactyour
authorized Corbin Russwin Distributor or Sales Representative.
In U.S.
Corbin Russwin
Architectural Hardware
225 Episcopal Road
Berlin, CT 06037
Phone:800-543-3658
Fax: 800-447-6714
www.corbinrusswin.com
In Canada
ASSA ABLOY Door
Security Solutions Canada
160 Four Valley Drive
Vaughan, Ontario
CanadaL4K4T9
Phone:800-461-3007
Fax: 905-738-2478
www.assaabloy.ca
Corbin Russwin and Design®, Muséo®, Access 3® and Ecoflex® are registered trademarks of Corbin Russwin, Inc., an ASSA ABLOY Group company. Vineyard™ is a trademark
of Corbin Russwin, Inc., an ASSA ABLOY Group company. Other products’ brand names may be trademarks or registered trademarks of their respective owners and are
mentioned for reference purposes only. These materials are protected under US copyright laws. All contents current at time of publication. Corbin Russwin, Inc., an ASSA
ABLOY Group Company, reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials. Copyright © 2001, 2015 Corbin
Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc.
is prohibited.
45300-8/15
MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-
based antimicrobial coating designed to inhibit the growth of bacteria.
MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.
ElectroLynx®
As part of their promise to provide innovative, fast and effective high security solutions to their customers, certain ASSA ABLOY Group brands offer
ElectroLynx®, a universal quick-connect system that simplifies the electrification of the door opening.
ElectroLynx® is a registered trademark of ASSA ABLOY Inc.

Navigation menu
