ED8000 Series
Pushpad Exit Devices Parts Manual
2
Table of Contents ED8000 Owner’s Manual
ED8200A Rim Exit Device..............................................................................................................................................................4
ED8200(B) Rim Exit Device ............................................................................................................................................................6
ED8400A Surface Vertical Rod Exit Device.....................................................................................................................................8
ED8400 Surface Vertical Rod Exit Device .....................................................................................................................................10
A6, N6 and PR6 Trim ..................................................................................................................................................................13
G10 Series Trim...........................................................................................................................................................................14
F150 and F157 Trim ....................................................................................................................................................................15
P850 and P857 Series Trim..........................................................................................................................................................16
P150 and P157 Trim....................................................................................................................................................................17
P250 and P257 Trim....................................................................................................................................................................18

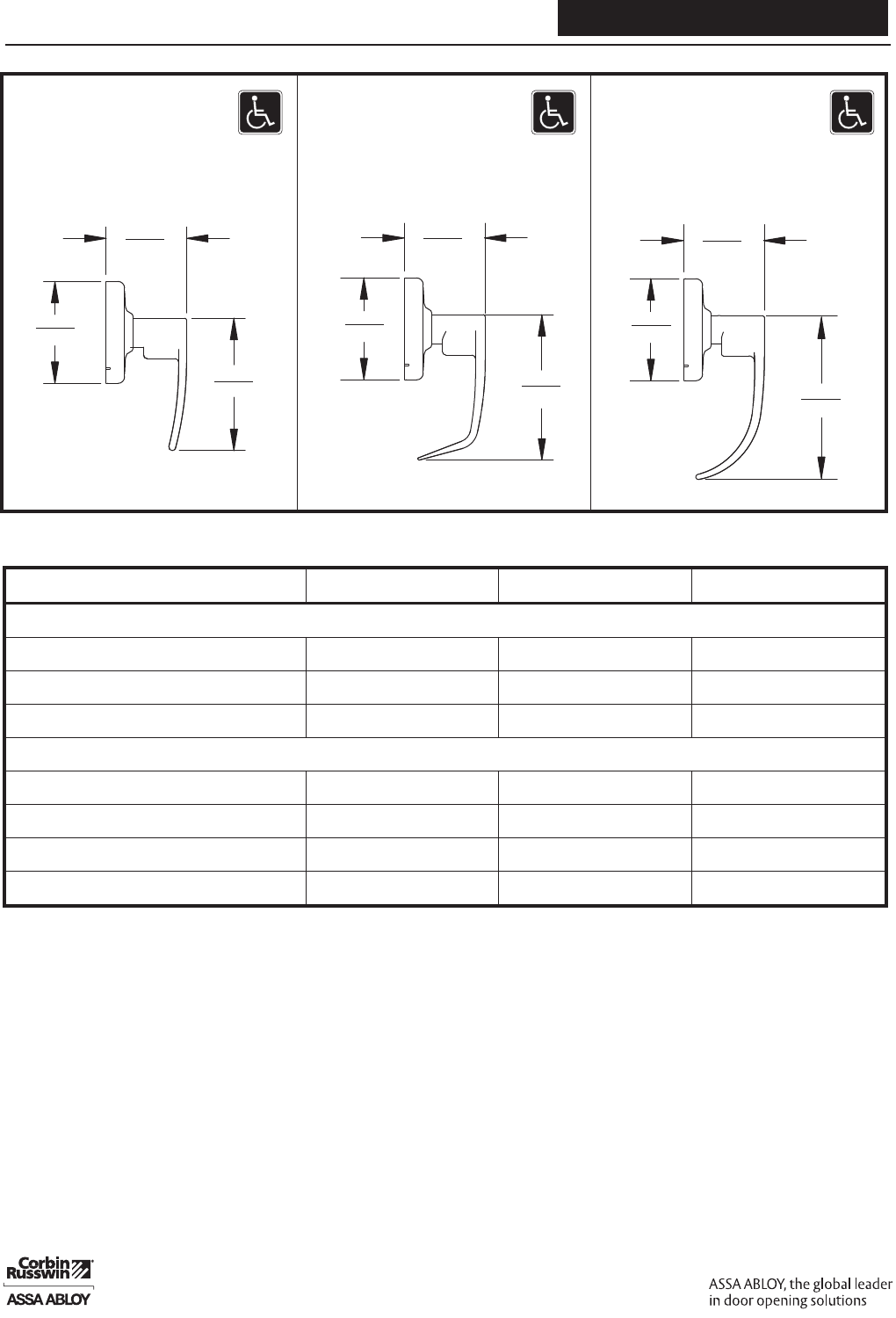

Lever Designs..............................................................................................................................................................................19

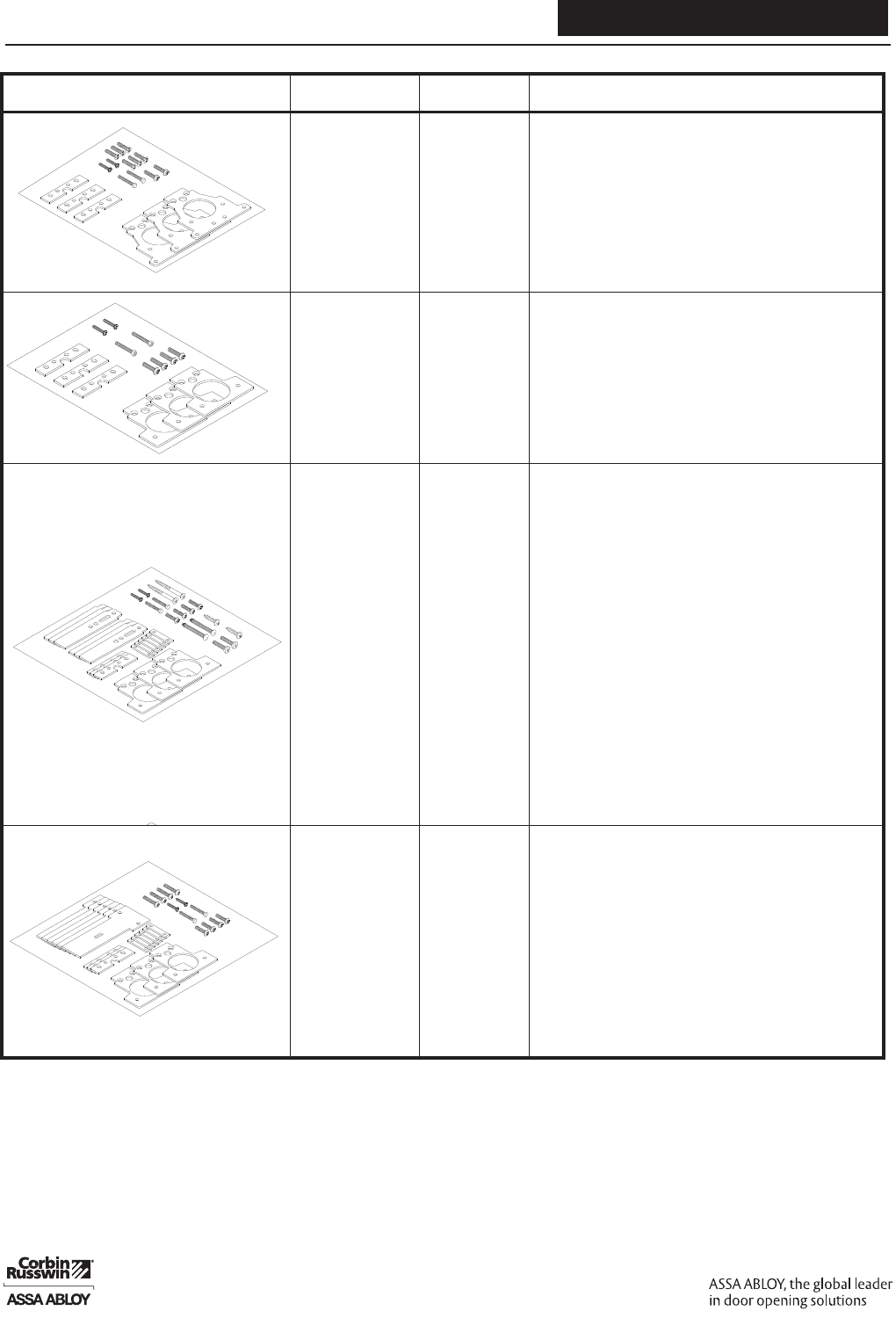

Shim Kits ....................................................................................................................................................................................20

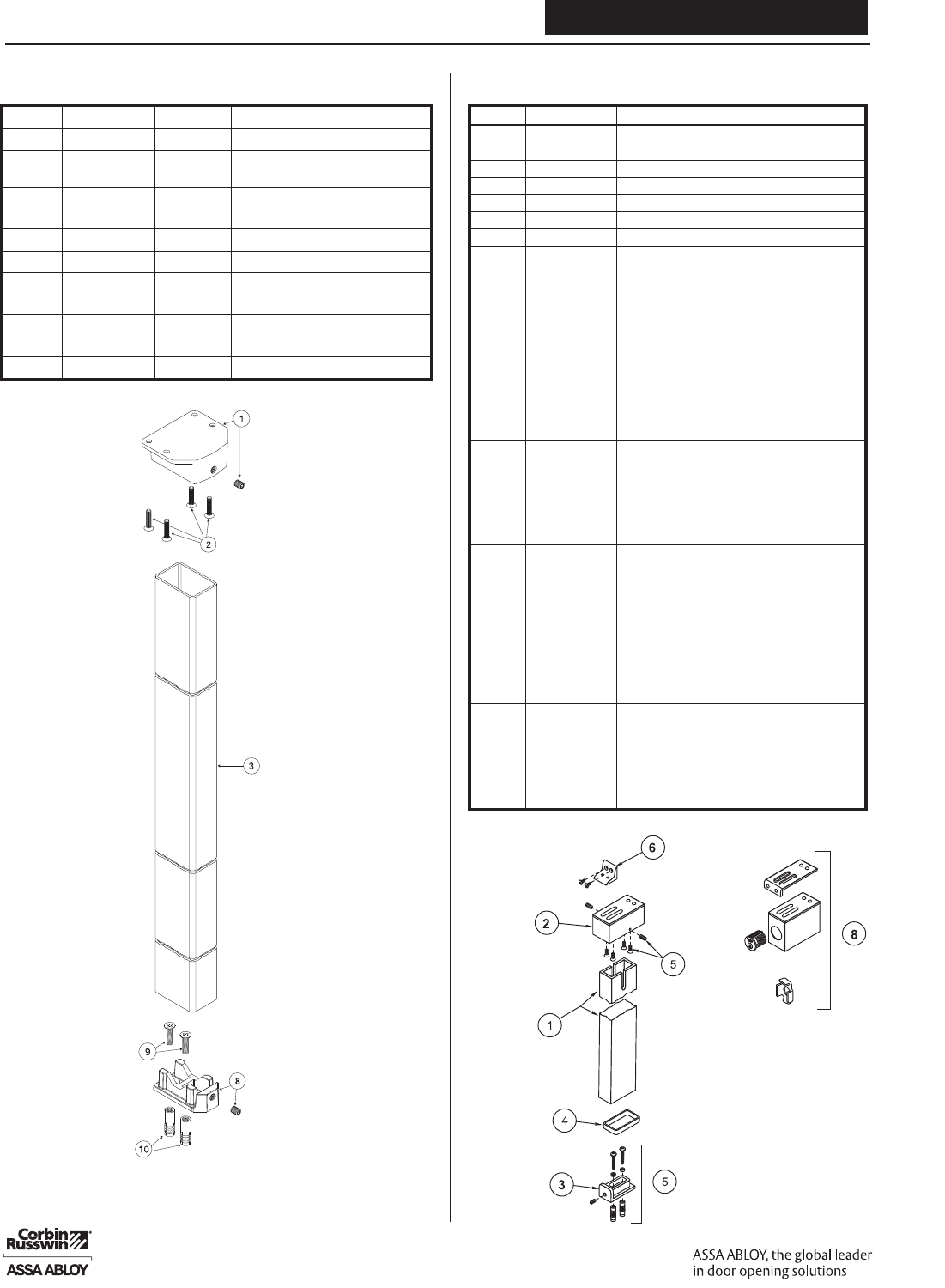

Mullions......................................................................................................................................................................................21
Cylinders.....................................................................................................................................................................................22

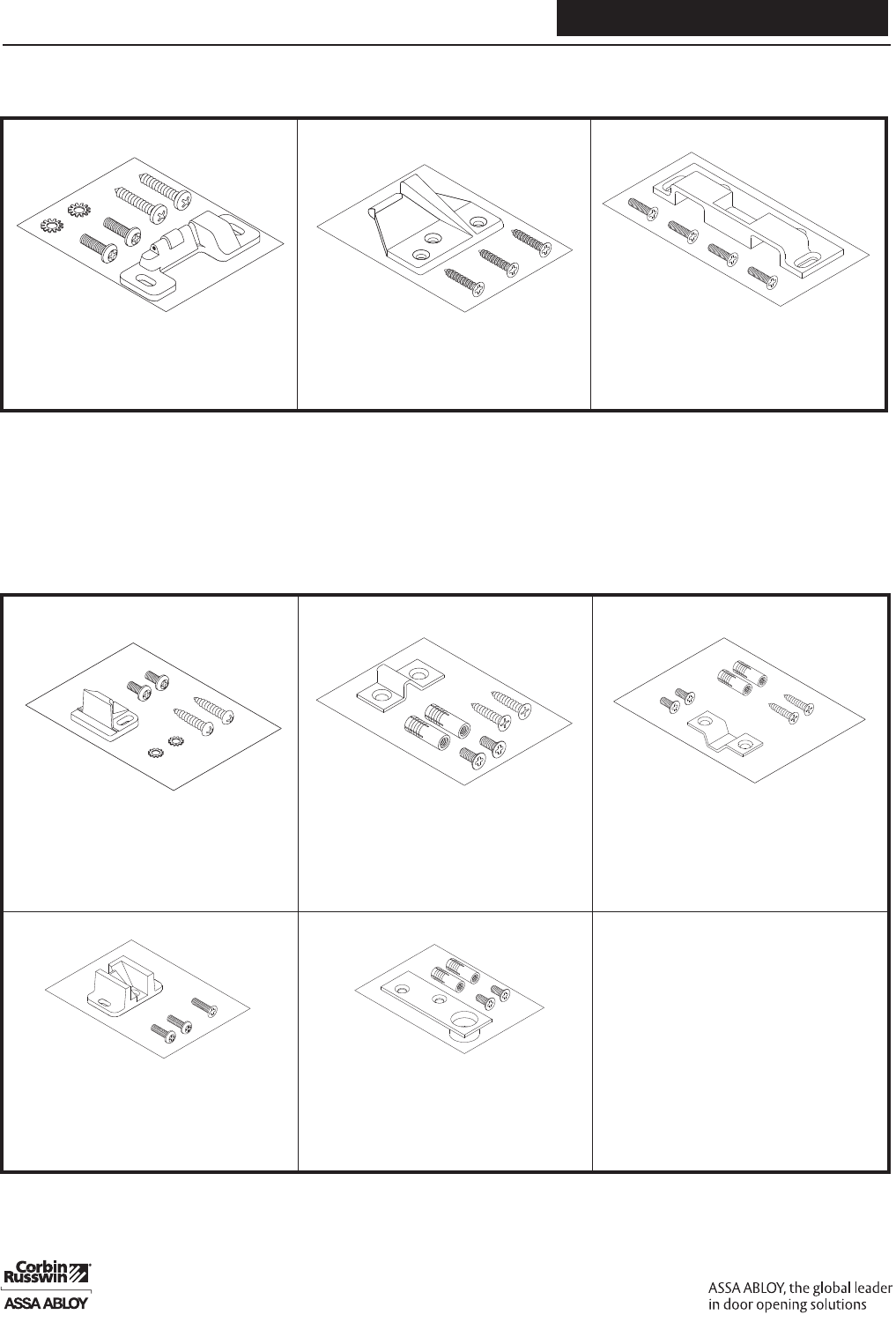

Strikes.........................................................................................................................................................................................23
Finish Guide
BHMA 605 Bright Brass (US3)
BHMA 606 Satin Brass (US4)
BHMA 611 Bright Bronze (US9)
BHMA 612 Satin Bronze (US10)
BHMA 613 Dark Oxidized Satin Bronze, oil rubbed (US10B)
BHMA 618 Bright Nickel Plated (US14) (matches US32)
BHMA 619 Satin Nickel Plated (US15) (matches US32D)
BHMA 622 Flat Black Coated (US19)
BHMA 625 Bright Chromium Plated (US26)
BHMA 626 Satin Chromium Plated (US26D)
BHMA 629 Bright Stainless Steel (US32)
BHMA 630 Satin Stainless Steel (US32D)
BHMA 600 Primed for Painting (USP)
BHMA 689 Silver Aluminum Painted (LBL)
BHMA 690 Dark Bronze Painted (LBL)
BHMA 691 Light Bronze Painted (DBL)
BHMA 693 Black Painted (FBL)
BHMA 696 Satin Brass Painted (GBL)
3
Introduction ED8000 Owner’s Manual
• All fire-rated components must be used only on fire-rated exit devices. Doing otherwise would violate any type of product
labeling or listing. Any component bearing the UL mark for fire-rating cannot be supplied. (Reference items with (UL) symbol.)
• Machine screws are provided for steel reinforced doors. In addition, sex nuts and bolts provided for fire-rated devices and
wood door fasteners are provided for wood door applications. It is recommended that sex nuts and bolts be used for all exit
device applications. This will improve the performance and extend the life of the product.
• In order to simplify the ordering procedure and maintain regulatory compliance, parts are only available as listed.
• For various special applications, optional parts are shaded on parts lists and diagrams.
• Refer to the installation instructions for complete installation.
• Drawings of parts are not to scale.
How to Order Parts
To order parts, provide the appropriate quantity, part number, finish, hand (when required) and description as directed and
illustrated below.
For example, to order ten front covers for an ED8200 Series Exit Device in 689 finish, use the following configuration:
How to Order Product Catalog
The ED8000 has a product catalog which can be requested from your local sales representative. Please request catalog #45075.
For assistance from Customer Support or Technical
Product Support, contact:
Corbin Russwin Architectural Hardware
225 Episcopal Road, Berlin, CT 06037
Phone 800-543-3658 Fax 800-447-6714
Quantity Part Number Finish Hand Description
10 385F545 689 Front Cover
4

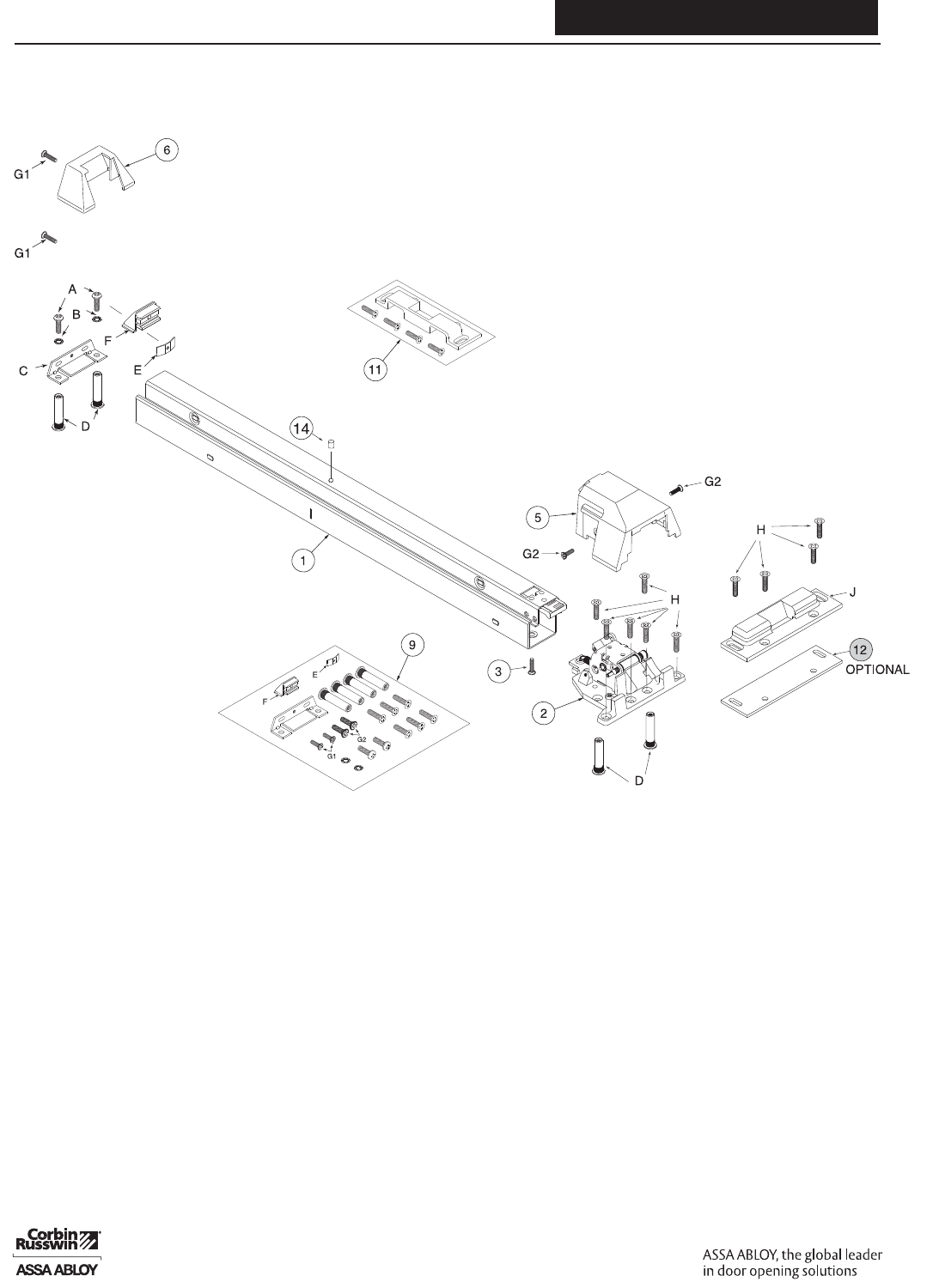

ED8200A Fire-Rated Rim ED8000 Owner’s Manual
Note: Packets may contain component parts required for a variety of applications
ITEM PART NO. SPECIFY DESCRIPTION
1Bar SA
387F638 FIN for 30” door width
387F668 FIN for 36” door width
387F698 FIN for 42” door width
387F728 FIN for 48” door width
2552F416 622 Latch Assembly
3 436F858 Latch Assembly Screw
5564F115 FIN Front Cover
6N/A Rear Cover
9564F128 FIN
Screw Packet, containing:
(A) 2 - #12 - 24 x 3/4” Screws, PHM-PH
(B) 2 - Lock Washer
(C) 1 - Rear Plate
(D) 4 - Sex Nut
(E) 1 - Bracket Insert
(F) 1 - Front Bar Insert
(G1)2 - Sem’s Screw Assembly
(G2)2 - Sem’s Screw Assembly
(H) 6 - #12-24 x 7/8” Screws, FHM-PH
11 518F067 622
Strike Packet; containing:
(J) 1 - UL Strike
(H) 4 - #12-24 x 7/8” screw, FHM-PH
12 519F228 622 Shim for Option M59 (Used on door with 1/2” stop)
13 557F938 FIN Shim for Option M58 (Not Shown)
14 650F299 Hole Plug
5
ED8200A Fire-Rated Rim ED8000 Owner’s Manual
6

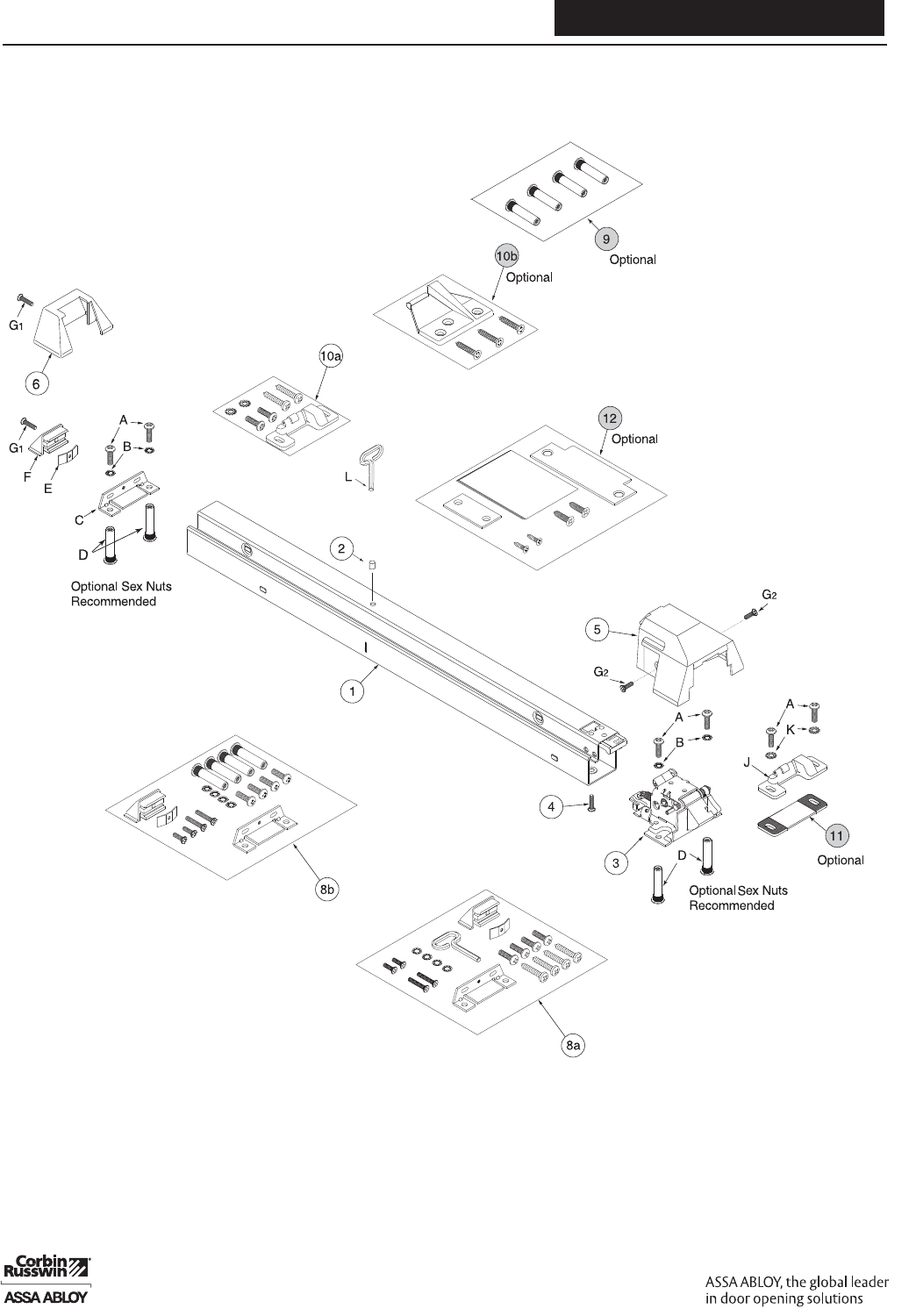

ED8200(B) Rim ED8000 Owner’s Manual
Note: Packets may contain component parts required for a variety of applications.
ITEM PART NO. SPECIFY DESCRIPTION
1
Bar Sub Assembly
387F218 FIN for 30” door width
387F248 FIN for 36” door width
387F278 FIN for 42” door width
387F308 FIN for 48” door width
Bar Sub Assembly - Less Dogging
387F638 FIN for 30” door width
387F668 FIN for 36” door width
387F698 FIN for 42” door width
387F728 FIN for 48” door width
2650F279 Hole Plug (Use on Less Dogging Bar SA)
3552F368 626 Latch Assembly
4436F858 Latch Assembly Screw
5385F545 FIN Front Cover
6603F641 FIN Rear Cover
8a 449F828 FIN
Screw Packet for Mounting Bar & Active Case; containing:
(A) 4 - PHM-PH 12-24 x 3/4"
4 - PHT-A-PH 12 x 1 1/4" (Not Shown - For Wood Door Application)
(B) 4 - Lock Washer
(C) 1 - Rear Plate
(E) 1 - Insert Bracket
(F) 1 - Front Bar Insert
(G1) 2 - FHM-PH 8-32 x 1"
(G2) 2 - FHM-PH 8-32 x 1/2"
(L) 1 - Wrench
8b 523F038 FIN
Screw Packet for Mounting Bar & Active Case (ED8200B); containing:
(A) 4 - PHM-PH 12-24 x 3/4"
(B) 4 - Lock Washer
(C) 1 - Rear Plate
(D) 4 - Sex Nut
(E) 1 - Insert Bracket
(F) 1 - Front Bar Insert
(G1) 2 - FHM-PH 8-32 x 1"
(G2) 2 - FHM-PH 8-32 x 1/2"
9697F988 FIN Sex Nut Packet (for Option M54)
10a 386F453 FIN
Strike Packet; containing:
(A) 2 - #12-24 x 3/4" Phillips Pan Head Machine Screws (Metal Door)
2 - #12 x 1-1/4" Phillips Pan Head, Type A Tapping Screws (Wood Door)
(J) 1 - Strike
(K) 2 - #12 External Tooth Lock Washers
10b 468F305 FIN
Strike Packet for Option S02 (Rim x vertical rod for pair of doors); containing:
1 - Strike for Pair of Doors
3 - #12 Phillips Flat Head Undercut Combination Screws
11 391F575 FIN Shim for option M59 (used on door with 1/2" stop)
12 468F628 FIN CECO Rim Pack
7
ED8200(B) Rim ED8000 Owner’s Manual
8

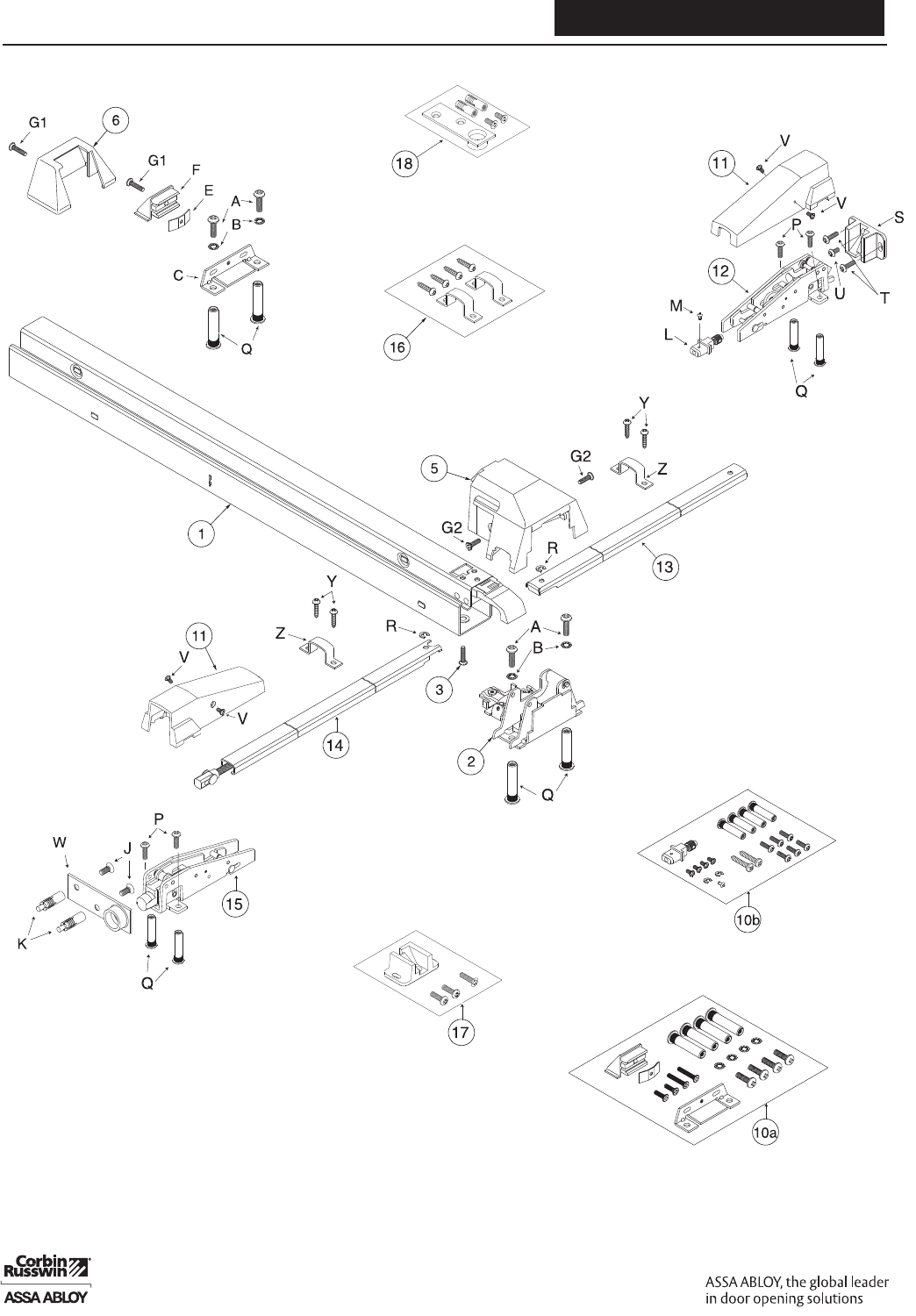

ED8400A Fire-Rated Surface Vertical Rod ED8000 Owner’s Manual
ITEM PART NO. SPECIFY DESCRIPTION
1
Bar SA
564F378 FIN for 30” door width
564F408 FIN for 36” door width
564F438 FIN for 42” door width
564F468 FIN for 48” door width
2552F468 FIN Frame Plate Assembly - RHR
552F478 FIN Frame Plate Assembly - LHR
3436F858 Frame Plate Assembly Screw
5564F345 FIN Front Cover
6N/A Rear Cover
10a 523F038 FIN
Screw Packet for Mounting Frame Plate Assy & Bar Assy, containing:
(A) 4 - #12 - 24 x 3/4” Screws, PHM-PH
(B) 4 - Lock Washer
(C) 1 - Rear Plate
(E) 1 - Bracket Insert
(F) 1 - Front Bar Insert
(G1) 2 - Sem's Ass'y Screw
(G2) 2 - Sem's Ass'y Screw
(Q) 4 - Sex Nut
10b 534F008 FIN
Screw Packet for Top & Bottom Latches, containing:
(L) 1 - Top Rod Connector Assembly
(M) 1 - Drive Rivet
(Q) 4 - Sex Nut
(P) 4 - #12 - 24 x 3/4” Screws, PHM-PH
(R) 2 - Retaining Ring
(V) 4 - Sems Screw Assembly
11 526F321 FIN Latch Cover
12 525F998 Top Latch Assembly
13 526L928759 FIN Top Rod Assembly
14 526L518540 FIN Bottom Rod Assembly
15 526F168 Bottom Latch Assembly
16 446F208 FIN
Rod Guide Packet, containing:
(Y) 2 - #8 x 3/4” Screw, RHT-A-PH
(Z) 1 - Rod Guide
17 526F527 622
Top Strike Packet, containing:
(S) 1 - Top Strike
(T) 2 - #12-24 x 3/4” Screw, PHM-PH
(U) 1 - #12-24 x 7/8” Screw, FHM-PH
18 526F533 622
Bottom Strike Packet, containing:
(J) 2 - 1/4-20 x 5/8” Screw, FHM-PH
(K) 2 - Anchor
(W) 1 - Bottom Strike
19 557F958 FIN Shim for Option M58 (not shown)
9
ED8400A Fire-Rated Surface Vertical Rod ED8000 Owner’s Manual
10

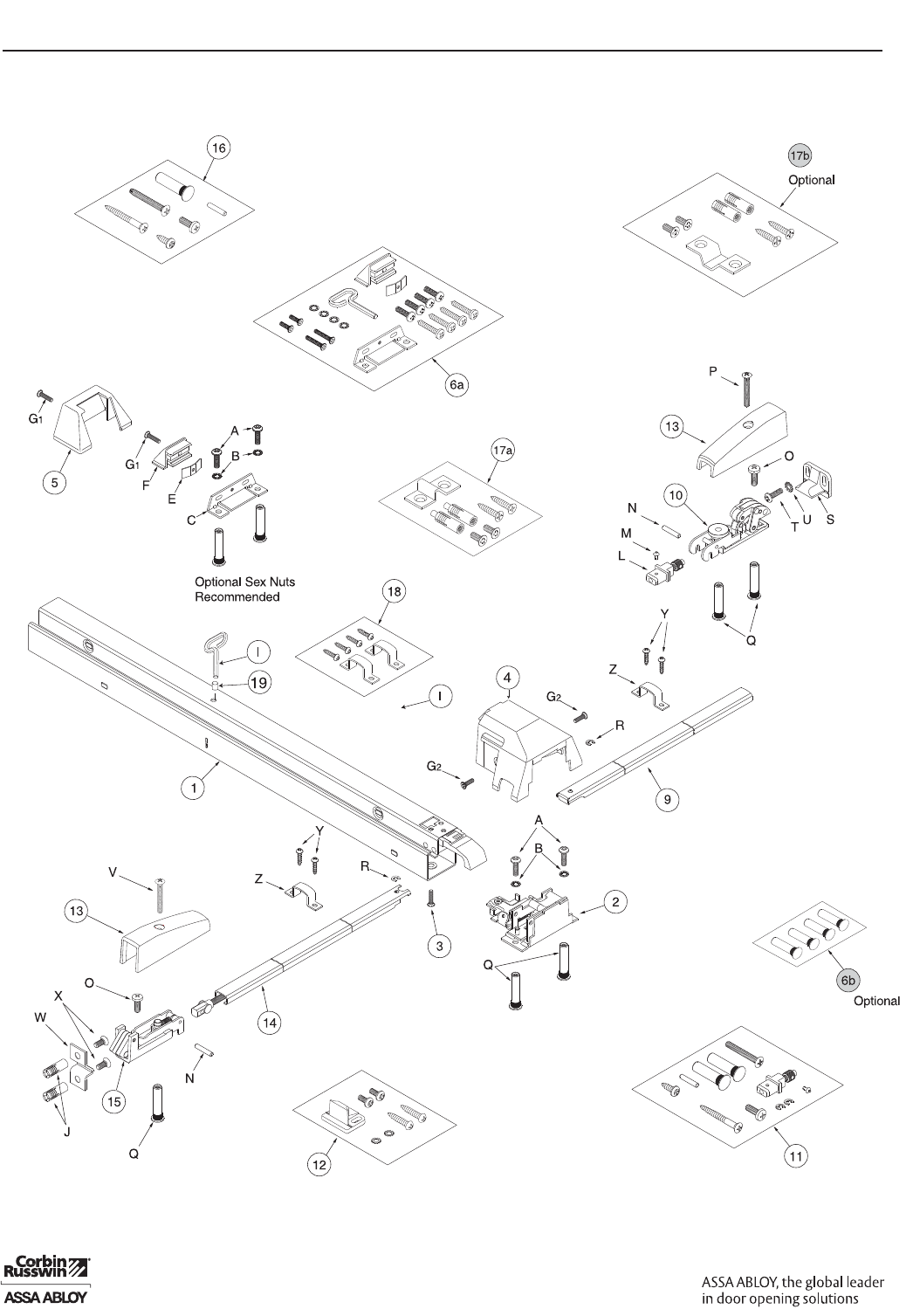

ED8400 Surface Vertical Rod ED8000 Owner’s Manual
(continued on Page 12)
Note: Packets may contain component parts required for a variety of applications
ITEM PART NO. SPECIFY DESCRIPTION
1
Bar SA
436F418 FIN for 30” door width
436F428 FIN for 36” door width
436F438 FIN for 42” door width
436F448 FIN for 48” door width
Bar SA - Less Dogging
564F888 FIN for 30” door width
564F898 FIN for 36” door width
564F908 FIN for 42” door width
564F918 FIN for 48” door width
2
Vertical Rod Frame Plate
552F598 FIN RHR
552F608 FIN LHR
3436F858 Frame Plate Assembly Screw
4
436F065 FIN Front Cover
446F115 FIN RHR (M55 Option)
446F125 FIN LHR (M55 Option)
5603F641 FIN Rear Cover
6a 449F828 FIN
Screw Packet for Mounting Bar & Active Case; containing:
(A) 4 - #12-24 x 3/4” Phillips Pan Head Machine Screws (Metal Door)
4 - #12 x 1 1/4” Phillips Pan Head, Type A Tapping Screws (Wood
Door)
(B) 4 - #12 Internal Tooth Lock Washers
(C) 1 - Rear Plate
(E) 1 - Bracket Insert
(F) 1 - Front Bar Insert
(G1) 2 - Screws with Attached Washers
(G2) 2 - Screws with Attached Washers
(I) 1 - Dogging Key
6b 697F988 FIN Sex Nut Packet for Option (M54) Containing 4 Sex Nuts
9
Top Rod - 40 5/16” Pushbar Height
487L048697 FIN for Door 7’6” high
487M048589 FIN for Door 7’6” high to 10’ high
10 436F258 Top Latch
11 484F208 FIN
Top Latch Screw Packet Containing:
(L) 1 - Rod Connector
(M) 1 - Drive Rivet
(N) 1 - Pin
(O) 1 - 1/4 - 20 x 3/4” Phillips Binding Head Undercut Machine Screw
(Metal Door)
1 - #14 x 3/4” Phillips Pan Head Wood Screw (Wood Door)
(P) 1 - 1/4 - 20 x 1 7/8” Phillips Oval Head Machine Screw (Metal
Door)
1 - #14 x 2 1/4” Phillips Oval Head Wood Screw (Wood Door)
(Q) 2 - 1/4 - 20 Sex Nuts
(R) 2 - E Rings
11
ED8400 Surface Vertical Rod ED8400 Surface Vertical
12
ED8400 Surface Vertical Rod ED8000 Owner’s Manual
Note: Packets may contain component parts required for a variety of applications
ITEM PART NO. SPECIFY DESCRIPTION
12 446F213 FIN
Top Latch Strike Packet; containing:
(S) 1 - Top Strike
(T) 2 - #12 - 24 x 1/2” Phillips Pan Head Machine Screws (Metal Door)
2 - #12-24 x 1 1/4” Phillips Round Head Wood Screws
(U) 2 - #12 External Tooth Washers
13 446F231 FIN Latch Cover (Top or Bottom)
14 436L328557 FIN Bottom Rod - 40 5/16” Pushbar Height for Door 7’6” high
15 436F298 Bottom Latch Assembly
16 484F218 625
Bottom Latch Screw Packet; containing:
(N) 1 - Pin
(O) 1 - 1/4 - 20 x 3/4” Phillips Flat Head Machine Screws (Metal Door)
1 - #14 x 3/4” Phillips Pan Head Wood Screw (Wood Door)
(V) 1 - 1/4 - 20 x 2” Phillips Flat Head Machine Screws (Metal Door)
(V) 1 - 1/4 - 20 x 2” Phillips Oval Head Wood Screw (Wood Door)
(Q) 1 - Sex Nut
17a 446F228 625
Bottom Latch Strike Packet
(J) 2 - Anchors
(W) 1 - Bottom Strike for Surface Mounting
(X) 2 - 1/4 - 20 x 5/8” Phillips Flat Head Machine Screws (Metal Door)
2 - #14 x 1 1/4” Phillips Flat Head Wood Screws (Wood Door)
17b 463F928 FIN
Bottom Latch Strike Packet for Option S03 (Flush Mounting); containing:
(J) 2 - Anchors
1 - Bottom Strike for Flush Mounting
(X) 2 - 1/4 - 20 x 5/8” Phillips Flat Head Machine Screws (Metal Door)
2 - #14 x 1 1/4” Phillips Flat Head Wood Screws (Wood Door)
18 446F208 FIN
Rod Guide Packet; containing:
(Y) 4 - #8 x 3/4” Phillips Round Head, Type A Tapping Screws
(Z) 2 - Rod Guides
19 650F299 Hole Plug
13
ED8400 Surface Vertical Rod ED8000 Owner’s Manual

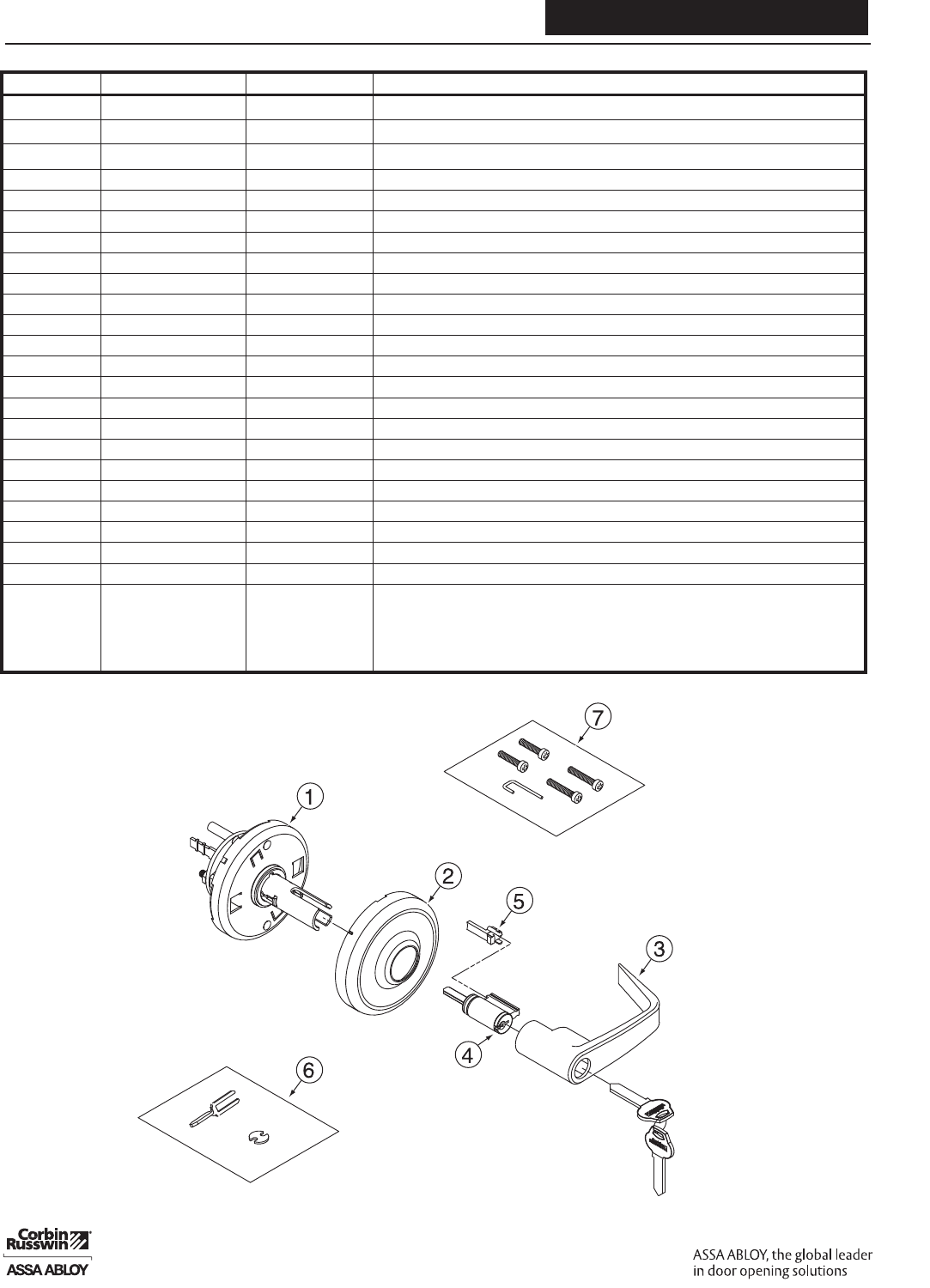

ITEM PART NO. SPECIFY DESCRIPTION
1Chassis Sub-Assembly - 1-3/4" to 2-1/4" Door
690F448 Dummy
698F438 Passage
698F448 Classroom
698F458 Nightlatch
698F468 Storeroom
698F518 Classroom - Recore
698F528 Nightlatch - Recore
698F538 Storeroom - Recore
Optional Chassis Sub-Assembly - 1-3/8" Door
696F248 Dummy
698F478 Passage
698F488 Classroom
698F498 Nightlatch
698F508 Storeroom
698F548 Classroom - Recore
698F558 Nightlatch - Recore
698F568 Storeroom - Recore
2698F25 FIN Rose
3See Chart on Pg 19 Levers
4See Chart on Pg 22 Cylinder Assembly
5585F729 Lever Insert
6682F918 Recore Driver Packet
7696F058
Mounting Packet, containing:
1 - Knob Release Tool
2 - #10-24 x 3/4" FRHM-PH
2 - #10-24 x 1" FRHM-PH
14

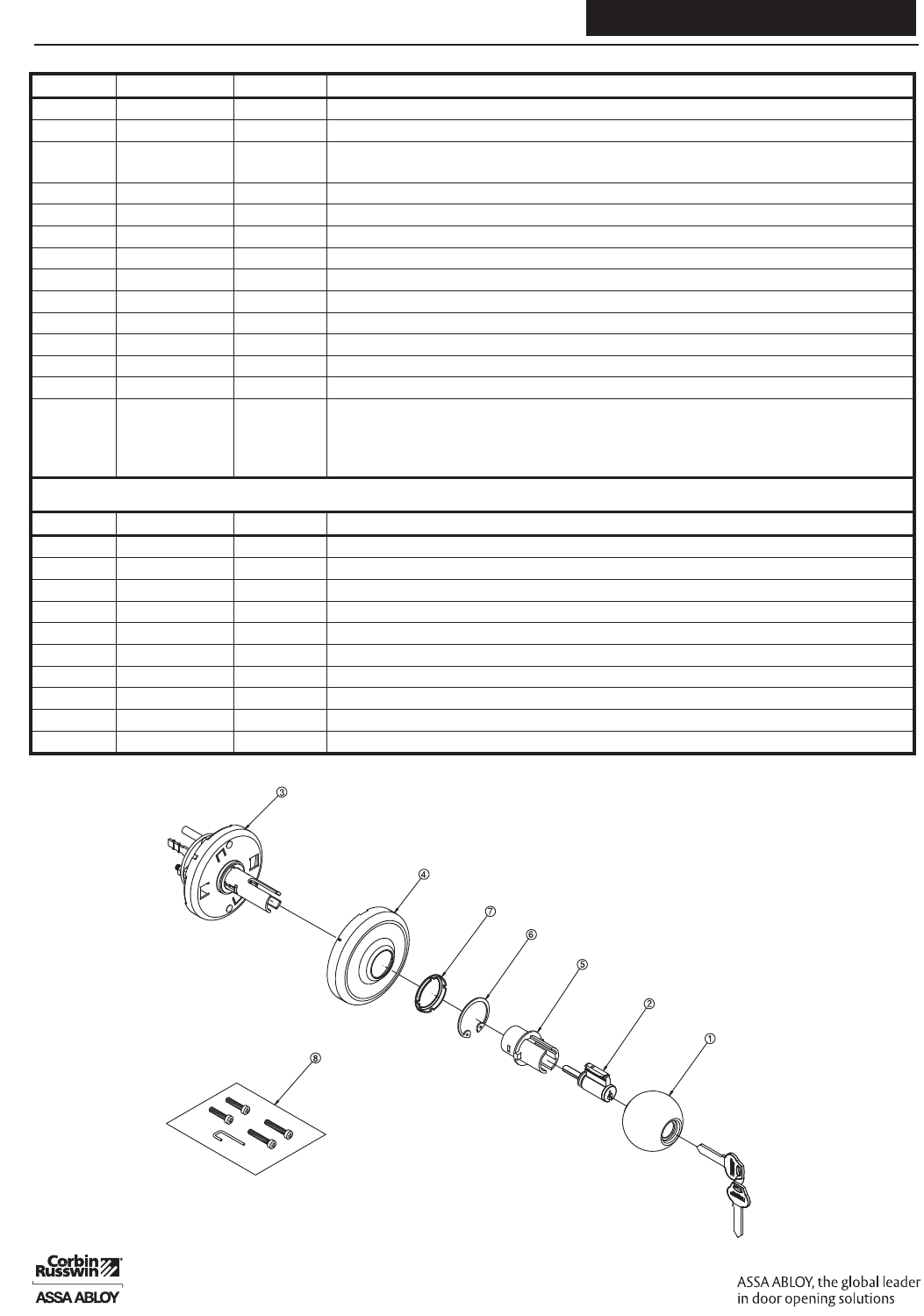

G10 Trim ED8000 Owner’s Manual
ITEM PART NO. SPECIFY DESCRIPTION
1695F22M FIN Knob Assembly - Plain
695F23M FIN Knob Assembly - Cylinder
22000-033H FIN Cylinder - L4 Keyway, 0-bitted unless otherwise specified
(see catalog for cylinder options)
3Chassis Assembly - 1 3/4” to 2 1/4” Door
690F408 G1010
690F418 G1055
690F448 G1050
698F418 G1059
698F458 G1057
4678F25M FIN Rose
5690F485 622 Knob Shank Adapter
6219F808 Retaining Ring
7493F999 Filler Cover
8696F058
Mounting Packet, containing:
1 - Knob Release Tool
2 - #10-24 x 3/4” FRHM-PH
2 - #10-24 x 1” FRHM-PH
Options
ITEM PART NO. SPECIFY DESCRIPTION
1697F62M FIN Knob Assembly - Plain, Knurled
697F63M FIN Knob Assembly - Cylinder, Knurled
697F64M FIN Knob Assembly - Plain, Abrasive
697F65M FIN Knob Assembly - Cylinder, Abrasive
3Chassis Assembly - 1 3/8” Door
696F208 G1010
696F218 G1055
696F248 G1050
698F428 G1059
698F498 G1057
15

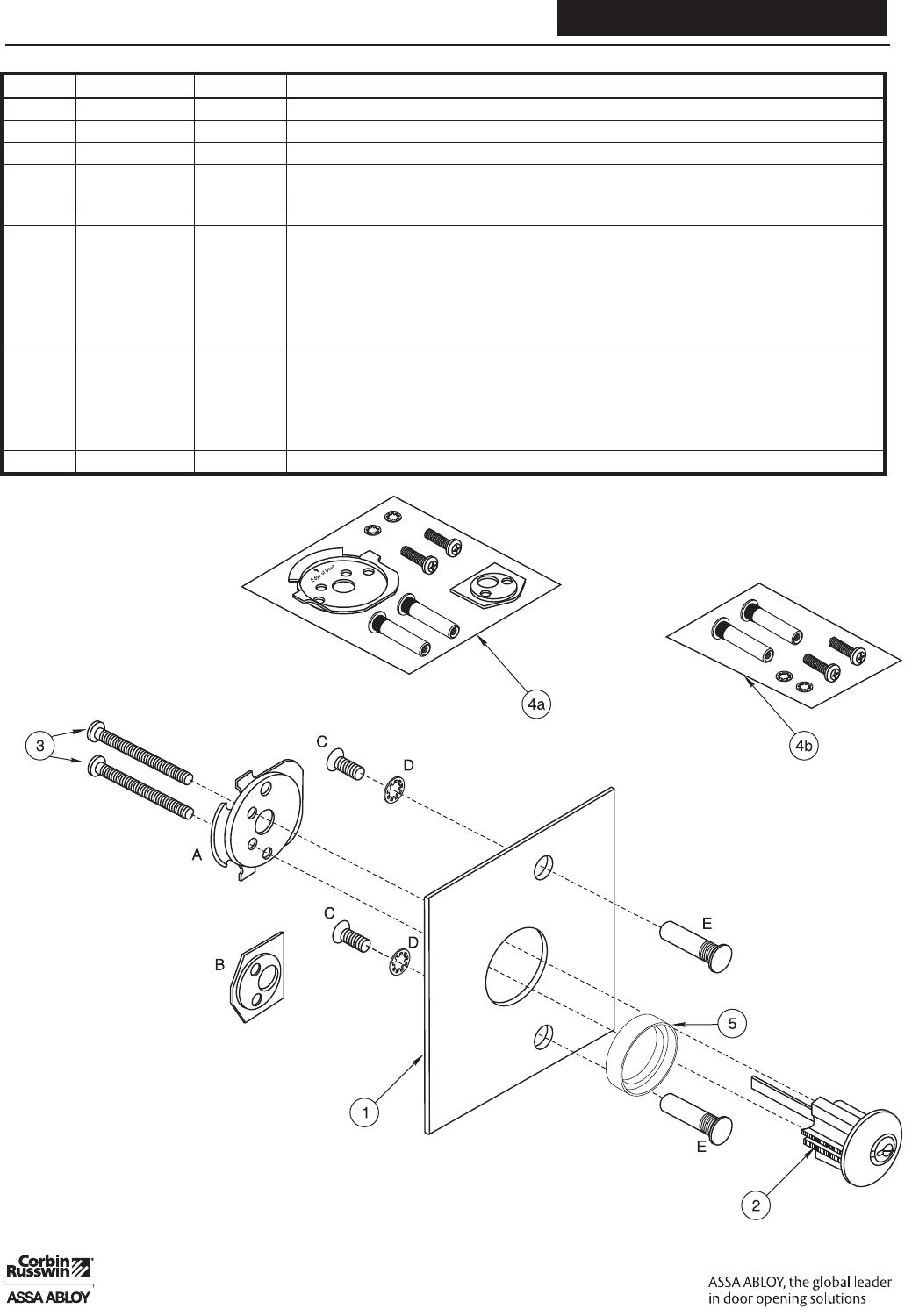

F150 and F157 Trim ED8000 Owner’s Manual
ITEM PART NO. SPECIFY DESCRIPTION
1Plate for
436F828 FIN F150 (without cylinder hole)
436F838 FIN F157 (with cylinder hole)
23000-200 FIN Cylinder - L4 Keyway, 0-bitted unless otherwise specified
(see catalog for cylinder options)
3021F688 Cylinder Connecting Screw
4a 469F678 FIN
Mounting Packet for F157; containing:
(A) 1 - Back Plate for door with 2 1/8” prep
(B) 1 - Back Plate for unprepped door
(C) 2 - #12-24 x 3/4” Phillips Pan Head Machine Screws
(D) 2 - #12 Internal Tooth Lock Washers
(E) 2 - #12-24 Sex Nuts
4b 469F688 FIN
Mounting Packet for F150; containing:
(C) 2 - #12-24 x 3/4” Phillips Pan Head Machine Screws
(D) 2 - #12 Internal Tooth Lock Washers
(E) 2 - #12-24 Sex Nuts
5173F432 FIN Cylinder Collar
16

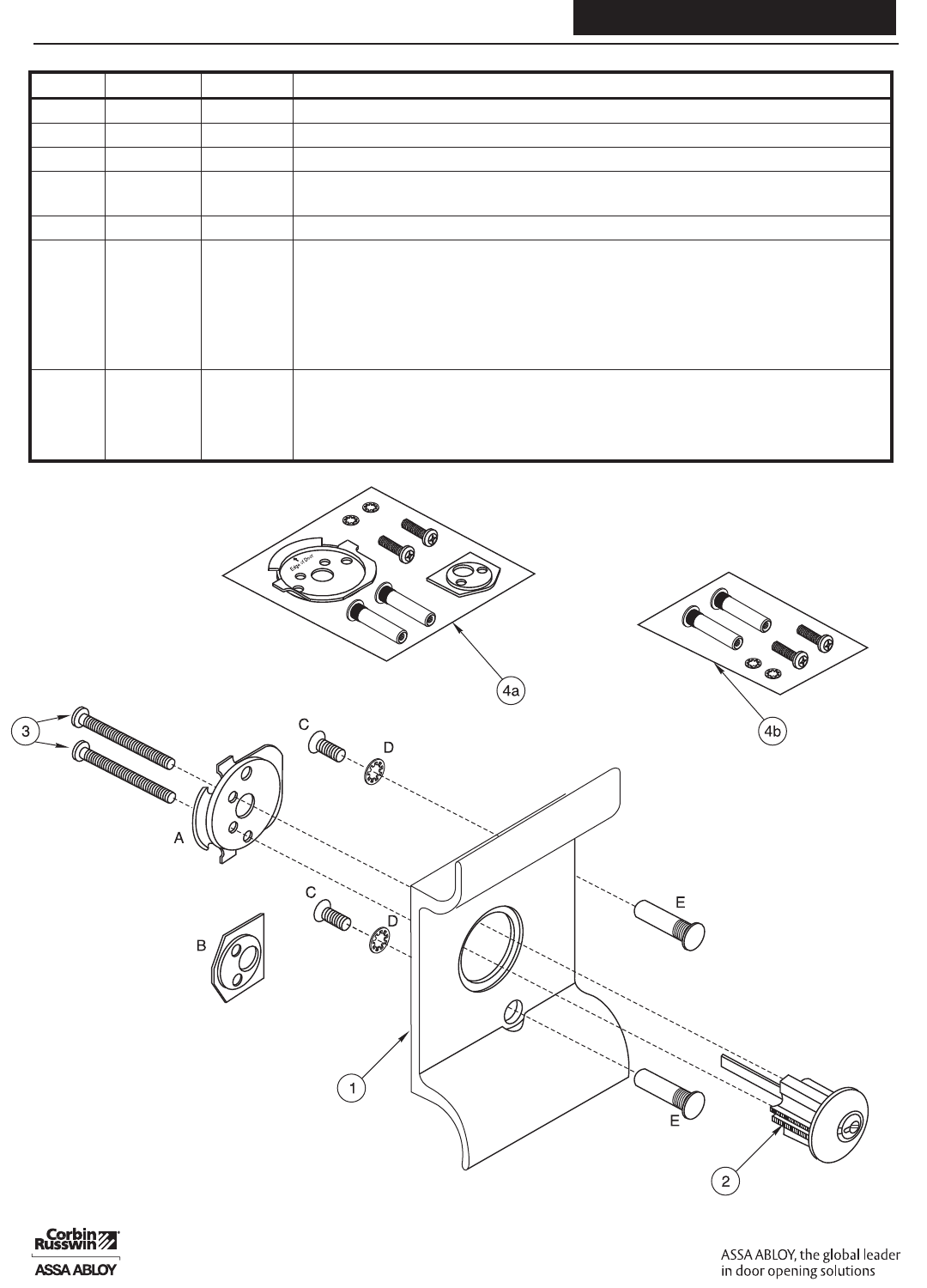

P850 and P857 Trim ED8000 Owner’s Manual
ITEM PART NO. SPECIFY DESCRIPTION
1Pull for
436F801 FIN P850 (without cylinder hole)
436F811 FIN P857 (with cylinder hole)
23000-200 FIN Cylinder - L4 Keyway, 0-bitted unless otherwise specified
(see catalog for cylinder options)
3021F688 Cylinder Connecting Screw
4a 469F678 FIN
Mounting Packet for P857; containing:
(A) 1 - Back Plate for door with 2 1/8" prep
(B) 1 - Back Plate for unprepped door
(C) 2 - #12-24 x 3/4" Phillips Pan Head Machine Screws
(D) 2 - #12 Internal Tooth Lock Washers
(E) 2 - #12-24 Sex Nuts
4b 469F688 FIN
Mounting Packet for P850; containing:
(C) 2 - #12-24 x 3/4" Phillips Pan Head Machine Screw
(D) 2 - #12 Internal Tooth Lock Washers
(E) 2 - #12-24 Sex Nuts
17
Table of Contents P150 and P157 Trim
ITEM PART NO. SPECIFY DESCRIPTION
1Offset Pull; containing:
492F201 FIN Without Cylinder Hole
492F211 FIN With Cylinder Hole
23000-200 FIN Cylinder - L4 Keyway, 0-Bitted Unless Otherwise Specified (Specify Keyway and Keying.
See Catalog for Cylinder Options)
3021F688 Cylinder Connecting Screw
4a 469F678 FIN
Mounting Packet for P157; containing:
(A) 1 - Back Plate for Door with 2-1/8" Prep
(B) 1 - Back Plate for Unprepped Door
(C) 2 - #12-24 x 3/4" Philips Pan Head Machine Screws
(D) 2 - #12 Internal Tooth Lock Washers
(E) 2 - #12-24 Sex Nuts
4b 469F688 FIN
Mounting Packet for P150; containing:
(C) 2 - #12-24 x 3/4" Philips Pan Head Machine Screws
(D) 2 - #12 Internal Tooth Lock Washers
(E) 2 - #12-24 Sex Nuts
5492F598
Rear Side Screw Packet for Offset Pull; containing:
(F) 1 - #12-24 x 2-1/4" Philips Flat Head Machine Screw for 1-3/4" - 2" Door Thickness
1 - #12-24 x 2-1/2" Philips Flat Head Machine Screw for 2-1/4" Door Thickness
18

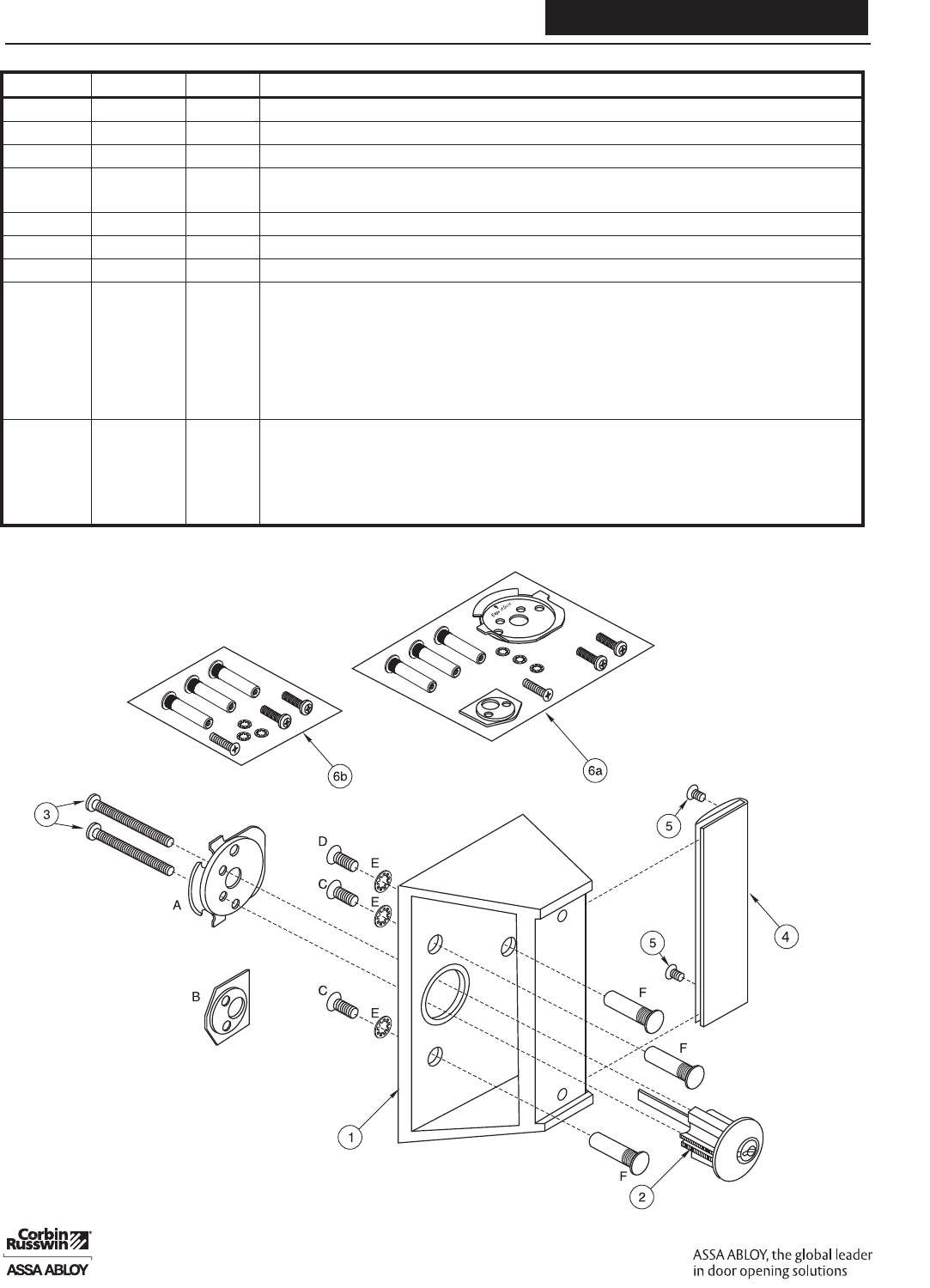

P250 and P257 Trim ED8000 Owner’s Manual
Note: Packets may contain component parts required for a variety of applications
ITEM PART NO. SPECIFY DESCRIPTION
1Pull Base
602F171 FIN with cylinder hole
602F181 FIN without cylinder hole
23000-200 FIN Cylinder - L4 Keyway, 0-bitted unless otherwise specified
(Specify keyway and keying. See catalog for cylinder options)
3021F688 Cylinder Connecting Screw
4602F151 622 Pull Grip
5606F098 622 #10 - 24 x 5/8” Phillips Pan Head Machine Screw
6a 496F688 FIN
Screw Packet for mounting P257; containing:
(A) 1 - Back Plate for door with 2-1/8" prep
(B) 1 - Back Plate for unprepped door
(C) 2 - #12-24 x 3/4" Phillips Pan Head Machine Screws
(D) 1 - #12-24 x 3/4" Phillips Flat Head Machine Screw
(E) 3 - #12 Internal Tooth Lock Washers
(F) 3 - #12-24 Sex Nuts
6b 496F698 FIN
Screw Packet for mounting P250; containing:
(C) 2 - #12-24 x 3/4" Phillips Pan Head Machine Screws
(D) 1 - #12-24 x 3/4" Phillips Flat Head Machine Screw
(E) 3 - #12 Internal Tooth Lock Washers
(F) 3 - #12-24 Sex Nuts
19
Lever Designs ED8000 Owner’s Manual
AZD NZD PZD
Levers, Standard 1-3/8" to 2-1/4" doors
Cylinder or button 563F895 563F955 685F515
Plain 563F885 563F945 685F505
Sargent®cylinder cutout N/A 578F435 685F305
Levers, IC, 1-3/8" to 2-1/4" doors
IC core 6-pin 585F705 585F715 685F535
IC core 7-pin 600F425 600F415 685F545
Best®cylinder cutout N/A 596F825 685F555
Schlage®cylinder cutout N/A 690F975 691F035
Armstrong
A6
Lever: Die cast zinc
Rose: Wrought brass or bronze
Newport
N6
Lever: Die cast zinc
Rose: Wrought brass or bronze
Princeton
PR6
Lever: Die cast zinc
Rose: Wrought brass or bronze
2-13/16"
(71mm)
4-5/8"
(117mm)
3-1/2"
(89mm)
5"
(127mm)
3-1/2"
(89mm)
2-13/16"
(71mm)
2-13/16"
(71mm)
3-1/2"
(89mm)
5-11/16"
(144mm)
20
Shim Kits ED8000 Owner’s Manual
PART NO. SPECIFY DESCRIPTION
557F928 622 fin only
Shim Kit for ED8200 and ED8200B Rim Devices;
containing:
3 - Front Plate Shims
3 - Rear Bar Shims
2 - Screws with attached washers
2 - #10-24 x 1-3/8" Phil. Fillister Head Mach.
Screws
2 - #12-24 x 1" Phil. Pan Head Mach. Screws
2 - #12-24 x 1-1/4" Phil. Pan Head Mach. Screws
557F938 622 fin only
Shim Kit for ED8200A Series UL Rim Devices;
containing:
3 - UL Rim Front Plate Shims
3 - Rear Bar Shims
2 - Screws with attached washers
2 - #10-24 x 1-3/8" Phil. Fillister Head Mach.
Screws
2 - #12-24 x 1-1/4" Phil. Pan Head Mach. Screws
6 - #12-24 x 1" Phil. Flat Head Mach. Screws
557F948 622 fin only
Shim Kit for ED8400 Series Vertical Rod Devices;
containing:
3 - Front Plate Shims
3 - Rear Bar Shims
6 - Latch Shims
6 - Rod Guide Shims
2 - Screws with attached washers
2 - #10-24 x 1-3/8" Phil. Fillister Head Mach.
Screws
2 - #12-24 x 1" Phil. Pan Head Mach. Screws
2 - #14 x 2-3/4" Phil. Oval Head Wood Screws
2 - 1/4-20 x 2-1/4" Phil. Oval Head Type Tapping
Screws
2 - 1/4-20 x 1-1/4" Phil. Button Head Undercut
Mach. Screws
2 - #14 x 1-1/4" Phil. Button Head Undercut
Mach. Screws
2 - #12-24 x 1-1/4" Phil. Pan Head Mach. Screw
557F958 622 fin only
Shim Kit for ED8400A Series UL Vertical Rod
Devices; containing:
3 - Front Plate Shims
3 - Rear Bar Shims
6 - UL Latch Shims
6 - Rod Guide Shims
2 - Screws with attached washers
2 - #10-24 x 1-3/8" Phil. Fillister Head Mach.
Screws
2 - #12-24 x 1" Phil. Pan Head Mach. Screws
6 - #12-24 x 1-1/4" Phil. Pan Head Mach. Screws
21
Mullions ED8000 Owner’s Manual
507, 508 & 510 Mullions 707A, 708A, 710 Mullions & KM Option
ITEM PART NO SPECIFY DESCRIPTION
1409F836 600 1 - Top Plate with Set Screw
2220F82 7 4 - Top Plate Mounting
Screw 1/4-20” x 1” FHM-PH
3405F458 600 1 - Mullion up to 7-1/2'
Door
464F028 600 1 - Mullion up to 8' Door
606F058 600 1 - Mullion up to 10' Door
8405F49 6 600 1 - Bottom Plate with Set
Screw
9405F31 8 2 - Floor Anchor Screw 3/8-
16” x 1” FHM-PH
10 405F42 8 2 - Floor Anchor
ITEM PART NO DESCRIPTION
1Mullion only
655F50-8 7’ for 707A
655F51-8 8’ for 708A
655F52-8 10” for 710
2655F60-8 Upper Mounting Bracket
3655F61-8 Lower Mounting Bracket
4655F62-8 Anchor Pad
5655F65-8
Screw Pack contains:
Screw # 12-24 x 3/4”
FHM-PH (4)
Set Screw 5/16 - 18 x 3/8” (1)
Set Screw, Half Dog (2)
5/16 - 18 x 5/8”
Screw 1/4 - 20 x 3/4”
RHM-PH (2)
Lock Washer 1/4” (2)
Masonry Anchor 1/4 - 20 (2)
6655F63-8
Angle Bracket Packet (optional)
contains:
Angle Bracket (1)
Screw # 12-24 x 7/16”
OHM-PH (2)
7653F11-1
Stabilizer Kit (optional) contains:
Stabilizer Brackets (2)
Stabilizers (2)
Stabilizer Spacers (4)
Screw #10-24 x 3/4”
FHM-PH (4)
Screw #10-24 x 1”
FHM-PH (4)
655F18-8 Parts Packet contains:
Items 2, 3, 4, and 5
8685F20-8
Keyed Removable Mullion Retro-Fit
Kit (cylinder not included unless
specified)
22
Cylinders ED8000 Owner’s Manual
L4 keyway standard. To order with Exit Device, see How to Order, page 17.
To order separately, specify Part No. x Keyway x Finish (e.g., 2000-033-7 x L4 x 626).
For Assa and Medeco retrofit cylinders, consult those manufacturers' catalogs.
Compatibility with Competitive Cylinders (N6 and PR6 trims only)
Competitive Cylinder Complete Trim Parts for Field Conversion
Schlage conventional 21-002, 23-001 or 23-013 Specify M06 682F39-8 Tailpiece
Schlage Primus 20-548, 20-550, 20-748 or 20-750 Specify M06 682F39-8 Tailpiece
Best style core, 6 or 7-pin Specify M08 Field Conversion Not Practical
Sargent 13-3266 Specify M09 682F96-9 Tailpiece kit and Special Lever
Schlage IC Core Specify M69 697F94-2 Tailpiece
Cylinder Type Part No. Description
Key-in-Lever
for A6, N6 and PR6
trim
2000-033
2000-033-7
2010-033
2020-033
6-pin
7-pin
6-pin, Security
7-pin, Pyramid
Key-in-Knob
for G10 trim 2000-033H 6-pin
Interchangeable Core
Optional for A6, N6,
PR6 trim
8000
8000-7
8010
8020
6-pin
7-pin
6-pin, Security
7-pin, Pyramid
Rim
for all other trim
3000-200
3000-138
3000-200-7
3010-200
3012-178
3080-178
3070-178
3070-178-7
3080-178-7
3090-178
3070-114/3080-114
3070-114
3080-114-7
3070-114-7
6-pin
6-pin, horizontal tailpiece for exit alarm
supplied when M61 or M62 is ordered
7-pin, horizontal tailpiece
6-pin, horizontal tailpiece, Security
6-pin, blockout function, Security
6-pin, interchangeable core (IC)
6-pin, IC less core
7-pin, IC less core
7-pin, IC
6-pin, Security IC
6-pin, IC for exit alarm supplied when M61
or M62 is ordered
6-pin, IC less core for M61 or M62
7-pin, IC for M61 or M62
7-pin, IC less core for M61 or M62
23
Strikes ED8000 Owner’s Manual
Rim Devices
Vertical Rod Devices
386F45
Standard Strike - ED8200
468F30
S02 Optional Strike - ED8200
518F06
Standard Strike - ED8200A
446F21
Standard Top Strike
ED8400
446F22
Standard Bottom Strike
ED8400
463F92
S03 Bottom Latch Strike
ED8400
526F52
Standard Top Strike
ED8400A
526F53
Standard Bottom Strike
ED8400A
For more information regarding Corbin Russwin Locksets,
Exit Devices, Door Controls and Key Systems, contact your
authorized Corbin Russwin Distributor or Sales Representative.
In U.S.
Corbin Russwin
Architectural Hardware
225 Episcopal Road
Berlin, CT 06037
Phone: 800-543-3658
Fax: 800-447-6714
corbinrusswin.com
In Canada
ASSA ABLOY Door
Security Solutions Canada
160 Four Valley Drive
Vaughan, Ontario
Canada L4K 4T9
Phone: 800-461-3007
Fax: 905-738-2478
www.assaabloy.ca
Corbin Russwin and Design® is a registered trademark of Corbin Russwin, Inc, an ASSA ABLOY Group company. Other products' brand names may be trademarks or
registered trademarks of their respective owners and are mentioned for reference purposes only. These materials are protected under US copyright laws. All contents current
at time of publication. Corbin Russwin, Inc., an ASSA ABLOY Group company reserves the right to change availability of any item in this catalog, its design, construction,
and/or its materials. Copyright © 2002, 2009 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express
written permission of Corbin Russwin, Inc. is prohibited.
45216-9/09R
