Core lmage AT-UP003 WiFi Smart Plug User Manual
Shenzhen Core lmage Co.,LTD WiFi Smart Plug Users Manual
User manual
第1页共7页
WiFi Smart Converter User Manual
Function Key and Indicator Description
Long press the power button for about 5 seconds, blue indicator flashes means the
product begin enter into the distribution network mode.
Short press the power button, red indicator lights up means power on, red indicator
lights off means power off.
Technical Parameters
Maximum current: 10A
Rated voltage: 120V
Rated power: 1200W
Input voltage range: 100-240V
Wireless Type: Wi-Fi 2.4GHz
Operating temperature: 0 ℃-40℃
Support system: Android \IOS
Turn On Intelligence
Use your phone to scan the QR code below or search “smart life”in
application market to download and install the App
Step 1: Registration and login "smart life" APP.
If you don't have the account of “Smart life” APP,register an account or sign in with
cellphone number + verification code.This page describes the Registration process.

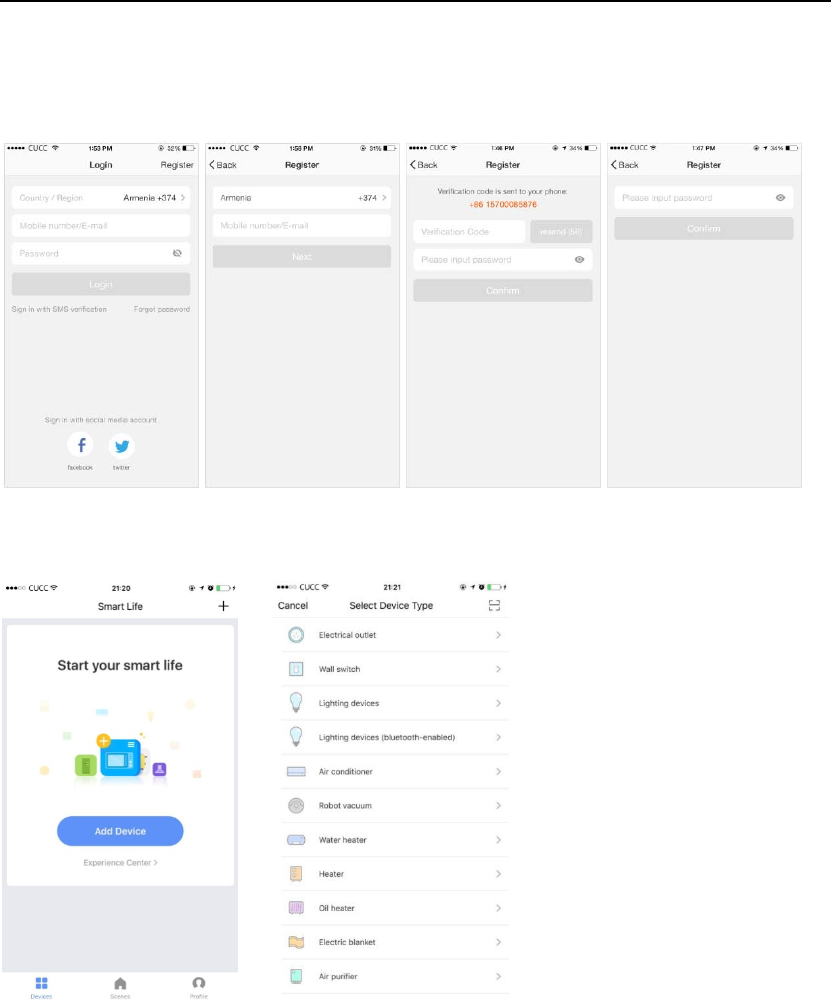

1.Tap“Register”in the upper right（pic 1）
2.The system automatically determines your country / area.You can also select your
country code by yourself. Enter the cellphone number/E-mail and tap “Next” （pic 2）
3.If you enter the mobile cellphone number，enter the verification code in the message
第2页共7页
（pic 3），and enter the password，tap"Confirm" to finish your registration.
4.If you enter the E-mail，enter the password （pic 4），tap” Confirm" to finish your
registration.
Make sure your phone is connected to WiFi in your home. Click "+" in the upper right
corner of the homepage and select "Electrical outlet" from the device type.

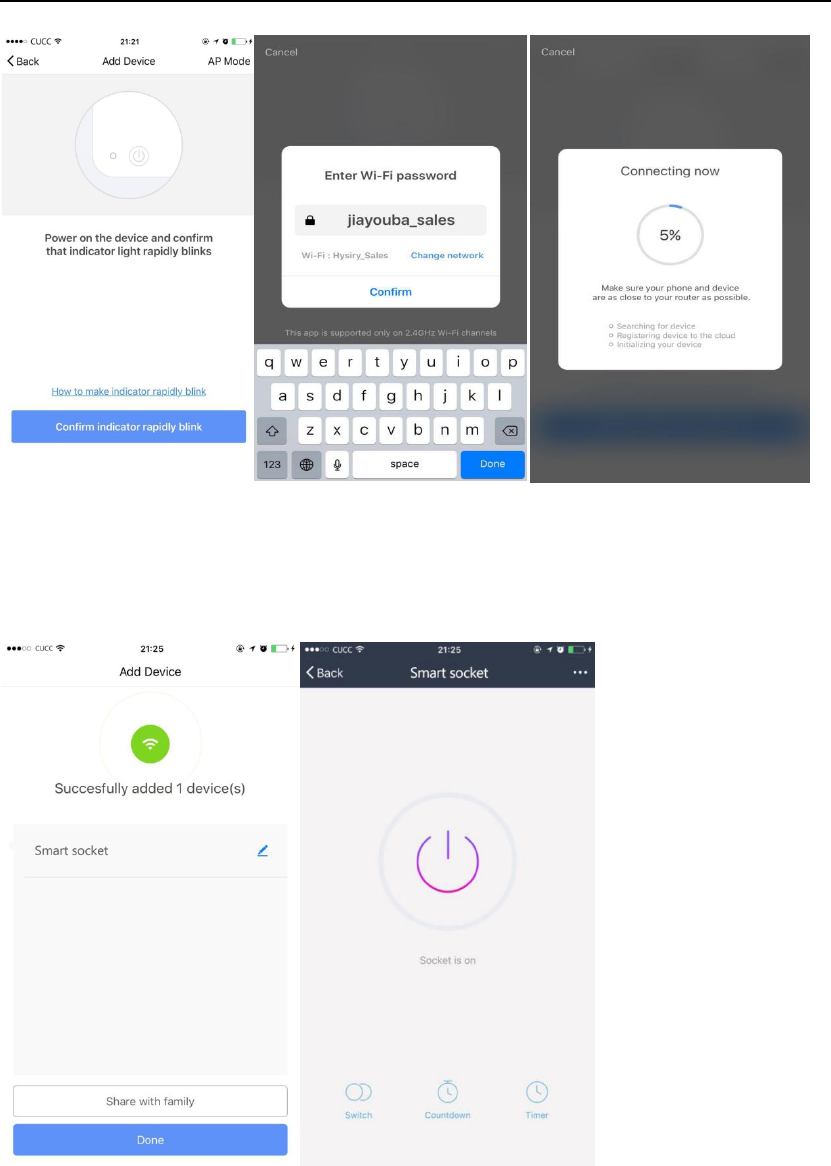

Step 2: Connect with the power supply, long press the power button more than 5
seconds until the blue indicator enters into the fast flash mode.Select confirm indicator
rapidly blinks.
Step 3: Enter your WiFi password for your phone and click "Confirm" to enter the
page of the search device.
第3页共7页
Step 4: Enter the device page, then complete the configuration
How to use Amazon Echo to control your Smart devices?

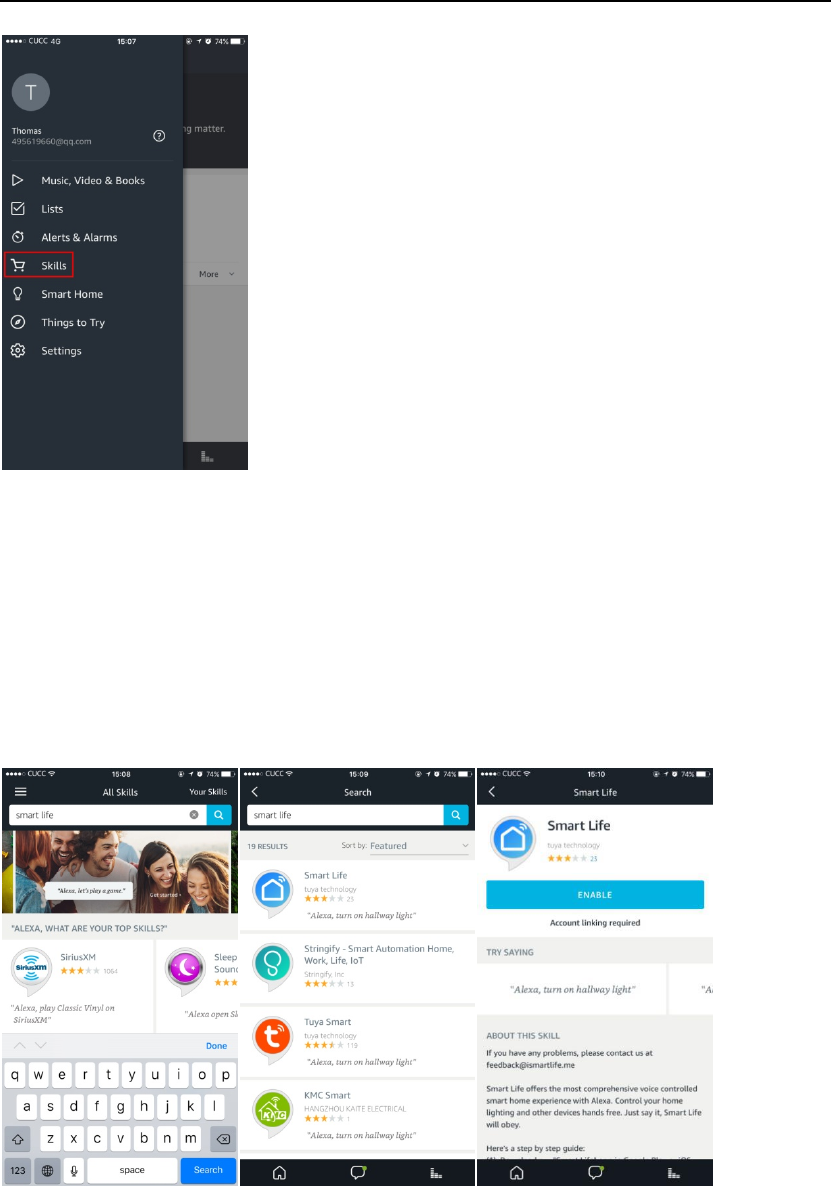

Step 1: Open the” Amazon Alexa”APP,then find the “Skills “button on the menu. Press
it.
第4页共7页
Step 2: Search the” Smart life” and choose the first one, then Enable it.

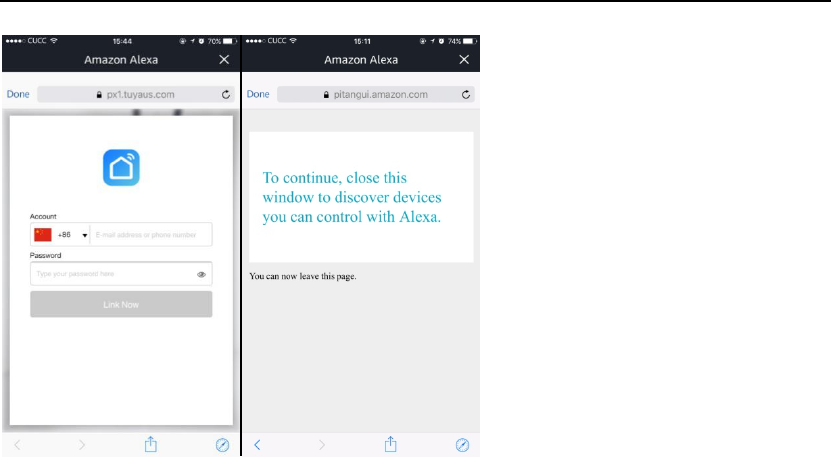

Step 3: Select your country code and Enter your “Smart life” APP Account and
Password, then press the “Link Now” button. When the Account success to login
press the “Done” button.
第5页共7页

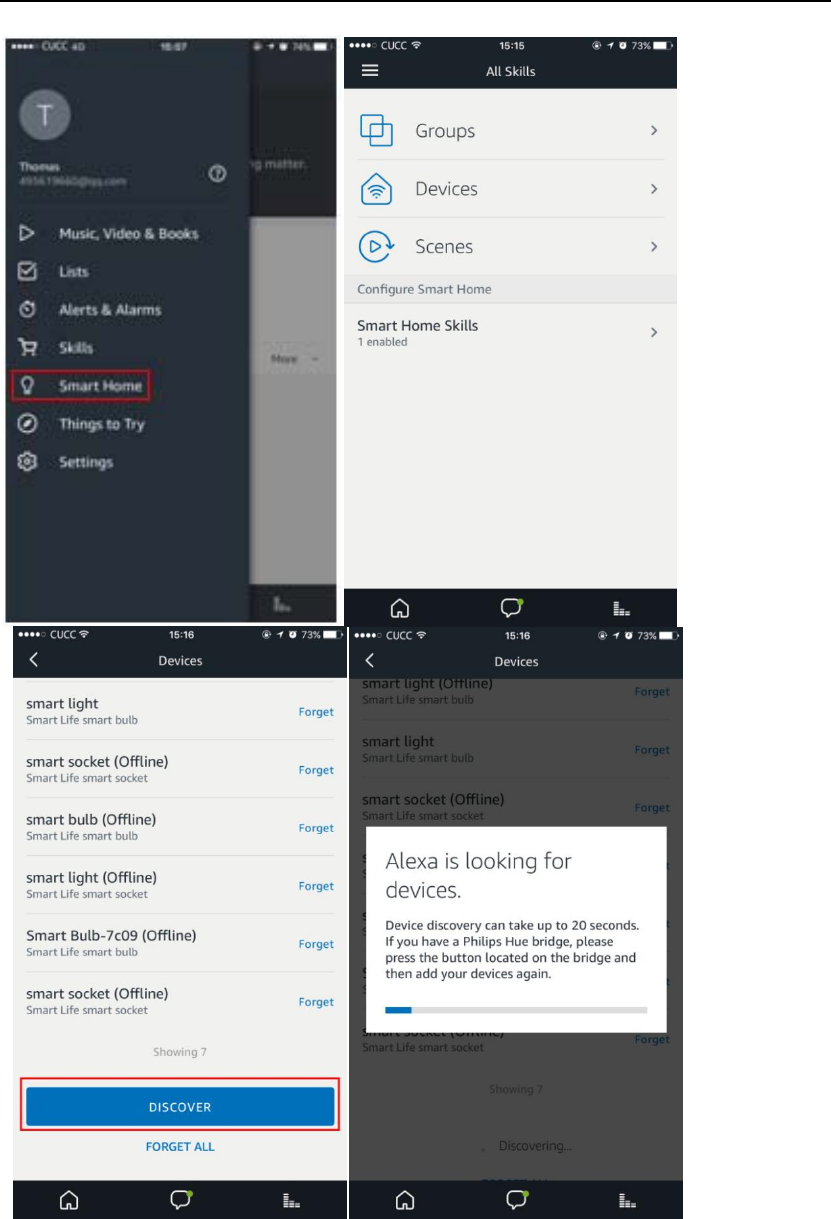

Step 4: Back to the menu, and press the “Smart home” button, then choose the
“Devices”, then press the ”Discover” button.
第6页共7页
Step 5: Now u can use your Alexa to control your Smart devices, enjoy yourself.
第7页共7页
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Shenzhen
Core lmage Co., LTD may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
RF Exposure Warning Statements:
The distance between device and user should be no less than 20cm during normal operations.
