Corecess CORECESS3311N SHDSL MODEM User Manual CC3310N IG E
Corecess Inc. SHDSL MODEM CC3310N IG E
Corecess >
Users Manual
| FCC Part 15 Notice |
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation. Class B limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy, and,
if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is not guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient the receiving antenna.
• Increase the separate between the equipment and the
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
| Copyright |
Copyrightⓒ Corecess All rights Reserved.
No Part of this book shall be reproduced, stored in a
retrieval system, or transmitted by any means, electronic,
mechanical, photocopying, recording, or otherwise,
without written permission from the publisher.
The specifications and information regarding the products
in this manual are subject to changed without notice.
| Trademark Credit |
Corecess 3311N and Corecess 3312N are registered
trademark of Corecess Inc.
Windows is registered trademark of Microsoft Corp.
Corecess Inc.
500-2, Sangdaewon-dong, Jungwon-ku, Sungnam-city,
Kyungki-do, Korea, 462-120
TEL: +82-31-739-6600 FAX: +82-31-739-6622
http://www.corecess.com
Table of Contents
Introduction ·························································· 4
Before Installing ··················································· 5
Installing the SHDSL Modem ······························ 6
Configuring the TCP/IP ········································ 7
Troubleshooting ················································· 10
Product Specifications ······································· 12
Thank you for using the product of Corecess.
This manual helps users to install the
Corecess SHDSL Modem
Corecess 3311N and Corecess 3312N.
Corecess 3311N/3312N Installation Guide
4
Introduction
The Corecess 3311N and Corecess 3312 N are Single-pair High-speed Digital Subscriber Line
(SHDSL) modems used for connection to the Internet or corporate intranets over ordinary
telephone lines.
Key Features
The Corecess 3311N and Corecess 3312N SHDSL modem provides the following key features:
y Provides auto-negotiating 10/100Base-TX Ethernet interface.
y Provides SHDSL interface supporting the following data transmission rate:
- Corecess 3311N : up to 2.3 Mbps for both upstream and downstream (2-wire mode)
- Corecess 3312N : up to 4.6 Mbps for both upstream and downstream (4-wire mode)
y Supports both symmetric and asymmetric services.
y Supports both adaptive and fixed data rate modes.
y Supports both server (CO) and client (CPE) operation modes.
y Supports PPPoE, PPPoA, IPoA, RFC 1483 bridged/routed protocols.
y Supports static routing and dynamic routing (RIP v1 and RIP v2)
y Supports DHCP (Dynamic Host Configuration Protocol) server and client for dynamic IP
address allocation.
y Supports DNS (Domain Name Server) client and relay for easy mapping the domain name and
IP address.
y Supports NAT (Network Address Translation) for conservation of registered IP addresses.
y Supports Telnet and HTML browser interface for configuring the SHDSL modem.
y Can upgrade the latest modem software remotely using TFTP or FTP.
y Supports Back-to-Back Connections for high-speed LAN extensions over a private network.
5
Before Installing
Safety Precautions
When installing or using the SHDSL modem, the following safety precautions should always
be followed.
y Do not use the SHDSL modem near water, for example, near a bath tub, wash bowl, kitchen
sink of laundry tub, in a wet basement or near a swimming pool.
y Use caution when installing or modifying telephone lines to prevent electric shock.
y Do not connect or disconnect telephone lines during periods of lightning activity.
y Use only the power supply and power cord provided with the SHDSL modem.

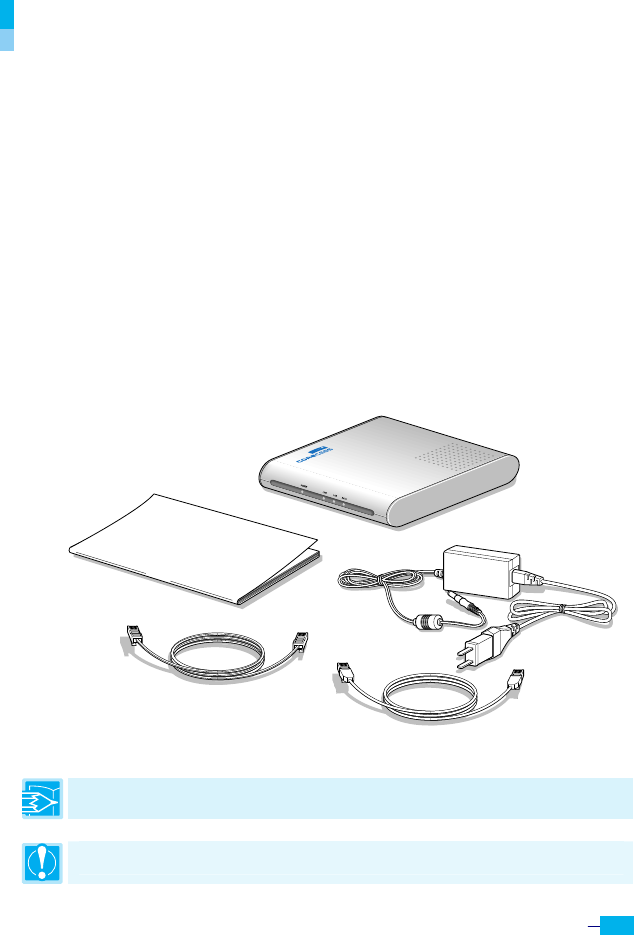

Unpacking the Box
Check the shipping carton carefully to ensure that the contents include the items you ordered.
Note: The PC with a Ethernet port or adapter is neccssary to install the SHDSL modem. Before
installing the SHDSL modem, prepare a PC with Ethernet port or adapter.
Caution: To reduce the risk of fire, use only No. 26AWG or larger telecommunication line cord.
Installation Guide
SHDSL Modem
Ethernet Cable
(Straight-through Category-5)
SHDSL Cable
(4-wire Telephone Line)
Power Supply and
Power Cord
Corecess 3311N/3312N Installation Guide
6

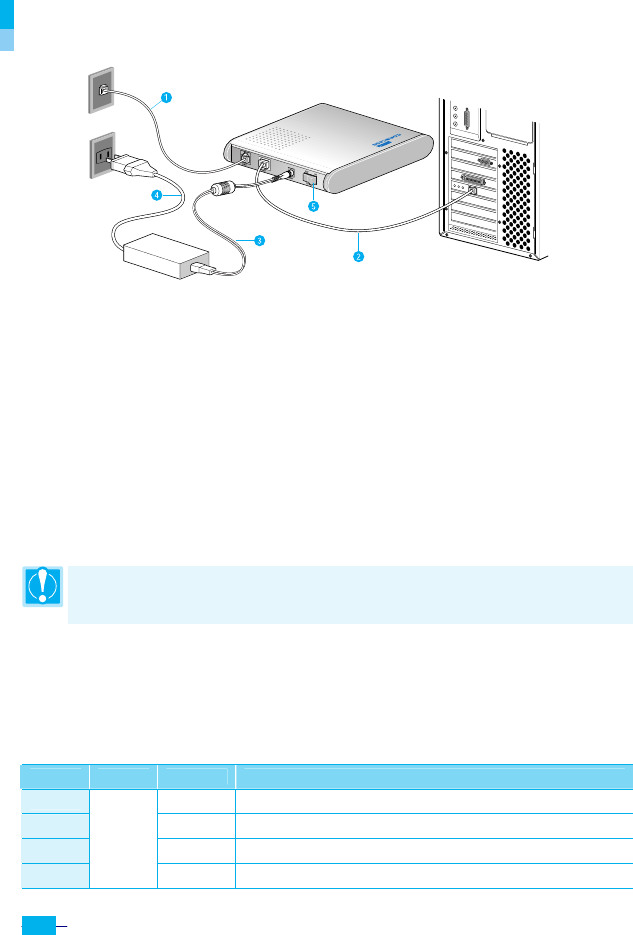

Installing the SHDSL Modem
n Connect the provided SHDSL cable to the wall receptacle and connect the other end of the
cable to the LINE port of the SHDSL modem.
o Connect the provided Ethernet cable to the LAN port of the SHDSL modem and then connect
the other end of the cable to Ethernet port on the NIC installed to your PC.
p Connect the provided power supply cable into the DC IN port of the SHDSL modem.
q Connect the provided power cord to the power supply and connect the other end of the cord to
an appropriate electrical outlet.
r Turn on the SHDSL modem with the power switch on the rear panel of the SHDSL modem.
s Power on your PC.
Caution: You should power on the SHDSL modem before powering on your PC. If you power on your
PC first, PC’s IP address may not be properly assigned. In this case, assign new IP address referring to
‘Troubleshooting’ on page 10-11 or restart your PC.
LED Operation
When you have powered up the SHDSL modem, check the status of the four LEDs on the front
panel by the following table:
| Table 1 System LEDs |
LED Color Status Description
POWER ON DC power is being supplied to the SHDSL modem.
LINK ON The modem is connecting to SHDSL network.
LAN ON The LAN port is connecting to Ethernet port on your PC.
DATA
Green
Blink Data is being sent to or received from SHDSL network.
7
Configuring the TCP/IP
After you install the SHDSL modem, next is to configure the TCP/IP network protocol.
Note: This section describes how to set your PC to allocate a dynamic IP address from your ISP
supporting DHCP server function. If your ISP does not support DHCP server function, contact your ISP.
Caution: When you configure the TCP/IP, leave the default value of any other configuration that is
not mentioned in the following description.

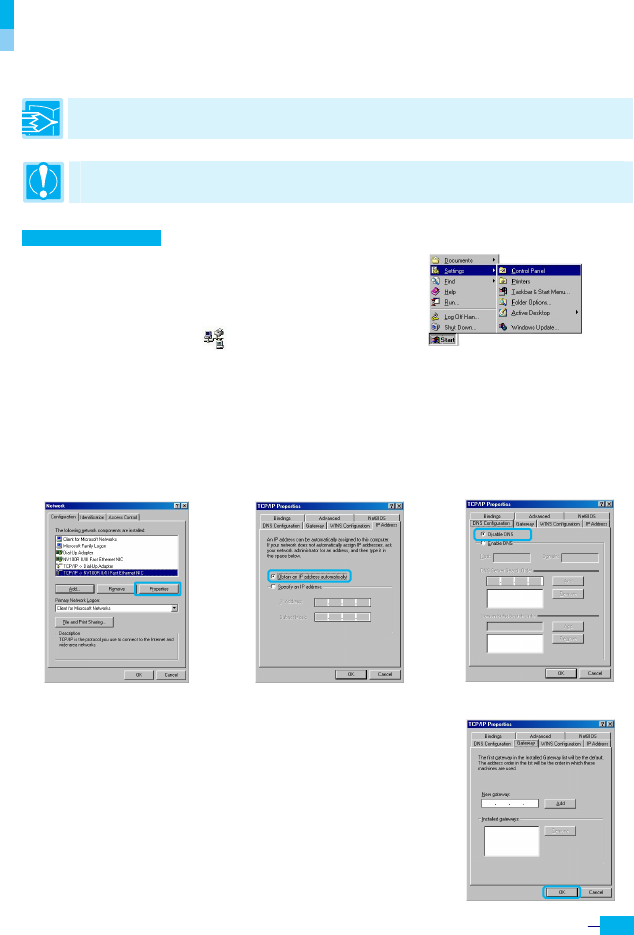

Windows 95/98/ME
1. Click the Start button and select Settings ¼ Control Panel.
(Figure 1)
2. Double-click the Network icon.
3. Select TCP/IP in the ‘The following network components are installed’ list and click Properties.
(Figure 2)
4. Select the [IP Address] tab and click the Obtain IP address automatically. (Figure 3)
5. Select the [DNS Configuration] tab and click the Disable DNS. (Figure 4)
6. Select the [Gateway] tab and check there is no gateway
installed. If there are installed gateways, delete them by
clicking [Remove]. Click OK. (Figure 5)
7. At the <Network> dialog box, click OK. The system
prompts you to restart. Click Yes.
Figure 2 Figure 3 Figure 4
Figure 5
Figure 1
Corecess 3311N/3312N Installation Guide
8

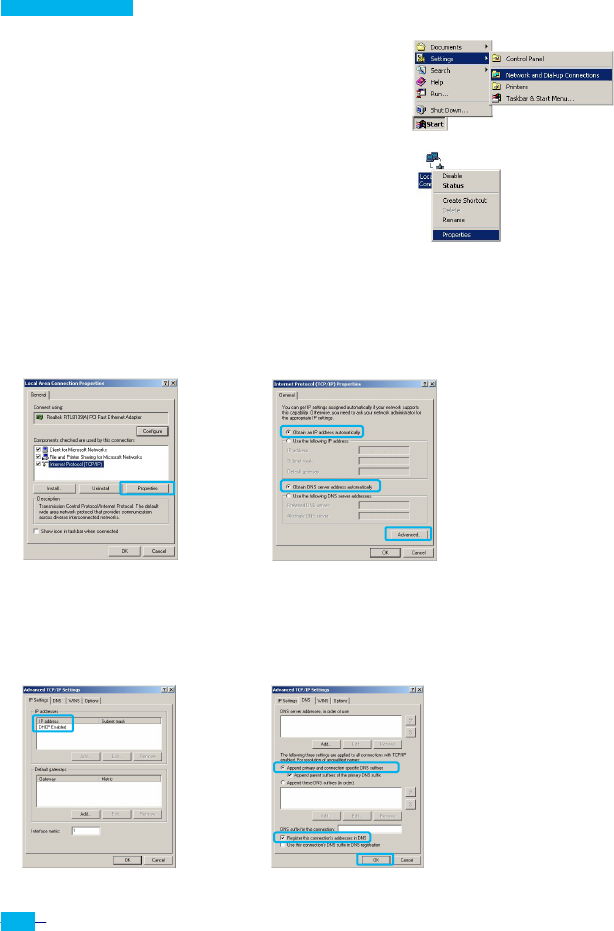

Windows 2000/NT
1. Click the Start button and select Settings ¼ Network and Dial-
up Connections. (Figure 1)
2. Right-click the Local Area Connection icon at the <Network
and Dial-up Connections> windows and select Properties
menu. (Figure 2)
3. At the <Local Area Connection Properties> dialog box, select the Internet Protocol (TCP/IP) in the
‘Components checks are used by this connection’ list and click Properties. (Figure 3)
4. At the <Internet Protocol (TCP/IP Properties)> dialog box, click the Obtain an IP address
automatically and the Obtain DNS server address automatically. Then click Advanced to check the
TCP/IP settings for accuracy. (Figure 4)
5. The <Advanced TCP/IP Settings> dialog box appears. At the [IP Settings] tab, check that the IP
Address is set to Enable DHCP. (Figure 5)
6. Select the [DNS] tab and check that the Append primary and connection specific DNS suffix is selected.
Click OK. (Figure 6)
Figure 3 Figure 4
Figure 1
Figure 2
Figure 5 Figure 6
9

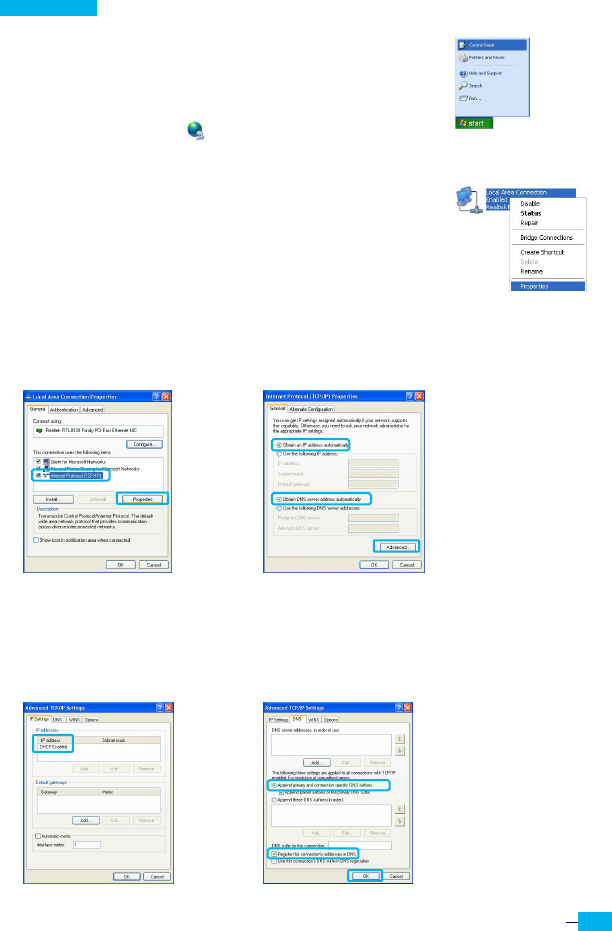

Windows XP
1. Click the Start button and select Settings menu. (Figure 1)
2. Double-click the Network icon at the <Control Panel>
window.
3. Right-click the Local Area Connection icon at the <Network
Connections> windows and select Properties menu. (Figure 2)
4. At the <Local Area Connection Properties> dialog box,
select the Internet Protocol (TCP/IP) in the ‘This connection uses
the following items’ list and click Properties. (Figure 3)
5. At the <Internet Protocol (TCP/IP) Properties)> dialog box, click the Obtain an IP address
automatically and the Obtain DNS server address automatically. Then click Advanced to check the
TCP/IP settings for accuracy. (Figure 4)
6. The <Advanced TCP/IP Settings> dialog box appears. At the [IP Settings] tab, check that the IP
Address is set to Enable DHCP. (Figure 5)
7. Select the [DNS] tab and check that the Append primary and connection specific DNS suffix is selected.
Click OK. (Figure 6)
Figure 3 Figure 4
Figure 2
Figure 5 Figure 6
Figure 1
Corecess 3311N/3312N Installation Guide
10
Troubleshooting
If you cannot connect to SHDSL network, please check the status of the LEDs on the front panel,
and then ensure the following:
1. Check the LAN LED
If the LAN LED goes off, ensure that the Ethernet cable is firmly connected both to the LAN port
on the SHDSL modem and Ethernet port on your PC.
2. Check the LINK LED
If the LINK LED blinks continuously and never stays solid on, ensure that the SHDSL cable is firmly
connected to the LINE port on the SHDSL modem. If the LINK LED still blinks, contact your
SHDSL service provider.
If the LINK LED goes off, turn off the power of the SHDSL modem by pressing the power switch
and turn on the power again. If LINK LED still goes off, contact your vendor.
3. Check your PC’s IP address
If all LEDs operate normally and cables are firmly connected to the ports, ensure that your PC’s IP
address is properly assigned. Otherwise assign a new IP address according to your operating
system.

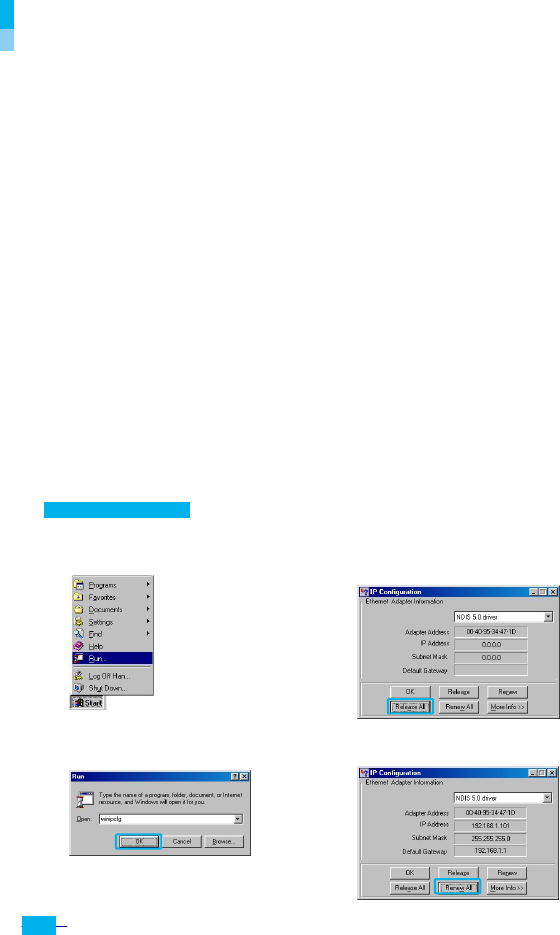

Windows 95/98/ME
n Click the Start button and select Run.
p Select Ethernet adapter connected with the
SHDSL modem and click Release All.
o Input Winipcfg and press the [Enter] key.
q Click Renew All.
11

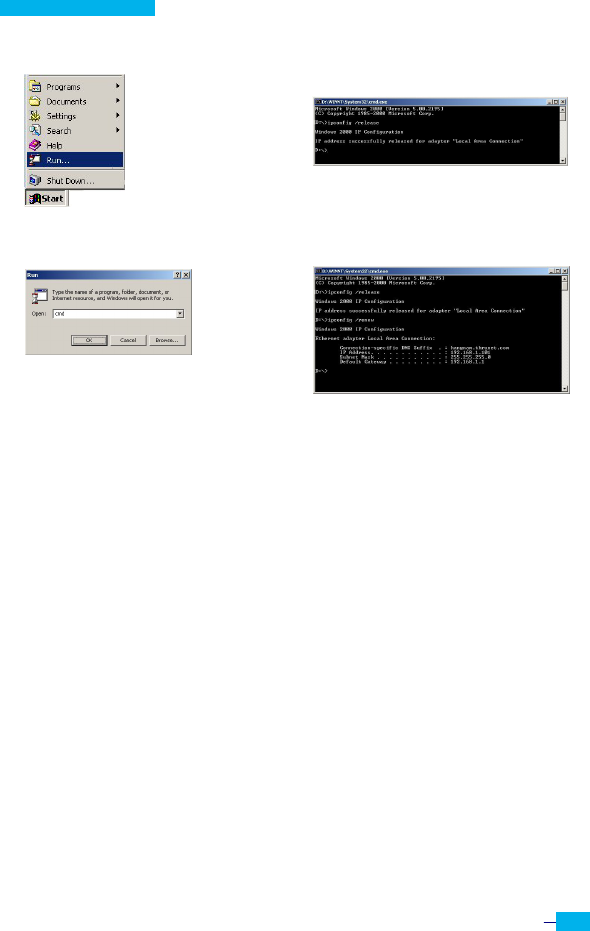

Windows 2000/NT/XP
n Click the Start button and select Run.
p The DOS-prompt appears. Input ipconfi
g
/release and press [Enter] key.
o Input cmd and press the [Enter] key.
q Input
ipconfig /renew and press [Enter] key.
4. Restart your PC
If new IP address is not assigned properly or you cannot solve the problem, ensure that the SHDSL
modem turns on and then restart your PC.
Corecess 3311N/3312N Installation Guide
12
Product Specifications
Hardware Specifications
| Table 2 Hardware Specifications |
Description Specification
Ethernet Interface
y 10/100Base-TX
y Distance: Up to 100m
y Connector: RJ-45
SHDSL Line Interface
Interfaces y ITU-T G.991.2 (G.SHDSL)
y Line Code: TC-PAM
y Data Transmission Rate
- Corecess 3311N: up to 2.3 Mbps in 2-wire mode
- Corecess 3312N: up to 4.6 Mbps in 4-wire mode
y Distance: 3Km, up to 8Km @ 26AWG
y Connector: RJ-11
Connectors
y 1 RJ-11 connectors (LINE)
y 1 RJ-45 connector (LAN)
y 1 Power socket (DC IN)
LEDs
y POWER: Indicates DC power status
y LINK: Indicates the connection status with SHDSL network
y LAN: Indicates the connection status with Ethernet network
y DATA: Indicates data transmit/receive status via SHDSL network
Environmental
Conditions
y Operating Temperature: 32 to 122°F (0 to 50°C)
y Storage Temperature: -40 to 158°F (-40 to 70°C)
y Humidity: 5 to 90% (non-condensing)
Physical
Conditions
y Dimension: 140(W) x 150(D) x 30(H) mm
y Weight: 250 g
Power
Requirements
y Power Input: 100 to 240 VAC (auto-ranging), 50-60Hz, DC 5V/2A
y Power Consumption: Max. 4 Watt
13
Software Specifications
| Table 2 Software Specifications |
Description Specification
ATM Support
y Multiple protocol over ATM AAL5 (MPOA, RFC 2684)
y PPP over ATM (RFC 2364)
y Classical IP over ATM (RFC 2225)
y ATM with up to 8 VCs support
y ATM Forum UNI 3.0/4.0 PVC
y I.610 OAM F4/F5 RDI/AIS, CC, Loopback
Routing Support
y Static routing
y Dynamic routing (RIP v1 and RIP v2)
y DHCP (Dynamic Host Configuration Protocol) server, client, and relay
y DNS (Domain Name Server) client and relay
y NAT (Network Address Translation)
Bridging Support y Transparent Bridging (IEEE 802.1D)
y RFC 2684 (formerly RFC 1483) Bridged Mode
Management
y CLI (Command Line Interface)
y Remote management with Telnet or HTML browser interface
y TFTP or FTP for software updates and configuration
y Configuration file backup and restoration
y SYSLOG for remote status monitoring
y SNMP v1 and SNMP v2 MIB (Management Information Base)
Security
y IP/Protocol/Port Packet Filtering
y IP Policy Routing
y NAT supports PAT(Port Address Translation)
y DMZ
y Password Protected System Management Terminal
y PAP (Password Authentication Protocol)
y CHAP (Challenge Handshake Authentication Protocol)
Corecess 3311N/3312N Installation Guide
14
