Coretronic PBP PointBlank Pen User Manual
Coretronic Corp. PointBlank Pen
User Manual
Dell™ S300wi Projector
User’s Guide
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you
make better use of your projector.
NOTICE: A NOTICE indicates either potential damage to
hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property
damage, personal injury, or death.
____________________
Information in this document is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell
Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED;
Microsoft and Windows are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims
any proprietary interest in trademarks and trade names other than its own.
Model S300wi
April 2010 Rev. A00
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules. Operation
is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may
cause undesired operation of the device
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator & your body.
2.4GHz RF Wireless Pen Specification
1. Interactve Pen Model: PBP
Certification
FCC 15C
RSS-210
Radio Technology
SRD band systems (MSK)
Modulation Schemes
MSK
CARRIER FREQUENCY OF EACH CHANNEL
2402.25MHz ~ 2481.25MHz
ANTENNA TYPE
Ceramic antenna, without connecter (Antenna Gain:
3.0dBi)
Channel Numbers
USA/CANADA: 11
2. Interactive Module Model:PBM
(Inside projector wireless link to PBP)
Certification
FCC 15C
RSS-210
Radio Technology
SRD band systems (MSK)
Modulation Schemes
MSK
CARRIER FREQUENCY OF EACH CHANNEL
2402.25MHz ~ 2481.25MHz
ANTENNA TYPE
Folded Dipole antenna, without connecter (Antenna Gain:
7.4dBi)
Channel Numbers
USA/CANADA: 11
Contents 3
Contents
1 Your Dell Projector . . . . . . . . . . . . . . . . . . 7
About Your Projector . . . . . . . . . . . . . . . . . 8
About Your Interactive Pen . . . . . . . . . . . . . . 9
2 Connecting Your Projector . . . . . . . . . . . . 11

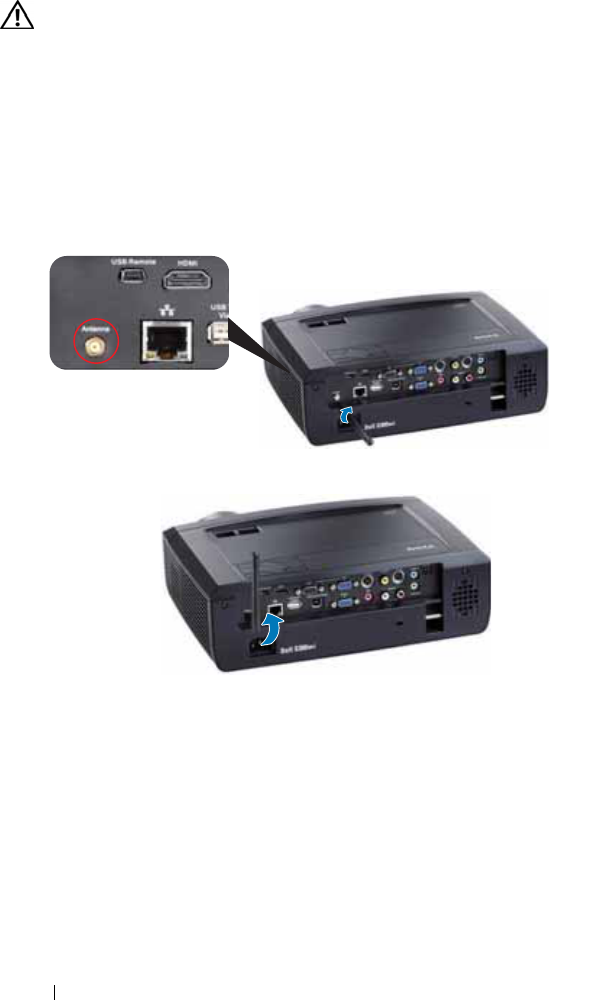

Installing the Antenna . . . . . . . . . . . . . . . 12
Connecting to a Computer . . . . . . . . . . . . . . . . 13

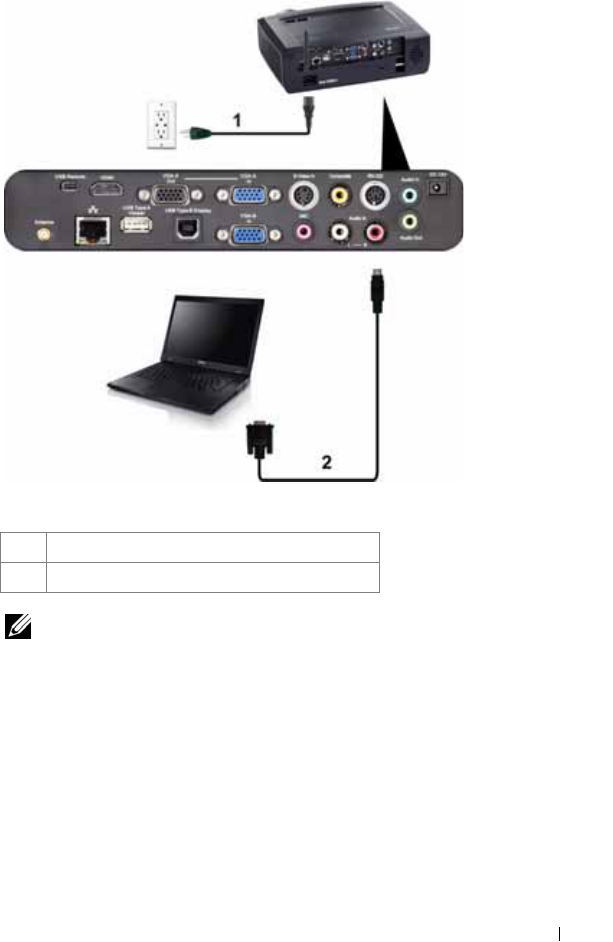

Connecting a Computer Using a VGA Cable . . . . 13
Monitor Loop-Through Connection Using
VGA Cables . . . . . . . . . . . . . . . . . . . . . 14
Connecting a Computer Using an RS232 cable . . . 15

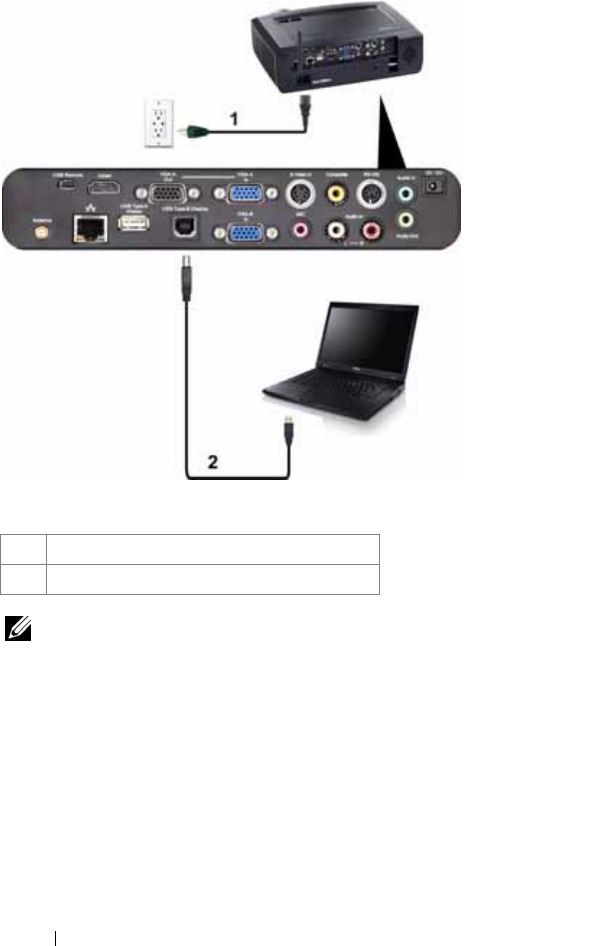

Connecting a Computer Using an USB Display . . . 16
Connecting a Computer Using Wireless . . . . . . 17
Connecting a DVD Player . . . . . . . . . . . . . . . . 18

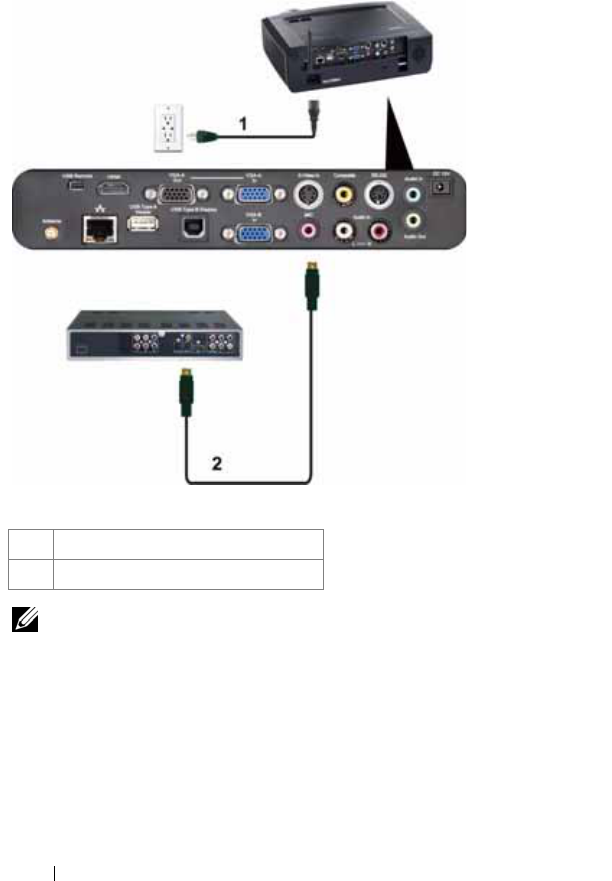

Connecting a DVD Player Using an S-Video Cable .18

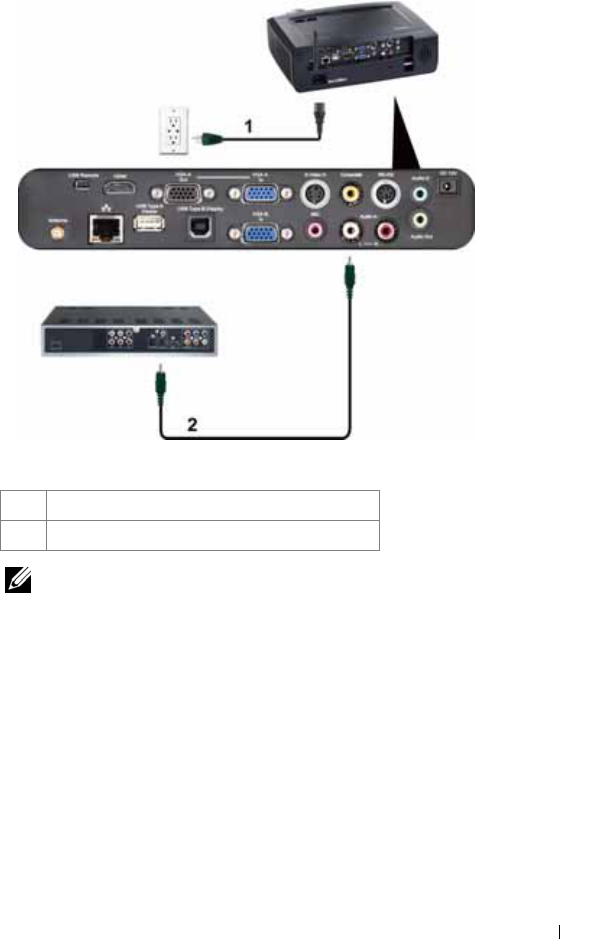

Connecting a DVD Player Using a Composite
Video Cable . . . . . . . . . . . . . . . . . . . . . 19

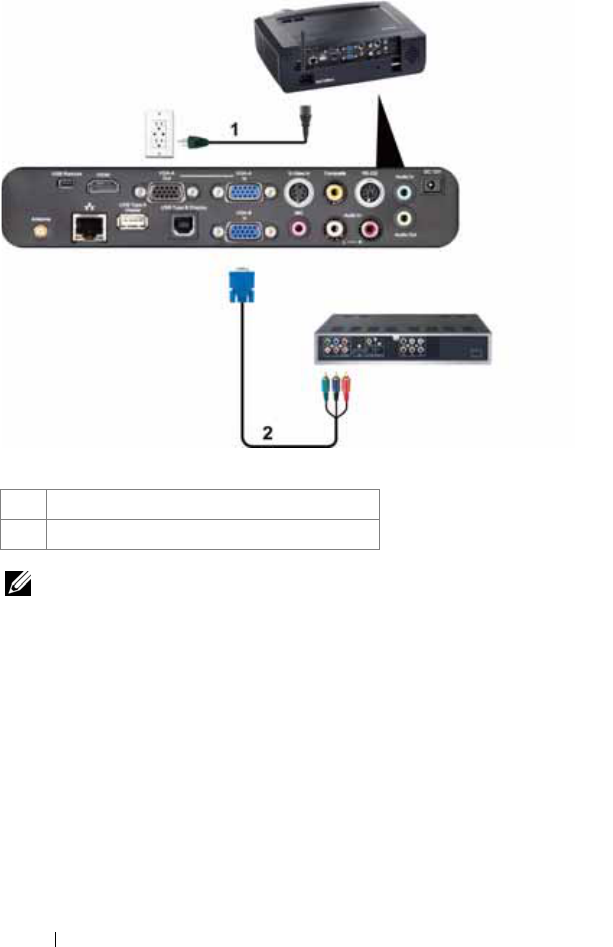

Connecting a DVD Player Using a Component
Video Cable . . . . . . . . . . . . . . . . . . . . . 20

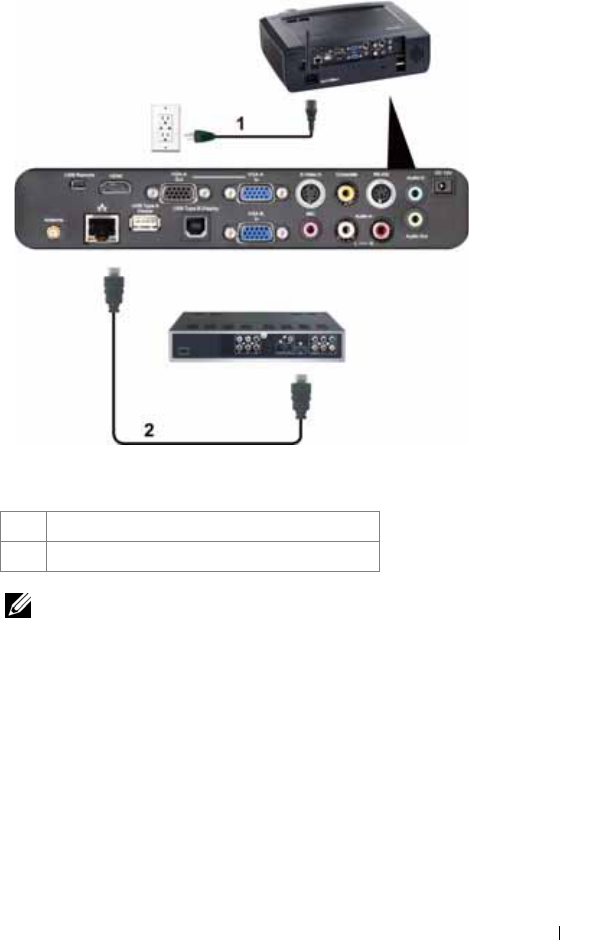

Connecting a DVD Player Using an HDMI Cable . . 21
Connecting to Local Area Network . . . . . . . . . . . 22
To project an image and control the projector that is
connected to a network through an RJ45 cable. . . 22

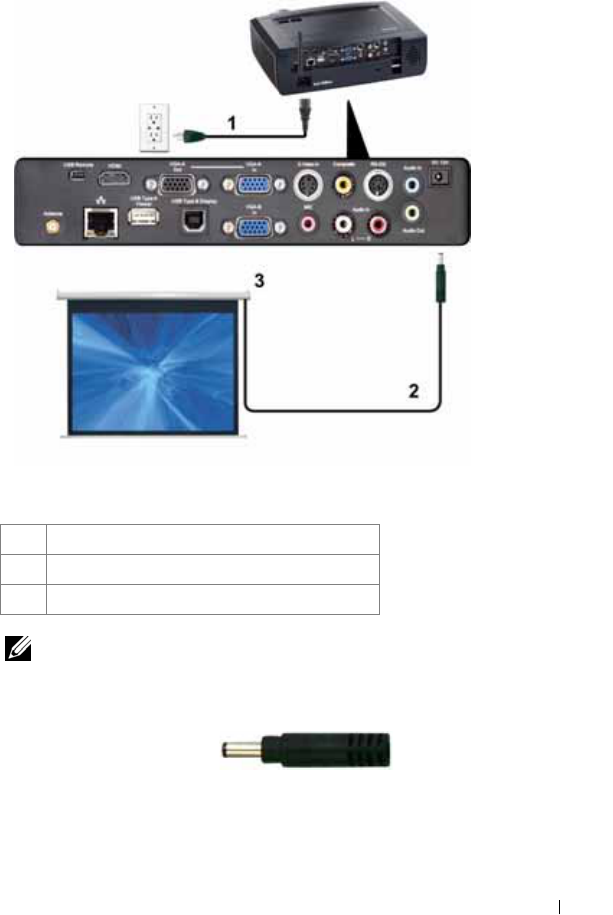

Professional Installation Options: Installation for
Driving Automatic Screen . . . . . . . . . . . . . 23
4Contents
Connection With Commercial RS232 Control Box .24
Connecting with your Interactive Pen . . . . . . . 25
3 Using Your Projector . . . . . . . . . . . . . . . . 27
Turning Your Projector On . . . . . . . . . . . . . . . . 27
Turning Your Projector Off . . . . . . . . . . . . . . . . 27
Adjusting the Projected Image . . . . . . . . . . . . . 28
Raising the Projector Height . . . . . . . . . . . . 28
Lowering the Projector Height . . . . . . . . . . . 28
Adjusting the Projector Focus . . . . . . . . . . . . . . 29

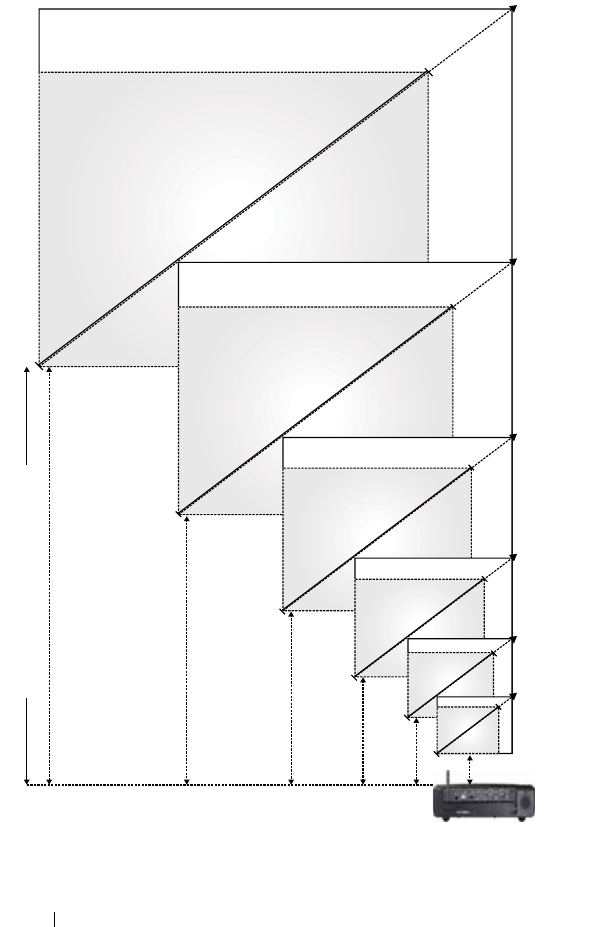

Adjusting Projection Image Size . . . . . . . . . . . . 30

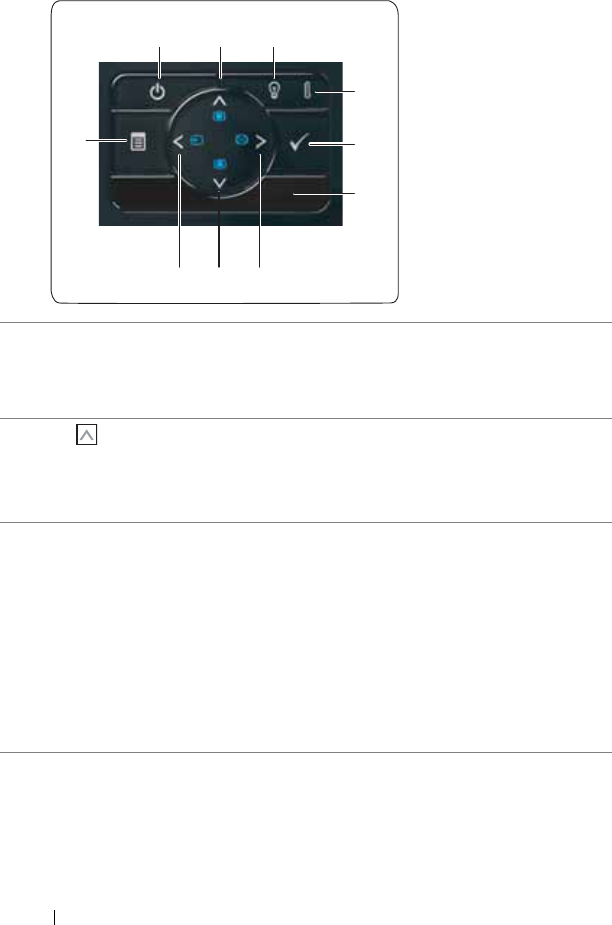

Using the Control Panel . . . . . . . . . . . . . . . . . 32

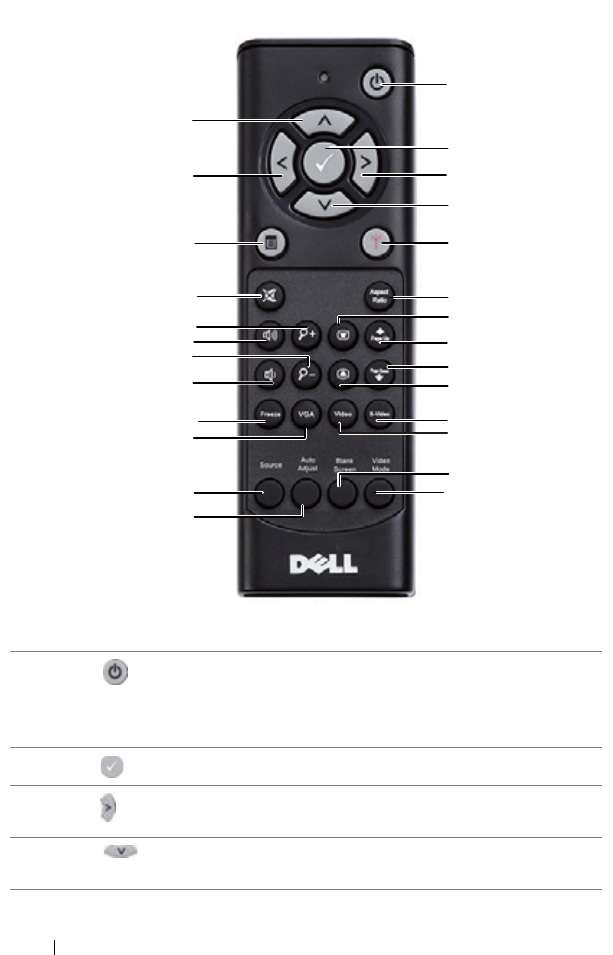

Using the Remote Control . . . . . . . . . . . . . . . . 34
Using the Interactive Pen . . . . . . . . . . . . . . . . 37

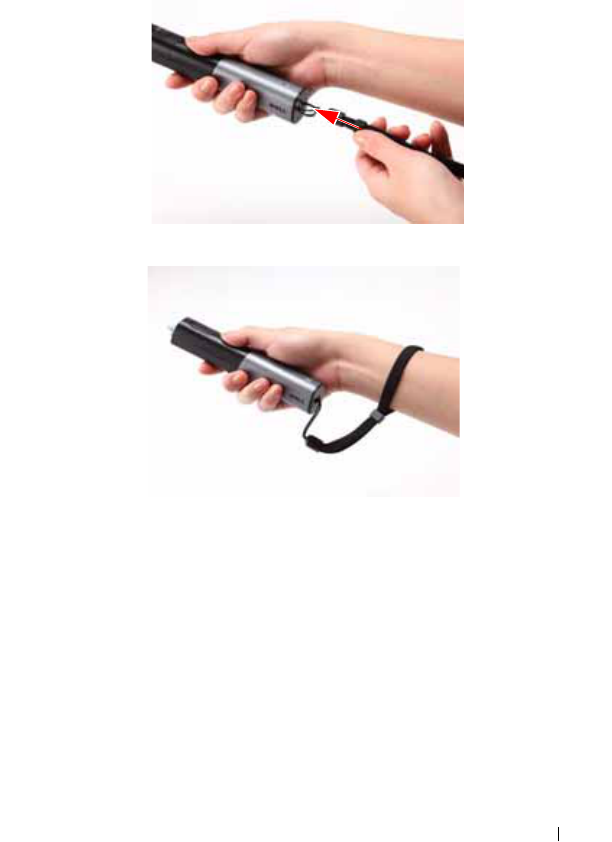

Using the Wrist Strap . . . . . . . . . . . . . . . . . . 39

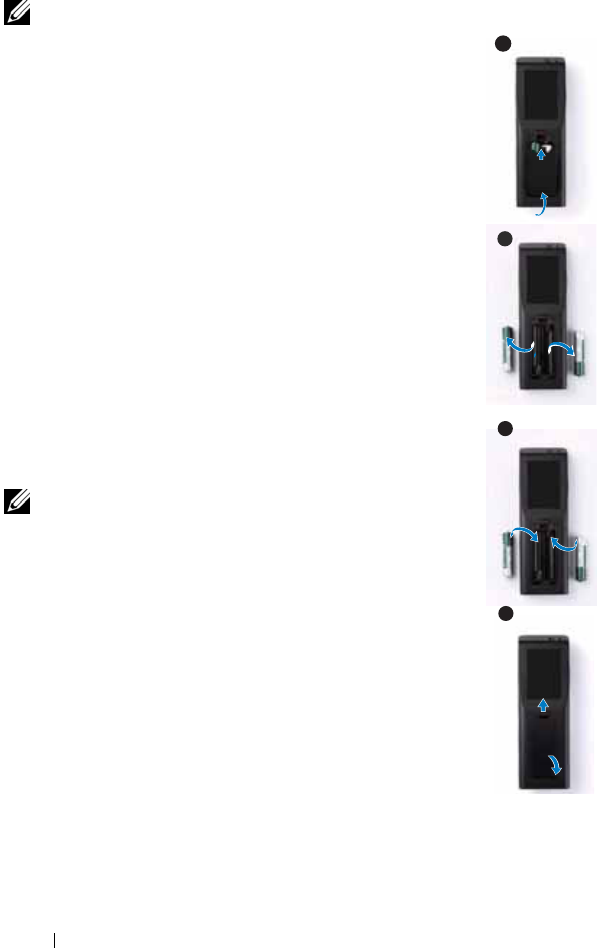

Installing the Remote Control Batteries . . . . . . . . 40
Installing the Interactive Pen Batteries . . . . . . . . . 41
Operating Range with Remote Control . . . . . . . . . 42

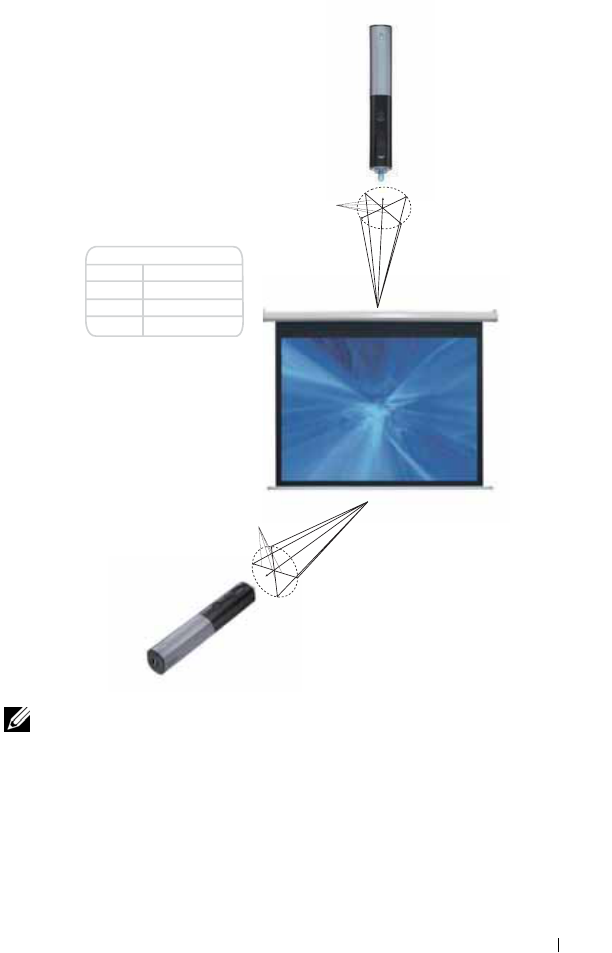

Operating Range with Interactive Pen . . . . . . . . . 43
Using the On-Screen Display . . . . . . . . . . . . . . 44

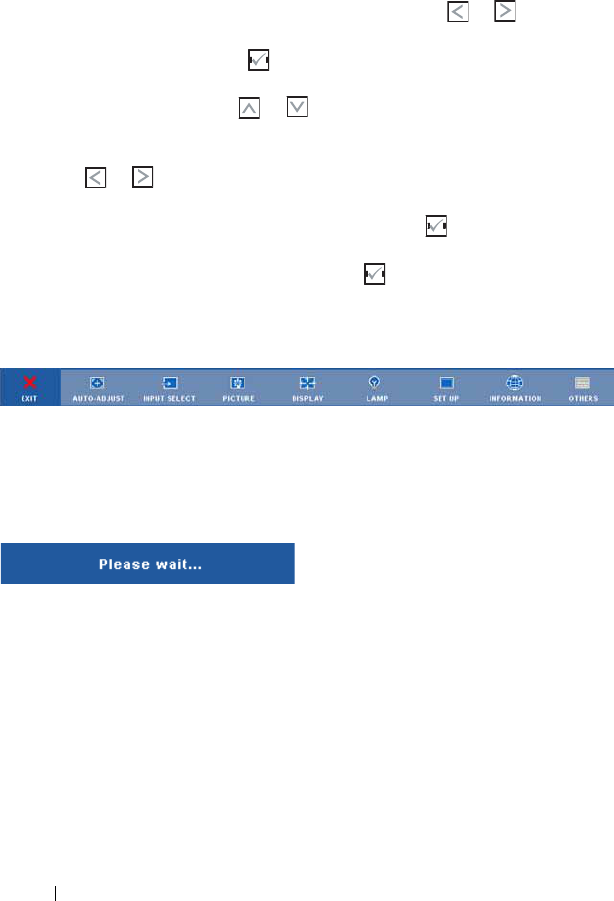

Main Menu . . . . . . . . . . . . . . . . . . . . . 44
AUTO-ADJUST . . . . . . . . . . . . . . . . . . . 44

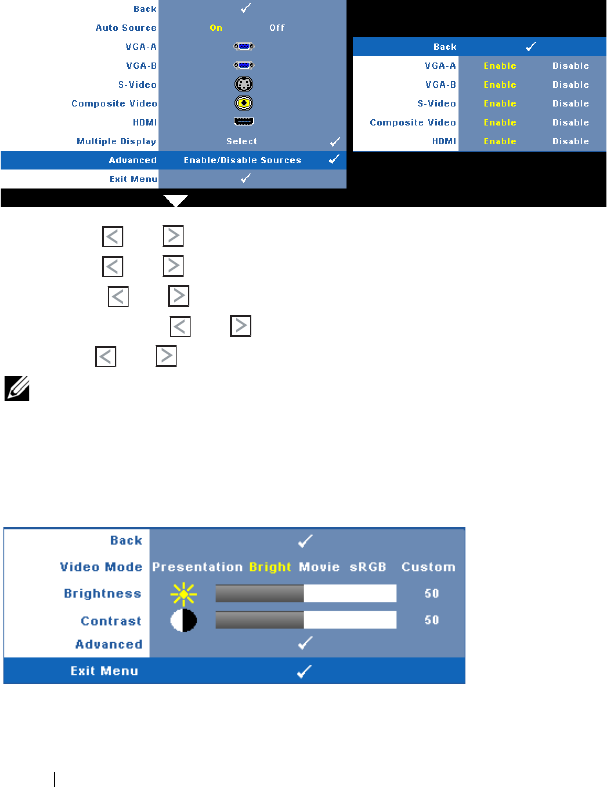

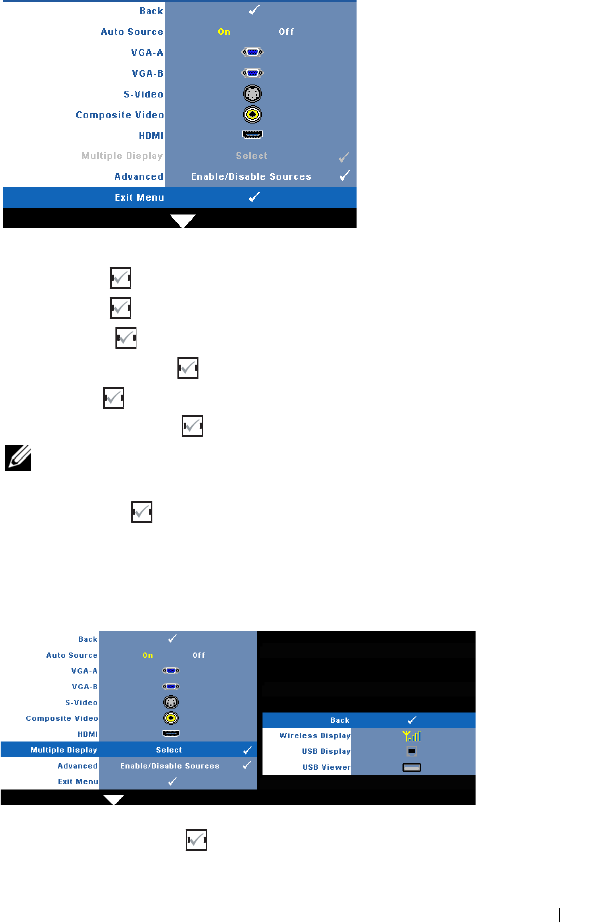

INPUT SELECT . . . . . . . . . . . . . . . . . . . 45
Contents 5
PICTURE (in PC Mode) . . . . . . . . . . . . . . . 46

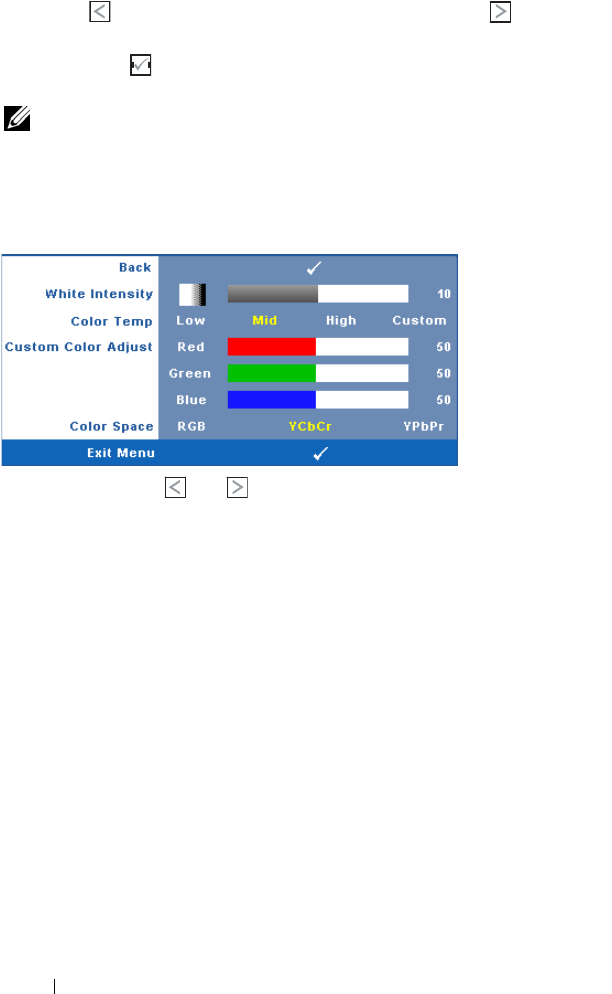

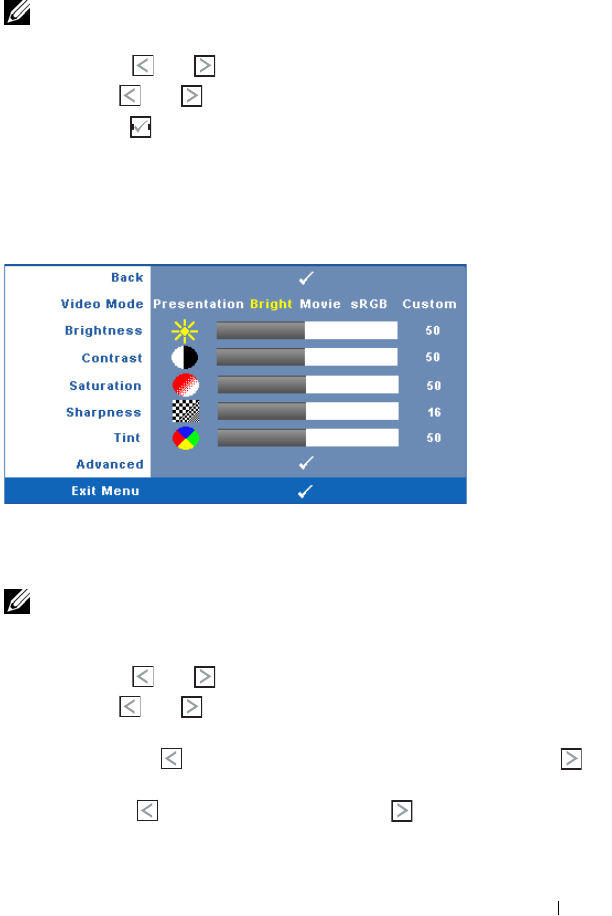

PICTURE (in Video Mode) . . . . . . . . . . . . . . 47

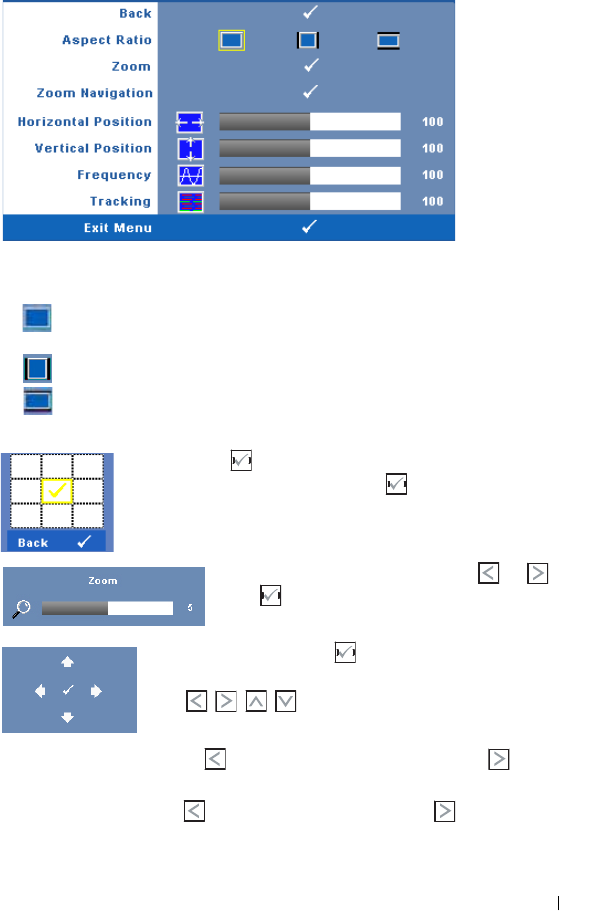

DISPLAY (in PC Mode) . . . . . . . . . . . . . . . 49

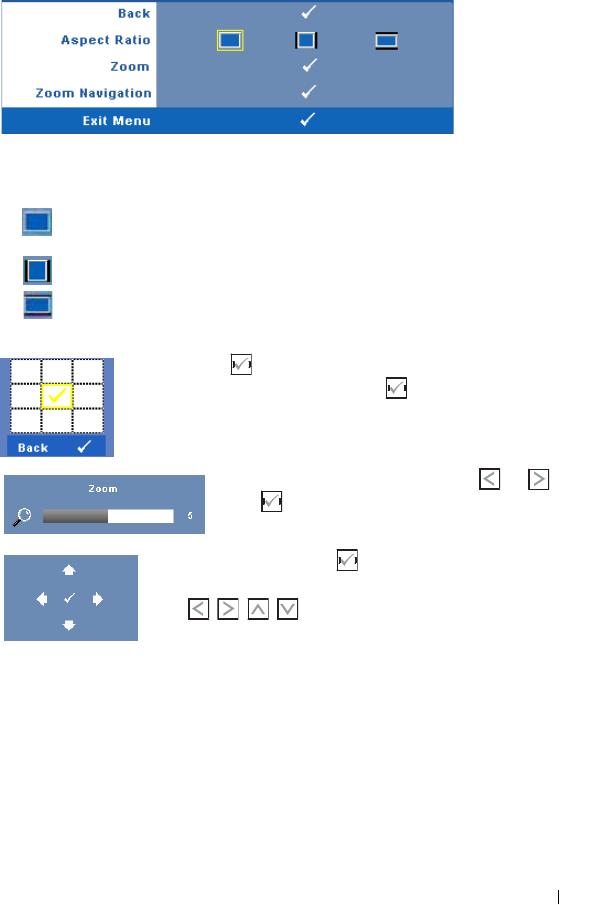

DISPLAY (in Video Mode) . . . . . . . . . . . . . . 51

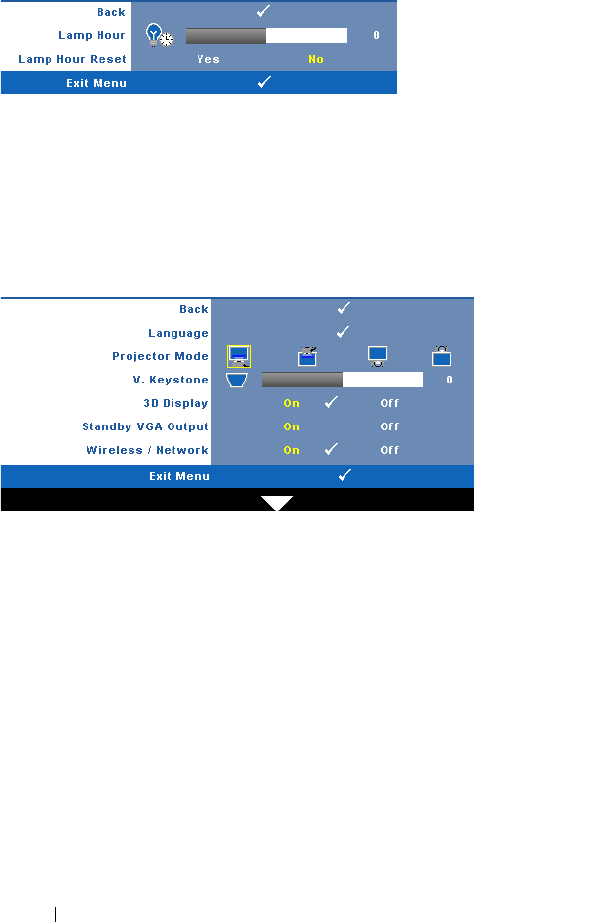

LAMP . . . . . . . . . . . . . . . . . . . . . . . . 52

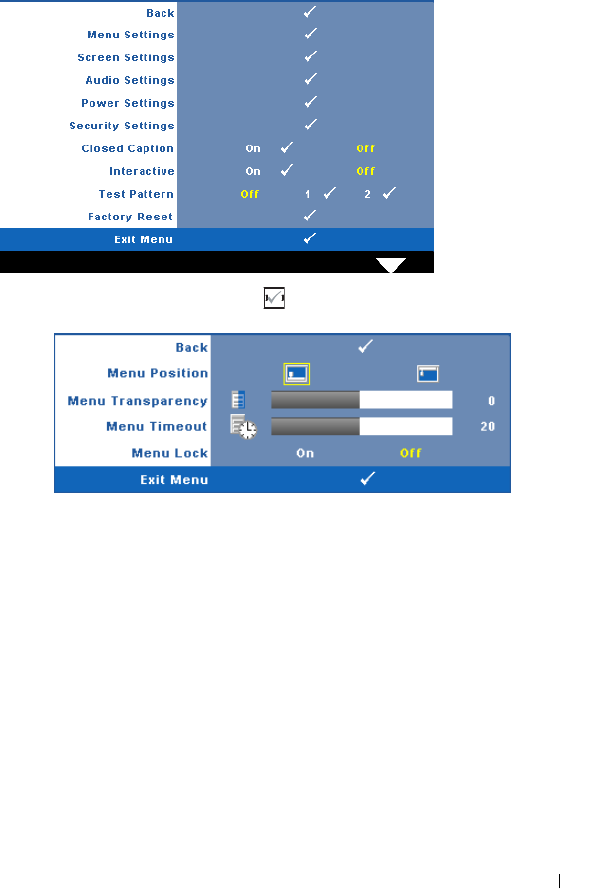

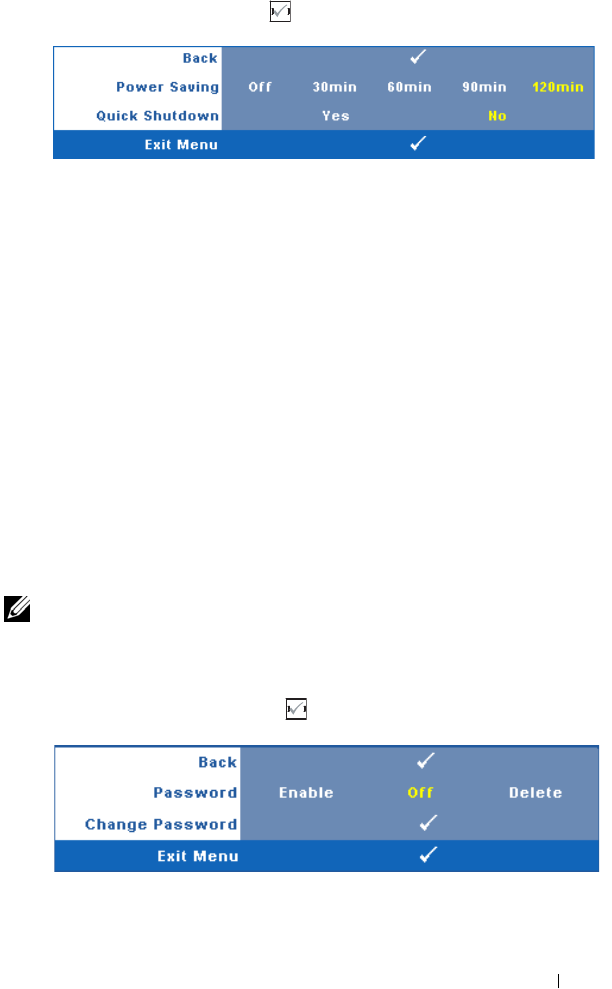

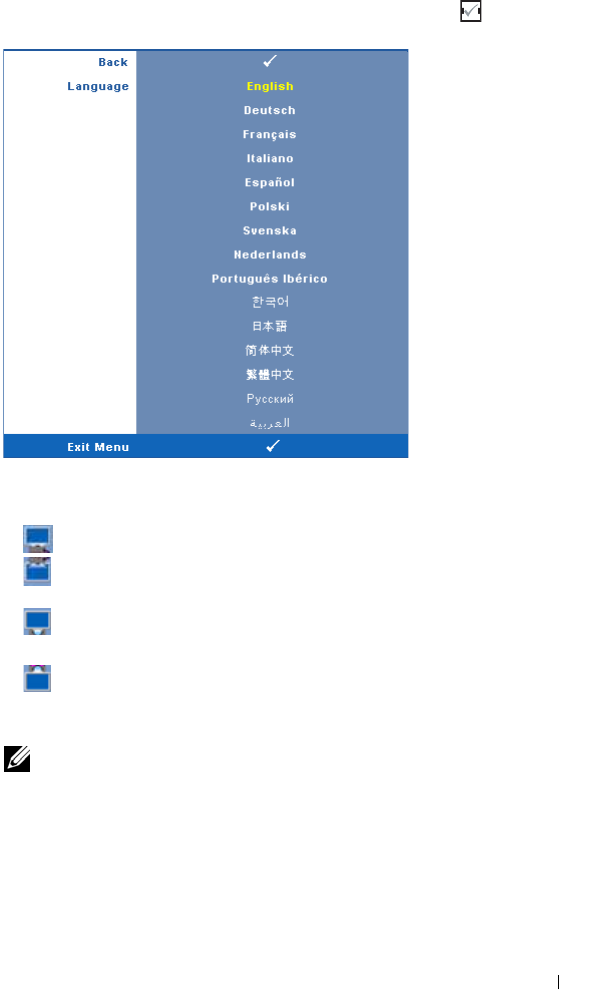

SET UP . . . . . . . . . . . . . . . . . . . . . . . 52
OTHERS . . . . . . . . . . . . . . . . . . . . . . . 57

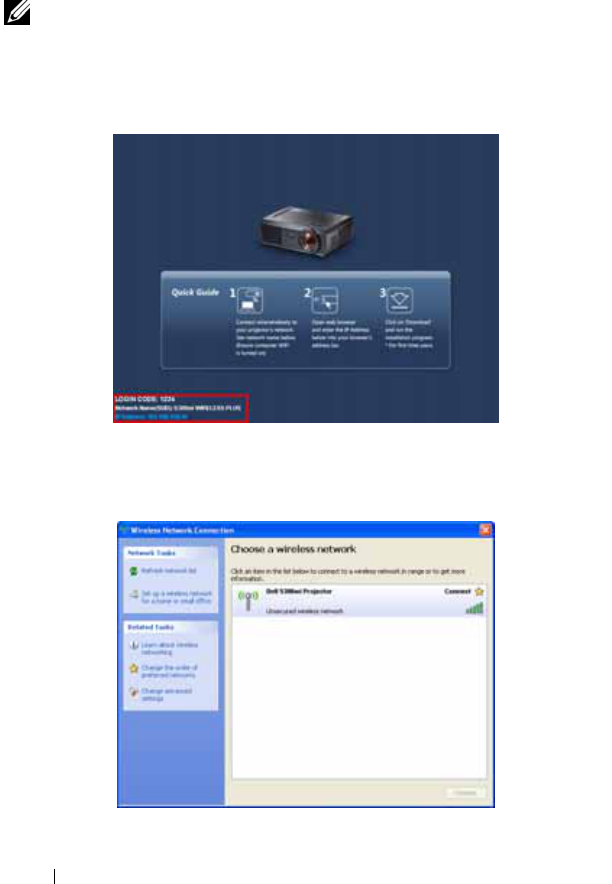

Wireless Networking Installation . . . . . . . . . . . . 67

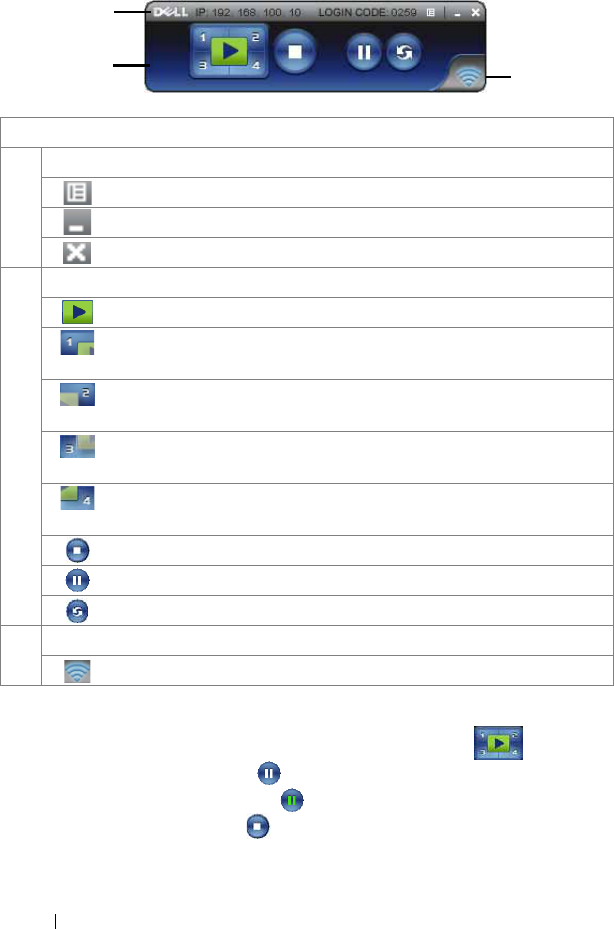

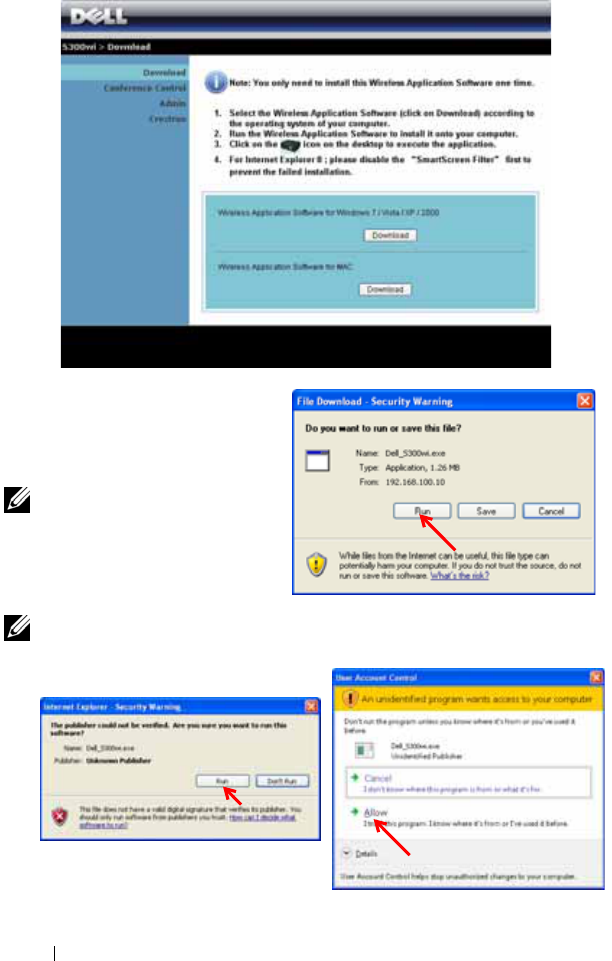

S300wi Wireless Application Software . . . . . . . 71

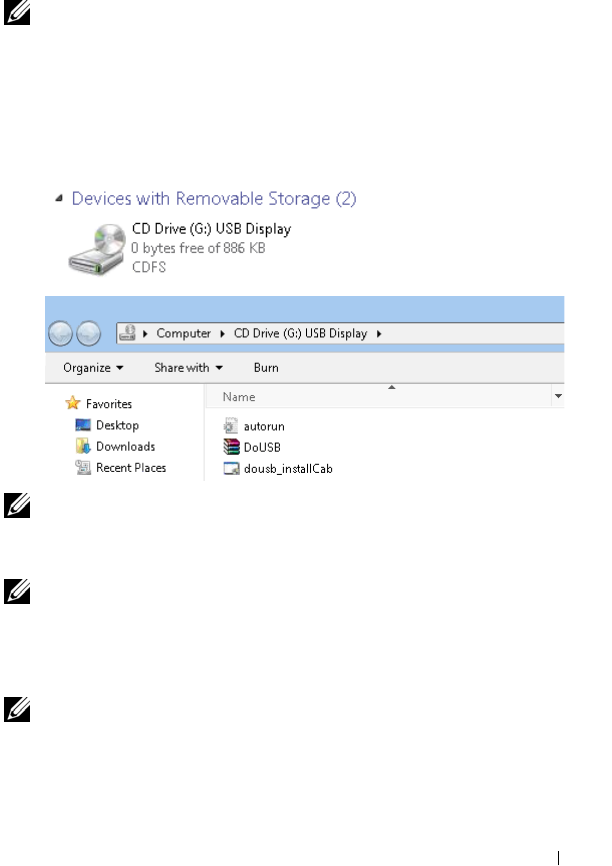

USB Display Driver Installation . . . . . . . . . . . . . 75

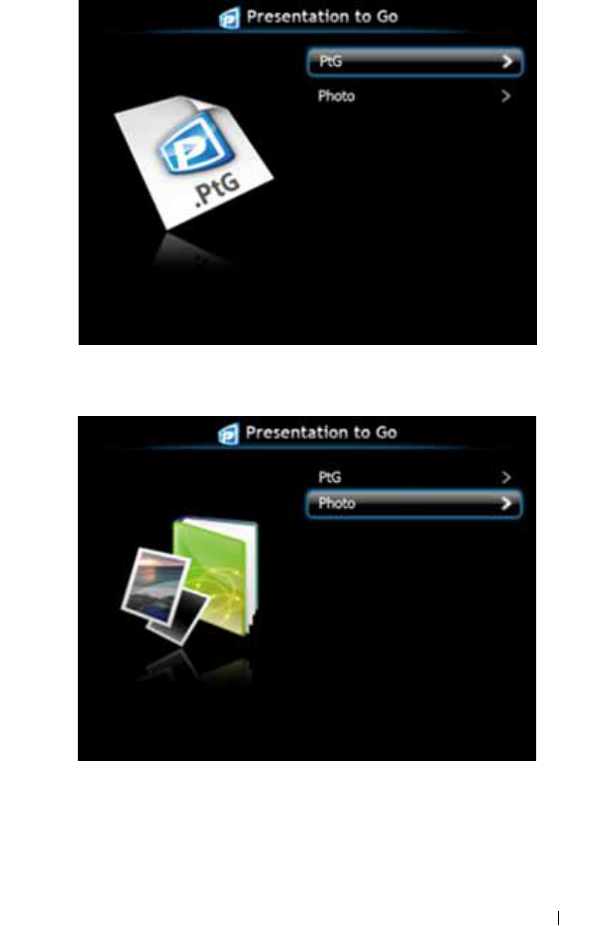

Presentation to Go (PtG) Installation . . . . . . . . . . 76

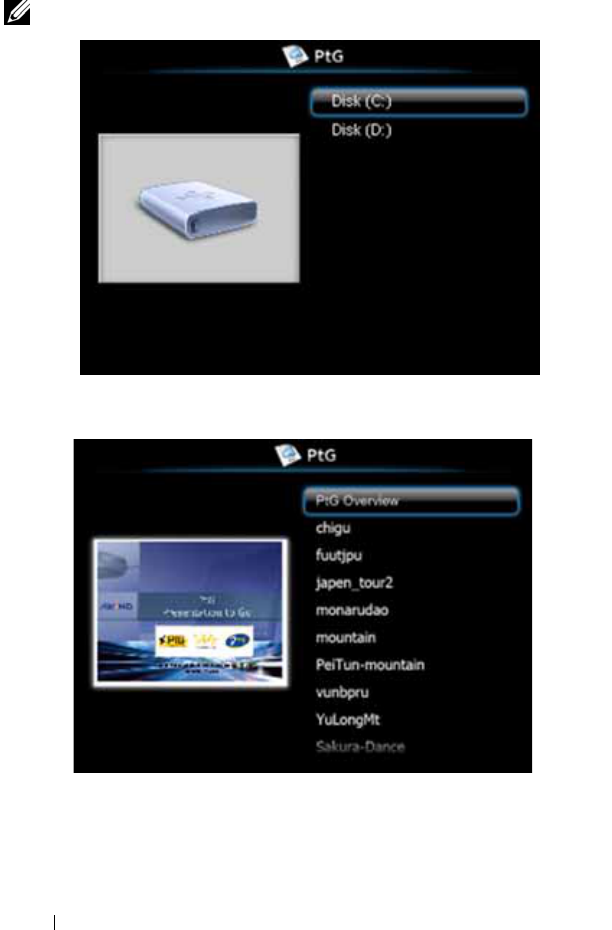

PtG Viewer . . . . . . . . . . . . . . . . . . . . . 77

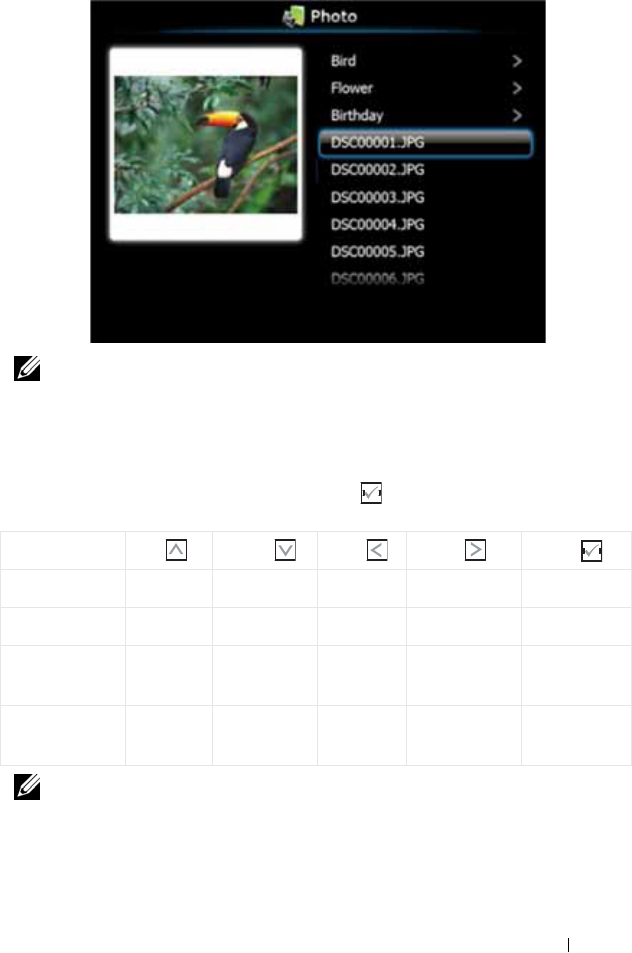

Photo Viewer . . . . . . . . . . . . . . . . . . . . 77
PtG/Photo Function Introduction . . . . . . . . . . 78
PtG Overview . . . . . . . . . . . . . . . . . . . . 78
Photo Overview . . . . . . . . . . . . . . . . . . . 79
Buttons Introduction . . . . . . . . . . . . . . . . 79

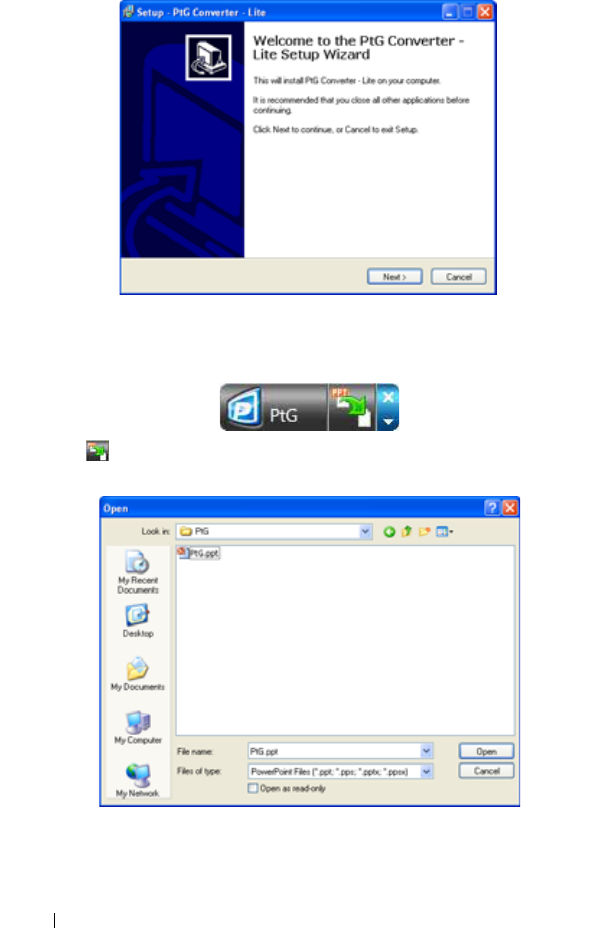

Setup PtG Converter - Lite . . . . . . . . . . . . . 80
PtG Converter - Lite Application Software . . . . . 80

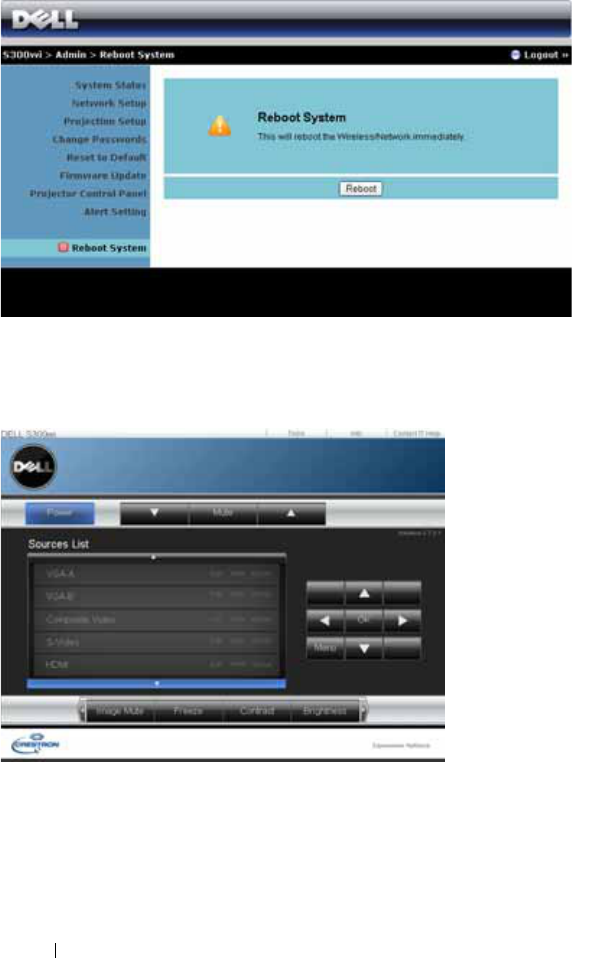

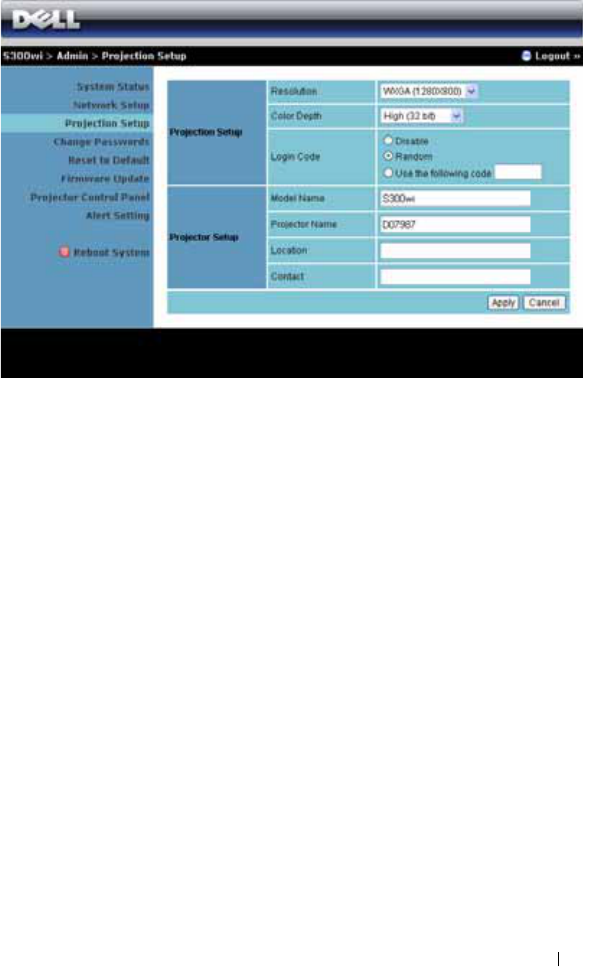

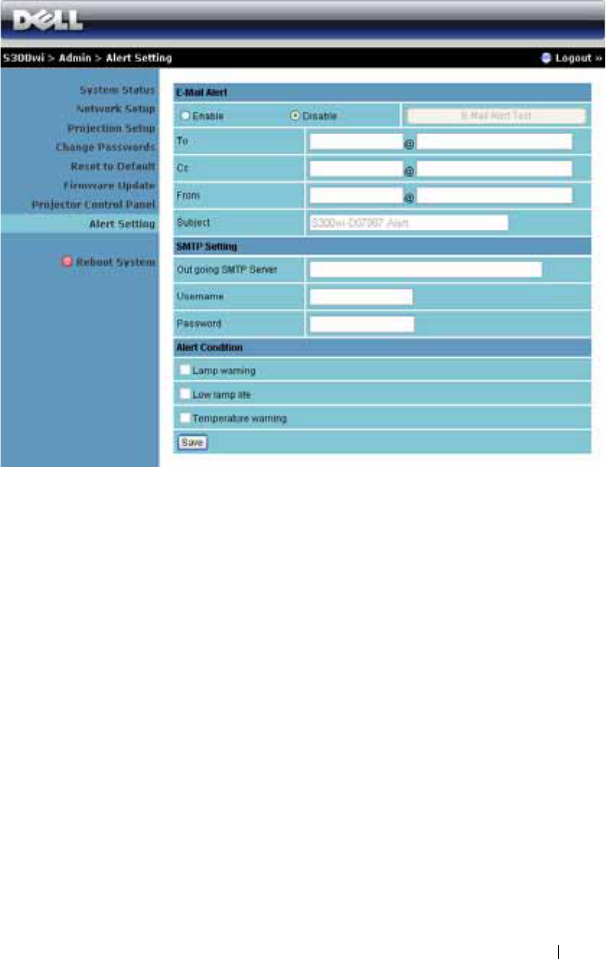

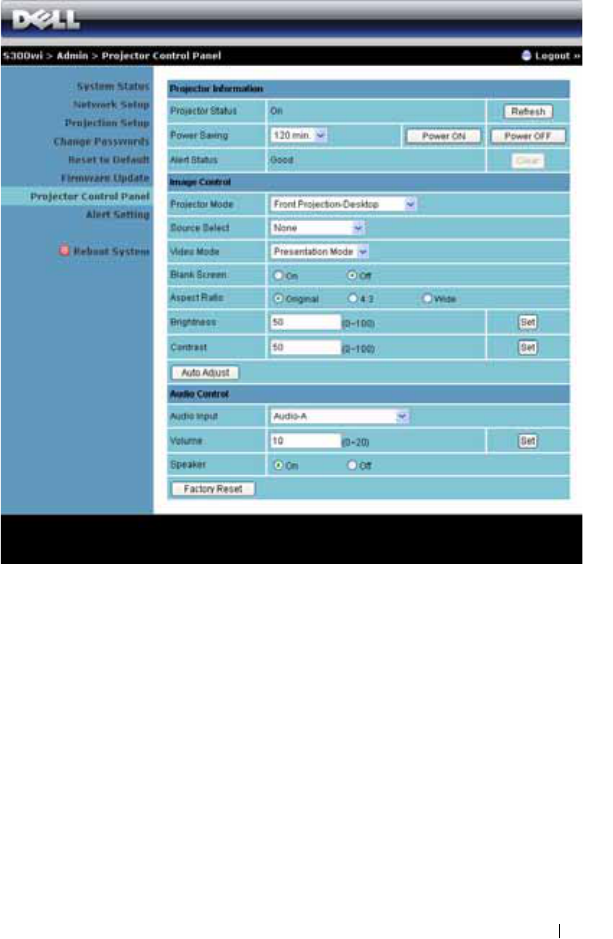

Managing the Projector From Web Management . . . . 82

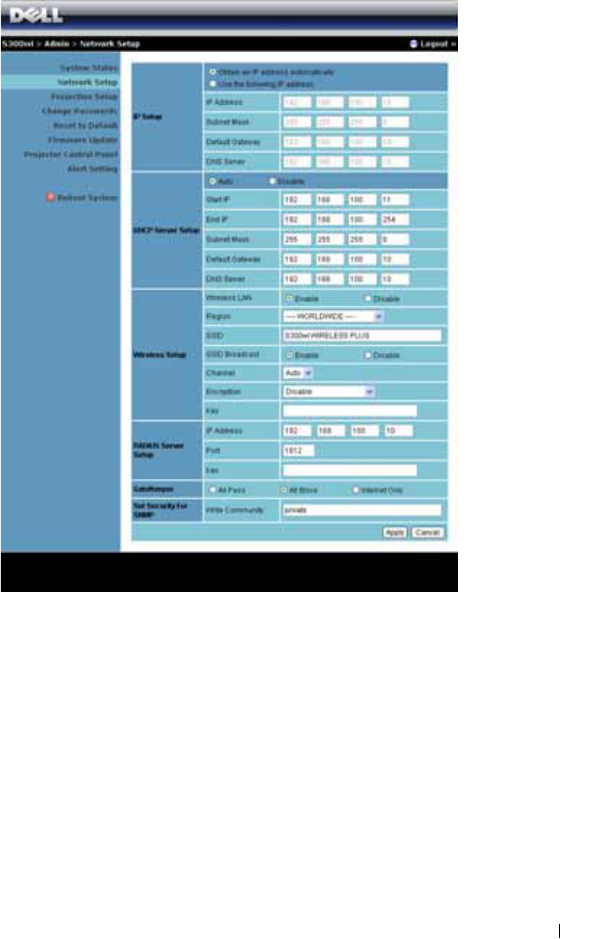

Configuring the Network Setting . . . . . . . . . . 82

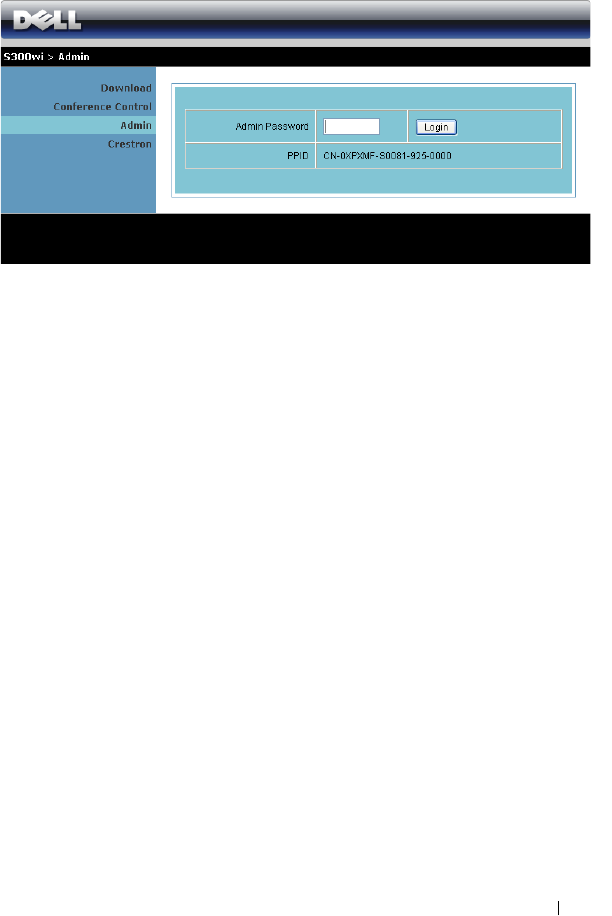

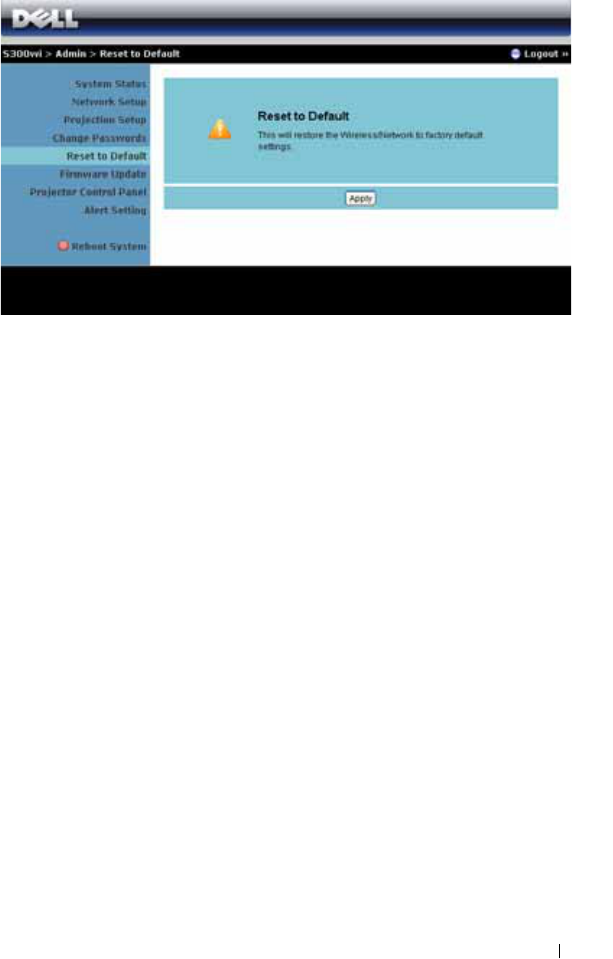

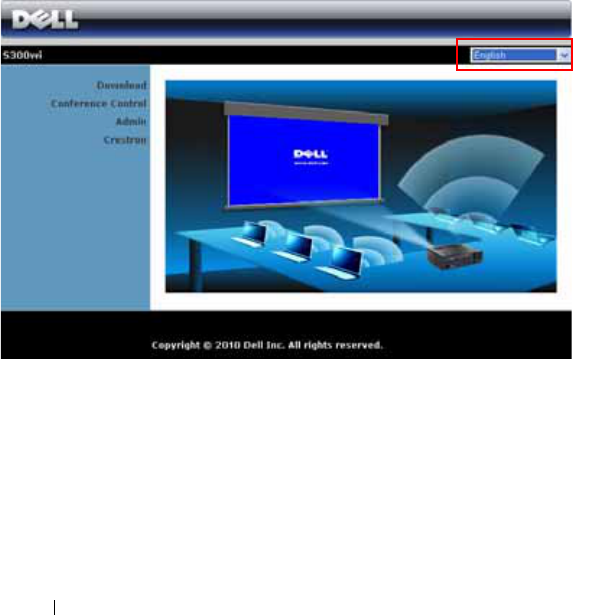

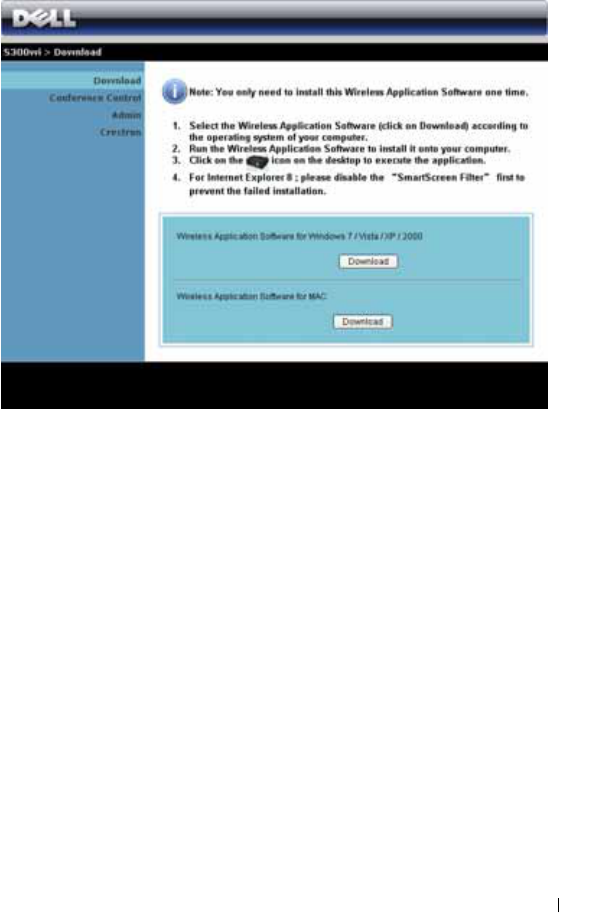

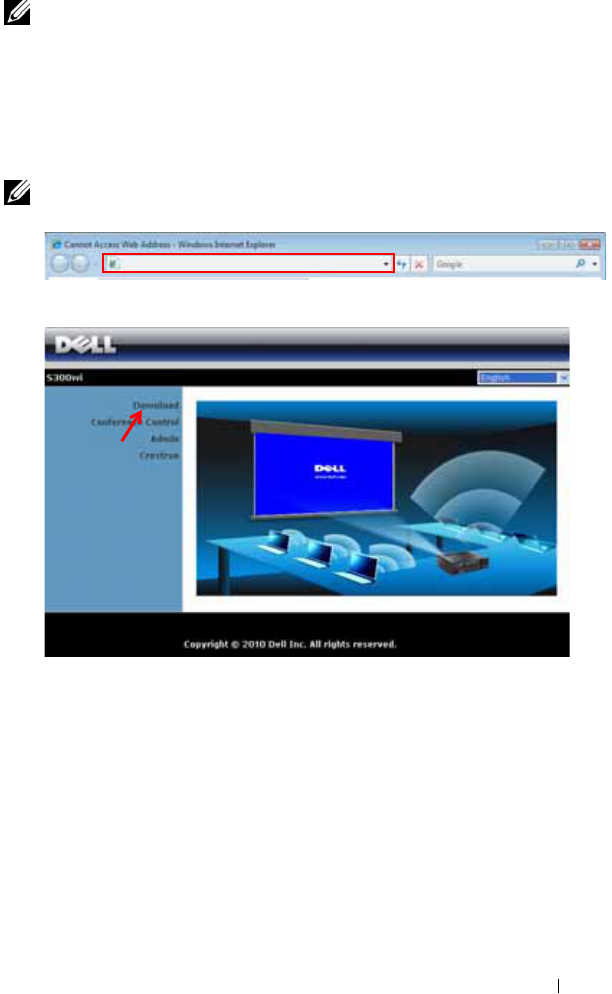

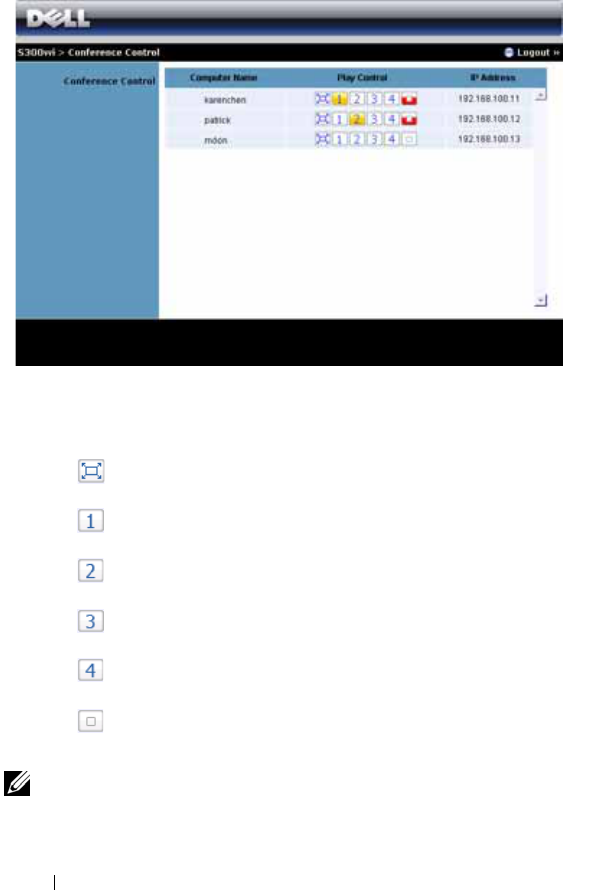

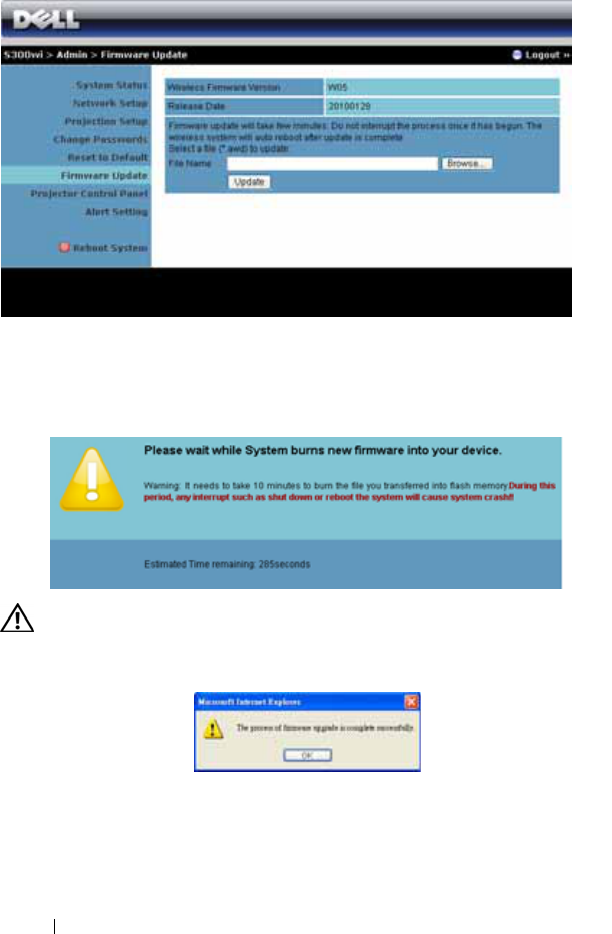

Accessing Web Management . . . . . . . . . . . 82

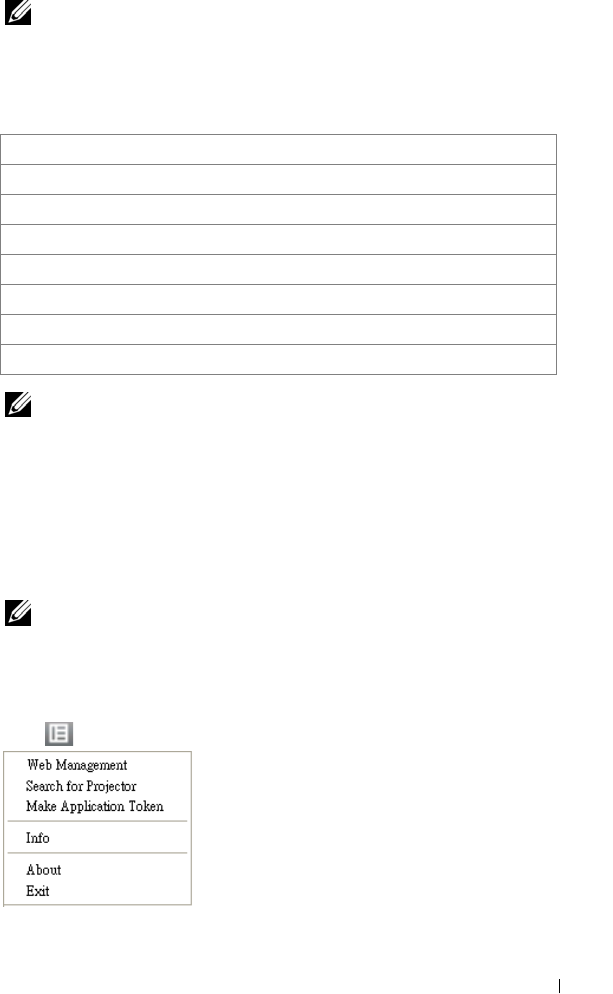

Make Application Token . . . . . . . . . . . . . . . . 101
4 Troubleshooting Your Projector . . . . . . . 102
Guiding Signals . . . . . . . . . . . . . . . . . . . . 108
Interactive Pen LED Guiding Signals . . . . . . . . . 110
6Contents

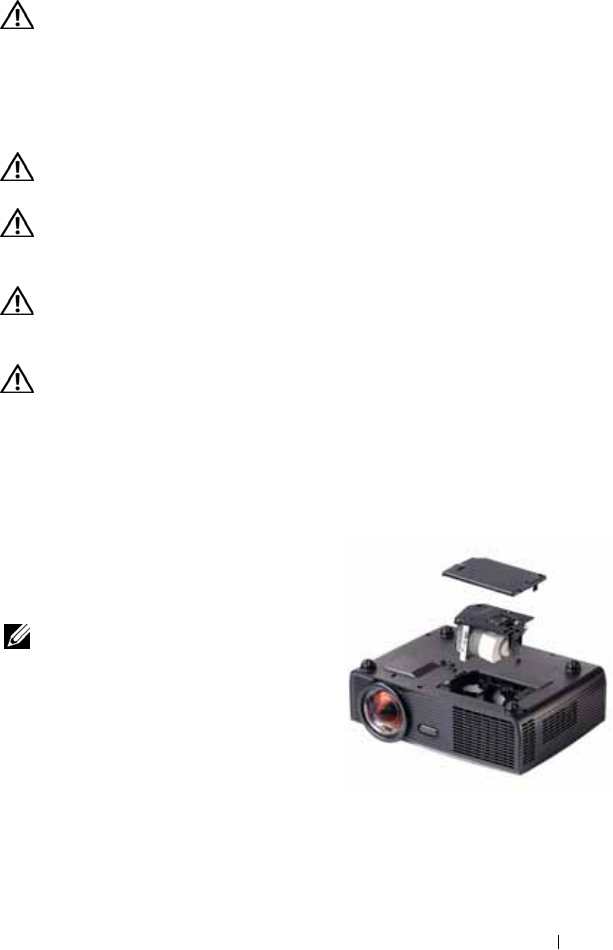

Changing the Lamp . . . . . . . . . . . . . . . . . . . 111
5 Specifications . . . . . . . . . . . . . . . . . . . . 113
6 Contacting Dell . . . . . . . . . . . . . . . . . . . 119
7 Appendix:!Glossary . . . . . . . . . . . . . . . 120
Your Dell Projector 7
1
Your Dell Projector
Your projector comes with all the items shown below. Ensure that you have all the
items, and contact Dell™ if anything is missing.

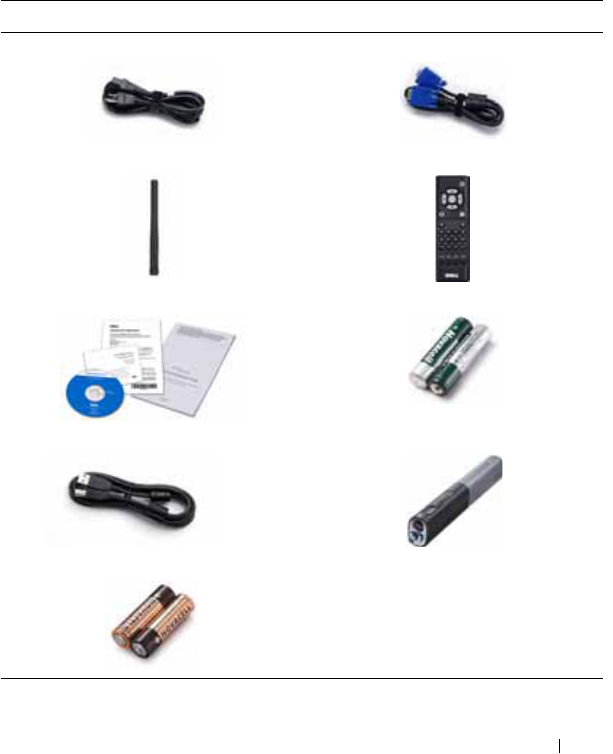

Package Contents
Power cable 1.8m VGA cable (VGA to VGA)
Antenna Remote control
CD User’s Guide & Documentation AAA Batteries (2)
USB cable (USB-A to USB-B) Interactive Pen
AA Alkaline Batteries (2)
8Your Dell Projector

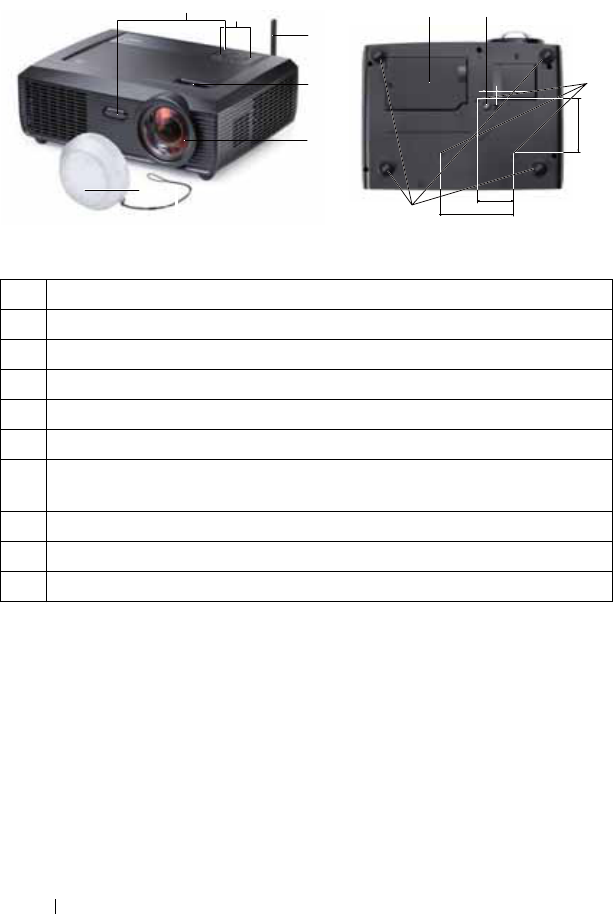

About Your Projector
1Control panel
2Focus tab
3Lens
4IR receivers
5Lens cap
6Antenna
7Mounting holes for wall mount: Screw hole M3 x 6.5mm depth.
Recommended torque <8 kgf-cm
8Mounting hole for tripod: Insert nut 1/4"*20 UNC
9Lamp cover
10 Tilt adjustment wheel
1
2
6
3
4
5
Top View Bottom View
110.00±0.15
55.00±0.10
14.00±0.10
7
10
8
9
110.00±0.15
55.00±0.10
82.15±0.15
Your Dell Projector 9

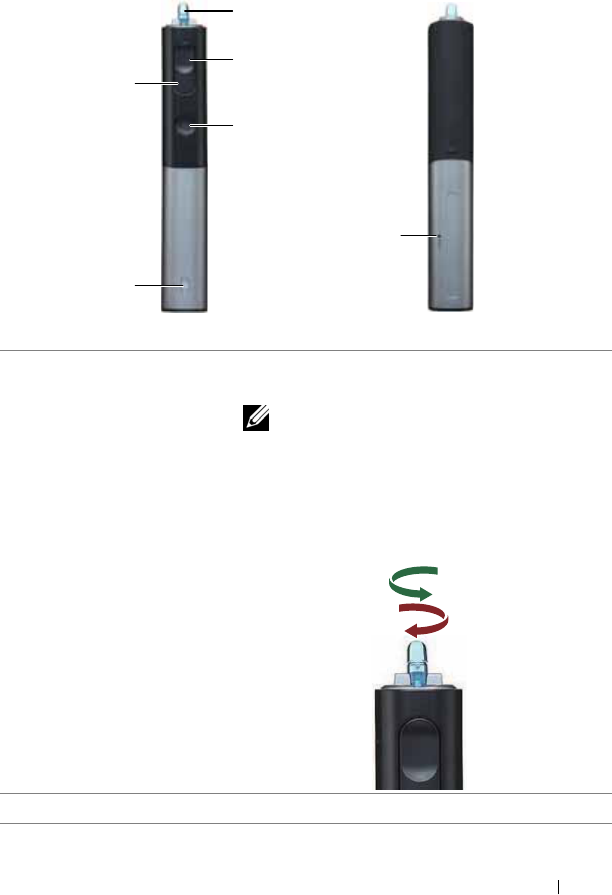

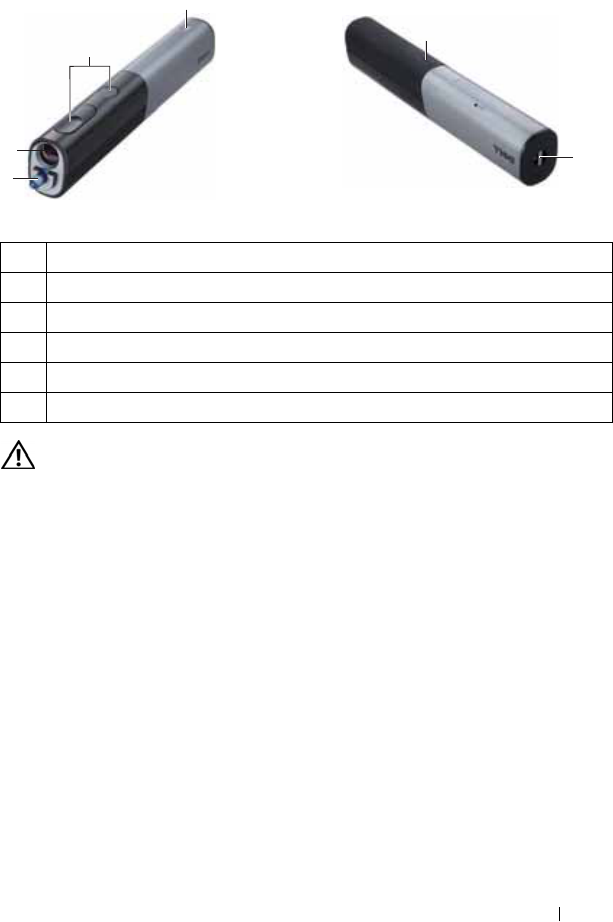

About Your Interactive Pen
CAUTION: Safety Instructions
1
Do not use the projector near appliances that generate a lot of heat.
2
Do not use the projector in areas where there is an excessive amount of dust. The
dust may cause the system to fail and the projector will automatically shutdown.
3
Ensure that the projector is mounted in a well-ventilated area.
4
Do not block the ventilation slots and openings on the projector.
5
Ensure the projector operates between ambient temperatures (5ºC to 35ºC).
6
Do not try to touch the ventilation outlet as it can become very hot after the
projector has been turned on or immediately after it is turned off.
7
Do not look into the lens while the projector is on as it may cause injury to your
eyes.
8
Do not place any objects near or in front of the projector or cover its lens while the
projector is on as the heat may cause the object to melt or burn.
9
Do not use the wireless projector near cardiac pacemakers.
10
Do not use the wireless projector near medical equipment.
11
Do not use the wireless projector near microwave ovens.
1Replaceable nib
2Lens
3Control panel
4LED indicators
5Security bar
6Battery cover
1
2
3
4
6
5
Top View Bottom View
10 Your Dell Projector
NOTE:
• Do not attempt to wall mount the projector yourself. It should be installed
by a qualified technician.
• Recommended Projector Wall Mount Kit (P/N: 4TVT8/V3RTH). For more
information, see the Dell Support website at
support.dell.com
.
• For more information, see the
Safety Information
that shipped with your
projector.
• S300wi projector only can use in indoor.

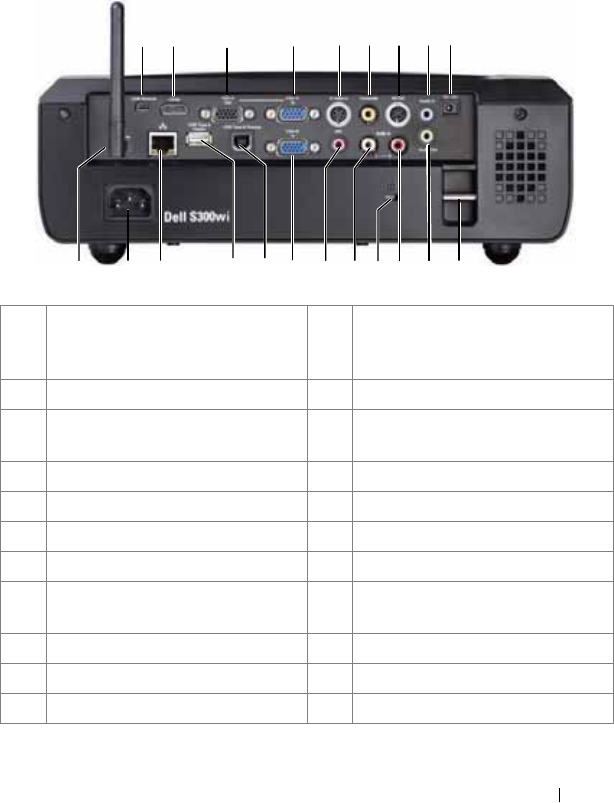

Connecting Your Projector 11
2
Connecting Your Projector
1Mini USB for remote mouse,
Interactive function and
Firmware upgrade.
12 Audio-B right-channel input
connector
2HDMI connector 13 Security cable slot
3VGA-A output (monitor loop-
through)
14 Audio-B left-channel input
connector
4VGA-A input (D-sub) connector 15 Microphone connector
5S-Video connector 16 VGA-B input (D-sub) connector
6Composite Video connector 17 USB Type B Display connector
7RS232 connector 18 USB Type A Viewer connector
8Audio-A input connector
connector
19 RJ45 connector
9+12V DC out connector 20 Power code connector
10 Security bar 21 Antenna connector
11 Audio output connector
3 4 5 6 7 8
14 12
12
13
9
10
1920 1521 161718 11
12 Connecting Your Projector
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 9.
Installing the Antenna
Your projector comes with a wireless antenna for wireless networking. Refer
to "Wireless Networking Installation" on page 67.
1
Screw the antenna to the antenna connector at the back of your
projector.
2
Raise the antenna to position as shown.
Connecting Your Projector 13
Connecting to a Computer
Connecting a Computer Using a VGA Cable
NOTE: The Mini USB cable is not provided with your projector.
NOTE: The Mini USB cable must be connected if you want to use the Page Up
and Page Down features on the remote control.
1Power cord
2VGA to VGA cable
3USB-A to Mini USB-B cable
14 Connecting Your Projector
Monitor Loop-Through Connection Using VGA Cables
NOTE: Only one VGA cable is shipped with your projector. An additional VGA
cable can be purchased on the Dell website at s
s
upport.dell.com.
1Power cord
2VGA to VGA cable
Connecting Your Projector 15
Connecting a Computer Using an RS232 cable
NOTE: The RS232 cable is not shipped with your projector. Consult a
professional installer for the cable and RS232 remote control software.
1Power cord
2 RS232 cable
16 Connecting Your Projector
Connecting a Computer Using an USB Display
NOTE: Need to install USB Driver, see "USB Display Driver Installation" on
page 75.
1Power Code
2 USB-A to USB-B cable
Connecting Your Projector 17
Connecting a Computer Using Wireless
NOTE: Your computer must have wireless function and should be configured
properly to detect the wireless connection. Refer to your computer’s
documentation on how to configure wireless connection.
18 Connecting Your Projector
Connecting a DVD Player
Connecting a DVD Player Using an S-Video Cable
NOTE: The S-Video cable is not shipped with your projector. You can purchase
the S-Video extension (50 ft/100 ft) cable on the Dell website at
support.dell.com.
1Power cord
2S-Video cable
Connecting Your Projector 19
Connecting a DVD Player Using a Composite Video Cable
NOTE: The Composite Video cable is not shipped with your projector. You can
purchase the Composite Video Extension (50 ft/100 ft) cable on the Dell website
at s
s
upport.dell.com.
1Power cord
2Composite Video cable
20 Connecting Your Projector
Connecting a DVD Player Using a Component Video Cable
NOTE: The VGA to Component Video cable is not shipped with your projector.
You can purchase the VGA to Component Video Extension (50 ft/100 ft) cable on
the Dell website at s
s
upport.dell.com.
1Power cord
2VGA to Component Video cable
Connecting Your Projector 21
Connecting a DVD Player Using an HDMI Cable
NOTE: The HDMI cable is not shipped with your projector.
1Power cord
2HDMI cable
22 Connecting Your Projector
Connecting to Local Area Network
To project an image and control the projector that is connected to a
network through an RJ45 cable.
NOTE: The RJ45 cable is not shipped with your projector.
1Power cord
2RJ45 cable
Local Area Network (LAN)
Connecting Your Projector 23
Professional Installation Options: Installation for Driving Automatic
Screen
NOTE: Use the dimension of 12V DC plug in 1.7 mm (ID) x 4.00 mm (OD) x 9.5 mm
(shaft) to connect the automatic screen with the projector.
12V DC Plug
1Power cord
212V DC Plug
3Automatic Screen
24 Connecting Your Projector
Connection With Commercial RS232 Control Box
NOTE: The RS232 cable is not shipped with your projector. Consult a
professional technician to obtain the cable.
1Power cord
2RS232 cable
3Commercial RS232 control box
Connecting Your Projector 25
Connecting with your Interactive Pen
NOTE:
1Support the VGA and HDMI signal of computer and Wireless Display,
USB Display and LAN Display .
2Connecting the mini USB cable to Projector and your Computer or
through wireless/LAN connecting to Projector and your Computer.
1Power Code
2VGA to VGA Cable
3USB-A to Mini USB-B Cable
4Automation Screen
512V DC Plug
6Interactive Pen
26 Connecting Your Projector
3When using Wireless or LAN connecting, Wireless / Network need to
first T
T
urn On.
4Automation Screen is optional.
5The Mini USB cable is not provided with your projector.
Using Your Projector 27
3
Using Your Projector
Turning Your Projector On
NOTE: Turn on the projector before you turn on the source (computer, DVD
player, etc.). The P
P
ower button light blinks blue until pressed.
1
Remove the lens cap.
2
Connect the power cord and appropriate signal cables. For information about
connecting the projector, see "Connecting Your Projector" on page 11.
3
Press the
Power
button (see "Using the Control Panel" on page 32 to locate the
Power
button).
4
Turn on your source (computer, DVD player, etc.)
5
Connect your source to the projector using the appropriate cable. See
"Connecting Your Projector" on page 11 for instructions to connect your source to
the projector.
6
By default, the input source of projector is set to VGA-A. Change the input source
of projector if necessary.
7
If you have multiple sources connected to the projector, press the
Source
button
on the remote control or control panel to select the desired source. See "Using the
Control Panel" on page 32 and "Using the Remote Control" on page 34 to locate
the
Source
button.
Turning Your Projector Off
NOTICE: Unplug the projector after properly shutting down as explained in the
following procedure.
1
Press the
Power
button.
NOTE: The "Press Power Button to Turn off Projector" message will
appear on the screen. The message disappears after 5 seconds or you can
press the M
M
enu button to clear it.
2
Press the
Power
button again. The cooling fans continue to operate for 120
seconds.
28 Using Your Projector
3
To power off the projector quickly, press the Power button and hold for 1 second
while the projector’s cooling fans are still running.
NOTE: Before you turn on the projector again, wait for 60 seconds to allow the
internal temperature to stabilize.
4
Disconnect the power cord from the electrical outlet and the projector.
Adjusting the Projected Image
Raising the Projector Height
1
Raise the projector to the desired display angle, and use the front two tilt
adjustment wheel to fine-tune the display angle.
2
Use the two tilt adjustment wheel to fine-tune the display angle.
Lowering the Projector Height
1
Lower the projector, and use the front two tilt adjustment wheel to fine-tune the
display angle.
1Front tilt adjustment wheel
(Angle of tilt: -1 to 4 degree)
2Tilt adjustment wheel
2
1
2
1
1
Using Your Projector 29

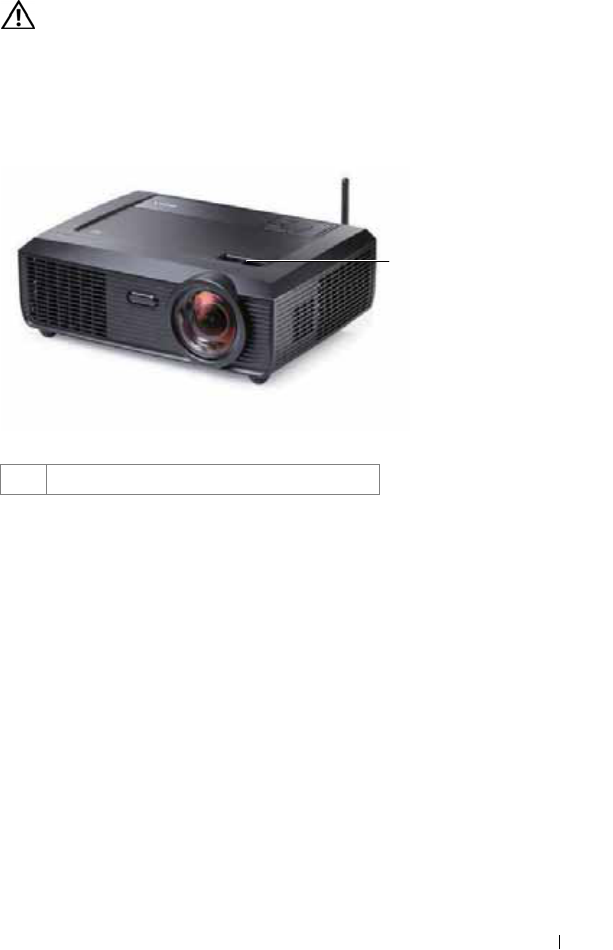

Adjusting the Projector Focus
CAUTION: To avoid damaging the projector, ensure that the zoom lens and
elevator foot are fully retracted before moving the projector or placing the
projector in its carrying case.
1
Rotate the focus tab until the image is clear. The projector focuses at distances
ranging between 1.64 ft to 10.83 ft (0.5 m to 3.3 m).
1Focus tab
1
30 Using Your Projector
Adjusting Projection Image Size
294"
(746.76cm)
223"
(566.42 cm)
178"
(452.12 cm)
134"
(340.36 cm)
89"
(226.06 cm)
44.6"
(113.28 cm)
294"(746.76cm)
223"(566.42 cm)
178"(452.12 cm)
134"(340.36 cm)
89"(226.06 cm)
44.6"(113.28 cm)
Projector to screen distance
10.83'(3.3m)
8.20'(2.5m)
6.56'(2.0m)
4.92'(1.5m)
3.28'(1.0m)
1.64'(0.5m)
Using Your Projector 31
Screen
(Diagonal)
Max. 44.6"
(113.28 cm) 89"
(226.06 cm) 134"
(340.36cm) 178"
(452.12 cm) 223"
(566.42 cm) 294"
(746.76 cm)
Min. 44.6"
(113.28 cm) 89"
(226.06 cm) 134"
(340.36cm) 178"
(452.12 cm)
223"
(566.42 cm)
294"
(746.76cm)
Screen
Size
Max.
(WxH) 37.80" X
23.62" 75.59" X
47.24" 113.39" X
70.87" 151.18" X
94.49" 188.98" X
118.11" 249.21" X
155.91"
(96 cm X 60
cm) (192 cm X
120 cm) (288 cm X
180 cm) (384 cm X
240 cm) (480 cm X
300 cm) (633 cm X
396 cm)
Min.
(WxH) 37.80" X
23.62" 75.59" X
47.24" 113.39" X
70.87" 151.18" X
94.49" 188.98" X
118.11" 249.21" X
155.91"
(96 cm X 60
cm) (192 cm X
120 cm) (288 cm X
180 cm) (384 cm X
240 cm) (480 cm X
300 cm) (633 cm X
396 cm)
Hd
Max. 2.93"
(7.44 cm)
5.86"
(14.87 cm)
8.79"
(22.32 cm)
11.71"
(29.74 cm)
14.64"
(37.19 cm)
19.33"
(49.09 cm)
Min. 2.93"
(7.44 cm)
5.86"
(14.87 cm)
8.79"
(22.32 cm)
11.71"
(29.74 cm)
14.64"
(37.19 cm)
19.33"
(49.09 cm)
Distance 1.64' (0.5m) 3.28' (1.0m) 4.92' (1.5m) 6.56' (2.0m) 8.20' (2.5m) 10.83'
(3.3m)
* This graph is for user reference only.
32 Using Your Projector
Using the Control Panel
1Power Turns the projector on or off. For more
information, see "Turning Your Projector On" on
page 27 and "Turning Your Projector Off" on
page 27.
2Up / Keystone
adjustment Press to navigate through the On-Screen Display
(OSD) Menu items.
Press to adjust image distortion caused by tilting
the projector (+40/-35 degrees).
3LAMP warning light If the LAMP amber indicator is on or blinking,
one of the following problems could be occurring:
• Lamp is reaching its end of usable life
• Lamp module is not properly installed
• Lamp driver failure
• Color wheel failure
For more information, see "Troubleshooting Your
Projector" on page 102 and "Guiding Signals" on
page 108.
1 3
5
2
10
4
7
6
9 8
Using Your Projector 33
4TEMP warning light If the TEMP amber indicator is on or blinking,
one of the following problems could be occurring:
• Internal temperature of the projector is too
high
• Color wheel failure
For more information, see "Troubleshooting Your
Projector" on page 102 and "Guiding Signals" on
page 108.
5Enter Press to confirm the selection item.
6IR Receiver Point the remote control towards the IR receiver
and press a button.
7Right / Auto Adjust Press to navigate through the On-Screen Display
(OSD) Menu items.
Press to synchronize the projector to the input
source.
NOTE: Auto Adjust does not operate if the
on-screen display (OSD) is displayed.
8Down / Keystone
adjustment Press to navigate through the On-Screen Display
(OSD) Menu items.
Press to adjust image distortion caused by tilting
the projector (+40/-35 degrees).
9Left / Source Press to navigate through the On-Screen Display
(OSD) Menu items.
Press to toggle through Analog RGB, Composite,
Component (YPbPr via VGA), HDMI, and
S-Video sources when multiple sources are
connected to the projector.
10 Menu Press to activate the OSD. Use the directional
keys and the Menu button to navigate through
the OSD.
34 Using Your Projector
Using the Remote Control
1Power Turns the projector on or off. For more
information, see "Turning Your Projector On" on
page 27 and "Turning Your Projector Off" on
page 27.
2Enter Press to confirm the selection.
3Right Press to navigate through the On-Screen Display
(OSD) Menu items.
4Down Press to navigate through the On-Screen Display
(OSD) Menu items.
11
12
13
4
3
1
5
7
8
9
2
6
10
24
19
18
20
21
22
23
25
26
15
16
17
14
Using Your Projector 35
5Laser Point the remote control at the screen, press and
hold the laser button to activate the laser light.
CAUTION: Do not look at the laser point
when it is active. Avoid directing the laser
light on your eyes.
6Aspect Ratio Press to change aspect ratio of a displayed image.
7Keystone adjustment Press to adjust image distortion caused by tilting
the projector (+40/-35 degrees).
8Page up Press to move to previous page.
NOTE: The Mini USB cable must be
connected if you want to use the Page Up
feature.
9Page down Press to move to next page.
NOTE: The Mini USB cable must be
connected if you want to use the Page Down
feature.
10
Keystone adjustment
Press to adjust image distortion caused by tilting
the projector (+40/-35 degrees).
11 S-Video Press to choose S-Video source.
12 Video Press to choose Composite Video source.
13 Video mode The projector has preset configurations that are
optimized for displaying data (presentation
slides) or video (movies, games, etc.).
Press the Video Mode button to toggle between
Presentation mode,Bright mode,Movie mode,
sRGB, or Custom mode.
Pressing the Video Mode button once will show
the current display mode. Pressing the Video
Mode button again will switch between modes.
14 Blank screen Press to hide/unhide the image.
15 Up Press to navigate through the On-Screen Display
(OSD) Menu items.
16 Left Press to navigate through the On-Screen Display
(OSD) Menu items.
36 Using Your Projector
17 Menu Press to activate the OSD.
18 Mute Press to mute or un-mute the projector speaker.
19 Zoom + Press to increase the image.
20 Zoom - Press to decrease the image.
21 Volume up Press to increase the volume.
22 Volume down Press to decrease the volume.
23 Freeze Press to pause the screen image, then press
"Freeze" again to unfreeze image.
24 VGA Press to choose VGA source.
25 Source Press to switch between Analog RGB, Composite,
Component (YPbPr, via VGA), HDMI, and
S-Video source.
26 Auto Adjust Press to synchronize the projector with the input
source. Auto adjust does not operate if the OSD
is displayed.
Using Your Projector 37
Using the Interactive Pen
1Replaceable nib Acts as a mouse left button used for drawing and
writing.
NOTE:
• While using the nib, the Pointer Motion
will switch to the Draw mode and other
pen buttons are not available.
• When the nib wears out, change a new
nib head as shown below.
2Left Acts as a mouse left button.
1
2
4
5
3
6
Top View Bottom View
Unlock
Lock
38 Using Your Projector
NOTE: OSD warning messages - low battery
• The Low Battery warning message pops up when the battery voltage is lower
than 2V. At this condition, the pen still can work about 1~2 hours.
• The pen will be disabled when the battery voltage is lower than 1.8V.
NOTE: OSD warning messages - out of range
The situations below may cause the pen sensor out of range:
• The pen sensor doesn't face the screen.
• The pen is too far away from the screen.
• The projector brightness is too low for detection.
NOTE: Combinations of buttons
•
Left + Function:

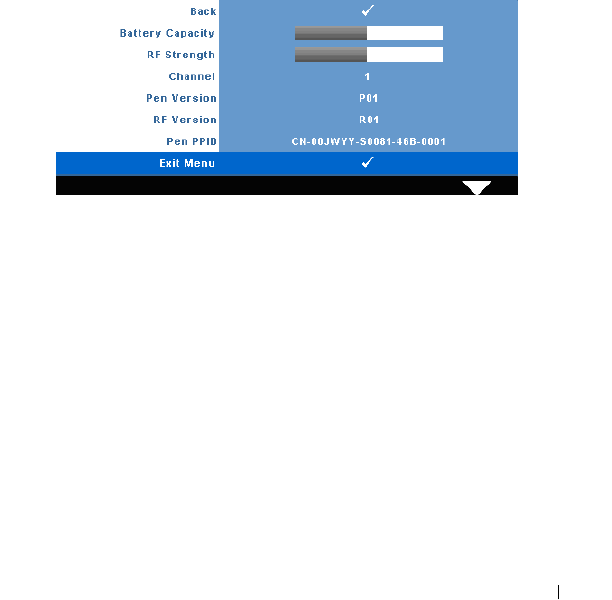

The Pen Information menu appears on the screen.
•
Right + Function:

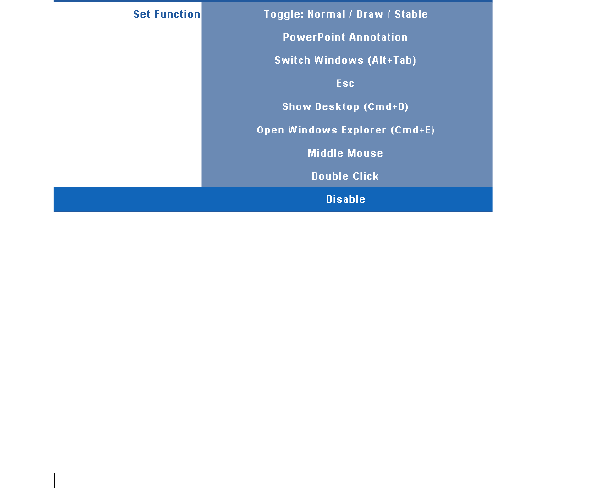

The Set Function menu appears on the screen. Use
Left/Right to move up/down and use Function to enter/apply.
• When Toggle is selected in the Set Function menu, press the Function
button to select Normal/Draw/Stable mode.
3Function Acts as the function which is defined through the
Set Function option on the Interactive menu
(see page 63).
NOTE: To undo a function, double click the
Function button.
4LED indicators Two LED indicators are available: Green and
Amber (see on "Interactive Pen LED Guiding
Signals" on page 110).
5Right Acts as a mouse right button.
6Reset Press to reset the interactive pen configuration.
Using Your Projector 39
Using the Wrist Strap
Please use the wrist strap to prevent losing your grip on the Interactive Pen and
causing damage to the Interactive Pen and surrounding objects, or injury to other
people.
1
Feed the cord on the wrist strap through the connector bar.
2
Wear the wrist strap on your wrist.
40 Using Your Projector
Installing the Remote Control Batteries
NOTE: Remove the batteries from the remote control when not in use.
1
Press the tab to lift the battery compartment cover.
2
Check the polarity (+/-) marking on the batteries.
3
Insert the batteries and align their polarity correctly
according to the marking in the battery compartment.
NOTE: Avoid mixing different types of batteries or using
new and old batteries together.
4
Slip the battery cover back.
1
2
3
4
Using Your Projector 41
Installing the Interactive Pen Batteries
NOTE: Remove the batteries from the interactive pen when not in use for a long
time.
1
Press the tab to lift the battery compartment cover.
2
Check the polarity (+/-) marking on the batteries.
NOTE: To extend the use of time, it's recommended to
use two AA 1.5V alkaline batteries.
3
Insert the batteries and align their polarity correctly
according to the marking in the battery compartment.
NOTE: Avoid mixing different types of batteries or using
new and old batteries together.
4
Slip the battery cover back.
42 Using Your Projector
Operating Range with Remote Control
NOTE: Actual operating range may slightly differ from the diagram. Weak
batteries will also prevent the remote control from properly operating the
projector.
Operating range
Angle ±20°
Distance 7m/22.97feet
Distance
Angle
Angle
Distance
Using Your Projector 43
Operating Range with Interactive Pen
NOTE:
• Projector is at 2000 lm brightness, with 100 inches image size, and in Bright
mode.
• Support multiple pens (up to 10 pens) to one projector but not
simultaneously.
• Actual operating range may slightly differ from the diagram.
• The projector brightness decay will reduce the range when using a long
while.
Distance
Angle
Angle
Distance
Operating range
Angle
Distance
0
°
20
°
45
°
10m/32.81feet
8m/26.25feet
5m/16.4feet
44 Using Your Projector
Using the On-Screen Display
• The projector has a multi-language On-Screen Display (OSD) Menu that can be
displayed with or without an input source.
• To navigate through the tabs in the Main Menu, press the or buttons on
your projectors control panel or remote control.
• To select a submenu, press the button on your projector’s control panel or
remote control.
• To select an option, press the or buttons on your projector’s control panel
or remote control. The color changes to dark blue. When an item is selected, the
color changes to dark blue.
• Use the or buttons on the control panel or remote control to adjust the
settings.
• To go back to Main Menu, go to Back tab and press the button on the control
panel or the remote control.
• To exit the OSD, go to EXIT tab and press the button or press the
Menu
button directly on the control panel or the remote control.
Main Menu
AUTO-ADJUST
Auto Adjust automatically adjusts the projector's Horizontal, Vertical, Frequency
and Tracking in PC mode. While Auto Adjustment is in progress, the following
message appears on the screen:
Using Your Projector 45
INPUT SELECT
The Input Select menu allows you to select your projector’s input source.
AUTO SOURCE—Select Off (the
default) to lock the current
input signal. If you press the
Source button when the Auto
Source mode is set to Off, you
can manually select the input
signal. Select On to auto detect
the available input signals. If
you press the Source button
when the projector is on, it
automatically finds the next
available input signal.
VGA-A—Press to detect VGA-A signal.
VGA-B—Press to detect VGA-B signal.
S-VIDEO—Press to detect S-Video signal.
COMPOSITE VIDEO—Press to detect Composite Video signal.
HDMI—Press to detect HDMI signal.
Multiple Display—Press to activate Input Select Multiple Display menu.
NOTE: The Multiple Display can be used after "Wireless / Network" turn on.
Default is Disable.
ADVANCED—Press to activate Input Select Advanced menu.
Input Select Multiple Display
The Input Select Multiple Display menu allows you to activate Wireless Display,
USB Display and USB Viewer.
Wireless Display—Press to access the projector's Wireless Guide screen. See
46 Using Your Projector
"Wireless Guide screen" on page 68.
USB Display—Allows you to via the USB cable to display PC/NB screen from your
projector. See "USB Display Driver Installation" on page 75.
USB Viewer—Allows you to display photo and PPT files from your USB flash. See
"Presentation to Go (PtG) Installation" on page 76.
INPUT SELECT ADVANCED
The Input Select Advanced menu allows you to enable or disable input sources.
VGA-A—Use and to enable or disable VGA-A input.
VGA-B—Use and to enable or disable VGA-B input.
S-VIDEO—Use and to enable or disable S-Video input.
COMPOSITE VIDEO—Use and to enable or disable Composite Video input.
HDMI—Use and to enable or disable HDMI input.
NOTE: You cannot disable your current input source. At anytime, a minimum of
two input sources have to be enabled.
PICTURE (in PC Mode)
Using the Picture menu, you can adjust the display settings of your projector. The
Picture menu provides the following options:
Using Your Projector 47
VIDEO MODE—Allows you to optimize the display image: Presentation,Bright,
Movie,sRGB (provides more accurate color representation), and Custom (set
your preferred settings).
NOTE: If you adjust the settings for B
B
rightness,C
C
ontrast,S
S
aturation,
Sharpness,T
T
int, and A
A
dvanced the projector automatically switches to C
C
ustom.
BRIGHTNESS—Use and
to
adjust the brightness of the image.
CONTRAST—Use and to adjust the display contrast.
ADVANCED—Press to activate Picture Advance Menu. See "PICTURE
ADVANCED" on page 48.
PICTURE (in Video Mode)
Using the Picture menu, you can adjust the display settings of your projectors. The
Picture menu provides the following options:
VIDEO MODE—Allows you to optimize the display image: Presentation,Bright,
Movie,sRGB (provides more accurate color representation), and Custom (set
your preferred settings).
NOTE: If you adjust the settings for B
B
rightness, Contrast,S
S
aturation,
Sharpness,T
T
int, and A
A
dvanced, the projector automatically switches to
Custom.
BRIGHTNESS—Use and
to
adjust the brightness of the image.
CONTRAST—Use and to adjust the display contrast.
SATURATION—Allows you to adjust the video source from black and white to fully
saturated color. Press to decrease the amount of color in the image and to
increase the amount of color in the image.
SHARPNESS—Press to decrease the sharpness and to increase the sharpness.
48 Using Your Projector
TINT—Press to increase the amount of green in the image and to increase
the amount of red in the image (available for NTSC only).
ADVANCED—Press to activate Picture Advance Menu. See "PICTURE
ADVANCED" below.
NOTE: Saturation,S
S
harpness, and
Tint are only available when input source is
from Composite or S-Video.
PICTURE ADVANCED
Using the Picture Advanced menu, you can adjust the display settings of your
projector. The Picture Advanced menu provides the following options:
WHITE INTENSITY—Use and to adjust the display white intensity.
COLOR TEMP—Allows you to adjust the color temperature. The screen appears
cooler at higher color temperatures and warmer at lower color temperatures.
When you adjust the values in the Color Adjust menu, the Custom mode is
activated. The values are saved in the Custom mode.
CUSTOM COLOR ADJUST—Allows you to manually adjust the colors red, green, and
blue.
COLOR SPACE—Allows you to select the color space, options are: RGB, YCbCr, and
YPbPr.
Using Your Projector 49
DISPLAY (in PC Mode)
Using the Display menu, you can adjust the display settings of your projector. The
Picture menu provides the following options:
ASPECT RATIO—Allows you to select the aspect ratio to adjust how the image
appears.
• Original — Select Original to maintain the aspect ratio of image projected
according to input source.
• 4:3 — The input source scales to fit the screen and projects a 4:3 image.
• Wide — The input source scales to fit the width of the screen to project a
wide screen image.
ZOOM—Press to activate Zoom menu.
Select the area to zoom and press to view zoomed image.
Adjust the image scale by pressing or and
press to view.
ZOOM NAVIGATION—Press to activate Zoom Navigation
menu.
Use to navigate projection screen.
HORIZONTAL POSITION—Press to move the image to the left and to move the
image to the right.
VERTICAL POSITION—Press to move the image down and to move the image
up.
50 Using Your Projector
FREQUENCY—Allows you to change the display data clock frequency to match the
frequency of your computer graphics card. If you see a vertical flickering wave, use
Frequency control to minimize the bars. This is a coarse adjustment.
TRACKING—Synchronize the phase of the display signal with the graphic card. If you
experience an unstable or flickering image, use Tracking to correct it. This is a fine
adjustment.
Using Your Projector 51
DISPLAY (in Video Mode)
Using the Display menu, you can adjust the display settings of your projector. The
Picture menu provides the following options:
ASPECT RATIO—Allows you to select the aspect ratio to adjust how the image
appears.
• Original — Select Original to maintain the aspect ratio of image projected
according to input source.
• 4:3 — The input source scales to fit the screen and projects a 4:3 image.
• Wide — The input source scales to fit the width of the screen to project a
wide screen image.
ZOOM—Press to activate Zoom menu.
Select the area to zoom and press to view zoomed image.
Adjust the image scale by pressing or and
press to view.
ZOOM NAVIGATION—Press to activate Zoom Navigation
menu.
Use to navigate projection screen.
52 Using Your Projector
LAMP
The Lamp menu provides the following options:
LAMP HOUR—Displays the operating hours since the last lamp timer reset.
LAMP HOUR RESET—Select Yes to reset the lamp timer.
SET UP
The Set Up menu allows you to adjust settings for Language, Projector Mode,
V. Keystone, 3D Display, Standby VGA Output and Wireless / Network.
Using Your Projector 53
LANGUAGE—Allows you to set the language for the OSD. Press to activate the
Language menu.
PROJECTOR MODE—Allows you to select the projector mode, depending upon how
the projector is mounted.
• Front Projection-Desktop — This is the default option.
• Front Projection-Wall Mount — The projector turns the image upside down
for wall-mounted projection.
• Rear Projection-Desktop — The projector reverses the image so that you can
project from behind a translucent screen.
• Rear Projection-Wall Mount — The projector reverses and turns the image
upside down. You can project from behind a translucent screen with a wall-
mounted projection.
NOTE: Doesn't recommend to enable the Interactive function on rear projector
condition.
V. KEYSTONE—Manually adjust the vertical image distortion caused by tilting the
projector.
3D DISPLAY—Select on to start the 3D display function. Default is off.
54 Using Your Projector
NOTE:
1. When you want to create 3D experience, you will need a few other components
including:
a PC/NB with a 120 Hz signal output quad buffered graphics card.
b "Active" 3D glasses with DLP Link™.
c 3D content. See "Note 4".
d 3D Player. (Example: Stereoscopic Player...)
2. Enable the 3D function when it satisfies any of the below-mentioned conditions:
a PC/NB with graphics card, capable of outputting at 120Hz signal via VGA or
HDMI cable.
b inputs a suite of 3D content via Video and S-Video.
3. When projector detects either of the inputs (mentioned above), the enable 3D
display on "SETUP" -> "3D Display" OSD works.
4. Current 3D support time is as indicated:
a VGA/HDMI 1280 x 720 120 Hz
b Composite/S-Video 60 Hz
c Component 480i
5. The recommended VGA signal for NB is Single mode output (Dual mode is not
recommended)

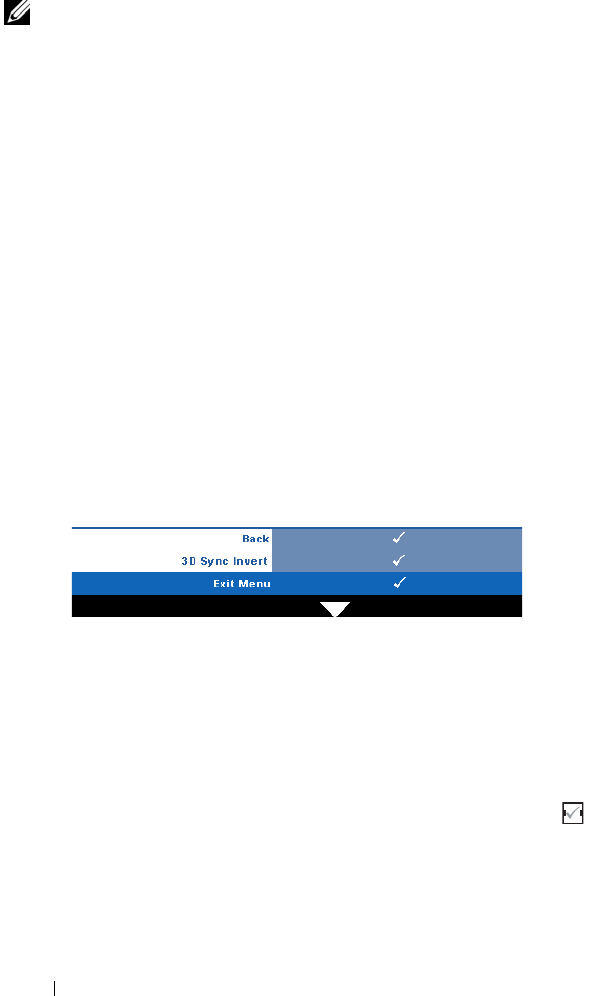

3D Sync Invert—If you see a discrete or overlapping image while
wearing DLP 3D goggles, you may need to execute 'Invert' to get
best match of left/right image sequence to get the correct image.
(For DLP 3D goggles)
STANDBY VGA OUTPUT—Select On or Off the VGA output function at projector
standby status. Default is Off.
Wireless / Network—Select O
O
n to activate wireless / network function. Press
to configure the W
W
ireless / Network settings.
Using Your Projector 55

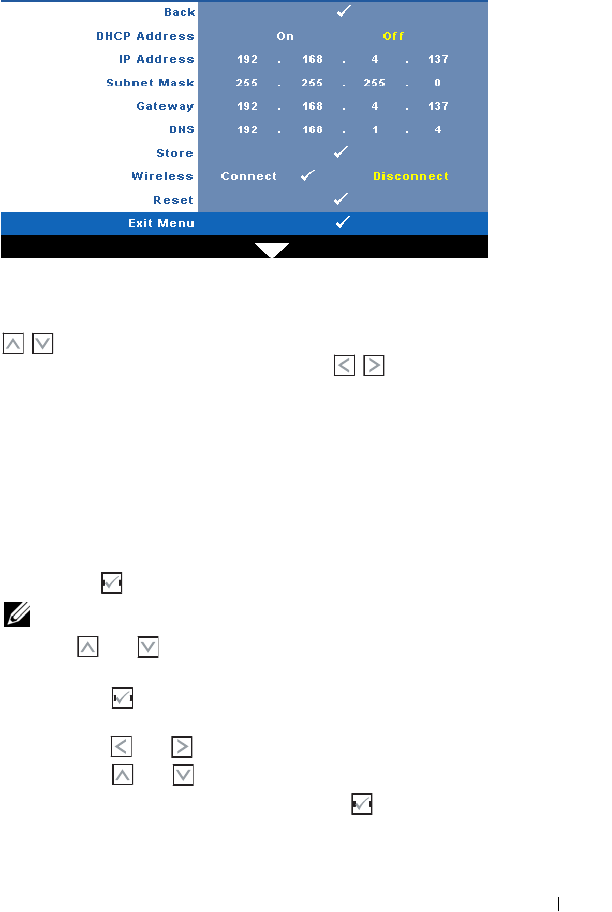

WIRELESS / NETWORK
The Wireless / Network menu allows you to configure the network connection
settings.
DHCP ADDRESS—If a DHCP server exists in the network to which the projector is
connected, the IP address will automatically be acquired when you select DHCP
On. If DHCP is Off, manually set the IP Address, Subnet Mask, and Gateway. Use
to select the number of IP Address, Subnet Mask, and Gateway. Key in
Enter to confirm each number and then use to set the next item.
IP ADDRESS—Automatically or manually assigns the IP address to the projector
connected to the network.
SUBNET MASK—Configure the Subnet Mask of the network connection.
GATEWAY—Check the Gateway address with your network/system administrator if
you configure it manually.
DNS—Check the DNS Server IP address with your network/system administrator
if you configure it manually.
STORE—Press to save the changes made in network configuration settings.
NOTE:
1
Use and button to select IP Address, Subnet Mask, Gateway, DNS and
Store.
2
Press the button to enter IP Address, Subnet Mask, Gateway or DNS to set
the value. (The selected option is highlighted in yellow)
a
Use and button to select the option.
b
Use and button to set the value.
c
After the setup is complete, press the button to exit.
56 Using Your Projector
3
After the IP Address, Subnet Mask, Gateway and DNS is set up, select
Store
and press the button to store the settings.
4
If select
Store
without press enter button, the system will keep in the original
setting.
WIRELESS—Default is Connect. Select Disconnect to disable the wireless
connection to use LAN networking only.
NOTE: It is recommended to use the default settings for Wireless Connect.
RESET—Press to reset network configuration.

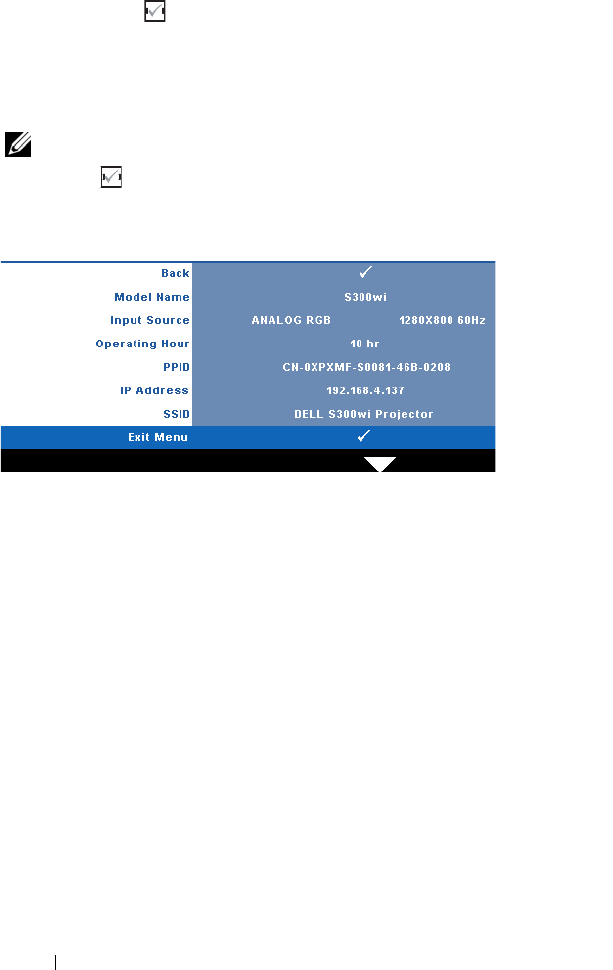

INFORMATION
The Information menu displays the current projector settings.
Using Your Projector 57
OTHERS
The Others menu allows you to change settings for Menu, Screen, Audio, Power,
Security, Closed Caption (for NTSC only), and Interactive. You can also perform

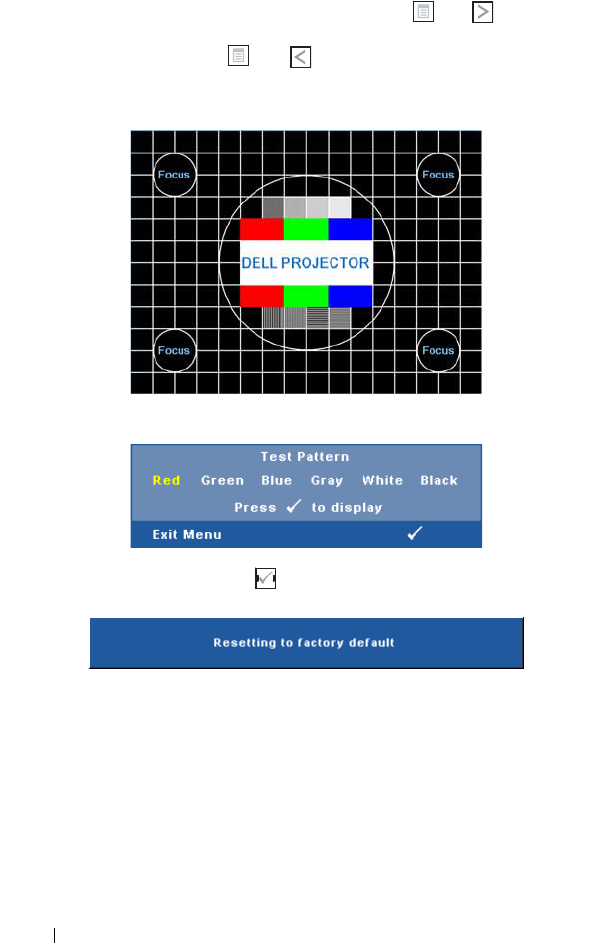

Test Pattern and Factory Reset.
MENU SETTINGS—Select and press to activate menu settings. The menu
settings consists of the following options:
MENU POSITION—Allows you to change the position of the OSD menu on
the screen.
MENU TRANSPARENCY—Select to change the transparency level of the OSD
background.
MENU TIMEOUT—Allows you to adjust the time for an OSD timeout. By
default, the OSD disappears after 20 seconds of non-activity.
MENU LOCK—Select On to enable Menu Lock and hide the OSD menu.
Select OFF to disable the Menu Lock. If you want to disable the Menu
Lock function and have the OSD disappear, press the Menu button on the
control panel or remote control for 15 seconds, then disable the function.
58 Using Your Projector

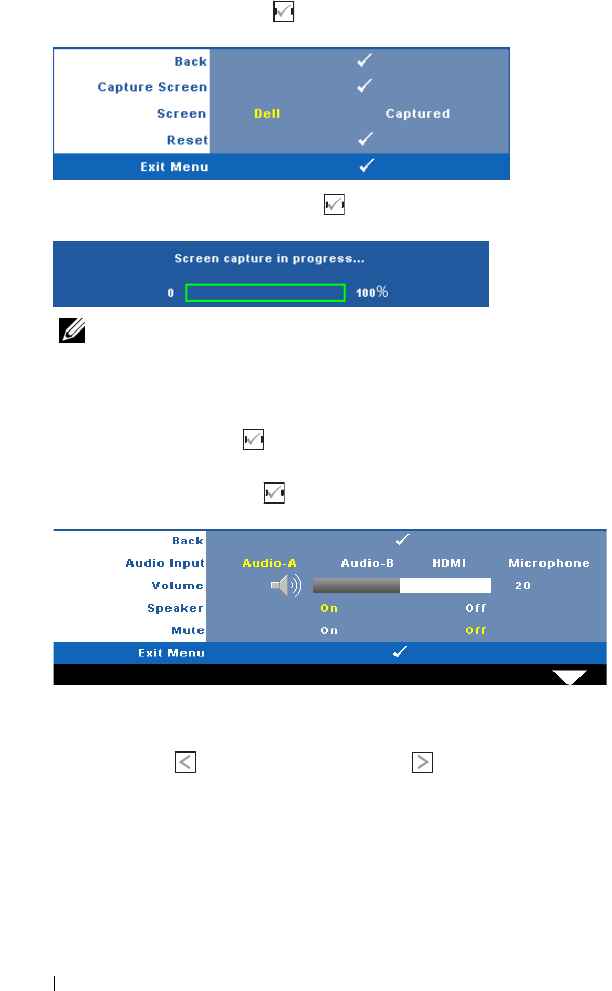

SCREEN SETTINGS—Select and press to activate screen settings. The screen
settings menu consists of the following options:
CAPTURE SCREEN—Select and press to capture the screen display, the
following message appears on the screen.
NOTE: To capture a full image, ensure the input signal that is
connected to the projector is 1280 x 800 resolution.
SCREEN—Select Dell to use the Dell logo as wallpaper. Select Captured to
set the captured image as wallpaper.
RESET—Select and press to delete the captured picture and set back to
the default setting.
AUDIO SETTINGS—Select and press to change audio settings. The audio
settings menu consists of the following options:
AUDIO INPUT—Select the Audio input source, options are: Audio-A, Audio-
B, HDMI and Microphone.
VOLUME—Press to decrease the volume and to increase the volume.
SPEAKER—Select On to enable speaker. Select Off to disable speaker.
MUTE—Allows you to mute the sounds for audio input and audio output.
Using Your Projector 59
POWER SETTINGS—Select and press to activate power settings. The power
settings menu consists of the following options:
POWER SAVING—Select Off to disable Power Saving mode. By default, the
projector is set to enter power saving mode after 120 minutes of no activity.
A warning message appears on screen showing a 60-second countdown
before switching to power saving mode. Press any key buttons during
countdown period to stop power saving mode.
You can also set a different delay period to enter power saving mode. The
delay period is the time you want the projector to wait without an input
signal. Power saving can be set to 30, 60, 90, or 120 minutes.
If an input signal is not detected during the delay period, the projector
turns off the lamp and goes into power saving mode. If an input signal is
detected within the delay period, the projector automatically turns on. If
an input signal is not detected within two hours during power saving mode,
the projector switches from Power Saving mode to Power Off mode. To
turn on the projector press the Power button.
QUICK SHUTDOWN—Select Yes to turn off the projector with a single press of
the Power button. This function allows the projector to quick power off
with an accelerated fan speed. Slightly higher acoustic noise is expected
during quick power off.
NOTE: Before you turn on the projector again, wait for 60 seconds to allow the
internal temperature to stabilize. The projector will take a longer time to turn on
if you try to power on immediately. Its cooling fan will run at full speed for about
30 seconds to stabilize the internal temperature.

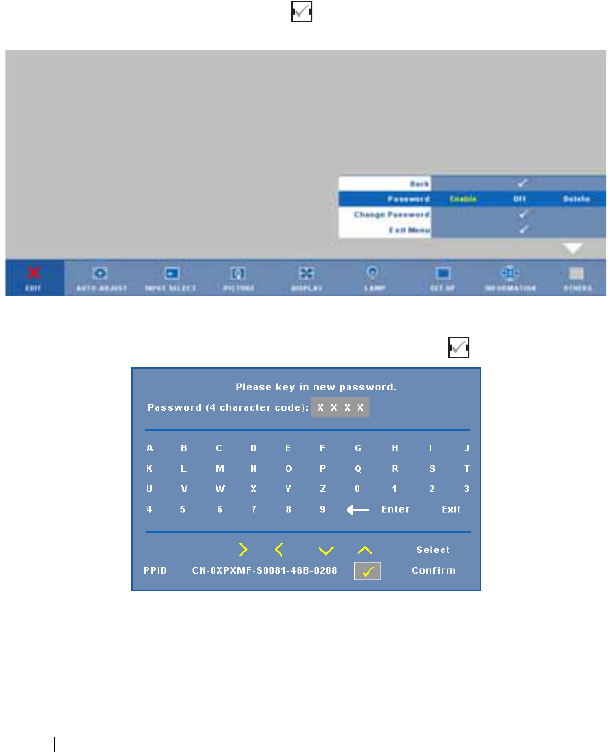

SECURITY SETTINGS—Select and press to activate security settings. The
security settings menu allows you to enable and set password protection.
60 Using Your Projector

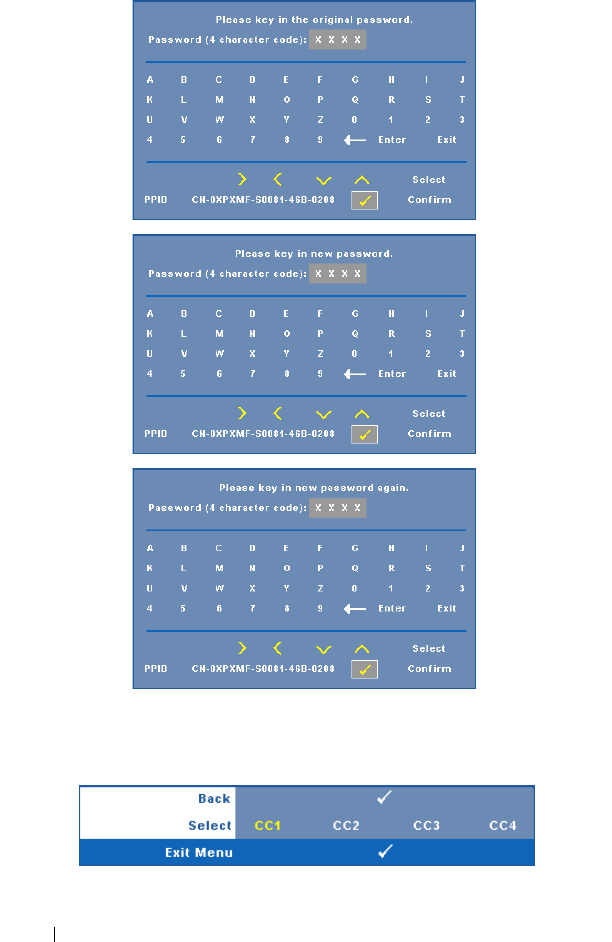

PASSWORD—When Password Protect is enabled, a Password Protect screen
requesting you to enter a password will be displayed when the power plug is
inserted into the electrical outlet and the power for the projector is first
turned on. By default, this function is disabled. You can enable this feature,
by selecting Enabled. If the password has been set before, key in the
password first and select the function. This password security feature will
be activated the next time you turn on the projector. If you enable this
feature, you will be asked to enter the projector's password after you turn
on the projector:
1
First time password input request:
a
Go to
Others
menu, press and then select
Password
to
Enable
the password setting.
b
Enabling the Password function will pop up a character screen, key
in a 4-digit number from the screen and press .
c
To confirm, enter the password again.
d
If the password verification is successful, you may resume with
accessing the projector's functions and its utilities.
Using Your Projector 61
2
If you have entered an incorrect password, you will be given
another 2 chances. After the three invalid attempts, the projector
will automatically turn off.
NOTE: If you forget your password, contact DELL™ or a qualified
service personnel.
3
To disable the password function, select
Off
to disable the
function.
4
To delete the password, select
Delete.
62 Using Your Projector
CHANGE PASSWORD—Key in the original password, then enter the new
password and confirm the new password again.
CLOSED CAPTION—Select On to enable close caption and activate the closed
caption menu. Select an appropriate closed captions option: CC1, CC2, CC3, and
CC4.
Using Your Projector 63
NOTE: Closed caption option is available for NTSC only.

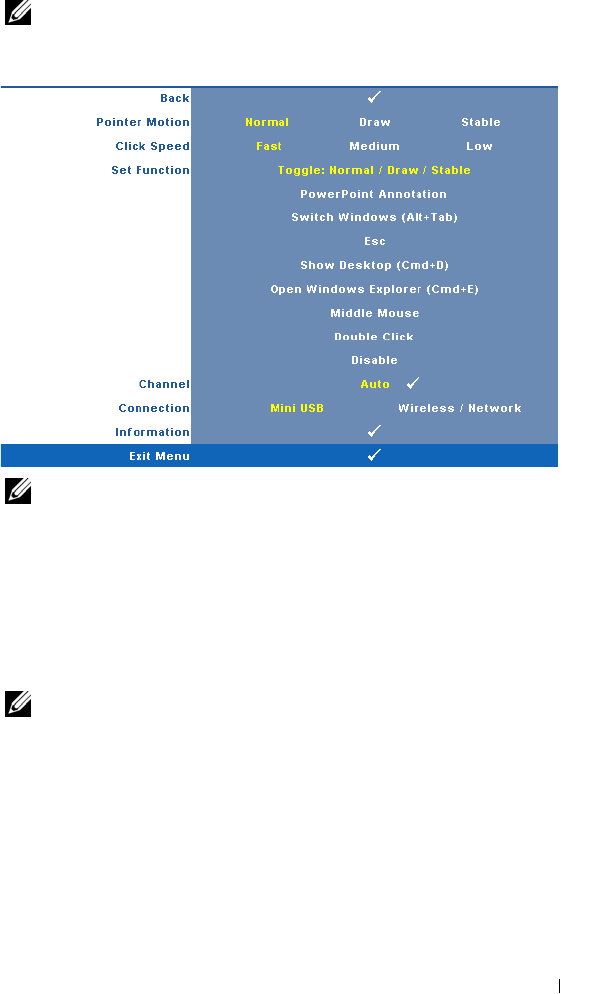

INTERACTIVE—Select On to enable Interactive and activate the Interactive menu.
The Interactive menu consists of the following options:
NOTE:
1.
Ensure that the interactive pen has got connected. See "Connecting with your
Interactive Pen" on page 25.
2.
Interactive Pen cannot be used in Stretched mode.
3.
During the 3D Display function and there is an input source from 120Hz signals,
the Interactive Pen cannot be used.
POINTER MOTION—Allows you to select the Pointer Motion mode: Normal,
Draw, and Stable.
NOTE:
1.
Connect the projector to your computer using a mini USB-B or LAN cable or
through a wireless/LAN connection.
2.
Only VGA and HDMI signals of Computer and Wireless Display, USB Display,
and LAN Display are supported.
•
Normal —
When in Normal mode, pressing the Left button of the
interactive pen will stop the move of the pointer for a moment. This mode
is best for the Left button to click and double-click, functioning as a mouse
left button.
64 Using Your Projector
•
Draw —
When in Draw mode, the pointer can move freely to suit the need
of drawing. This mode is best for drawing or writing on the screen.
•
Stable —
When in Stable mode, pressing and holding the Left button of
the interactive pen to limit the pointer to vertical or horizontal moves.
While releasing the Left button, the pointer can move freely to locate a
position. This mode is best for drawing vertical or horizontal lines on the
screen.
CLICK SPEED—Allows you to set the mouse pause time. This function is
only available in Normal mode. The available options are: Fast, Medium
and Low.
•
Fast —
Sets the pointer motion freeze time to the minimum amount of
time, 0.5 seconds.
•
Medium —
Sets the pointer motion freeze time to the middle value, 1.0
second.
•
Low —
Sets the pointer motion freeze time to the maximum amount of
time, 1.5 seconds.
SET FUNCTION—Allows you to set the function of the Function button on
the interactive pen. Available options are: Toggle: Normal/Draw/Stable,
PowerPoint Annotation,Switch Windows (Alt+Tab),Esc,Show Desktop
(Cmd+D),Open Windows Explorer (Cmd+E),Middle Mouse,Double
Click and Disable (see "Using the Interactive Pen" on page 37).
•
Toggle: Normal / Draw/Stable —
Sets the function as toggling among
Normal
,
Draw
, and
Stable
mode.
•
PowerPoint Annotation —
Sets the function as annotating in the
PowerPoint slide show.
•
Switch Windows (Alt+Tab) —
Sets the function as toggling among
windows, acting as the keyboard shortcut Alt+Tab.
•
Esc —
Sets the function as the keyboard Esc button.
Using Your Projector 65
•
Show Desktop (Cmd+D) —
Sets the function as showing desktop,
minimizing all windows.
•
Open Windows Explorer (Cmd+E) —
Sets the function as opening the
Windows Explorer.
•
Middle Mouse —
Sets the function as the scroll wheel of the mouse.
•
Double Click —
Sets the function as double-clicking.
•
Disable —
Disable the Function button.
CHANNEL—Allows you to set the channel selection as Auto or Manual.
•
Auto —
Channel is selected automatically.
•
Manual —
Channel is selected manually. A total of 15 channels are
available.
•
Connection —
Allows you to set the connector selection as
Mini USB
or
Wireless / Network
.
INFORMATION—Allows you to view the information about the interactive
pen.
66 Using Your Projector
TEST PATTERN—Test Pattern is used to test focus and resolution.
You can enable or disable the Test Pattern by selecting Off, 1 or 2. You can also
invoke the Test Pattern 1 by pressing and holding down and buttons on the
control panel simultaneously for 2 seconds. You can also invoke the test pattern 2
by pressing and holding down and buttons on the control panel
simultaneously for 2 seconds.
FACTORY RESET—Select and press to reset all settings to its factory default, the
warning message below appears.
Reset items include both computer sources and Video source settings.
Test Pattern 1:
Test Pattern 2:
Using Your Projector 67
Wireless Networking Installation
NOTE: Your computer must have the following minimum system requirements:
Operating System:
•Windows
Microsoft Windows 2000 with service pack 4 or later, Windows XP Home or
Professional Service pack 2 32-bit(recommended), Windows Vista 32-bit, and
Windows 7 Home or Professional 32-bit or 64-bit
•MAC
MacBook and above, MacOS 10.5 and above
Minimum Hardware:
a
Intel Pentium III-800 MHZ (or greater)
b
256MB of RAM required, 512 MB or more recommended.
c
10MB of available hard-disk space
d
Super VGA supporting 800 x 600 16 bit high color or higher-resolution display
recommended (PC and display)
e
Ethernet adapter (10 / 100 bps) for an Ethernet connection
f
A supported WLAN adapter for a WLAN connection (any NDIS-compliant
802.11b or 802.11g Wi-Fi device)
Web browser
Microsoft Internet Explorer 6.0 or 7.0 (recommended) or 8.0, Firefox 1.5 or 2.0,
and Safari 3.0 and above
68 Using Your Projector
In order to use your projector wirelessly, you need to complete the steps below:
1
Install the wireless antenna. See "Installing the Antenna" on page 12.
2
Enable wireless connection on the projector. See "WIRELESS / NETWORK"
on page 55.
NOTE: When you start wireless, please wait about 50 seconds reboot the
Wireless / Network.
3
On INPUT SELECT menu, select Multiple Display and then select Wireless
display on sub-menu. See "INPUT SELECT" on page 45. The
Wireless Guide
Screen
shown below appears.
4
Take note of the
LOGIN CODE
,
NETWORK NAME
(
SSID)
, and
IP
ADDRESS
. You will need these information to login later.
5
Connect your computer to the
S300wi
network.
Using Your Projector 69
NOTE:
• Your computer must have wireless network function to detect the
connection.
• When you connect to the
S300wi
network, you will lose wireless
connectivity with other wireless networks.
6
Open your internet browser. You will be automatically directed to the
S300wi
Web Management
web page.
NOTE: If the web page does not load automatically, enter the IP address noted
from the projector’s screen in the browser’s address bar.
7
The S300wi Web Management page opens. For first time use, click
Download
.
70 Using Your Projector
8
Select the appropriate operating system, then click
Download
.
9
Click
Run
to proceed with the
one-time installation of the
software.
NOTE: You may choose to
save the file and install it at
latter time. To do this, click
Save.
NOTE: The following warning messages may appear, select R
R
un and
Allow
respectively.
Using Your Projector 71
10
The installation software will launch. Follow the on-screen instructions to
complete setup.
S300wi Wireless Application Software
Once the installation is complete, S300wi Wireless Application software will
launch and will search for the projector automatically. The screen below appears.
Login
To communicate with your projector, enter the Login Code provided for in Step 4
of "Wireless Networking Installation, then click OK.
NOTE: If I
I
P Address is not detected, enter the I
I
P Address displayed at the
bottom left corner of the screen.
72 Using Your Projector
Understanding the Buttons
After a successful login, the following screen appears.
Projecting the Presentation
• To project the presenation, click any of the projection buttons .
• To pause the presentation, click . The icon turns green.
• To continue the presentation, click again.
• To stop the presentation, click .
Item Description
1Status Bar Displays IP and LOGIN CODE information.
Menu Click to activate the application menu.
Minimize button Click to minimize the application.
Close button Click to exit the application.
2Controls Toolbar
Full screen Click to project the image in full screen.
Split 1 Click to project the image in the upper left
corner of the screen.
Split 2 Click to project the image in the upper right
corner of the screen.
Split 3 Click to project the image in the lower left
corner of the screen.
Split 4 Click to project the image in the lower right
corner of the screen.
Stop Click to stop projection.
Pause Click to pause projection.
Refresh Click to refresh projected image.
3Connection Status
Connection Icon Blinks when projection is in progress.
1
23
Using Your Projector 73
NOTE: The following information is for wireless data presentation mode only.
Image display could be slow or not displayed smoothly if displaying a video clip
or animation, refer to the frame rate table below for reference.
Frame Rate of Wireless Presentation
NOTE:
1
The percentage of screen variation is based on 1024 x 768. Example, display a 320
x 240 video clip on 1024 x 768 desktop, the screen variation is 9.8%.
2
Actuate frame rate could be different depending on factors, such as network
environment, image content, signal conditions, locations, and CPU performance.
3Under clean WLAN environment using 802.11g connection, and no screen
stretching.
4
Compressed to 1024 x 768 and under 802.11g.
NOTE: Your computer will not enter S1 (standby mode) / S3 (sleep mode) / S4
(hibernate mode) when running a wireless, USB Display and USB Viewer
presentation.
Using the Menu
Click to display the menu.
WEB MANAGEMENT—Click to open the Web Management page. See "Managing the
Screen Variation % 1Estimated frame per second 2
<5 % 303
<10% 163
<20% 123
<40% 83
<75% 53
100% 33
> 100% ≤ 24
74 Using Your Projector
Projector From Web Management" on page 82.
SEARCH FOR PROJECTOR—Click to search and connect to wireless projector..
MAKE APPLICATION TOKEN—Click to make application token. See "Make
Application Token" on page 101.
INFO—Click to display system information.
ABOUT—Click to display the application version.
EXIT—Click to close the application.
Using Your Projector 75
USB Display Driver Installation
In order to use your USB Display, you need to complete the steps below:
1
Enable Wireless / Network connection on the projector. See "WIRELESS /
NETWORK" on page 55.
NOTE: When you start wireless, please wait about 50 seconds to reboot the
Wireless / Network.
2
Connecting the USB cable to your projector and computer. See "Connecting a
Computer Using an USB Display" on page 16.
3
On INPUT SELECT menu, select Multiple Display and then select USB
Display on sub-menu. See "Input Select Multiple Display" on page 45.
4
Start the installation manually by clicking "dousb_install.Cab" on CD Drive.
NOTE: If pop up "AutoPlay" installation window, please close it.
5
System will start to install the Remote NDIS driver on your computer at first
time.
NOTE:
•If the warning message appears, please ignore and allow for installation.
•You may require administrator level access to install the software.
6
Start to display the computer screen through USB cable.
NOTE: When the computer resumes from standby or hibernation mode, the
display over USB can also be resumed automatically. If it fails to resume
automatically, you have to unplug and plug the USB cable again.
76 Using Your Projector
Presentation to Go (PtG) Installation
Your computer must have the following minimum system requirements.
Operating System:
-Windows
Microsoft Windows XP Home or Professional Service pack 2/3 32-bit
(recommended), Windows Vista 32-bit, and Windows 7 Home or Professional 32-
bit or 64-bit
- Office 2003 and Office 2007
In order to use your USB Viewer, you need to complete the steps below:
1
Enable Wireless / Network connection on the projector. See "WIRELESS /
NETWORK" on page 55.
NOTE: When you start wireless, please wait about 50 seconds to reboot the
Wireless / Network.
2
Plug the USB Flash to your projector.
NOTE:
•Only support the JPEG format photo within 10Mb 40M pixels.
•The PtG converter can convert your PowerPoint files into PtG files. See "PtG
Converter - Lite Application Software" on page 80
•You can download the "PtG Converter - Lite" from Dell Support site at:
support.dell.com.
3
On INPUT SELECT menu, select Multiple Display and then select USB
Viewer on sub-menu. See "Input Select Multiple Display" on page 45. The
Presentation to Go Screen
appears.
Using Your Projector 77
PtG Viewer
System will stay in this page when ready.
Photo Viewer
78 Using Your Projector
PtG/Photo Function Introduction
Show valid PtG and Photo files which are stored in USB disk.
NOTE: If only one disk is detected, system will skip this step.
PtG Overview
Using Your Projector 79
Photo Overview
NOTE: Support 14 languages of photo files name format (Language: English,
Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian,
Simplified Chinese, Spanish, Swedish and Traditional Chinese).
Buttons Introduction
Use up, down and left buttons to navigate and button on your projector's
control panel or remote control to select.
NOTE: If you enter OSD menu while using PtG, PtG navigation by up, down and
left buttons will not function.
Button Up Down Left Right Enter
PtG function Up Down Back No function Enter
PtG Playback Pre Page Next Page Back No function Next Pause
function
Up Down Back No function Enter
Playback
Pre Page Next Page Back No function No
function
80 Using Your Projector
Setup PtG Converter - Lite
Please follow the on-screen instructions to complete setup.
PtG Converter - Lite Application Software
Please launch the "PtG Converter - Lite". The screen below appears.
1
Click to start conversion.
2
Select the PowerPoint file you want to convert.
Using Your Projector 81
3
Click Browse button to select storage location and then press OK.
NOTE:
1If not PowerPoint application on your computer, file convert will fail.
2PtG converter only support up to 20 pages.
82 Using Your Projector
Managing the Projector From Web
Management
Configuring the Network Setting
If the projector is connected to a network, you can access the projector using a web
browser. For configuring the network setting, refer to "WIRELESS / NETWORK"
on page 55.
Accessing Web Management
Use Internet Explorer 5.0 and above or Firefox 1.5 and above and enter the IP
address. You can now access Web Management and manage the projector from a
remote location.
Home Page
• Access the Web Management Home page by entering the projector’s IP
address at the web browser. See "WIRELESS / NETWORK" on page 55.
• Select the language for web management from the list.
• Click any menu item on the left tab to access the page.
Using Your Projector 83
Download the Wireless Application Software
See also "Wireless Networking Installation" on page 67.
Click the Download button of the corresponding operating system of your
computer.
84 Using Your Projector
Conference Control
This allows you to host conference presentations from different sources without
using projector cables and lets you control how each presentation will appear on
screen.
Computer Name: Lists the computers logged for conference control.
Play Control: Click the buttons to control how each computer’s projection will
appear on screen.
• Full screen projection — The presentation from the computer
occupies the whole screen.
• Split 1 - The presenation from the computer appears on the upper
left corner of the screen.
• Split 2- The presenation from the computer appears on the upper
right corner of the screen.
• Split 3- The presenation from the computer appears on the lower left
corner of the screen.
• Split 4- The presenation from the computer appears on the lower
right corner of the screen.
• Stop - Projection from the computer is stopped.
IP Address: Shows each computer’s IP Address.
NOTE: To end the conference, click L
L
ogout.
Using Your Projector 85
Managing Properties
Admin
An administrator password is required to access the Admin page.
•Admin Password: Enter the administrator password then click Login. The
default password is "admin". To change the password, see "Change
Passwords" on page 90.
86 Using Your Projector
System Status
Displays the Network Status,Connection Status, and Projector Status
information.
Using Your Projector 87
Network Status
See OSD section on page 55.
IP Setup
• Choose Obtain an IP address automatically to assign an IP address to the
projector automatically, or Use the following IP address to assign an IP
address manually.
DHCP Server Setup
• Choose Auto to automatically setup the Start IP,End IP,Subnet Mask,
Default Gateway, and DNS Server address from a DHCP server, or Disable
to disable this function.
Wireless Setup
• Choose Enable to setup the Region,SSID,SSID Broadcast,Channel,
Encryption, and Key. Choose Disable to disable wireless setup.
88 Using Your Projector
SSID: Up to maximum length of 32 characters.
Encryption: You can Disable WPA key or select one of 64-bit or 128-bit in
ASCII or HEX string.
Key: If Encryption is enabled, you have to set key value according to
Encryption mode you selected.
RADIUS Server Setup
• Setup the IP address, Port and Key information.
GateKeeper
• There are 3 options:
All Pass: Allow users to access office network via wireless projector.
All Block: Block users to access all office network via wireless projector.
Internet Only: Block users from office network but still reserve Internet
connection capability.
Set Security For SNMP
• Setup Write Community information.
Click the Apply button to save and apply changes. The projector must be restarted
for the changes to take effect.
Using Your Projector 89
Projection Setup
Projection Setup
•Resolution: Allows you to select the resolution. Options are: XGA
(1024 x 768) and WXGA (1280 x 800).
•Color Depth: Allows you to select the color depth for more vivid
presentations. Options are: Normal (16 bit) and High (32 bit).
•Login Code: Select how you want the login code to be generated by the
projector. There are 3 options:
•
Disable
: Login code will not be required when logging in to the system.
•
Random
: Default is
Random
. Login code will be randomly generated.
•
Use the following code
: Enter a 4-digit code. This code will be used to
login to the system.
Projector Setup
• Setup the Model Name,Projector Name,Location, and Contact
information (up to 21 characters for each field).
Click the Apply button to save and apply changes. The projector must be restarted
for the changes to take effect.
90 Using Your Projector
Change Passwords
This page allows you to change the administrator password.
•Enter New Password: Enter the new password.
•Confirm New Password: Enter the password again and click Apply.
NOTE: Contact Dell if you forget your administrator password.
Using Your Projector 91
Reset to Default
Click the Apply button to restore all wireless/network setup to its factory default
settings.
92 Using Your Projector
Firmware Update
Use the Firmware Update page to update your projector’s wireless firmware.
To start firmware update, do the following steps:
1
Press
Browse
to select the file to update.
2
Click the
Update
button to start. Wait while the system updates the firmware
in your device.
CAUTION: Do not interrupt the update process, this may cause the system to
crash!
3
Click
OK
when update is complete.
Using Your Projector 93
Projector Control Panel
Projector Information
• Projector Status: There are 5 status: Lamp On, Standby, Power Saving,
Cooling and Warming up. Click the Refresh button to refresh the status and
control settings.
•Power Saving: Power Saving can be set to Off, 30, 60, 90, or 120 minutes. For
more information, see "Power Saving" on page 59.
•Alert Status: There are 3alert status: Lamp warning, Low lamp life, and
Temperature warning. Your projector might lock up in protection mode if
any of the alerts are activated. To exit protection mode, click the Clear
button to clear the Alert Status before you Power ON your projector.
94 Using Your Projector
Image Control
•Projector Mode: Allows you to select the projector mode, depending on how
the projector is mounted. There are 4 projection modes: Front Projection-
Desktop, Front Projection-Wall Mount, Rear Projection-Desktop and Rear
Projection-Wall Mount.
•Source Select: The Source Select menu allows you to select your projector
input source. You can select VGA-A, VGA-B, S-Video, Composite Video,
HDMI, Wireless Display, USB Display and USB Viewer.
•Video Mode: Select a mode to optimize the display image based on how the
projector is being used:
-
Presentation:
Best for presentation slides.
-
Bright:
Maximum brightness and contrast.
-
Movie:
For viewing movie & photo.
-
sRGB:
Provide a more accurate color representation.
-
Custom:
User preferred settings.
•Blank Screen: You can select On or Off.
•Aspect Ratio: Allows you to select the aspect ratio to adjust how the image
appears.
•Brightness: Select value to adjust the brightness of the image.
•Contrast: Select value to adjust the display contrast.
Click the Auto Adjust button to adjust the settings automatically.
Audio Control
•Audio Input: Select the input source. Options are: Audio-A, Audio-B,
HDMI and Microphone.
•Volume: Select the value (0~20) for audio volume.
•Speaker: Select On to enable the audio function or select Off to disable the
audio function.
Click the Factory Reset button to restore the factory defaults settings.
Using Your Projector 95
Alert Setting
E-mail Alert: With standard SMPT server using default 25 port and not support
encryption and authentication (SSL or TLS).
• E-mail Alert: You can set whether to be notified by email (Enable) or not
(Disable).
• To/CC/From: You can enter email address of sender (From) and recipients
(To/Cc) to receive notification when an abnormality or warning occurs.
• Subject: You can enter the subject line of the email.
Click the E-mail Alert Test button to test the e-mail alert settings.
SMTP Setting
•Out going SMTP server,User name and Password should be provided by
your network administrator or MIS.
Alert Condition
• You can select the abnormalities or warnings to be notified by email. When
any of the alert conditions occur, an email will be sent to the recipients
(To/Cc).
Click the Save button to save settings.
96 Using Your Projector
Reboot System
Click Reboot to reboot the system.
Crestron
For Crestron function.
Using Your Projector 97
TIPS:
I would like to remotely access
the projector via Internet. What
is the better setting for the
browser?
To have a better setting for the browser, please
follow the steps below:
1
Open
Control Panel Internet Options
General
tab
Temporary I nte rn et File s
Settings
Select
Every visit to the pages
.
2
Some firewall or anti-virus may block the
HTTP application, if possible turn off the
firewall or anti-virus.
I would like to remotely access
the projector via Internet. What
socket port number should I
open for it in the firewall?
The following are TCP/IP socket ports which
projector uses.
Why am I unable to access the
projector via Internet?
1
Check whether your computer/laptop is
connected to the Internet.
2
Check with your MIS or network
administrator whether your computer/laptop
is in the same subnet.
UDP/TCP Port
Number
Description
TCP 80 Web configuration
(HTTP)
UDP/TCP 25 SMTP: used for email
routing between mail
servers
UDP/TCP 161 SNMP: Simple
Network
Management
Protocol
UDP 9131 AMX: used for AMX
discovery
98 Using Your Projector
Why am I unable to access the
SMTP server?
1
Check with your MIS or network
administrator whether the SMTP server
function is open for the projector and the IP
assigned to the projector is allowed to access
the SMTP server. The projector’s SMTP
socket port number is 25, this cannot be
changed.
2
Check if the out going SMTP server, user
name, and password are set correctly.
3
Some SMTP servers will check whether the
mail address of "From" correlates with the
"User name" and "Password". For example,
you use test@dell.com as the mail address in
"From". You should also use test@dell.com
account information for the User name and
the password to log in the SMTP server.
Why am I unable to receive the
test alert email even though the
projector already indicates the
test mail is already sent?
It could be because the SMTP server
recognized the alert mail as a spam mail or
because of the SMTP server restriction. Check
with your MIS or network administrator for
the SMTP server’s setting.
Using Your Projector 99
Firewall Configuration and FAQ
Q: Why can’t I access the Web Management Page?
A: Your computer’s firewall configuration may prevent you from accessing the
Web Management Web Page. Please refer to the following configuration
settings.
Firewall Protection Configuration
McAfee Security
Center
1
Launch McAfee Security Center (Start > All
Programs > McAfee > McAfee Security Center).
2
On the
personal firewall plus
tab, click
View the
Internet Applications List
.
3
Find and select
Dell S300wi Projector
from the list.
4
Right click on its
Permissions
column.
5
Select
Allow Full Access
from the pop-up menu.
Norton AntiVirus 1
Open Norton AntiVirus (Start > All Programs >
Norton AntiVirus > Norton AntiVirus).
2
Click
Options
menu, then select
Norton AntiVirus
.
3
On the
Status
page, select
Internet Worm
Protection
.
4
Find and select
Dell S300wi Projector
from the list
of programs.
5
Right click on its
Internet Access
column.
6
Select
Permit All
from the pop-up menu.
7
Click
OK
.
Sygate Personal
Firewall
1
Open Sygate Personal Firewall (Start > All Programs
> Sygate > Sygate Personal Firewall).
2
From the
Running Applications
list, find and right
click on
Dell S300wi Projector.
3
Select
Allow
from the pop-up menu.
100 Using Your Projector
Windows Firewall 1
Open Windows Firewall (Start > All Programs >
Control Panel). Double click on
Windows Firewall
.
2
On the
General
tab, uncheck
Don’t allow
exceptions
.
3
On the
Exceptions
tab, click the
Add Program...
button.
4
Find and select
Dell S300wi Projector
from the list
of programs, then click
OK
.
5
Click
OK
to confirm exceptions settings.
Zone Alarm 1
Open Zone Alarm Firewall (Start > All Programs >
Zone Labs > Zone Labs Center).
2
On the
Program Control
page, find and select
Dell
S300wi Projector
from the list.
3
Right click on its
Access-Trusted
column.
4
Select
Allow
from the pop-up menu.
5
Right click and select
Allow
for the
Access-Internet
,
Server-Trusted
, and
Server-Internet
columns.
Firewall Protection Configuration
Using Your Projector 101

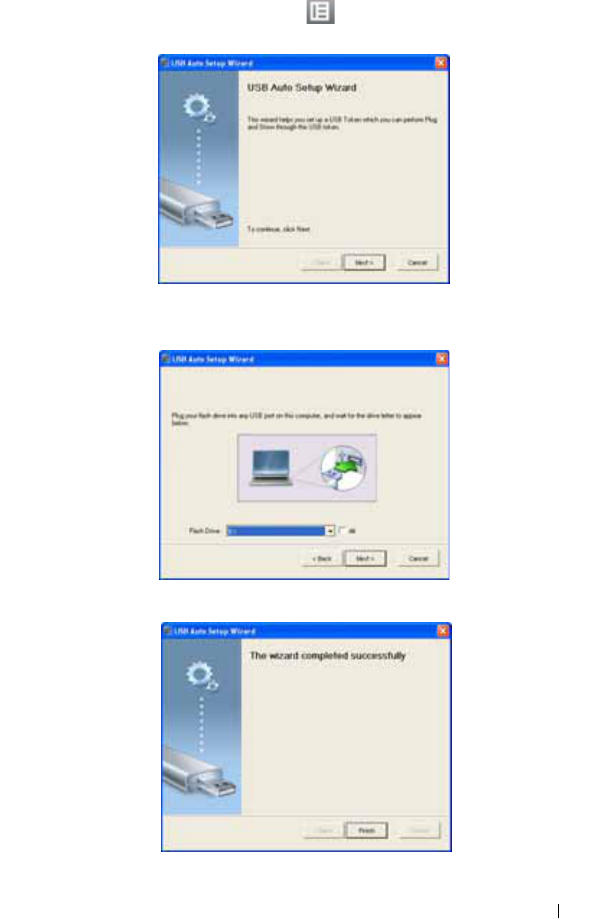

Make Application Token
The Application Token lets you perform Plug and Show using a USB token.
1
From the application software, click >
Make Application Token
.
2
The following screen appears. Click
Next
.
3
Plug a flash drive into any of the USB ports on your computer. Select the drive
from the list, then click
Next
.
4
Click
Finish
to close the wizard.
102 Troubleshooting Your Projector
4
Troubleshooting Your Projector
If you experience problems with your projector, see the following troubleshooting
tips. If the problem persists, contact Dell™ (see Contacting Dell™ on page 119).
Problem Possible Solution
No image appears on the
screen
• Ensure that the lens cap is removed and the
projector is turned on.
• Ensure that you have chosen the correct
input source on the INPUT SELECT menu.
• Ensure the external graphics port is enabled.
If you are using a Dell™ Laptop computer,
press (Fn+F8). For other
computers, see your respective
documentation. If images are not displayed
properly, please upgrade the video driver of
your computer. For Dell computer, see
support.dell.com.
• Ensure that all the cables are securely
connected. See "Connecting Your Projector"
on page 11.
• Ensure that the pins of the connectors are
not bent or broken.
• Ensure that the lamp is securely installed
(see "Changing the Lamp" on page 111).
•Use
Test Patter n
in the
Others
menu.
Ensure that the colors of the test pattern are
correct.
Missing Input Source.
Cannot switch to particular
Input Source.
Go to Advanced Enable/Disable Sources,
ensure that particular Input Source is set to
Enable.
Troubleshooting Your Projector 103

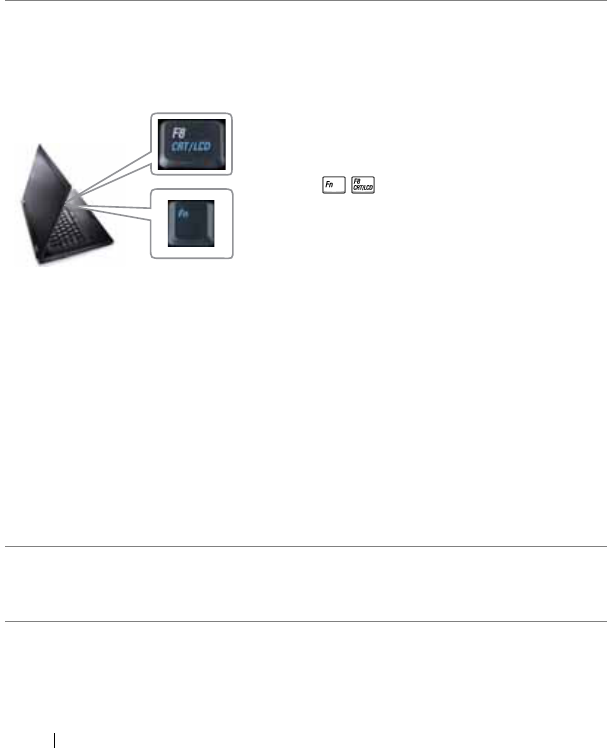

Partial, scrolling, or
incorrectly displayed image
1
Press the
Auto Adjust
button on the remote
control or the control panel.
2
If you are using a Dell™ portable computer,
set the resolution of the computer to WXGA
(1280 x 800) or XGA (1024 x 768):
a
Right-click the unused portion of your
Microsoft
®
Windows
®
desktop, click
Properties
and then select
Settings
tab.
b
Verify that the setting is 1280 x 800 or
1024 x 768 pixels for the external monitor
port.
c
Press (Fn+F8).
If you experience difficulty in changing
resolutions or your monitor freezes, restart all
the equipment and the projector.
If you are not using a Dell™ portable
computer, see your documentation. If images
are not displayed properly, please upgrade the
video driver of your computer. For a Dell
computer, see support.dell.com.
The screen does not display
your presentation If you are using a portable computer, press
(Fn+F8)
.
Image is unstable or flickering Adjust the tracking in the OSD Display sub-
menu (in PC Mode only).
Image has vertical flickering
bar Adjust the frequency in the OSD Display sub-
menu (in PC Mode only).
Image color is incorrect
• If the display receives the wrong signal
output from the graphics card, please set the
signal type to
RGB
in the OSD
Display
tab.
•Use
Test Patter n
in the
Others
menu.
Ensure that the colors of the test pattern are
correct.
Image is out of focus 1
Adjust the focus ring on the projector lens.
2
Ensure that the projection screen is within
the required distance from the projector
(1.64 ft [0.5 m] to 10.83 ft [3.3 m]).
Problem
(continued)
Possible Solution
(continued)
104 Troubleshooting Your Projector
The image is stretched when
displaying a 16:9 DVD The projector automatically detects the input
signal format. It will maintain the aspect ratio
of the projected image according to input
signal format with an Original setting.
If the image is still stretched, adjust the aspect
ratio in the
Set Up
menu in the OSD.
Image is reversed Select Set Up from the OSD and adjust the
projector mode.
Lamp is burned out or makes
a popping sound When the lamp reaches its end of life, it may
burn out and may make a loud popping sound.
If this occurs, the projector does not turn back
on. To replace the lamp, see "Changing the
Lamp" on page 111.
LAMP light is solid amber If the LAMP light is solid amber, replace the
lamp.
LAMP light is blinking amber If the LAMP light is blinking amber, Lamp
module connection may be disrupted. Please
check the lamp module and ensure that it is
properly installed.
If the LAMP light and the Power light are
blinking amber, the lamp driver has failed and
the projector will automatically shut down.
If the LAMP and TEMP light are blinking
amber and the Power light is solid blue, the
color wheel has failed and the projector will
automatically shut down.
To clear the protection mode, press and hold
the POWER button for 10 seconds.
TEMP light is solid amber The projector has overheated. The display
automatically shuts down. Turn the display on
again after the projector cools down. If the
problem persists, contact Dell™.
Problem
(continued)
Possible Solution
(continued)
Troubleshooting Your Projector 105
TEMP light is blinking amber A projector fan has failed and the projector
will automatically shut down. Try to clear the
projector mode by pressing and holding the
POWER button for 10 seconds. Please wait
for about 5 minutes and try to power up again.
If the problem persists, contact Dell™.
The OSD does not appear on
the screen Try to press the Menu button on the panel for
15 seconds to unlock the OSD. Check the
Menu Lock on page 57.
The remote control is not
operating smoothly or works
only within a limited range
The battery may be low. Check if the laser
beam transmitted from the remote is too dim.
If so, replace with 2 new AAA batteries.
Cannot use the Pen or cannot
connect the Pen
• Check if the input source is PC (VGA,
HDMI, Wireless and LAN source)
• Check if the Interactive function is turned
On. (Menu -> OTHERS -> Interactive)
• Check if the Connection option is set
correctly. (Menu -> OTHERS -> Interactive
-> Connection)
• When using Wireless or LAN connection,
and the Pen does not work,check if the
Wireless/Network function is turned On.
(Menu -> SET UP -> Wireless / Network
• When using Wireless or LAN connection,
check if Dell Wireless
• Application Software is connected. (Only
support full screen mode output).
• Check if Photo sensor is facing towards the
screen.
• If there are a number of Interactive Pens at
the same time, only one Pen can face the
screen. If there are more than two Pens
facing the screen, the Pen will not work.
• Push any key to wake up (except Nib
button).
Problem
(continued)
Possible Solution
(continued)
106 Troubleshooting Your Projector
Cannot use the Pen or cannot
connect the Pen?
a
Check if the input source is PC (VGA,
HDMI, Wireless and LAN source).
b
Check if the Interactive function is turned
On. (Menu
J
OTHERS
J
Interactive)
c
Check if the Connection option is set
correctly. (Menu
J
OTHERS
J
Interactive
J
Connection)
d
When using Wireless or LAN connection,
and the Pen does not work, check if the
Wireless/Network function is turned On.
(Menu
J
SET UP
J
Wireless / Network)
e
When using Wireless or LAN connection,
check if Dell Wireless Application Software
is connected. (Only support full screen
mode output).
f
Check if Photo sensor is facing towards the
screen.
g
If there are a number of Interactive Pens at
the same time, only one Pen can face the
screen. If there are more than two Pens
facing the screen, the Pen will not work.
h
Push any key to wake up (except Nib
button).
The LED does not work.
a
Check if the battery is installed.
b
Check if the battery is installed correctly.
c
Check if the battery is not depleted.
The Amber LED is
continuously lit The battery is low, change a new one.
The Green LED is
continuously lit, but the cursor
does not move, and the
projector screen displays "USB
connection is not detected".
Check if the Mini USB is connected.
Cannot select Interactive Check if there is a PC (VGA, HDMI, Wireless
and LAN source) input source.
Problem
(continued)
Possible Solution
(continued)
Troubleshooting Your Projector 107
Cannot use the Pen in 3D
source.
a
The 3D source does not support the
Interactive Pen.
b
Output signal of 120 Hz does not support
the Interactive Pen.
Cannot use the Pen in
Composite Video or S-Video
source.
Composite Video or S-Video source does not
support the Interactive Pen.
Cannot use Nib Nib is worn out, replace with a new Nib.
When using USB Display, can
Wireless USB function be
used?
Wireless USB function is not supported.
Problem
(continued)
Possible Solution
(continued)
108 Troubleshooting Your Projector
Guiding Signals
Projector
Status Description
Control Buttons Indicator
Power TEMP
(Amber) LAMP
(Amber)
Standby mode Projector in Standby mode. Ready to
power on. BLUE
Flashing OFF OFF
Warming up
mode Projector takes some time to warm up
and power on. BLUE OFF OFF
Lamp on Projector in Normal mode, ready to
display an image.
Note:
The OSD menu is not accessed.
BLUE OFF OFF
Cooling mode Projector is cooling to shutdown. BLUE OFF OFF
Power Saving
mode Power Saving mode has been activated.
The projector will automatically enter
standby mode, if an input signal is not
detected in two hours.
AMBER
Flashing OFF OFF
Cooling before
Power Saving
mode
The projector takes 60 seconds to cool
down before entering Power Saving
mode. AMBER OFF OFF
Projector
overheated Air vents might be blocked or ambient
temperature may be above 35ºC. The
projector automatically shuts down.
Ensure that the air vents are not blocked
and that the ambient temperature is
within operational range. If the problem
persists, contact Dell.
OFF AMBER OFF
Lamp driver
overheated The lamp driver is overheated. The air
vents may be blocked. The projector
automatically shuts down. Turn the
display on again after the projector cools
down. If the problem persists, contact
Dell.
AMBER AMBER OFF
Fan breakdown One of the fans has failed. The projector
automatically shuts down. If the problem
persists, contact Dell. ÒFF AMBER
Flashing OFF
Lamp driver
breakdown The lamp driver has failed. The projector
automatically shuts down. Unplug the
power cord after three minutes then turn
the display on again. If this problem
persists, contact Dell.
AMBER
Flashing OFF AMBER
Flashing
Color Wheel
breakdown Color wheel cannot start. The projector
has failed and the projector
automatically shuts down. Unplug the
power cord after three minutes and then
turn on the projector. If this problem
persists, contact Dell.
BLUE AMBER
Flashing AMBER
Flashing
Troubleshooting Your Projector 109
Lamp failure Lamp is defective. Replace the lamp. OFF OFF AMBER
Fault - DC
supply (+12V) Power supply has been interrupted. The
projector automatically shuts down.
Unplug the power cord after three
minutes and then turn on the projector. If
this problem persists, contact Dell.
AMBER
Flashing AMBER AMBER
Lamp module
connection
failed
Lamp module connection may be
disrupted. Check the lamp module and
ensure that it is properly installed. If the
problem persists, contact Dell.
OFF OFF AMBER
Flashing
110 Troubleshooting Your Projector
Interactive Pen LED Guiding Signals
Pen Status Description Indicator Checking flow and items / times
Green color Amber color
Normal mode Pen faces the
screen with the
link. Solid ON OFF
Standby mode Pen doesn’t faces
the screen but with
the link.
Flashing
0.1s ON/1s OFF OFF Will enter Sleep mode after 3
minutes.
Finding AP then
enter pairing
Find AP then enter
Pairing mode.
Flashing Flashing Flash Amber one time, next flash
Green one time, then turn off both.
Search mode When you search
for a channel and
no signal is
available, LED
Green & Amber
will blink 1 time.
Flashing
0.1 sec. Flashing
0.1 sec.
When you search for a channel and
no signal is available, LED Green &
Amber will blink 1 time.
Sleep mode Enter Sleep mode
for power saving
purpose.
Solid ON
3 sec. Solid ON
3 sec.
•Set the Interactive to OFF on
OSD menu when using pen with
the link: will enter Sleep mode
after 5 sec.
•Pen doesn't face the screen but
with the link: will enter Sleep
mode after 3 minutes.
•Reloading the battery will restart
or reset first. After searching for
AP channel 3 cycles without a link,
will enter Sleep mode.
Reset Pairing or linking
failure will perform
the reset
automatically.
Flashing Flashing Green and Amber LED flash
alternatively. The total is 3 times.
Low battery
capability The pen battery is
low. Two hours are
left to run out of
the battery. OFF Flashing
1s On & 1s OFF
The MSP430 will check battery
capacity in normal operation. This
alert LED signal is shown if the
battery capacity is low.
Note: This signal is shown only
when pen faces the interactive
screen.
Battery is
exhausted and
can not run PB.
The Photo sensor
and RF module
cannot work
properly. Pen can
not work normally. OFF Solid ON
The pen battery is exhausted. Power
only works for MSP430. The alert
LED will appear 1 minute to save
power and then enter Standby
mode. Pen cannot be used in this
status.
Note: This signal is shown only
when the pen faces the interactive
screen.
Troubleshooting Your Projector 111
Changing the Lamp
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 9.
Replace the lamp when the message "/DPSLVDSSURDFKLQJWKHHQGRILWVXVHIXO
OLIHLQ WKH RSHUDWLRQ5HSODFHPHQWVXJJHVWHGZZZGHOOFRPODPSV" appears
on the screen. If this problem persists after replacing the lamp, contact Dell™. For
more information, see Contacting Dell™on page 119.
CAUTION: Use an original lamp to ensure safe and optimal working condition
of your projector.
CAUTION: The lamp becomes very hot when in use. Do not attempt to replace
the lamp until the projector has been allowed to cool down for at least 30
minutes.
CAUTION: Do not touch the bulb or the lamp glass at any time. Projector
lamps are very fragile and may shatter if touched. The shattered glass pieces
are sharp and can cause injury.
CAUTION: If the lamp shatters, remove all broken pieces from the projector
and dispose or recycle according to state, local, or federal law. For more
information see www.dell.com/hg.
1
Turn off the projector and disconnect the power cord.
2
Let the projector cool for at least 30 minutes.
3
Loosen the two screws that secure the
lamp cover, and remove the cover.
4
Loosen the two screws that secure the
lamp.
5
Pull the lamp up by its metal handle.
NOTE: Dell™ may require lamps
replaced under warranty to be returned
to Dell™. Otherwise, contact your local
waste disposal agency for the address
of the nearest deposit site.
6
Replace with the new lamp.
7
Tighten the two screws that secure the
lamp.
8
Replace the lamp cover and tighten the
two screws.
112 Troubleshooting Your Projector
9
Reset the lamp usage time by selecting "Yes" for
Lamp Reset
in the OSD
Lamp
tab (see Lamp menu on
page 52
). When a new lamp module has been changed,
the projector will automatically detect and reset the lamp hours.
CAUTION: Lamp Disposal (for the US only)
LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE
RECYCLED OR DISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL
LAWS. FOR MORE INFORMATION, GO TO WWW.DELL.COM/HG OR CONTACT
THE ELECTRONIC INDUSTRIES ALLIANCE AT WWW.EIAE.ORG. FOR LAMP
SPECIFIC DISPOSAL INFORMATION CHECK WWW.LAMPRECYCLE.ORG.
Specifications 113
5
Specifications
Light Valve 0.65" WXGA S450 DMD, DarkChip3™
Brightness 2200 ANSI Lumens (Max.)
Contrast Ratio 2400:1 Typical (Full On/Full Off)
Uniformity 80% Typical (Japan Standard - JBMA)
Number of Pixels 1280 x 800 (WXGA)
Displayable Color 1.07 billion colors
Color Wheel Speed 2X
Projection Lens F-Stop: F/ 2.8
Focal length, f=7.2 mm
1X manual Zoom Lens, Fix
Throw ratio =0.521 wide and tele
Projection Screen Size 44.6-294 inches (diagonal)
Projection Distance 1.64~10.83 ft (0.5 m~3.3 m)
Video Compatibility Composite Video / S-Video: NTSC (J, M, 4.43), PAL
(B, D, G, H, I, M, N, Nc, 60), SECAM (B, D, G, K,
K1, L)
Component Video via VGA & HDMI: 1080i/p,
720p, 576i/p, 480i/p
Power Supply Universal AC 100-240 50-60 Hz with PFC input
Power Consumption Normal mode: 256W ± 10% @ 110Vac
(Wireless and Network On)
Power saving mode: <20W (Wireless and Network
On, fan speed at minimum)
Standby mode: < 1W (Network Off & VGA_OUT
Off & Wireless Off)
Audio 1 speaker x 8 watt RMS
Noise Level 33 dB +/- 2 dB(A)
114 Specifications

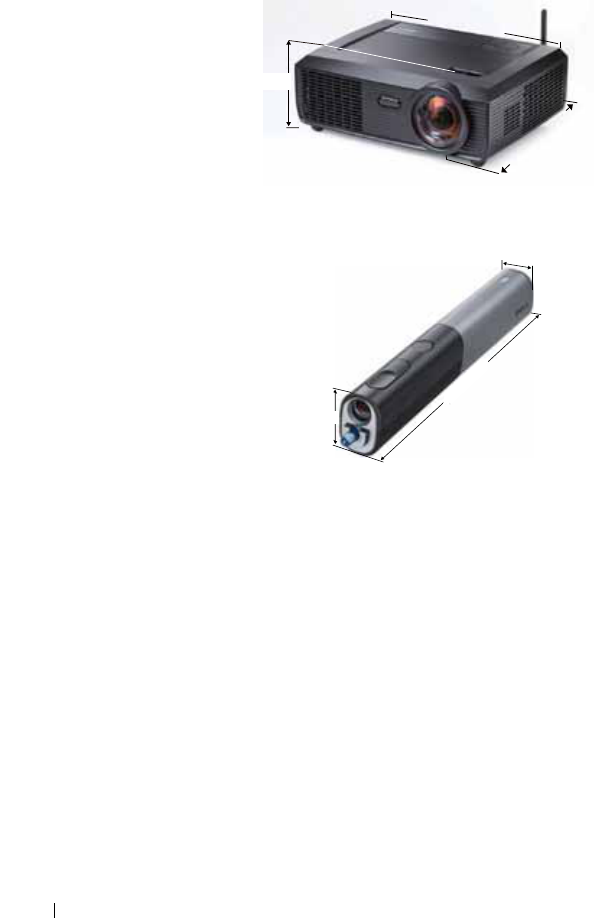

Weight 6.9 lbs (3.13 kg)
Dimensions (W x H x D)
Projector
12 x 3.9 x 9.7 inches (306 x 99 x 246.5 mm)
Dimensions (W x H x D)
Interactive Pen
6.94 x 1.24 x 0.98 inches (176.2 x 31.5 x 25 mm)
Environmental Operating temperature: 5oC - 35oC (41oF- 95oF)
Humidity: 80% maximum
Storage temperature: 0oC to 60oC (32oF to 140oF)
Humidity: 90% maximum
Shipping temperature: -20oC to 60oC
(-4oF to 140oF)
Humidity: 90% maximum
I/O Connectors Power: One AC power socket (3-pin - C14 inlet)
VGA input: Two 15-pin D-sub connectors (Blue),
VGA-A & VGA-B, for analog RGB/Component
input signals.
VGA output: One 15-pin D-sub connector (Black)
for VGA-A loop through.
S-Video input: One standard 4-pin min-DIN
S-Video connector for Y/C signal.
3.9"(99mm)
12"(306mm)
9.7"(246.5mm)
1.24"(31.5mm)
0.98"(25mm)
6.94"(176.2mm)
Specifications 115
NOTE: The lamp life rating for any projector is a measure of brightness
degradation only, and is not a specification for the time it takes a lamp to fail
and cease light output. Lamp life is defined as the time it takes for more than 50
percent of a lamp sample population to have brightness decrease by
Composite Video input: One Yellow RCA jack for
CVBS signal.
HDMI input: One HDMI connector for supporting
HDMI 1.3. HDCP compliant.
Analog Audio input: One 3.5 mm stereo mini phone
jack (Blue) & one pair of RCA connector
(Red/White).
Variable audio output: One 3.5 mm stereo mini
phone jack (Green).
USB port: One USB slave (Mini USB) for remote
support & two type-A/type-B of USB connector.
RS232 port: One mini-DIN 6-pin for RS232
communication.
RJ45 port: One RJ45 connector for control of
projector through network.
Microphone: One 3.5 mm stereo mini phone jack
(Pink).
12V output: One 12V DC / 200mA max. relay
output for driving automatic screen.
Wireless Wireless Standard: IEEE802.11b/g
Wireless: One Wireless connector (Embedded
WiFi).
OS environment: Windows 7/Vista/XP/2000, MAC
OS X
Support: Presentation slides and projector control.
Allow connection up to 30 users at the same time.
4-to-1 split screen. Allow 4 presentation slides to be
projected on screen.
Conference Control mode.
Lamp OSRAM 190 user-replaceable lamp (up to 5000
hours)
116 Specifications
approximately 50 percent of the rated lumens for the specified lamp. The lamp
life rating is not guaranteed in any way. The actual operating life span of a
projector lamp will vary according to operating conditions and usage patterns.
Usage of a projector in stressful conditions which may include dusty
environments, under high temperatures, many hours per day and abrupt
powering-off will most likely result in a lamp’s shortened operating life span or
possible lamp failure.
Specifications 117
RS232 Pin Assignment
RS232 Protocol
• Communication Settings
• Command types
To pop up the OSD menu and adjust the settings.
• Control command Syntax (From PC to Projector)
[H][AC][SoP][CRC][ID][SoM][COMMAND]
•Example: Power ON Command (Send low byte firstly)
--> 0xBE, 0xEF, 0x10, 0x05, 0x00, 0xC6, 0xFF, 0x11, 0x11, 0x01, 0x00, 0x01
•Control Commands List
To view the latest RS232 code, go to the Dell Support site at:
support.dell.com.
Connection settings Value
Baud Rate: 19200
Data Bits: 8
Parity None
Stop Bits 1
118 Specifications
Compatibility Modes (Analog/Digital)
Resolution Refresh Rate (Hz) Hsync Frequency
(KHz) Pixel Clock (MHz)
640 x 350 70.087 31.469 25.175
640 x 480 59.940 31.469 25.175
640 x 480 p60 59.940 31.469 25.175
720 x 480 p60 59.940 31.469 27.000
720 x 576 p50 50.000 31.250 27.000
720 x 400 70.087 31.469 28.322
640 x 480 75.000 37.500 31.500
848 x 480 60.000 31.020 33.750
640 x 480 85.008 43.269 36.000
800 x 600 60.317 37.879 40.000
800 x 600 75.000 46.875 49.500
800 x 600 85.061 53.674 56.250
1024 x 768 60.004 48.363 65.000
1280 x 720 p50 50.000 37.500 74.250
1280 x 720 p60 60.000 45.000 74.250
1920 x 1080 i50 50.000 28.125 74.250
1920 x 1080 i60 60.000 33.750 74.250
1280 x 720 59.855 44.772 74.500
1024 x 768 75.029 60.023 78.750
1280 x 800 59.810 49.702 83.500
1366 x 768 59.790 47.712 85.500
1360 x 768 60.015 47.712 85.500
1024 x 768 84.997 68.677 94.500
1440 x 900 59.887 55.935 106.500
1152 x 864 75.000 67.500 108.000
1280 x 960 60.000 60.000 108.000
1280 x 1024 60.020 63.981 108.000
1152 x 864 85.000 77.095 119.651
1400 x 1050 59.978 65.317 121.750
1280 X 800 84.880 71.554 122.500
1280 x 1024 75.025 79.976 135.000
1440 X 900 74.984 70.635 136.750
1680 x 1050 59.954 65.290 146.250
1280 x 960 85.002 85.938 148.500
1920 x 1080 60.000 67.500 148.500
1400 X 1050 74.867 82.278 156.000
1280 x 1024 85.024 91.146 157.000
1440 X 900 84.842 80.430 157.000
1600 x 1200 60.000 75.000 162.000
Contacting Dell 119
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-
3355).
NOTE: If you do not have an active Internet connection, you can find contact
information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell™ provides several online and telephone-based support and service
options. Availability varies by country and product, and some services may
not be available in your area. To contact Dell for sales, technical support,
or customer service issues:
1
Visit
support.dell.com
.
2
Verify your country or region in the
Choose A Country/Region
drop-
down menu at the bottom of the page.
3
Click
Contact Us
on the left side of the page.
4
Select the appropriate service or support link based on your need.
5
Choose the method of contacting Dell that is convenient for you.
120 Glossary
Appendix:!Glossary
ANSI LUMENS — A standard for measuring the brightness. It is calculated by
dividing a square meter image into nine equal rectangles, measuring the lux (or
brightness) reading at the center of each rectangle, and averaging these nine
points.
ASPECT RATIO — The most popular aspect ratio is 4:3 (4 by 3). Early television and
computer video formats are in a 4:3 aspect ratio, which means that the width of
the image is 4/3 times the height.
Brightness — The amount of light emitted from a display or projection display or
projection device. The brightness of projector is measured by ANSI lumens.
Color Temperature — The color appearance of white light. Low color
temperature implies warmer (more yellow/red) light while high color temperature
implies a colder (more blue) light. The standard unit for color temperature is
Kelvin (K).
Component Video — A method of delivering quality video in a format that
consists of the luminance signal and two separate chrominance signals and are
defined as Y'Pb'Pr' for analog component and Y'Cb'Cr' for digital component.
Component video is available on DVD players.
Composite Video — A video signal that combines the luma (brightness), chroma
(color), burst (color reference), and sync (horizontal and vertical synchronizing
signals) into a signal waveform carried on a single wire pair. There are three kind of
formats, namely, NTSC, PAL and SECAM.
Compressed Resolution — If the input images are of higher resolution than the
native resolution of the projector, the resulting image will be scaled to fit the
native resolution of the projector. The nature of compression in a digital device
means that some image content is lost.
Contrast Ratio — Range of light and dark values in a picture, or the ratio between
their maximum and minimum values. There are two methods used by the
projection industry to measure the ratio:
1
Full On/Off
— measures the ratio of the light output of an all white image (full
on) and the light output of an all black (full off) image.
2
ANSI
— measures a pattern of 16 alternating black and white rectangles. The
average light output from the white rectangles is divided by the average light
output of the black rectangles to determine the
ANSI
contrast ratio.
Full On/Off contrast is always a larger number than ANSI contrast for the same
projector.
Glossary 121
dB — decibel — A unit used to express relative difference in power or intensity,
usually between two acoustic or electric signals, equal to ten times the common
logarithm of the ratio of the two levels.
Diagonal Screen — A method of measuring the size of a screen or a projected
image. It measures from one corner to the opposite corner. A 9FT high, 12FT
wide, screen has a diagonal of 15FT. This document assumes that the diagonal
dimensions are for the traditional 4:3 ratio of a computer image as per the example
above.
DHCP — Dynamic Host Configuration Protocol —A network protocol that
enables a server to automatically assign a TCP/IP address to a device.
DLP®—Digital Light Processing™ — Reflective display technology developed by
Texas Instruments, using small manipulated mirrors. Light passes through a color
filter is sent to the DLP mirrors which arrange the RGB colors into a picture
projected onto screen, also known as DMD.
DMD — Digital Micro-Mirror Device — Each DMD consists of thousands of
tilting, microscopic aluminum alloy mirrors mounted on a hidden yoke.
DNS — Domain Name System — An internet service that translates domain
names into IP addresses.
Focal Length — The distance from the surface of a lens to its focal point.
Frequency — It is the rate of repetition in cycles per seconds of electrical signals.
Measured in Hz (Hertz).
HDCP — High-Bandwidth Digital-Content Protection — A specification
developed by Intel™ Corporation to protect digital entertainment across digital
interface, such as DVI, HDMI.
HDMI — High-Definition Multimedia Interface — HDMI carries both
uncompressed high definition video along with digital audio and device control
data in a single connector.
Hz (Hertz) — Unit of frequency.
IEEE802.11 — A set of standards for wireless local are network (WLAN)
communication. 802.11b/g uses the 2.4GHz band.
Keystone Correction — Device that will correct an image of the distortion
(usually a wide-top narrow-bottom effect) of a projected image caused by
improper projector to screen angle.
Maximum Distance — The distance from a screen the projector can be to cast an
image that is usable (bright enough) in a fully darkened room.
Maximum Image Size — The largest image a projector can throw in a darkened
room. This is usually limited by focal range of the optics.
122 Glossary
Minimum Distance — The closest position that a projector can focus an image
onto a screen.
NTSC — National Television Standards Committee. North American standard for
video and broadcasting, with a video format of 525 lines at 30 frames per second.
PAL — Phase Alternating Line. A European broadcast standard for video and
broadcasting, with a video format of 625 lines at 25 frames per second.
Reverse Image — Feature that allows you to flip the image horizontally. When
used in a normal forward projection environment text, graphics, etc. are
backwards. Reverse image is used for rear projection.
RGB — Red, Green, Blue — typically used to describe a monitor that requires
separate signals for each of the three colors.
S-Video — A video transmission standard that uses a 4-pin mini-DIN connector
to send video information on two signal wires called luminance (brightness, Y) and
chrominance (color, C). S-Video is also referred to as Y/C.
SECAM — A French and international broadcast standard for video and
broadcasting, closely related to PAL but with a different method of sending color
information.
SSID — Service Set Identifiers — A name used to identify the particular wireless
LAN to which a user wants to connect.
SVGA — Super Video Graphics Array — 800 x 600 pixels count.
SXGA — Super Extended Graphics Array, —1280 x 1024 pixels count.
UXGA — Ultra Extended Graphics Array — 1600 x 1200 pixels count.
VGA — Video Graphics Array — 640 x 480 pixels count.
WEP — Wired Equivalent Privacy — This is a method for encrypting
communication data. The encryption key is created and notified only to the
communicating user, so the communication data cannot be decrypted by a third
party.
XGA — Extended Video Graphics Array — 1024 x 768 pixels count.
WXGA — Wide Extended Graphics Array — 1280 x 800 pixels count.
Zoom Lens — Lens with a variable focal length that allows operator to move the
view in or out making the image smaller or larger.
Zoom Lens Ratio — Is the ratio between the smallest and largest image a lens can
projector from a fixed distance. For example, a 1.4:1 zoom lens ratio means that a
10 foot image without zoom would be a 14 foot image with full zoom.
Index 123
Index
A
Adjusting the Projected Image 28
Adjusting the Projector Height
28
lower the projector
Front tilt adjustment
wheel 28
Tilt adjustment wheel 28
Adjusting the Projector Zoom and
Focus 29
Focus ring 29
Audio Input 58
Audio Settings 58
C
Capture Screen 58
Changing the Lamp 111
Closed Caption 62
Connecting the Projector
Composite Video cable 19
Connecting a Computer with a
RS232 cable 15,16
Connecting with a Component
Cable 20
Connecting with a Composite
Cable 19
Connecting with an HDMI
Cable 21
Connecting with an S-video
Cable 18
HDMI cable 21,22,24
Power cord 13,14,15,16,18,
19,20,21,22,23,24
RS232 cable 15
S-Video cable 18
To Computer 13
USB to USB cable 13
USB-A to USB-B cable 16
VGA to VGA cable 13,14
VGA to YPbPr cable 20
Connecting with your Interactive
Pen
12V DC Plug 25
Automation Screen 25
Interactive Pen 25
Power cord 25
USB-A to Mini USB-B Cable 25
VGA to VGA Cable 25
Connection Ports
+12V DC out connector 11
Antenna connector 11
Audio output connector 11
Audio-A input connector
connector 11
Audio-B left-channel input
connector 11
Audio-B right-channel input
connector 11
Composite Video connector 11
HDMI connector 11
124 Index
Microphone connector 11
Mini USB for remote mouse,
Interactive function and
Firmware upgrade. 11
Power code connector 11
RJ45 connector 11
RS232 connector 11
Security bar 11
Security cable slot 11
S-Video connector 11
USB Type A Viewer connector
11
USB Type B Display connector
11
VGA-A input (D-sub) connector
11
VGA-A output (monitor
loop-through) 11
VGA-B input (D-sub) connector
11
Contact Dell 7,104,111
Control Panel 32
D
Dell
contacting 119
I
Interactive Pen
Battery cover 9
Control panel 9
LED indicators 9
Lens 9
Replaceable nib 9
Security bar 9
M
Main Unit 8
Antenna 8
Control panel 8
Focus tab 8
IR receivers 8
Lens 8
Lens cap 8
Menu Position 57
Menu Settings 57
Menu Timeout 57
Menu Transparency 57
Mute 58
O
On-Screen Display 44
Auto-Adjust 46
Display (in PC Mode) 49
Display (in Video Mode) 51
Input Select 45
Lamp 52
Main Menu 44
Others 57
Picture (in PC Mode) 46
Picture (in Video Mode) 47
Set Up 52
P
Password 60
Index 125
phone numbers 119
Power Saving 59
Power Settings 59
Powering On/Off the Projector
Powering Off the Projector 27
Powering On the Projector 27
Q
Quick Shutdown 59
R
Remote Control 34
IR receiver 33
Reset 58
Reset, Factory 66
S
Screen 58
Screen Settings 58
Security Settings 59
Speaker 58
Specifications
Audio 113
Brightness 113
Color Wheel Speed 113
Contrast Ratio 113
Dimensions 114
Displayable Color 113
Environmental 114
I/O Connectors 114
Light Valve 113
Noise Level 113
Number of Pixels 113
Power Consumption 113
Power Supply 113
Projection Distance 113
Projection Lens 113
Projection Screen Size 113
RS232 Protocol 117
Uniformity 113
Video Compatibility 113
Weight 114
support
contacting Dell 119
T
telephone numbers 119
Test Pattern 66
Troubleshooting 102
Contact Dell 102
V
Volume 58
