Coretronic WN6500RHN 802.11n, Dual Band, 2T2R Wireless LAN PCI Express Half Mini Module User Manual LiteOn Technology Corp
Coretronic Corp. 802.11n, Dual Band, 2T2R Wireless LAN PCI Express Half Mini Module LiteOn Technology Corp
User Manual
WN6500RH Specification Page 1/8 2012/3/30
LTC Network Access Confidential
Coretronic Corporation
802.11n, Dual Band,
2T2R Wireless LAN PCI Express Half Mini Module
WN6500RH
User Manual
This document contains confidential proprietary information and is property of LTC. The contents of this document should not
be disclosed to unauthorized persons without the written consent of LTC.
Change History:
Revision
Date
Author
Change List
Version 1.0
2011/11/01
Tracy Chang
Preliminary
Version 1.1
2011/11/01
Tracy Chang
Update Pin Define
Version 1.2
2012/3/30
Tracy Chang
Update Product Pictures
Author: Tracy Chang
Approved by: ML Wu
Editor: Tracy Chang
Project Leader: ML Wu
WN6500RH Specification Page 3/8 2012/3/30
LTC Network Access Confidential
PRODUCT FEATURES
Operate at ISM frequency bands (2.4 / 5 GHz)
IEEE standards support: IEEE 802.11a, 802.11b, 802.11g, 802.11n
The WN6500RH is developed using single-chip designed by Ralink Technology Corporation
PCI Express Half Mini Module USB interface
Complies with USB Specification 2.0, support Full-speed(12Mbps) and High-speed(480Mbps)
Enterprise level security which can apply WPA, WPA2, Wi-Fi Protected Set-Up and QoS
2 transmitter and 2 receiver allow data rates supporting up to 300 Mbps downstream and 300
Mbps upstream PHY rate
20MHz/40MHz Bandwidth Support
Low power with advanced Power Management
RoHS compliance
Low Halogen compliance
ChannelTable
WLAN2.4GHz
11Channels areprovidedfor802.11b,802.11gand802.11n(20MHz)
CHANNELRFEQUENCYCHANNELFREQUENCY
12412MHz82447MHz
22417MHz92452MHz
32422MHz102457MHz
42427MHz112462MHz
52432MHz
62437MHz
72442MHz
9Channelsareprovidedfor802.11n(40MHz)
CHANNELRFEQUENCYCHANNELFREQUENCY
32422MHz82447MHz
42427MHz92452MHz
52432MHz102457MHz
62437MHz112462MHz
72442MHz
WLAN5.18~5.32GHz
8channelsareprovidedfor802.11a,802.11n(20MHz)
CHANNELRFEQUENCYCHANNELFREQUENCY
365180MHz525260MHz
402200MHz565280MHz
445220MHz605300MHz
485240MHz645320MHz
4channelsareprovidedfor802.11n(40MHz)
CHANNELRFEQUENCYCHANNELFREQUENCY
385190MHz545270MHz
465230MHz625310MHz
WLAN5.50~5.70GHz
11channelsareprovidedfor802.11a,802.11n(20MHz)
CHANNELRFEQUENCYCHANNELFREQUENCY
1005500MHz1245620MHz
1045520MHz1285640MHz
1085540MHz1325660MHz
1125560MHz1365680MHz
1165580MHz1405700MHz
1205600MHz
5channelsareprovidedfor802.11n(40MHz)
CHANNELRFEQUENCYCHANNELFREQUENCY
1025510MHz1265630MHz
1105550MHz1345670MHz
1185590MHz
By Tracy Chang 1 / 6 4 September 2012
1. “Update Driver Software” by click right button on WLAN device
LiteOn Technology Corporation
InstalltheHardware
1. Insert the Device WN6500RF inside the USB test board .
2. The system will automatically dectect the new hardware.
By Tracy Chang 2 / 6 4 September 2012

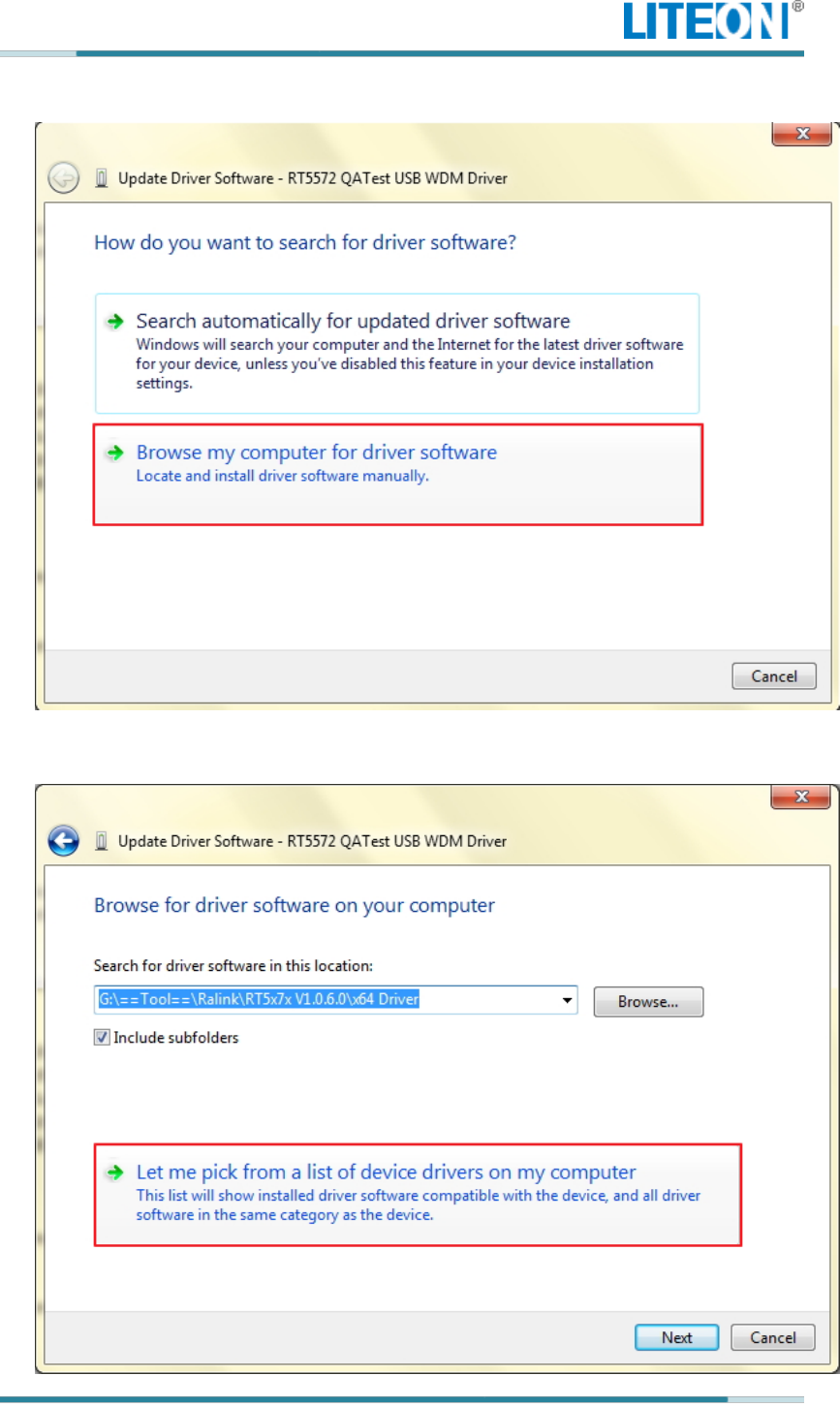

2. Choose “Browse my computer for device software”
3. Choose “Let me pick from a list of device drivers on my computer”
LiteOn Technology Corporation
By Tracy Chang 3 / 6 4 September 2012

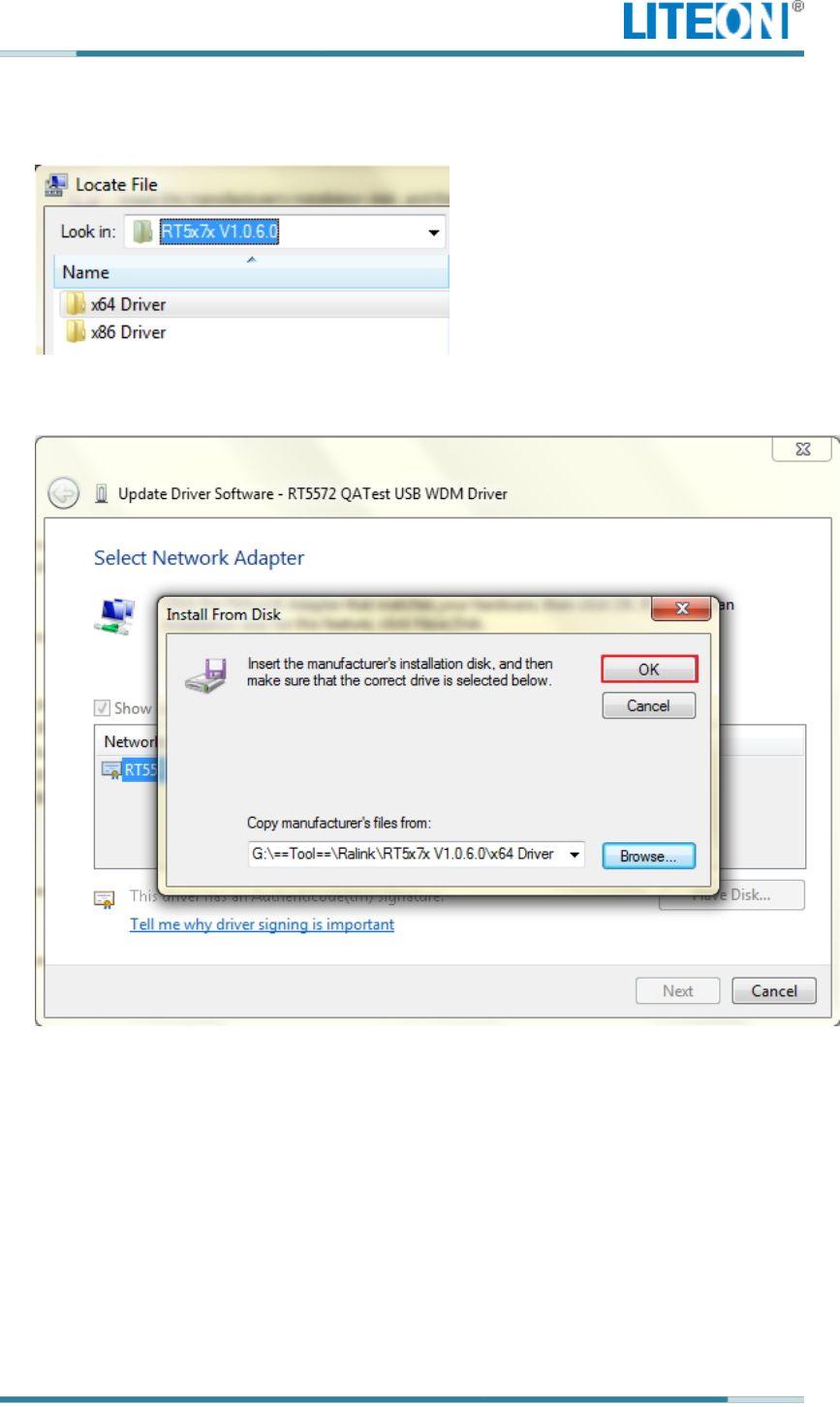

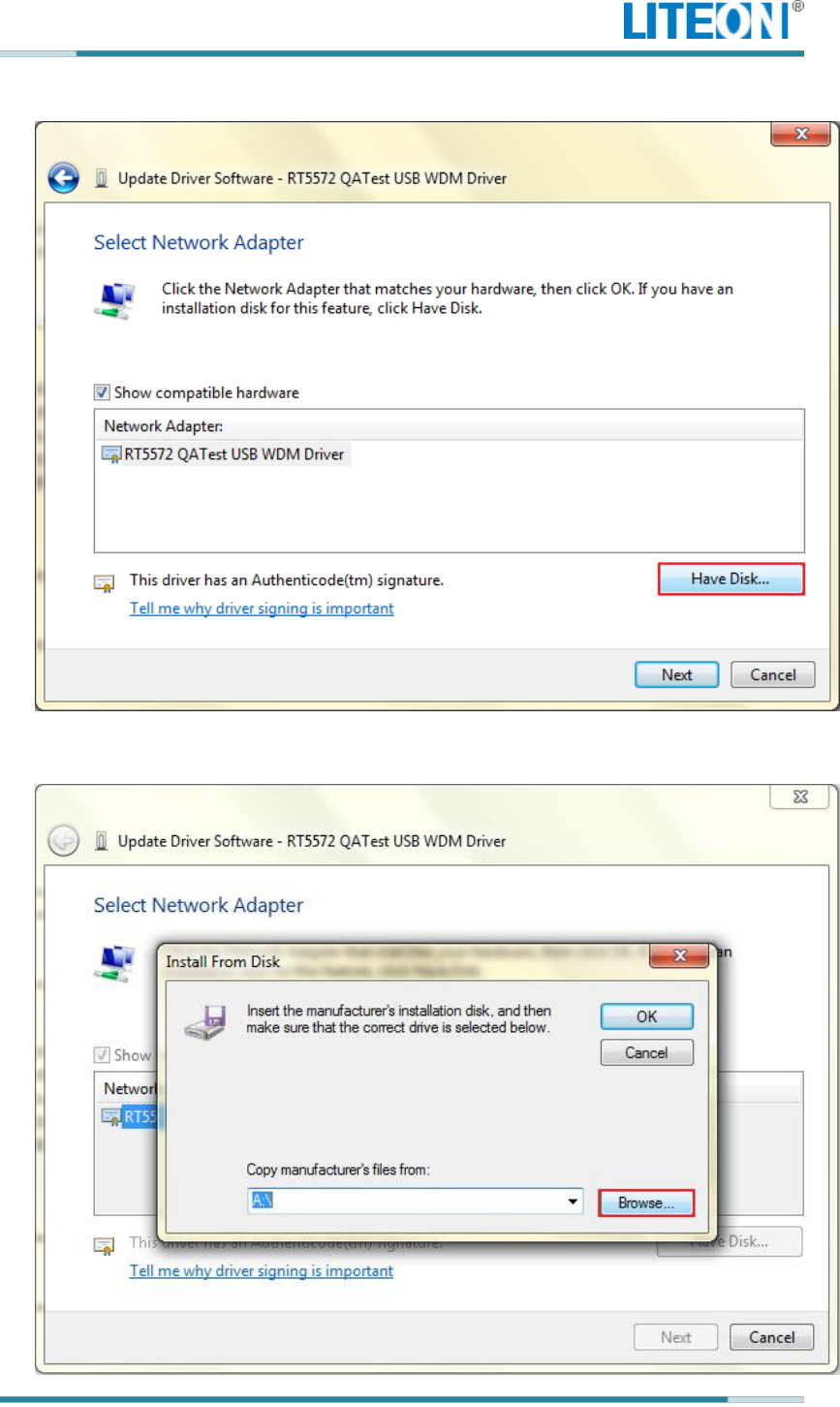

4. “Have Disk”
5. “Browse” from the file location
LiteOn Technology Corporation
By Tracy Chang 4 / 6 4 September 2012
6. Choose your OS type and enter the folder, then double click the inf file inside
7. Then press “OK”
LiteOn Technology Corporation
By Tracy Chang 5 / 6 4 September 2012
8. The file name is “RT5572 QA Test USB WDM Driver”, then click “Next”, driver will
be installed right away
9. To make sure you install correct driver, check the name of device of Device
Manager
LiteOn Technology Corporation
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna and users,
and
2) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 2 conditions above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain
laptop configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users. The final end product must be
labeled in a visible area with the following: “Contains FCC ID: SUZ-WN6500RH”. The grantee's
FCC ID can be used only when all FCC compliance requirements are met.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user’s manual of the end product which integrates this
module.
The end user manual shall include all required regulatory information/warning as show in this
manual.
